USER MANUAL SF521X SMEG

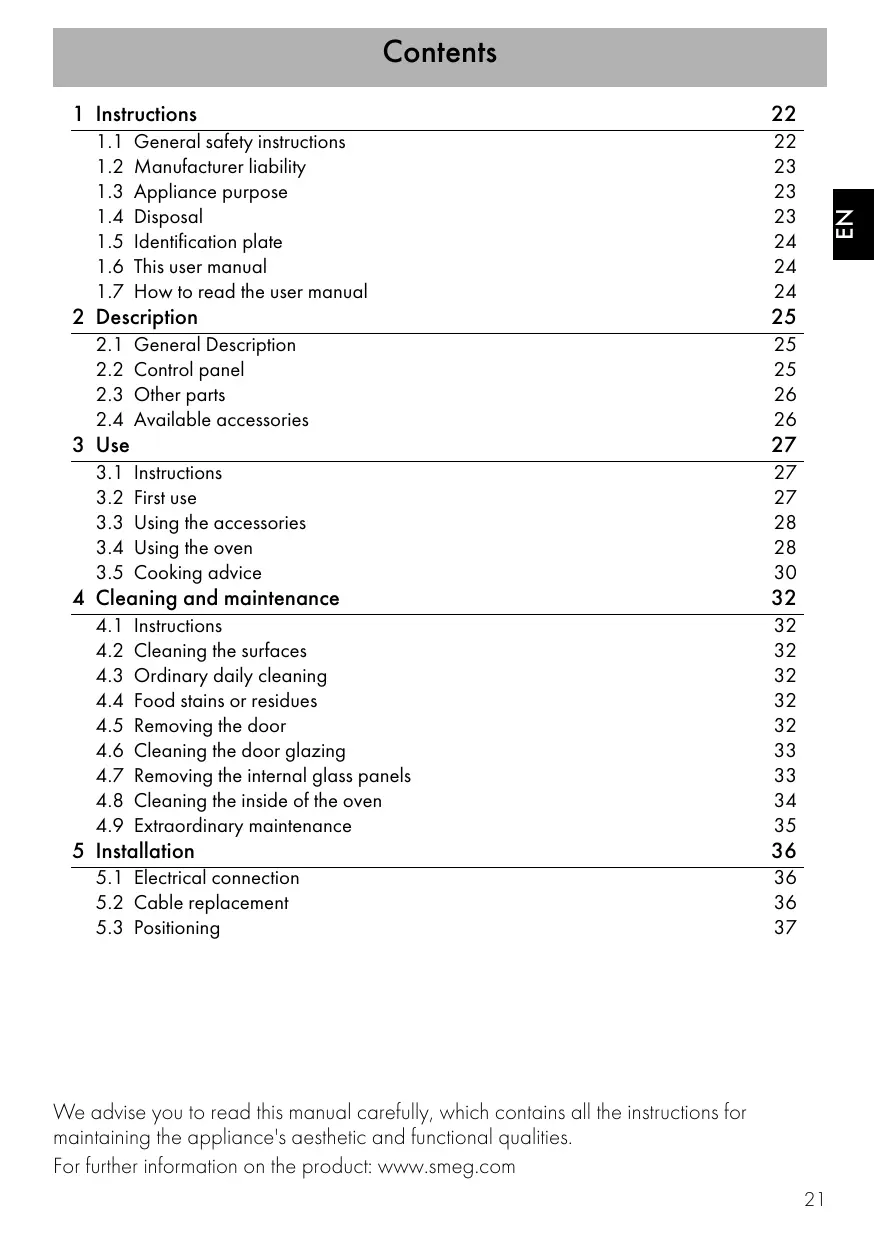

Contents 1 Instructions 22 T.1 General safety instructions 22

1.2 Manufacturer liability 23

1.3 Appliance purpose 23

1.5 Identification plate 24

1.6 This user manual 24

1.7 How to read the user manual 24

2 Description 25 2.T General Description 25

3.3 Using the accessories 28

3.4 Using the oven 28

3.5 Cooking advice 30

4 Cleaning and maintenance 32 A.T Instructions 32

4.2 Cleaning the surfaces 32

4.3 Ordinary daily cleaning 32

4.4 Food stains or residues 32

4.5 Removing the door 32

4.6 Cleaning the door glazing 33

4.7 Removing the internal glass panels 33

4.8 Cleaning the inside of the oven 34

4.9 Exiraordinary maintenance 35

We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance's aesthetic and functional qualities: For further information on the product: www.smeg.com PEN

1.1 General safety instructions

Risk of personal injury + During use the appliance and its accessible parts become very hot. + Never touch the heating elements during use. *_ Keep children under eight years of age at a safe distance if they are not constantly supervised *_ Children must never play with the appliance. + Never rest metallic objects such as knives, forks, spoons and lids on the appliance during use

• Switch the appliance off immediately after use. + Nevertry to put out a fire or lames with water: turn off the appliance and smother the flames with a fire blanket or other appropriate cover. *_ The appliance must never be cleaned by unsupervised children. + Have qualified personnel carry out installation and assistance interventions according to the standards in force. + Do not modify this appliance.

Instructions +_ Do notinsert pointed metal objects {cutlery or utensils] into the slots in the appliance. + Do nottry to repair the appliance yourself or without the intervention of a qualified technician *_IFthe power supply cable is damaged, contact technical support immediately and they will replace it. Risk of damaging the appliance + Do not use abrasive or corrosive detergents on glass parts (e.g powder products, stain removers and metallic sponges] +_ Use wooden or plastic utensils + Do not seat on the appliance. +_ Do not use steam jets for cleaning the appliance. + Do not obstruct ventilation openings and heat dispersal slots *_ Never leave the appliance unattended during cooking operations where fats or oils could be released. + Never leave objects on the cooking surface + Do not use the appliance to heat rooms for any reason.

For this appliance + Ensure that the appliance is switched off before replacing the bulb. + Do not rest any weight or sit on the open door ofthe appliance. + Take care that no objects are stuck in the doors.

1.2 Manufacturer liability

The manufaciurer declines all liability for damage to persons or property caused by: + use ofthe appliance other than the one envisaged; +_non-observance of the user manual provisions; tampering with any part of the appliance: +_use of non-original spare parts.

1.3 Appliance purpose

+_ This appliance is intended for cooking food in the home environment. Every other use is considered improper. This appliance may be used by children aged at least 8 and by people of reduced physical and mental capacity, or lacking in experience in the use of electrical appliances, as long they are supervised or instructed by adults who are responsible for their safety. +_ The appliance is not designed to operate with external timers or with remote-control systems.

X This appliance must be disposed of separately from other waste = (Directives 2002/95/EC, 2002/ 96/EC, 2003/108/EC]. The appliance does not contain substances in quantities sufficient to be considered hazardous to health and the environment, in accordance with current European directives. To dispose of the appliance: + Cutthe power supply cable and remove it along with the plug. Consign the appliance to the appropriate selective collection centres for electrical and electronic equipment waste, or deliver it back to the retailer when purchasing an equivalent product, on a one for one basis.

Our appliances are packed in non- 1.7 How to read the user manual polluting and recyclable materials. This user manual uses the following reading + Consign the packing materials to the conventions: appropriate selective collection centres. Instructions General information on this user manual, on safety and final disposal. Description dE Description of the appliance and its accessories. Use

1.5 Identification plate Information on the use of the

The identification plate bears the technical appliance and its accessories, data, serial number and brand name of the cooking advice. appliance. Do not remove the identification Cleaning and maintenance late À - P'aie for any reason Information for proper cleaning and

1.6 This user manual maintenance of the appliance.

This user manual is an integral part ofthe Installation appliance and must therefore be kept in its entirety and in an accessible place for the whole working life of the appliance. Read this user manual carelully before using the appliance. Information for the qualified technician: installation, operation and inspection.

1. Use instruction sequence.

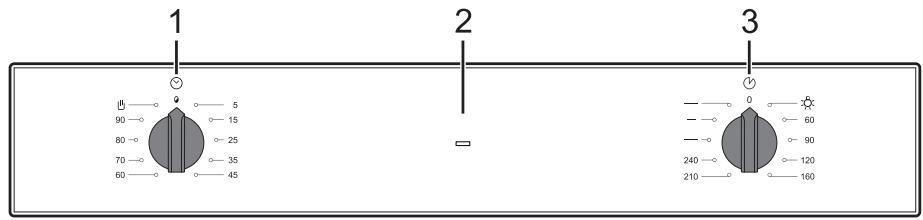

Minute minder knob (1) Thermostat indicator light (2) It allows you to use the minute minder timer The indicator light comes on to indicate that or to perform manual cooking, the oven is heating up. Itturns off as soon as itreaches the set temperature. lt flashes regularly to indicate that the temperature set inside the oven is kept constant

Function knob (3) It allows you to turn on the light inside the oven, set a static cooking temperature of between 60°C and 240°C, or select one ofthe other functions at maximum temperature.

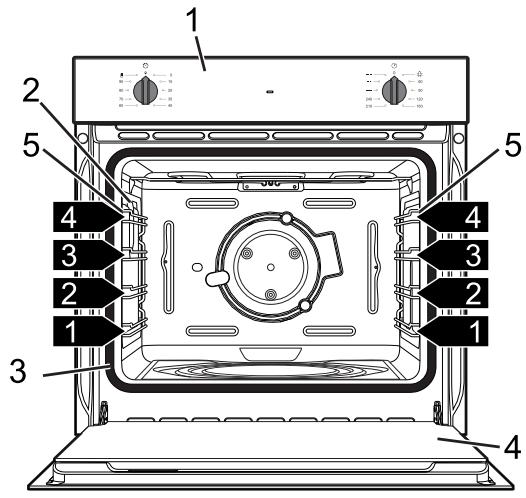

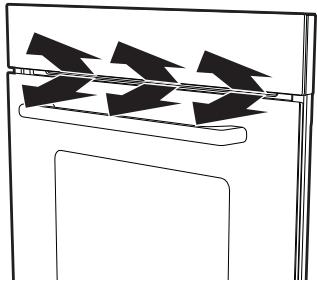

Shelves The appliance features shelves for positioning trays and racks at different heights. The insertion heights are indicated from the bottom upwards [see 2.1 General Description]. Cooling fan The fan cools the oven and comes into operation during cooking. The fan causes a steady outflow of air from above the door which may continue for a brief period of time even after the appliance has been turned off.

2.4 Available accessories

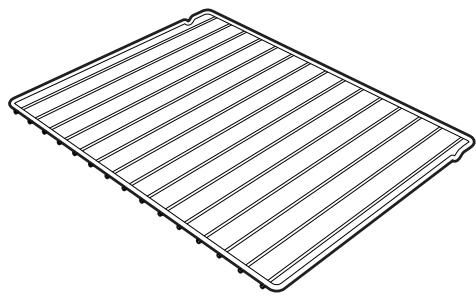

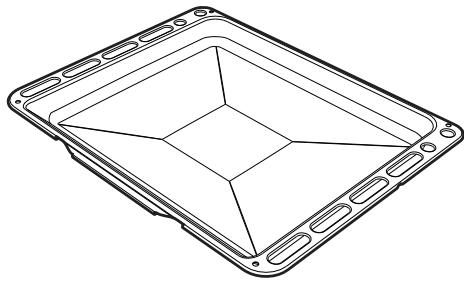

Rack Uselul for supporting containers with food during cooking. Deep tray Uselul for collecting fat from foodfs placed on the rack above and for cooking pies, pizzas and baked desserts.

Remove any protective film from the outside or inside ofthe appliance, including accessories. . Remove any labels [apart from the technical data plate] from the accessories and from the oven cavity. . Remove and wash all the appliance accessories [see 4 Cleaning and maintenance]. . Heat the empty oven at the maximum temperature to burn off any residues left by the manufacturing process.

3.3 Using the accessories

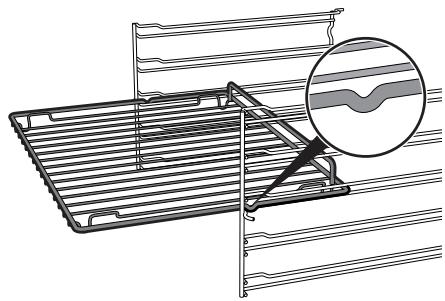

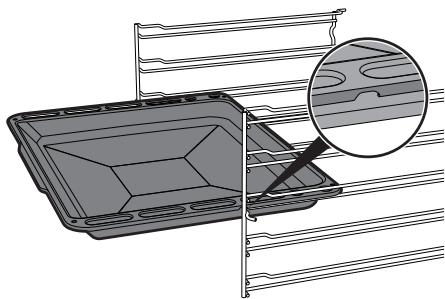

Racks and trays Racks and trays have to be inserted into the side guides until they come to a complete stop. +_ The mechanical safety locks that prevent the rack from being taken out accidentally have to face downwards and towards the oven back.

Switching the oven on To switch the oven on:

Functions list 60°C Static 240°C As the heat comes from above and below at the same time, this system is particularly suitable for certain types of food. Traditional cooking, also known as static cooking, is suitable for cooking just one dish at a time. Perfect for all types of roasts, bread and cakes and in any case particularly suitable for fatty meats such as goose and duck. Lower element The heat coming just from the bottom allows you to complete the cooking of foods that require a higher bottom temperature, without affecting their browning. Perfect for cakes, pies, tarts and pizzas. Small grill Using only the heat released from the central element, this function allows you to grill small portions of meat and fish for making kebabs, toasted sandwiches and any types of grilled vegetable side dishes. Wide grill The heat coming from the grill element gives perfect grilling results above all for thin and medium thickness meat and in combination With the rotisserie (where fited] gives the food an even browning at the end of cooking. Perfect for sausages, ribs and bacon. This function enables large quantities of food, particularly meat, to be grilled evenly.

General advice +_ltis not possible to shorten cooking times by increasing the temperature [the food could be overcooked on the outside and undercooked on the inside]. Advice for cooking meat + Cooking times vary according to the thickness and quality of the food and to consumer taste. Use a meat thermometer when roasting meat, or simply press on the roast with a spoon. lFit is hard, it is ready; if not, it needs another few minutes cooking. Advice for cooking with the Grill + Meat can be grilled even when it is put into the cold oven or into the preheated oven if you wish to change the effect of the cooking. We recommend placing the food at the centre of the rack. Advice for cooking desserts and biscuits Use dark metal moulds: they help to absorb the heat better. The temperature and the cooking time depend on the quality and consistency ofthe dough. To check whether the dessert is cooked right through: at the end ofthe cooking time, put a toothpick into the highest point ofthe dessert. IFthe dough does not stick to the toothpick, the dessert is cooked.

+_lfthe dessert collapses when it comes out of the oven, on the next occasion reduce the set temperature by about 10°C, selecting a longer cooking time if necessary. Advice for defrosting and proving +_ Place frozen foods without their packaging in a lidless container on the first shelf of the oven. Avoid overlapping the food. To defrost meat, use the rack placed on the second level and a tray on the first level. In this way, the liquid from the defrosting food drains away from the food. The most delicate parts can be covered with aluminium foil. For successful proving, a container of water should be placed in the bottom of the oven. To save energy +_ Stop cooking a few minutes before the time normally used. Cooking will continue for the remaining minutes with the heat which has accumulated inside the oven. + Reduce any opening ofthe door to a minimum to avoid heat dispersal. + Keep the inside ofthe appliance clean at all times.

Cooking information table Lasagne 3-4 Static 1 220 - 230 45-50 Pasta bake 3-4 Static 1 220 - 230 45-50 Roast veal 2 Static 2 180 - 190 90 - 100 Pork 2 Static 2 180 - 190 70 - 80 Sausages 15 Grill 3 - 15 Roast beef 1 Static 2 200 40-45 Roast rabbit 1.5 Static 2 180-190 70 - 80 Turkey breast 3 Static 2 180 - 190 110-120 Roast pork neck 2-3 Static 2 180 - 190 170 - 180 Roast chicken 12 Static 2 180 - 190 65 -70 1 ace 2 auioce Pork chops 15 Grill 3 - 15 5 Spare ribs 15 Grill 3 - 10 10 Bacon 07 Grill 4 - 7 8 Pork fillet 15 Grill 3 - 10 5 Beer fillet 1 Grill 4 - 10 7 Salmon trout 12 Static 2 150 - 160 35-40 Monkfish 15 Static 2 160 60 -65 Turbot 15 Static 2 160 45-50 Pizza 1 Static 2 240 8-9 Bread 1 Static 2 190 - 200 25-30 Focaccia 1 Static 2 180 - 190 20-25 Bundi cake 1 Static 2 160 55 -60 Jam tar 1 Static 2 160 35-40 Ricotta cake 1 Static 2 160-170 55 -60 Jam tans 1 Static 2 160 20-25 Paradise cake 12 Static 2 160 55 -60 Profiteroles 12 Static 2 180 80-90 Sponge cake 1 Static 2 150 - 160 55 -60 Rice pudding 1 Static 2 160 55-60 Brioches 0.6 Static 2 160 30-35 The fimes indicated in the lable do not include preheating imes and are provided as a guide only.

4 Cleaning and maintenance

4.2 Cleaning the surfaces

To keep the surfaces in good condition, they should be cleaned regularly after use. Let them cool first.

4.3 Ordinary daily cleaning

Always use only specific products that do not contain abrasives or chlorine-based acids. Pour the product onto a damp cloth and wipe the surface, rinse thoroughly and dry with a soft cloth or a microfibre cloth.

4.4 Food stains or residues

Do not use metallic sponges or sharp scrapers as they will damage the surfaces. Use ordinary non-abrasive products with the aid of wooden or plastic utensils if necessary. Rinse thoroughly and dry with a soft cloth or a microfibre cloth. Do not allow residues of sugary foods {such as jam] to set inside the oven. If left to set for 100 long, they might damage the enamel lining of the oven.

4.5 Removing the door

For easier cleaning, the door can be removed and placed on a canvas. To remove the door proceed as follows:

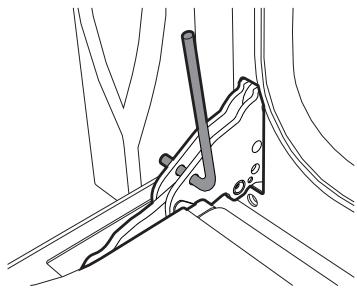

1. Open the door completely and insert two

pins into the holes on the hinges indicated in the figure.

2. Grasp the door on both sides with both

hands, lift it forming an angle of around 30° and remove it.

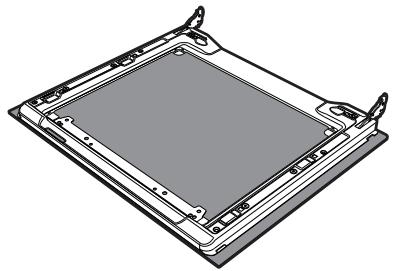

4.7 Removing the internal glass

panels For easier cleaning the door internal glass panels can be disassembled.

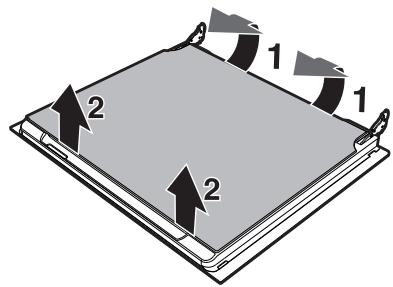

1. Remove the internal glass panel by

pulling the rear part genily upwards, following the movement indicated by the arrows (1).

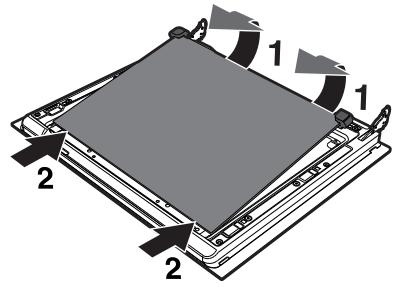

2. Then, pull the front part upwards [2]. In

this way, the 4 pins attached to the glass detach from their housings in the oven door.

3. To reassemble the door, put the hinges in

the relevant slots inthe oven, making sure that grooved sections À are resting completely in the slots. Lower the door and once it is in place remove the pins from the holes in the hinges.

3. Some models have an intermediate glass

panel. Remove the intermediate glass panel by lifting it upwards.

4.6 Cleaning the door glazing

The glass in the door should always be kept thoroughly clean. Use absorbent kitchen roll. In case of stubborn dirt, wash with a damp sponge and an ordinary detergent.

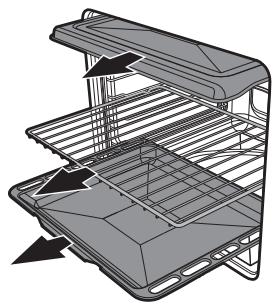

4. Clean the extermal glass panel and the 4.8 Cleaning the inside of the oven

panels previously removed! Use For the best oven upkeep, clean it regularly absorbent kitchen roll. In case of after having allowed it to cool. stubbom dirt, wash with a damp sponge and neutral detergent. Take out all removable parts. Clean the oven racks with warm water and non-abrasive detergent. Carelully rinse and dry damp parts.

5. Refit the panels in the reverse order in

which they were removed.

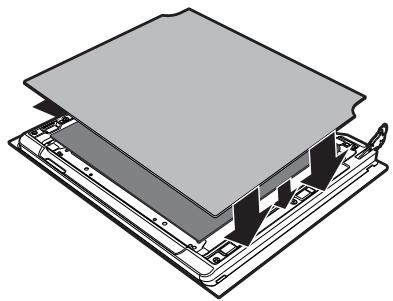

6. Reposition the internal glass panel. Take

care to centre and insert the 4 pins into their housings in the oven door by applying slight pressure.

4.9 Extraordinary maintenance 5. Replace the lamp with one of the same

6. Refit the cover correcily, so that the

moulded part of the glass is facing the door. PEN

7. Press the cover completely down so that

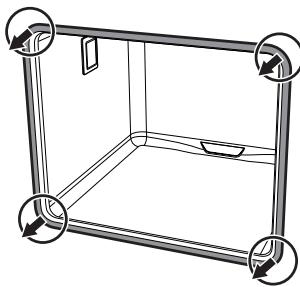

it attaches perfecily to the bulb support. Replacing the internal light bulb Removing the door seal 1 Completely remove all accessories from To permit thorough cleaning of the oven, the inside the oven. door seal may be removed. There are

2. Remove the racks/trays support frames. fasteners on all four sides to attach it to the

seal outwards to detach the fasteners. a screwdriver).

5.1 Electrical connection

General information Check the grid characteristics against the data indicated on the plate. The identification plate bearing the technical data, serial number and brand name is visibly positioned on the appliance. Do not remove this plate for any reason. The appliance works at 220-240 V7. Use a three-pole cable (3 x 1.5 mm? internal conductors). Perform the ground connection using a wire that is 20 mm longer than the other wires. 220-240V- à à um

Fixed connection Fit the power line with an omnipolar cireuit breaker in compliance with installation regulations. The circuit breaker should be located near the appliance and in an easily reachable position. Connection with plug and socket Make sure that the plug and socket are of the same type. Avoid using adapters and shunts as these could cause overheating and a risk of burns.

5.2 Cable replacement

1. Unscrew the rear casing screws and

remove the casing to access the terminal board.

2. Replace the cable.

3. Make sure that the cables [for the oven

or any hob) follow the best route in order to avoid any contact with the appliance.

5.3 Positioning Secure the appliance to the piece of

furniture using screws. Cover the bushings with the covers removed previously. Fastening bushings Remove the bushing covers inserted on the oven front.

Mount the appliance into the recess.

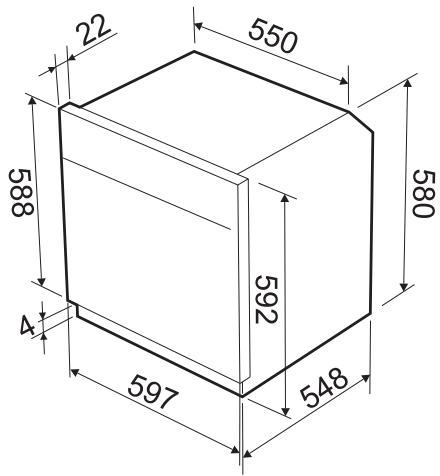

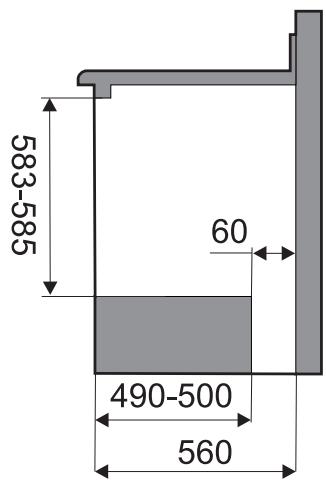

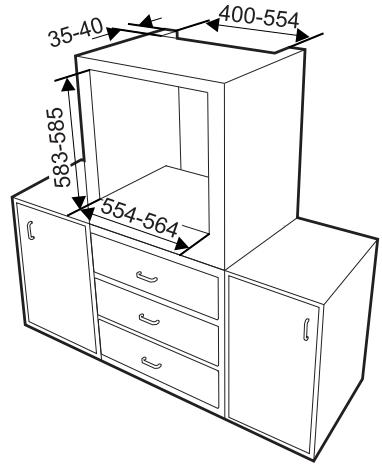

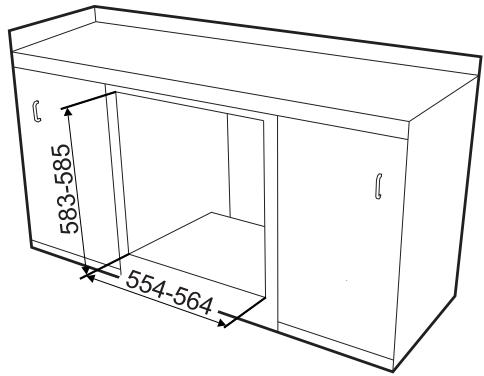

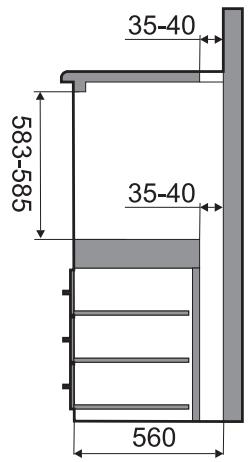

Mounting under worktops (mm) Mounting into a column (mm) | gegegs
