USER MANUAL AFICIO MP 1600L RICOH

1 Functions Available over a Network
2 Connecting the Network Cable to the Network
3 Setting Up the Machine on a Network
4 Windows Configuration
5 Using the Printer Function
6 Configuring the Network Interface Board Using a Web Browser
7 Appendix

Introduction

This manual contains detailed instructions and notes on the operation and use of this machine. For your safety and benefit, read this manual carefully before using the machine. Keep this manual in a handy place for quick reference.

Important

Contents of this manual are subject to change without prior notice. In no event will the company be liable for direct, indirect, special, incidental, or consequential damages as a result of handling or operating the machine.

Two kinds of size notation are employed in this manual. With this machine refer to the metric version.

Trademarks

Microsoft®, Windows® and Windows NT® are registered trademarks of Microsoft Corporation in the United States and/or other countries.

Other product names used herein are for identification purposes only and might be trademarks of their respective companies. We disclaim any and all rights to those marks.

The proper names of the Windows operating systems are as follows:

The product name of Windows® 98 is Microsoft® Windows 98.
The product name of Windows® Me is Microsoft® Windows Millennium Edition (Windows Me).
The product names of Windows® 2000 are as follows:

Microsoft® Windows® 2000 Advanced Server

Microsoft® Windows® 2000 Server

Microsoft® Windows® 2000 Professional

• The product names of Windows® XP are as follows:

Microsoft® Windows® XP Professional

Microsoft® Windows® XP Home Edition

The product names of WindowsTM Server 2003 are as follows:

Microsoft® Windows™ Server 2003 Standard Edition

Microsoft® Windows™ Server 2003 Enterprise Edition

Microsoft® Windows™ Server 2003 Web Edition

Note:

Some illustrations in this manual might be slightly different from the machine.

Manuals for This Machine

The following manuals describe the operational procedures of this machine. For particular functions, see the relevant parts of the manual.

Note

Manuals provided are specific to machine type.
Adobe Acrobat Reader is necessary to view the manuals as a PDF file.

General Settings Guide

Provides an overview of the machine and describes System Settings (paper trays, Key Operator Tools, etc.) and troubleshooting.

Network Guide (this manual)

Describes procedures for configuring the machine and computers in a network environment.

Copy Reference

Describes operations, functions, and troubleshooting for the machine's copier function.

Printer/Scanner Reference

Describes system settings, operations, functions, and troubleshooting for the machine's printer/scanner function.

TABLE OF CONTENTS

Manuals for This Machine

How to Read This Manual 1

1. Functions Available over a Network

Using the Printer 3

Network TWAIN Scanner 4

2. Connecting the Network Cable to the Network

Confirming the Connection 5

Connecting to the Ethernet Interface 6

3. Setting Up the Machine on a Network

User Tools Menu (Interface Settings) 7

Printer 7

Network TWAIN Scanner 7

Network Configuration 8

Settings You Can Change with User Tools 9

4. Windows Configuration

Configuring TCP/IP 11

Configuring a Windows 98SE / Me Computer 11

Configuring a Windows 2000 Computer 11

Configuring a Windows XP Computer 12

Configuring a Windows Server 2003 computer 12

5. Using the Printer Function

Printing with a Print Server 13

Printing without a Print Server 14

Using TCP/IP Port Type P10001 14

Using Standard TCP/IP Port 15

Using LPR Port 15

Using the IPP Port. 16

6. Configuring the Network Interface Board Using a Web Browser

Features 17

Settings You Can Change with a Web Browser 18

Configuring the Network Interface Board Settings 19

7. Appendix

Using DHCP 21

SNMP 22

Error Messages on the Display 23

Messages without Code Numbers 23

Messages with Code Numbers 24

Specifications 25

INDEX. 26

How to Read This Manual

Symbols

In this manual, the following symbols are used:

WARNING:

This symbol indicates a potentially hazardous situation which, if instructions are not followed, could result in death or serious injury.

CAUTION:

This symbol indicates a potentially hazardous situation which, if instructions are not followed, may result in minor or moderate injury, or damage to property.

• The statements above are notes for your safety.

Important

If this instruction is not followed, paper might be misfed, originals might be damaged, or data might be lost. Be sure to read this.

Preparation

This symbol indicates prior knowledge or preparation is required before operation.

Note

This symbol indicates precautions for operation, or actions to take after mal-operation.

Limitation

This symbol indicates numerical limits, functions that cannot be used together, or conditions in which a particular function cannot be used.

Reference

This symbol indicates a reference.

[ ]

Keys that appear on the machine's display.

[ ]

Keys and buttons that appear on the computer's display.

【 】

Keys built into the machine's control panel.

【 】

Keys on the computer's keyboard.

1. Functions Available over a Network

This machine provides printer and scanner functions over a network.

Using the Printer

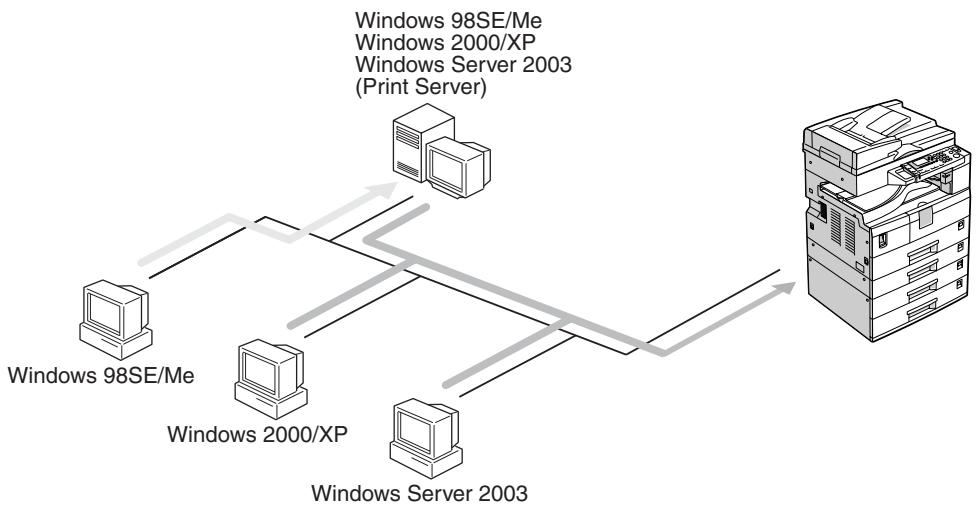

The network interface board is compatible with Windows 2000 (TCP/IP, IPP 1), Windows XP (TCP/IP, IPP 1), Windows Server 2003 (TCP/IP, IPP *1), and Windows 98SE / Me protocols. This allows you to operate the machine in a network that uses different protocols and operating systems.

*1 IPP (Internet Printing Protocol) is a protocol for printing via the Internet.

ANY004S

Reference

For details about what settings to make, see p.7 "Setting Up the Machine on a Network".

For details about using this function, see p.13 "Using the Printer Function".

Network TWAIN Scanner

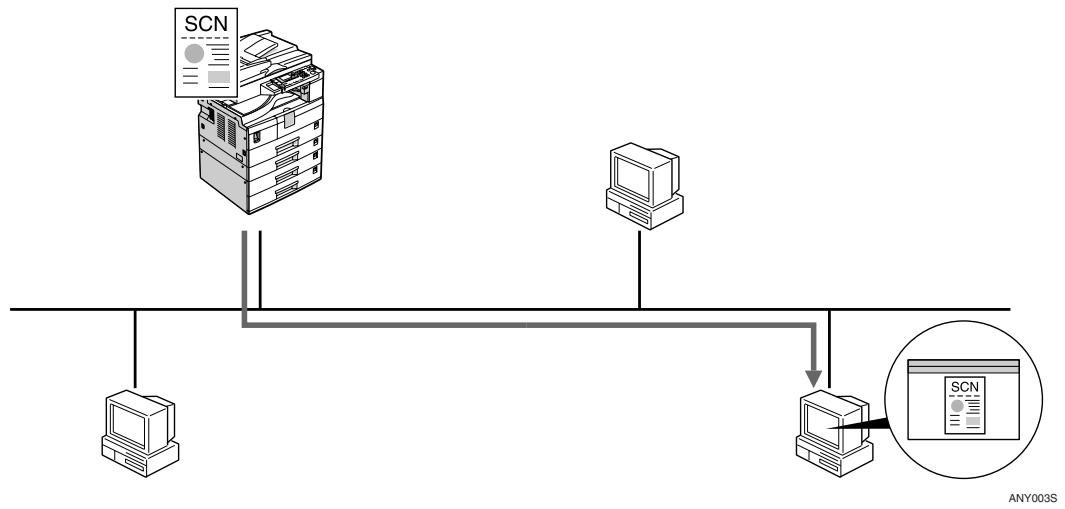

You can use the scanning function of this machine from a computer connected via a network. You can scan documents the same way you would if you were using a scanner connected directly to your computer.

Reference

For details about what settings to make, see p.7 "Setting Up the Machine on a Network".

For details about using this function, see "Using the Network TWAIN Scanner Function", Scanner Reference.

2. Connecting the Network Cable to the Network

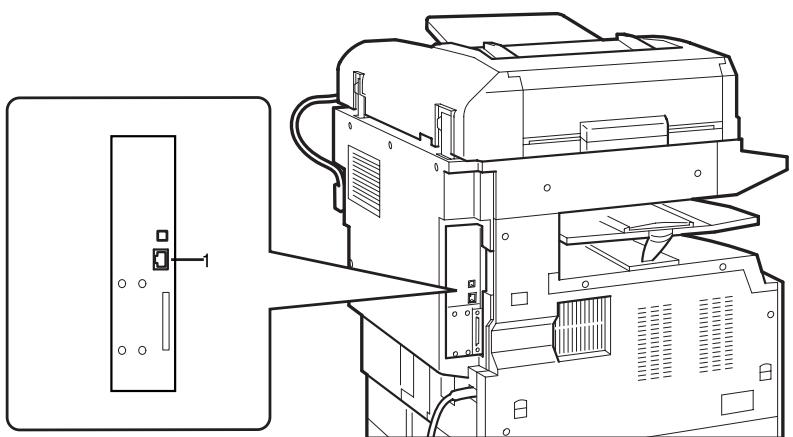

Confirming the Connection

ANY002S

1. 10BASE-T/100BASE-TX port

Port for connecting the network interface cable.

Connecting to the Ethernet Interface

The network interface board supports 10BASE-T or 100BASE-TX connections.

1 Turn off the main power switch.

Important

Make sure the main power is off. See "Turning On the Power", Copy Reference.

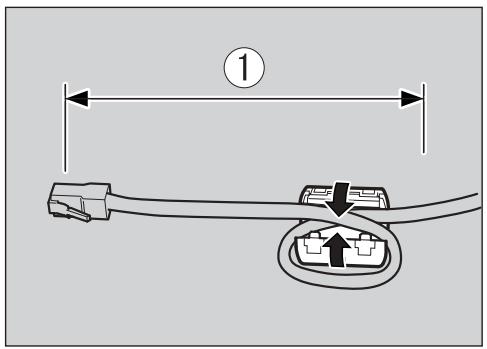

Loop the network interface cable and attach the ferrite core.

Note

The network interface cable loop should be about 10cm(4^ )(1) from the end of the cable (closest end to the printer). The ferrite core at the end of the cable should be a ring type.

AAW026S1

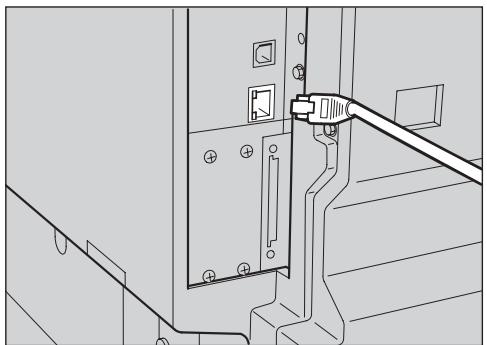

3 Connect the network interface cable to the 10BASE-T/100BASE-TX port.

ANY001S

4 Turn on the main power switch.

AAW022S1

1. Indicator (green)

Remains green when the machine is properly connected to the network.

2. Indicator (yellow)

Turns yellow when 100 BASE-TX is operating. Turns off when 10 BASE-T is operating.

3. Setting Up the Machine on a Network

User Tools Menu (Interface Settings)

This section describes the network settings you can change with User Tools (Interface Settings). Make settings according to functions you want to use and the interface to be connected.

Important

These settings should be made by the systems administrator, or after consulting with the systems administrator.

Reference

For details about settings, see p.9 "Settings You Can Change with User Tools"

Viewing the Information Displayed in the List

These items must be set to use the function. Be sure to set them before attempting to use the corresponding function.

These items must be set if required.

Printer

Settings
Interface Settings/Network See p.9 “Interface Settings”.	IP Address	●
	Gateway Address	○
	Effective Protocol *1	●
	Ethernet Speed	○

*1 Check [Effective] is selected for TCP/IP.

Network TWAIN Scanner

Settings
Interface Settings/Network See p.9 “Interface Settings”.	IP Address	●
	Gateway Address	○
	Effective Protocol *1	●
	Ethernet Speed	○

*1 Check [Effective] is selected for TCP/IP.

Network Configuration

Any change you make with User Tools remains in effect even if the main power switch or operation switch is turned off, or the【Clear Modes】key is pressed.

Configuring the network using the control panel

Note

Operations for Interface Settings are different from normal operations. After using User Tools, press the 【User Tools/Counter】key to exit.
If the key operator code has been set, the key operator code entry screen appears. Enter the code, and then press the OK key. For details about the key operator code, see General Settings Guide.

Press the [User Tools/Counter] key.
2 Select [Interface Settings] using the [ ] or [ ] key, and then press the [OK] key.
3 Select the setting you want to change, and then press the [OK] key.
4 Change the setting, and then press the [OK] key.

Note

Press the [Escape] key to cancel the setting.

Press the [User Tools/Counter] key.

Configuring the network using other utilities

As well as using the control panel to make network settings, utilities such as a Web browser can also be used. The following table shows available settings:

Note

□ Indicates machine settings can be changed.
- Indicates the setting cannot be changed from that device.

Name on the control panel					Web browser
Interface Settings	Network	IP Address	Auto-Obtain (DHCP)		○
			Specify	IP Add.	○
				Subnet M	○
				Mac Add.	-
		Gateway Address			○
		Effective Protocol			-
		Ethernet Speed			-

Settings You Can Change with User Tools

Interface Settings

IP Address

Before using this machine in the network environment, you must configure the IP address and subnet mask.

• Auto-Obtain (DHCP)

• Specify When you select [Specify], enter [IP Address:]and [Sub-net Mask:] as "xxx.xxx.xxx.xxx"(“x” indicates a number).

• IP Address: 011.022.033.044

• Sub-net Mask: 000.000.000.000

Note

Default: Auto-Obtain (DHCP)
- When you select [Specify], be sure not to set the same [IP Address:] as that of another machines on the network.
The physical address (MAC address) also appears.

Gateway Address

A gateway is a connection or interchange point between two networks. Configure the gateway address for the router or host computer used as a gateway.

• Gateway Address:000.000.000.000

Note

Default: 000.000.000.000

Effective Protocol

Select the protocol to use in the network.

• TCP/IP:Effective/Invalid

Note

Default: TCP/IP: Effective

Ethernet Speed

Set the access speed for networks. Select a speed that matches your network environment. [Auto Select] should usually be selected.

• Auto Select
  100Mbps Fixed
  10Mbps Fixed

Note

Default: Auto Select

4. Windows Configuration

Configuring TCP/IP

This describes how to configure Windows for TCP/IP and IPP.

Configuring a Windows 98SE / Me Computer

Follow the procedure below to configure a Windows 98SE / Me computer to use TCP/IP.

Open [Control Panel], and then double-click the Network icon. Make sure [TCP/IP] is selected in the [The following network components are installed] box on the [Configuration] tab.

Note

• Select TCP/IP if it is not already selected.
  If TCP/IP is not installed, click [Add] on the [Configuration] tab to install it. For details about installing TCP/IP, see Windows 98SE / Me Help.

2 Click [Properties].
3 Configure TCP/IP using the appropriate IP address, subnet mask, and other settings.

Check with the network administrator that the settings are correct.

Configuring a Windows 2000 Computer

Follow the procedure below to configure a Windows 2000 computer to use TCP/IP.

On the [Start] menu, point to [Settings], and then click [Network and Dial-up Connections].
2 Double-click [Local Area Connection]. On the [General] tab, click [Properties].
Make sure [Internet Protocol (TCP/IP)] is selected in the [Components checked are used by this connection] box on the [General] tab.

Note

• Select TCP/IP if it is not already selected.
  If TCP/IP is not installed, click [Install] on the [General] tab to install it. For details about installing TCP/IP, see Windows 2000 Help.

4 Click [Properties].
5 Configure TCP/IP using the appropriate IP address, subnet mask, and other settings.

Check with the network administrator that the settings are correct.

Configuring a Windows XP Computer

Follow the procedure below to configure a Windows XP computer to use TCP/IP.

On the [Start] menu, click [Control Panel], and then click [Network Connections].
2 Click [Network Connections], and then double-click [Local Area Connection].
On the [General] tab, click [Properties].
Make sure [Internet Protocol (TCP/IP)] is selected in the [This connection uses the following items] box on the [General] tab.

Note

• Select TCP/IP if it is not already selected.
  If TCP/IP is not installed, click [Install] on the [General] tab to install it. For details about installing TCP/IP, see Windows XP Help.

5 Click [Properties].
6 Configure TCP/IP using the appropriate IP address, subnet mask, and other settings.

Check with the network administrator that the settings are correct.

Configuring a Windows Server 2003 computer

Follow the procedure below to configure a Windows Server 2003 computer to use TCP/IP.

On the [Start] menu, point to [Control Panel], point to [Network Connections], and then click [Local Area Connection].
2 On the [General] tab, click [Properties].
Make sure [Internet Protocol (TCP/IP)] is selected in the [This connection uses the following items] box on the [General] tab.

Note

• Select TCP/IP if it is not already selected.
  If TCP/IP is not installed, click [Install] on the [General] tab to install it. For details about installing TCP/IP, see Windows Server 2003 Help.

4 Click [Properties].
3 Configure TCP/IP using the appropriate IP address, subnet mask, and other settings.

Check with the network administrator that the settings are correct.

5. Using the Printer Function

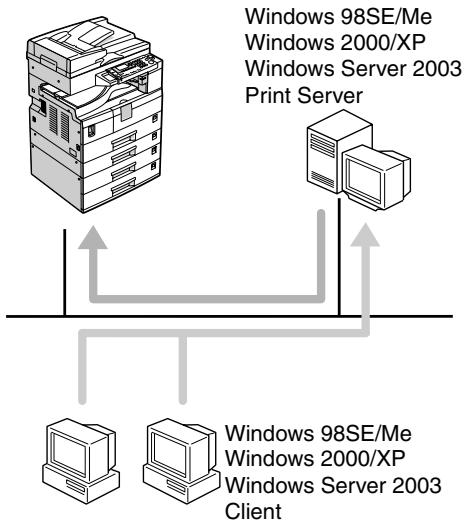

Printing with a Print Server

This describes how to configure a client computer on a network using Windows 2000 / XP, Windows Server 2003 as a print server.

When using a Windows 2000 / XP, or Windows Server 2003 print server, select a shared printer on Windows 2000 / XP, or Windows Server 2003.

This section describes running [Add Printer Wizard] on each client computer, and adding the Windows 2000 / XP, and Windows Server 2003 print servers as the network printer.

These instructions are for Windows 98SE.

ANY005S

This section assumes the client is already configured to communicate with a Windows 2000 / XP, or Windows Server 2003 print server. Do not begin the following procedure until the client computer is set up and configured correctly.

Right-click [Network Neighborhood], and then click [Explore] in the context menu.
On the network tree, double-click the name of the computer used as the print server. The printers connected to the network are displayed.
Double-click the name of the printer you want to use, and then click [Yes].

The printer icon appears in the [Printers] window.

Printing without a Print Server

You can use this machine as a network printer without connecting to a print server.

You can configure the following ports:

TCP/IP Port Type P10001

You can print via TCP/IP using TCP/IP Port Type P10001.

Note

A TCP/IP Port Type P10001 can be used with Windows 98SE / Me.

Standard TCP/IP port

You can print via TCP/IP using a standard TCP/IP port.

Note

A standard TCP/IP port can be used with Windows 2000 / XP or Windows Server 2003.

LPR port

You can print via TCP/IP using an LPR port.

Note

An LPR port can be used with Windows 2000 / XP, or Windows Server 2003.

IPP port

You can print via IPP or http using an IPP port.

Note

An IPP port can be used with Windows XP, or Windows Server 2003.

Using TCP/IP Port Type P10001

TCP/IP Port Type P10001 can be used with Windows 98SE / Me when a printer driver have been installed.

In the [Printers] window, click the icon of the printer you want to use. On the [File] menu, click [Properties].
2 Click the [Details] tab, and then click [Add Port].
3 Click [Other] radio button, and then click [TCP/IP Port Type P10001], and then click [OK].

Add TCP/IP Port Type P10001 Wizard will start.

4 Click [Next >].
5 Enter the IP address, and then click [Next >].

Note

Enter [Port Name:] if necessary.

Click [Finish].

Configuring the port settings

In the [Printers] window, click the icon of the printer you want to use. On the [File] menu, click [Properties].
2 Click the [Details] tab, and then click [Port Settings...].

The TCP/IP Port Type P10001

Configuration dialog box appears.

• You can select either Raw or LPR port to print.
• You can change the IP address of the Port.

Note

If the IP address of the machine is changed, you must change the port settings also.
- Both Raw and LPR support SNMP.

Important

Do not change Port Number, Timeout, and Queue Name.

Using Standard TCP/IP Port

This describes how to change the port settings under Windows 2000 when a printer driver has been installed.

In the [Printers] window, click the icon of the printer you want to use. On the [File] menu, click [Properties].
2 Click the [Ports] tab, and then click [Add Port].
3 Click [Standard TCP/IP], and then click [New Port].
4 In the [Add Standard TCP/IP Printer Port Wizard] dialog box, click [Next].

In the [Printer Name or IP Address] box, enter the printer name or IP address, and then click [Next].
In the [Add Standard TCP/IP Printer Port Wizard] dialog box, click [Finish].
7 Click [OK].
8 Check the location for the selected printer, and click [Close].

Using LPR Port

This describes how to change the port settings under Windows 2000 when a printer driver has been installed.

In the [Printers] window, click the icon of the printer you want to use. On the [File] menu, click [Properties].
2 Click the [Ports] tab, and then click [Add Port].
3 Click [LPR Port], and then click [New Port].
4 In the [Name or address of server providing lpd] box, enter the printer's IP address.
In the [Name of printer or print queue on that server] box, enter "lp", and then click [OK].
Click [OK].
7 Check the location for the selected printer, and click [Close].

Using the IPP Port

An IPP port can be used with Windows 2000 / XP, or Windows Server 2003.

This describes how to set the port settings under Windows XP.

In the [Printers and Faxes] window, click [Add printer] on the [File] menu.

Add Printer Wizard will start.

2 Click [Next >].
3 Click [A network printer or a attached to another computer] radio button, and then click [Next >].
4 Click the [Connect to a printer on the Internet or on a home or office network:] radio button, and then enter "http://printer's IP address/ipp/port1" or "ipp://printer's IP address/ipp/port1" in the [URL:] box.

(Example: IP address is 192.168.15.16)

http://192.168.15.16/ipp/port1

ipp://192.168.15.16/ipp/ port1

5 Click [Next >].
Click [Have Disk], and then click [Browse].

Select the printer driver.

The printer driver is following:

Windows 98SE / Me CD-ROM drive:DRIVERSDDSTWIN9X ME语言)DISK1
- Windows 2000 / XP, Windows Server 2003
CD-ROM drive:DRIVERSDDSTWIN2K_XP语言)DISK1

8 Click [OK], and then click [OK].
Click [Next >], and then [Finish].

6. Configuring the Network Interface Board Using a Web Browser

Features

You can check the status of a machine and change its settings using the Web browser.

What can it do?

You can remotely check the status of a machine or specify its settings over the network using a computer's Web browser.

The following functions are available with Web browser:

• Displaying machine status/settings
• Resetting network settings
• Making machine settings

Configuring the machine

This requires TCP/IP to be installed. After the machine has been configured to use TCP/IP, it will be possible to adjust settings using a Web browser.

Reference

For details about configuring the machine to use TCP/IP, see p.7 "Setting Up the Machine on a Network".

Browser

Note

If you are using a proxy server, change the Web browser settings. Consult your network administrator about the settings.
This machine information cannot be refreshed automatically. Click [Re-load] or [Refresh] on the Web browser.

Specifying the address

In the [Address] box, enter the address (for example http://XXX.XXX,XXX, where the Xs are the numbers of the IP address). If the host name of the machine is registered on the DNS server or WINS server, you can enter it.

Settings You Can Change with a Web Browser

System

• Reset
• Reset the settings of this machine.
  Factory Defaults Reset the settings of this machine to default.
• Unit Status Display the network settings of this machine.
  Network Address Display the serial number and Ethernet address (MAC address) of this machine,
• Change Password
• Change the password.

Protocols

• Setup TCP/IP
• Configure the settings of TCP/IP of this machine.
• Setup IPP
• Configure the IPP settings of this machine.

Others

Printer Status Display the printer status of this machine.

Configuring the Network Interface Board Settings

0 Start the Web browser.
In the [Address] box, enter the machine's IP address (for example http://XXX.XXX.XXX.XXX where the Xs are the numbers of the IP address).

The status of the machine you chose appears on the Web browser.

In the menu area, select the item, and then make the necessary settings.

Note

Enter a password if necessary.
Default password is "sysadm".

7. Appendix

Using DHCP

If this machine is configured for DHCP, and the DHCP request fails four times, BOOTP takes over the request. If the BOOTP request fails three times, the Default IP address is used.

SNMP

The machine is equipped with an SNMP (Simple Network Management Protocol) agent that operates under UDP and IPX on the Ethernet interface. Using the SNMP manager you can get information about the machine.

The default community names are "public" and "private". You can get MIB information using these community names.

Supported MIBs

MIB-II
- PrinterMIB
- HostResourceMIB

Error Messages on the Display

This section describes the most common network-related messages that appear on the display. If a message not described here appears, act according to that message.

Messages without Code Numbers

Reference

Before turning the main power off, see "Turning On the Power", Copy Reference.

Message	Causes	Solutions
Cannot connect to network Check IP Address	Cannot connect to the net-work.	Check the machine's IP address.
Cannot connect to network Contact key operator	Cannot connect to the net-work.	Check the network. If this message continues to appear, contact your key operator.
Ethernet Board Error	An Ethernet board error has occurred.	Turn off the main power switch, and then turn it back on. If the message continues to appear, contact your sales or service representative.
Server communicat.failed Contact key operator	Cannot communicate with the server.	Check the server. If this message continues to appear, contact your key operator.

Messages with Code Numbers

Note

A message reporting an error appears on the display as shown.

Message	Causes	Solutions	Code numbers
Cannot connect with DHCPserver	The DHCP server cannot be found.	Check the DHCP server is running on the network.	101
The same IP Address al-readyexists	The specified IP address overlaps another IP address.	The IP address specified for the machine overlaps another IP address in use. Check the address of the device indicated in <MAC address>.	102
Check network-settings	An unauthorized value is speci-fied as the IP address or gateway address.	Change the IP address, subnet mask, or gateway address to the correct value.	103
The same IP Address exist-son several interfaces	IP addresses overlap across multi-ple interfaces. IP addresses of simultaneously operating interfaces overlap.	The IP address of the specified in-terface overlaps the IP address of another interface. Configure the IP address so it does not overlap.	004
Cannot set with-in the samesub-net range	Subnet masks overlap across mul-tiple interfaces. The subnet masks of simultaneously operating inter-faces overlap.	The subnet range of the specified interface overlaps the subnet range of another interface. Configure the subnet mask so it does not overlap.	005

Code Numbers

The problem interface is displayed.

1XX: Ethernet
- 0XX: Independent of interface

Specifications

Interface	100BASE-TX, 10BASE-T
Protocol	• Printer TCP/IP LPR IPP • Network Scanner TCP/IP • Management Function TCP/IP SNMP HTTP DHCP
SNMP	MIB-II, PrinterMIB, HostResourceMIB

INDEX

C

configuration WebBrowser,17

D

DHCP, 21

E

Effective Protocol, 9 Ethernet Speed, 9

G

Gateway Address, 9

1

Interface Settings, 9
IP Address, 9

M

MIB, 22

s

SNMP, 22
specifications, 25

W

WebBrowser，17

eepnngnnne
