Product Type	Free-standing washing machine
Model	KBWM8321
Capacity	8 kg
Maximum Spin Speed	1400 rpm
Energy Efficiency Class	B
Washing Efficiency Class	A
Spin Drying Efficiency Class	B
Annual Energy Consumption	160 kWh
Annual Water Consumption	9200 L
Noise Level (Wash/Spin)	56 dB / 76 dB
Dimensions (H x W x D)	85 cm x 60 cm x 54 cm
Weight	67 kg
Power Supply	220-240 V, 50 Hz
Programmes	Cotton, Synthetics, Delicates, Quick 15 min, Eco, Wool, Rinse & Spin, Drum Clean
Special Functions	Delay start, Child lock, Extra rinse, Spin speed adjustment, Temperature selection
Display	LED digital display
Door Opening	Left hinged, 180° opening
Drum Material	Stainless steel
Self-Cleaning	Drum clean programme
Safety Features	Child lock, Overflow protection, Unbalanced load detection
Spare Parts Availability	Available from authorised service centres
Repairability Index	8.4 / 10
Manual Languages	English, Spanish, Portuguese

Frequently Asked Questions - KBWM8321 Kubo

How do I reset my Kubo KBWM8321 washing machine?

To reset, turn off the machine and unplug it for about 5 minutes. Plug back in and select a new programme. If the issue persists, consult the user manual for error codes.

What is the maximum load capacity of the KBWM8321?

The maximum load is 8 kg for cotton programmes. Do not overload to ensure proper washing and spinning.

How do I clean the detergent drawer?

Remove the drawer by pulling it out and pressing the release lever. Wash it under warm water with a soft brush, dry it, and reinsert. Clean the drawer compartment periodically.

Why is my washing machine not spinning?

Possible causes: unbalanced load, clogged drain filter, or a faulty lid lock. Check if the load is balanced, clean the filter, and ensure the door is properly closed. Refer to the manual for error codes.

What does the error code E10 mean on Kubo KBWM8321?

Error code E10 typically indicates a water intake problem. Check that the water tap is open and the inlet hose is not kinked or blocked. Also clean the inlet filter.

How often should I run a drum clean cycle?

Run a Drum Clean programme every 2 months or more frequently if you use low-temperature washes. This removes residues and prevents odours.

Can I use vinegar to clean the washing machine?

It is not recommended as vinegar may damage rubber seals and components. Use a dedicated washing machine cleaner or the Drum Clean programme.

What is the energy class of Kubo KBWM8321?

The energy efficiency class is B according to the EU energy label. Annual consumption is about 160 kWh.

How do I activate the child lock?

Press and hold the Child Lock button (usually marked with a padlock icon) for 3 seconds until the indicator lights up. Repeat to deactivate.

Where can I find spare parts for my Kubo washing machine?

Spare parts are available from authorised Kubo service centres and online spare parts retailers. Use the model number KBWM8321 when ordering.

USER MANUAL KBWM8321 Kubo

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use. Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables 5
1.3. Humidity and Water 6
1.4. Cleaning 6
1.5. General Precautions 6

2. OPERATING INSTRUCTIONS 12

2.1. Product Description 12
2.2. Product usage 13
2.3. Maintenance 27
2.4. Troubleshooting 30

3. TECHNICAL SPECIFICATIONS 32

1. POST-SALE SERVICE 35
2. ENVIRONMENTAL PROTECTION 35

1. SAFETY INSTRUCTIONS

	WARNING
	RISK OF ELECTRIC SHOCKDO NOT OPEN
Warning: to avoid the risk of electric shock,do not remove the cover. The interior doesnot contain any parts that can be repairedby the user. Ask for assistance from theCustomer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Customer Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product, use a dry soft cloth only.

1.5. General Precautions

• Maintenance and service operations are only to be carried out by authorized professionals.
• If the appliance is sold or passed on, ensure that the new owner always receives this owner's manual.

Warning!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injury.

Caution!

This combination of symbol and signal word indicates a potentially dangerous situation which

may result in slight or minor injuries or damage to property and the environment.

Note!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries.

Warning!

ELECTRIC SHOCK HAZARD

• If the machine is damaged, it must not be operated unless repaired by the manufacturer, its service agent or similarly qualified persons. Risk of electric shock!
• Children aged 3 and under must be kept away from the appliance or continuously supervised.
• Animals and children may climb into the machine. Always check the machine before using it.
• Do not climb or sit on the appliance.

• All washing and related substances must to be kept in a safe place out of the reach of children.
• Do not install the machine on a carpet floor. Obstruction of the openings by a carpet can damage the machine.
• Keep the appliance clear from heating sources and direct sunlight to prevent plastic and rubber parts from corroding.

- Do not use the appliance in humid environments or rooms containing explosive or caustic gases. In case of water leakage or water splashes, let the appliance dry in the open air.

- The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washing machine.

- Do not operate the machine in rooms with a temperature below 5 °C, as this can damage its parts. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see "Maintenance - Cleaning the drain pump filter") to avoid damage caused by frost.

INSTALLATION

- Remove all packaging material and transport bolts before using the appliance. Failure to do so may result in serious damage.

- This appliance is equipped with a single inlet valve that can only be connected to a cold water supply.

- The mains plug must be accessible after installation.

- Before washing clothes for the first time, the appliance must be operated once to completion without any clothes inside.

- Before using the washing machine, the appliance must be calibrated.

- Do not put any excessively heavy objects on the appliance, like water containers or heating devices.

• The new hose sets supplied with the appliance must be used, and old hose sets should not be reused.
• Max. inlet water pressure 1 MPa. Min. inlet water pressure 0.05 MPa.

ELECTRICAL CONNECTION

• Make sure that the supply cable is not trapped by the machine, as this can cause damage to the supply cable.
• Connect the product to a grounded outlet protected by a fuse that is compliant with the values in the “Technical specifications” table. The grounding installation must be made by a qualified electrician. Ensure that the machine is installed in accordance with local regulations.

Warning!

• Don't use multiple plugs or extension cords.
• The appliance must not be connected to a timer or any other external switching device, or be connected to a circuit that is regularly switched on and off.
• Do not pull the plug out of the mains outlet if there is flammable gas in the surroundings.
• Never pull out the power plug with wet hands.
  • Always pull at the plug, not at the cable.

• Always unplug the appliance if it is not being used.

WATER CONNECTIONS

• Check the connections of the water inlet tubes, the water tap and the outlet hose for possible problems due to changes in water pressure. If the connections loosen or leak close the water tap and get it repaired. Do not use the appliance before the pipes and hoses are installed properly by qualified persons.
• The glass door may become very hot during operation. Keep children and pets clear of the washing machine while it is operating.
• The water inlet and outlet hoses must be safely installed and undamaged. Otherwise, water leakage can occur.
• Do not remove the drain pump filter while there is still water in the appliance. Big quantities of water can leak out, and there is a risk of scalding due to hot water.

• Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, and stones may cause serious damage to the washing machine.
• Thoroughly rinse items that have been washed by hand.

• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, wax and wax removers should be washed at high temperatures with an extra amount of detergent before being dried in the appliance.

• Items containing foam rubber (latex foam), shower caps, waterproof textiles, rubber padded articles and clothes or pillows fitted with foam rubber pads should not be dried in the machine

• Fabric softeners or similar products should be used as recommended in their instructions.
• Never try to open the door forcefully. The door will unlock shortly after the end of a cycle.
• Please do not close the door with excessive force. If you have any difficulty closing the door, please check if the clothes are properly inserted and distributed.
• Never pour water over the appliance for cleaning purposes. Risk of electric shock!

TRANSPORT

Before Transport:

• Bolts must be reinstalled to the machine by a specialized person
  • Accumulated water must be drained out of the machine
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

INTENDED USE

• The appliance is not intended for commercial use.
• This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses;

- By clients in hotels, motels and other residential type environments;

- Bed and breakfast type environments;

- Areas for communal use in blocks of flats or in launderettes.

2. OPERATING INSTRUCTIONS

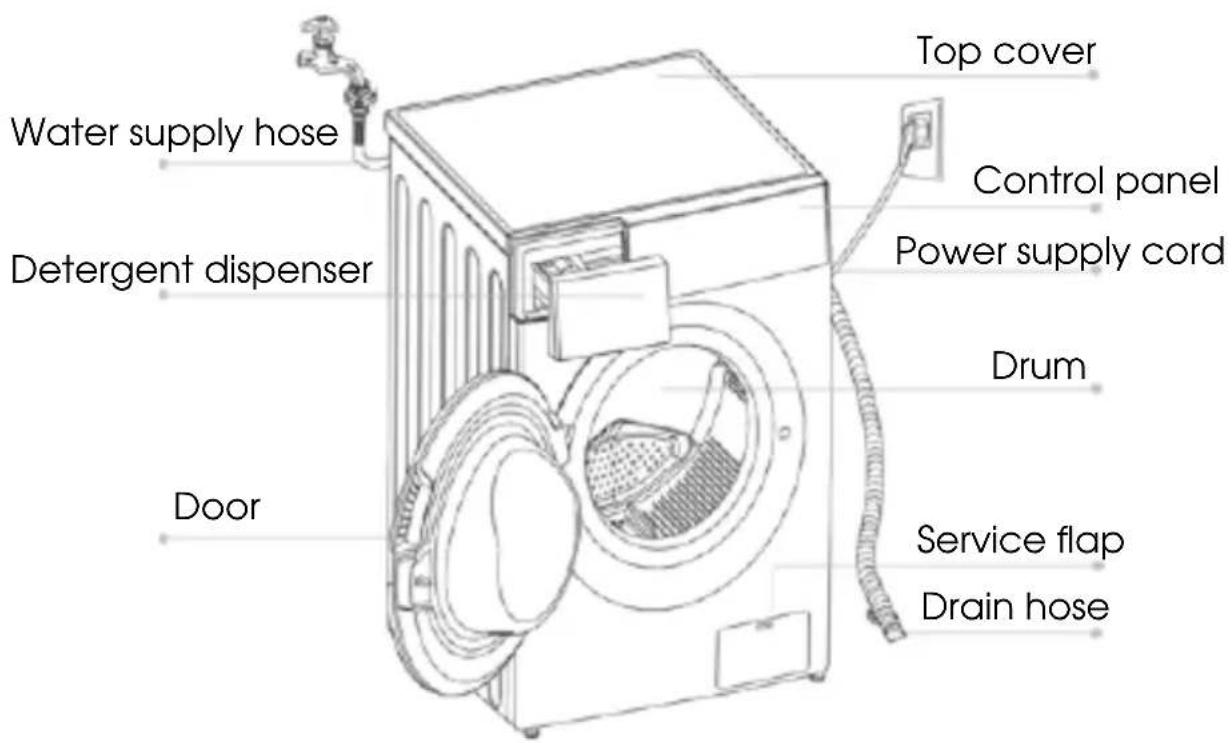

2.1. Product Description

Note!

- The product picture is for illustration purposes only. Please take the real product as a reference.

Accessories

4 x Cover caps

1 x Supply hose (cold water)

1 x Owner's manual

2.2. Product usage

Installation Installation site

Warning!

• Make sure that the machine is not placed on the power cord.
• Make sure that the machine is installed with the minimum distances from the walls shown in the picture.

Before installing the machine, select an installation site that:

1. Is solid, dry, and has a level surface
2. Avoids direct sunlight
3. Provides sufficient ventilation
4. Has a room temperature of above 0 °C
5. Is free of heat sources such as coal or gas burning

Simple line drawing of a rectangular box with a cross mark on the side, no text or symbols present.

Unpacking the washing machine

Warning!

- There is a risk of suffocation! Keep all packaging well away from children.

Illustration of a cardboard box being inserted into a base, with an inset showing a mechanical component labeled 'a' (no text or symbols on the main diagram)

1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packaging. Make sure that the small foam triangle (a) is removed together with the bottom packaging. If not, lay the unit down on its side and remove the triangle manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.

Removing the transport bolts

Warning!

- You must remove the transport bolts from the backside before using the product.

Close-up of a mechanical component with a wrench and circular head (no text or symbols visible)

Loosen the 4 transport bolts with a spanner.

Close-up of a hand holding a metallic knob with a white arrow pointing to it, against a plain background (no text or symbols visible)

Remove the bolts including the rubber parts and keep them for future use.

Close-up of a dark circular object with an arrow pointing to it, against a light background (no text or symbols)

Close the holes using the cover caps.

Levelling the washing machine

Warning!

- The lock nuts on all four feet must be screwed tightly against the housing.

1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock nuts with a spanner. Make sure that the machine is level and steady.

Close-up of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Connect the water supply hose

Warning!

To prevent leakage or water damage, follow the instructions in this chapter

- Do not kink, crush or modify the water inlet hose.

Connect the water supply hose to the water inlet valve and to a cold water tap as indicated.

Abstract grayscale image showing a white flower and a circular object with arrows indicating motion or transformation (no text or symbols)

Close-up of a faucet with a pipe fitting and directional arrows indicating flow or movement (no text or symbols)

Note!

- Connect manually, do not use tools. Check if the connections are tight

Drain Hose

Warning!

- Do not kink or protract the drain hose.

- Position the drain hose properly, as water leakage may cause damage otherwise.

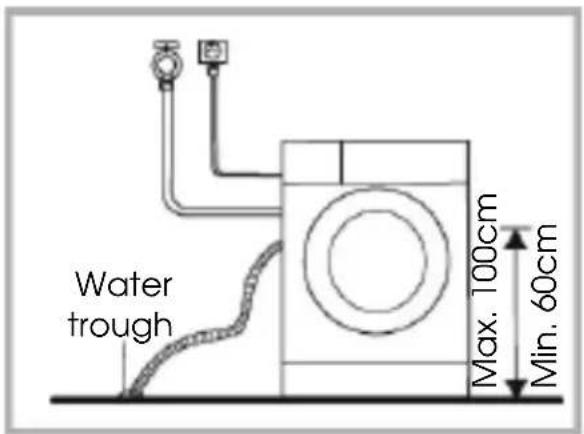

The drain hose may be installed in two different ways:

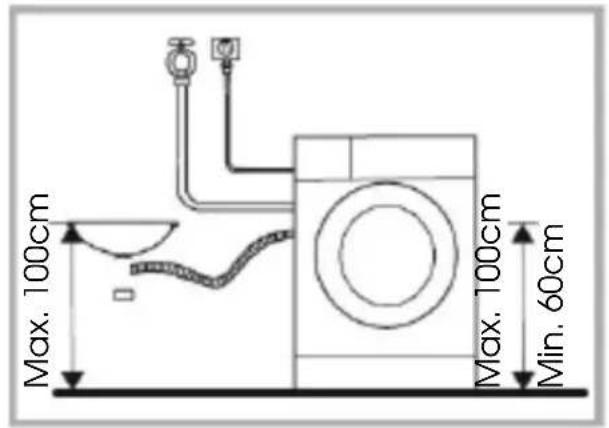

1. Using a floor drain. 2. Using a wall drain or raised pipe.

Quick Start

Caution!

• Before first use, please make sure the washing machine is installed properly.
• Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odours, it's recommended that you clean your appliance before first use. You may use the Cotton program at 90 °C without laundry and detergent.

1. Before Washing

Plug in Open tap Load Close Door Add

detergent

Note!

Detergent must be added to compartment I if the pre-wash function is selected.

2. Washing

Simple diagram showing two concentric circles with curved arrows indicating rotation or direction (no text or symbols)

Select program

Select a function or leave the default settings

Hand pressing a button with a play symbol (no text or numbers visible)

Press Start/Pause to start the program

3. After Washing

The door lock and the (Start/Pause) lights flash, and the buzzer begins beeping or two small points flashing on the digital screen.

Before Each Wash

• The ambient temperature of the washing machine should be 5-40 °C. If used under 0 °C, the inlet valve and draining system may be damaged. The machine should not be installed under freezing conditions, and must be transferred to normal ambient temperature before use, to ensure that the water supply hose and drain hose can unfreeze.
• Please check your laundry care labels and the detergent use instructions before washing. Use non-foaming or less-foaming detergent suitable for washing machines.

Simple line drawing of a sweater with a tag (no text or symbols)

Check the care label

Simple line drawing of two boxes with arrows indicating rotation or movement (no text or symbols)

Sort laundry according to colour and textile type

Illustration of a person adjusting a short-sleeve shirt with accessories (no text or symbols)

Take all items out of the pockets

Two handbags with circular designs, one wrapped in a blanket and the other in a tassel (no text or symbols)

Tie longer textile strips and belts together, close zips and buttons

Simple line drawing of a bag with an open lid and small items inside (no text or symbols)

Put small items into a laundry bag

Line drawing of a traditional-style t-shirt with patterned collar and front button (no text or symbols)

Turn easy-pilling and long-pile fabric inside out

Warning!

- Do not wash or dry items that have been cleaned, washed or soaked in, or dabbed with combustible or explosive substances like wax, oil, paint, gasoline, alcohol, kerosene, and other flammable materials.

- Washing single clothe items may easily create big eccentricity and cause alarm due to unbalance. Therefore, it is suggested to add one or two more laundry items to the wash to ensure smooth spinning.

Detergent dispenser

Pre-wash

11 Main wash

Softener

Dispenser release button

Caution!

- Detergent should only be added to 'compartment I' if the pre-wash function is selected.

Programme Programme

Cotton 30 °C Delicate 30°C

Cotton 40 °C Delicate O ● O

Cotton 60 °C Ends in 9H ● O

Cotton 90 °C Ends in 6H ● O

Synthetic Ends in 3H ○ ● ○

Synthetic 40 °C QuickWash 45'

Drum Clean Quick Wash 30'

Cold Wash Quick Wash 150

Cold Wash 20 °C ECO400

Spin Only

Drain Only

Rinse&Spin

- Mandatory

@optional

Cotton Intensive 40 °C

Cotton Intensive 60 °C

Detergent Recommendation

Recommended washing detergent	Wash cycles	Washing temp.	Type of laundry and textile
Heavy-duty detergent with bleaching agents and optical brighteners	Cotton, ECO 40-60	30/40/60	White laundry made from temperature resistant cotton or linen
Colour detergent without bleaching agents or optical brighteners	Cotton, ECO40-60, Cold Wash	Cold /20/30 /40	Coloured laundry made from cotton or linen
Colour or mild detergent without optical brighteners	Cold Wash, Synthetic	Cold/20/40	Coloured laundry made from easy care fibres or synthetic materials
Mild washing detergent	Synthetic	Cold/40	Delicate textiles, silk, viscose

Note!

• Lumpy detergent or additives can be diluted in some water before pouring them into the detergent dispenser, to avoid blocking the inlet and thus cause water overflow.
• Please choose the most suitable type of detergent for the best washing results with minimal water and energy consumption
• Detergent dosing is key to achieving the best cleaning results.
• Use a smaller amount of detergent if the drum is not filled completely.
• Always adjust the amount of detergent to the water hardness: if your tap water is soft, use less detergent.
• Adjust the amount of detergent to how dirty your laundry is: less dirty clothes require less detergent.
• Highly concentrated (compact detergent) requires particular care when selecting the amount of detergent.

The following symptoms are a sign of an excessive amount of detergent:

• heavy foam formation
• poor washing and rinsing

The following symptoms are a sign of lack of detergent:

• laundry turns grey
• limescale deposits on the drum, the heating element and/or the laundry

Programs
Model: KBWM8321

Program Load (kg) Default Time
		6.0 6.0
Synthetic		3.0 2:20
Synthetic 40 °C	40°C	3.0 2:20
Cold Wash		6.0 1:00
Cold Wash 20 °C	20°C	6.0 1:01
Cotton 30 °C	30°C	6.0 2:40
Cotton 40 °C	40°C	6.0 2:40
Cotton 60 °C	60°C	6.0 2:45
Cotton 90 °C	90°C	6.0 2:50
ECO 40-60	60 C	6.0 3:16
Cotton Intensive 40 °C	40°C	6.0 4:04
Cotton Intensive 60 °C	60°C	6.0 4:08
Drum Clean		- 1:18
Spin Only		6.0 0:12
Drain Only		- 0:01
Rinse&Spin		6.0 0:20
Delicate 30 °C	30°C	2.5 0:50
Delicate		2.5 0:48
Program Load (kg) Default Time
Ends in 9H		6.0 0:59
Ends in 6H		6.0 0:59
Ends in 3H		6.0 0:59
Quick Wash 45'	[XASH]	2.0 0:45
Quick Wash 30'		2.0 0:30
Quick Wash 15'		2.0 0:15

Note!

- The parameters in this table are for reference only. The actual parameters may be different from those in the table mentioned above.

1. The highest temperature reached by the laundry during the wash cycle for at least 5 minutes.
2. Residual moisture after the wash cycle, in water content percent, and the spin speed at which this was achieved.
3. The ECO 40-60 program is able to clean normally soiled cotton laundry washable at 40 °C or 60 °C, in the same cycle. This program is used to assess compliance with EU regulation 2019/2023.

The most efficient programs in terms of energy consumption are generally those that perform at lower temperatures over a longer period of time.

Loading the household washing machine up to the capacity indicated for the respective programs will lead to energy and water savings.

Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed during the spinning phase, the higher the noise and the lower the remaining moisture content.

Caution!

- If there is any drop in the power supply while the machine is

operating, a special memory stores the selected program. The machine will continue the program when the power supply is re-established.

Programs vary by laundry type.

Program
Synthetic	Wash synthetic items, for example: shirts, coats, and blended items. While washing knitted textiles, detergent quantity must be reduced due to their loose string construction and propensity to forming bubbles.
Delicate	For delicate, washable textiles, e.g., made of silk, satin, synthetic fibres or blended fabrics.
Drum Clean	Sterilizes the drum at 90 °C to make clothes washing greener. This program is not intended to wash clothes or other washing, which must not be added. When the proper amount of chlorine bleaching agent is added, the drum cleaning effect will be optimal. This programme can be used as regularly as required.
Spin Only Extra spin	with selectable spin speed.
Rinse&Spin Extra rinse with spin.
Drain Only Drains off the water.
Quick Wash15'	Suitable for quickly washing a small number of relatively clean clothes.
Cotton Intensive Increased washing time for increased cleaning.
ECO 40-60	Default 40 °C, not selectable, suitable for laundry washing at about 40 °C -60 °C.
Cold Wash Washes	clothes with cold water.
Cotton	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Ends in	This function delays start time by 3h, 6h or 9h, and sets the total washing time.

Option

Cycle	Default Temp.(°C)	Load (kg)	Additional functions
		6.0
Synthetic Cold 3.0			Pre Wash, Extra Rinse
Synthetic 40 °C	40 3.0		Pre Wash, Extra Rinse
Cold Wash Cold 6.0			Pre Wash, Extra Rinse
Cold Wash 20 °C	20 6.0		Pre Wash, Extra Rinse
Cotton 30 °C 30 6.0			Pre Wash, Extra Rinse
Cotton 40 °C 40 6.0			Pre Wash, Extra Rinse
Cotton 60 °C 60 6.0			Pre Wash, Extra Rinse
Cotton 90 °C 90 6.0			Pre Wash, Extra Rinse
ECO 40-60 60 6.0
Cotton Intensive 40 °C 40 6.0
Cotton Intensive 60 °C 60 6.0
Drum Clean 90 -
Spin Only	-	6.0
Drain Only --
Rinse&Spin - 6.0 Extra Rinse
Delicate 30 °C 30 2.5 Extra Rinse
Delicate Cold 2.5 Extra Rinse
Ends in 3H/6H/9H 40 6.0 Delay
Quick Wash 45'	40 2.0
Quick Wash 30'	30 2.0
Quick Wash 15'	Cold 2.0

Note!

• For the maximum spin speed, program time, and other details of the ECO 40-60 program, please refer to the content on the Product Information Sheet.
• The table shows the options available for adjustment with each cycle.

Prewash: The Prewash function sets an extra wash before the main wash, to remove any superficial dirt; Requires detergent in compartment (I) when selected.

Extra Rinse: The laundry will receive an additional rinse with this option

No Spin: This function prevents spinning.

Mute the buzzer

Choose the Program Press the (Prewash) button for 3 sec. to mute the buzzer.

To reactivate the buzzer function, press the button again for 3 seconds. The setting will be kept until the next reset.

Caution!

• After Muting the buzzer function, no further sounds will be produced.

Child Lock

To avoid improper operation by children.

Choose the Programme

Start

(Key: Extra Rinse; No Spin) Press (Extra Rinse) and (No Spin) together for 3 sec. until a beep is sounded.

Caution!

- The "Child Lock" can only be released by pressing and holding both buttons together. Even when powered down, switched off and the program has ended, the "Child Lock" function locks all buttons except the power button and the "Child Lock" button combination.

- Please release "Child Lock" before selecting the program and starting a wash.

2.3. Maintenance

Cleaning and Care

Warning!

- Always unplug the appliance and close the water tap before cleaning and performing maintenance.

Cleaning the Cabinet

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use a cloth to wipe it off immediately. Never use sharp items to clean the appliance.

Line drawing of a hand washing a washing machine with a cloth (no text or symbols)

Caution!

- Never use abrasive or caustic agents, formic acids or diluted solvents or similar substances, like alcohol or chemical products.

Cleaning the Drum

Any rust stains left inside the drum by metal articles must be removed immediately using chlorine-free detergents. Never clean the drum with steel wool!

Note!

- Keep any laundry away from the machine while cleaning the drum.

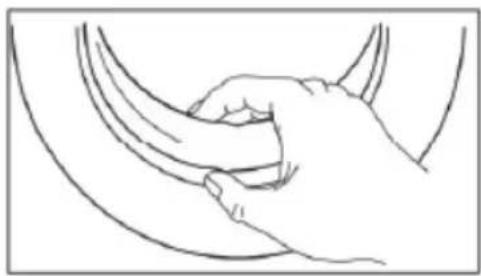

Cleaning the Door Seal and Glass

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leakages.

Remove any coins, buttons and other objects from the seal after each wash.

Clean the Door Seal and Glass every month to ensure the appliance operates normally.

Line drawing of a hand gripping a curved object (no text or symbols)

Cleaning the Inlet Filter

Note!

- Diminishing water flow is a sign that the filter needs to be cleaned.

1. Close the tap and remove the water supply hose from it.
2. Clean the filter with a brush.
3. Unscrew the water supply hose from the backside of the machine. Pull out the filter with long nose pliers
4. Use a brush to clean the filter.
5. Reattach the filter to the water inlet and reconnect the water supply hose.
6. Clean the Inlet filter every 3 months to ensure the appliance operates normally.

Diagram of a mechanical valve or pump assembly with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a tool with a magnifying glass (no text or symbols)

Hand holding a tool with a circular diagram showing rotational motion (no text or symbols)

Simple line drawing of a hand operating a device with a circular component (no text or symbols)

Clean The Detergent Dispenser

1. Press down the release (☐) button on the softener cover and pull the dispenser drawer out of the recess. Clean the inside of the recess with a brush.
2. Lift the softener cover off the dispenser drawer and wash both items with water.
3. Place back the softener cover and push the drawer back into the recess.

Technical line drawing of a mechanical assembly with no visible text or symbols

Press the release and remove the dispenser drawer

Line drawing of a mechanical device with a lever and base plate (no text or symbols)

Clean the dispenser drawer and the softener cover under running water

Hand inserting a plug into a device (no text or symbols visible)

Clean the recess with a soft brush

Technical line drawing of a mechanical component with no visible text or symbols

Insert the dispenser drawer

Note!

• Do not use abrasive or caustic agents to clean plastic parts.
• Clean the detergent dispenser every 3 months to ensure the appliance operates normally.

Cleaning the Drain Pump Filter

Warning!

• Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter.
• Be careful of hot water. Allow the water to cool down. Risk of scalding!
• Clean the filter every 3 months to ensure the appliance operates normally.

Simple line drawing of a mechanical component with a circular hole and an arrow indicating rotation (no text or symbols)

Open the lower cover cap

Hand holding a pen with a circular button on a screen, no text or symbols visible

Open the filter by turning it anticlockwise

Remove extraneous matter

Diagram of a mechanical assembly with rotating components and directional arrows (no text or labels)

Close the lower cover cap

Caution!

- When the appliance is in use and depending on the program selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely re-tightened.

2.4. Troubleshooting

Troubleshooting

Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact customer service.

Description Possible cause Solution
Appliance does not start	Door is not closed properly. Clothes are stuck.	Close the door properly and restart. Check the laundry.
Door can’t be opened	Safety protection is activated.	Disconnect the power and restart.
Water leakage Connections are not tight enough.		Check and fasten the water inlet pipe. Check and clean the outlet hose.
Detergent residues in the detergent dispenser	Detergent is damp and/or clotted.	Clean and wipe the detergent dispenser dry.
Indicator or display does not work	PC board or harness have connection problems.	Switch off the power and check if the mains plug is connected properly.
Abnormal noise Fixing	bolts still in place.Floor is not solid or level.	Check if the fixing bolts have been removed.Make sure the appliance is installed on a solid and level floor.

Error Codes

Description Reason Solution
#	#	Preset/Start	No Spin	Extra Rinse	Prewash
Off	Off	Flash	Off	Off	Off	Door is not closed properly	Restart after the door is closed Check if the clothes are stuck
Off	Off	Off	Flash	Off	Off	Water intake problem while washing	Check if the water pressure is too low. Straighten the water pipe. Check if the inlet valve filter is blocked
∅	∅	Preset/Start	No Spin	Extra Rinse	Prewash
Off	Off	Flash	Flash	Off	Off	Excessively long water draining	Check if the drain hose is blocked
Off	Off	Off	Off	Flash	Off	Water overflow R	Restart the washing machine
						Others Please try	again first, and call the service line if the problems persist

3.TECHNICAL SPECIFICATIONS

Supplier's name or trademark(a),(c)
Supplier's address(a),(c):
Model identifier(a): KBWM8321
General product parameters:
Parameter Value Parameter Value
Rated capacity (b)(kg) 6.0 Dimensions in cm (a),(c)			Height	85
			Width	60
			Depth	40
Energy efficiency index (b)(EEIw)	91.0	Energy efficiency class (b)	E (d)
Washing efficiency index (b)	1.031	Rinsing effectiveness (g/kg) (b)	5.0
Parameter Value Parameter Value
Energy consumption in kWh per cycle, based on the eco 40-60 program. Actual energy consumption will depend on how the appliance is used.	0.737 Water con		sumption in litre per cycle, based on the eco 40-60 program. Actual energy consumption will depend on how the appliance is used and on the hardness of the water.	43
Maximum temperature inside the treated textile (b)(°C)	Rated capacity	41 Weighted remaining moisture content (b)(%)		62.9
	Half	33
	Quarter	20
Spin speed (b)(rpm)	Rated capacity	1000 Sp	Spin-drying efficiency class (b)	C (d)
	Half	1000
	Quarter	1000
Program duration (b)(h:min)	Rated capacity	3:18 Type	Free-standing	ing
	Half	2:36
	Quarter	2:36
Airborne acoustical noise emissions in the spinning phase (a) (dB(A) re 1 pW)	80 Airborne		acoustical noise emission class (b) (spinning phase)	C (d)
Of-mode (W)(if applicable)	0.50 Standby		mode (W) (if applicable)	1.00
Delay start (W)(if applicable)	4.00 Networked		standby (W)(if applicable)	N/A
Minimum duration of the guarantee offered by the supplier (a)(c):
This product has been designed to release silver ions during the washing cycle			NO
Additional information:
Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) is found:
(a) this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369.(b) for the eco 40-60 programme.(c) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.(d) if the product database automatically generates the definitive content of this cell, the supplier shall not enter these data.

1. The actual energy consumption will depend on how the appliance is used.
2. The actual water consumption will depend on how the appliance is used and on the hardness of the water.
3. Delivery of spare parts within 15 working days after having received the order.

Product Data Sheet concerning (EU) 2019/2014

The product data sheet for your appliance can be found online.

Go to https://eprel.ec.europe.eu and enter the model identifier for your appliance to download the data sheet.

The model identifier for your appliance can be found in the technical specifications section.

4. POST-SALE SERVICE

KUBO has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar guarantees against manufacturing defects for a period of 3 years, or another period defined in the applicable legislation, from the date of purchase of the device

WARNING: any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

Parts Information

Availability of repair parts

Depending on the repair part, they are available for a minimum of seven years for professional repairers or a minimum of ten years for professional repairers and end users after the last unit of the model has been placed on the market.

5. ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Estimado cliente:

Simple line drawing of an open book with no text or symbols visible

Manual del usuario

Simple line drawing of a box with a cross mark on the front panel (no text or symbols)

Illustration of a cardboard box with an open circuit board and a magnified inset showing a mechanical component labeled 'a' (no text or symbols present)

Close-up of a mechanical component with a wrench and circular head, no visible text or symbols

Close-up of a mechanical knob with a metallic handle and a curved arrow pointing to it (no text or symbols visible)

Close-up of a dark circular object with an arrow pointing to it, set against a blurred background (no text or symbols)

Close-up of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Illustration of a person with arrows indicating motion or movement, no text or symbols present

Close-up of a faucet with a pipe and valve, showing fluid flow direction (no text or symbols)

¡Nota!

Simple diagram showing a circular flow with two curved arrows indicating clockwise motion (no text or symbols)

Hand pointing at a play button icon (no text or symbols)

Simple line drawing of a sweater with a tag and tie (no text or symbols)

Simple line drawing of two stacked containers with arrows indicating rotation (no text or symbols)

Illustration of a person's shorts with arrows indicating movement or action (no text or symbols)

Two handbags with circular designs, one wrapped in a ring and the other in a rectangular frame (no text or symbols)

Simple line drawing of a bag with an open lid and a small object inside (no text or symbols)

Line drawing of a traditional-style t-shirt with long sleeves and patterned collar (no text or symbols)

¡Precaución!

Line drawing of a hand washing a washing machine with a cloth (no text or symbols)

¡Precaución!

Line drawing of a hand gripping a curved object (no text or symbols)

Diagram of a mechanical valve or pump assembly with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a handheld device with a probe inserted (no text or symbols)

Illustration of a hand holding a small object with a magnified inset showing rotational motion (no text or symbols)

Simple line drawing of a hand holding a small object through a circular opening, mounted on a stand (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical device with a lever and base plate (no text or symbols)

Hand inserting a small dark object into a rectangular frame (no text or symbols visible)

Line drawing of a mechanical device with internal components and a handle (no text or symbols)

Simple line drawing of a mechanical component with a circular opening and a curved arrow indicating rotation (no text or symbols)

Hand holding a device with a circular button, no visible text or symbols

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

Availability of repair parts

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Caro(a) cliente,

Simple line drawing of an open book with no text or symbols visible

Simple line drawing of a box with a cross mark on the front page, no text or symbols present.

Desembalar a máquina de lavar roupa

Aviso!

Illustration of a box being inserted into a base with an inset showing a mechanical component labeled 'a' (no text or symbols on the main diagram)

Close-up of a mechanical component with a wrench and circular head, no visible text or symbols

Close-up of a hand holding a metallic knob with a black arrow pointing to it (no text or symbols visible)

Close-up of a dark circular object with an arrow pointing to it, against a light background (no text or symbols)

Close-up of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Abstract grayscale image with curved arrows and dots, no visible text or symbols

Close-up of a faucet with a coin inserted into a pipe, showing fluid flow direction (no text or symbols)

Nota!

Simple diagram showing a circular flow with two curved arrows indicating direction, no text or symbols present.

Hand pointing at a play button icon (no text or symbols)

Simple line drawing of a sweater with a tag (no text or symbols)

Simple line drawing of a box with an arrow indicating rotation or movement (no text or symbols)

Illustration of a person adjusting a shirt with a tool, showing no text or symbols

Simple line drawing of two bags with a bow and ribbon, no text or symbols present

Simple line drawing of a bag with an open lid and internal objects (no text or symbols)

Line drawing of a T-shirt with patterned design (no text or symbols)

Atenção!

Line drawing of a hand washing a washing machine with a cloth (no text or symbols)

! Atenção!

Line drawing of a hand holding a curved object, possibly a tool or device (no text or symbols present)

de trás da máquina. Puxe o filtro com alicate de pontas finas.

Hand holding a tool with a magnified inset showing a mechanical component (no text or symbols visible)

Simple line drawing of a hand holding a magnifying glass over a wall-mounted device (no text or symbols)

Limpar o dispensador de detergente

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical device with a lever and internal components (no text or symbols)

Hand inserting a small object into a container (no text or symbols visible)

Line drawing of a mechanical device with internal compartments and a handle (no text or symbols)

Simple line drawing of a mechanical component with a circular hole and an arrow indicating rotation (no text or symbols)

Abra a tampa inferior do tampo

Hand holding a device with a circular button, no visible text or symbols

Mechanical diagram showing a rotating component mounted on a base plate (no text or symbols)

Fecha a tampa inferior do tampo

Atenção!

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

KUBO
