BWM8323 - Washing machine Kubo - Free user manual and instructions

Product Type	Freestanding Washing Machine
Model	BWM8323
Brand	Kubo
Capacity	8 kg
Maximum Spin Speed	1400 rpm
Energy Class	A+++
Annual Energy Consumption	180 kWh
Noise Level (Wash/Spin)	52 dB / 76 dB
Dimensions (H x W x D)	85 cm x 60 cm x 55 cm
Weight	68 kg
Power Supply	220-240 V, 50 Hz, 10 A
Water Connection	Cold water inlet only
Number of Programs	15
Key Programs	Cotton, Synthetics, Delicates, Quick 15min, Eco, Wool, Hand Wash
Safety Features	Child lock, Overflow protection, Unbalanced load detection
Drum Material	Stainless steel
Display Type	LED digital display
Delay Start	Up to 24 hours
Self-Cleaning	Drum clean program
Repairability Index	8.2 / 10
Spare Parts Availability	7 years
Color	White

Frequently Asked Questions - BWM8323 Kubo

What is the maximum load capacity of the Kubo BWM8323?

The Kubo BWM8323 has a maximum load capacity of 8 kg for cotton and synthetics, but lower for delicate items.

How do I clean the detergent drawer?

Remove the drawer by pressing the release button. Wash it under running water with a soft brush. For deep cleaning, use a diluted vinegar solution.

Why is the machine not spinning properly?

Check for unbalanced load (redistribute clothes), ensure the drain hose is not kinked, and verify the spin speed setting is not reduced.

Can I use liquid detergent?

Yes, but use the liquid detergent compartment (marked with II) and avoid overfilling. For pre-wash, pour liquid into the pre-wash compartment.

How often should I clean the filter?

Clean the drain filter every 3 months to prevent blockages. Turn off the machine and unplug it before cleaning.

What does the 'Eco' program save?

The Eco program reduces energy consumption by lowering water temperature and extending wash time. It is ideal for lightly soiled loads.

How do I activate the child lock?

Press and hold the Child Lock button for 3 seconds until the lock icon appears. To deactivate, repeat the same step.

Why is water leaking from the bottom?

Check the inlet hose connections for tightness, ensure the drain hose is properly inserted, and inspect the detergent drawer for cracks.

Can I wash a duvet in this machine?

Yes, if the duvet weight is within 4 kg and labeled machine-washable. Use the Duvet/Blanket program (if available) or a gentle cycle.

How do I reset the machine?

Turn off the machine, unplug it for 1 minute, then plug back in and restart. If the issue persists, consult the error code in the manual.

USER MANUAL BWM8323 Kubo

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables 5
1.3. Humidity and Water 6
1.4. Cleaning 6
1.5. General Precautions 6

2. OPERATING INSTRUCTIONS 12

2.1. Product Description 12
2.2. Product usage 13
2.3. Maintenance 34
2.4. Troubleshooting 37

3. TECHNICAL SPECIFICATIONS 39

1. POST-SALE SERVICE 46
2. ENVIRONMENTAL PROTECTION 46

1. SAFETY INSTRUCTIONS

	WARNING
	RISK OF ELECTRIC SHOCKDO NOT OPEN
Warning: to avoid the risk of electric shock,do not remove the cover. The interior doesnot contain any parts that can be repairedby the user. Ask for assistance from theCustomer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision"

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Customer Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product, use a dry soft cloth only.

1.5. General Precautions

• Maintenance and service operations are only to be carried out by authorized professionals.
• If the appliance is sold or passed on, ensure that the new owner always receives this owner's manual.
• Always unplug the appliance if not in use."

Warning!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injury.

Caution!

This combination of symbol and signal word

indicates a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment.

Note!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries.

Warning!

ELECTRIC SHOCK HAZARD

• If the machine is damaged, it must not be operated unless repaired by the manufacturer, its service agent or similarly qualified persons. Risk of electric shock!
• Children aged 3 and under must be kept away from the appliance or continuously supervised.
• Animals and children may climb into the machine. Always check the machine before using it
• Do not climb or sit on the appliance.

• All washing and related substances must be kept in a safe place out of the reach of children.
• Do not install the machine on a carpet floor. Obstruction of the openings by a carpet can damage the machine.
• Keep the appliance clear from heating sources and direct sunlight to prevent plastic and rubber

parts from corroding.

• Do not use the appliance in humid environments or rooms containing explosive or caustic gases. In case of water leakage or water splashes let the appliance dry in the open air.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washer.
• Do not operate the machine in rooms with a temperature below 5 °C., as this can cause damage to its parts. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see "Maintenance - Cleaning the drain pump filter") to avoid damage caused by frost.
• Never use flammable sprays or substances in the immediate vicinity of the appliance.

INSTALLATION

• Remove all packaging material and transport bolts before using the appliance. Failure to do so may result in serious damage.
• This appliance is equipped with a single inlet valve that can only be connected to a cold water supply.
• The mains plug must be accessible after installation.
• Before washing clothes for the first time, the appliance must be operated once to completion without any clothes inside.

• Before using the washer, the appliance must be calibrated.

• Do not put any excessively heavy objects on the appliance, like water containers or heating devices.

• The new hose sets supplied with the appliance must be used, and old hose sets should not be reused.
• Max. inlet water pressure 1 MPa. Min. inlet water pressure 0.05 MPa.

ELECTRICAL CONNECTION

• Make sure that the supply cable is not trapped by the machine, as this can cause damage to the supply cable.
• Connect the appliance to a grounded outlet protected by a fuse that is compliant with the values in the “Technical specifications” table. The grounding installation must be made by a qualified electrician. Ensure that the machine is installed in accordance with local regulations.

Warning!

• Don't use multiple plugs or extension cords.
• The appliance must not be connected to a timer or any other external switching device, or be connected to a circuit that is regularly switched on and off.
• Do not pull the plug out of the mains outlet if there is flammable gas in the surroundings.
• Never pull out the power plug with wet hands.

• Always pull at the plug, not at the cable.

WATER CONNECTIONS

• Check the connections of the water inlet tubes, the water tap and the outlet hose for possible problems due to changes in water pressure. If the connections loosen or leak close the water tap and get it repaired. Do not use the appliance before the pipes and hoses are installed properly by qualified persons.
• The glass door may become very hot during operation. Keep children and pets clear of the washing machine while it is operating.
• The water inlet and outlet hoses must be safely installed and undamaged. Otherwise, water leakage can occur.
• Do not remove the drain pump filter while there is still water in the appliance. Big quantities of water can leak out, and there is a risk of scalding due to hot water.

• Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, and stones may cause serious damage to the washing machine.
• Thoroughly rinse items that have been washed by hand.

• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, wax and wax removers should be washed at high temperatures with an extra amount of detergent before being dried in the appliance.

• Items containing foam rubber (latex foam), shower caps, waterproof textiles, rubber padded articles and clothes or pillows fitted with foam rubber pads should not be dried in the machine

• Fabric softeners or similar products should be used as recommended in their instructions.
• Never try to open the door forcefully. The door will unlock shortly after the end of a cycle.
• Please do not close the door with excessive force. If you have any difficulty closing the door, please check if the clothes are properly inserted and distributed.
• Never pour water over the appliance for cleaning purposes. Risk of electric shock!

TRANSPORT

Before Transport:

• Bolts must be reinstalled in the machine by a specialized person
  • Accumulated water must be drained out of the machine
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.
• Do not climb or sit on the top of the washing machine.
• Do not lean against the washing machine door.

INTENDED USE

- The appliance is not intended for commercial use.

- This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;
• Farm houses;
• By clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments;
• Areas for communal use in blocks of flats or in launderettes.

2. OPERATING INSTRUCTIONS

2.1. Product Description

Note!

- The product picture is for illustration purposes only. Please take the real product as a reference.

Accessories

4 x Cover caps

1 x Supply hose (cold water)

1 x Owner's manual

2.2. Product usage

Installation

Installation site

Warning!!

• Make sure that the machine is not placed on the power cord.
• Make sure that the machine is installed with the minimum distances from the walls shown in the picture.

Before installing the machine, select an installation site that:

1. Is solid, dry, and has a level surface
2. Avoids direct sunlight
3. Provides sufficient ventilation
4. Has a room temperature of above 0 °C
5. Is free of heat sources such as coal or gas burning

Simple line drawing of a box with a cross mark on the front page, no text or symbols present.

Unpacking the washing machine

Warning!

- There is a risk of suffocation! Keep all packaging well away from children.

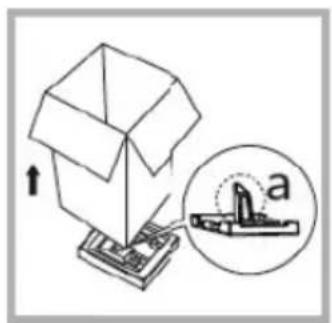

Illustration of a printer with an open box and a magnified inset showing a mechanical component labeled 'a' (no text or symbols present)

1. Remove the cardboard box and styrofoam packing.
2. Lift the washer and remove the base packaging. Make sure that the small foam triangle (a) is removed together with the bottom packaging. If not, lay the unit down on its side and remove the triangle manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.

Removing the transport bolts

Warning!

- You must remove the transport bolts from the backside before using the product.

Close-up of a mechanical component with a wrench and circular head (no visible text or symbols)

Loosen the 4 transport bolts with a spanner.

Close-up of a mechanical component with an arrow indicating direction (no visible text or symbols)

Remove the bolts including the rubber parts and keep them for future use.

Close-up of a dark circular object with an arrow pointing to it, against a blurred background (no text or symbols)

Close the holes using the cover caps.

Levelling the washing machine

Warning!

- The lock nuts on all four feet must be screwed tightly against the housing.

1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock nuts with a spanner. Make sure that the machine is level and steady.

Close-up of a mechanical component with a wrench and curved arrow symbol (no text or labels)

Connect the water supply hose

Warning!

To prevent leakage or water damage, follow the instructions in this chapter

- Do not kink, crush or modify the water inlet hose.

Connect the water supply hose to the water inlet valve and to a cold water tap as indicated.

Illustration of a person with arrows indicating motion or movement, no text or symbols present

Close-up of a faucet with a coin inserted, showing fluid flow arrows (no text or symbols)

Note!

- Connect manually, do not use tools. Check if the connections are tight

Drain Hose

Warning!

• Do not kink or protract the drain hose.
• Position the drain hose properly, as water leakage may cause damage otherwise.

The drain hose may be installed in two different ways: 1. Using a floor drain. 2. Using a wall drain or raised pipe.

Quick Start

Caution!

• Before first use, please make sure the washing machine is installed properly.
• Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odours, it's recommended that you clean your appliance before first use. You may use the Cotton program at 90 °C without laundry and detergent.

1. Before Washing

Plug in Open tap Load Close Door Add

detergent

Note!

Detergent must be added to compartment I if the pre-wash function is selected.

2. Washing

Select program
Select a function or leave the default settings
Press Start/ Pause to start the program

3. After Washing

The buzzer begins beeping and "End" is shown on the display.

Before Each Wash

- The ambient temperature of the washing machine should be 5-40 °C. If used under 0 °C, the inlet valve and draining system may be damaged. The machine should not be installed under freezing

conditions, and must be transferred to normal ambient temperature before use, to ensure that the water supply hose and drain hose can unfreeze.

- Please check your laundry care labels and the detergent use instructions before washing. Use non-foaming or less-foaming detergent suitable for washing machines.

Simple line drawing of a sweater with a tag and tie (no text or symbols)

Check the care label

Simple line drawing of a box with an arrow indicating rotation or movement (no text or symbols)

Sort laundry according to colour and textile type

Illustration of a pair of shorts with arrows indicating movement or stress (no text or symbols)

Take all items out of the pockets

Simple line drawing of two bags with a circular design on the top (no text or symbols)

Tie longer textile strips and belts together, close zips and buttons

Simple line drawing of a bag with an open lid and internal objects (no text or symbols)

Put small items into a laundry bag

Line drawing of a traditional East Asian-style garment with patterned sleeves and shoulder-length sleeves (no text or symbols)

Turn easy-pilling and long-pile fabric inside out

Warning!

- Do not wash or dry items that have been cleaned, washed or soaked in, or dabbed with combustible or explosive substances like wax, oil, paint, gasoline, alcohol, kerosene, and other flammable materials. This could result in a fire or explosion.

• Beforehand, thoroughly rinse hand-washed items of clothing.
• Washing single clothe items may easily create big eccentricity and cause alarm due to unbalance. Therefore, it is suggested to add one or two more laundry items to the wash to ensure smooth spinning.

Detergent dispenser

| Pre-wash detergent
11 Main wash detergent

Softener

Dispenser release button

Caution!

- Detergent should only be added to 'compartment I' if the pre-wash function is selected.

Model: KBWM8322, KBWM8323, KBWM8324

Programme

Cotton Bulky/Bedlinen

Synthetic Baby Care

Mix Wool

Jeans Sport Wear

Spin Only Rapid 45'

Rinse & Spin Rapid 15'

ECO 40-60 Intensive

20^ C

- Mandatory

○Optional

Programme

Detergent Recommendation

Recommended washing detergent	Wash cycles	Washing temp.	Type of laundry and textile
Heavy-duty detergent with bleaching agents and optical brighteners	Cotton, ECO 40-60	40/60	White laundry made from temperature resistant cotton or linen
Colour detergent without bleaching agents or optical brighteners	Cotton 20/40		Coloured laundry made from cotton or linen
Colour or mild detergent without optical brighteners	Cotton, Synthetic	20/40	Coloured laundry made from easy care fibres or synthetic materials
Mild washing detergent	Synthetic 20		Delicate textiles, silk, viscose
Special wool detergent	Wool 20/40 Wool

Note!

- Agglomerating or ropy detergent or additives can be diluted in some water before pouring them into the detergent dispenser, to avoid blocking the inlet and thus cause water overflow.

• Please choose the most suitable type of detergent for the best washing results with minimal water and energy consumption
• Detergent dosing is key to achieving the best cleaning results.
• Use a smaller amount of detergent if the drum is not filled completely.
• Always adjust the amount of detergent to the water hardness: if your tap water is soft, use less detergent.
• Adjust the mount of detergent to how dirty your laundry is: less dirty clothes require less detergent.
• Highly concentrated (compact detergent) requires particular care when selecting the amount of detergent.

The following symptoms are a sign of an excessive amount of detergent:

• heavy foam formation
• poor washing and rinsing

The following symptoms are a sign of an excessive amount of detergent:

• laundry turns grey
• limescale deposits on the drum, the heating element and/or the laundry

Control Panel

Model: KBWM8322, KBWM8323, KBWM8324

① On/Off Turn the appliance on and off.
② Start/Pause Start or pause your program.
③ Option This allows you to select additional functions and will light up when selected.
4 Programs Select according to laundry type.
⑤ Display The display shows settings, estimated remaining time, options and status messages.
6 Drum Clean Sp

ecially option on this machine to clean the drum and tubes.

Programs

Model: KBWM8322

Program		Load (kg)	Temp. (°C)	Default Time
		7.0 Default 7.0
Cotton		7.0 40 2:40
Intensive		7.0 40 3:48
Synthetic		3.5 40 2:20
Mix		7.0 40 1:20
Jeans		7.0 60 1:45
ECO 40-60		7.0 -- 3:23
20 °C		3.5 20 1:01
Spin Only		7.0 -- 0:12
Rinse & Spin		7.0 -- 0:20
Bulky/Bedlinen		3.5 40 1:48
Baby Care		7.0 60 1:43
Wool		2.0	40 1:07
Sport Wear		3.5 20 0:45
Rapid 45'	min	2.0	40 0:45
Quick 15'	min	2.0	Cold	0:15

Note!

- The parameters in this table are for reference only. The actual parameters may be different from those in the table mentioned above.

Model: KBWM8322

Cycle	Nominal capacity in kg	Temperature setting	Cycle duration in hours and minutes	Energy consumption in kWh/operating cycle	Water consumption in litter/operating cycle	Highest temperature °C1)	Residual moisture in % /spin speed2)
Cotton 7	7.0 60 2:45	1.385	65 60 70	%/800
Mix	7.0 40	1:20 0.7	60 40 70	%/1000
20°C	3.5 20	1:01 0.2	55 20 65	%/1000
Intensive	7.0	40	3:48	1.000	65	40	70%/800
Quick 15'	2.0	Cold	0:15	0.05	39	Cold	75%800
ECO 40-603)	7.0	--	3:28	1.074	55.5	39	53%/1400
	3.5	--	2:42	0.700	42	35	53%/1400
	2.0	--	2:42	0.460	34.6	24	53%/1400

- The above data is for reference only, and the data may change due to different actual use conditions.

- The values provided for programs other than the ECO 40-60 program are merely indicative.

- Concerning EN 60456:2016 and (EU) No.1061/2010,

• The EU energy efficiency class is: A+++

- Energy test program: Intensive; Speed: The highest speed; Temp.: 60/40 °C; Other as the default. Half load for 7.0 kg machine: 3.5 kg.

- Concerning EN 60456:2016/prA2019 and (EU)2019/2014, (EU)2019/2023,

• The EU energy efficiency class is: E
• Energy test program: ECO 40-60. Other as the default.
• Half load for 7.0 kg machine: 3.5 kg.
• Quarter load for 7.0 kg machine:2.0 kg.

Model: KBWM8323

Program Load (kg) Default Time
		8.0 8.0
Cotton		8.0 2:40
Intensive		8.0 3:48
Synthetic		4.0 2:20
Mix		8.0 1:20
Jeans		8.0 1:45
ECO 40-60		8.0 3:29
20 °C	20°C	4.0 1:01
Spin Only		8.0 0:12
Rinse & Spin		8.0 0:20
Bulky/Bedlinen		4.0 1:48
Baby Care		8.0 1:43
Wool		2.0 1:07
Sport Wear		4.0 0:45
Rapid 45' 2.0 0:45
Quick 15'		2.0 0:15

Note!

- The parameters in this table are for reference only. The actual parameters may be different from those in the table mentioned above.

Model: KBWM8323

Cycle	Nominal capacity in kg	Temperature setting	Cycle duration in h:min	Energy consumption in kWh/cycle	Water consumption in L/cycle	Highest temperature 1)	Residual moisture in % /spin speed in rpm 2)
20°C 4.0	20 1:01	0.218	47 20 65%/1000
Cotton	8.0 60	2:45	1.491 71 60	70%/800
Mix	8.0 40	1:20	0.801 71 40	65%/1000
Quick 15'	2.0	Cold	0:15	0.035	34	Cold	75%/800
Intensive	8.0	40	3:48	1.146	71	60	70%/800
ECO 40-60 3)	8.0	-	3:38	1.210	60	38	53%/1400
	4.0	-	2:48	0.780	48	33	53%/1400
	2.0	-	2:48	0.450	36	25	53%/1400

• The above data is for reference only, and the data may change due to different actual use conditions.
• The valves given for programs other than the ECO 40-60 program are indicative only.
• Concerning EN 60456:2016 and (EU)No.1061/2010, The EU energy efficiency class is: A+++
• Energy test program: Intensive; Speed: The highest speed; Temp.: 60/40 °C; Other as the default. Half load for 8.0 kg machine: 4.0 kg.
• Concerning EN 60456:2016/prA2019 and (EU)2019/2014, (EU)2019/2023.

The EU energy efficiency class is: E

Energy test program: ECO 40-60. Other as the default.

Half load for 8.0 kg machine: 4.0 kg.

Quarter load for 8.0 kg machine: 2.0 kg

Model: KBWM8324

Program		Load (kg)	Temp. (°C)	Default Time
		9.0 Default 9.0
Cotton		9.0 40 2:40
Intensive		9.0 40 3:48
Synthetic		4.5 40 2:20
Mix		9.0 40 1:20
Jeans		9.0 60 1:45
ECO 40-60		9.0 -- 3:43
20 °C	20°C	4.5 20 1:01
Spin Only		9.0 -- 0:12
Rinse & Spin		9.0 -- 0:20
Bulky/Bed linen		4.5 40 1:48
Baby Care		9.0 60 1:43
Wool		2.0	40 1:07
Sport Wear		4.5 20 0:45
Rapid 45'		2.0	40 0:45
Quick 15'		2.0 Cold	0:15

Note!

- The parameters in this table are for reference only. The actual parameters may be different from those in the table mentioned above.

Model: KBWM8324

Cycle	Nominal capacity in kg	Temperature setting	Cycle duration in hours and minutes	Energy consumption in kWh/ operating cycle	Water consumption in litter/operating cycle	Highest temperature ^^1)	Residual moisture in % /spin speed 2)
Cotton 9	0 60 2:45	1.596	75 60 70	%/800
Mix	9.0 40	1:20 0	9 70 40	70%/1000
20°C	4.5 20	1:01 0	0.25 60 20	65%/1000
Intensive	9.0	40	3:48	1.2	70	40	70%/800
Quick 15'	2.0	Cold	0:15	0.05	40	Cold	75%800
ECO 40-60 3)	9.0	--	3:48	1.295	64	41	53%/1400
	4.5	--	2:54	0.848	50	35	53%/1400
	2.5	--	2:54	0.51	38	25	53%/1400

- The above data is for reference only, and the data may change due to different actual use conditions.

- The valves given for programs other than the ECO 40-60 program are indicative only.

- Concerning EN 60456:2016 and (EU)No.1061/2010,

• The EU energy efficiency class is: A+++

- Energy test program: Intensive; Speed: The highest speed; Temp.: 60/40 °C; Other as the default. Half load for 9.0 kg machine: 4.5 kg.

- Concerning EN 60456:2016/prA2019 and (EU)2019/2014, (EU)2019/2023.

The EU energy efficiency class is: E

Energy test program: ECO 40-60. Other as the default.

Half load for 9.0 kg machine: 4.5 kg.

Quarter load for 9.0 kg machine: 2.5 kg.

Programs vary by laundry type.

Program
Cotton	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Synthetic	Wash synthetic items, for example: shirts, coats, blended items. While washing knitted textiles, detergent quantity must be reduced due to their loose string construction and propensity to forming bubbles.
Baby Care	Suitable for washing baby clothes. The increased rinsing performance helps protect the baby's skin.
Rapid 45'	Suitable for quickly washing a small number of relatively clean clothes.
Mix	Mixed load consisting of textiles made of cotton and synthetics.
Jeans Specially for jeans
20 °C	Suitable for washing brightly coloured clothes, and protect colours better.
Quick 15'	Extra short program lasting approximately 15 minutes, suitable for washing a small number of lightly soiled clothes.
Wool	Hand or machine-washable wool or textiles rich in wool. This program is particularly gentle to prevent shrinkage, and has longer pauses (to soak the textiles).
Spin Only Extra spin with selectable spin speed.
Rinse&Spin Extra rinse with spin.
Sport Wear Suitable for washing activewear.
Bulky/Bed linen	This program is specially designed for washing Bulky items/Bed linen.
Intensive	Increases washing effects by increasing washing time.
ECO 40-60	Default 40 °C, not selectable, suitable for laundry washing at about 40 °C - 60 °C.

Note!

• Refer to your actual appliance when selecting a program.

1. The highest temperature reached by the laundry during the wash cycle for at least 5 minutes.
2. Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved.
3. The ECO 40-60 program is able to clean normally soiled cotton laundry washable at 40 °C or 60 °C, in the same cycle. This program is used to assess compliance with EU regulation 2019/2023.

The most efficient programs in terms of energy consumption are generally those that perform at lower temperatures over a longer period of time.

Loading the household washer up to the capacity indicated for the respective programs will lead to energy and water savings.

Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed during the spinning phase, the higher the noise and the lower the remaining moisture content.

Caution!

- If there is any drop in the power supply while the machine is operating, a special memory stores the selected program. The machine will continue the program when the power supply is re-established.

Option

- For the maximum spin speed, program time, and other details of the

• ECO 40-60 program, please refer to the content on the Product Information Sheet page.
• The table shows the options available for adjustment with each cycle.

Speed

Spinning Speed

When needed, the spinning speed can be adjusted in the following increments by pressing the Speed button:

1000: 0-400-600-800-1000

1200: 0-400-600-800-1000-1200

1400: 0-400-600-800-1000-1200-1400

Delay

Delay

1. Select a programme;
2. Press the Delay button to choose the time delay 0-24 h
3. Press (Start/Pause) to start the delay operation.

To cancel the Delay function, press the "Delay" button before starting the program until the display shows 0 h. If the program has already started, switch the appliance off and on again, and then select a new program.

Pre-wash

Extra washing function before the main washing cycle starts to increase washing performance.

Note: Detergent needs to be added to compartment I.

Extra Rinse

The laundry will undergo an extra rinse after selecting this function.

Drum Clean

After the machine has completed a set number of cycles (25), the Drum Clean light will flash at the end of the last program, reminding the user to run the Drum Clean program;

Release condition:

1. Press and hold the Drum Clean button for 3s to reset counting to another 25 cycles.
2. Running the Drum Clean program also resets the cycle count.

Temp.

When needed, the washing temperature can be adjusted by pressing the temperature button in the following increments:

Cold - 20 °C - 30 °C - 40 °C - 60 °C - 90 °C.

Child Lock

This function is meant to keep children from misusing the controls.

Press (Temp.) and (Function) simultaneously for 3 sec until the buzzer beeps. The child lock indicator will switch on.

Caution!

• When the Child Lock is activated, the display will continuously flash the message "CL".

• Pressing any other button will cause the Child Lock indicator to flash for 3 sec. When the program ends, "CL" and "END" will alternate on the display for 10 sec, then the indicator will flash for 3 sec.

• The Child Lock deactivates the function of all buttons except the Child lock button! Only the simultaneous pressing of the two buttons (Temp.) and (Function) can deactivate the Child Lock!

• Please deactivate the Child Lock before selecting a new program!

Mute the buzzer

Choose the Programme

Press the (Spin) button for 3sec. to mute the buzzer.

To reactivate the buzzer, press the button again for 3 seconds. The setting will be kept until the next reset.

Caution!

• After Muting the buzzer function, no further sounds will be produced.

2.3. Maintenance

Cleaning and Care

Warning!

• Always unplug the appliance and close the water tap before cleaning and performing maintenance.

Cleaning the Cabinet

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water

Line drawing of a hand washing a washing machine (no text or symbols)

overflow, use a cloth to wipe it off immediately. Never use sharp items to clean the appliance.

Caution!

- Never use abrasive or caustic agents, formic acids or diluted solvents or similar substances, like alcohol or chemical products.

Cleaning the Drum

Any rust stains left inside the drum by metal articles must be removed immediately using chlorine-free detergents. Never clean the drum with steel wool!

Note!

- Keep any laundry away from the machine while cleaning the drum.

Cleaning the Door Seal and Glass

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leakages. Remove any coins, buttons and other objects from the seal after each wash. Clean the Door Seal and Glass every month to ensure the appliance operates normally

Line drawing of a hand gripping a curved object (no text or symbols)

Cleaning the Inlet Filter

Note!

- Diminishing water flow is a sign that the filter needs to be cleaned.

1. Close the tap and remove the water supply hose from it.
2. Clean the filter with a brush.
3. Unscrew the water supply hose from the backside of the machine. Pull out the filter with long nose pliers

Diagram of a mechanical valve or pump assembly with rotating arrows indicating flow direction (no text or symbols)

Illustration of a hand holding a tool with a magnifying glass (no text or symbols)

1. Use a brush to clean the filter.
2. Reattach the filter to the water inlet and reconnect the water supply hose.
3. Clean the Inlet filter every 3 months to ensure the appliance operates normally.

Hand holding a tool with a circular component, no visible text or symbols

Simple line drawing of a hand inserting a circular component into a device (no text or symbols)

Clean The Detergent Dispenser

1. Press down the release (☐) button on the softener cover and pull the dispenser drawer out of the recess. Clean the inside of the recess with a brush.
2. Lift the softener cover off the dispenser drawer and wash both items with water.
3. Place back the softener cover and push the drawer back into the recess.

Technical line drawing of a mechanical assembly with no visible text or symbols

Press the release and remove the dispenser drawer

Line drawing of a mechanical device with a lever and base plate (no text or symbols)

Clean the dispenser drawer and the softener cover under running water

Hand inserting a plug into a container (no text or symbols visible)

Clean the recess with a soft brush

Insert the dispenser drawer

Note!

• Do not use abrasive or caustic agents to clean plastic parts
• Clean the detergent dispenser every 3 months to ensure the appliance operates normally.

Cleaning the Drain Pump Filter

Warning!

• Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter.
• Be careful of hot water. Allow the water to cool down. Risk of scalding!
• Clean the filter every 3 months to ensure the appliance operates normally.

Simple line drawing of a mechanical component with a circular opening and a curved arrow indicating rotation (no text or symbols)

Open the lower cover cap

Hand holding a pen with a circular button on a screen, no text or symbols visible

Open the filter by turning it anticlockwise

Remove extraneous matter

Diagram of a mechanical assembly with rotating components and directional arrows (no text or labels)

Close the lower cover cap

Caution!

- When the appliance is in use and depending on the program selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely re-tightened.

2.4. Troubleshooting

Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact customer service.

Description Possible cause Solution
Appliance does not start	Door is not closed properly. Clothes are stuck.	Close the door properly and restart.Check the laundry.
Door can't be opened	Safety protection is activated.	Disconnect the power and restart.
Water leakage Connections are not tight enough.		Check and fasten the water inlet pipe.Check and clean the outlet hose.
Detergent residues in the detergent dispenser	Detergent is damp and/or clotted.	Clean and wipe the detergent dispenser dry.
Indicator or display does not work	PC board or harness have connection problems.	Switch off the power and check if the mains plug is connected properly.
Abnormal noise Fixing	bolts still in place.Floor is not solid or level.	Check if the fixing bolts have been removedMake sure the appliance is installed on a solid and level floor.
Error Codes
Description Possible cause Solution
E30	Door is not closed properly	Close the door properly and restart.
E10	Water intake problem during washing cycle.	Check if the water pressure is high enough.Straighten the water pipe.Clean the inlet valve filter.
E21	Excessively long water draining	Check the drain hose for blockage.
E12	Water overflow Restart the appliance.
EXX	Others Restart the appliance.If the problem persists, please contact customer service.

3.TECHNICAL SPECIFICATIONS

Supplier's name or trademark(a),(c)
Supplier's address(a),(c):
Model identifier(a): KBWM8322
General product parameters:
Parameter Value Parameter Value
Rated capacity (b)(kg)	7.0 Dimensions in cm (a),(c)		Height	85
			Width	60
			Depth	50
Energy efficiency index (b)(EEIw)	91.0 Energy effici- cy class (b)		E (d)
Parameter Value Parameter Value
Washing efficiency index (b)	1.031 Rinsing effec-tiveness (g/kg)(b)		5.0
Energy consumption in kWh per cycle, based on the eco 40-60 program. Actual energy consumption will depend on how the appliance is used.	0.784 Water con-sumption in litre per cy-cle, based on the eco 40-60 program. Actual water consumption will depend on how the appli-ance is used and on the hardness of the water.		45
Maximum temperature inside the treated textile (b) (°C)	Rated capacity	39 Weighted remaining mois-ture content (b) (%)	53.9
	Half 35
	Quarter 24
Spin speed (b) (rpm)	Rated capacity	1400 S	pin-drying ef-ficiency class (b)	B (d)
	Half 1400
	Quarter 1400
Programme dura-tion (b) (h:min)	Rated capacity	3:28 Type Free-	standing
	Half 2:42
	Quarter 242
Airborne acoustical noise emissions in the spinning phase (a) (dB(A) re 1 pW)	80		Airborne acous-tical noise emissions class (b) (spinning phase)	C (d)
Parameter Value Parameter Value
Off-mode (W)(if applicable)	0.50 Standby mode(W)(if applicable)	1.00
Delay start (W)(if applicable)	4.00 Networked	N/A
Minimum duration of the guarantee offered by the supplier (a),(c)
This product has been designed to release silver ions during the washing cycle		NO
Additional information:
Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) is found:
(a) this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369.(b) for the eco 40-60 programme.(c) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.(d) if the product database automatically generates the definite content of this cell, the supplier shall not enter these data.

Supplier's name or trademark(a),(c)
Supplier's address(a),(c):
Model identifier(a): KBWM8323
General product parameters:
Parameter Value Parameter Value
Rated capacity (b)(kg) 8.0 Dimensions	in cm (a),(c)	Height	85
		Width	60
		Depth	57
Energy efficiency index (b)(EElw)	91.0	Energy efficiency class (b)	E (a)
Parameter Value Parameter Value
Washing efficiency index (b)	1.031 Rinsing eff		ective-ness (g/kg) (b)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 program. Actual energy consumption will depend on how the appliance is used.	0.827 Water con		sump-tion in litre per cycle, based on the eco 40-60 program. Actual water consump-tion will depend on how the appli-ance is used and on the hardness of the water.	48
Maximum tem-perature inside the treated textile (b)(°C)	Rated capacity	38 We	weighted remaining mois-ture content (b)(%)	53.9
	Half 33
	Quarter 25
Spin speed (b)(rpm)	Rated capacity	1400 S	Spin-drying efficiency class (b)	B (d)
	Half 1400
	Quarter 1400
Programme dura-tion (b)(h:min)	Rated capacity	3:28	Type	Freestanding
	Half 2:48
	Quarter 2:48
Airborne acoustical noise emissions in the spinning phase (a)(dB(A) re 1 pW)	80		Airborne acousti-cal noise emissions class (b)(spinning phase)	C (d)
Parameter Value Parameter Value
Off-mode (W)(if applicable)	0.50 Standby mode(W)(if applicable)	1.00
Delay start (W)(if applicable)	4.00 Networked	N/A
Minimum duration of the guarantee offered by the supplier (°),(°)
This product has been designed to release silver ions during the washing cycle			NO
Additional information:
Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) is found:
(a) this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369.(b) for the eco 40-60 programme.(c) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.(d) if the product database automatically generates the definite content of this cell, the supplier shall not enter these data.

Supplier's name or trademark(a),(c)
Supplier's address(a),(c):
Model identifier(a): KBWM8324
General product parameters:
Parameter Value Parameter Value
Rated capacity (b)(kg)	9.0 Dimensions in	cm (a),(c)	Height	85
			Width	60
			Depth	57
Energy efficiency index (b)(EEIw)	91.0	Energy efficiency class (b)	E (d)
Washing efficiency index (b)	1.031 Rinsing effectiveness (g/kg) (b)		5.0
Parameter Value Parameter Value
Energy consumption in kWh per cycle, based on the eco 40-60 program. Actual energy consumption will depend on how the appliance is used.	0.865 Water consumption in litre per cycle, based on the eco 40-60 program. Actual water consumption will depend on how the appliance is used and on the hardness of the water.		50
Maximum temperature inside the treated textile (b) (°C)	Rated capacity	41 Weighted remaining moisture content (b) (%)	53.9
	Half 35
	Quarter 25
Spin speed (b) (rpm)	Rated capacity	1200 S	pin-drying efficiency class (b)	B (d)
	Half 1200
	Quarter 1200
Programme duration (b) (h:min)	Rated capacity	3:48 Type Free-	standing
	Half 2:54
	Quarter 2:54
Airborne acoustical noise emissions in the spinning phase (a) (dB(A) re 1 pW)	80		Airborne acoustical noise emissions class (b) (spinning phase)	C (d)
Off-mode (W) (if applicable)	0.50		Standby mode (W) (if applicable)	1.00
Parameter Value Parameter Value
Delay start (W)(if applicable)	4.00 Networked		standby (W)(if applicable)	N/A
Minimum duration of the guarantee offered by the supplier (e),(c)
This product has been designed to release silver ions during the washing cycle			NO
Additional information:
Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) is found:
(a) this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369.(b) for the eco 40-60 programme.(c) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.(d) if the product database automatically generates the definite content of this cell, the supplier shall not enter these data.

1. The actual energy consumption will depend on how the appliance is used.
2. The actual water consumption will depend on how the appliance is used and on the hardness of the water.
3. Delivery of spare parts within 15 working days after having received the order.

Product Data Sheet concerning (EU) 2019/2014

The product data sheet for your appliance can be found online.

Go to https://eprel.ec.europe.eu and enter the model identifier for your appliance to download the data sheet.

The model identifier for your appliance can be found in the technical specifications section.

4. POST-SALE SERVICE

KUBO has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar guarantees against manufacturing defects for a period of 3 years, or another period defined in the applicable legislation, from the date of purchase of the device

Parts Information

Availability of repair parts

Depending on the repair part, they are available for a minimum of seven years for professional repairers or a minimum of ten years for professional repairers and end users after the last unit of the model has been placed on the market.

5. ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic.

The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Estimado cliente:

Simple line drawing of a rectangular box with a central circle and two X-shaped marks on the sides (no text or symbols)

Close-up of a mechanical component with a wrench and circular head, no visible text or symbols

Close-up of a hand holding a metallic knob with an arrow pointing to it (no text or symbols visible)

Close-up of a dark circular object with an arrow pointing to it, against a blurred background (no text or symbols)

Close-up of a mechanical component with a curved arrow indicating rotation or direction (no text or symbols)

Conecte la manguera de suministro de agua

¡Advertencia!

Illustration of a cartoon character with arrows indicating motion or movement (no text or symbols)

Close-up of a faucet with a valve and a pipe fitting, showing fluid flow direction (no text or symbols)

¡Nota!

Simple line drawing of a sweater with a tag and tie (no text or symbols)

Simple line drawing of a mechanical assembly with two components and directional arrows (no text or symbols)

Illustration of a person adjusting a shirt with a handbag and a small object nearby (no text or symbols)

Simple line drawing of two wrapped items with ropes, no text or symbols present

Simple line drawing of a bag with internal objects (no text or symbols)

Line drawing of a traditional Chinese-style garment with long sleeves and patterned top (no text or symbols)

¡Precaución!

Line drawing of a hand washing a washing machine (no text or symbols)

¡Precaución!

Line drawing of a hand gripping a curved object (no text or symbols)

Diagram of a mechanical valve or pump assembly with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a microphone with a tool above it (no text or symbols)

Hand holding a tool with a circular component and a mechanical knob, no text or symbols visible

Line drawing of a hand inserting a plug into a device (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with a lever and base plate (no text or symbols)

Hand inserting a dark object into a rectangular frame (no text or symbols visible)

Simple line drawing of a mechanical component or housing with no visible text or symbols

Simple line drawing of a mechanical component with a circular hole and an arrow indicating rotation (no text or symbols)

Illustration of a hand using a tool to press or interact with a device (no text or symbols visible)

Mechanical diagram showing a rotating cylindrical component mounted on a base plate (no text or symbols)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Caro(a) cliente,

Simple line drawing of an open book with no text or symbols visible

Simple line drawing of a rectangular box with a central circle and two X-shaped marks on the sides (no text or symbols)

Desembalar a máquina de lavar roupa

Aviso!

Close-up of a car wheel with a wrench and arrow indicating rotation (no text or symbols)

Close-up of a metallic knob with a hand pointing to it, no visible text or symbols

Close-up of a dark circular object with an arrow pointing to it, against a light background (no text or symbols)

Close-up of a white electronic device with a wrench inserted, showing a curved arrow indicating rotation (no text or symbols present)

Abstract grayscale image showing two curved arrows pointing toward a sphere and a blurred figure (no text or symbols)

Close-up of a faucet with a coin inserted into a pipe, showing fluid flow direction (no text or symbols)

Nota!

Simple line drawing of a sweater with a tag and tie (no text or symbols)

Simple line drawing of a mechanical assembly with rotating components (no text or symbols)

Illustration of a person's shorts with arrows indicating movement or stress (no text or symbols)

Two handbags with circular designs, one wrapped in a bag and the other in a cap (no text or symbols)

Simple line drawing of a bag with an open lid and internal objects (no text or symbols)

Line drawing of a traditional-style garment with long sleeves and patterned fabric (no text or symbols)

! Atenção!

Line drawing of a hand washing a washing machine (no text or symbols)

Atenção!

Line drawing of a hand gripping a curved object (no text or symbols)

Diagram of a mechanical valve or pump assembly with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a handheld device with a brush (no text or symbols)

Hand holding a tool with a magnified inset showing rotational components (no text or symbols)

Simple line drawing of a hand holding a magnifying glass over a wall-mounted device (no text or symbols)

Limpar o dispensador de detergente

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with a lever and base plate (no text or symbols)

Hand inserting a small object into a container (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a mechanical component with a circular hole and an arrow indicating rotation (no text or symbols)

Abra a tampa inferior do tampo

Illustration of a hand using a tool to press or interact with a device (no text or symbols visible)

Mechanical diagram showing a rotating component mounted on a base plate (no text or symbols)

Fecha a tampa inferior do tampo

Atenção!

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

KUBO
