Type de produit	Modem Router Combo
Marque	Arris
Modèle	SURFboard SBG10
Catégorie	Router
Dimensions (L x P x H)	approx. 6.3 x 4.5 x 1.4 inches (160 x 114 x 35 mm)
Poids	approx. 0.7 lbs (320 g)
Alimentation	12V DC, 1A (external power adapter)
Consommation électrique	Typical 10W, max 15W
Standard DOCSIS	DOCSIS 3.0 (8x4 channel bonding)
Vitesse Internet max	Up to 343 Mbps download, 131 Mbps upload
Wi-Fi standard	802.11ac dual-band (2.4 GHz and 5 GHz)
Nombre d'antennes	2 internal antennas
Ports Ethernet	4 x Gigabit Ethernet LAN ports
Port USB	None
Fonctionnalités de sécurité	WPA2-PSK, SPI firewall, DoS protection
Contrôle parental	Yes (via web interface)
Entretien et nettoyage	Clean with a soft dry cloth; do not use liquids or aerosols
Installation requise	Plug-and-play with cable provider activation
Indice de réparabilité	Not rated; no user-serviceable parts
Pays d'origine	China (typical)

Frequently Asked Questions - SURFboard SBG10 Arris

How do I install the Arris SURFboard SBG10?

Connect the coaxial cable from your cable wall outlet to the SBG10, then plug in the power adapter. Use an Ethernet cable to connect a computer for initial setup, or connect via Wi-Fi. Activate the modem with your Internet service provider.

How do I reset the SBG10 to factory defaults?

Press and hold the Reset button on the back of the device using a paperclip for about 10 seconds until the LEDs flash. This will erase all custom settings.

What are the default Wi-Fi SSID and password?

The default SSID and password are printed on the label attached to the bottom of the device. Usually the SSID is 'Arris-XXXX' and the password is a random series of letters and numbers.

How can I change the Wi-Fi password?

Open a web browser and go to http://192.168.0.1. Log in with the default credentials (admin/password). Navigate to Wireless Settings and update the pre-shared key (password) for both bands.

Why is my SBG10 not connecting to the internet?

Check that all cables are securely connected and the coaxial cable is active. Verify that the modem is activated with your provider. Try restarting the device: unplug power for 30 seconds and plug it back in.

Can I use the SBG10 with any cable provider?

It is compatible with most cable providers that support DOCSIS 3.0, including Comcast, Spectrum, Cox, and others. However, you must check with your provider for specific compatibility and activation.

Does the SBG10 support IPv6?

Yes, the SBG10 supports IPv6. You can enable or disable it in the router's advanced settings under the IPv6 menu.

How do I enable guest Wi-Fi on the SBG10?

Log into the router settings at 192.168.0.1, go to Wireless > Guest Network. Enable guest network and set a separate SSID and password. This isolates guest traffic from your main network.

What do the LED lights on the SBG10 mean?

Power: solid green when on. Online: solid when connected to internet. 2.4G/5G: solid when Wi-Fi is active. LAN: solid when a device is connected via Ethernet. Flashing indicates activity.

Is the Arris SURFboard SBG10 outdated?

The SBG10 is an older model with DOCSIS 3.0 and AC Wi-Fi. For faster speeds (over 300 Mbps) and DOCSIS 3.1 compatibility, consider upgrading to a newer model. However, it still works well for basic to moderate internet usage.

USER MANUAL SURFboard SBG10 Arris

SURFboard® SBG10 DOCSIS® 3.0 Cable Modem

, User Guide Revision x.3

P/N 365-095-32809

ARRIS copyrights and trademarks

© 2020 ARRIS Enterprises LLC. All Rights Reserved.

No part of this publication may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from ARRIS Enterprises, LLC (“ARRIS”). ARRIS reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of ARRIS to provide notification of such revision or change.

ARRIS, SURFboard, and the ARRIS logo are trademarks of ARRIS International, plc and/or its affiliates. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks or the names of their products. ARRIS disclaims proprietary interest in the marks and names of others.

Wi-Fi Alliance ^® , Wi-Fi ^® , the Wi-Fi logo, the Wi-Fi CERTIFIED logo, Wi-Fi protected access ^® (WPA), the Wi-Fi Protected Setup logo, and WMM ^® are registered trademarks of Wi-Fi Alliance. Wi-Fi Protected Setup ^™ , Wi-Fi Multimedia ^™ , and WPA2 ^™ are trademarks of Wi-Fi Alliance.

ARRIS provides this guide without warranty of any kind, implied or expressed, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. ARRIS may make improvements or changes in the product(s) described in this manual at any time.

The capabilities, system requirements and/or compatibility with third-party products described herein are subject to change without notice.

Read all safety and regulatory information before installing your device and setting up your home network connection.

Important safety instructions

Read this before you begin — When using your equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all the instructions listed here and/or in the user manual before you operate this device. Give attention to all safety precautions. Retain the instructions for future reference.
  This device must be installed and used in strict accordance with manufacturer's instructions, as described in the user documentation that is included with the device.
  ■ Comply with all warning and caution statements in the instructions. Observe all warning and caution symbols that are affixed to this device.
  ■ To prevent fire or shock hazard, do not expose this device to rain or moisture. The device must not be exposed to dripping or splashing. Do not place objects filled with liquids, such as vases, on the device.
  This device was qualified under test conditions that included the use of the supplied cables between system components. To ensure regulatory and safety compliance, use only the provided power and interface cables and install them properly.
  ■ Different types of cord sets may be used for connections to the main POWER supply circuit. Use only a main line cord that complies with all applicable device safety requirements of the country of use.
  ■ Installation of this device must be in accordance with national wiring codes and conform to local regulations.
• Operate this device only from the type of power source indicated on the device's marking label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.

• Do not overload outlets or extension cords, as this can result in a risk of fire or electric shock. Overloaded AC outlets, extension cords, frayed power cords, damaged or cracked wire insulation, and broken plugs are dangerous. They may result in a shock or fire hazard.
  ■ Route power supply cords so that they are not likely to be walked on or pinched by items placed upon or against them. Pay attention to cords where they are attached to plugs and convenience receptacles; and examine the point where they exit from the device.
  ■ Place this device in a location that is close enough to an electrical outlet to accommodate the length of the power cord.
  ■ Place the device to allow for easy access when disconnecting the power cord of the device from the AC wall outlet.

• Do not connect the plug into an extension cord, receptacle, or other outlet unless the plug can be fully inserted with no part of the blades exposed.
  ■ Place this device on a stable surface.

• Avoid damaging the device with static by touching the coaxial cable when it is attached to the earth-grounded coaxial cable-TV wall outlet.
  ■ Always first touch the coaxial cable connector on the device when disconnecting or reconnecting the Ethernet cable from the device or user's PC.
  ■ Installation of an AC surge protector in the AC outlet to which this device is connected is recommended. This is to avoid damaging the device by local lightning strikes and other electrical surges.
  ■ Postpone installation until there is no risk of thunderstorm or lightning activity in the area.
• Avoid using a telephone (other than a cordless type) during an electrical storm. There is a remote risk of electric shock from lightning. For added protection, unplug the device from the wall outlet and disconnect the cables to avoid damage to this device from lightning and power surges.
• Do not use this product near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool, or in a wet basement.
  ■ Do not use the telephone to report a gas leak located near the leak.
• Do not cover the device or block the airflow to the device with any other objects. Keep the device away from excessive heat and humidity and keep the device free from vibration and dust.
  ■ Wipe the device with a clean, dry cloth. Never use cleaning fluid or similar chemicals. Do not spray cleaners directly on the device or use forced air to remove dust.
  ■ For added protection, unplug the device from the wall outlet and disconnect the cables to avoid damage to this device during lightning activity or power surges.
  CAUTION: To reduce the risk of fire, use only No. 26 AWG or larger (e.g., 24 AWG) UL Listed or CSA Certified Telecommunication Line Cord, or national equivalent.
  ■ Upon completion of any service or repairs to this device, ask the service technician to perform safety checks to determine that the device is in safe operating condition.
• Do not open the device. Do not perform any servicing other than that contained in the installation and troubleshooting instructions. Refer all servicing to qualified service personnel.
  ■ This device should not be used in an environment that exceeds 104° F ( 40° C).

SAVE THESE INSTRUCTIONS

Note: To CATV system installer — This reminder is provided to call the CATV system installer's attention to Section 820.93 of the National electric code, which provides guidelines for proper grounding and, in particular, specifies that the coaxial cable shield must be connected to the grounding system of the building, as close to the point of cable entry as practical.

FCC Interference statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Increase the separation between the device and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■ Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Any changes or modifications not expressly approved by CommScope for compliance could void the user's authority to operate the equipment.

FCC Declaration of Conformity

CommScope, Inc, 3871 Lakefield Drive, Suwanee, GA 30024, declares that the SURFboard device complies with 47 CFR Parts 2 and 15 of the FCC rules as a Class B digital device.

FCC Radiation Exposure statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. To comply with the FCC RF exposure compliance requirements, the separation distance between the antenna and any person's body (including hands, wrists, feet and ankles) must be at least 8 inches (20.3 centimeters).

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter except those already approved in this filing.

The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destinations. The firmware setting is not accessible by the end user.

Note: This applies to devices that provide Wi-Fi capability.

This device is a wireless network product that uses Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency-Division Multiple Access (OFDMA) radio technologies. The device is designed to be interoperable with any other wireless DSSS and OFDMA products that comply with:

■ The IEEE 802.11 Standard on Wireless LANs (Revision AC, Revision B, Revision G, and Revision N), as defined and approved by the Institute of electrical electronics engineers.
■ The wireless fidelity (Wi-Fi) certification as defined by the Wireless Ethernet Compatibility Alliance (WECA).

Restrictions on the use of wireless devices

In some situations, or environments, the use of wireless devices may be restricted by the proprietor of the building or responsible representatives of the organization. For example, using wireless equipment in any environment where the risk of interference to other devices or services is perceived or identified as harmful.

If you are uncertain of the applicable policy for the use of wireless equipment in a specific organization or environment, you are encouraged to ask for authorization to use the device prior to turning on the equipment.

The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of the devices included with this product, or the substitution or attachment of connecting cables and equipment other than specified by the manufacturer. Correction of the interference caused by such unauthorized modification, substitution, or attachment is the responsibility of the user.

The manufacturer and its authorized resellers or distributors are not liable for any damage or violation of government regulations that may arise from failing to comply with these guidelines.

Note: The use of the 5150-5250 MHz frequency band is restricted to indoor use only.

Warning: This device allows you to create a wireless network. Wireless network connections may be accessible by unauthorized users. For more information on how to protect your network, refer to the relevant chapters in this document or visit our Consumer Support website at http://www.arris.com/selfhelp.

Caring for the environment by recycling your ARRIS equipment

Please do not dispose of this product with your residential or commercial waste. Contact your local authorities for information about practices established for your region. If collection systems are not available, call ARRIS Technical Support at 1-877-466-8646 for assistance.

Table of contents

Safety and regulatory information....3

FCC statements....5

Wireless LAN information....6

Caring for the environment by recycling your ARRIS equipment....7

Chapter 1: Getting started.... 10

In the box....10

Additional items needed (not included)....11

System requirements.... 11

Contact information....12

Chapter 2: Product overview.... 13

Front panel....13

Rear panel....14

Wi-Fi cable modem label.... 15

Chapter 3: Installing the Wi-Fi cable modem.... 17

Connect the SBG10 to your client device.... 17

Establish an Internet connection.... 18

Chapter 4: Using your Wi-Fi Cable Modem Web Manager.... 19

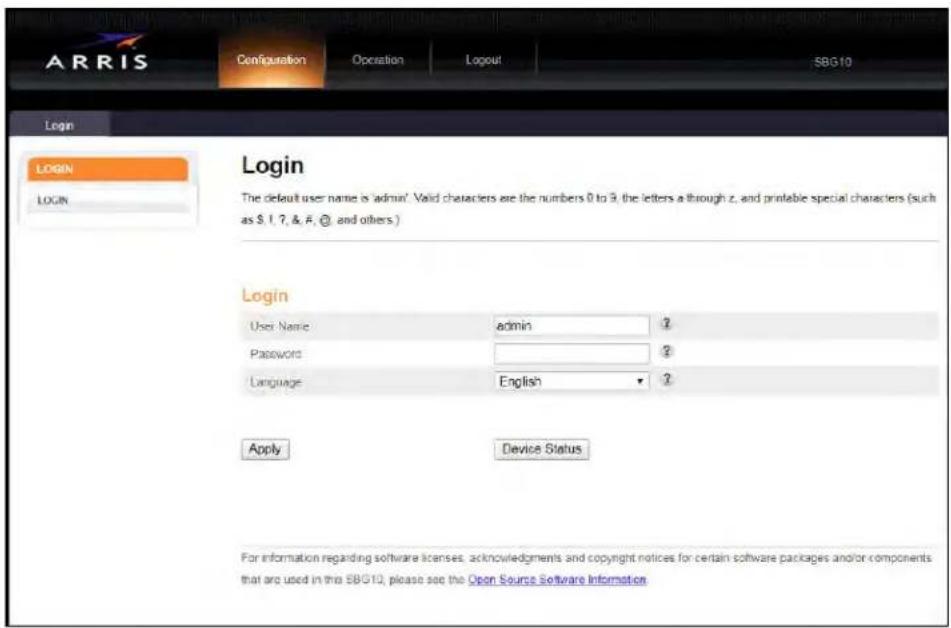

Start your SBG10 Web Manager.... 19

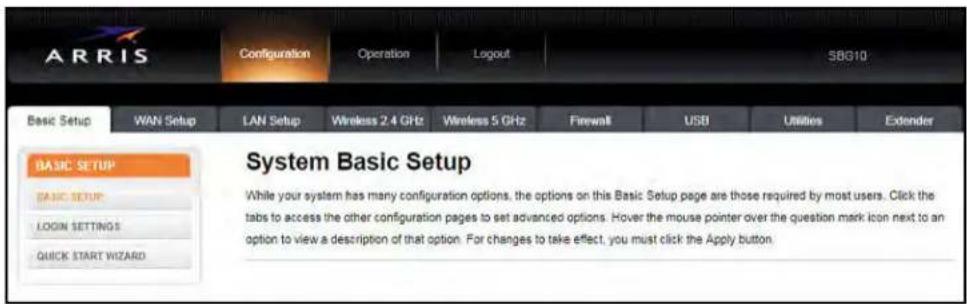

SBG10 Web Manager menu bar 22

SBG10 Web Manager-available languages....23

Change the language for the SBG10 web manager.... 23

Get Help....24

Exit the SBG10 Web Manager....25

Chapter 5: Setting up a Wi-Fi network connection....26

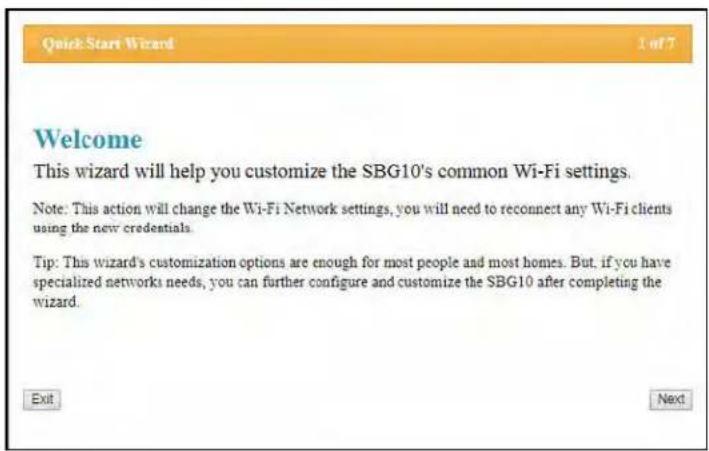

Launch the SBG10 Quick Start Wizard.... 26

Set up a Wi-Fi network connection using your client device.... 33

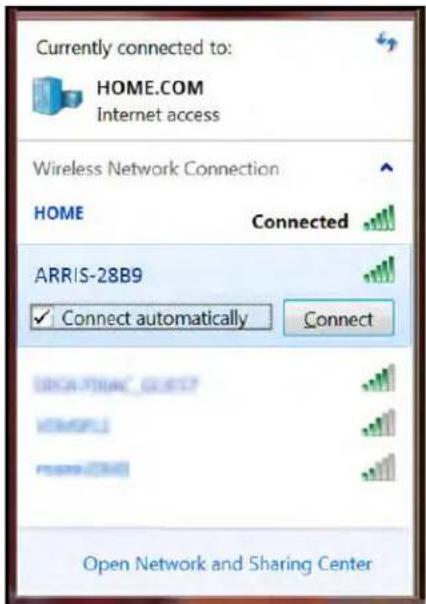

Personal computer (PC)....33

Android device....38

Apple computer....38

Apple mobile device.... 38

Test your Wi-Fi network connection....39

Chapter 6: Configuring your Wi-Fi network....40

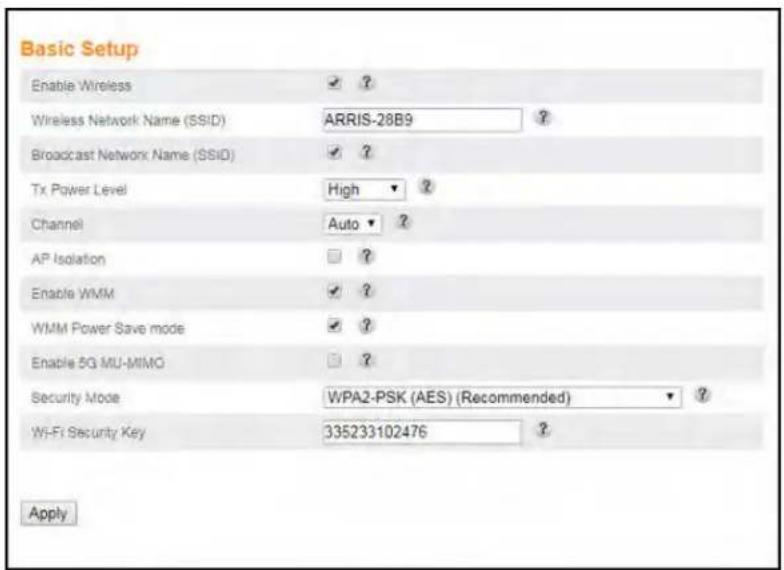

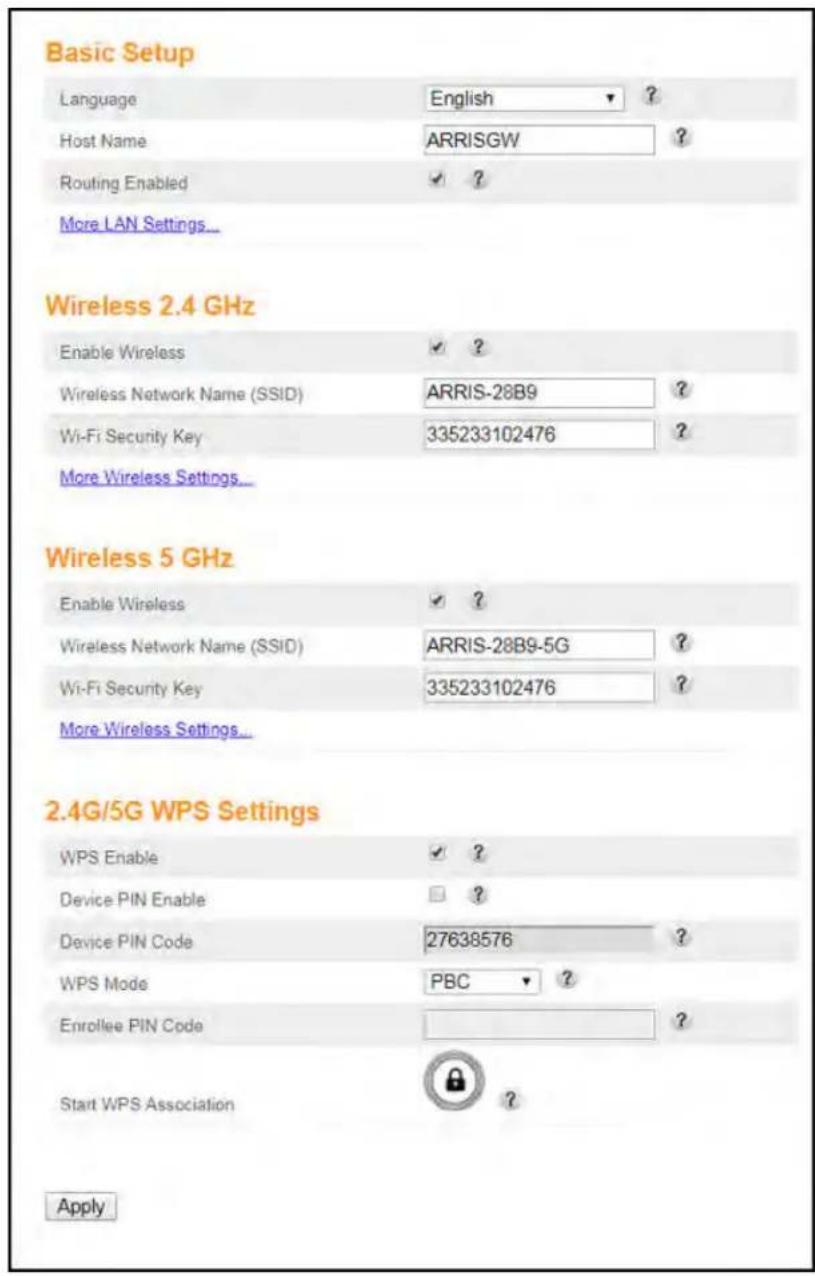

Set up your Wi-Fi network.... 40

Set up WPS on your Wi-Fi network.... 43

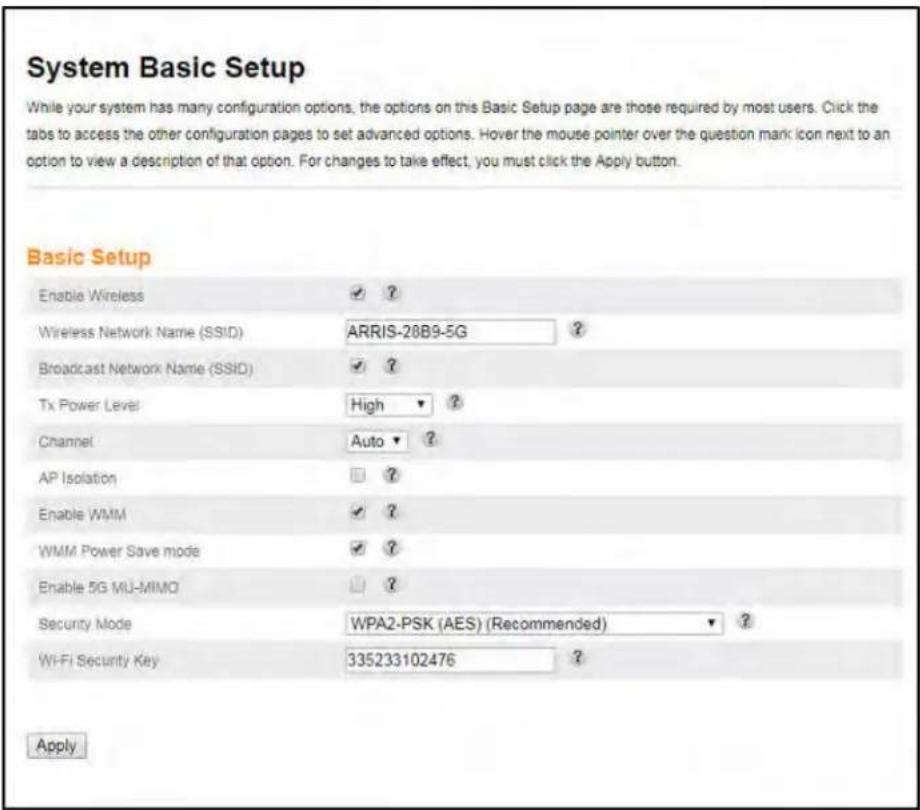

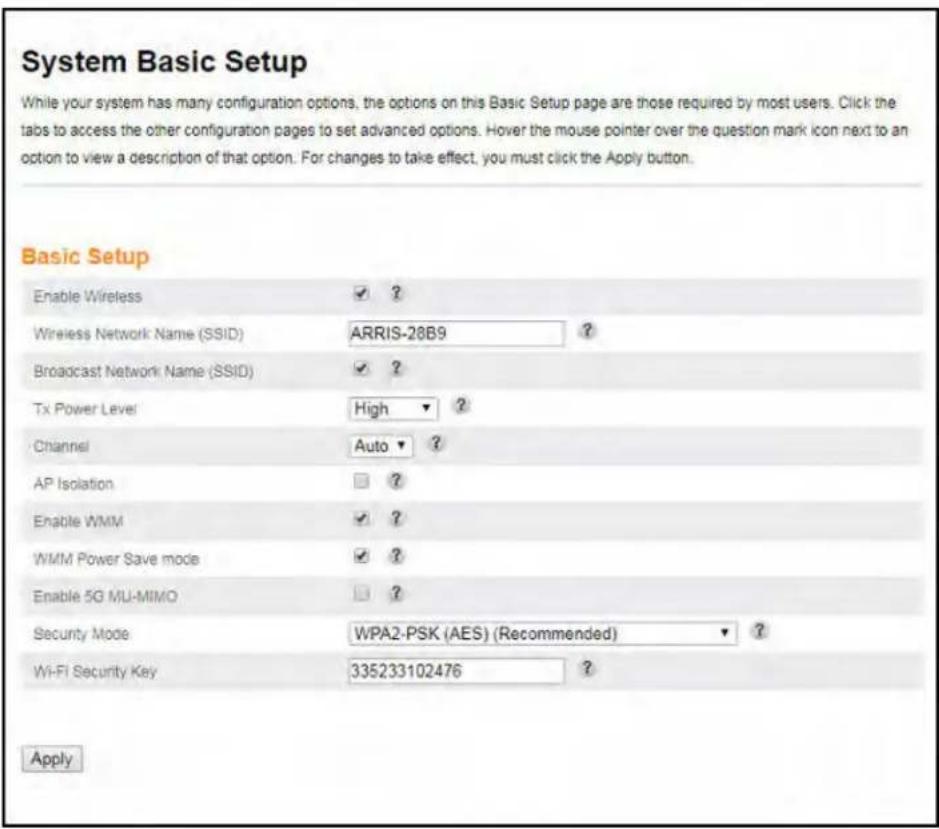

Change your Wi-Fi network name (SSID)....46

Chapter 7: Protecting and monitoring your Wi-Fi network....48

Prevent unauthorized access.... 48

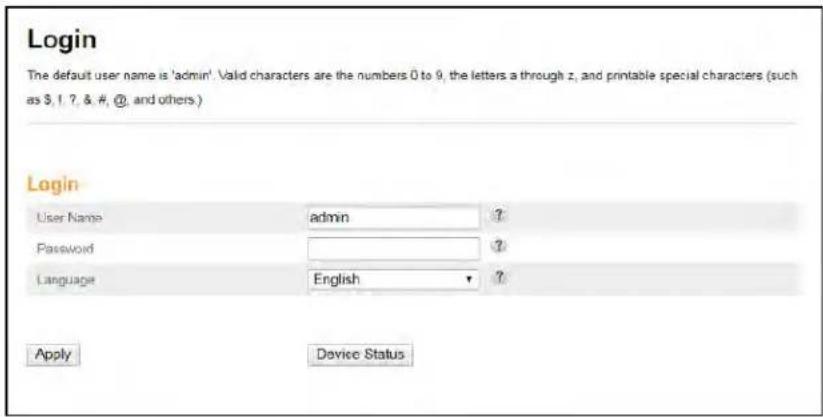

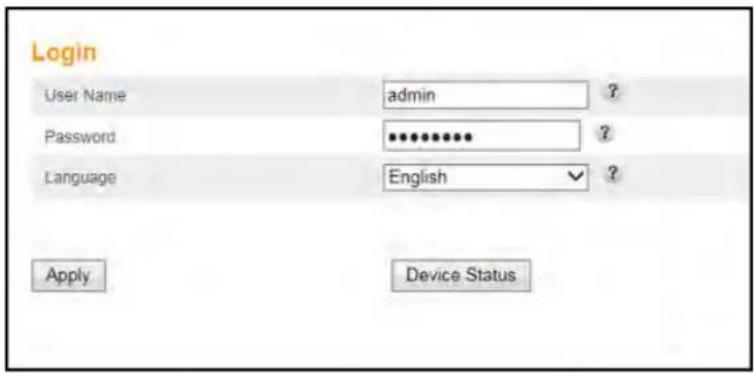

Change the user password....48

Set up firewall protection.... 50

Set up parental controls....52

Set up IP filtering.... 53

Set up MAC address filtering.... 55

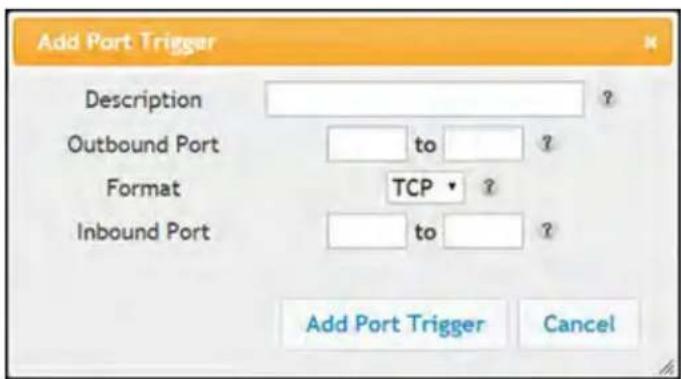

Set up port triggers....56

Set up the DMZ Host....57

Chapter 8: Managing your Wi-Fi cable modem and connected networks....58

View the SBG10 status and network connection....58

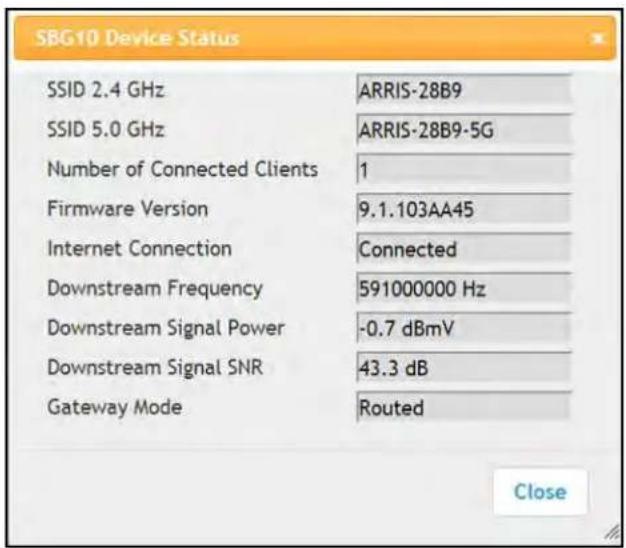

View the SBG10 product and status information.... 59

Back up your SBG10 configuration....61

Reset the SBG10 configuration using the Reset button....62

Reset the SBG10 configuration using the SBG10 web manager.... 62

Restore the SBG10 configuration....63

Exit the SBG10 web manager....63

Chapter 9: Troubleshooting tips....64

Solutions....64

Front panel LED icons and error conditions....65

Chapter 10: Warranty information....66

Getting started

Welcome to the next generation of ultra high-speed ARRIS SURFboard ^® DOCSIS ^® 3.0 Wi-Fi cable modems. The SURFboard SBG10 is a combination DOCSIS 3.0 cable modem and two-port Ethernet router with Wi-Fi. It uses DOCSIS 3.0 technology to provide ultra high-speed Internet access on your home or small business network. Using the connection capabilities of your SBG10 Wi-Fi cable modem, you can connect your computer and other network-enabled devices via the two Ethernet ports or the 2.4 GHz and 5 GHz Wi-Fi connections. Your SBG10 connects to the existing coaxial cable connection in your home.

This guide provides instructions for installing and configuring your SBG10, setting up secure Wi-Fi network connections, and managing your SBG10 and network configurations.

You can set up your SBG10 home Wi-Fi network in one of the following ways.

■ Using the Surfboard Central app (SBC app): It is recommended that you set up your home Wi-Fi network using the SBC app. For details on how to set up, refer to the SURFboard Central User Guide for Wi-Fi Cable Modems available on the http://www.arris.com/selfhelp

■ Using client device (laptop/desktop): If you are using your client device (laptop/Desktop) with a wired Ethernet connection to set up your home Wi-Fi network then perform the following task.

• Installing the Wi-Fi cable modem (page 17)

In the box

Before installing your SBG10, check that the following items are included in the box. If any items are missing, please call ARRIS Technical Support at 1-877-466-8646 for assistance. SBG10 package contents

Item Description

SBG10 Wi-Fi Cable Modem

High-speed DOCSIS 3.0 cable modem, Wi-Fi access point, and two-port Ethernet router

Item Description

Power Adapter Power cord for an electrical wall outlet connection

Software License & Warranty Card

Contains safety and regulatory information, software license, and warranty for the Wi-Fi cable modem.

SBG10 Quick Start Guide

Provides information for installing the Wi-Fi cable modem and setting up a secure Wi-Fi connection on your home network.

Additional items needed (not included)

The following items are not included in the box and must be purchased separately, if required:

■ Coaxial (coax) cable - if one is not already connected to a cable wall outlet
■ RF splitter - for additional coaxial cable connections, such as a set-top box or Smart TV
- Ethernet cable - for each additional Ethernet-enabled device

System requirements

■ High-speed Internet access account
■ Web browser access – Internet Explorer, Google Chrome, Firefox, or Safari
■ Compatible operating systems:

- Windows ^® 10

- Windows 8

- Windows 8.1

● Windows 7 Service Pack 1 (SP1)

Note: Although older versions of Microsoft Windows operating systems are no longer specifically supported, they should still function with this model.

• Mac ^® 10.4 or higher
• UNIX ®
• Linux ^®

Contact information

For technical support and additional ARRIS product information:

■ Visit the ARRIS Support website: www.arris.com/selfhelp

■ Call ARRIS Technical Support: 1-877-466-8646

Product overview

Front panel

SBG10 front view

SBG10 front panel LED icons

LED icon Blinking On (solid)
[T528]POWER	Not applicable – icon does not blink. Power is properly connected.
[0HTC]SENDRECEIVE	Scanning for upstream (send) and downstream (receive) channel connections.	Upstream (Send) and Downstream (Receive) channels are connected.
ONLINE	Scanning for an Internet connection.Wi-Fi cable modem is connected to the network.
WIRELESS2.4 GHz	Wi-Fi enabled with encrypted or unencrypted Wi-Fi data activity.	Any of the following applies:■ 2.4 GHz Wi-Fi connection is made between your SBG10 and anotherWi-Fi enabled device on your home network, such as a laptop, tablet, printer, or a Wi-Fi telephone.
[ZSDT]WIRELESS2.4 GHz(Continued)	Wi-Fi enabled with encrypted or unencrypted Wi-Fi data activity.	■ The WPS Pairing process between your SBG10 and WPS-enabled device was successful.■ The WPS Pairing process failed or did not complete after two minutes.
WIRELESS5 GHz	Wi-Fi enabled with encrypted or unencrypted Wi-Fi data activity.	Any of the following applies:■ 5 GHz Wi-Fi connection is made between your SBG10 and another Wi-Fi enabled device on your home network, such as a Wi-Fi telephone, tablet, laptop, or a printer.■ The WPS Pairing process between your SBG10 and WPS-enabled device was successful.■ The WPS Pairing process either failed or did not complete after two minutes.

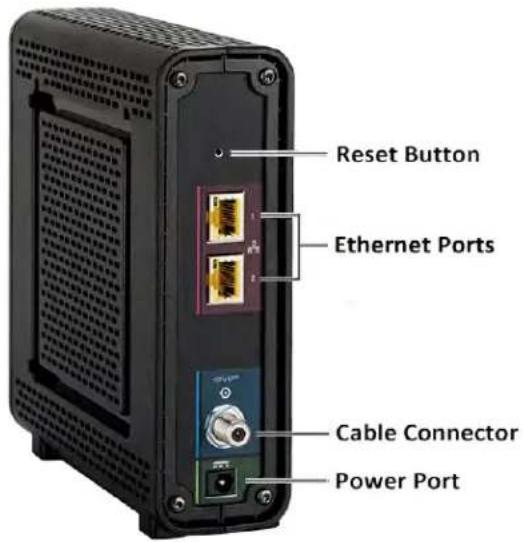

Rear panel

SBG10 rear view

SBG10 rear panel ports & connectors

Port name Description
Reset button	Reset button located on the rear panel of your SBG10 that can be used to either reboot your Wi-Fi cable modem or reset your Wi-Fi cable modem configuration settings. See Reset the SBG10 configuration using the Reset button (page 62) for more information.Warning: Reset the SBG10 configuration using the SBG10 web manager Resetting the SBG10 configuration settings to the factory defaults also deletes your custom Wi-Fi cable modem configuration, including your login password, Wi-Fi network name (SSID), and other configuration settings. You should first back up your SBG10 configuration files before resetting your SBG10. See Back up your SBG10 configuration (page 61) for more information.
	Two one-gigabit Ethernet ports for RJ-45 network cable connections:■ Green: LED is ON - Indicates a data transfer rate of one gigabit per second■ Green: LED is Blinking - Indicates data traffic is in progress■ Amber: LED is ON - Indicates a data transfer rate of less than one gigabit per second■ Amber: LED is Blinking - Indicates data traffic is in progress
[2H02]	Coaxial cable connector
Power Port 100 -	240 VAC Power connectorWarning: To avoid any damage to your SBG10, only use the power cord provided in the box.

Wi-Fi cable modem label

The Wi-Fi cable modem label is located on the bottom of your SBG10. It contains the Wi-Fi cable modem information that you may need when contacting your service provider or ARRIS Technical Support.

Sample Wi-Fi cable modem label

To receive Internet service, contact your service provider for assistance. You may have to provide the following information listed on the SBG10 Wi-Fi cable modem label:

■ Wi-Fi Cable Modem Model name (SBG10)
■ Wi-Fi Cable Modem MAC address (HFC MAC)
■ Wi-Fi Cable Modem Serial number (SN)

Installing the Wi-Fi cable modem

CAUTION: This product is for indoor use only. Do not route the Ethernet cable(s) outside of the building. Exposure of the cables to lightning could create a safety hazard and damage the product.

Connect the SBG10 to your client device

Before installing your SBG10:

■ Check with your service provider (or local cable company) to ensure broadband cable service is available in your area.

To set up a Wi-Fi network, you will need a high-speed Internet connection provided by an Internet service provider.

Note: When contacting your service provider, you may need your Wi-Fi cable modem information listed on the Wi-Fi cable modem label on the bottom of your SBG10, (see Wi-Fi cable modem label (page 15) page.

- Choose a location in your home where your computer and Wi-Fi cable modem are preferably near existing cable and electrical wall outlets.

For the best Wi-Fi coverage, a central location in your home or building is recommended.

Note: The following installation procedure covers the wired Ethernet connection so that you can confirm that your SBG10 was properly installed and can connect to the Internet.

SBG10 connection diagram

1. Check that a coaxial cable is already connected to a cable wall outlet or RF splitter (not included).

2. Connect the other end of the coaxial cable to the Cable connector on the rear of your SBG10.

Use your hand to tighten the connectors to avoid damaging them.

1. Connect the Ethernet cable to an available Ethernet port on the rear of your SBG10.

2. Connect the other end of the Ethernet cable to the Ethernet port on your client device (laptop or computer).

Optional: Repeat steps 3 and 4 for an additional client device or other network-enabled device that you want to install as a wired connection on your home network.

1. Connect the power cord to the Power port on the rear of your SBG10.

2. Plug the other end of the power cord into an electrical wall outlet that is not controlled by a wall switch.

Note: This automatically powers ON your SBG10. The LED on the SBG10 front panel may take up to 15 seconds to light up after the power is connected.

Establish an Internet connection

Although your client device may be configured to automatically access the Internet, you should still perform the following connectivity test to check that your SBG10 and client device were installed properly and are connected on your home network.

1. Power ON your client device connected to your SBG10, if it is turned off, and log on.

2. Contact your service provider to activate (provision) your SBG10.

You may have to provide the HFC MAC ID listed on the SBG10 label.

Your service provider may allow for automatic activation, which automatically launches the service provider's special website on your computer when you open a web browser.

Note: If you are a Comcast subscriber, click or type xfinity.com/activate to activate your SBG10. Call Comcast Customer Support at () if you encounter any issues with the activation.1-800-Xfinity 1-800-934-6489

1. After your SBG10 is activated (or provisioned), open a web browser (such as Internet Explorer, Google Chrome, Firefox, or Safari) on your computer.

2. Type a valid URL (such as www.surfboard.com) in the address bar and then press Enter.

The ARRIS website should open. If the website did not open, please contact your service provider for assistance.

1. Check that the Power, Send/Receive, and Online front panel LEDs on your SBG10 light up in sequential order. See Front panel (page 13) for additional LED status information.

■ If all three LEDs did not light up solid and you also do not have an Internet connection, you may have to contact your service provider to reactivate your SBG10 or check for signal issues.

■ If you still cannot connect to the Internet, please call ARRIS Technical Support at 1-877-466-8646 for assistance.

Using your Wi-Fi Cable Modem Web Manager

Use your SBG10 Web Manager to view and monitor the network configuration settings and operational status of your SBG10.

Note: If you did not purchase your SBG10 from a retail store, you may notice a few blocked configuration settings in the SBG10 Web Manager that cannot be modified. This may be due to some restrictions set up by your service provider to prevent unauthorized changes to certain configuration parameters.

Start your SBG10 Web Manager

If this is your first time logging on to your SBG10 Web Manager, you must use the default user password. For network security, ARRIS recommends that you change the default user password. You can change it at any time, see Change the user password (page 48) for more information.

1. Open a web browser (such as Internet Explorer, Google Chrome, Firefox, or Safari) on the computer connected to your SBG10.
2. Type the default LAN IP address, 192.168.0.1, in the Address bar and then press Enter to log in and open your SBG10 Web Manager.

SBG10 login screen

1. Type password in the Password field.

This is the default user password (case-sensitive) to log in to your SBG10 Web Manager.

Note: You must enter the default user password if you are logging on to your SBG10 Web Manager for the first time.

SBG10 login screen

1. Select your preferred language from the Language drop-down list, if applicable:

■ English
■ Espanol (Spanish)
■ Francais (French)
■ Deutsch (Dutch)
■ Portugues do Brasil (Brazilian Portuguese)

1. Click Apply to open the SBG10 Web Manager.

The Alerts!! message box displays:

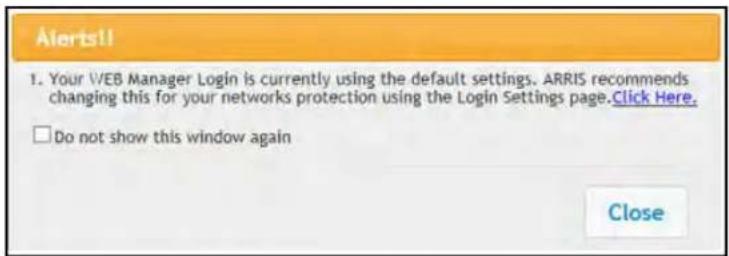

SBG10 web manager alerts message box

Note:

ARRIS recommends that you change the default user password for network security to protect your Wi-Fi home network from unauthorized user access on the Internet. Choose one of the following options:

■ Change the default user password now, continue with step 6.
■ Change the default user password later, click to continue with the SBG10 Web Manager. See Change the user password (page 48) for more information.

1. Click the Click Here link in the Alerts!! Message box to open the Login Settings-Change Password screen.

SBG10 login settings-change password screen

1. Enter the default user password in the Old Password field.
2. Enter your new user password in the New Password field.

Note:

Remember that passwords are case-sensitive and that you can use any combination of the following letters, numbers, and special characters:

■ Letters: A through Z (uppercase and lowercase)
■ Numbers: 0 to 9

■ Special characters: ! @ # \$ % & *

1. Enter your new user password again in the Repeat New Password field.

2. Enter the inactivity time (30 to 900 seconds) in the Login Timeout field.

This is the amount of time (in seconds) allowed for the Web Manager to be inactive before it times out and closes.

1. Click Apply to update your user password.

The Please Wait Applying Changes... message displays.

1. Find a secure place to write down and keep your new password for future reference, if needed.

SBG10 Web Manager menu bar

The SBG10 menu buttons are displayed along the top of the SBG10 Web Manager screen (see Figure 9). To view a submenu screen, click the related menu button on the menu bar.

SBG10 web manager menu bar

SBG10 Web Manager menu bar

Menu optionFunction

Configuration

Basic Setup Displays the default configuration settings for the Wi-Fi cable modem and allows you to change your user password.

WAN Setup Displays the network configuration settings for the network connections outside your home.

LAN Setup Displays the network configuration settings for your home network.

Wireless 2.4 GHz Sets up your 2.4 GHz Wi-Fi network.

Wireless 5 GHz Sets up your 5 GHz Wi-Fi network.

Firewall Configures the Wi-Fi cable modem firewall to protect your home network from possible attacks from hackers or viruses.

USB Displays the current storage status of your USB device.

UtilitiesProvides general in formation to help you set up your home network.

Extender Configures your Wi-Fi SURFboard network extenders.

OperationProvides the following SBG10 information:

■ Network operational status
■ Hardware and firmware versions

Menu optionFunction

■ Event Log
■ CM (cable modem) status
■ Configuration

Logout Closes the SBG10 Web Manager.

SBG10 Web Manager-available languages

The SBG10 Web Manager is available in the following languages:

■ English
■ Espanol (Spanish)
■ Francais (French)
■ Deutsch (Dutch)
■ Portugues do Brasil (Brazilian Portuguese)

Change the language for the SBG10 web manager

Do the following to change the language for the SBG10 Web Manager:

1. Open any web browser (Internet Explorer, Google Chrome, Firefox, or Safari) on the computer connected to the SBG10.
2. Type the default LAN IP address, 192.168.0.1, in the Address bar and then press Enter to log onto the SBG10.

The SBG10 Login screen displays.

SBG10 login screen

1. Type password or your new user password in the Password field.
2. Click Apply to open the SBG10 Web Manager.
3. Click the Basic Setup menu button on the SBG10 Web Manager menu bar.

SBG10 language screen

1. Click the Language drop-down arrow in the Basic Setup section.

2. Select the language from the Language drop-down list.

3. Scroll down to the bottom of the screen and click Apply.

The Product Registration screen will display.

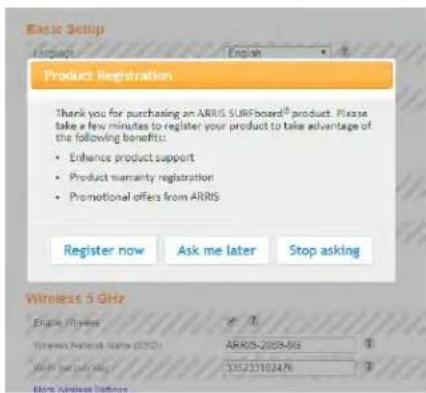

SBG10 product registration screen

1. Click one of the following options to continue:

2. Register now - opens the ARRIS Device Registration screen. Complete each entry and follow the prompts to register your SBG10.

3. Ask me later – the Product Registration box will display every time you log in to the SBG10 Web Manager until you either register your SBG10 or click Stop asking.
   ■ Stop asking - proceed with the SBG10 Web Manager.

Get Help

Field-level help is available for all screen entries in the SBG10 Web Manager (see figure 13).

- Click on or move the cursor over the ? icon located to the right of the applicable field.

SBG10 field level help

Exit the SBG10 Web Manager

To log out and close the SBG10 Web Manager:

■ Click Logout button located above the SBG10 Web Manager menu bar.

SBG10 Web Manager logout button

Setting up a Wi-Fi network connection

Note: Your home network connection must be up and running on the Internet before you can set up your Wi-Fi network connections. Before proceeding, check that your SBG10 and computer or other client device can connect to the Internet using a wired Ethernet cable connection, see Connect the SBG10 to your client device (page 17) for more information. Please note that If your Internet service is not yet set up, contact a broadband service provider of your choice for assistance.

There are three Wi-Fi network connection options available to configure your Wi-Fi network connection on your home network. Click one of the following:

■ Launch the SBG10 quick start wizard
■ Set up a Wi-Fi network connection using your mobile device
■ Set up a Wi-Fi network connection using your client device

After setting up your Wi-Fi home network connection, check that your Wi-Fi network connection was set up properly, see Test Your Wi-Fi Network Connection.

Launch the SBG10 Quick Start Wizard

The SBG10 Quick Start Wizard is a six-step application to help you quickly configure the default Wi-Fi network settings on your SBG10. It configures the SBG10 Wi-Fi network name (SSID), Wi-Fi Security Key (network password), and Wi-Fi Security code.

Note: The SBG10 Quick Start Wizard uses the default network settings configured for your SBG10 to help you quickly set up your Wi-Fi home network. However, using the wizard, you can only change the Wi-Fi network name (SSID) and Wi-Fi Security key (network password). After completing the wizard and connecting your SBG10 to your Wi-Fi home network, you can make additional network configuration changes to further customize your Wi-Fi home network and connect your Wi-Fi devices. See Configuring your Wi-Fi network (page 40) for more information.

1. Open a web browser (e.g., Internet Explorer, Google Chrome, Firefox, or Safari) on the computer or client device connected to your SBG10.
2. Type the default LAN IP address, 192.168.0.1, in the Address bar and then press Enter to log on to your SBG10 and open the SBG10 Web Manager.
   The SBG10 Login screen displays.

SBG10 login screen

1. Type password in the Password field.

This is the default user password (case-sensitive) to log in to the SBG10 Web Manager.

SBG10 login screen

1. Click Apply to open the SBG10 Web Manager.

The Alerts!! message box displays:

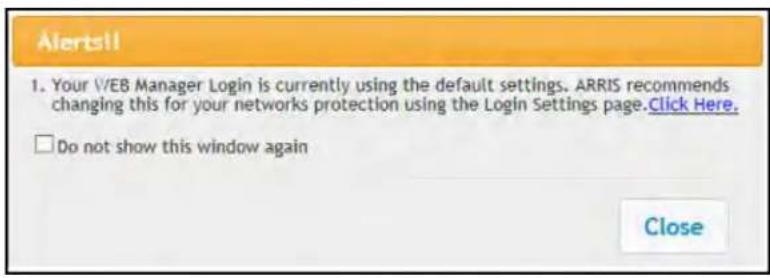

SBG10 web manager alerts message box

1. Click Close in the Alerts!! message box to continue.

The Product Registration message box displays.

SBG10 product registration screen

1. Click Register now, Ask me later, or Stop asking to proceed.

2. Click the Basic Setup main menu tab on the SBG10 Web Manager menu bar to open the System Basic Setup screen.

SBG10 system basic setup screen

1. Click QUICK START WIZARD from the Basic Setup submenu options list to start the SBG10 Quick Start Wizard and

The Welcome screen displays.

SBG10 quick start wizard welcome screen

1. Click Next to open the Wi-Fi Network Name & Passphrase screen.

SBG10 quick start wizard - screen 2 of 7

1. Choose one of the following to set up your Wi-Fi Network Name in the Network Name (SSID) field for logging on to your Wi-Fi home network:

- Keep the default Wi-Fi network name listed in the Network Name (SSID) field and on the SBG10 Wi-Fi Cable Modem label.

Note: You must keep the listed default Wi-Fi network name if this is your first time setting up your Wi-Fi home network. You cannot change the network name until after you have completed the Quick Start Wizard. See Change your Wi-Fi network name (SSID) (page 46) for more information.

■ Enter a new Wi-Fi network name for your Wi-Fi home network in the Network Name (SSID) field.

Your new network name can contain any combination of up to 32 alphanumeric characters.

Note: You can change the Wi-Fi network name (SSID) after you have installed the SBG10 and completed the Quick Start Wizard to set up your Wi-Fi home network connection. You can also change your SSID using the SBG10 Web Manager. For more information, see Change your Wi-Fi network name (SSID) (page 46).

1. Choose one of the following to set up your Wi-Fi home network password in the Passphrase/Wi-Fi Security Key field:

- Keep the default passphrase or Wi-Fi Security key (listed in the Passphrase / Wi-Fi Security Key field and on the SBG10 Wi-Fi Cable Modem label).

You have the option to change your network password later. See Change your Wi-Fi network name (SSID) (page 46) for more information.

■ Enter a new password for your Wi-Fi home network.

The passphrase or Wi-Fi Security key is the sign-on access code for logging on to your Wi-Fi network. The access code must contain from eight to 64 characters consisting of any combination of letters, numbers, and symbols. Your Wi-Fi network password

should be as unique as possible to protect your Wi-Fi home network and deter hackers or unauthorized access to your Wi-Fi home network.

Note: ARRIS recommends that you change the default Wi-Fi Security Key to a more secure Wi-Fi network password to protect your Wi-Fi home network from unauthorized access. See Prevent unauthorized access (page 48) for more information.

1. Click Next to open the 2.4 GHz & 5 GHz Networks screen.

This screen shows the two available Wi-Fi network frequency bands (2.4 GHz and 5 GHz) for the SBG10. The wizard configures 2.4 GHz as the default Wi-Fi frequency band. See Set up your Wi-Fi network (page 40) to change the Wi-Fi frequency band after completing the quick start wizard.

Note: The 2.4 GHz frequency range is recommended for backward compatibility purposes because older Wi-Fi devices cannot connect to 5 GHz frequencies.

1. Click Next to open the Wi-Fi Security Configuration screen

SBG10 quick start wizard - screen 4 of 7

The quick start wizard configures WPA2-PSK as the default Wi-Fi network security code. It is the highest Wi-Fi network security level. See Set up your Wi-Fi network (page 40)

to change the Wi-Fi security code for your Wi-Fi home network after completing the quick start wizard.

1. Click Next to open the User Security Configuration screen.

SBG10 quick start wizard - screen 5 of 7

This step lets you change the default or current user password to log on to the SBG10 Web Manager.

Note: To change your user password, you must first select the Change Password checkbox to activate the password fields. If the checkbox is not selected, the field is disabled. The Next button is disabled if the user password is not entered correctly. Make sure to repeat the same user password in the respective fields.

1. Select the Change Password checkbox to enable you to change the current user password.

2. Enter your current user password in the Enter Current Password field.

3. Enter your new user password in the Enter New Password field.

4. Repeat your new user password in the Re-Enter New Password field.

5. Click Next to open the Review Settings screen and confirm your Wi-Fi network settings.

SBG10 quick start wizard - screen 6 of 7

1. Click Apply to accept your Wi-Fi network settings and open the Settings Applied screen.

- or -

Click Previous to go back to the previous screen and change your Wi-Fi network name and/or user password.

If you clicked Apply, wait for your Wi-Fi network settings to be saved. When the process is finished, the Settings Applied screen will open.

SBG10 quick start wizard - screen 7 of 7

1. Click Exit on the Settings Applied screen to close the quick start wizard.

-or-

Click Print > to print a copy of your Wi-Fi network connection settings from a connected (wired or wireless) network printer. This can be helpful to keep a copy of your new Wi-Fi network settings for logging on to your Wi-Fi network.

Set up a Wi-Fi network connection using your client device

Note: You will need the and to connect your client devices to your home network. The default network name and network password are listed on the SBG10 label.

Select one of the following network connection options for the client device you are using to set up a Wi-Fi network connection on your Wi-Fi home network. Repeat for each additional device:

■ Personal computer (PC)
■ Android device (page 38)
■ Apple computer (page 38)
■ Apple mobile device (page 38)

Personal computer (PC)

Select one of the following:

■ Quick connect using the windows taskbar (page 33)
■ Connect using the windows control panel

The steps for setting up your Wi-Fi network connection may differ slightly depending on the version of Microsoft Windows running on your client device. The steps used in this section apply to Windows 7.

Quick connect using the windows taskbar

1. From the Windows taskbar on your computer, click the Wi-Fi Link icon (see Figure 31) to open the list of available Wi-Fi networks (see Figure 32).

Sample windows taskbar icons

Note: If the icon is not visible, left-click on the button on the Windows taskbar to open the list of additional icons.

Sample available Wi-Fi networks window

1. Locate and left-click on the SBG10 Wi-Fi network name or SSID (for example, ARRIS-####) for your SBG10 from the list of available Wi-Fi networks.

The default SSID is located on the Wi-Fi cable modem label on the bottom of your SBG10.

Note: You must use the default SSID listed on the SBG10 label when installing your SBG10 and setting up your first Wi-Fi network connection. You can change the SSID after your network connections are up and running. See Change your Wi-Fi network name (SSID) (page 46) for more information.

Sample Wi-Fi network connection window

1. Select Connect automatically to set up your Wi-Fi devices to automatically connect to your Wi-Fi network without having to log on using a user password.

2. Click Connect to open the Connect to a Network window and set up your new network password.

Network connection window

1. Enter the Network Security Key (your Wi-Fi network password) in the Security key field.

Note: You can use the default Wi-Fi Security Key code listed on the SBG10 label or enter your own personal Wi-Fi network password. See Prevent Unauthorized Access (page Prevent unauthorized access (page 48)) for more information on creating user passwords.

If you have already changed your Wi-Fi network password using the SBG10 Web Manager, enter that password in the Security key field.

Network connection-create network password window

1. Select Hide characters > and then click OK to encrypt your network password.

Connect using the Windows control panel

1. From the Windows taskbar on your computer, click Start button and then click Control Panel.
2. Click Network and Sharing Center to open the Network and Sharing Center window.

Control Panel Home Manage wireless networks Change adopter settings Change advanced sharing settings

Control panel-network and sharing center window

1. Click Manage wireless networks under Control Panel Home side panel to open the Manage Wireless Networks window.
2. Click Add to open the Manually Connect to a Wireless Network window.

Manually connect to a wireless network window

1. Click Manually create a network profile to open another Wireless Network window.

Enter information for the wireless network you want to add

Network name:

Security type:

[Choose an option]

Encryption type

Security Key:

Hide characters

□ Start this connection automatically

☐ Connect even if the network is not broadcasting

Warning: If you select this option, your computer's privacy might be at risk.

Manually connect to a wireless network window

1. Enter the SBG10 Wi-Fi network name or SSID (ARRIS-####) for your SBG10 in the Network name field.

The default SSID is listed on the Wi-Fi cable modem label on the bottom of your SBG10.

Note: You have the option to change your Wi-Fi network name or SSID after setting up your Wi-Fi network connection. However, you must use the default SSID listed on the Wi-Fi cable modem label after installing your SBG10. See Change your Wi-Fi network name (SSID) (page 46) for more information.

1. Select the Wi-Fi Security level for your Wi-Fi network from the Security type drop-down list.

Note: WPA2-Personal is the recommended Wi-Fi security level for your Wi-Fi home network. It is the default security level for your SBG10 and the highest security level available.

1. Select the password encryption type from the Encryption type drop-down list.

This is used for securing your Wi-Fi network.

■ TKIP – Temporal Key Integrity Protocol

■ AES - Advanced Encryption Standard (recommended). AES is the default encryption type for the SBG10.

1. Enter a security code (passphrase) for your Wi-Fi network password in the Security Key field.

You can use the default WI-FI SECURITY KEY listed on the SBG10 Wi-Fi Cable Modem label or create your own personal network password.

Note: Remember to use a unique combination of letters, numbers, and special characters to create a more secure password. See Prevent unauthorized access (page 48) for more information.

1. Select Hide characters checkbox to prevent your Security Key (network password) from displaying in the field.

2. Select Start this connection automatically > so that your Wi-Fi devices will automatically connect to your Wi-Fi network when they are powered on.

3. Click Next to complete the Wi-Fi network setup.

The Successfully added message for your new Wi-Fi network should appear.

1. Click the Close button to exit.

Android device

From any screen on your client device:

Select 📄 to open the Ⓧ ttings screen.

Select Wi-Fi to turn it ON.

1. Your device will start searching and then display a list of available Wi-Fi networks.

Select your Wi-Fi network name (SSID) from the list.

If prompted, type your Wi-Fi Security Key (network password).

Please note that your network password is case-sensitive.

Select Connect.

1. If your Wi-Fi network connection is successful, "Connected" will display under your network name.

Apple computer

From any screen on your client device:

Click 📤 (Wi-Fi icon) to display a list of available Wi-Fi networks.

Select the Wi-Fi network name (SSID) for your home network from the list.

If prompted, enter your network password in the Password field.

Note: If you want your client device to automatically connect to your home network, then:

■ Ensure that your device is within the range of your Wi-Fi network
■ Ensure to automatically remember this network.

Apple mobile device

From the Home screen on your client device:

Select Settings to open the Wi-Fi screen.

Select Wi-Fi to turn it ON.

Your device will automatically start searching and then list the available Wi-Fi networks.

Select the Wi-Fi network name (SSID) for your home network from the list to connect.

If your Wi-Fi connection is successful, √ will display next to the Wi-Fi network name.

Note: For more information on setting up your Wi-Fi network connections, refer to the user documentation for your specific client device.

Test your Wi-Fi network connection

Perform the following connectivity test to check that Wi-Fi connections were established for the SBG10 and the other Wi-Fi devices on your Wi-Fi home network:

1. Check if your Wi-Fi devices successfully connected to your Wi-Fi network, then disconnect the Ethernet cable (if connected) from your computer and the SBG10.

2. Check that the 2.4 GHz or 5 GHz Wireless LED on the SBG10 front panel is lit SOLID green.

3. Open a web browser on your computer, such as Internet Explorer, Google Chrome, Firefox, or Safari.

4. Type a valid URL (such as www.surfboard.com) in the address bar and then press Enter. If the website failed to open, please contact your service provider or call ARRIS Technical Support at 1-877-466-8646 for assistance.

Configuring your Wi-Fi network

Set up your Wi-Fi network

1. Open a web browser and log onto your SBG10 to open the SBG10 Web Manager. See Start your SBG10 Web Manager (page 19) for more information, if necessary.
2. Click the Wireless 2.4 GHz or Wireless 5 GHz main menu tab on the SBG10 Web Manager menu bar for the Wi-Fi frequency range you are setting up for your Wi-Fi network.
3. Click BASIC from the Wireless submenu option you are setting up.

SBG10 2.4 GHz wireless screen

SBG10 5 GHz wireless network screen

1. Select the Enable Wireless checkbox to turn ON Wi-Fi networking on your home network.

- or -

Deselect the Enable Wireless checkbox to turn OFF Wi-Fi networking on your home network.

1. Do one of the following to set the network name or SSID (Service Set Identifier) for your Wi-Fi network in the Wireless Network Name (SSID) field:

2. Keep the default network name listed in the network name field (also listed on the Wi-Fi cable modem label).
   ■ Enter a new network name for your Wi-Fi network.

The Wi-Fi network name cannot be the same name as any other SSID on your home network. You can use any combination of letters (lowercase and uppercase), numbers, and/or special characters (symbols) up to a maximum of 32 characters.

1. Select the Broadcast Network Name (SSID) checkbox to turn ON displaying your SSID as an available Wi-Fi network to outside users.

- or -

Deselect the Broadcast Network Name (SSID) checkbox to turn OFF displaying your SSID as an available Wi-Fi network to outside users.

Note: When Broadcast Network Name (SSID) is enabled, your SSID is visible and available to unauthorized Wi-Fi clients that are within range to connect to your home network.

1. Select High, Medium, or Low for the Tx (Transmit) Power Level of the Wi-Fi radio.

2. Select a channel number (Auto, 1 thru 11) from the Channel drop-down list to set the Communications channel for your SBG10.

Note: For 2.4 GHz Wi-Fi networks, it is recommended to use Channel 1, 6, or 11, if it is not listed as the Current Channel. In the Wi-Fi spectrum, there are multiple channels that overlap and thus degrade Wi-Fi network performance. Channels 1, 6, and 11 are used for better network performance and stability because they do not overlap.

1. Select the AP Isolation checkbox to enable separate virtual networks for your Wi-Fi clients.

- or -

Unselect the AP Isolation checkbox to disable separate virtual networks for your Wi-Fi clients.

Note: When AP Isolation is enabled, each of your Wi-Fi clients will be in its own virtual network and will not be able to communicate with the other Wi-Fi clients. This may be useful if several guests are using your Wi-Fi network.

1. Select the Enable WMM checkbox to turn ON Wi-Fi Multi-media functionality.

Enabling WMM can help control latency and jitter when transmitting multi-media content over a Wi-Fi connection. This quality of service mechanism uses four access categories:

■ Voice
■ Video
■ Best effort
■ Background

WMM ensures that applications with low tolerance for latency and jitter are treated with higher priority than less sensitive data applications. WMM sets different wait times for the above four categories to provide priority network access for applications that are less tolerant of packet delays.

1. Select the WMM Power Save mode checkbox to set the more efficient power management method.

-or-

Deselect the WMM Power Save mode checkbox to turn OFF the WMM Power Save mode.

1. Select one of the following Wi-Fi network security options for your SBG10 from the Security Mode drop-down list:

■ Open (not secure): Network security is not set for your Wi-Fi network. This network security option allows access to your Wi-Fi network without a Wi-Fi Security Key (network password).
■ WEP (64/128) (poor security): Wired Equivalent Privacy.

■ WPA/WPA2-PSK (TKIP/AES) (most compatible): Wi-Fi Protected Access version 2 with Pre-Shared Key.
■ WPA2-PSK (AES) (recommended) : Wi-Fi Protected Access version 2 with Pre-Shared Key.

1. Enter a string of either ASCII characters or hexadecimal numbers (0 thru 9, A thru F) in the Wi-Fi Security Key field to create your WPA Pre-Shared Key.

The Pre-Shared key is used to generate a unique password for WPS-enabled devices to connect to your Wi-Fi network.

1. Click Apply.

Set up WPS on your Wi-Fi network

Wi-Fi Protected Setup (WPS) is a Wi-Fi network setup option that provides a quick and easy way to set up a secure Wi-Fi network connection for any WPS-enabled device, such as a computer, tablet, gaming device, or printer. WPS automatically configures your Wi-Fi network connections and sets up Wi-Fi network security.

1. Open the SBG10 Web Manager. For more information, see Start your SBG10 Web Manager (page 19).

2. Click the Basic Setup main menu tab on the SBG10 Web Manager menu bar to open the System Basic Setup screen.

3. Scroll down to the 2.4G/5G WPS Settings section at the bottom of the screen.

2.4G/5G WPS settings screen

1. Select the WPS Enable checkbox to allow for Wi-Fi Protected Setup (WPS) device connections on your Wi-Fi home network.

2. Select the Device PIN Enable checkbox if you want to connect your Wi-Fi devices using the listed Device PIN Code.

3. Select one of the following WPS Pairing methods from the WPS Mode drop-down list to connect or pair your WPS-enabled client device:

■ a. PBC (Push Button Control) – Press and hold the WPS button on your WPS-enabled client device and click the Start WPS Association button on the 2.4G/5G WPS Settings screen to start the WPS pairing process.

■ b. Start the WPS pairing process with your WPS-enabled computer or other WPS-enabled client device that you want to connect to your Wi-Fi network.

■ c. PIN Code - Enter the WPS PIN code (numeric password) listed in the Device PIN Code field.

1. Click BASIC from the Wireless submenu option you are setting up.

SBG10 5 GHz wireless network screen

1. Select the Enable Wireless checkbox to turn ON Wi-Fi networking on your home network.

- or -

Deselect the Enable Wireless checkbox to turn OFF Wi-Fi networking on your home network.

1. Perform one of the following to set the network name or SSID (Service Set Identifier) for your Wi-Fi network in the Wireless Network Name (SSID) field:

- Keep the default network name listed in the network name field (also listed on the Wi-Fi cable modem label).

■ Enter a new network name for your Wi-Fi home network.

The Wi-Fi network name cannot be the same name as any other SSID on your home network. You can use any combination of letters (lowercase and uppercase), numbers, and/or special characters (symbols) up to a maximum of 32 characters.

1. Select the Broadcast Network Name (SSID) checkbox to turn ON displaying your SSID as an available Wi-Fi network to outside users.

- or -

Deselect the Broadcast Network Name (SSID) checkbox to turn OFF displaying your SSID as an available Wi-Fi network to outside users.

Note: When Broadcast Network Name (SSID) is enabled, your SSID is visible and available to unauthorized Wi-Fi clients that are within range to connect to your home network.

1. Select High, Medium, or Low for the Tx (Transmit) Power Level of the Wi-Fi radio.

2. Select a channel number (Auto, 1 through 11) from the Channel drop-down list to set the Communications channel for your SBG10.

Note: For 2.4 GHz Wi-Fi networks, it is recommended to use Channel 1, 6, or 11, if it is not listed as the Current Channel. In the Wi-Fi spectrum, there are multiple channels that overlap and thus degrade Wi-Fi network performance. Channels 1, 6, and 11 are used for better network performance and stability because they do not overlap.

1. Select the AP Isolation checkbox to enable separate virtual networks for your Wi-Fi clients.

- or -

Deselect the AP Isolation checkbox to disable separate virtual networks for your Wi-Fi clients.

Note: When AP Isolation is enabled, each of your Wi-Fi clients will be in its own virtual network and will not be able to communicate with the other Wi-Fi clients. This may be useful if several guests are using your Wi-Fi network.

1. Select the Enable WMM checkbox to turn ON Wi-Fi Multi-media functionality.

Enabling WMM can help control latency and jitter when transmitting multi-media content over a Wi-Fi connection. This quality of service mechanism uses four access categories:

■ Voice
■ Video
■ Best effort
Background

WMM ensures that applications with low tolerance for latency and jitter are treated with higher priority than less sensitive data applications. WMM sets different wait times for the above four categories to provide priority network access for applications that are less tolerant of packet delays.

1. Select the WMM Power Save mode checkbox to set the more efficient power management method.

-or-

Deselect the WMM Power Save mode checkbox to turn OFF the WMM Power Save mode.

1. Select one of the following Wi-Fi network security options for your SBG10 from the Security Mode drop-down list:

■ Open (not secure): Network security is not set for your Wi-Fi network. This network security option allows access to your Wi-Fi network without a Wi-Fi Security Key (network password).
■ WEP (64/128) (poor security): Wired Equivalent Privacy.
■ WPA/WPA2-PSK (TKIP/AES) (most compatible): Wi-Fi Protected Access version 2 with Pre-Shared Key.
■ WPA2-PSK (AES) (recommended) : Wi-Fi Protected Access version 2 with Pre-Shared Key.

1. Enter a string of either ASCII characters or hexadecimal numbers (0 through 9, A through F) in the Wi-Fi Security Key field to create your WPA Pre-Shared Key.

The Pre-Shared key is used to generate a unique password for WPS-enabled devices to connect to your Wi-Fi network.

1. Click Apply.

Change your Wi-Fi network name (SSID)

The SSID (Service Set Identification) is the Wi-Fi network name assigned to your SBG10 Wi-Fi network. The default SSID (listed on the Wi-Fi cable modem label) is automatically populated in the network configuration screens. A list of available Wi-Fi networks (SSIDs) near your home (for example, neighbors or local businesses) will display when you or someone else in your home attempt to establish a Wi-Fi network connection. For security purposes and quick recognition of your Wi-Fi network, ARRIS recommends that you change the default SSID.

Note: When you change the SSID, any Wi-Fi devices that are already connected to your Wi-Fi network will be disconnected from the network. The Wi-Fi devices will have to be reconnected to the Wi-Fi network using the new SSID.

Perform the following to change your Wi-Fi network name (SSID):

1. Open a web browser and log onto the SBG10 to open the SBG10 Web Manager.
   See Start your SBG10 Web Manager (page 19) for more information, if necessary.
2. Click the Wireless 2.4 GHz or Wireless 5 GHz main menu button on the SBG10 Web Manager menu bar for the Wi-Fi frequency range that you want to set up for your Wi-Fi home network.
3. Click BASIC to open the basic setup screen.

SBG10 2.4 GHz Wireless - Change SSID Screen

1. Ensure that the Enable Wireless checkbox is selected. This enables your home network.
2. Delete the current network name in the Wireless Network Name (SSID) field.
3. Enter a new network name for your Wi-Fi network.

The network name can contain any combination of up to 32 alphanumeric characters.

1. Check that the Broadcast Network Name (SSID) checkbox is selected.
2. Click Apply.

The new Wi-Fi network name should appear in the list of available Wi-Fi networks when you reconnect your Wi-Fi devices.

Protecting and monitoring your Wi-Fi network

After you have successfully connected the SBG10 and your Wi-Fi devices, you should configure the SBG10 to protect your Wi-Fi network from unwanted and unauthorized access by any Wi-Fi network devices that are within range of your Wi-Fi network. Although network security for the SBG10 is already configured, you can use the SBG10 Web Manager to set the level of security and access that you want to allow on your Wi-Fi network.

Prevent unauthorized access

CAUTION: To prevent unauthorized access and configuration to your Wi-Fi home network, ARRIS recommends that you immediately change the default user password after connecting to the Internet and logging on to the SBG10 for the first time.

One of the most important recommendations for securing your Wi-Fi home network is to change the default user password on your SBG10 and other Wi-Fi devices as well. Default passwords are commonly used and shared on the Internet.

To ensure that your Wi-Fi home network is secure, ARRIS recommends that you follow these best practices for user passwords:

■ Always create a secure password or pass phrase that is not easily guessed.
■ Use phrases instead of names so that it may be easier for you to remember.
■ Use a combination of upper and lowercase letters, numbers, and symbols.
■ Continue to change your administrator password on a regular basis.

Note: If your service provider supplied the SBG10, you may not have the necessary user privileges to change the login username.

Change the user password

You can change your user login password at any time:

1. From any web manager screen, click the Basic Setup main menu button on the SBG10 Web Manager menu bar.
2. Click Login Settings from the Basic Setup submenu options list.
   The Login Settings screen displays.

Login Settings

You can change the password for admin account. Use a password that will not be easy to guess. Passwords are case-sensitive. Valid characters are the numbers 0 to 9, the letters a through z and A through Z, and printable special characters (such as \$, I, ?, &, #, @, and others.)

Change Password

Old Password

?

New Password

?

Other Settings

Login Timeout

?

Apply

Note: The setting under the Other Settings section applies to the amount of inactivity time (in seconds) allowed before the SBG10 Web Manager automatically logs out.

SBG10 Login Settings Screen

1. Enter your current password in the Old Password field.
2. Enter your new password in the New Password field.

Note: Remember that passwords are case-sensitive. You can use any combination of the following letters, numbers, and special characters:

■ Letters: A through Z (uppercase and lowercase)
■ Numbers: 0 to 9
■ Special characters: ! @ # \$ % & *

1. Enter your new password again in the R repeat New Password field.
2. Click Apply to update your password.

The Applying Changes... message displays.

1. Find a secure place to write down and keep your new password for future reference, if needed.

The System Basic Setup screen displays.

SBG10 system basic setup screen

Set up firewall protection

You can set up firewall filters to protect your computer and other network devices on your home network from hackers, viruses, and other attacks from the Internet.

To set the firewall protection level:

1. From any SBG10 Web Manager screen, click the Firewall main menu button on the SBG10 Web Manager menu bar.

2. Click FIREWALL SETTINGS from the Firewall submenu options list to display the Firewall Settings screen (see Figure 46 below).

3. Select the Enable Firewall checkbox to turn ON firewall protection on your home network.

- or -

Deselect the Enable Firewall checkbox to turn OFF firewall protection on your home network.

Note: Turning OFF firewall protection on your home network could put your computer(s) and other Ethernet-enabled devices connected on your home network at risk for possible attacks from viruses and hackers on the Internet.

Firewall Settings

Your Router is equipped with a firewall that will protect your network from a wide array of common hacker attacks including Ping of Death (PoD) and Denial of Service (DoS) attacks. You can turn the firewall function off if needed. Turning off the firewall protection will not leave your network completely vulnerable to hacker attacks, but it is recommended that you turn the firewall on whenever possible

Firewall Enable/Disable

Enable Firewall

DoS Attack Protection

Enable DoS Attack Protection Firewall

Block Pings

Enable Ping Blocking

IPSec Pass Through

Enable IPSec Pass Through

PPTP Pass Through

Enable PPTP Pass Through

L2TP Pass Through

Enable L2TP Pass Through

Block Fragmented IP Packets

Enable Block Fragmented IP Packets

Apply

Firewall settings screen

1. Select or deselect any of the following to set up firewall protection on your home network:

■ Firewall Enable/Disable
■ DoS Attack Protection
■ Block Pings

■ IPSec Pass Through
■ PPTP Pass Through
■ L2TP Pass Through
■ Block Fragmented IP Packets

1. Click Apply.

Set up parental controls

You can set up the following Parental Controls to manage and limit the usage and activity for specific users and network devices on your home network:

■ Allow or block access to specific Trusted MAC Addresses.
■ Allow or block access based on specific keywords.
■ Allow or block access to specific websites.
■ Set time limitations for computer usage or Internet access.

You can also link each user on your home network to specific rules for login, time-access, and content filtering.

Do the following to set Parental Controls:

1. From any SBG10 Web Manager screen, click the Firewall main menu button on the SBG10 Web Manager menu bar.

2. Click PARENTAL CONTROLS from the Firewall submenu options list to display the Parental Controls screen.

Parental control-change time zone screen

1. Select the Enable Parental Controls checkbox to turn ON Parental Controls on your home network.

2. Enter the 12-digit (hexadecimal) Trusted MAC addresses of any connected computers on your home network in the Trusted MAC Addresses fields and then click Apply.

Repeat for each additional MAC address that you want to add.

1. Click Add under the Keyword Filtering tab to add any websites or keywords that you want to block. The Add Keyword Filter dialog box opens.

SBG10 Add Keyword Filter Screen

1. Enter the keyword for the filter you are creating in the Keyword field.
2. Select the day(s) and time that you are setting for the filter.
3. Click AddKeywordFilter to save the filter and then click Apply.

Set up IP filtering

You can use IP Filtering to set up Internet access restrictions on specific network devices on your home network using their IP addresses. You will have to create IP address filters that contain the starting and ending IP address range for each device that you want to block Internet access.

To configure IP filters:

1. From any web manager screen, click the Firewall menu button on the SBG10 Web Manager main menu bar.
2. Click CLIENT IP FILTERS from the Firewall submenu options list to display the Client IP Filters Configuration screen.

Set up client IP filters screen

1. Click Add button to open the Add Client IP Filter dialog.

Add client IP filter screen

1. Enter the starting and ending Client IP addresses for the range you are setting up in the Client IP Address field.

2. Enter the range of port numbers for the Port Filter range in the Port field.

3. Select UDP, TCP, or UDP and TCP for the Port Filter type in the Type drop-down list.

4. Select ALL WEEK in the Day field to set the same access restrictions for every day of the week.

- or -

Deselect ALL WEEK to set access restrictions for specific days of the week.

1. Select ALL DAY in the Time field to set 24-hour access restrictions for the selected days of the week.

- or -

Deselect ALL DAY to set up a specific range of time for the selected days of the week.

1. Click Add Client IP Filter to create the IP filter.

2. Repeat steps 3 through 9 for each additional range of IP addresses that you want to block Internet access.

Set up MAC address filtering

MAC filtering allows you to define up to twenty Media Access Control (MAC) address filters to prevent computers from sending outgoing TCP/UDP traffic to the WAN via their MAC addresses. This is useful because the MAC address of a specific NIC card never changes, unlike its IP address, which can be assigned via the DHCP server or hard-coded to various addresses over time.

To configure MAC Address filters:

1. From any SBG10 Web Manager screen, click the Wireless 2.4 GHz or Wireless 5 GHz main menu button on the SBG10 Web Manager menu bar.

2. Click MAC ADDRESS CONTROL from the Wireless submenu options list to display the MAC Address Control screen.

Set up MAC filters screen

1. Select the MAC Address Filter Type from the drop-down list:

■ None: Allows all Wi-Fi devices to connect.
■ Whitelist: Allows only listed Wi-Fi devices to connect.
■ Blacklist: Allows only Wi-Fi devices that are not listed to connect.

1. Click Add to enter the MAC Address of the client device that you want to block access to your home network.

Set up MAC filters screen

1. Enter the least significant byte of the starting IP address in the MAC Address field.

2. Click Add MAC Address.

3. Repeat steps 3 through 6 for each MAC address that you want to add.

4. Click Apply.

Set up port triggers

You can use Port Triggers to configure dynamic triggers to specific devices on your LAN. This allows special applications that require specific port numbers with bi-directional traffic to function properly. Applications such as video conferencing, voice, gaming, and some messaging program features may require these special settings.

Note: If you enable the firewall and set up custom port triggers, then you must configure the firewall to allow traffic through those custom ports. See (page Set up firewall protection (page 50)) for more information.

To configure Port Triggers:

1. From any SBG10 Web Manager screen, click the Firewall main menu button on the SBG10 Web Manager menu bar.

2. Click PORT TRIGGERS from the Firewall submenu options list to display the Port Triggers Configuration screen.

Advanced port triggers screen

1. Click Add button to open the Add Port Trigger screen.

Add port triggers screen

1. Enter a name or description for the Port Trigger in the Description field.

2. Enter the starting and ending port numbers of the Port Trigger range in the Outbound Port fields.

3. Select TCP, UDP, or BOTH for the Port Trigger from the Format drop-down list.

4. Enter the starting and ending port numbers of the Port Trigger range in the Inbound Port fields.
5. Click Add Port Trigger to create your port triggers.
6. Repeat steps 3 through 8 to create additional port triggers.

Set up the DMZ Host

Warning: The gaming DMZ host is not protected by the SBG10 firewall. It is exposed to the Internet and thus vulnerable to attacks or hacking from any computer on the Internet. Consider carefully before configuring a device to be in the DMZ.

You can configure one computer on your home network to be the DMZ Host. That computer will operate outside of the SBG10 firewall and allow remote access from the Internet to your computer, gaming device, or other IP-enabled device. The DMZ Host feature will only allow outside users to have direct access to the designated DMZ Host device and not your home network.

To create the DMZ Host:

1. From any SBG10 Web Manager screen, click the Firewall main menu button on the SBG10 Web Manager menu bar.
2. Click DMZ from the Firewall submenu options list to display the DMZ Settings screen.

Advanced DMZ host screen

1. Select the Enable DMZ checkbox to set up the DMZ Host on your home network.
2. Enter the IP address of the computer or gaming device that you are setting up as the DMZ host.
3. Click Apply.

Note: Remember to reset the IP address back to 0 (zero) to close all the ports when you are finished with the needed application. If you do not reset the IP address, that computer will be exposed to the public Internet.

Note: To disable the DMZ Host, deselect the Enable DMZ checkbox and then click Apply.

Managing your Wi-Fi cable modem and connected networks

Use the SBG10 Web Manager to view and monitor the network configuration settings and operational status of your SBG10. You can also configure your network connections and wireless security settings. See Protecting and monitoring your Wi-Fi network (page 48) for more information.

View the SBG10 status and network connection

You can use the Device Status button on the SBG10 Login screen to view the current SBG10 configuration and network connection status of your SBG10 without having to log in to the SBG10 Web Manager.

1. Open any web browser on the computer connected to your SBG10.

2. Type the default LAN IP address, 192.168.0.1, in the address bar and then press Enter. The SBG10 Login screen displays.

SBG10 login screen

1. Click Device Status to open the SBG10 Device Status screen.

SBG10 device status screen

1. Click Close to exit.

View the SBG10 product and status information

The System Information screen displays general product information, including the software (or firmware) version and the current network connection status of the SBG10.

To open the System Information page:

1. From any SBG10 Web Manager screen, click the Utilities main menu button on the SBG10 Web Manager menu bar.
2. Click SYSTEM INFORMATION from the Utilities submenu options list to display the System Information screen.
3. Click the Refresh button (F5) in your web browser to reload the information on the screen.

Hardware Software Version
Serial Number	05RRW235100066	2
Bootcode Version	4.2.0.45	2
Hardware Version	1	2
Firmware Version	9.1.103AA5	2
WAN Status Summary
WAN MAC Address	C0:C5:22:51:3F:1C	2
Connection Setup	dynamic / dynamic	2
IP Address	206.19.87.36 / 2001:1890	2
Submit Mask	255.255.255.224	2
Domain Name	surfboard.com	2
Primary DNS	8.8.8.8 / 2001:1890.FPF.1	2
Secondary DNS	8.8.4.4 / 2001:1890.FPF.	2
Tertiary DNS	0.0.0.0	2
Gateway	206.19.87.33 / PE60:230	2

SBG10 status - system information screen (1 of 2)

Wireless 2.4GHz Status Summary
Wireless SSID	SBG7580AC-3F1B	2
Wireless Channel	Auto	2
Wireless Mode	Mixed BGN	2
SSID Broadcast	Enabled	2
VMM	Enabled	2
MAC Address	C0:C5:22:51:3F:19	2
Number of W-Fi Clients	0	2
Radio Status	Enabled	2
WPS Status	Enabled	2
Wireless 5GHz Status Summary
Wireless SSID	SBG7580AC-3F1B-5G	2
Channel	Auto	2
Wireless Mode	Mixed ANAC	2
SSID Broadcast	Enabled	2
VMM	Enabled	2
MAC Address	C0:C5:22:51:3F:1E	2
Number of W-Fi Clients	0	2
Radio Status	Enabled	2
WPS Status	Enabled	2
LAN Status Summary
IP Address	192,168,0.1 / 2001:1890	2
DHCP Server	Enabled	2
DNS Relay	Disabled	2
Submit Mask	255,255,255,0	2
LPHP	Enabled	2
Number of LAN Clients	1	2

SBG10 status - system information screen (2 of 2)

Back up your SBG10 configuration

You can save a backup copy of the current SBG10 configuration settings to your local computer. You could use the backup file to restore your custom SBG10 settings if you made changes that you no longer want.

CAUTION: ARRIS recommends that you perform the SBG10 configuration backup using the SBG10 default login username and password.

To create a backup copy of your SBG10 configuration settings:

1. From any SBG10 Web Manager screen, click the Utilities main menu button on the SBG10 Web Manager menu bar.
2. Click SAVE/BACKUP SETTINGS from the Utilities submenu options list to display the Save/Backup screen.

SBG10 save/backup settings screen

1. Click Save.

Reset the SBG10 configuration using the Reset button

To reset your SBG10 configuration back to the factory default settings:

SBG10 Reset button

1. Insert the end of a paper clip or other small object with a narrow tip into the Reset slot on the back of your SBG10.
2. Press and hold the Reset button for 10 seconds and remove the paper clip or the object. This ensures your SBG10 is back to factory default settings.

Reset the SBG10 configuration using the SBG10 web manager

Warning: This process also deletes any custom SBG10 configurations you may have already created. ARRIS recommends that you create a backup copy of your configuration before resetting your SBG10. See Back up your SBG10 configuration (page 61) for more information.

From the SBG10 Web Manager, do the following to open the Status Security screen:

1. From any SBG10 Web Manager screen, click the Utilities main menu button on the SBG10 Web Manager menu bar.
2. Click FACTORY DEFAULTS from the Utilities submenu options list to display the System Information screen.

Restore the SBG10 configuration

Warning: This action will delete your current SBG10 configuration settings and allow you to restore a previously saved SBG10 configuration.

Note: After the configuration settings are restored, the SBG10 automatically reboots, and you will have to log on using the default username (admin) and password (password).

To open the System Information page:

1. From any SBG10 Web Manager screen, click the Utilities main menu button on the SBG10 Web Manager menu bar.

2. Click RESTORE SETTINGS from the Utilities submenu options list to display the System Information screen.

3. Click Backup and Restore from the Basic submenu options

SBG10 restore settings screen

1. Click Choose File to search for a saved configuration file (GatewaySettings.bin) in the Downloads folder on your computer.

2. Select the configuration file you want to restore.

3. Click Restore Chosen File. The SBG10 will automatically reboot.

Exit the SBG10 web manager

To log out and close the SBG10 Web Manager:

■ Click Logout button located on the SBG10 Web Manager menu bar.

SBG10 web manager Logout button

Troubleshooting tips

If the solutions listed in the Troubleshooting Solutions table below do not solve your problem, please contact your service provider for assistance. Your service provider may ask for the status of the SBG10 front panel LEDs, see for more information.

You may have to reset the SBG10 Wi-Fi cable modem configuration to its original factory settings if the SBG10 is not functioning properly. See Reset the SBG10 configuration using the Reset button (page 62) for more information.

Solutions

Troubleshooting solutions

Gateway problem Possible solution
Power LED icon is off■ Check the power connection on the Wi-Fi cable modem and to the electrical outlet.■ Check that the electrical outlet is working. Is the outlet controlled by a light switch?■ If so, unplug the Wi-Fi cable modem power cord and connect it to another electrical outlet that is not controlled by a wall switch.
Cannot send or receive data	■ Check each end of the coaxial cable connection on the Wi-Fi cable modem and cable wall outlet. Use your hand to tighten each connector, if necessary.■ Check the Ethernet cable to make sure it is properly connected to the Wi-Fi cable modem and computer.■ On the front panel, check the status of the LED icons and refer to Front panel LED icons and error conditions (page 65) to identify the problem.■ If you have cable television service, check your television to ensure your cable service is operating properly.■ If none of the above solutions resolves the problem, contact your service provider or call ARRIS Technical Support at 1-877-466-8646 for assistance.
Cannot access the internet	■ Check that all cable and power connections on your Wi-Fi cable modem and computer are properly connected.

Gateway problem Possible solution

Wi-Fi devices cannot send or receive data

■ Check that the Power, Online, and Wireless LED icons on the front panel are lit up solid.
■ Contact your service provider for assistance.
■ If the problem continues after checking the coaxial cable and Ethernet connections and your IP address, check the wireless Security Mode setting on the Wireless screen.
If you enabled WPA and configured a passphrase on the Wi-Fi cable modem, be sure each affected Wi-Fi client has the identical passphrase. If this does not solve the problem, check if the Wi-Fi client supports WPA.
If you enabled WEP and configured a key on the Wi-Fi cable modem, be sure each affected Wi-Fi client has the identical WEP key. If this does not solve the problem, check if the client's wireless adapter supports the type of WEP key configured on the Wi-Fi cable modem.

Front panel LED icons and error conditions

The SBG10 front panel LED icons provide status information for the following error conditions:

Front panel LED icons and error conditions

Led Icon Status If, During Startup: If, During Normal Operation

POWER

OFF Wi-Fi cable modem is not

properly plugged into the

electrical wall outlet

Wi-Fi cable modem is unplugged

SEND

RECEIVE

BLINKING Upstream (send) channel or

Downstream (receive) channel

cannot be acquired

Upstream channel is lost

Downstream channel is lost

ONLINE

BLINKING IP r

egistration is unsuccessful IP registration is lost

WIRELESS

OFF LED is disabled LED is disabled

WIRELESS

OFF LED is disabled LED is disabled

Warranty information

SURFboard SBG10 Wi-Fi cable modem

ARRIS Enterprises, LLC ("ARRIS")

Retail purchasers: If you purchased this Product directly from ARRIS or from an authorized ARRIS retail reseller, ARRIS warrants to you, the original end user customer, that (A) the Product, excluding Software, will be free from defects in materials and workmanship under normal use, and (B) with respect to Software, (i) the media on which the Software is provided will be free from defects in material and workmanship under normal use, and (ii) the Software will perform substantially as described in its documentation. This Limited Warranty to you, the original end user customer, continues (A) for Software and the media upon which it is provided, for a period of ninety (90) days from the date of purchase from ARRIS or an authorized ARRIS reseller, and (B) for the Product (excluding Software), for a period of two (2) years from the date of purchase from ARRIS or from an authorized ARRIS reseller. To take advantage of this Limited Warranty or to obtain technical support, you must call the ARRIS toll-free telephone number 1-877-466-8646. Technical support charges may apply. ARRIS' sole and exclusive obligation under this Limited Warranty for retail sales shall be to repair or replace any Product or Software that does not meet this Limited Warranty. All warranty claims must be made within the applicable Warranty Period.

Cable operator or service provider arrangements. If you did not purchase this Product directly from ARRIS or from a ARRIS authorized retail reseller, ARRIS does not warrant this Product to you, the end-user. A limited warranty for this Product (including Software) may have been provided to your cable operator or Internet Service Provider ("Service Provider") from whom you obtained the Product. Please contact your Service Provider if you experience problems with this Product.

General information. The warranties described in this Section shall not apply: (i) to any Product subjected to accident, misuse, neglect, alteration, Acts of God, improper handling, improper transport, improper storage, improper use or application, improper installation, improper testing or unauthorized repair; or (ii) to cosmetic problems or defects which result from normal wear and tear under ordinary use, and do not affect the performance or use of the Product. ARRIS' warranties apply only to a Product that is manufactured by ARRIS and identified by ARRIS owned trademark, trade name or product identification logos affixed to the Product. ARRIS does not warrant to you, the end user, or to anyone else that the Software will perform error free or without bugs.

ARRIS IS NOT RESPONSIBLE FOR, AND PROVIDES "AS IS" ANY SOFTWARE SUPPLIED BY 3RD PARTIES. EXCEPT AS EXPRESSLY STATED IN THIS SECTION ("WARRANTY INFORMATION"), THERE ARE NO WARRANTIES OF ANY KIND RELATING TO THE PRODUCT, EXPRESS, IMPLIED OR STATUTORY, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR THE WARRANTY AGAINST

INFRINGEMENT PROVIDED IN THE UNIFORM COMMERCIAL CODE. Some states do not allow for the exclusion of implied warranties, so the above exclusion may not apply to you.

What additional provisions should I be aware of? Because it is impossible for ARRIS to know the purposes for which you acquired this Product or the uses to which you will put this Product, you assume full responsibility for the selection of the Product for its installation and use. While every reasonable effort has been made to ensure that you will receive a Product that you can use and enjoy, ARRIS does not warrant that the functions of the Product will meet your requirements or that the operation of the Product will be uninterrupted or error-free.

ARRIS IS NOT RESPONSIBLE FOR PROBLEMS OR DAMAGE CAUSED BY THE INTERACTION OF THE PRODUCT WITH ANY OTHER SOFTWARE OR HARDWARE. ALL WARRANTIES ARE VOID IF THE PRODUCT IS OPENED, ALTERED, AND/OR DAMAGED.

THESE ARE YOUR SOLE AND EXCLUSIVE REMEDIES for any and all claims that you may have arising out of or in connection with this Product, whether made or suffered by you or another person and whether based in contract or tort.

IN NO EVENT SHALL ARRIS BE LIABLE TO YOU OR ANY OTHER PARTY FOR ANY DIRECT, INDIRECT, GENERAL, SPECIAL, INCIDENTAL, CONSEQUENTIAL, EXEMPLARY OR OTHER DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF INFORMATION OR ANY OTHER PECUNIARY LOSS), OR FROM ANY BREACH OF WARRANTY, EVEN IF ARRIS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO CASE SHALL ARRIS' LIABILITY EXCEED THE AMOUNT YOU PAID FOR THE PRODUCT.

These matters are governed by the laws of the State of Georgia of the United States of America, without regard to conflict of laws principles and excluding the provisions of the United Nations Convention on Contracts for the International Sale of Goods and the Uniform Computers Information Transactions Act.

Retail purchasers only. If you purchased this Product directly from ARRIS or from an ARRIS authorized retail reseller, please call the ARRIS toll-free phone number, 1-877-466-8646 for warranty service or technical support. Technical support charges may apply. For online technical support, please visit www.arris.com/selfhelp.

Cable operator or service provider arrangements. If you did not purchase this Product directly from ARRIS or from an ARRIS authorized retail reseller, please contact your Service Provider for technical support.

Corporate Headquarters

Corporate Headquarters

CommScope · Hickory · North Carolina · 28602 · USA

T: 1-828-324-2200

www.commscope.com
