USER MANUAL FNG 36 (SL) S SCHOLTES

AT T E N Z I O N E : A s s i c u r a r s i c h e l’apparecchio sia spento prima di sostituire la lampada per evitare la possibilità di scosse elettriche. Warnings

WARNING: The appliance and its

accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. “Before initiating the automatic cleaning cycle:

• clean the oven door;
• remove large or coarse food residues from the inside of the oven using a damp sponge. Do not use detergents;
• remove all accessories and the sliding rack kit (where present);
• do not place tea towels” Keep children away from the appliance during the automatic cleaning cycle as surfaces may become very hot. Never use steam cleaners or pressure cleaners on the appliance.

WARNING: Ensure that the appliance is

switched off before replacing the lamp to avoid the possibility of electric shock. Avertissements ATTENTION : Cet appareil ainsi que ses parties accessibles deviennent très chauds pendant leur fonctionnement. Il faut faire attention à ne pas toucher les éléments chauffants. Ne pas faire approcher les enfants de moins de 8 ans à moins qu’ils ne soient sous surveillance constante. Le présent appareil peut être utilisé par des enfants de plus de 8 ans et par des personnes présentant des capacités physiques, sensorielles ou mentales réduites ou n’ayant pas l’expérience ou les connaissances indispensables, à condition qu’ils soient sous bonne surveillance ou qu’ils aient reçu les instructions nécessaires pour une utilisation de l’appareil en toute sécurité et à condition qu’ils se rendent compte des dangers encourus. Les enfants ne doivent pas jouer avec l’appareil. Les opérations de nettoyage et d’entretien ne doivent pas être effectuées par des enfants non surveillés. Ne pas utiliser de produits abrasifs ni de spatules métalliques coupantes pour nettoyer la porte du four en verre, sous peine d’érafler la surface et de briser le verre. Avant d’activer la fonction de nettoyage automatique :

The appliance is fitted with an automatic diagnostic system which detects any malfunctions. Malfunctions are signalled through messages of the following type: “F—” followed by numbers. Call for technical assistance in the event of a malfunction. Before calling for Assistance:

• Check whether you can fix the problem yourself.
• Restart the programme to check whether the malfunction has disappeared.
• If it has not, contact the Authorised Technical Assistance Service. ! Never use the services of an unauthorised technician. Please have the following information to hand:
• The type of problem encountered.
• The message shown on the TEMPERATURE display.
• The appliance model (Mod.).

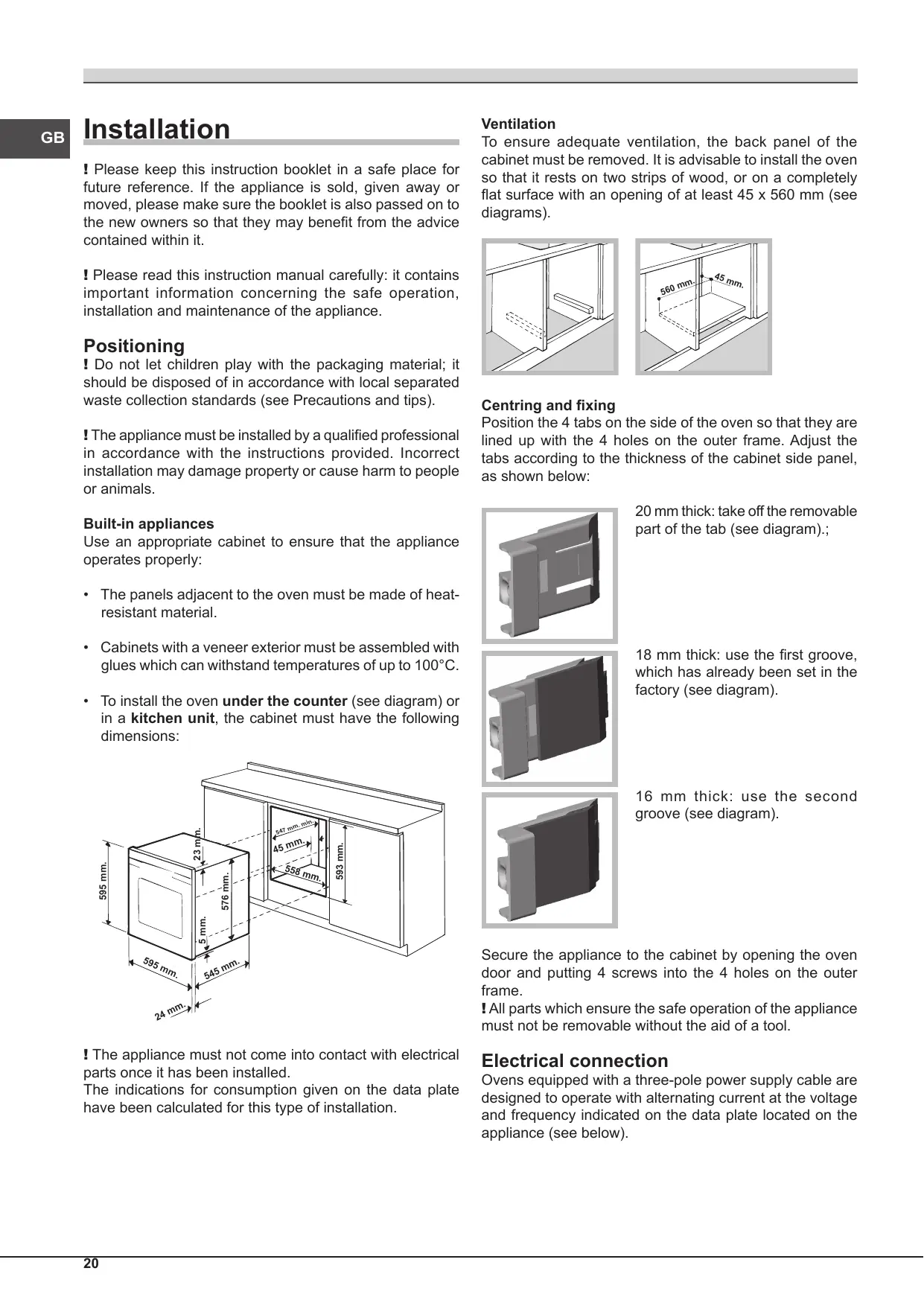

Installation ! Please keep this instruction booklet in a safe place for future reference. If the appliance is sold, given away or moved, please make sure the booklet is also passed on to the new owners so that they may benefit from the advice contained within it. ! Please read this instruction manual carefully: it contains important information concerning the safe operation, installation and maintenance of the appliance. Ventilation To ensure adequate ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm (see diagrams).

Positioning ! Do not let children play with the packaging material; it should be disposed of in accordance with local separated waste collection standards (see Precautions and tips). ! The appliance must be installed by a qualified professional in accordance with the instructions provided. Incorrect installation may damage property or cause harm to people or animals. Built-in appliances Use an appropriate cabinet to ensure that the appliance operates properly: Centring and fixing Position the 4 tabs on the side of the oven so that they are lined up with the 4 holes on the outer frame. Adjust the tabs according to the thickness of the cabinet side panel, as shown below: 20 mm thick: take off the removable part of the tab (see diagram).;

• The panels adjacent to the oven must be made of heatresistant material.
• Cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 100°C.

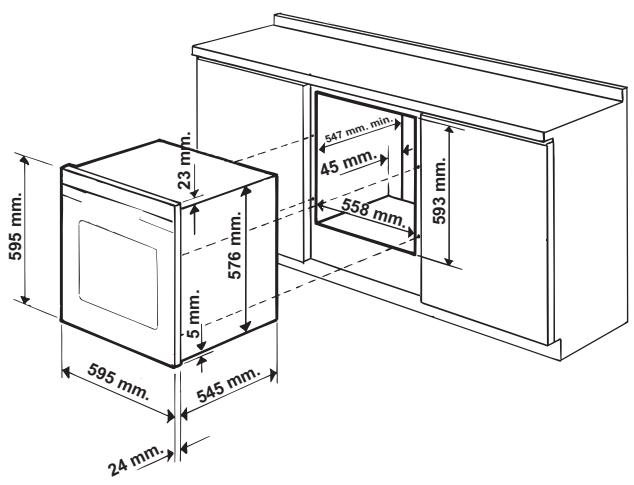

• To install the oven under the counter (see diagram) or in a kitchen unit, the cabinet must have the following dimensions: 16 mm thick: use the second groove (see diagram).

18 mm thick: use the first groove, which has already been set in the factory (see diagram). 593 mm. 23 mm.

! The appliance must not come into contact with electrical parts once it has been installed. The indications for consumption given on the data plate have been calculated for this type of installation.

Secure the appliance to the cabinet by opening the oven door and putting 4 screws into the 4 holes on the outer frame. ! All parts which ensure the safe operation of the appliance must not be removable without the aid of a tool. Electrical connection Ovens equipped with a three-pole power supply cable are designed to operate with alternating current at the voltage and frequency indicated on the data plate located on the appliance (see below). Fitting the power supply cable

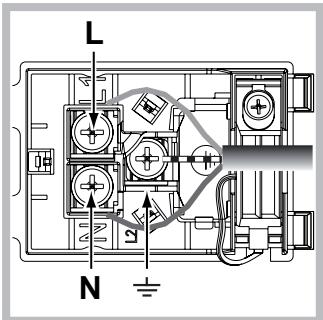

1. Open the terminal board

by inserting a screwdriver into the side tabs of the cover. Use the screwdriver as a lever by pushing it down to open the cover (see diagram).

2. Install the power supply

cable by loosening the cable clamp screw and the three wire contact screws L-N. Connect the wires to the corresponding terminals: the Blue wire to the terminal marked (N), the Brown wire to the terminal marked (L) and the Yellow/Green wire to the terminal marked (see diagram).

3. Secure the cable by fastening the clamp screw.

4. Close the cover of the terminal board.

Connecting the supply cable to the mains Install a standardised plug corresponding to the load indicated on the data plate (see table). The appliance must be directly connected to the mains using an omnipolar switch with a minimum contact opening of 3 mm installed between the appliance and the mains. The switch must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the switch). The supply cable must be positioned so that it does not come into contact with temperatures higher than 50°C at any point (the back panel of the oven, for example). ! The installer must ensure that the correct electrical connection has been performed and that it is fully compliant with safety regulations. Before connecting the appliance to the power supply, make sure that ! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only (see Assistance). ! The manufacturer declines any liability should these safety measures not be observed. APPLIANCE SPECIFICATIONS width 43.5 cm Dimensions* height 32.4 cm depth 41.5 cm Volume* 59 l Dimensions** Volume** Electrical connections ENERGY LABEL width 45.5 cm height 32.4 cm depth 41.5 cm 62 l voltage: 220-240V ~ 50Hz maximum power absorbed 2800W Directive 2002/40/EC on the label of electric ovens. Standard EN 50304 Declared energy consumption for Forced convection Class – heating mode: Conventional; This appliance conforms to the following European Economic Community directives: 2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments – 2004/108/EEC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments - 93/68/EEC dated 22/07/93 and subsequent amendments. 2002/96/EEC and subsequent amendments. 1275/2008 stand-by/off mode.

• Only for models with drawn rails. ** Only for models with wire rails.

• The appliance is earthed and the plug is compliant with the law.
• The socket can withstand the maximum power of the appliance, which is indicated on the data plate.
• The voltage is in the range between the values indicated on the data plate.
• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets.

Start-up and use ! When inserting the shelf make sure the backstop is at the rear of the cavity (see image). Setting the clock ! The clock may be set when the oven is switched off or when it is switched on, provided that the end time of a cooking cycle has not been programmed previously.

button several times until the icon and the first two numerical digits on the display start to flash.

2. Turn the SET TIME KNOB towards “ ” and “ ” to adjust

button again so that the other two numerical digits on the DISPLAY begin to flash.

4. Turn the SET TIME KNOB towards “ ” and “ ” to adjust

button again to confirm. Setting the minute minder ! This function does not interrupt cooking and does not affect the oven; it is simply used to activate the buzzer when the set amount of time has elapsed.

button several times until the icon and the three numerical digits on the DISPLAY begin to flash.

2. Turn the SET TIME KNOB towards “ ” and “ ” to adjust

button again to confirm. The display will then show the time as it counts down. When this period of time has elapsed the buzzer will be activated. Using the oven ! The first time you use your appliance, heat the empty oven with its door closed at its maximum temperature for at least half an hour. Make sure that the room is well ventilated before switching the oven off and opening the oven door. The appliance may emit a slightly unpleasant odour caused by protective substances used during the manufacturing process burning away. ! Never put objects directly on the bottom of the oven; this will prevent the enamel coating from being damaged. ! Always place cookware on the racks provided. ! We recommend that you do not open the door when cooking foodstuffs which require proving, so as to not compromise cooking results.

1. Select the desired cooking mode by turning the

2. The oven begins its preheating stage and the preheating

indicator lights up. The temperature may be adjusted by turning the THERMOSTAT knob

3. When the preheating indicator

switches off and a buzzer sounds the preheating process is complete: you may now place the food in the oven.

4. During cooking it is always possible to:

- change the cooking mode by turning the SELECTOR knob; - adjust the temperature by turning the THERMOSTAT knob; - set the cooking duration and the cooking end time (see Cooking modes); - stop cooking by turning the SELECTOR knob to the “0” position.

5. The cooking duration may be modified (see Cooking

6. If a blackout occurs while the oven is already in operation,

an automatic system within the appliance will reactivate the cooking mode from the point at which it was interrupted, provided that the temperature has not dropped below a certain level. Programmed cooking modes which have not yet started will not be restored and must be reprogrammed. Cooling ventilation In order to cool down the external temperature of the oven, a cooling fan blows a stream of air between the control panel and the oven door. At the beginning of the PYROLYTIC cycle, the cooling fan operates at low speed. ! Once cooking has been completed, the cooling fan continues to operate until the oven has cooled down sufficiently. Oven light When the oven is not in operation, the light may be switched on at any time by opening the oven door. Modes Manual cooking modes ! All cooking modes have a default cooking temperature which may be adjusted manually as desired, between 30 °C and 300 °C (where possible). MULTILEVEL mode All heating elements and the fan are activated. Since the heat remains constant throughout the oven, the air cooks and browns food in a uniform manner. A maximum of three racks may be used at the same time. CONVENTIONAL mode When using this traditional cooking mode, it is best to use one cooking rack only. GRILL mode The top heating element comes on. The high and direct temperature of the grill is recommended for food which requires a high surface temperature. Always cook in this mode with the oven door closed. ROTISSERIE mode The top heating element and the rotisserie spit will be activated. The function is ideal for rotisserie spit cooking. Always cook in this mode with the oven door closed. LOW TEMPERATURE modes This type of cooking can be used for proving, defrosting, preparing yoghurt, heating dishes at the required speed and slow cooking at low temperatures. The temperature options are: 40, 80 and 120. Rotisserie spit To operate the rotisserie spit (see diagram) proceed as follows:

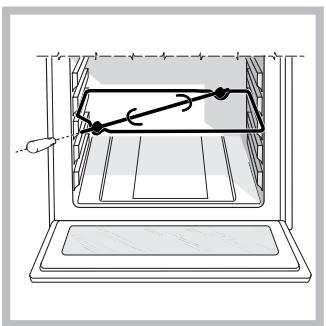

1. Place the dripping pan in

2. Place the rotisserie

support in position 3 and insert the spit in the hole provided on the back panel of the oven.

3. Start the spit roast function by selecting the

symbols. ! When mode is on, the rotisserie will stop if the door is opened. Automatic cooking modes ! The temperature and cooking duration are preset values, guaranteeing a perfect result every time - automatically. These values are set using the C.O.P.® (Programmed Optimal Cooking) system. The cooking cycle stops automatically and the oven indicates when the dish is cooked. The cooking duration may be modified by a period of several minutes, as specified in the description of the individual functions below. BREAD mode Use this function to make bread. To obtain the best results, we recommend that you carefully observe the instructions below:

• do not exceed the maximum weight of the dripping pan;
• remember to pour 100 ml of cold water into the baking tray in position 5. Place the food inside the oven while it is still cold. If you wish to place the food in the oven after it has been preheated, immediately following a high-temperature cooking programme, the text “Hot” will appear on the display until the temperature of the oven has fallen to 40°. At this point it will be possible to place the bread in the oven. Recipe for BREAD: 1 Dripping pan of max. 1000 g, lower shelf level Recipe for 1000 g of dough: 600 g flour, 360 g water, 11g salt, 25 g fresh yeast (or 2 sachets of powder yeast) Method:
• Mix the flour and salt in a large bowl.
• Dilute the yeast in lukewarm water (approximately 35 degrees).
• Make a small well in the mound of flour.
• Pour in the water and yeast mixture.

• Knead the dough by stretching and folding it over itself with the palm of your hand for 10 minutes until it has a uniform consistency and is not too sticky.
• Form the dough into a ball shape, place it in a large bowl and cover it with transparent plastic wrap to prevent the surface of the dough from drying out. Select the manual LOW TEMPERATURE function on the oven and set the temperature to 40°C. Place the bowl inside and leave the dough to rise for approximately 1 hour (the dough should double in volume).
• Cut the dough into equal sized loaves.
• Place them in the dripping pan, on a sheet of baking paper.
• Dust the loaves with flour.
• Make incisions on the loaves.
• Remember to pour 100 ml of cold water into the baking tray in position 5. For cleaning purposes, we recommend the use of water and vinegar.
• Place the food inside the oven while it is still cold.
• Start the BREAD cooking mode.
• Once baked, leave the loaves on one of the grill racks until they have cooled completely. PIZZA mode Use this function to make pizza. Please see the following chapter for further details. To obtain the best results, we recommend that you carefully observe the instructions below:
• the weight of the dough should be between 500g and 700 g;
• lightly grease the dripping pan and the baking trays. Place the food inside the oven while it is still cold. If you wish to place the food in the oven after it has been preheated, immediately following a high-temperature cooking programme, the text “Hot” will appear on the display until the temperature of the oven has fallen to 120°. At this point it will be possible to place the pizza in the oven. Recipe for PIZZA: 1 dripping pan on a low shelf level, hot or cold oven Recipe for 3 pizzas weighing approximately 550 g: 1000 g flour, 500 ml water, 20 g salt, 20 g sugar, 100 ml olive oil, 20 g fresh yeast (or 2 sachets of powder yeast)
• Proving at room temperature: 1 hour, or manual LOW TEMPERATURE function set to 40°. Leave to rise for approximately 30-45 minutes.
• Place the food inside the oven while it is still cold.
• Start the PIZZA cooking mode. ROAST mode Use this function to cook beef, veal, pork, chicken and lamb. Place the food inside the oven while it is still cold. The dish may also be placed in a preheated oven. DESSERTS mode This function is ideal for baking cakes. Place the food inside the oven while it is still cold. The dish may also be placed in a preheated oven.

Programming cooking ! A cooking mode must be selected before programming can take place. Programming the duration

button several times until the icon and the three numerical digits on the DISPLAY begin to flash.

2. Turn the SET TIME KNOB towards “ ” and “ ” to adjust

the duration. Practical cooking advice ! Do not place racks in position 1 and 5 during fan-assisted cooking. This is because excessive direct heat can burn temperature sensitive foods. ! In the ROTISSERIE cooking mode, place the dripping pan in position 1 to collect cooking residues (fat and/or grease). MULTILEVEL

button again to confirm.

4. When the set time has elapsed, the text END appears

on the DISPLAY, the oven will stop cooking and a buzzer sounds.

• For example: it is 9:00 a.m. and a duration of 1 hour and 15 minutes is programmed. The cooking programme will stop automatically at 10:15 a.m.

• Use positions 2 and 4, placing the food which requires more heat on 2. Setting the end time for a cooking mode ! A cooking duration must be set before the cooking end time can be scheduled.

• Use a lightweight aluminium pizza pan. Place it on the rack provided. For a crispy crust, do not use the dripping pan as this extends the total cooking duration and prevents the crust from forming.
• If the pizza has a lot of toppings, we recommend adding the mozzarella cheese on top of the pizza halfway through the cooking process.

1. Follow steps 1 to 3 to set the duration as detailed above.

button until the icon and the three numerical digits on the DISPLAY begin to flash.

3. Turn the SET TIME KNOB towards “ ” and “ ” to adjust

button again so that the other two numerical digits on the DISPLAY begin to flash.

5. Turn the SET TIME KNOB towards “ ” and “ ” to adjust

button again to confirm.

7. When the set time has elapsed, the text END appears

on the DISPLAY, the oven will stop cooking and a buzzer sounds.

• For example: it is 9:00 a.m. and a duration of 1 hour and 15 minutes is programmed, while the end time is set to 12:30. The programme will start automatically at 11:15 a.m. Programming has been completed when the and icons light up. The DISPLAY shows the cooking end time and the cooking duration alternately. To cancel programming, turn the SELECTOR knob to the “0” position.

TEMPERATURE SUPPORT Baked cakes or Multilevel 160 °C cake tin on dripping pan Baked cakes or Multilevel 200 °C on dripping pan terrine mould on dripping pan (bainmarie filled with hot water) baking dish on dripping pan (bainmarie filled with hot water) cake tin on dripping pan on dripping pan or cake tin on dripping pan Traditional oven 160 °C Multilevel 200 °C Stuffed vegetables potatoes, tomatoes, courgettes, cabbages, etc. Multilevel 200 °C Braised vegetables en cocotte lettuce, saffron carrots, salsify, etc. Traditional oven 200 °C baking dish on dripping pan Flan mushroom flan, vegetable pancake, etc. Traditional oven Terrines vegetable terrines Traditional oven 160 °C Soufflé Dishes with a crust Baking in foil (“en papillote”) Rice asparagus soufflé , tomato soufflé, etc. vegetable pie, etc. Multilevel Multilevel 200 °C 200 °C baking dish or cake tin on dripping pan (bain-marie filled with hot water) cake tin on dripping pan (bain-marie filled with hot water) cake tin on dripping pan on dripping pan DISHES Multilevel 200 °C foil pouch on dripping pan Pilaff Traditional oven 180 °C tray on plate FUNCTION Spit-roast poultry chicken, young cockerel Rotisserie Large braised cuts whole braised leg, large capon or turkey, etc. Multilevel Sautéed meat en cocotte, traditional dishes Grilled meat Salt-crusted dishes Grilled fish and kebabs Whole (stuffed) fish Fish fillet (with wine or other liquid) Baking in foil (“en papillote”) Fish with a crust (puff pastry or shortcrust pastry) Soufflé Salt-crusted fish 160 °C truffles, etc. EXAMPLES Meat with a crust FISH FUNCTION beef bourguignon, rabbit cacciatora, veal Marengo, lamb stew, Basque chicken, etc. Hotpot, terrine, etc. grilled steak, chops, sausages, kebabs, chicken drumsticks, etc. TEMPERATURE SUPPORT 270 °C rotisserie spit support 180°C (a third of the meat on dripping pan (baste way through cooking, with cooking juices at lower to 160°C) regular intervals) Conventional oven 190 °C Grill 200 °C beef Wellington, leg with a crust, etc. Multilevel 200 °C 240 ℃ casserole dish on dripping pan on grill (shelf level depends on thickness of fish) on dripping pan (for large cuts, lower to 160 °C after the pastry has cooked) meat on dripping pan or tray on dripping pan on grill (shelf level depends on thickness of fish) on dripping pan salt-crusted poultry, etc. Multilevel sea bass, mackerel, sardines, mullet, tuna, etc. bream, carp, etc. Grill 180 ℃ Multilevel 200 °C salmon, rock-fish, cod, sea bass, etc. Conventional oven 200 °C on dripping pan sole, dab, scallops, etc. Multilevel 200 °C on dripping pan salmon, kebabs, etc. Multilevel 200 °C on dripping pan scallops, etc. Multilevel 200 °C sea bass, carp, etc. Multilevel 240 °C cake tin on dripping pan fish on dripping pan or tray on dripping pan

DESSERTS PASTRIES BAKED DESSERTS Oven cooking advice table FRUIT DISHES EXAMPLES Biscuit cakes (without yeast) sponge cake, sponge fingers, swirled biscuits, brownies, etc. White cheese tart Tarts made using leavened dough FUNCTION fresh fruit tarts (strawberry, raspberry, etc.) Pies (shortcrust or puff pastry) pear pie, etc. profiteroles, mini cream puffs, cream puffs, Paris-Brest pastry dessert, Saint Honoré cake, etc. croissants, sugar pie, plain brioche (no filling), mini savarin cakes, etc. Kugelhopf, brioche, panettone, sweet bread, etc. biscuits in paper trays, scooping biscuits, etc. shortbread, spritz cookies, plain biscuits, etc. various types of puff pastry dessert, etc. coconut or almond amaretti mini-brioches, mini-croissants, etc. Cream puffs Mini sweet pastries (natural yeast) Large sweet pastries (natural yeast) Biscuit dough Crumbly sweet pastry Puff pastry Amaretti, coconut balls Leavened dough White meringues Golden meringues Pudding pudding made with bread or brioche, rice pudding Cream desserts and flans, semolina crème caramel, crème brûlée, chocolate flan, etc. cake tin on dripping pan 200 °C 180 °C 220 °C cake tin on dripping pan cake tin on dripping pan cake tin on dripping pan (with baking beans weighing the pastry down ) cake tin on dripping pan 190 °C on dripping pan Stuffed or foil-baked fruit baked apples, etc. mushrooms, herbs, sliced fruit or vegetables, etc. 180 °C on dripping pan on dripping pan or cake tin on dripping pan on dripping pan on dripping pan on dripping pan on dripping pan on dripping pan on dripping pan on dripping pan 160 °C 180 °C 200 °C 200 °C 180 °C 180 °C 70 °C 110 °C Baked cakes or Multilevel Multilevel EXAMPLES Yoghurt Baked cakes or Multilevel Baked cakes or Multilevel Soufflé Dried foods SUPPORT 200 °C 180 °C riz condé rice pudding, Imperial rice pudding, etc. liqueur soufflé, fruit soufflé, etc. Rice desserts TEMPERATURE sugar pie, fruit brioche loaf, etc. Tart cases (crumbly sweet pastry) DISHES VARIOUS

190 °C cake tin on dripping pan 160 °C moulds or baking dish on dripping pan (bain-marie on dripping pan) 180 °C cake tin on dripping pan 200 °C cake tin on dripping pan cake tin or foil pouch on dripping pan 200 °C FUNCTION TEMPERATURE Low temperature 40 °C Low temperature 80 °C SUPPORT baking dish on dripping pan on grill Automatic cooking functions Mode Cooking mode recommended for … SUPPORT Dripping pan level dripping pan or tray

fruit-filled sponge cake made with yoghurt, marble cake, pound cake, etc. cake tin on rack

apple tart, mirabelle plum tart, pear tart, etc. cake tin on rack

apple puffs, country-style tarts, pastries, etc. on dripping pan

EXAMPLES Roast veal Roast pork Roast veal Roast meats Roast chicken Leg of lamb Roast beef Desserts Sponge cake made with yoghurt and pound cake (with baking powder) Fruit tarts (shortcrust pastry or puff pastry, with or without flan filling) Puff pastry Pizza Bread Desserts without yeast (clafoutis, almond pithivier, torta rustica, etc.) Deep-pan pizza, focaccia (bread dough)

Cooking duration (minutes) ± 10 between +10 and +25 between +5 and +15 ±10 between -20 and

Oven at start Cold 45** Cold

• The cooking times listed above are intended as guidelines only and may be modified in accordance with personal tastes. Oven preheating times are set as standard and may not be modified manually. ** The duration of the automatic cooking functions are set by default. The values in the table refer to the minimum and maximum duration, which may be modified by the user, taking the default value as a starting point. *** As stated in the recipe, pour 100 g water into the dripping pan.

Precautions and tips ! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully. General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
• When moving or positioning the appliance, always use the handles provided on the sides of the oven.
• Do not touch the appliance while barefoot or with wet or damp hands and feet.
• The appliance must be used by adults only for the preparation of food, in accordance with the instructions provided in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held responsible for any damage caused as a result of improper, incorrect and unreasonable use of the appliance.
• Do not touch the heating elements or certain parts of the oven door when the appliance is in use; these parts become extremely hot. Keep children well away from the appliance.
• Make sure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven.
• The ventilation and heat dispersal openings must never be obstructed.
• Always grip the oven door handle in the centre: the ends may be hot.
• Always use oven gloves when placing cookware in the oven or when removing it.
• Do not use aluminium foil to line the bottom of the oven.
• Do not place flammable materials in the oven: if the appliance is switched on accidentally, the materials could catch fire.
• Always make sure the knobs are in the “●”/“○” position when the appliance is not in use.
• When unplugging the appliance, always pull the plug from the mains socket; do not pull on the cable.
• Do not perform any cleaning or maintenance work without having disconnected the appliance from the electricity mains.
• If the event of malfunctions, under no circumstances should you attempt to perform the repairs yourself. Contact an authorised Service Centre (see Assistance).
• Do not rest objects on the open oven door.
• Do not let children play with the appliance.
• The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance.

• The appliance is not intended to be operated by means of an external timer or separate remotecontrol system. Disposal

• When disposing of packaging material: observe local legislation so that the packaging may be reused.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Respecting and conserving the environment

• You can help to reduce the peak load of the electricity supply network companies by using the oven in the hours between late afternoon and the early hours of the morning. The cooking mode programming options, the “delayed cooking” mode (see Cooking modes) and “delayed automatic cleaning” mode (see Care and Maintenance) in particular, enable the user to organise their time efficiently.
• Always keep the oven door closed when using the ROTISSERIE mode: this will achieve improved results while saving energy (approximately 10%).
• Check the door seals regularly and wipe them clean to ensure they are free of debris so that they adhere properly to the door, thus avoiding the dispersal of heat. ! This product complies with the requirements of the latest European Directive on the limitation of power consumption of the standby mode. If no operations are carried out for a period of 2 minutes, the appliance automatically switches to the standby mode. The standby mode is visualised by the high luminosity “Watch Icon”. As soon as interaction with the machine resumes, the system’s operating mode is restored. Maintenance and care Switching the appliance off Disconnect your appliance from the electricity supply before carrying out any work on it. Cleaning the appliance

• The stainless steel or enamel-coated external parts and the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and neutral soap. Use specialised products for the removal of stubborn stains. After cleaning, rinse and dry thoroughly. Do not use abrasive powders or corrosive substances.

• The inside of the oven should ideally be cleaned after each use, while it is still lukewarm. Use hot water and detergent, then rinse well and dry with a soft cloth. Do not use abrasive products.
• All accessories - with the exception of the sliding racks - can be washed like everyday crockery, and are even dishwasher safe. ! Never use steam cleaners or pressure cleaners on the appliance. Sliding rack kit assembly *

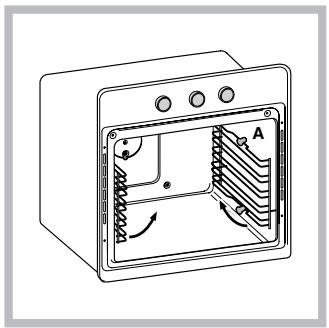

To assemble the sliding racks:

1. Remove the two frames,

lifting them away from the spacers A (see figure). Cleaning the oven door Clean the glass part of the oven door using a sponge and a non-abrasive cleaning product, then dry thoroughly with a soft cloth. Do not use rough abrasive material or sharp metal scrapers as these could scratch the surface and cause the glass to crack. For more thorough cleaning purposes, the oven door may be removed:

1. Open the oven door fully (see diagram).

2. Lift up and turn the small levers located on the two hinges

3. (with glass panel fitted to the

inside of the door) Grip the door on the two outer sides and close it approximately half way. Unlock the door by pressing on the clamps F, then pull the door towards you, lifting it out of its slot (see diagram).

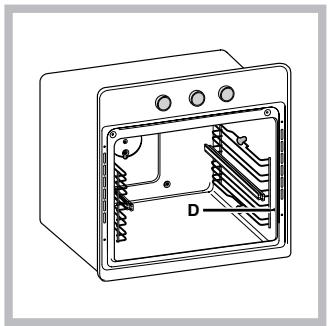

2. Choose which shelf to use

with the sliding rack. Paying attention to the direction in which the sliding rack is to be extracted, position joint B and then joint C on the frame.

3. Secure the two frames

with the guide rails using the holes provided on the oven walls (see diagram). The holes for the left frame are situated at the top, while the holes for the right frame are at the bottom.

4. Finally, fit the frames on

the spacers A. ! Do not place the sliding racks in position 5. To replace the door, reverse this sequence. Inspecting the seals Check the door seals around the oven regularly. If the seals are damaged, please contact your nearest Service Centre (see Assistance). We recommend that the oven is not used until the seals have been replaced. Replacing the light bulb To replace the oven light bulb: Oven compartment Lamp Seal (only on a few models) Glass door

1. Remove the glass cover

using a screwdriver.

2. Unscrew the light bulb and

replace it with a similar one: Wattage 15 W, cap E 14. Replace the glass cover, making sure the seal is positioned correctly (see diagram). ! Do not use the oven lamp as/for ambient lighting.

• Only available in certain models. Automatic cleaning using the PYROLYTIC cycle During the PYROLYTIC cycle, the internal temperature of the oven reaches 500°C. When the pyrolytic cycle is activated, food and grime residues are burnt away. Dirt is literally incinerated. Keep children away from the appliance during the automatic cleaning cycle as surfaces may become very hot. Particles may ignite inside the oven as a result of the combustion process. There is no cause for concern: this process is both normal and hazard-free. Before initiating the PYROLYTIC cycle:
• remove large or coarse food residues from the inside of the oven using a damp sponge. Do not use detergents;
• remove all accessories;
• do not place tea towels or pot holders over the oven handle;
• turn the SELECTOR knob to the “0” position. ! If the oven is too hot, the pyrolytic cycle may not start. Wait for the oven to cool down. ! The cycle may only be started once the oven door has been closed. To activate the PYROLITIC cleaning cycle, press and hold the button for approximately 4 seconds. The SET TIME KNOB may be used to select the desired cleaning level; there are three default time settings which cannot be modified.

1. Economy (ECO): turn the knob towards “ ”. Duration 1 hour.

2. Normal (NOR): initial level. Duration 1 hour and 30 minutes.

3. Intensive (INT): turn the knob towards “ ”. Duration 2 hours.

Programming the automatic cleaning end time

button until the icon and the two numerical digits on the DISPLAY begin to flash.

2. Turn the SET TIME KNOB towards “ ” and “ ” to adjust

3. Press the button again so that the other two numerical

digits on the DISPLAY begin to flash.

4. Turn the SET TIME KNOB towards “ ” and “ ” to adjust

button again to confirm.

6. When the set time has elapsed, the text END appears

on the display and a buzzer sounds.

• For example: it is 9:00 a.m. and the Economy PYROLYTIC cycle has been selected: default set duration 1 hour. 12:30 is scheduled as the end time. The programme will start automatically at 11:30 a.m. Programming has been completed when the and icons light up. The DISPLAY shows the PYROLITIC cycle end time and duration alternately. Once the automatic cleaning cycle is over You will have to wait until the temperature inside the oven has cooled down sufficiently before you can open the oven door. You will notice some white dust deposits on the bottom and the sides of your oven; remove these deposits with a damp sponge once the oven has cooled down completely. Alternatively, you can make use of the already heated oven, in which case it is not necessary to remove the deposits, they are completely harmless and will not affect your food in any way. button to confirm. An end time for the PYROLITIC cycle (as for a normal cooking cycle) may be programmed (see Programming the automatic cleaning end time). Safety devices
• the icon on the display, when lit, indicates that the oven door was automatically locked as soon as the temperature reached a high value;
• the icon indicates that the cleaning cycle may be cancelled at any time by pressing the button;

• if a malfunction occurs, the heating elements will be switched off;
• once the oven door has been locked, you cannot change the duration and cycle end time settings.
