USER MANUAL CI 97I I S SCHOLTES

Contents Operating Instructions,1 Warnings,2 Description of the appliance-Overall view,5 Description of the appliance-Control Panel,5 Assistance,9 Installation,26 Start-up and use,28 Cooking modes,29 Using the hob,33 Precautions and tips,38 Care and maintenance,40

WARNING: The appliance and its

accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING: Unattended cooking on a hob

with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. The internal surfaces of the compartment (where present) may become hot. Before initiating the automatic cleaning cycle:

• clean the oven door;
• remove large or coarse food residues from the inside of the oven using a damp sponge. Do not use detergents;
• remove all accessories and the sliding rack kit (where present);
• do not place tea towels Keep children away from the appliance during the automatic cleaning cycle as surfaces may become very hot. Never use steam cleaners or pressure cleaners on the appliance. Do not place metal objects (knives, spoons, pan lids, etc.) on the hob as they may become hot. Remove any liquid from the lid before opening it. Do not close the glass cover (if present) when the gas burners or electric hotplates are still hot. After use, switch off the hob element by its control and do not rely on the pan detector.

WARNING: Ensure that the appliance is

switched off before replacing the lamp to avoid the possibility of electric shock.

Description of the appliance DISPLAY

1. LOW TEMPERATURE MODE icon

3. Indicator Preheating

Description of the appliance

Description of the appliance Control panel The control panel described in this manual is only a representative example: it may not exactly match the panelon your appliance. 1 „SLIDER” ZONE - switches the hotplate on/off or adjusts its power level (see Start-up and use). 2 COOKING ZONE indicator represents the corresponding cooking zone. 3 POWER indicator provides a visual display for the current heat level. 4 ON/OFF button switches the appliance on and off. 5 ON/OFF indicator light shows whether the appliance is on or off. 6 PROGRAMME TIMER* button controls the cooking programme times (see Start-up and use). 7 PROGRAMME TIMER* display shows which programme has been selected (see Start-up and use). 8 COOKING ZONE PROGRAMMED* indicator lights show which cooking zones are being used during a cooking programme (see Start-up and use). 9 CONTROL PANEL LOCK button prevents accidental changes to the hob settings (see Start-up and use). 10 CONTROL PANEL LOCK indicator light shows the control panel has been locked (see Start-up and use). 11 BOOSTER* button activates the booster function - 3000 W - of the cooking zone (see Start-up and use). BOOSTER* indicator light shows that the booster function has been activated. 13 TIMER* indicator light shows that the timer has been activated 14 MAX BUTTON - switches the cooking zone on at its maximum power level 16 (see Start-up and use). 15 MED BUTTON - switches the cooking zone on at its medium power level 8 (see Start-up and use). 16 MIN BUTTON - switches the cooking zone on at its minimum power level 1 (see Start-up and use). 17 INCREASE TIME* button increases the cooking duration while the timer is running or while a set programme is underway (see Start-up and use). 18 DECREASE TIME* button decreases the cooking duration while the timer is running or while a set programme is underway (see Start-up and use). 19 EXTENSO TECHNOLOGY button - activates the EXTENSO TECHNOLOGY mode 20 EXTENSO TECHNOLOGY indicator light shows that the EXTENSO TECHNOLOGY function has been activated ! This product complies with the requirements of the atest European Directive on the limitation of power consumption of the standby mode. If no operations are carried out for a period of 2 minutes, after the residual heat indicator lights turn off and the fan stops (if present), the appliance automatically switches to the .off mode.. The appliance resumes the operating mode once the ON/OFF button is pressed.

• Only available in certain models.

The appliance is fitted with an automatic diagnostic system which detects any malfunctions. Malfunctions are displayed by messages of the following type: “F” followed by numbers. Call for technical assistance in the event of a malfunction. ! Never use the services of an unauthorised technician. Please have the following information to hand:

• The type of problem encountered.
• The appliance model (Mod.).
• The serial number (S/N). The latter two pieces of information can be found on the data plate located on the appliance.

Installation ! Please keep this instruction booklet in a safe place for future reference.. Make sure the booklet remains with the appliance if it is sold, given away or moved. Levelling If it is necessary to level the appliance, screw the adjustable feet into the positions provided on each corner of the base of the cooker (see figure). ! Please read this manual carefully: it contains important information on installation, operation and safety. ! The appliance must be installed by a qualified professional in accordance with the instructions provided. The legs* fit into the slots on the underside of the base of the cooker. ! Any necessary adjustment or maintenance must be performed after the cooker has been disconnected from the electricity supply. Positioning and levelling ! The appliance may be installed alongside any cupboards whose height does not exceed that of the hob surface. ! Make sure that the wall which is in contact with the back of the appliance is made from a nonflammable, heat-resistant material (T 90°C). 420 mm. Min. min. 650 mm. with hood min. 700 mm. without hood 420 mm. To install the appliance correctly:

• Place it in the kitchen, the dining room or the studio flat (not in the bathroom).
• If the top of the hob is higher than the cupboards, the appliance must be installed at least 600 mm away from them.
• If the cooker is installed underneath a wall cabinet, there must be a minimum distance of 420 mm between this cabinet and the top of the hob. This distance should be increased to 700 HOOD mm if the wall cabinets Min. 600 mm. are flammable (see figure).
• Do not position blinds behind the cooker or less than 200 mm away from its sides. Min.

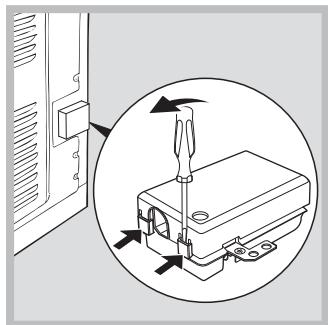

Fitting the power supply cable To open the terminal board:

• Insert a screwdriver into the side tabs of the terminal board cover.
• Pull the cover to open it. To install the cable, follow the instructions below:
• Loosen the cable clamp screw and the wire contact screws. ! The jumpers are pre-set at the Factory for 230 V single-phase connection (see figure). 230V ~ H05RR-F 3x4 CEI-UNEL 35363 H05VV-F 3x4 CEI-UNEL 35746

• Any hoods must be installed in accordance with the instructions listed in the relevant operating manual. Electrical connection

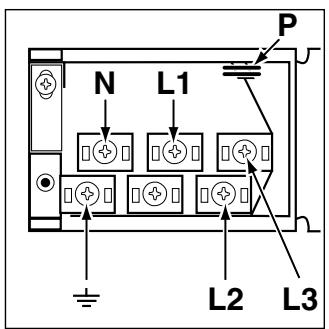

• To carry out the electrical connections as shown in the figures, use the two jumpers inside the box (see figure - labelled “P”).

• Secure the power supply cable by fastening the cable clamp screw then put the cover back on. Connecting the supply cable to the electricity mains Install a standardised plug corresponding to the load indicated on the appliance data plate (see Technical data table). The appliance must be directly connected to the mains using an omnipolar switch with a minimum contact opening of 3 mm installed between the appliance and the mains. The switch must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the switch). The supply cable must be positioned so that it does not come into contact with temperatures higher than 50°C at any point. Before connecting the appliance to the power supply, make sure that:
• The appliance is earthed and the plug is compliant with the law.

• The socket can withstand the maximum power of the appliance, which is indicated by the data plate.
• The voltage falls between the values indicated on the data plate.
• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets. ! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only. ! The manufacturer declines any liability should these safety measures not be observed.

TABLE OF CHARACTERISTICS

Oven dimensions 32x43.5x40 cm (HxWxD) Volume 57 l Useful width 42 cm measurements depth 44 cm relating to the oven height 8.5 cm compartment Voltage and see data plate frequency Directive 2002/40/EC on the label of electric ovens. Standard EN 50304 Energy consumption for Natural convection – heating mode: Convection mode ENERGY LABEL Declared energy consumption for Forced convection Class – heating mode: Roasting EC Directives: 2006/95/EC dated

12.12.06 (Low Voltage) and subsequent

amendments - 04/108/EC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments - 90/369/EEC dated 29/06/90 (Gas) and subsequent amendments - 93/68/EEC dated 22/07/93 and subsequent amendments - 2002/96/EC. 1275/2008 (Stand-by/Off mode) Data plate, is located inside the flap or, after the oven compartment has been opened, on the left-hand wall inside the oven.

Start-up and use Setting the clock ! The clock may be set when the oven is switched off or when it is switched on, provided that the end time of a cooking cycle has not been programmed previously.

button several times until the icon and the first two numerical digits on the display start to flash.

2. Turn the TIMER KNOB towards “+” and “-” to

adjust the hour value.

button again until the other two digits on the DISPLAY begin to flash.

4. Turn the TIMER KNOB towards “+” and “-” to

adjust the minute value.

button again to confirm. Setting the timer ! This function does not interrupt cooking and does not affect the oven; it is simply used to activate the buzzer when the set amount of time has elapsed. button several times until the

icon and the three numerical digits on the DISPLAY begin to flash.

2. Turn the TIMER KNOB towards “+” and “-” to

adjust the minute value.

button again to confirm. The display will then show the time as it counts down. When this period of time has elapsed the buzzer will be activated. Using the oven ! Before operating the product, remove all plastic film from the sides of the appliance. ! The first time you use your appliance, heat the empty oven with its door closed at its maximum temperature for at least half an hour. Make sure that the room is well ventilated before switching the oven off and opening the oven door. The appliance may emit a slightly unpleasant odour caused by protective substances used during the manufacturing process burning away.

1. Select the desired cooking mode by turning the

2. The oven begins its preheating stage and the

preheating indicator lights up.

The temperature may be changed by turning the THERMOSTAT knob

3. When the preheating indicator

switches off and a buzzer sounds the preheating process is complete: you may now place the food in the oven.

4. During cooking it is always possible to:

- Change the cooking mode by turning the SELECTOR knob. - Change the temperature by turning the THERMOSTAT knob. - Set the cooking duration and the cooking end time (see Cooking modes). - Stop cooking by turning the SELECTOR knob to the “0” position.

5. The cooking time may be modified (see Cooking

6. If a blackout occurs while the oven is already in

operation, an automatic system within the appliance will reactivate the cooking mode from the point at which it was interrupted, provided that the temperature has not dropped below a certain level. Programmed cooking modes which have not started will not be restored and must be reprogrammed. ! There is no preheating stage for the ROASTING and BARBECUE modes. ! Never put objects directly on the bottom of the oven; this will prevent the enamel coating from being damaged. ! Always place cookware on the rack(s) provided. Cooling ventilation In order to cool down the external temperature of the oven, a cooling fan blows a stream of air between the control panel and the oven door. At the beginning of the PYROLYTIC cycle, the cooling fan operates at low speed. ! Once cooking has been completed, the cooling fan remains on until the oven has cooled down sufficiently. Oven light When the oven is not in operation, the lamp can be switched on at any time by opening the oven door.

• Only available in certain models. Manual cooking modes Automatic cooking modes ! All cooking modes have a default cooking temperature which may be adjusted manually to a value between 40°C and 250°C as desired. In the SPIT ROAST mode, the default power level value is 270°C. ! The temperature and cooking duration are pre-set values, guaranteeing a perfect result every time - automatically. Programmed These values are set using the C.O.P.® (Programmed Optimal Cooking Cooking) system. The cooking cycle stops automatically and the oven indicates when the dish is cooked. The cooking duration may be modified by a period of several minutes, as specified in the description of the individual functions below. TRADITIONAL OVEN mode When using this traditional cooking mode, it is best to use one cooking rack only. MULTILEVEL mode Since the heat remains constant throughout the oven, the air cooks and browns food in a uniform manner. A maximum of two racks may be used at the same time. ROASTING mode This combination of features increases the effectiveness of the unidirectional thermal radiation provided by the heating elements through the forced circulation of the air throughout the oven. This helps prevent food from burning on the surface and allows the heat to penetrate right into the food. Always cook in this mode with the oven door closed. SPIT ROAST mode The function is ideal for rotisserie spit cooking. Always cook in this mode with the oven door closed. LOW TEMPERATURE modes This type of cooking can be used for proving, defrosting, preparing yoghurt, heating dishes at the required speed and slow cooking at low temperatures. The temperature options are: 40, 65, 90 °C. Spit roast To operate the spit roast function (see diagram)proceedasfollows:

1. Place the dripping pan in

2. Place the rotisserie

support in position 3 and insert the spit in the hole provided on the back panel of the oven.

3. Start the spit roast function

by selecting the symbols. ! When this mode is enabled, the rotisserie spit will stop if the door is opened.

ROAST... mode Use this function to cook beef, pork and lamb. Place the meat inside the oven while it is still cold. The dish may also be placed in a preheated oven. It will only be possible to adjust the duration by -20/+25 minutes. PIZZA mode Use this function to make pizza. Please see the following chapter for further details. It will only be possible to adjust the duration by -5/+5 minutes. To achieve the best possible results, we recommend that you carefully observe the instructions below:

• The weight of the dough should be between 500 g and 700 g.
• Lightly grease the dripping pan and the baking trays. Place the food inside the oven while it is still cold. If you wish to place the food in the oven after it has been preheated, immediately following a high-temperature cooking programme, the text “Hot” will appear on the display until the temperature of the oven has fallen to 120°. At this point it will be possible to place the pizza in the oven. Recipe for PIZZA: 1 Dripping pan on a low shelf level, hot or cold oven Recipe for 3 pizzas weighing approximately 550 g: 1000 g flour, 500 ml water, 20 g salt, 20 g sugar, 100 ml olive oil, 20 g fresh yeast (or 2 sachets of powder yeast)
• Leavening at room temperature: 1 hour, or LOW TEMPERATURE manual function set to 40°. Leave to rise for approximately 30-45 minutes.
• Place the food inside the oven while it is still cold.
• Start the PIZZA cooking mode. BREAD mode To obtain the best results, we recommend that you carefully observe the instructions below:
• Do not exceed the maximum weight of the dripping pan.
• Remember to pour 100 ml of cold water into the baking tray in position 5. Place the food inside the oven while it is still cold. If you wish to place the food in the oven after it has been preheated,

immediately following a high-temperature cooking programme, the text “Hot” will appear on the display until the temperature of the oven has fallen to 40°. At this point it will be possible to place the bread in the oven. Recipe for BREAD: 1 Dripping pan weighing 1000 g max placed on a low shelf level Recipe for 1000 g of dough: 600 g flour, 360 g water, 11g salt, 25 g fresh yeast (or 2 sachets of powder yeast) Method:

• Mix flour and salt in a large bowl.
• Dilute yeast in lukewarm water (approximately 35 degrees).
• Make a small well in the mound of flour.
• Pour in water and yeast mixture.
• Knead dough by stretching and folding it over itself with the palm of your hand for 10 minutes until it has a uniform consistency and is not too sticky.
• Form the dough into a ball shape, place it in a large bowl and cover it with transparent plastic wrap to prevent the surface of the dough from drying out. Select the manual LOW TEMPERATURE function on the oven and set the temperature to 40°C. Place the bowl inside and leave the dough to rise for approximately 1 hour (the dough should double in volume).
• Cut the dough into equal sized loaves.
• Place them in the dripping pan on oven paper.
• Cover the loaves with flour.
• Make incisions on the loaves.
• Remember to pour 100 ml of cold water into the baking tray in position 5. For cleaning purposes, we recommend the use of water and vinegar.
• Place the loaves inside the oven while it is still cold.
• Start the BREAD cooking mode.
• Once baked, leave the loaves on one of the grill racks until they have cooled completely. BAKED CAKES mode This function is ideal for baking cakes. Place the food inside the oven while it is still cold. The dish may also be placed in a preheated oven. It will only be possible to adjust the duration by 10/+10 minutes. Programming cooking ! A cooking mode must be selected before programming can take place. Programming the cooking duration

button several times until the icon and the three digits on the DISPLAY begin to flash.

2. Turn the TIMER KNOB towards “+” and “-” to adjust the

button again to confirm;

4. When the set time has elapsed, the text END appears on the

DISPLAY, the oven will stop cooking and a buzzer sounds.

• For example: it is 9:00 a.m. and a time of 1 hour and 15 minutes is programmed. The programme will stop automatically at 10:15 a.m. Setting the end time for a cooking mode ! A cooking duration must be set before the cooking end time can be scheduled.

1. Follow steps 1 to 3 to set the duration as detailed above.

button until the icon and the two digits on the DISPLAY begin to flash.

3. Turn the TIMER KNOB towards “+” and “-” to adjust the hour

button again until the other two digits on the DISPLAY begin to flash.

5. Turn the TIMER KNOB towards “+” and “-” to adjust the minute

button again to confirm.

7. When the set time has elapsed, the text END appears on the

DISPLAY, the oven will stop cooking and a buzzer sounds.

• For example: it is 9:00 a.m. and a time of 1 hour and 15 minutes is programmed, while the end time is set to 12:30. The programme will start automatically at 11:15 a.m. Programming has been set when the and buttons are illuminated. The DISPLAY shows the cooking end time and the cooking duration alternately. To cancel programming, turn the SELECTOR knob to the “0” position. Practical cooking advice ! Do not place racks in position 1 and 5 during fan-assisted cooking. This is because excessive direct heat can burn temperature sensitive foods. ! In the SPIT ROAST and ROASTING cooking modes, place the dripping pan in position 1 to collect cooking residues (fat and/or grease). MULTILEVEL
• Use positions 2 and 4, placing the food which requires more heat on 2.
• Place the dripping pan on the bottom and the rack on top. PIZZA
• Use a light aluminium pizza pan. Place it on the rack provided. For a crispy crust, do not use the dripping pan as it prevents the crust from forming by extending the total cooking time.
• If the pizza has a lot of toppings, we recommend adding the mozzarella cheese on top of the pizza halfway through the cooking process. ! When inserting the shelf make sure the backstop is at the rear of the cavity (see image).

Oven cooking advice table I LEGUMI CANAPES AND STARTERS DISHES Savoury sponge cake made with yoghurt Country-style pie Terrines “En cocotte” dishes Soufflé EXAMPLES FUNCTION TEMPERATURE SUPPORT savoury sponge cake with olives, tuna, etc. Baked cakes or Multilevel 160 °C cake tin on dripping pan cheese country-style pie, salmon pastry, … Baked cakes or Multilevel 200 °C fish, meat, vegetable, foie gras terrines, etc. Traditional oven 160 °C poultry liver pie, salmon mousse, eggs en cocotte, etc. cheese soufflé, vegetable soufflé, fish soufflé, etc. MEAT 160 °C Multilevel Gratin (or Roasting) 200 °C Gratin dishes potato gratin, parmentier, lasagne, etc. 200-210 °C tray on dripping pan Stuffed vegetables potatoes, tomatoes, courgettes, cabbages, etc. Multilevel 200 °C on dripping pan or cake tin on dripping pan Braised vegetables en cocotte lettuce, saffron carrots, salsify, etc. Traditional oven 200 °C Flan mushroom flan, vegetable pancake, etc. Traditional oven 160 °C Terrines vegetable terrines Traditional oven 160 °C Soufflé Dishes with a crust Baking in foil (“en papillote”) Rice asparagus soufflé , tomato soufflé, etc. vegetable pie, etc. Multilevel Multilevel 200 °C 200 °C baking dish or cake tin on dripping pan (bain-marie filled with hot water) cake tin on dripping pan (bain-marie filled with hot water) cake tin on dripping pan on dripping pan baking dish on dripping pan truffles, etc. Multilevel 200 °C foil pouch on dripping pan Pilaff Traditional oven 180 °C tray on plate DISHES EXAMPLES COOKING MODE TEMPERATURE SUPPORTS Roast poultry Poultry on the spit chicken, duck, cockerel, capon. chicken, cockerel roast pork, veal, turkey, beef, leg of lamb, haunch of venison, stuffed veal breast, etc. Roasting Turnspit 200 °C 250 °C poultry on the grid turnspit support Roasting 200 °C meat directly on the grid meat on the oven tray baste regularly with the juice casserole dish on the oven tray Roasts FISH Traditional oven on dripping pan terrine mould on dripping pan (bainmarie filled with hot water) baking dish on dripping pan (bainmarie filled with hot water) cake tin on dripping pan large pieces of braised meat whole ham on the bone, large capon or turkey, etc. Multi-level 180 °C (one third into cooking, lower the temperature to 160°C) Meat casseroles and traditional dishes beef bourguignon, rabbit chasseur, veal Marengo, lamb stew, Basquaise chicken, etc. hotpots, cassoulet, etc. Convection mode 190 °C Grilled meat ribs, cutlets, sausages, kebabs, chicken thighs, etc. Multi-level 270 °C Meat pies Beef Wellington, steak and kidney pie, etc. Multi-level 200 °C Salt-baking salt-baked poultry, etc. Multi-level 240 °C Grilled fish and fish kebabs bass, mackerel, sardines, mullet, tuna, etc. Multi-level 250 °C Whole fish (stuffed) Fish fillets (with basting) Foil parcels Fish pies (flaky or shortcrust pastry) sea bream, carp, etc. salmon, scorpion fish, cod, bass, etc. sole, dab, scallops, etc. Multi-level Convection mode Multi-level 200 °C 200 °C 200 °C salmon, pike, etc. Multi-level Fish au gratin brandade gratin, etc. gratin (or roasting) Soufflés scallop soufflé, etc. Multi-level 200-210 °C 260 °C 200 °C Salt-baked fish bass, carp, etc. Multi-level 240 °C 200 °C on the grid (the rack depends on the size) on the tray (for large pieces of meat, lower the temperature to 160°C when the pastry crust is baked) meat on the oven tray or in a dish on the oven tray on the grid (the rack depends on the size) on the oven tray on the oven tray on the oven tray on the oven tray dish on the oven tray soufflé dish on the oven tray fish on the oven tray or in a dish on the oven tray

DISHES EXAMPLES Biscuit cakes (without yeast) sponge cake, sponge fingers, swirled biscuits, brownies, etc. White cheese tart Tarts made using leavened dough sugar pie, fruit brioche loaf, etc. Tart cases (crumbly sweet pastry) fresh fruit tarts (strawberry, raspberry, etc.) Pies (shortcrust or puff pastry) pear pie, etc. profiteroles, mini cream puffs, cream puffs, Paris-Brest pastry dessert, Saint Honoré cake, etc. croissants, sugar pie, plain brioche (no filling), mini savarin cakes, etc. Kugelhopf, brioche, panettone, sweet bread, etc. biscuits in paper trays, scooping biscuits, etc. shortbread, spritz cookies, plain biscuits, etc. various types of puff pastry dessert, etc. coconut or almond amaretti mini-brioches, mini-croissants, etc. Cream puffs Mini sweet pastries (natural yeast) Large sweet pastries (natural yeast) Biscuit dough Crumbly sweet pastry Puff pastry Amaretti, coconut balls Leavened dough White meringues Golden meringues DESSERTS Cream desserts and flans, semolina crème caramel, crème brûlée, chocolate flan, etc. Soufflé riz condé rice pudding, Imperial rice pudding, etc. liqueur soufflé, fruit soufflé, etc. Stuffed or foil-baked fruit baked apples, etc. Rice desserts FRUIT DISHES SUPPORT 200 °C cake tin on dripping pan 200 °C 180 °C 220 °C cake tin on dripping pan cake tin on dripping pan cake tin on dripping pan (with baking beans weighing the pastry down ) cake tin on dripping pan 190 °C on dripping pan 180 °C Baked cakes or Multilevel 180 °C mushrooms, herbs, sliced fruit or vegetables, etc. on dripping pan on dripping pan or cake tin on dripping pan on dripping pan on dripping pan on dripping pan on dripping pan on dripping pan on dripping pan on dripping pan 160 °C Baked cakes or Multilevel Baked cakes or Multilevel Multilevel EXAMPLES Yoghurt Dried foods TEMPERATURE pudding made with bread or brioche, rice pudding Pudding VARIOUS FUNCTION 180 °C 200 °C 200 °C 180 °C 180 °C 70 °C 110 °C 190 °C cake tin on dripping pan 160 °C moulds or baking dish on dripping pan (bain-marie on dripping pan) 180 °C cake tin on dripping pan 200 °C cake tin on dripping pan cake tin or foil pouch on dripping pan 200 °C FUNCTION TEMPERATURE SUPPORT Low temperature 40 °C baking dish on dripping pan Low temperature 65 °C on grille Automatic cooking modes Mode Roast beef Baked cakes Cooking programme recommended for … Meat roasts Sponge cake with yoghurt and pound cake (with baking powder) Fruit tarts (short crust pastry or puff pastry, with or without flan filling) Puff pastry Desserts without yeast (clafoutis, almond pithivier, country-style cake, etc.) EXAMPLES SUPPORT roast veal On dripping pan or baking roast pork pan roast chicken leg of lamb fruit cake, marble cake, pound cake, cake tin on grille etc. apple tart, Mirabelle plum tart, pear cake tin on grille tart, etc. apple puffs, country-style tarts, on dripping pan pastries, etc. on dripping pan Dripping pan level Cooking time (minutes)

Oven at start Cold 45**

• The cooking times listed above are intended as guidelines only and may be modified to suit personal tastes. Oven preheating times are set by default and cannot be modified manually. ** The duration of the automatic cooking functions are set by default. The values in the table refer to the minimum and maximum duration, which may be modified by the user, taking the default value as a starting point. *** As stated in the recipe, pour 100 g water into the dripping pan.

Start-up and use ! The glue applied on the gaskets leaves traces of grease on the glass. Before using the appliance, we recommend you remove these with a special non-abrasive cleaning product. During the first few hours of use there may be a smell of rubber which will disappear very quickly. ! A few seconds after the hob is connected to the electricity supply, a buzzer will sound. The hob may now be switched on. Types of noise during normal hob operation:

• Buzz: due to the vibration of the metallic parts that make up the induction element and the pot; it is generated by the electromagnetic field required for heating and increases as the power of the induction element increases.
• Soft whistle: heard when the pot placed on the heating zone is empty; the noise disappears once food or water is placed into the pot.
• Crackle: produced by the vibration of materials on the bottom of the pot due to the flow of parasitic currents caused by electromagnetic fields (induction); can be more or less intense depending on the material making up the bottom of the pot, and decreases as the pot dimensions increase.
• Loud whistle: heard when two induction elements of the same group function simultaneously at maximum power and/or when the booster function is set on the larger element while the other is auto-adjusted. Noise is reduced by decreasing the power level of the autoadjusted induction element; pot bottom layers made of different kinds of materials are among the main causes of this noise.
• Fan noise: a fan is necessary to ensure the hob functions correctly and to safeguard the electronic unit from possible overheating. The fan functions at maximum power when the large induction element is at maximum power or when the booster function is on; in all other cases, it works at average power depending on the temperature detected. Furthermore, the fan may continue to work even after switching the hob off, if the temperature detected is high. The types of noise listed above are due to induction technology and are not necessarily operational faults. Switching on the hob To switch the hob on, press and hold the power level, or towards the left to decrease the power level. The min/med/max buttons can also be pressed directly to select the pre-set power levels: min (1) / med (8) / max (16), and to switch off the plate (see below).

MIN/MED/MAX functions Press the MED button to switch on the cooking zone at medium power level 8. Press the MIN button to switch on the cooking zone at minimum power level 1. Press the MAX button to switch on the cooking zone at maximum power level 16. Booster function* The booster function for some of the cooking zones may be used to shorten heating-up times. It may be activated by pressing the b oooster oster ost

button. The indicator light directly above the button will illuminate. This function boosts the power to 2000 W or 3000 W, depending on the size of the corresponding cooking zone. It stops automatically after 4 minutes. While the booster for one of the cooking zones is active, the corresponding front or rear cooking zone will operate at a reduced power level (e.g. if the booster for the rear left-hand hotplate has been activated, the power level of the front left-hand hotplate will be reduced). For further information, please refer to the Technical description of the models. Switching off the cooking zones To switch off the hotplate, select the button corresponding to the desired zone, moving the slider towards the left to return to level 0, or press the Off button on the slider control directly. ! The first time the slider is pressed, a short beep will sound to acknowledge the touch. If - and only if the power level is adjusted, another short beep will sound when the slider is released. ! The hotplate selection LEDs light up for the power adjustment period (10 seconds), during which the slider (or min/med/max buttons)* can influence the selected hotplate. Programming the cooking duration button for approximately one second. Switching on the cooking zones To operate a cooking zone, select the button corresponding to the desired zone and set the required power level by pressing down on the slider and moving it towards the right to increase the ! If the and buttons are pressed for an extended period of time, the timer scrolls quickly through the minute values in the corresponding direction. ! All the cooking zones may be programmed simultaneously, for a duration between 1 and 99 minutes.

1. Select the cooking zone using the corresponding

2. Adjust the power level of the cooking zone.

• Only available in certain models.

programming button. The indicator light corresponding to the selected zone will start flashing.

4. Set the cooking duration using the

5. Confirm by pressing the

and buttons. button or automatic selection occurs after 10 seconds. The timer begins counting down immediately. A buzzer sounds for approximately 1 minute and the cooking zone switches off when the set programme has finished. Repeat the above procedure for each hotplate you wish to programme. Using multiple programmes and the display button repeatedly: the time remaining for each hotplate will be shown sequentially in a clockwise order, starting from the front left hotplate. button repeatedly until the duration you wish to change is shown.

buttons to set the new duration.

3. Confirm by pressing the

button. button: the duration decreases Timer The hob must be switched on. The timer can be used to set a duration up to 99 minutes. programming button until the timer indicator light is illuminated

2. Set the desired duration using the

3. Confirm by pressing the

and buttons. button. The timer begins counting down immediately. When the time has elapsed, a buzzer will sound (for one minute).

button for a few switch off this function. Press the moments, the indicator light will switch off and the lock function will be removed. Press the button to switch off the appliance - do not rely solely on the pan sensor. If the control panel lock has been activated, the controls will continue to be locked even after the hob is switched on again. In order to switch the hob on again, you must first remove the lock function. “Demo” mode + and buttons simultaneously for 6 seconds. When the 6 seconds have elapsed, the ON/OFF and CONTROLS LOCKED indicator lights will progressively until it reaches 0 and switches off. The programme resets and the display exits programming mode.

button to lock the control panel: the

• Press and hold the To cancel a programme, follow the above instructions. At step 2, press the Press the indicator light above the button will switch on. To use any of the controls (e.g. to stop cooking), you must It is possible to set the hob to a demonstration mode where all the controls work normally but the heating elements do not switch on. To activate the “demo” mode the hob must be switched on, with all the hotplates switched off. Changing the programme

When the hob is switched on, it is possible to lock the oven controls in order to avoid accidental changes being made to the settings (by children, during cleaning, etc.). Switching off the hob If one or more hotplates are programmed, the display will show the data for the hotplate with the least time remaining, and the light corresponding to the position of the hotplate will flash. The lights corresponding to the other hotplates programmed will be switched on. To visualise the time remaining for the other programmed hotplates, press the Control panel lock flash for one second. Release the and press the + and buttons button;

• The display will show the text DE and MO and the hob will be switched off.
• When the hob is switched on again it will be set to the “demo” mode. To exit this mode, follow the procedure described above. The display will show the text DE and OF and the hob will be switched off. When it is next switched on, the hob will function normally. Practical advice on using the appliance Safety switch ! Use cookware made from materials which are compatible with the induction principle (ferromagnetic material). We especially recommend pans made from: cast iron, coated steel or special stainless steel adapted for induction. Use a magnet to test the compatibility of the cookware. The appliance has a safety switch which automatically switches the cooking zones off after they have been in operation for a certain amount of time at a particular power level. When the safety switch has been triggered, the 0”. display shows “0 For example: the rear right-hand hotplate is set to 5 and will switch off after 7 and a half hours of continuous operation, while the front left-hand hotplate is set to 2 and will switch off after 9 and a half hours. UNSUITABLE SUITABLE

Cast iron Enamelled steel Special stainless steel Copper, Aluminium, Glass, Earthenware, Ceramic, non magnetic Stainless steel

Power level Maximum operating time in hours

In addition, to obtain the best results from your hob:

• Use pans with a thick, flat base in order to fully utilise the cooking zone.

• Always use pans with a diameter which is large enough to cover the hotplate fully, in order to use all the available heat.

• Make sure that the base of the cookware is always clean and dry, in order to fully utilise and extend the life of both the cooking zones and the cookware.
• Avoid using the same cookware which has been used on gas burners: the heat concentration on gas burners may distort the base of the pan, causing it not to adhere correctly. Safety devices Buzzer Pan sensor Each cooking zone is equipped with a pan sensor device. The hotplate only emits heat when a pan with suitable measurements for the cooking zone is placed on it. If the power level indicator display flashes, this may be because:
• A pan whose diameter is too small
• The pan has been removed from the hotplate. This can also indicate several irregularities:
• An object (a pan, cutlery, etc.) has been placed on the control panel for more than 10 seconds.
• Something has been spilt on the control panel.
• A button has been pressed for too long. All of the above situations may cause the buzzer to sound. Remove the cause of the malfunction to stop the buzzer. If the cause of the problem is not removed, the buzzer will keep sounding and the hob will switch off. Overheating protection If the electronic elements overheat, the hob switches off automatically and F appears on the display, followed by a flashing number. When the temperature has reached a suitable level, this message disappears and the hob may be used again.

To exit this mode, follow the procedure described above. The display will show the text DE and OF and the hob will be switched off. When it is next switched on, the hob will function normally. The EXTENSO TECHNOLOGY mode The EXTENSO TECHNOLOGY can be used to set the power of two "interconnected" hotplates to the same level. It can be activated if the two hotplates are OFF, by pressing the EXTENSO TECHNOLOGY button The EXTENSO TECHNOLOGY can be activated while the hob is on by pressing the EXTENSO TECHNOLOGY button once; the LEDs corresponding to both linked hotplates light up. The 2 LEDs remain lit as long as the hotplates are linked (if EXTENSO TECHNOLOGY button is pressed again, the hotplates are disconnected and are both set to power level 0). Pressing the +, - or Max buttons for one of the two Flexi hotplates also affects the display corresponding to the other hotplate. To deactivate the EXTENSO TECHNOLOGY , press the button A timer may be set for the EXTENSO TECHNOLOGY; this appears on the display and both LEDs corresponding to the linked hotplates light up. When the Timer button is pressed, the two linked hotplates are treated as if they were a single zone. Selecting and using EXTENSO TECHNOLOGY To begin using the EXTENSO TECHNOLOGY, press the button. To set the power level (see above). EXTENSO TECHNOLOGY operation Once you have selected EXTENSO TECHNOLOGY by pressing the button , the 2 LEDs corresponding to the EXTENSO TECHNOLOGY for both hotplates light up; it will then be possible to control both as if they were a single zone. The power level will appear on both displays. If only the upper or lower part is in use, the display corresponding to the unused zone will begin to flash, and after 3 minutes cooking will automatically revert to standard mode (notEXTENSO TECHNOLOGY). ! Once activated, the EXTENSO TECHNOLOGY can also be programmed, using the same procedure as described for the individual hotplates.

! Accessories For optimal EXTENSO TECHNOLOGY performance, we recommend the use of pans with an elliptical or elongated base and a major diameter of at least 250 mm; if using pans with a smaller diameter, we recommend positioning them in the upper or lower part as indicated by the X symbol. If the saucepan is not in the centre of the screen printing detail, you may hear a whistling sound or a slight buzzing noise; this does not indicate a hob malfunction. We recommend adjusting the position of the pan so that it is in the centre of the EXTENSO TECHNOLOGY zone Technical description The induction system is the quickest existing way of cooking. Unlike traditional hotplates where the cooking zone heats up, with the induction system heat is generated directly inside pans which have ferromagnetic bases. Key: I = single induction cooking zone B = booster: the power of the cooking zone may be boosted to 3000 W

• = the maximum power level is limited while the booster is activated for the relevant rear cooking zone (see Start-up and use). Cooking zone Back Left Back Right Front Left Total power Power (W) I 1400 I 3000 – B 4000 I 1400

Medium-flame cooking High-flame cooking Very high-flame cooking Practical cooking advice Pressure cooking Pressure cooker Low-flame cooking Frying Grilling Boiling Crêpes Cooking on a high flame and browning (roasts, steaks, escalopes, fish fillets, fried eggs) Fast thickening (liquid juices) Boiling water (pasta, rice, vegetables) Milk Slow thickening (dense juices) Bain-marie cooking Very low-flame cooking

Low-flame cooking (stews) Chocolate sauce Pressure cooking after whistle Reheating dishes Keeping food hot

Precautions and tips

! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully. General safety

• These instructions are only valid for the countries whose symbols appear in the manual and on the serial number plate located on the appliance.
• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
• Do not touch the appliance while barefoot, or with wet or damp hands and feet.
• The appliance must be used by adults only for the preparation of food, in accordance with the instructions outlined in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect and unreasonable use of the appliance.
• The instruction booklet accompanies a class 1 (insulated) or class 2 - subclass 1 (recessed between 2 cupboards) appliance.
• Do not touch the heating elements or certain parts of the oven door when the appliance is in use; these parts become extremely hot. Keep children well away from it and do not touch the hot parts yourself.
• Make sure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven.
• The openings used for ventilation and heat dispersal must never be covered.
• Do not use unstable or misshapen pans on the cooking zones; this will help to avoid accidental spills. Make sure pan handles are turned towards the centre of the hob in order to avoid accidental burns.
• Always use oven gloves when placing cookware in the oven or when removing it.
• Do not use flammable liquids (alcohol, petrol, etc...) near the appliance while it is in use.
• Do not place flammable material in the lower storage compartment or in the oven itself. If the appliance is switched on accidentally, the materials could catch fire.

• Always make sure the knobs are in the o position when the appliance is not in use.
• When unplugging the appliance, always pull the plug from the mains socket; do not pull on the cable.
• Never perform any cleaning or maintenance work without having disconnected the appliance from the electricity mains.
• If the appliance breaks down, under no circumstances should you attempt to perform the repairs yourself. Repairs carried out by inexperienced individuals may cause injury or further malfunctioning of the appliance. Contact the Assistance Service.
• Do not rest heavy objects on the open oven door.
• The internal surfaces of the compartment (where present) may become hot.
• The glass ceramic hob is resistant to mechanical shocks, but it may crack (or even break) if struck with a sharp object such as a utensil. If this happens, disconnect the appliance from the electricity mains immediately and contact a Service Centre.
• If the surface of the hob is cracked, switch off the appliance to prevent electric shocks from occurring.
• Remember that the cooking zones remain relatively hot for at least thirty minutes after they have been switched off. An indicator light provides a warning when residual heat is present (see Start-up and use).
• Keep any object which could melt away from the hob, for example plastic and aluminium objects, or products with a high sugar content. Be especially careful when using plastic film and aluminium foil or packaging: if placed on surfaces which are still hot, they may cause serious damage to the hob.
• Always make sure that pan handles are turned towards the centre of the hob in order to avoid accidental burns.
• When unplugging the appliance, always pull the plug from the mains socket; do not pull on the cable.
• Never perform any cleaning or maintenance work without having disconnected the appliance from the electricity mains.
• Do not place metal objects (knives, spoons, pan lids, etc.) on the hob as they may become hot.
• The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance.

• Do not let children play with the appliance.
• If the cooker is installed on a pedestal, take all necessary precautions to ensure that the appliance does not slide off this pedestal.
• For the attention of wearers of pacemakers or other active implants: The hob complies with all current standards on electromagnetic interference. Your induction hob is therefore perfectly in keeping with legal requirements (89/336/CEE directives). It is designed not to create interference on any other electrical apparatus being used on condition that the apparatus in question also complies with this legislation. Your induction hob generates short-range magnetic fields. To avoid any interference between your induction hob and a pacemaker, the latter must be designed to comply with relevant regulations. In this respect, we can only guarantee our own product conformity. Please consult the pacemaker manufacturer or your doctor concerning its conformity or any possible incompatibility.
• After using the hob, switch it off using the corresponding control device; do not rely solely on the pan sensor. Disposal
• When disposing of packaging material: observe local legislation so that the packaging may be reused.
• The European Directive 2002/96/EC relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection. For further information relating to the correct disposal of exhausted household appliances, owners may contact the public service provided or their local dealer. Respecting and conserving the environment

• You can help to reduce the peak load of the electricity supply network companies by using the oven in the hours between late afternoon and the early hours of the morning. The cooking mode programming options, and particularly the “delayed cooking” mode (see Cooking modes), make this possible.
• Always keep the oven door closed when using the SPIT ROAST and ROASTING modes. this will achieve improved results while saving energy (approximately 10%).
• Check the door seals regularly and wipe them clean to ensure they are free of debris so that they adhere properly to the door, thus avoiding the dispersal of heat. ! This product complies with the requirements of the latest European Directive on the limitation of power consumption of the standby mode. OVEN;; If no operations are carried out for a period of 2 minutes, the appliance automatically switches to the “Clock button”. The standby mode is visualised by the low luminosity "Watch Icon". As soon as interaction with the machine resumes, the system's operating mode is restored. HOB:: If no operations are carried out for a period of 2 minutes, after the residual heat indicator lights turn off and the fan stops (if present), the appliance automatically switches to the “off mode”. The appliance resumes the operating mode once the ON/OFF button is pressed.

Care and maintenance

Switching the appliance off Disconnect your appliance from the electricity supply before carrying out any work on it. Cleaning the oven ! Never use steam cleaners or pressure cleaners on the appliance.

• Clean the glass part of the oven door using a sponge and a non-abrasive cleaning product, then dry thoroughly with a soft cloth. Do not use rough abrasive material or sharp metal scrapers as these could scratch the surface and cause the glass to crack.
• The stainless steel or enamel-coated external parts and the rubber seals may be cleaned using a sponge which has been soaked in lukewarm water and neutral soap. Use specialised products for the removal of stubborn stains. After cleaning, rinse and dry thoroughly. Do not use abrasive powders or corrosive substances.
• The inside of the oven should ideally be cleaned after each use, while it is still lukewarm. Use hot water and detergent, then rinse well and dry with a soft cloth. Do not use abrasive products.
• The accessories can be washed like everyday crockery, and are even dishwasher safe.
• Dirt and grease should be removed from the control panel using a non-abrasive sponge or a soft cloth.
• Stainless steel can be marked by hard water that has been left on the surface for a long time, or by aggressive detergents that contain phosphorus. We recommend that the steel surfaces are rinsed well then dried thoroughly. Inspecting the oven seals Check the door seals around the oven regularly. If the seals are damaged, please contact your nearest Aftersales Service Centre. We recommend that the oven is not used until the seals have been replaced. Replacing the oven light bulb Cavity To replace the oven light bulb: Light bulb

1. Remove the glass cover using a screwdriver.

2. Unscrew the light bulb and replace it with a

similar one: Wattage 15 W, cap E 14. Replace the glass cover, making sure the seal is positioned correctly ( see diagram ). ! Do not use the oven lamp as/for ambient lighting. Cleaning the glass ceramic hob ! Do not use abrasive or corrosive detergents (for example, products in spray cans for cleaning barbecues and ovens), stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface beyond repair.

• It is usually sufficient simply to wash the hob using a damp sponge and dry it with absorbent kitchen roll.
• If the hob is particularly dirty, rub it with a special glass ceramic cleaning product, then rinse well and dry thoroughly.
• To remove more stubborn dirt, use a suitable scraper (this is not supplied with the appliance). Remove spills as soon as possible, without waiting for the appliance to cool, to avoid residues forming crusty deposits. You can obtain excellent results by using a rustproof steel wire sponge - specifically designed for glass ceramic surfaces - soaked in soapy water.
• If plastic or sugary substances have accidentally been melted on the hob, remove them immediately with the scraper, while the surface is still hot.
• Once it is clean, the hob may be treated with a special protective maintenance product: the invisible film left by this product protects the surface from drips during cooking. This maintenance should be carried out while the appliance is warm (not hot) or cold.
• Always remember to rinse the appliance well with clean water and dry it thoroughly: residues can become encrusted during subsequent cooking processes. Glass ceramic hob cleaners Available from Window scraper Razor blade scrapers DIY Stores Replacement blades DIY Stores, supermarkets, chemists COLLO luneta HOB BRITE Hob Clean SWISSCLEANER Boots, Co-op stores, department stores, Regional Electricity Company shops, supermarkets Seal Cover

Only available in certain models. Automatic cleaning using the PYROLYTIC cycle During the PYROLYTIC cycle, the internal temperature of the oven reaches 500°C. The pyrolytic cycle is activated and burns away food and grime residues. Dirt is literally incinerated. Keep children away from the appliance during the automatic cleaning cycle as surfaces may become very hot. Particles may ignite inside the oven as a result of the combustion process. There is no cause for concern: this process is both normal and hazardfree. Before initiating the PYROLYTIC CYCLE:

• Remove large or coarse food residues from the inside of the oven using a damp sponge. Do not use detergents.
• Remove all accessories.
• Do not place tea towels or pot holders over the oven handle.
• Turn the SELECTOR knob to the “0” position. ! If the oven is too hot, the pyrolytic cycle may not start. Wait for the oven to cool down. ! The programme may only be started once the oven door has been closed. To activate the PYROLITIC CYCLE cleaning procedure, press and hold the button for approximately 4 seconds. The TIMER KNOB may be used to select the desired cleaning level; there are three default time settings which cannot be modified.

1. Economy (ECO): turn the knob towards “-”.

2. Normal (NOR): initial level. Duration 1 hour and 30

3. Intensive (INT): turn the knob towards “+”.

button to confirm. An end time for the PYROLITIC CYCLE (as for a normal cooking cycle) may be programmed (see Programming the automatic cleaning end time). Safety devices

icon on the display, when lit, indicates

• The that the oven door was automatically locked as soon as the temperature reached a high value.
• The icon indicates that the cleaning cycle may be cancelled at any time by pressing the button.
• If a malfunction occurs, the heating elements will be switched off.
• Once the oven door has been locked, you cannot change the duration and cycle end time settings. Programming the automatic cleaning end time

button until the icon and the two digits on the DISPLAY begin to flash.

2. Turn the TIMER KNOB towards “+” and “-” to

adjust the hour value.

button again until the other two digits on the DISPLAY begin to flash.

4. Turn the TIMER KNOB towards “+” and “-” to

adjust the minute value.

button again to confirm;

6. When the set time has elapsed, the text END

appears on the display and a buzzer sounds.

• For example: it is 9:00 a.m. and the Economy PYROLYTIC cycle has been selected: default set time 1 hour. 12:30 is scheduled as the end time. The programme will start automatically at 11:30 a.m. Programming has been set when the and buttons are illuminated. The DISPLAY shows the PYROLITIC CYCLE end time and duration alternately. Once the automatic cleaning cycle is over You will have to wait until the temperature inside the oven has cooled down sufficiently before you can open the oven door. You will notice some white dust deposits on the bottom and the sides of your oven; remove these deposits with a damp sponge once the oven has cooled down completely. Alternatively, you can make use of the already heated oven, in which case it is not necessary to remove the deposits, they are completely harmless and will not affect your food in any way.

• Doe de gist in lauw water (circa 35 graden).
