Electrical connection

Gas connection

Data plate

Burner and nozzle specifications

Description of the appliance, 18

Overall view

Start-up and use, 19

Practical advice on using the burners

Precautions and tips, 20

General safety

Disposal

Maintenance and care, 21

Switching the appliance off

Cleaning the appliance

Gas tap maintenance

Troubleshooting, 22

Scholtès

! Before operating your new appliance please read this instruction booklet carefully. It contains important information for safe use, installation and care of the appliance.
! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning

! Keep packaging material out of the reach of children. It can become a choking or suffocation hazard (see Precautions and tips).

! The appliance must be installed by a qualified professional according to the instructions provided. Incorrect installation may cause harm to people and animals or may damage property.

! This unit may be installed and used only in permanently ventilated rooms in accordance with British Standard Codes Of Practice: B.S. 6172 / B.S. 5440, Par. 2 and B.S. 6891 Current Editions. The following requirements must be observed:

• The appliance must expel combustion products into a special hood, which must be connected to a chimney, flue pipe or directly to the outside (Fig. 1).
• If a hood cannot be fitted, an electric fan can be mounted either on a window or outside wall and must be switched on at the same time as the appliance.

In a chimney stack or branched flue, (exclusively for cooking appliances)

Fig.1

Directly to the Outside

Kitchen ventilation

The amount of air entering the room where the appliance is installed must be sufficient for regular combustion of the gas and for ventilating the room. Air must be taken in naturally through permanent air vents placed on the outside walls of the room or through single or branching collective ventilation ducts that comply with the UNI-CIG 7129 regulation.

Air must be taken directly from the outside and far from sources of pollution.

The aeration vent must comply with the following requirements (Fig. 2A):

• It must have a total clear passage cross-section of at least 6cm^2 for every kW of the appliance's rated heating capacity, with a minimum of 100cm^2 (the heating capacity is indicated on the rating plate).

• It must be made in such a way that the openings on the inside and outside of the wall cannot be obstructed.

• It must be protected with grates, wire mesh, etc. so as to not reduce the above-mentioned usable cross-section.
• It must be situated as near to floor level as possible.

Fig.2A

Fig.2B

The air inflow may also come from an adjacent room, provided the latter is not a bedroom or a room where there is a risk of fire, such as warehouses, garages, inflammable materials' warehouses, etc. and is ventilated in compliance with the national standards in force. Air from adjacent rooms must pass freely to the room to be ventilated through permanent air vents with cross-section at least equal to that indicated above. These vents may also be created by increasing the gap between the door and the floor (Fig. 2B). If an electric fan is used for extracting combustion products, the ventilation opening must be increased in relation to its maximum flow rate. The electric fan's flow rate should be sufficient to guarantee an hourly exchange of air equal to 3 ÷ 5 times the volume of the kitchen. Prolonged and intensive use of the appliance may require extra aeration, e.g. by means of an open window or through more efficient aeration, by increasing the extraction power of the electric fan, if installed. Appliances that are not equipped with flame failure safety devices can only be used in rooms with increased ventilation that have a minimum cross-section aeration opening of 200~cm^2 (Italian Ministerial Decree 21-04-94).

Liquid petroleum gas (LPG) sinks to the floor, as it is heavier than air. Therefore, rooms containing LPG cylinders must also be equipped with vents in order to allow gas to escape outside in the event of a gas leak. As a result, LPG cylinders, whether partially or completely full, must not be installed or stored in rooms or storage areas which are below ground level (cellars, etc.). Only the cylinder currently being used should be kept in the room. It must not be exposed to direct heat sources (ovens, fireplaces, stoves, etc.) which could raise the temperature of the cylinder above 50^ .

Hob installation

All the necessary precautions must be taken in order to install the appliance in conformity with current accident-prevention regulations (CEI-UNI-CIG) relating to gas and electrical connections.

To ensure that hobs installed in kitchen cabinets operate correctly, the minimum distances shown in Fig. 3 should be observed. All adjacent surfaces and the back wall should also be able to withstand an overheating temperature of 65^ .

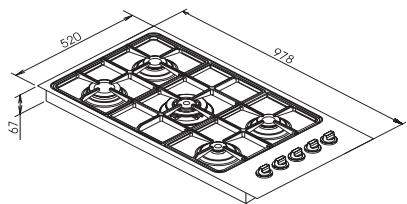

Fitting the hob to the cabinet

The hob must be fitted to the worktop in the following manner:

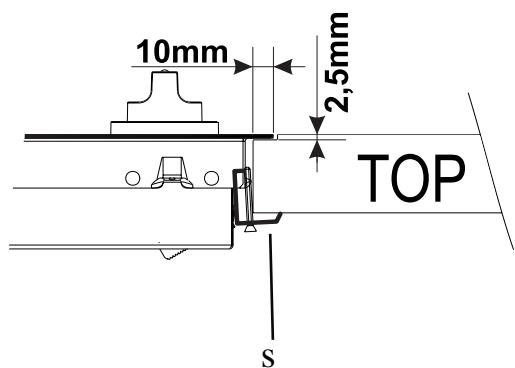

• In order to fix the hob to the cabinet, use the special brackets ("S") provided and fit them as shown in the detail (Fig. 5B).

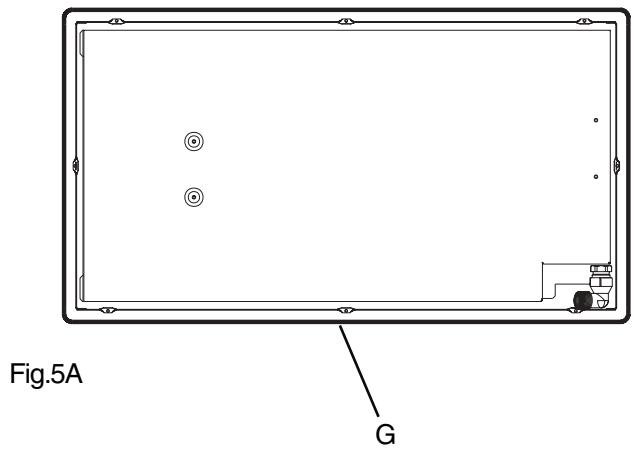

• Before fitting the hob to the worktop, position the seal "G" provided along the perimeter of the hob, as shown in Fig. 5A.

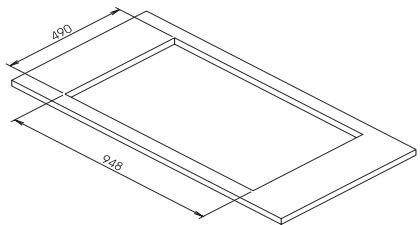

• The installation cavity dimensions should match those indicated in Fig. 4.

Fig.4

Fig.5B

N.B.: to maximise the efficiency of all maintenance operations, the area under the hob must be easily accessible once the hob has been installed (i.e. do not use closed modules).

Built-in appliances

Gas and mixed hobs are manufactured with type X degree protection against overheating. Therefore, they can be installed adjacent to cabinets whose height does not exceed that of the worktop. The following precautions must be taken for installing the hob correctly:

• Kitchen cabinets adjacent to the appliance and higher than the worktop must be at least 50~mm from the edge of the hob.
• Cooker hoods must be installed in accordance with the requirements outlined in their respective instruction manuals and, in any case, at a minimum distance of 700mm from the hob.

(see picture).

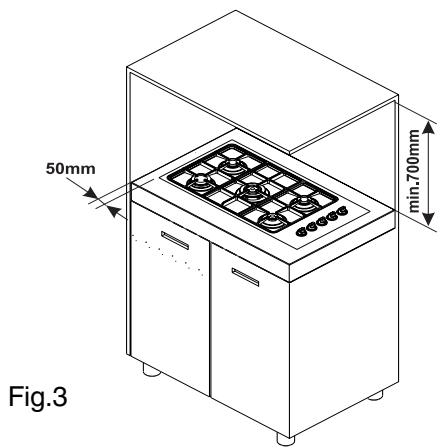

• Place wall cabinets which are adjacent to the cooker hood at a minimum height of 540~mm from the hob (see picture).

If the hob is installed beneath a wall cabinet, the latter must be situated at a minimum of 700 mm above the worktop

Electrical connection

Hobs equipped with a three-pole power supply cable are designed to operate with alternating current at the voltage and frequency indicated on the data plate (this is located on the lower part of the appliance). The earth wire in the cable has a green and yellow cover. If the appliance is to be installed above a built-in electric oven, the electrical connection of the hob and the oven must be carried out separately, both for electrical safety purposes and to make extracting the oven easier.

Connecting the supply cable to the mains

Install a standardised plug corresponding to the load indicated on the data plate.

The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3mm installed between the appliance and the mains. The circuit-breaker must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the circuit-breaker). The supply cable must not come into contact with surfaces with temperatures higher than 50^ .

! The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.

Before connecting to the power supply, make sure that:

• The appliance is earthed and the plug is compliant with the law.
• The socket can withstand the maximum power of the appliance, which is indicated on the data plate.
• The voltage is in the range between the values indicated on the data plate.
• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced by authorised technicians only (see Assistance).
! The manufacturer declines any liability should these safety measures not be observed.

Gas connection

The appliance should be connected to the main gas supply or to a gas cylinder in compliance with current national regulations. Before carrying out the connection, make sure the cooker is compatible with the gas supply you wish to use. If this is not the case, follow the instructions indicated in the paragraph "Adapting to different types of gas."

When using liquid gas from a cylinder, install a pressure regulator which complies with current national regulations.

! Check that the pressure of the gas supply is consistent with the values indicated in Table 1 ("Burner and nozzle specifications"). This will ensure the safe operation and longevity of your appliance while maintaining efficient energy consumption.

Connection with a rigid pipe (copper or steel)

! Connection to the gas system must be carried out in such a way as not to place any strain of any kind on the appliance.

There is an adjustable L-shaped pipe fitting on the appliance supply ramp and this is fitted with a seal in order to prevent leaks. The seal must always be replaced after rotating the pipe fitting (seal provided with appliance).

The gas supply pipe fitting is a threaded 1/2 gas cylindrical male attachment.

Connecting a flexible jointless stainless steel pipe to a threaded attachment

The gas supply pipe fitting is a threaded 1/2 gas cylindrical male attachment.

These pipes must be installed so that they are never longer than 2000mm when fully extended. Once connection has been carried out, make sure that the flexible metal pipe does not touch any moving parts and is not compressed.

! Only use pipes and seals that comply with current national regulations.

Checking the tightness of the connection

! When the installation process is complete, check the pipe fittings for leaks using a soapy solution. Never use a flame.

Adapting to different types of gas

To adapt the hob to a different type of gas other than default type (indicated on the rating plate at the base of the hob or on the packaging), the burner nozzles should be replaced as follows:

1. Remove the hob grids and slide the burners off their seats.
2. Unscrew the nozzles using a 7 mm socket spanner, and replace them with nozzles for the new type of gas (see table 1 "Burner and nozzle characteristics").
3. Reassemble the parts following the above procedure in the reverse order.
4. Once this procedure is finished, replace the old rating sticker with one indicating the new type of gas used. Sticker are available from any of our Service Centres.

Adjusting the burners' primary air :

Does not require adjusting.

• Setting the burners to minimum:

• Turn the tap to the low flame position.

• Remove the knob and adjust the adjustment screw, which is positioned in or next to the tap pin, until the flame is small but steady (Fig. 6).
• Having adjusted the flame to the required low setting, while the burner is alight, quickly change the position of the knob from minimum to maximum and vice versa several times, checking that the flame does not go out.
• Some appliances have a safety device (thermocouple) fitted. If the device fails to work when the burners are set to the low flame setting, increase this low flame setting using the adjusting screw.
• Once the adjustment has been made, replace the seals on the by-passes using sealing wax or a similar substance.

! If the appliance is connected to liquid gas, the regulation screw must be fastened as tightly as possible.
! Once this procedure is finished, replace the old rating sticker with one indicating the new type of gas used. Stickers are available from any of our Service Centres.
! Should the gas pressure used be different (or vary slightly) from the recommended pressure, a suitable pressure regulator must be fitted to the inlet pipe (in order to comply with current national regulations).

Fig.6

DATA PLATE
Electrical connections	voltage of 220-240V ~ 50/60Hz (see data plate )
CE	This appliance conforms to the following European Economic Community directives: -2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments - 2004/108/EEC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments - 93/68/EEC dated 22/07/93 and subsequent amendments. - 90/336/EEC dated 29/06/90 (Gas) and subsequent amendments. - 2002/96/EC and subsequent amendments.

Burner and nozzle specifications

Table 1				Liquid gas				Natural gas
BURNER	Diameter (mm)	Thermal power kW (H.s.*)		By-pass 1/100 (mm)	Injector 1/100 (mm)	Flow * g/h		Injector 1/100 (mm)	Flow* l/h G20
		Nomin.	Reduc.			G30	G31
D. Triple Ring	130	3.25	1.3	57	91	236	232	124	309
C.Rapid	100	3.00	0.7	40	86	218	214	116	286
B. Semi-rapid	75	1.65	0.4	30	64	120	118	96	157
A. Auxiliary	55	1.00	0.4	30	50	73	71	71	95
Supply pressure	Nominal					28-30	37		20
	Minimum					20	25		17
	Maximum					35	45		25

• At 15^ and 1013 mbar - dry gas
  ** Propane P.C.S. = 50.37 MJ/Kg
  *** Butane P.C.S. = 49.47 MJ/Kg

Natural P.C.S. = 37.78 MJ/m3

! The hob can only be installed above built-in ovens with a cooling ventilation system.

PP93G SF - PP93GF

GB

GB

Overall view

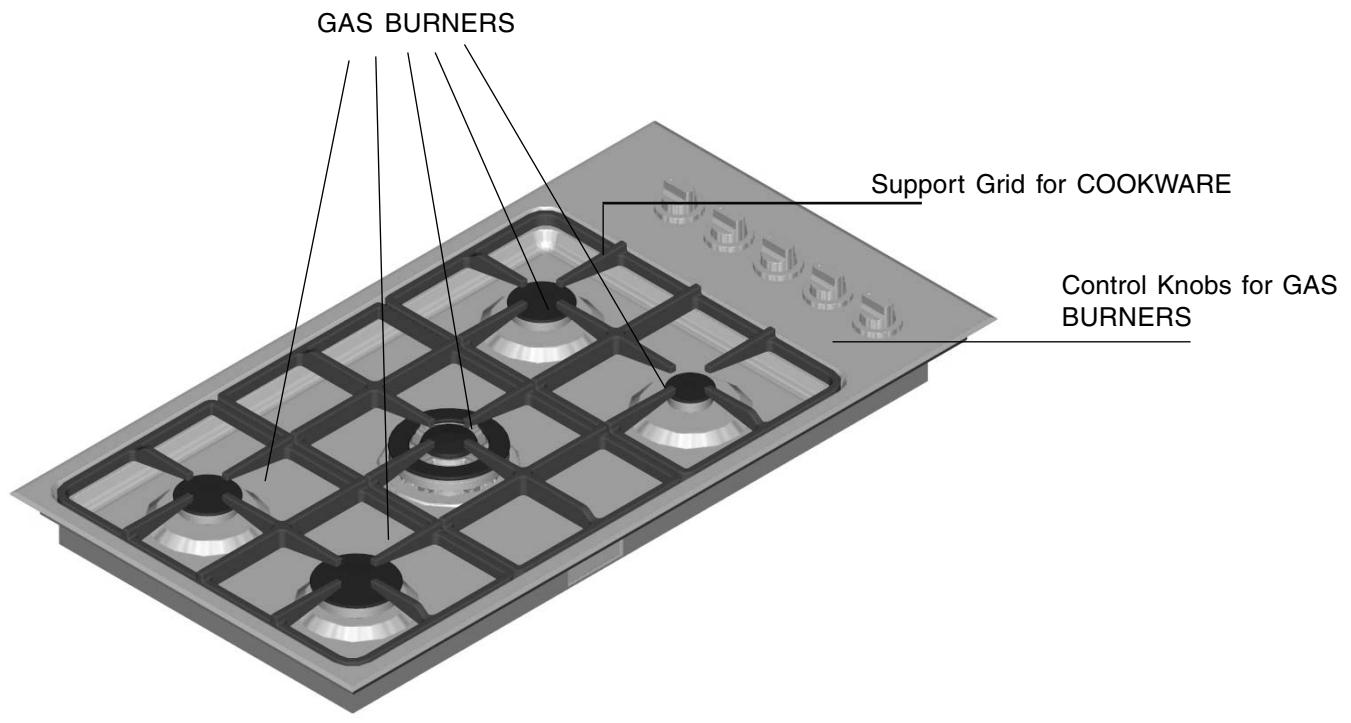

• GAS BURNERS differ in size and power. Use the diameter of the cookware to choose the most appropriate burner to cook with.
• Control Knobs for GAS BURNERS adjust the power or the size of the flame.
• GAS BURNER ignition enables a specific burner to be lit automatically.

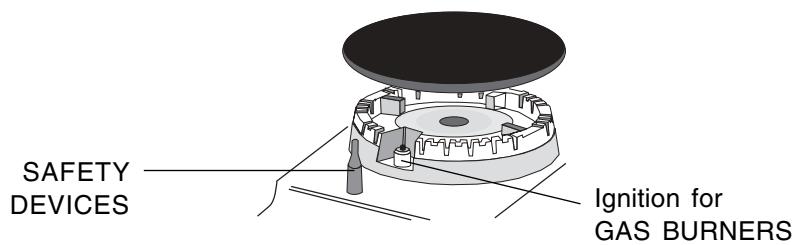

• SAFETY DEVICE stops the gas flow if the flame is accidentally extinguished.

! The position of the corresponding gas burner or electric hotplate is shown on every knob.

Gas burners

Each burner can be adjusted to one of the following settings using the corresponding control knob:

0 Off
Maximum
Minimum

To light one of the burners, hold a lit match or lighter near the burner and, at the same time, press down and turn the corresponding knob anti-clockwise to the maximum setting.

Since the burner is fitted with a safety device, the knob should be pressed for approximately 2-3 seconds to allow the automatic device keeping the flame alight to heat up.

When using models with an ignition button, light the desired burner pressing down the corresponding knob as far as possible and turning it anticlockwise towards the maximum setting.

! If a flame is accidentally extinguished, turn off the control knob and wait for at least 1 minute before trying to relight it.

To switch off the burner, turn the knob in a clockwise direction until it stops (when reaches the "0" position).

Since the burner is equipped with a safety device, after lighting the burner keep the knob pressed in for about 2-3 seconds to allow the device which keeps the flame lit automatically to heat up.

Practical advice on using the burners

To ensure the burners operate efficiently:

• Use cookware which is suited to each burner (see table) in order to prevent the flames from extending beyond the base of the pans, and so that the edges of the pans themselves do not reach over the perimeter of the hob.
• Always use cookware with a flat base and a cover.
• When the contents of the pan reach boiling point, turn the knob to minimum.

Burner	ø Pan Diameter (cm)
A.Auxiliary	6 – 14
B.Semi-rapid	15 – 20
C.Rapid	21 – 26
D. Triple ring	24 - 26

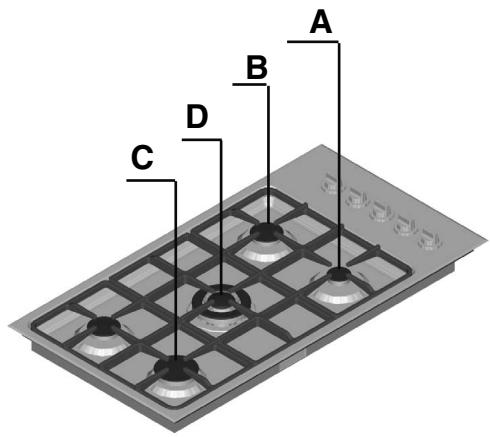

To identify the type of burner, refer to the designs in the section entitled, "Burner and Nozzle Specifications".

Note When there is no electricity supply, the burners can be lit with a match after turning the control knob to the flame position.

To turn on one of the burners, place a lighted match or lighter near the burner, press the knob all the way in and turn it anti-clockwise to the "High" setting.

! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

General safety

This is a built-in appliance: Class 1
- Gas appliances require regular air exchange in order to maintain efficient operation. When installing the hob, follow the instructions provided in the paragraph relating to "Positioning" the appliance.
- These instructions are only valid for the countries whose symbols appear in the manual and on the serial number plate.
- The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
- The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
- Do not touch the appliance when barefoot or with wet or damp hands and feet.
- The appliance must be used by adults only for the preparation of food, in accordance with the instructions outlined in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect and unreasonable use of the appliance.
- Make sure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven.
- The ventilation and heat dispersal openings must never be obstructed.
Always make sure the knobs are in the "0" position when the appliance is not in use.
- When unplugging the appliance, always pull the plug from the mains socket; do not pull on the cable.
- Do not perform any cleaning or maintenance work without having disconnected the appliance from the electricity mains.
- If the event of malfunctions, under no circumstances should you attempt to perform the repairs yourself. Contact the Technical Assistance Centre (see Assistance).
- Always make sure that pan handles are turned towards the centre of the hob in order to avoid accidental collisions.
- Do not close the glass cover (if present) while the gas burners or electric hotplates are still hot.

• Do not use unstable or warped pans.
• Given that it constitutes a potential hazard, make sure that children and disabled individuals do not have access to the glass-ceramic cooking zone (if present) during and immediately after cooking, as this zone remains hot for at least half an hour after being switched off.
• Remove any liquids on the cover before opening it.
• Do not let children play with the appliance.
• The appliance should not be operated by people (including children) with reduced physical, sensory or mental abilities, by inexperienced persons or by anyone unfamiliar with the product, unless supervised by persons responsible for their safety or unless previously instructed on the appliance's use.
• The conditions regulating the adjustment procedure are indicated on the label (or on the data plate); before installing the product, make sure that the local supply conditions and the adjustment status are compatible.
• Intensive and prolonged operation of the appliance may require extra aeration, for example by means of a window or through more efficient aeration, by increasing the power of any mechanical aspiration system installed.

Disposal

• When disposing of packaging material: observe local legislation so that the packaging may be reused.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers may take their old appliance to public waste collection areas, other communal collection areas, or if national legislation allows return it to a retailer when purchasing a similar new product. All major household appliance manufacturers are active in the creation of systems to manage the collection and disposal of old appliances.

Switching the appliance off

Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the appliance

! Do not use abrasive or corrosive detergents such as stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface beyond repair.

! Never use steam cleaners or pressure cleaners on the appliance.

• It is usually enough to wash the hob with a damp sponge and dry it with absorbent kitchen roll.
• The removable parts of the burners should be washed frequently with warm water and soap and any burnt-on substances removed.
• For hobs which ligth automatically, the terminal part of the electronic instant lighting devices should be cleaned frequently and the gas outlet holes should be checked for blockages.
• Stainless steel can be marked by hard water that has been left on the surface for a long time, or by aggressive detergents containing phosphorus. After cleaning, rinse and dry any remaining drops of water.

Gas tap maintenance

Over time, the taps may become jammed or difficult to turn. If this happens, the tap must be replaced.

! This procedure must be performed by a qualified technician authorised by the manufacturer.

GB

It may happen that the appliance does not function properly or at all. Before calling the service centre for assistance, check if anything can be done. First, check to see that there are no interruptions in the gas and electrical supplies, and, in particular, that the gas valves for the mains are open.

Problem

The burner does not light or the flame is not even around the burner.

The flame dies in models with a safety device.

The burner does not remain lit when set to minimum.

The cookware is unstable.

Possible causes/Solution

• The gas holes on the burner are clogged.
• All the movable parts that make up the burner are mounted correctly.

• There are draughts near the appliance.

• You pressed the knob all the way in.

• You keep the knob pressed in long enough to activate the safety device.

• The gas holes are not blocked in the area corresponding to the safety device.

• The gas holes are not blocked.

• There are no draughts near the appliance.

• The minimum setting has been adjusted properly.

• The bottom of the cookware is perfectly flat.

• The cookware is positioned correctly at the centre of the burner.
• The pan support grids have been positioned correctly.

If, despite all these checks, the hob does not function properly and the problem persists, call the nearest Customer Service Centre. Please have the following information handy:

• The appliance model (Mod.).
  The serial number (S/N).

This information can be found on the data plate located on the appliance and/or on the packaging.

! Never use unauthorised technicians and never accept replacement parts which are not original.

IT

GB

FR

Italiano, 1

English,12

Français, 23

DE

NL

ES

Deutsch, 34

Nederlands,45

Espanol,56

PP 93 GF

PP 93 G SF

Sommaire

Installation, 24-28

Positionnement

Causes / Solutions possibles
