Product type	Freestanding cooker
Model	HRB32310CB
Brand	AEG
Dimensions (W x H x D)	900 x 850 x 600 mm
Weight	80 kg
Power supply	220-240 V, 50-60 Hz, 16 A
Energy rating	Class A
Oven type	Multifunction electric oven
Oven capacity	73 L
Number of cooking zones/hobs	4 (ceramic glass hob)
Hob power per zone	Front left: 2.0 kW, rear left: 1.2 kW, front right: 1.8 kW, rear right: 1.0 kW
Main oven functions	Convection, grilling, defrosting, fan-forced, top/bottom heat
Cleaning method	Pyrolytic self-cleaning
Safety features	Child lock, automatic shut-off, residual heat indicator
Control type	Knobs and touch display
Built-in clock/timer	Yes, digital programmable timer
Spare parts availability	Available via authorized service centers
Reparability index	7.5/10
Warranty	2 years
Manual languages	Multiple (including EN, DE, FR, ES, IT)

Frequently Asked Questions - HRB32310CB AEG

How do I install the cooker?

Ensure proper ventilation and leveling. Connect to appropriate power supply (220-240V) using a qualified electrician. Refer to installation manual for clearances.

How do I clean the ceramic hob?

Use a dedicated ceramic hob cleaner and a soft cloth. Avoid abrasive pads. For stubborn stains, use a scraper after cooling.

What does the pyrolytic cleaning function do?

It heats the oven to high temperature (~500°C) to burn food residues into ash. After cooling, simply wipe with a damp cloth. Ensure no flammable items inside.

The oven is not heating properly. What can I check?

Check that the oven is set to a cooking function and temperature. Verify the power supply and circuit breaker. If issue persists, contact AEG service.

How do I set the child lock?

Press and hold the lock button (usually icon of a key) for 3 seconds. The display shows a lock symbol. Repeat to disable.

Can I use aluminum foil in the oven?

Avoid covering the oven bottom or using foil on the heating elements. Use oven-safe dishes only. Improper use can damage the oven.

The hob zones flash and won't activate. Why?

Residual heat indicator may be on. If no pan is detected, ensure compatible cookware with flat bottom. If flashing persists, a fault may exist; contact support.

How do I replace the oven light bulb?

Disconnect power. Remove the glass cover (turn or pry). Replace with a high-temperature resistant bulb (e.g., 25W, 300°C). Reassemble and restore power.

What is the maximum weight for the oven shelf?

Each shelf can support up to 15 kg evenly distributed. Do not exceed this limit to avoid deformation.

Where can I find the model number?

The model number is on the rating plate behind the lower oven door or on the back panel. Format: HRB32310CB.

USER MANUAL HRB32310CB AEG

FOR PERFECT RESULTS

How to install your AEG Domino Gas and Induction Hob - Worktop installation

4. PRODUCT DESCRIPTION

How to install your AEG Domino Gas and Induction Hob - Worktop installation

4. DESCRIPTION OF THE APPLIANCE

YouTube

www.youtube.com/electrolux www.youtube.com/aeg

How to install your AEG Domino Gas and Induction Hob - Worktop installation

4. PRODUCT DESCRIPTION

5. DAILY USE

WARNING!

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information: www.aeg.com/support

Register your product for better service: www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION....51
2. SAFETY INSTRUCTIONS....53
3. INSTALLATION....56
4. PRODUCT DESCRIPTION....58
5. DAILY USE....59
6. HINTS AND TIPS....61
7. CARE AND CLEANING....62
8. TROUBLESHOOTING....62
9. TECHNICAL DATA....64
10. ENERGY EFFICIENCY....65

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

installation or usage. Always keep the instructions in a safe and accessible location for future reference.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.
• Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.
• Keep all packaging away from children and dispose of it appropriately.
• Keep all packaging away from children and dispose of it appropriately.
• WARNING: Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts become hot during use.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
• NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
• CAUTION: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.
• CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
• WARNING: Danger of fire: Do not store items on the cooking surfaces.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• Do not use the appliance before installing it in the built-in structure.
• Do not use a steam cleaner to clean the appliance.
• If the glass ceramic surface / glass surface is cracked, switch off the appliance and unplug it from the mains. In case the appliance is connected to the mains directly using junction box, remove the fuse to disconnect the appliance from power supply. In either case contact the Authorised Service Centre.
• If the supply cord is damaged, it must be replaced by the manufacturer, an authorized service center, or similarly qualified persons in order to avoid a hazard.
• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable, or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

WARNING!

Risk of injury or damage to the appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
• Keep the minimum distance from other appliances and units. Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Seal the cut surfaces with a sealant to prevent moisture from causing swelling.
• Protect the bottom of the appliance from steam and moisture.
• Do not install the appliance next to a door or under a window. This prevents hot cookware from falling from the appliance when the door or the window is opened.

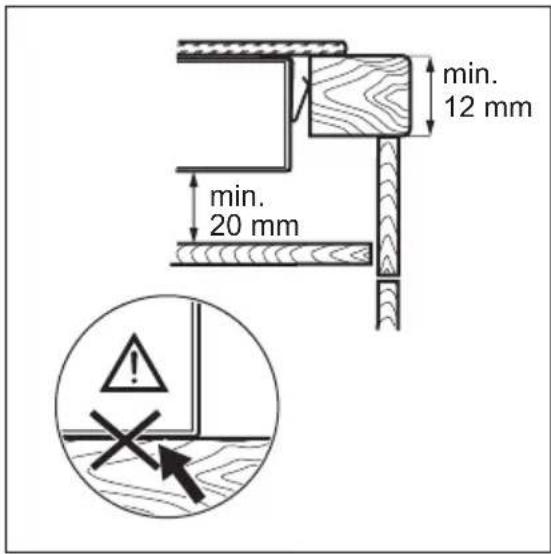

• If the appliance is installed above drawers, make sure that the space between the bottom of the appliance and the upper drawer is sufficient for air circulation.
• The bottom of the appliance can get hot. Make sure to install a separation panel made from plywood, kitchen carcass material, or other non-flammable materials under the appliance to prevent access to the bottom.
• The separation panel has to cover the area under the hob completely.

2.2 Electrical Connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician. • The appliance must be earthed.
• Before carrying out any operation, make sure that the appliance is disconnected from the power supply.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable or plug (if applicable) can make the terminal become too hot.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable tangle.
• Make sure that a shock protection is installed.
• Use the strain relief clamp on the cable.
• Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware, when you connect the appliance to the near sockets.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

2.3 Use

WARNING!

Risk of injury, burns and electric shock.

• Remove all the packaging, labelling and protective film (if applicable) before first use. • This appliance is for household use only.
• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Set the cooking zone to "off" after each use.
• Do not put cutlery or saucepan lids on the cooking zones. They can become hot.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not use the appliance as a work surface or as a storage surface.
• If the surface of the appliance is cracked, disconnect immediately the appliance from the power supply. This to prevent an electrical shock.
• When you place food into hot oil, it may splash.

WARNING!

Risk of fire and explosion

• Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.
• The vapours that very hot oil releases can cause spontaneous combustion. • Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

WARNING!

Risk of damage to the appliance.

• Do not keep hot cookware on the control panel.
• Do not put a hot pan cover on the glass surface of the hob.
• Do not let cookware boil dry.
• Be careful not to let objects or cookware fall on the appliance. The surface can be damaged.
• Do not activate the cooking zones with empty cookware or without cookware.
• Do not put aluminium foil on the appliance.
• Cookware made of cast iron, aluminium or with a damaged bottom can cause scratches on the glass / glass ceramic. Always lift these objects up when you have to move them on the cooking surface.
• This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.

2.4 Care and cleaning

• Clean the appliance regularly to prevent the deterioration of the surface material.
• Switch off the appliance and let it cool down before cleaning.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

2.5 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only. - Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your municipal authority for information on how to discard the appliance correctly.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

3. INSTALLATION

WARNING!

Refer to Safety chapters.

3.1 Before the installation

Before you install the hob, write down the information below from the rating plate. The rating plate is on the bottom of the hob.

Model ......

PNC

Serial number ....

3.2 Built-in hobs

Only use the built-in hobs after you assemble the hob into correct built-in units and work surfaces that align to the standards.

3.3 Connection cable

- The hob is supplied with a connection cable.

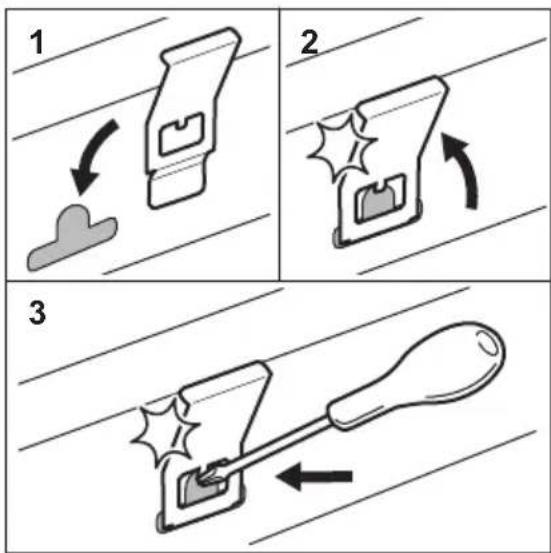

3.5 Assembly

- To replace the damaged mains cable, use the cable type: H05V2V2-F which withstands a temperature of 90 °C or higher. Speak to your local Service Centre.

3.4 Attaching the seal - On-top installation

1. Clean the worktop around the cut out area.
2. Attach the supplied 2x6mm seal stripe to the lower edge of the hob, along the outer edge of the glass ceramic. Do not stretch it. Make sure that the ends of the seal stripe are located in the middle of one side of the hob.
3. Add some millimetres to the length when you cut the seal stripe.
4. Join the two ends of the seal stripe together.

3.6 Installation of more than one hob

YouTube

www.youtube.com/electrolux www.youtube.com/aeg

How to install your AEG Domino Gas and Induction Hob - Worktop installation

4. PRODUCT DESCRIPTION

4.1 Cooking surface layout

1 Cooking zone 2 Control panel

4.2 Control panel layout

Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate.

	Sensor field	Function Comment
1	➊	ON / OFF To activate and deactivate the hob.
2	➁	Lock / Child Safety Device To lock / unlock the control panel.
3	||	Pause To activate and deactivate the function.
4	➎	- To activate and deactivate the outer ring.
5	- Heat setting display To show the heat setting.
6	- Timer indicators of cooking zones To show for which zone you set the time.
7	- Timer display To show the time in minutes.
8	➊	- To select the cooking zone.
9	+/-	- To increase or decrease the time.
10	+/-	- To set a heat setting.

4.3 Heat setting displays

Display Description
	The cooking zone is deactivated.
	The cooking zone operates.
	Pause operates.
	There is a malfunction.
	OptiHeat Control (3 step Residual heat indicator): continue cooking / keep warm / residual heat.
	Lock / Child Safety Device operates.
	Automatic Switch Off operates.

4.4 OptiHeat Control (3 step Residual heat indicator)

WARNING!

There is a risk of burns from residual heat.

The indicators show the level of the residual heat for the cooking zones you are currently using. The indicators may also come on for the neighbouring cooking zones even if you are not using them.

5. DAILY USE

WARNING!

Refer to Safety chapters.

5.1 Activating and deactivating

Touch Ⓐ for 1 second to activate or deactivate the hob.

5.2 Automatic Switch Off

The function deactivates the hob automatically if:

• all cooking zones are deactivated,
• you do not set the heat setting after you activate the hob,
• you spill something or put something on the control panel for more than 10 seconds (a pan, a cloth, etc.). An acoustic signal sounds and the hob deactivates. Remove the object or clean the control panel.
• you do not deactivate a cooking zone or change the heat setting. After some time comes on and the hob deactivates.

The relation between the heat setting and the time after which the hob deactivates:

Heat setting The hob deactivates after

u, 1 - 2

6 hours

3 - 4 5 hours

5 4 hours

6 - 9 1.5 hour

5.3 The heat setting

Touch to increase the heat setting. Touch to decrease the heat setting. Touch both at the same time to deactivate the cooking zone.

5.4 Activating and deactivating the outer rings

You can adjust the surface you cook to the dimension of the cookware.

Use sensor field: Ⓞ

To activate the outer ring: touch the sensor field. The indicator comes on.

To deactivate the outer ring: touch the sensor field until the indicator goes out.

5.5 Timer

- Count Down Timer

You can use this function to set the length of a single cooking session.

First set the heat setting for the cooking zone, then set the function.

To set the cooking zone: touch ⚙️

repeatedly until the indicator of a cooking zone appears.

To activate the function or change the

Touch the or of the timer to set the time (00 - 99 minutes). When the indicator of the cooking zone starts to flash, the time counts down.

To see the remaining time: touch ⏻ to set the cooking zone. The indicator of the

cooking zone starts to flash. The display shows the remaining time.

To deactivate the function: touch ⓣ to set the cooking zone and then touch . The remaining time counts down to 00. The indicator of the cooking zone disappears.

When the countdown ends, an acoustic signal sounds and 00 flashes. The cooking zone deactivates.

To stop the sound: touch ⏻

- Minute Minder

You can use this function when the hob is activated and the cooking zones do not operate. The heat setting display shows ☐

To activate the function: touch and then touch + or - of the timer to set the time. When the time finishes, an acoustic signal sounds and 00 flashes.

To stop the sound: touch ⏻

To deactivate the function: touch and then touch —. The remaining time counts down to 00.

The function has no effect on the operation of the cooking zones.

5.6 Pause

This function sets all cooking zones that operate to the lowest heat setting.

When the function operates, all other symbols on the control panels are locked.

The function does not stop the timer functions.

Touch || to activate the function.

u comes on. The heat setting is lowered to 1.

To deactivate the function, touch ||. The previous heat setting comes on.

5.7 Lock

You can lock the control panel while cooking zones operate. It prevents an accidental change of the heat setting.

Set the heat setting first.

To activate the function: touch 🔒. L comes on for 4 seconds. The Timer stays on.

To deactivate the function: touch 🔍. The previous heat setting comes on.

When you deactivate the hob, you also deactivate this function.

5.8 Child Safety Device

This function prevents an accidental operation of the hob.

To activate the function: activate the hob with Ⓙ. Do not set any heat setting. Touch ⏱ for 4 seconds. 📁 comes on. Deactivate the hob with Ⓙ.

To deactivate the function: activate the hob with Ⓐ. Do not set any heat setting. Touch 🔍 for 4 seconds. 🔍 comes on. Deactivate the hob with Ⓐ.

To override the function for only one cooking time: activate the hob with ①. Touch for 4 seconds. Set the heat setting in 10 seconds. You can operate the hob. When you deactivate the hob, the function operates again.

5.9 OffSound Control (Deactivation and activation of the sounds)

Deactivate the hob. Touch for 3 seconds. The display comes on and goes out. Touch || for 3 seconds. or comes on. Touch + of the front left zone to choose one of the following:

• the sounds are off
• 60 - the sounds are on To confirm your selection wait until the hob deactivates automatically.

When the function is set to b) you can hear the sounds only when:

• you touch ①
• Minute Minder comes down
• Count Down Timer comes down
• you put something on the control panel.

6. HINTS AND TIPS

WARNING!

Refer to Safety chapters.

6.1 Cookware

• The bottom of the cookware must be as thick and flat as possible.
• Ensure pan bases are clean and dry before placing on the hob surface.
• In order to avoid scratches, do not slide or rub the pot across the ceramic glass.

Cookware made of enamelled steel and with aluminium or copper bottoms can cause a colour change on the glass-ceramic surface.

6.2 Examples of cooking applications

The data in the table is for guidance only.

Heat setting Use to: Time		Hints (min)
- 1	Keep cooked food warm. as neces-sary	Put a lid on the cookware.
1 - 2 Hollandaise sauce, melt: butter, choco-late, gelatine.		5 - 25 Mix from time to time.
1 - 2 Solidify: fluffy omelettes, baked eggs. 10 - 40 Cook with a lid on.
2 - 3 Simmer rice and milkbased dishes,heat up ready-cooked meals.		25 - 50 Add at least twice as much liquid as rice, mix milk dishes halfway through the procedure.
3 - 4 Steam vegetables, fish, meat. 20 - 45 Add a couple of tablespoons of liquid.
4 - 5 Steam potatoes. 20 - 60 Use max. 1⁄4 l of water for 750 g of po-tatoes.
4 - 5 Cook larger quantities of food, stews and soups.		60 - 150 Up to 3 l of liquid plus ingredients.
6 - 7 Gentle fry: escalope, veal cordon bleu,cutlets, rissoles, sausages, liver, roux,eggs, pancakes, doughnuts.		as neces-sary Turn halfway through.
7 - 8 Heavy fry, hash browns, loin steaks,steaks.		5 - 15 Turn halfway through.
9 Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips.

7. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

7.1 General information

• Clean the hob after each use. Always use cookware with a clean base.
• Scratches or dark stains on the surface have no effect on how the hob operates.
• Use a special cleaner suitable for the surface of the hob.
• Use a special scraper for the glass.

7.2 Cleaning the hob

- Remove immediately: melted plastic, plastic foil, sugar and food with sugar,

Otherwise, the dirt can cause damage to the hob. Take care to avoid burns. Use a special hob scraper on the glass surface at an acute angle and move the blade on the surface.

• Remove when the hob is sufficiently cool: limescale rings, water rings, fat stains, shiny metallic discoloration. Clean the hob with a moist cloth and a non-abrasive detergent. After cleaning, wipe the hob dry with a soft cloth.

- Remove shiny metallic discoloration: use a solution of water with vinegar and clean the glass surface with a cloth.

8. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

8.1 What to do if...

Problem Possible cause Remedy

You cannot activate or operate the hob.	The hob is not connected to an elec-trical supply or it is connected incor-rectly.	Check if the hob is correctly connected to the electrical supply.
The fuse is blown. Make sure that the fuse is the cause of		the malfunction. If the fuse is blown again and again, contact a qualified electrician.
You do not set the heat setting for 10 seconds.		Activate the hob again and set the heat setting in less than 10 seconds.
You touched 2 or more sensor fields at the same time.		Touch only one sensor field.
Pause operates. Refer to "Daily use".
There is water or fat stains on the control panel.		Clean the control panel.
An acoustic signal sounds and the hob deactivates.An acoustic signal sounds when the hob is deactivated.	You put something on one or more sensor fields.	Remove the object from the sensor fields.
The hob deactivates. You put something on the sensor field ➊	field ➌	Remove the object from the sensor field.
Residual heat indicator does not come on.	The zone is not hot because it operated only for a short time or the sen-sor is damaged.	If the zone operated sufficiently long to be hot, speak to an Authorised Service Centre.
You cannot activate the outer ring.	First, activate the inner ring by chang-ing the heat setting.
There is a dark area on the multiple zone.	It is normal that there is a dark area on the multiple zone.
The sensor fields become hot. The cookware is too large or you put it too near to the controls.		Put large cookware on the rear zones, if possible.
There is no sound when you touch the panel sensor fields.	The sounds are deactivated. Activate the sounds. Refer to "Daily use".
L comes on.	Child Safety Device or Lock oper-ates.	Refer to "Daily use".
E and a number come on.	There is an error in the hob. Deactivate the hob and activate it again after 30 seconds. If comes on again, disconnect the hob from the electrical supply. After 30 seconds, connect the hob again. If the problem continues, speak to an Authorised Service Centre.

Problem Possible cause Remedy

You can hear a constant beep noise.	The electrical connection is incorrect.	Disconnect the hob from the electrical supply. Ask a qualified electrician to check the installation.
E6 comes on.	The second phase of the power supply is missing.	Check if the hob is correctly connected to the electrical supply. Remove the fuse, wait one minute, and insert the fuse again.

8.2 If you cannot find a solution...

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre. Give the data from the rating plate. Give also three digit letter code for the glass ceramic (it is in the corner of the glass surface) and an error

message that comes on. Make sure, you operated the hob correctly. If not the servicing by a service technician or dealer will not be free of charge, also during the warranty period. The instructions about the Service Centre and conditions of guarantee are in the guarantee booklet.

9. TECHNICAL DATA

9.1 Cooking zones specification

Cooking zone	Nominal Power (Max heat setting) [W]	Cooking zone diameter [mm]
Middle front 1200 145
Middle rear 700 / 1700 120 / 180

For optimal cooking results use cookware no larger than the diameter of the cooking zone.

9.2 Labels supplied with the accessories bag

Stick the adhesive labels as indicated below:

A. Stick it on the Guarantee Card and send this part (if applicable). B. Stick it on the Guarantee Card and keep this part (if applicable).

C. Stick it on the instruction booklet.

10. ENERGY EFFICIENCY

10.1 Product information*

Model identification HRB32310CB

Type of hob Built-In Hob
Number of cooking zones 2
Heating technology Radiant Heater
Diameter of circular cooking zones (∅) Middle front	Middle rear	14.5 cm18.0 cm
Energy consumption per cooking zone (EC electric cooking)	Middle frontMiddle rear	188.0 Wh / kg191.6 Wh / kg
Energy consumption of the hob (EC electric hob) 189.8 Wh / kg

* For European Union according to EU 66/2014. For Belarus according to STB 2477-2017, Annex A. For Ukraine according to 742/2019. EN 60350-2 - Household electric cooking appliances - Part 2: Hobs - Methods for measuring performance

10.2 Energy saving

You can save energy during everyday cooking if you follow the hints below.

• When heating water, use only the amount you need.
• If possible, always put lids on the cookware.
• Before activating the cooking zone, place the cookware on it.
• The cookware bottom should have the same diameter as the cooking zone.
• Put the smaller cookware on the smaller cooking zones.
• Put the cookware directly in the centre of the cooking zone.
• Use the residual heat to keep the food warm or to melt it.

11. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

FOR BEST RESULTS

YouTube

www.youtube.com/electrolux www.youtube.com/aeg

How to install your AEG Domino Gas and Induction Hob - Worktop installation

4. PRODUCT DESCRIPTION

4.1 Cooking zone layout

A. Stick this on the warranty card and send this part away (if present). B. Stick this on the warranty card and keep it (if present).

C. Stick this on the instruction booklet.

10. ENERGY EFFICIENCY

10.1 Tooteteave*

Model identification HRB32310CB

YouTube

www.youtube.com/electrolux www.youtube.com/aeg

How to install your AEG Domino Gas and Induction Hob - Worktop installation

YouTube

www.youtube.com/electrolux www.youtube.com/aeg

How to install your AEG Domino Gas and Induction Hob - Worktop installation

How to install your AEG Domino Gas and Induction Hob - Worktop installation

4. PRODUCT DESCRIPTION

YouTube

www.youtube.com/electrolux www.youtube.com/aeg

How to install your AEG Domino Gas and Induction Hob - Worktop installation

4. PRODUCT DESCRIPTION

How to install your AEG Domino Gas and Induction Hob - Worktop installation

4. PRODUCT DESCRIPTION

How to install your AEG Domino Gas and Induction Hob - Worktop installation

4. PRODUCT DESCRIPTION

How to install your AEG Domino Gas and Induction Hob - Worktop installation

4. PRODUCT DESCRIPTION

YouTube

www.youtube.com/electrolux www.youtube.com/aeg

How to install your AEG Domino Gas and Induction Hob - Worktop installation

4. PRODUCT DESCRIPTION

4.1 Hob layout

A. Stick to the warranty card and send this part (if available). B. Stick to the warranty card and keep this part (if available).

C. Stick to the instruction manual.

10. ENERGY EFFICIENCY
