OCV 6 - Loudspeaker TANNOY - Free user manual and instructions

Product Type	Indoor/Outdoor Speaker
Brand	Tannoy
Model	OCV 6
Speaker Type	Coaxial, 2-way
Woofer Size	6.5 inches
Power Handling (RMS)	60 Watts
Power Handling (Peak)	120 Watts
Impedance	8 ohms
Sensitivity	90 dB (1W/1m)
Frequency Response	80 Hz – 20 kHz
Mounting Type	Ceiling or wall mount (bracket included)
Dimensions (Diameter x Depth)	230 mm x 160 mm
Weight	2.5 kg
Color	Black or White (depending on version)
Enclosure Material	ABS plastic
Grille	Perforated metal, paintable
Input Connection	Spring-loaded terminals
Compliance	CE, RoHS
Certification	IP65 (weatherproof)
Included Accessories	Mounting brackets, screws, manual

Frequently Asked Questions - OCV 6 TANNOY

What is the power handling of the Tannoy OCV 6?

The Tannoy OCV 6 has a RMS power handling of 60 Watts and a peak power handling of 120 Watts.

What is the impedance of this speaker?

The speaker impedance is 8 ohms, making it compatible with most standard amplifiers.

Can the OCV 6 be used outdoors?

Yes, the OCV 6 is rated IP65 weatherproof, so it can be used outdoors in covered or exposed areas.

How do I mount the Tannoy OCV 6?

The speaker comes with a mounting bracket for wall or ceiling installation. Secure the bracket to a solid surface, attach the speaker, and tighten the locking screws.

What type of cable should I use?

Use a 2-conductor speaker cable with a minimum gauge of 16 AWG. Strip the ends and insert into the spring-loaded terminals.

How do I clean the speaker?

Wipe the enclosure with a damp cloth. Do not use abrasive cleaners. The grille can be vacuumed gently.

What is the frequency response of the OCV 6?

The frequency response is 80 Hz – 20 kHz, providing clear highs and decent bass for a compact speaker.

Can I paint the grille?

Yes, the grille is paintable. Remove it from the speaker, clean it, and apply spray paint suitable for metal.

What is the sensitivity of this speaker?

The sensitivity is 90 dB (1W/1m), meaning it can produce a relatively loud sound with low power.

Is the Tannoy OCV 6 suitable for home theater?

Yes, it can be used as a surround or ceiling speaker in a home theater system when paired with a subwoofer for low frequencies.

USER MANUAL OCV 6 TANNOY

Technical line drawing of two cylindrical mechanical components with internal bearing and mounting holes (no text or symbols)

OCV Series

CONTENTS

INTRODUCTION 02 WIRING & SETTING UP 06

UNPACKING 02 DIMENSIONS 07

SAFETY NOTICES 02 TECHNICAL SPECIFICATIONS 08

PRODUCT FEATURE IDENTIFICATION 03 WARRANTY 09

ACCESSORIES 04 DECLARATION OF CONFORMITY 10

INSTALLATION GUIDE 05

INTRODUCTION

Thank you for purchasing this Tannoy Product loudspeaker. This product range is suited for high-level music and speech reinforcement applications requiring exceptional sonic quality with uncompromised reliability.

UNPACKING

Every Tannoy product and accessory is carefully inspected before packing. After unpacking, please inspect your product to make sure no damage has occurred in transit. In the unlikely event of any damage, would you please notify your dealer immediately and retain your shipping carton, as your dealer may ask you to return the faulty unit to them for inspection.

Each OCV loudspeaker is provided with the following accessories as standard; Gripple speed clamps, release key, 1 x hanging cable, 1 x safety cable, 1 x terminal weather boot, 1 x euroblock connector, 3/8" screwed rod adaptor, cable ties.

SAFETY NOTICES

Some regional construction codes require the use of a secondary method of securing loudspeakers in ceiling to provide security of a backup support. A secondary support line should be attached from the safety loop on the rear of the product to a source point on the ceiling. Please consult the relevant construction codes in your region.

Tannoy will not be held responsible for any damages caused by the improper installation of these loudspeakers.

SAFETY NOTE:

In order to comply with the relevant fire safety regulations (ie. BS 5839:1998), it is required that in the event of fire, that failure of the circuit to which the loudspeaker is connected does not occur before evacuation of the building is complete. Suitable measures include: -

a) use of terminal blocks (for connection to primary) with a melting point of not less than 650^ C, for example constructed from ceramic materials;
b) use of terminal blocks of a lower melting point but protected with thermal insulation;
c) use of terminal blocks such that, on melting, an open-circuit or a short-circuit does not occur.

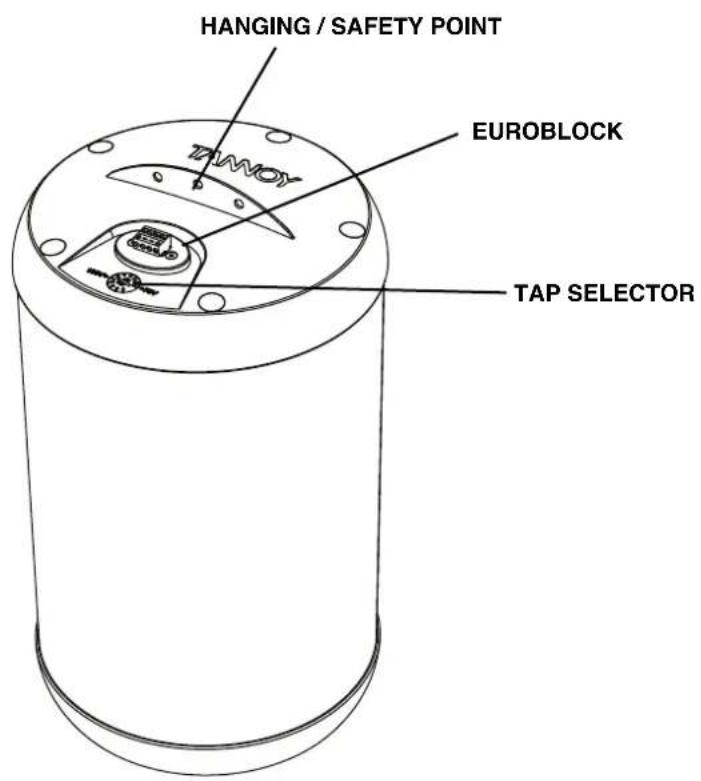

PRODUCT FEATURE IDENTIFICATION

OCV 6 / OCV 8

ACCESSORIES

GRIPPLE SPEED CLAMP

HANGING / SAFETY WIRES

Close-up of a mechanical component with two vertical rods and a base, no visible text or symbols

WEATHER BOOT 3/8" SCREWED ROD ADAPTOR

Close-up of a metallic mechanical component with a conical top and base, no visible text or symbols

Close-up of a black mechanical lifting hook mounted on a flat surface (no text or symbols visible)

INSTALLATION GUIDELINES

1. Gripple Instructions 2. Thread hanging cable through Gripple as shown

Hand holding a small object with a ruler, no visible text or symbols

through Gripple as shown

Illustration of hands using a tool to interact with a small object, no text or symbols present

1. Pull the cable through to adjust height. Pull to tighten. Insert release key to loosen or adjust.

Medical illustration showing a hand holding a device with tubing and a small square component (no text or symbols)

Diagram of a hook being inserted into a corner socket (no text or symbols)

1. Secure the cable to the fixing as shown. NOTE: Repeat 1 and 2 for the safety cable.

Illustration of a hand holding a small object with a curved line, no text or symbols present

1. The hanging cable should be attached to the centre hole on the bracket. NOTE: The Safety cable can be attached to either of the secondary holes.

WIRING AND SETTING UP:

1. Remove the euroblock connector from the socket

2. Feed the cable through the rubber grommet then connect the euroblock connector to the cable observing the correct polarity

3. For connection to an amplifier, use pins 1 and 2:

Pin 1 is positive

Pin 2 is negative

For connection to additional speakers in a distributed line, pins 3 and 4 are in parallel where:

Pin 3 is negative

Pin 4 is positive

1. Connect the euroblock connector then replace the rubber grommet to ensure the speaker is sealed.

THE SPEAKER IS SUPPLIED IN LOW IMPEDANCE MODE. NEVER CONNECT THE SPEAKER TO A 70/100 VOLT AMPLIFIER WHILE IT IS SET FOR LOW IMPEDANCE.

1. The OCV 6 and OCV 8 is fitted with a 60W transformer. When used in distributed-line systems, the transformer can be tapped at 60W, 30W, and 15W, with an additional 7.5W tapping for 70.7V line systems.

DIMENSIONS

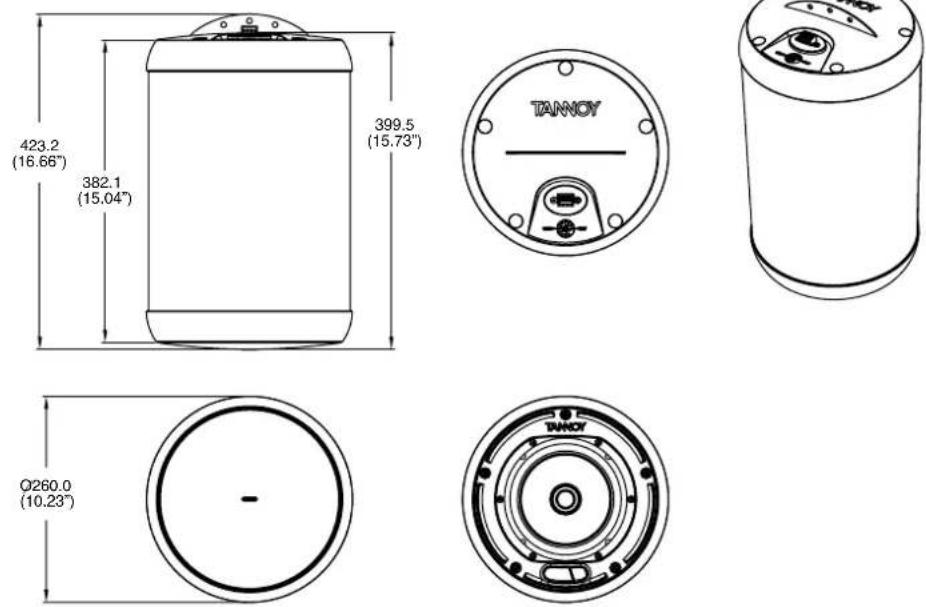

OCV 6

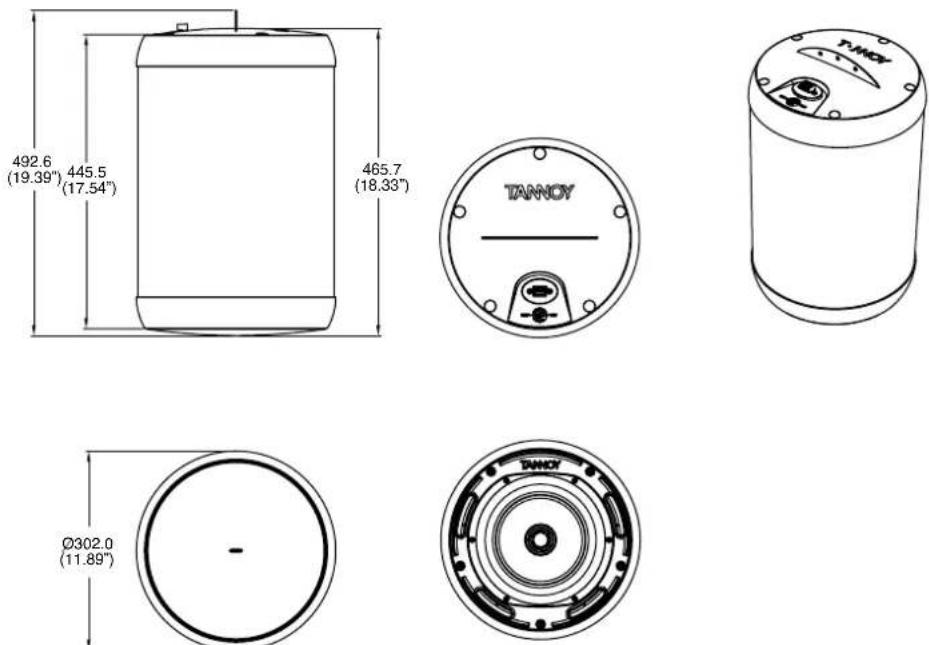

OCV 8

TECHNICAL SPECIFICATIONS

OCV 6 OCV 8

PERFORMANCE

Frequency Response (-3dB) ^(1) 80Hz - 20kHz 75Hz - 20kHz

Frequency Range (-10dB) ^(1) 60Hz - 30kHz 60Hz - 30kHz

System Sensitivity (1W @1m) ^(2) 88dB 90dB

Dispersion (-6dB) 90 degrees conical 80 degrees conical

Transducers	Coaxial			Coaxial
Low Frequency 150mm (6.00") mineral loaded cone material	200mm (8.00") mineral loaded cone material
High Frequency	20mm (0.79)		25mm (1.00")
Crossover	5.4kHz - 2nd order LF, 2nd order HF		4.5kHz - 3rd order LF, 2d order HF
Directivity (Q)	11.3 averaged 1kHz to 6.3kHz		14.4 averaged 1kHz to 6.3kHz
Directivity (DI)	10.5 dB averaged 1kHz to 6.3kHz		11.6 dB averaged 1kHz to 6.3kHz
Rated Maximum SPL (2)	105dB (average) 111dB (peak)		108dB (average) 114dB (peak)
Power Handling
Average	60W		70W
Programme	120W		140W
Peak	240W		280W
Recommended Amplifier Power	120W @ 16 Ohms 140W @ 16 Ohms
Nominal Impedance	16 Ohms		16 Ohms
Distortion 10% Full Power	(9.8V) 2nd Harmonic	3rd Harmonic	(6.48V) 2nd Harmonic	3rd Harmonic
250Hz	0.42%	0.14%	0.56%	0.11%
1kHz	0.11%	0.31%	0.20%	0.24%
10kHz	1.27%	0.16%	1.19%	0.15%
Distortion 10% Full Power	(3.1V) 2nd Harmonic	3rd Harmonic	(2.05V) 2nd Harmonic	3rd Harmonic
250Hz	0.16%	0.16%	0.14%	0.16%
1kHz	0.05%	0.18%	0.08%	0.18%
10kHz	0.27%	0.27%	0.44%	0.09%
CONSTRUCTION
Enclosure	ABS / Steel		ABS / Steel
Grille	Steel, plated and powder coat painted		Steel, plated and powder coat painted
Connectors	Euroblock type removable locking connector with screw terminals with "loop through" facility		Euroblock type removable locking connector with screw terminals with
"loop through" facility
Transformer setting Rotary switch	Rotary switch
Safety Agency Ratings	UL-1480, UL-2043, CE		UL-1480, UL-2043, CE
Bezel diameter	260mm (10.23")		302mm (11.89")
Overall Length	423mm (16.66")		492.5mm (19.39")
Net Weight	5.9kg (12.96lbs)		7.8kg (17.2lbs)
Shipped weight	7.5kg (16.53lbs)		9.8kg (21.6lbs)
Transformer Taps
70V & low Impedance operation	60W / 30W / 15W / 7.5W & low Impedance operation		60W / 30W / 15W / 7.5W
100V low Impedance operation	60W / 30W / 15W & low Impedance operation		60W / 30W / 15W &
Packed quantity	1		1

Notes
(1) Average over stated bandwidth. Measured at 1 metre on axis in an anechoic chamber (2) Unweighted pink noise input, measured at 1 metre in an anechoic chamber. A full range of measurements, performance data, and Ease™ Data can be downloaded from www.tannoy.com
Tannoy operates a policy of continuous research and development. The introduction of new materials or manufacturing methods will always equal or exceed the published specifications, which Tannoy reserves the right to alter without prior notice. Please verify the latest specifications when dealing with critical applications.

WARRANTY

No maintenance of the OCV pendant speaker is necessary.

As part of the MUSIC Group, Tannoy is committed to providing the highest quality products, service and user experience for our customers. One element of this commitment is our after sales support which now incorporates our extended Limited Warranty. In the event of any concern that is not addressed by this extended Limited Warranty we would ask you to contact us at [e-mail]

For full warranty details including the extended Limited Warranty, please visit http://www.music-group.com/warranty.aspx and register your purchase online at www.music-group.com or www.tannoy.com

DECLARATION OF CONFORMITY

The following apparatus is manufactured in China for Music Group Innovation SC Ltd of Rosehall Industrial Estate, Coatbridge, Scotland, ML5 4TF and conform(s) to the protection requirements of the European Electromagnetic Compatibility Standards and Directives relevant to Domestic Electrical Equipment. The apparatus is designed and constructed such that electromagnetic disturbances generated do not exceed levels allowing radio and telecommunications equipment and other apparatus to operate as intended, and, the apparatus has an adequate level of intrinsic immunity to electromagnetic disturbance to enable operation as specified and intended.

Details of the Apparatus: Tannoy Contractor Loudspeaker

Model Number: OCV

Associated Technical File: EMCi6

Applicable Standards: EN 50081-1 Emission

EN 50082-1 Immunity

Signed:

Position: Director of Engineering

Date: 20th November 2015

NOTES

Tannoy operates a policy of continuous research and development. The introduction of new materials or manufacturing methods will always equal or exceed the published specifications.

All specifications are subject to change without notice.

Copyright (c) 2015 Music Group Innovation SC Ltd. All rights reserved.
