Product Type	Built-in Induction Hob
Brand	Candy
Model	CIS642SCTT/4U
Number of Cooking Zones	4 induction zones
Dimensions (H x W x D)	4.5 x 59 x 52 cm
Cut-out Dimensions (W x D)	56 x 49 cm
Weight	8.5 kg
Power Supply	230 V ~ 50/60 Hz
Total Power	7200 W
Control Type	Touch controls
Power Levels	9 power levels (1-9) + boost
Boost Function	Yes, per zone
Timer	Yes, countdown timer per zone or overall
Child Lock	Yes
Residual Heat Indicator	Yes, per zone
Automatic Shut-off	Yes, after a period of inactivity
Surface Material	Black glass ceramic
Cleaning	Easy-clean smooth surface, use special hob cleaner
Installation Type	Built-in, requires professional installation
Warranty	2 years

Frequently Asked Questions - CIS642SCTT/4U CANDY

How do I unlock the hob if the child lock is activated?

Press and hold the child lock button (usually a key icon) for 3 seconds until the indicator turns off.

What types of cookware are compatible with this induction hob?

Only cookware with a magnetic base (e.g., cast iron, stainless steel with magnetic bottom). To test, check if a magnet sticks to the bottom.

Why does the hob turn off automatically during cooking?

This is a safety feature. If no interaction is detected for a certain time (e.g., 10 seconds at low power), the hob will shut off. Ensure you adjust settings or use the timer.

How do I activate the boost function?

Select the cooking zone, then press the boost button (often marked P or BOOST). The zone will operate at maximum power for a limited time.

What does a flashing zone indicator mean?

A flashing indicator usually means the hob has detected no pan or an incompatible pan on that zone. Place a suitable pan or remove the error.

Can I install the hob myself?

No, installation must be carried out by a qualified electrician to ensure compliance with electrical regulations and safety.

How do I clean the glass ceramic surface?

Allow the surface to cool, then use a special ceramic hob cleaner and a soft cloth. Avoid abrasive sponges.

Is there a residual heat indicator?

Yes, each cooking zone has a residual heat indicator (H or red dot) that remains lit until the zone is safe to touch.

What is the maximum power per zone?

The maximum power varies by zone: typically around 1.8 kW for small zones and up to 2.3 kW for large zones, with boost up to 3.0 kW.

How do I reset the hob after an error code?

Turn off the hob at the mains for 1 minute, then turn it back on. If the error persists, consult the manual or contact Candy support.

USER MANUAL CIS642SCTT/4U CANDY

Thank you for purchasing the CANDY induction hob. Please read this instruction manual carefully before using the hob and keep it in a safe place for future reference.

Safety Warnings

Your safety is important to us. Please read this information before using your cooktop.

Installation Electrical Shock Hazard

• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• Connection to a good earth wiring system is essential and mandatory.
• Alterations to the domestic wiring system must only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.

Cut Hazard

• Take care - panel edges are sharp. - Failure to use caution could result in injury or cuts.

Important safety instructions

• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at any time.

Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs.

• Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed according to these installation instructions.
• This appliance must be properly installed and earthed only by a suitably qualified person.
• This appliance should be connected to a circuit that incorporates an isolating switch providing full disconnection from the power supply.
• Failure to install the appliance correctly could invalidate any warranty or liability claims.

Operation and Maintenance - Electrical Shock Hazard

• Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.

Health Hazard

- This appliance complies with electromagnetic

safety standards.

• However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to ensure that their implants will not be affected by the electromagnetic field.

- Failure to follow this advice may result in death.

Hot Surface Hazard

• During use, accessible parts of this appliance will become hot enough to cause burns.
• Do not let your body, clothing, or any item other than suitable cookware contact the induction glass until the surface is cool.
• Metallic objects such as knives, forks, spoons, and lids should not be placed on the hob surface since they can get hot.
• Keep children away.
• Handles of saucepans may be hot to touch. Check that saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children.
• Failure to follow this advice could result in burns and scalds.

Cut Hazard

- The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children.

- Failure to use caution could result in injury or cuts.

Important safety instructions

- Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite.

- Never use your appliance as a work or storage surface.

- Never leave any objects or utensils on the appliance.

- Do not place or leave any magnetisable objects (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near the appliance, as they may be affected by its electromagnetic field.

- Never use your appliance for warming or heating the room.

- After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls). Do not rely on the pan detection feature to turn off the cooking zones when you remove the pans.

- Do not allow children to play with the appliance or sit, stand, or climb on it.

- Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.

- Do not leave children alone or unattended in the area where the appliance is in use.

- Children or persons with a disability which limits their ability to use the appliance should

have a responsible and competent person to instruct them in its use. The instructor should be satisfied that they can use the appliance without danger to themselves or their surroundings.

- Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician.

- Do not use a steam cleaner to clean your cooktop.

- Do not place or drop heavy objects on your cooktop.

- Do not stand on your cooktop.

- Do not use pans with jagged edges or drag pans across the Induction glass surface as this can scratch the glass.

- Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the Induction glass.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.

- WARNING: The appliance and its accessible parts become hot during use.

Care should be taken to avoid touching heating elements.

Children less than 8 years of age shall be kept away unless continuously supervised.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

- WARNING: Danger of fire: do not store items on the cooking surfaces.

- Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts

- A steam cleaner is not to be used.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

WARNING: In order to prevent tipping of the appliance, this stabilizing means must be installed. Refer to the instructions for installation.

WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacture of the appliance in the instruction for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

This appliance incorporates an earth connection for functional purposes only.

Congratulations on the purchase of your new Induction Hob.

We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section.

Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference.

Product Overview

Top View

1. 2000 W zone, boost to 2600W 2. 1500 W zone, boost to 2000W 3. 2000 W zone, boost to 2600W 4. 1500 W zone, boost to 2000W 5. Glass plate 6. Control panel

Control Panel

1. Heating zone selection controls
2. Timer control
3. Power regulating key
4. Keylock control
5. ON/OFF control
6. Boost function control
7. Stop and go function control
8. Keep warm function control

A Word on Induction Cooking

Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up.

Iron pot

magnetic circuit ceramic glass plate induction coil induced currents

Before using your New Induction Hob

• Read this guide, taking special note of the 'Safety Warnings' section.
• Remove any protective film that may still be on your Induction hob.

Using the Touch Controls

• The controls respond to touch, so you don't need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

Choosing the right Cookware

- Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan.

- You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan. If it is attracted, the pan is suitable for induction.

• If you do not have a magnet:

1. Put some water in the pan you want to check.
2. If it does not flash in the display and the water is heating, the pan is suitable.

- Cookware made from the following materials is not suitable: pure stainless steel, aluminium or copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.

Do not use cookware with jagged edges or a curved base.

Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Use pans whose diameter is as large as the graphic of the zone selected. Using a pot a slightly wider energy will be used at its maximum efficiency. If you use smaller pot efficiency could be less than expected. Always centre your pan on the cooking zone.

Always lift pans off the Induction hob - do not slide, or they may scratch the glass.

Pan dimensions

The cooking zones are up to a limit, automatically adapted to the diameter of the pan. However the bottom of this pan must have a minimum of diameter according to the corresponding cooking zone. To obtain the best efficiency of your hob, please place the pan in the centre of the cooking zone.

The base diameter of induction cookware

Cooking zone	Minimum (mm)
1,2,3,4 (180mm)	120

The above may vary according to the quality of the pan used.

Using your Induction Hob

To start cooking

1. Touch the ON/OFF control.

After power on, the buzzer beeps once, all displays show " - " or " - - ", indicating that the induction hob has entered the state of standby mode.

1. Place a suitable pan on the cooking zone that you wish to use.

- Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.

1. Touching the heating zone selection control, and an indicator next to the key will flash.

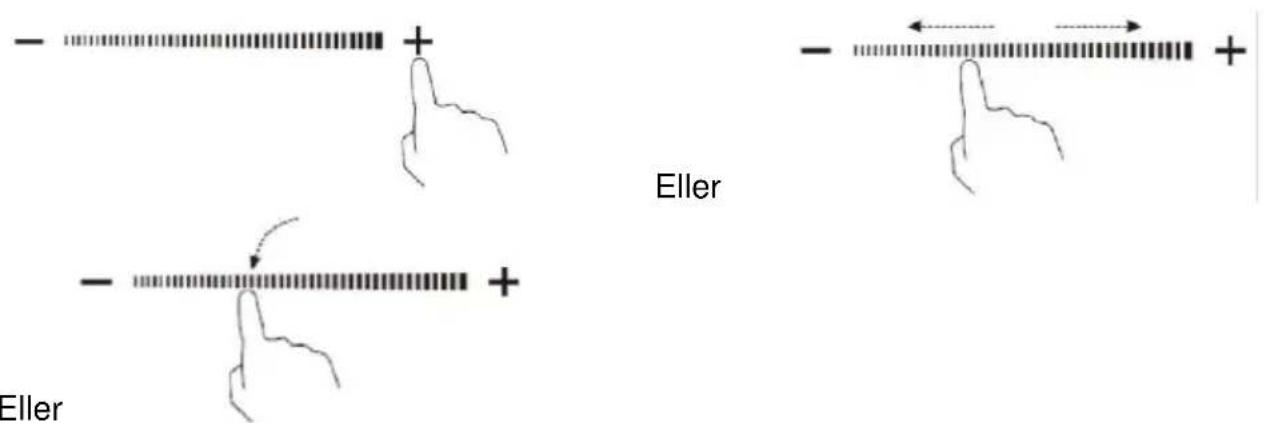

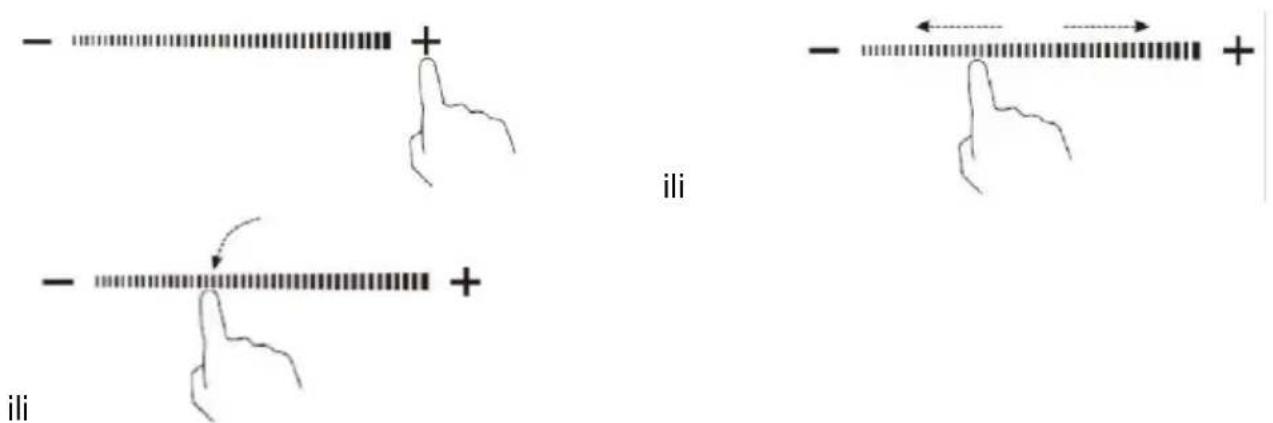

2. Set a power level by touching the “-”, “+”, or slide along the “—” control, or just touch any point of the “—”.

a. If you don't select a heat zone within 1 minute, the ceramic hob will automatically switch off. You will need to start again at step 1. b. You can modify the heat setting at any time during cooking. c. If slide along the “—”, power will vary from stage 2 to stage 8.

Press “-”, power will decrease by one stage each time till stage 0.

Press “+”, power will increase by one stage each time till stage 9.

If the display flashes 4 alternately with the heat setting

This means that:

• you have not placed a pan on the correct cooking zone or,
• the pan you're using is not suitable for induction cooking or,
• the pan is too small or not properly centred on the cooking zone.

No heating takes place unless there is a suitable pan on the cooking zone.

The display will automatically turn off after 1 minutes if no suitable pan is placed on it.

When you have finished cooking

1. Touch the heating zone selection control that you wish to switch off.

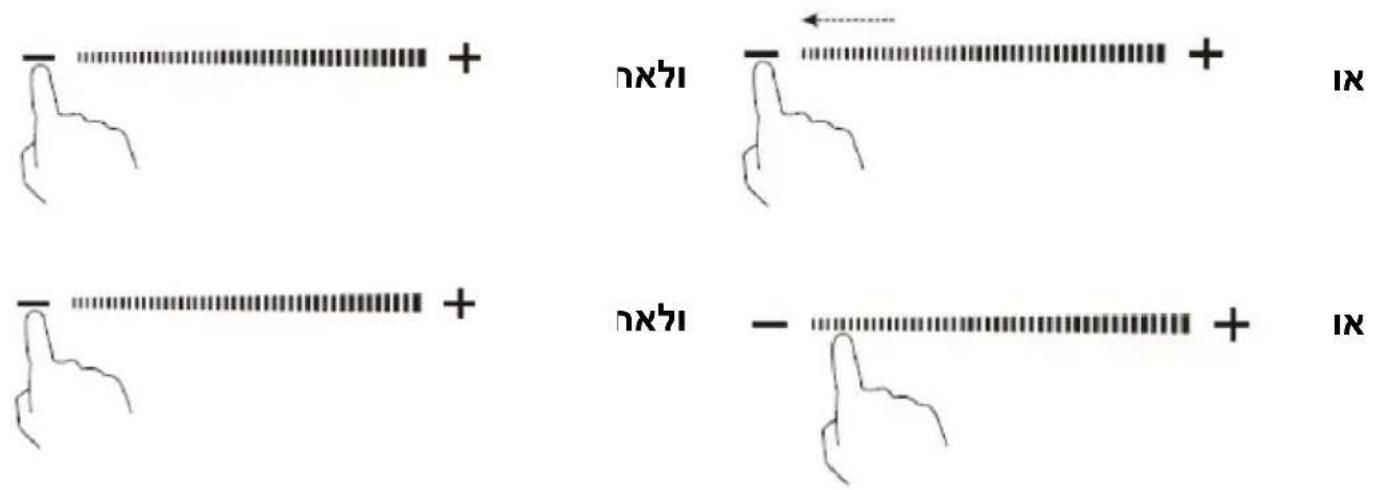

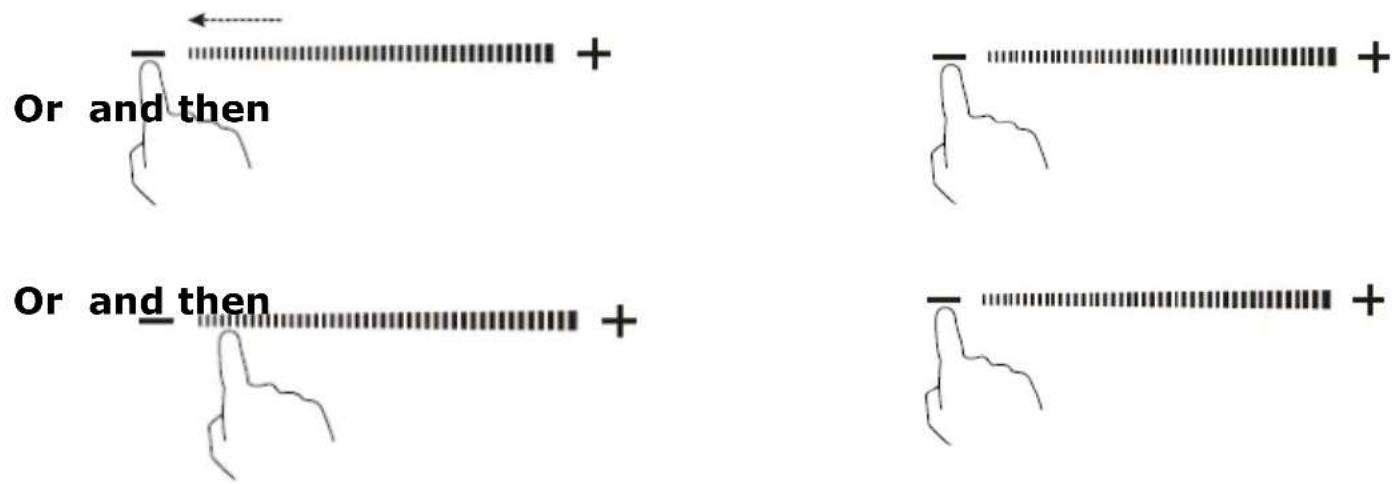

1. Turn the cooking zone off by touching the "-" and scrolling down to "0". Or slide along the "-" to the left point, and then touch the "-". Or touch the left point of "-", and then touch the "-".

Make sure the power display shows "0", then shows "H".

and then

1. Turn the whole cooktop off by touching the ON/OFF control.

1. Beware of hot surfaces

'H' will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

Using the Power Management

Using power management you can set the total power to 2.5kW/ 3.0kW/ 4.5kW/ 6.5kW and 7.4kW. The default total power setting is the maximum power level.

Setting the total power level to fit your requirement

1. Make sure the cooktop is turned off.

Note: you can only set power management when the cooktop is turned off.

1. Touch the button "Stop + Go" and hold for 5 seconds. You can hear the buzzer beeps one time.

1. After you hear the beep, touch "+" and "-" button at the same time

and hold for 3 seconds, the timer indicator will show flashing previous total power level, e.g. '2.5'. Touch and hold "+" and "-" for 1 second again to switch to other power level, for example 3.0. When the power that you want is flashing, touch the button "Stop+Go" and hold for 5 seconds. The buzzer will beep 10 times. It means you have finished the setting.

Note:

1. After step 2, you must touch the "+" and "-" within 3 seconds after you hear the beep. Otherwise you will need to start again from step 2.
2. Once finish setting, wait till the end of 10 beeps. Do not touch any button during this period. Otherwise the setting will be invalid.

Power management Rules

If total power exceeds the limitation of 2.5kw, 3.0kw, 4.5kw, 6.5kw (depending on which level you've set), you are not able to increase power stage of any zone. If you increase it by touching '+', the cooktop will beep 3 times and indicator will show a flashing 'Pn'. Thus you need to decrease power stage of other zones before increasing the power of objective zone.

Using the Boost

Boost is the function that one zone rising to a larger power in one second and lasting for 5 minutes. Thus you can get a more powerful and faster cooking.

Using the Boost to get larger power

1. Touch the heating zone selection button that you wish to boost, an indicator next to the key will flash.

1. Touch the Boost button, the heating zone will begin to work at Boost mode. The power display will show "P" to indicate that the zone is boosting.

1. The Boost power will last for 5 minutes and then the zone will go back to the

power stage 9.

1. If you want to cancel the Boost during this 5 minutes, touch the heating zone selection button, an indicator next to the key will flash. And then touch the Boost button, the heating zone will go back to the power stage 9. Or slide along the "—" to the left point, the heating zone will go back to the power stage in which you touched.

Restrictions when using

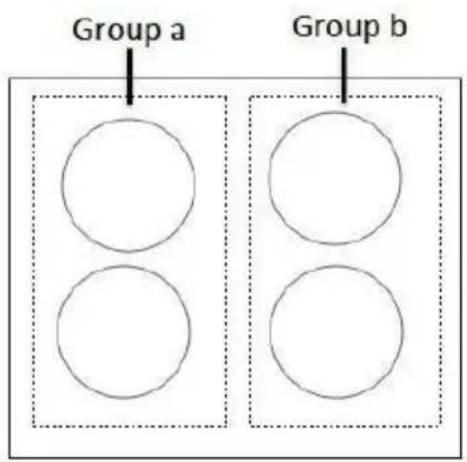

The four zones were divided into two groups. In one group, if you use boost on one zone, first make sure that the other zone is working on or below power level 5.

Using the Keep warm

Keep warm function is suitable for keeping food warm.

Using the Keep warm to get stable temperature

1. Touch the heating zone selection button that you wish to use for keep warm, an indicator next to the key will flash.

1. Touch the button 🔗, the cooking zone indicator will display "A".

1. If you want to cancel the keep warm, touch the heating zone selection button, and then touch the button 🎨. The heating zone will go back to "0" power stage.

Using the Pause function- STOP+GO

Pause function can be used at any time during cooking. It allows to stop the induction cooktop and come back to it.

1. Make sure the cook zone is working.
2. Touch the button STOP+GO, the cooking zone indicator will show "II". And then the operation of the induction cooktop will be deactivated within the scope of all cooking zones, except the STOP+GO, on/off and lock keys.

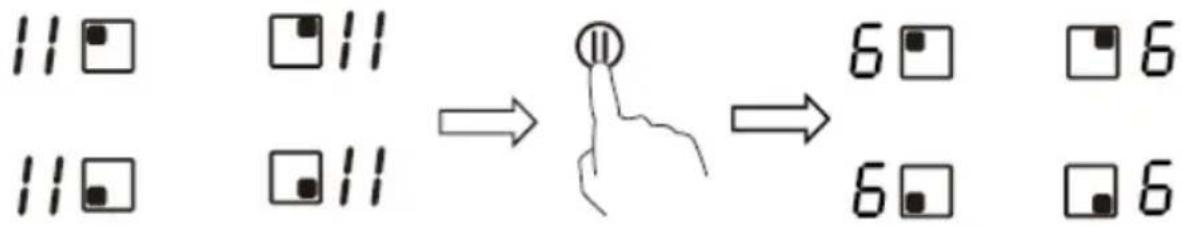

1. To cancel the pause status, touch the button STOP+GO, then the cooking zone will go back to the power stage which you set before.

Locking the Controls

• You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the ON/OFF control are disabled.

To lock the controls

Touch the keylock control. The timer indicator will show " Lo "

To unlock the controls

1. Make sure the Induction hob is turned on.
2. Touch and hold the keylock control for a while
3. You can now start using your Induction hob.

When the hob is in the lock mode, all the controls are disabled except the ON/OFF, you can always turn the induction hob off with the ON/OFF control in an emergency, but you shall unlock the hob first in the next operation.

Over-Temperature Protection

A temperature sensor equipped can monitor the temperature inside the Induction hob. When an excessive temperature is monitored, the Induction hob will stop operation automatically.

Over-spillage Protection

Over-spillage protection is a safety protection function. It switches off the hob automatically within 10s if the water flows to the control panel, while the buzzer will beep for 1 second.

Detection of Small Articles

When an unsuitable size or non-magnetic pan (e.g. aluminium), or some other small item (e.g. knife, fork, key) has been left on the hob, the hob automatically goes on to standby in 1 minute. The fan will keep cooling down the induction hob for a further 1 minute.

Auto Shutdown Protection

Auto shut down is a safety protection function for your induction hob. It shuts down automatically if you ever forget to turn off your cooking. The default working times for various power levels are shown in the table below:

Power level	1	2	3	4	5	6	7	8	9	A	II
Default working timer (hour)	8	8	8	4	4	4	2	2	2	2	2

When the pot is removed, the induction hob can stop heating immediately and the hob automatically switches off after 2 minutes.

People with a heart pacemaker should consult with their doctor before using this unit.

Using the Timer

You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.
• You can set it to turn one cooking zone off after the set time is up.
• You can set the timer up to 99 minutes.

Using the Timer as a Minute Minder

If you are not selecting any cooking zone

1. Make sure the cooktop is turned on.

Note: you can use the minute minder even if you're not selecting any cooking zone.

1. Touch "-" or "+" of the timer control, the minder indicator will start flashing and "99" or "01" will show in the timer display.

1. Set the time by touching the "-" or "+" control.

Hint: Touch the "-" or "+" control once to decrease or increase by 1 minute. Hold the "-" or "+" control of the timer to decrease or increase by 10 minutes.

1. Cancel the time by touching the "-" of the timer and scrolling down to "0".

1. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds.
2. The buzzer will beep for 30 seconds and the timer indicator will show "-" when the set time has finished.

Setting the timer to turn one cooking zone off

Cooking zones set for this feature will:

1. Touch the heating zone selection control that you want to set the timer for (e.g., zone 1#).
2. Touch the timer control. The minder indicator will start flashing and "30" will show in the timer display.
3. Set the time by touching the "-" or "+" control.

Hint: Touch the "-" or "+" control once to decrease or increase by 1 minute. Touch and hold the "-" or "+" control, and the timer will decrease or increase by 10 minutes.

If the setting time exceeds 99 minutes, the timer will automatically return to 0 minute.

1. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds.

NOTE: The red dot next to the power level indicator will illuminate, indicating that the zone is selected.

1. To cancel the timer, touch the heating zone selection control, then touch the "-" of the timer and scroll down to "0". The timer is cancelled, and "00" will show in the minute display, and then "--".

1. When the cooking timer expires, the corresponding cooking zone will automatically switch off and show "H".

Other cooking zones will keep operating if they were turned on previously.

Setting the timer to turn off more than one cooking zone

1. If this function is used for more than one heating zone, the timer indicator will show the shortest time.

(e.g., zone 1# setting time of 3 minutes, zone 2# setting time of 6 minutes, the timer indicator shows "3".)

NOTE: The flashing red dot next to the power level indicator means the timer indicator is showing the time of the heating zone.

If you want to check the set time of another heating zone, touch the heating zone selection control. The timer will indicate its set time.

(set to 6 minutes)

(set to 3 minutes)

1. When the cooking timer expires, the corresponding heating zone will automatically switch off and show "H".

NOTE: If you want to change the time after the timer is set, you have to start from step 1.

Care and Cleaning

What?	How?	Important!
Everyday soiling on glass (fingerprints, marks, stains left by food or non-sugary spillovers on the glass)	1. Switch the power to the cooktop off.2. Apply a cooktop cleaner while the glass is still warm (but not hot!)3. Rinse and wipe dry with a clean cloth or paper towel.4. Switch the power to the cooktop back on.	·When the power to the cooktop is switched off, there will be no 'hot surface' indication but the cooking zone may still be hot! Take extreme care.·Heavy-duty scourers, some nylon scourers and harsh/abrasive cleaning agents may scratch the glass. Always read the label to check if your cleaner or scourer is suitable.·Never leave cleaning residue on the cooktop: the glass may become stained.
Boilovers, melts, and hot sugary spills on the glass	Remove these immediately with a fish slice, palette knife or razor blade scraper suitable for Induction glass cooktops, but beware of hot cooking zone surfaces:1. Switch the power to the cooktop off at the wall.2. Hold the blade or utensil at a 30° angle and scrape the soiling or spill to a cool area of the cooktop.3. Clean the soiling or spill up with a dish cloth or paper towel.4. Follow steps 2 to 4 for 'Everyday soiling on glass' above.	·Remove stains left by melts and sugary food or spillovers as soon as possible. If left to cool on the glass, they may be difficult to remove or even permanently damage the glass surface.·Cut hazard: when the safety cover is retracted, the blade in a scraper is razor-sharp. Use with extreme care and always store safely and out of reach of children.
Spillovers on the touch controls	1. Switch the power to the cooktop off.2. Soak up the spill3. Wipe the touch control area with a clean damp sponge or cloth.4. Wipe the area completely dry with a paper towel.5. Switch the power to the cooktop back on.	·The cooktop may beep and turn itself off, and the touch controls may not function while there is liquid on them. Make sure you wipe the touch control area dry before turning the cooktop back on.

Hints and Tips

Problem	Possible causes	What to do
The induction hob cannot be turned on.	No power.	Make sure the induction hob is connected to the power supply and that it is switched on.Check whether there is a power outage in your home or area. If you've checked everything and the problem persists, call a qualified technician.
The touch controls are unresponsive.	The controls are locked.	Unlock the controls. See section 'Using your induction cooktop' for instructions.
The touch controls are difficult to operate.	There may be a slight film of water over the controls or you may be using the tip of your finger when touching the controls.	Make sure the touch control area is dry and use the ball of your finger when touching the controls.
The glass is being scratched.	Rough-edged cookware.Unsuitable, abrasive scourer or cleaning products being used.	Use cookware with flat and smooth bases. See 'Choosing the right cookware'.See 'Care and cleaning'.
Some pans make crackling or clicking noises.	This may be caused by the construction of your cookware (layers of different metals vibrating differently).	This is normal for cookware and does not indicate a fault.
The induction hob makes a low humming noise when used on a high heat setting.	This is caused by the technology of induction cooking.	This is normal, but the noise should quieten down or disappear completely when you decrease the heat setting.
Fan noise coming from the induction hob.	A cooling fan built into your induction hob has come on to prevent the electronics from overheating. It may continue to run even after you've turned the induction hob off.	This is normal and needs no action.Do not switch the power to the induction hob off at the wall while the fan is running.
Pans do not become hot and appears in the display.	The induction hob cannot detect the pan because it is not suitable for induction cooking.The induction hob cannot detect the pan because it is too small for the cooking zone or not properly centred on it.	Use cookware suitable for induction cooking. See section 'Choosing the right cookware'.Centre the pan and make sure that its base matches the size of the cooking zone.
The induction hob or a cooking zone has turned itself off unexpectedly, a tone sounds and an error code is displayed (typically alternating with one or two digits in the cooking timer display).	Technical fault.	Please note down the error letters and numbers, switch the power to the induction hob off at the wall, and contact a qualified technician.

Failure Display and Inspection

If an abnormality occurs, the induction hob will automatically enter the protective state and display the corresponding protective codes:

Problem	Possible causes	What to do
F3/F4	Temperature sensor of the induction coil failure	Please contact the supplier.
F9/FA	Temperature sensor of the IGBT failure.	Please contact the supplier.
E1/E2	Abnormal supply voltage	Please inspect whether power supply is normal.Power on after the power supply is normal.
E3	High temperature of the induction coil temperature sensor	Please contact the supplier.
E5	High temperature of the IGBT temperature sensor	Please restart after the hob cools down.

The above are the judgment and inspection of common failures.

Please do not disassemble the unit yourself to avoid any dangers and damages to the induction hob.

Technical Specification

Cooking Hob	CIS642SCTT/4U
Cooking Zones	4 Zones
Supply Voltage	220-240V~, 50-60Hz
Installed Electric Power	2.5kw:2250-2750W or3.0 kw:2700-3300W or4.5kw:4050-4950W or6.5kw:5850-7150W or7.4kw:6600-7400W
Product Size L× W× H(mm)	590X520X55
Building-in Dimensions A× B (mm)	560X490

Weight and dimensions are approximate. Because we continually strive to improve our products, we may change specifications and designs without prior notice.

Installation

Selection of installation equipment

Cut out the work surface according to the sizes shown in the drawing.

For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole.

Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
590	520	55	51	560+5	490+5	50 mini

Under any circumstances, make sure the induction cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the induction cooker hob is in good working state. As shown below

Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.

Before you install the hob, make sure that

• the work surface is square and level, and no structural members interfere with space requirements
• the work surface is made of a heat-resistant material
• if the hob is installed above an oven, the oven has a built-in cooling fan
• the installation will comply with all clearance requirements and applicable standards and regulations
• a suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations.

The isolating switch must be of an approved type and provide a 3 mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements)

• the isolating switch will be easily accessible to the customer with the hob installed
• you consult local building authorities and by-laws if in doubt regarding installation
• you use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces surrounding the hob.

When you have installed the hob, make sure that

• the power supply cable is not accessible through cupboard doors or drawers
• there is adequate flow of fresh air from outside the cabinetry to the base of the hob
• if the hob is installed above a drawer or cupboard space, a thermal protection barrier is installed below the base of the hob
• the isolating switch is easily accessible by the customer

Before locating the fixing brackets

The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

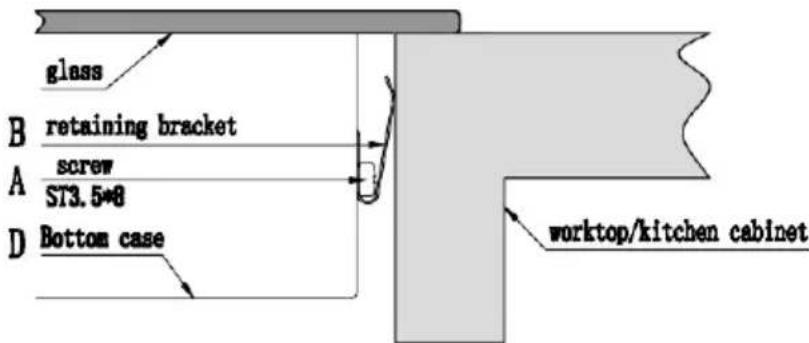

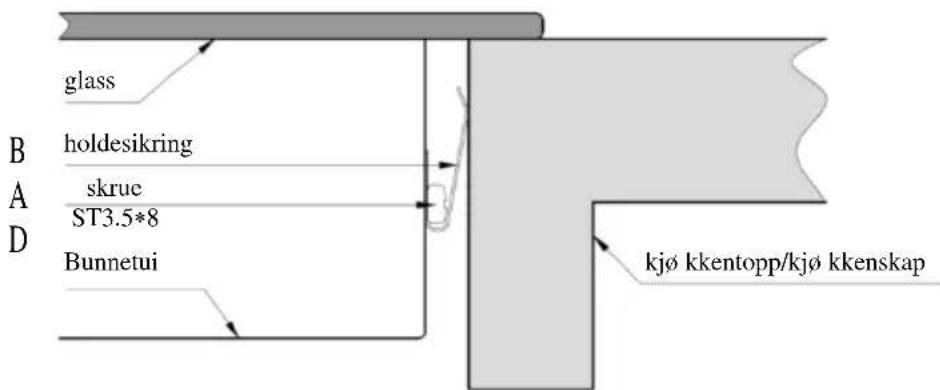

Adjusting the bracket position

Fix the hob on the work surface by screwing the 4 brackets on the bottom case of the hob (see picture) after installation.

A	B	C	D
Screw	Bracket	Screw hole	Bottom case

Cautions

1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself.
2. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics.
3. The induction hotplate shall be installed such that better heat radiation can be ensured to enhance its reliability.
4. The wall and induced heating zone above the table surface shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.

Connecting the hob to the mains power supply

This hob must be connected to the mains power supply only by a suitably qualified person. Before connecting the hob to the mains power supply, check that:

1. the domestic wiring system is suitable for the power drawn by the hob.
2. The voltage corresponds to the value given on the rating plate.
3. The power supply cable sections can withstand the load specified on the rating plate.

To connect the hob to the mains power supply, do not use adapters, reducers, or branching devices, as they can cause overheating and fire.

The power supply cable must not touch any hot parts and must be positioned so that its temperature will not exceed 75°C at any point.

Check with an electrician whether the domestic wiring system is suitable without alterations.

Any alterations must only be made by a qualified electrician.

The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. The method of connection is shown below.

• If the cable is damaged or to be replaced, the operation must be carried out by the after-sales agent with dedicated tools to avoid any accidents.
• If the appliance is being connected directly to the mains, an omnipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.
• The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.
• The cable must not be bent or compressed.
• The cable must be checked regularly and replaced by authorised technicians only.

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

-the WEEE should not be treated as domestic waste;

-the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

Product Information for Domestic Electric Hobs Compliant to Commission Regulation (EU) No 66/2014
		Position	Symbol	Value	Unit
Model identification				CIS642SCTT/4 U
Type of hob:				Electric Hob
Number of cooking zones and/or areas	zones			4
	areas
Heating technology (induction cooking zones and cooking areas, radiant cooking zones, solid plates)	Induction cooking zones			X
	Induction cooking cooking areas
	radiant cooking zones
	solid plates
For circular cooking zones or areas: diameter of useful surface area per electric heated cooking zone, rounded to the nearest 5mm		Rear left	∅	18,0	cm
		Rear central	∅	-	cm
		Rear right	∅	18,0	cm
		Central left	∅	-	cm
		Central central	∅	-	cm
		Central right	∅	-	cm
		Front left	∅	18,0	cm
		Front central	∅	-	cm
		Front right	∅	18,0	cm
For non-circular cooking zones or areas: length and width of useful surface area per electric heated cooking zone or area, rounded to the nearest 5mm		Rear left	L W	-	cm
		Rear central	L W	-	cm
		Rear right	L W	-	cm
	Central left	LW	-	cm
	Central central	LW	-	cm
	Central right	LW	-	cm
	Front left	LW	-	cm
	Front central	LW	-	cm
	Front right	LW	-	cm
Energy consumption for cooking zone or area calculated per kg	Rear left	ECElectric cooking	193,5	Wh/kg
	Rear central	ECElectric cooking	-	Wh/kg
	Rear right	ECElectric cooking	197.2	Wh/kg
	Central left	ECElectric cooking	-	Wh/kg
	Central central	ECElectric cooking	-	Wh/kg
	Central right	ECElectric cooking	-	Wh/kg
	Front left	ECElectric cooking	192,3	Wh/kg
	Front central	ECElectric cooking	-	Wh/kg
	Front right	ECElectric cooking	195.6	Wh/kg
Energy consumption for the hob calculated per kg		ECElectric hob	194,7	Wh/kg
Standard applied : EN 60350-2 Household electric cooking appliances - Part 2: Hobs - Methods for measuring performance
Suggestions for Energy Saving:To obtain the best efficiency of your hob, please place the pan in the centre of the cooking zone.Using a lid will reduce cooking times and save energy by retaining the heat.Minimise the amount of liquid or fat to reduce cooking times.Start cooking on a high setting and reduce the setting when the food has heated through.Use pans whose diameter is as large as the graphic of the zone selected.

iron pot

magnetic circuit

glass-ceramic hob

induction coil

induced currents

Container dimensions

or

D (mm)	Š (mm)	V (mm)	H (mm)	A (mm)	B (mm)	X (mm)
590	520	55	51	560+5	490+5	50 mini

iron pot

magnetic circuit

Pan dimensions

iron vessel

magnetic circuit

Empty dishes

ALI

Note:

Heat retention function

D (mm)	Š (mm)	V (mm)	G (mm)	A (mm)	B (mm)	X (mm)
590	520	55	51	560+5	490+5	najm. 50

Pan

magnetic circuit ceramic glass plate induction coil induced currents

Before using your new induction hob

• Read this guide, paying special attention to the 'Safety warnings' section. - Remove any protective films that may be placed on your induction hob.

Using the touch controls

- You can check if your cookware is suitable by conducting a magnetic test. Move a magnet towards the bottom of the pot. If the pot attracts the magnet, the pot is suitable for induction.

• If you don't have a magnet:

Always lift pots off the induction hob – do not slide them as this may scratch the glass.

Pot dimensions

The cooking zones have automatic limits that adjust to the diameter of the pot. However, the bottom of the pot must have a minimum diameter in accordance with the corresponding cooking zone. To make the best use of your hob, place the pot in the center of the cooking zone.

Using the heat retention function

1. To cancel the pause status, touch the STOP+GO key, and the cooking zone will return to the power level you previously set.

Locking the cooking hob

Setting the timer to switch off one cooking zone

Cooking zones set for this feature will:

1. Touch the key to select the heating zone for which you want to set the time. (e.g., zone 1#)

1. Touch the timer key, the counter indicator will start flashing and "30" will appear on the timer display.
2. Set the time by touching the "-" or "+" key.

Tip: Touching the "-" or "+" key once will decrease or increase the time by 1 minute. Touch and hold the "-" or "+" key, and the timer will decrease or increase by 10 minutes.

If the set time exceeds 99 minutes, the timer will automatically return to 0 minutes.

1. Once you set the time, the countdown will start immediately. The display will show the remaining time, and the timer indicator will flash for 5 seconds.

D (mm)	Š (mm)	V (mm)	D (mm)	A (mm)	B (mm)	X (mm)
590	520	55	51	560+5	490+5	50 mini

Choosing the correct cookware

Sau

L(mm)	l(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
590	520	55	51	560+5	490+5	50 mini

Cookware

Choosing the right cookware

Cookware dimensions

or

1. Beware of hot surfaces "H" indicates which cooking zone is hot to the touch. It will disappear when the surface cools down to a safe temperature. It can also be used as an energy-saving function if you want to heat more cookware, use the part of the hob that is still hot.

Using the power regulation

By using the power regulation, you can set the total power to 2.5 kW/ 3.0 kW/ 4.5 kW/ 6.5 kW and 7.4 kW. The default setting for the total power is the maximum power level.

Setting the total power level according to your needs

1. Make sure the hob is switched off. Note: You can only set the power regulation when the hob is switched off.
2. Touch the "stop + go" button and hold it for 5 seconds. You will hear a beep once.

1. After you hear the sound, simultaneously touch the "+" and "-" buttons and hold them for 3 seconds; the timer indicator will show the previous total power level by blinking, for example "2.5". Touch and hold "+" and "-" again for 1 second to switch to another power level, for example 3.0. When the desired power blinks, touch the "stop + go" button and hold it for 5 seconds. You will hear a beep 10 times. This means you have finished the setting.

Note:

1. After step 2, you must touch "+" and "-" within 3 seconds after hearing the beep. Otherwise, you will have to start again from step 2.
2. When you finish setting, wait until the beep sounds 10 times. During that period, do not touch any button. Otherwise, the setting will not be valid.

Using the pause function - STOP+START

This device is marked in accordance with European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). WEEE contains both polluting substances (which can negatively affect the environment) and base elements (which can be reused). It is important that WEEE undergoes special procedures for proper removal and disposal of pollutants and recovery of all materials. Every individual can play an important role in ensuring that WEEE materials do not become an environmental problem; it is essential to follow some basic rules:

- WEEE materials should not be treated as household waste;

- WEEE should be taken to designated collection points managed by the municipal council or a registered company.

In many countries, there is collection of large WEEE materials for households. When purchasing a new device, you can return the old one to the retailer, who is obliged to accept it free of charge, provided that the device is identical and has the same functions as the purchased equipment.

Informacije o proizvodu električnih ploča za kuvanje u domaćinstvu u skladu sa Regulativom komisije (EU) br. 66/2014
		Položaj	Simbol	Vrednost	Jedinica
Identifikacija modela				CIS642SCTT/4U
Vrsta ploče:				Električna ploča
Broj zona i/ili područja za kuvanje	zone			4
	područja
Tehnologija grejanja (indukcijske zone za kuvanje i područja za kuvanje, zone za kuvanje koje isijavaju, čvrste ploče)	indukcijske zone za kuvanje			X
	Indukcijska područja za kuvanje
	zone za kuvanje koje isijavaju
	čvrste ploče
Za kružne zone ili područja za kuvanje: prečnik upotrebljive površine po električnoj zoni za kuvanje, zaokružen na najbližih 5 mm		Zadnji levi	∅	18,0	cm
		Zadnji srednji	∅	-	cm
		Zadnji desni	∅	18,0	cm
		Srednji levi	∅	-	cm
		Srednji centralni	∅	-	cm
		Srednji desni	∅	-	cm
		Prednji levi	∅	18,0	cm
		Prednji centralni	∅	-	cm
		Prednji desni	∅	18,0	cm
Za nekružne zone ili područja za kuvanje: dužina i širina upotrebljive površine po električnoj zoni ili području za kuvanje, zaokružen na najbližih 5 mm		Zadnji levi	LW	-	cm
		Zadnji srednji	LW	-	cm
		Zadnji desni	LW	-	cm
	Srednji levi	LW	-	cm
	Srednji centralni	LW	-	cm
	Srednji desni	LW	-	cm
	Prednji levi	LW	-	cm
	Prednji centralni	LW	-	cm
	Prednji desni	LW	-	cm
Potrošnja energije za zonu ili područje kuvanja izračunata po kg	Zadnji levi	Električno kuvanje	193,5	Wh/kg
	Zadnji srednji	Električno kuvanje	-	Wh/kg
	Zadnji desni	Električno kuvanje	197,2	Wh/kg
	Srednji levi	Električno kuvanje	-	Wh/kg
	Srednji centralni	Električno kuvanje	-	Wh/kg
	Srednji desni	Električno kuvanje	-	Wh/kg
	Prednji levi	Električno kuvanje	192,3	Wh/kg
	Prednji centralni	Električno kuvanje	-	Wh/kg
	Prednji desni	Električno kuvanje	195,6	Wh/kg
Potrošnja energije za ploču izračunata po kg		Električna ploča	194,7	Wh/kg
Primenjeni standard: EN 60350-2 Kućni električni uređaji za kuvanje - 2. deo: Ploče - načini merenja učinka
Predlozi za uštedu energije:Da biste na najbolji način iskoristili svoju ploču, postavite posudu u središnji deo zone za kuvanje.Korišćenje poklopca će smanjiti vreme kuvanja i smanjiti potrošnju energije jer će zadržavati toplotu.Smanjite količinu tečnosti ili masti kako biste smanjili vreme kuvanja.Počnite s kuvanjem na višoj temperaturi i smanjite je kada se hrana zagreje.Koristite posuđe čiji je prečnik iste veličine kao i izabrana zona.

Pan sizes

Note:

H (mm)	SZ (mm)	M (mm)	D (mm)	A (mm)	B (mm)	X (mm)
590	520	55	51	560+5	490+5	50 mini

Iron pot

Magnetic circuit

Iron pan

The pans

Or

L (mm)	B (mm)	H (mm)	D (mm)	A (mm)	B (mm)	X (mm)
590	520	55	51	560+5	490+5	50 mini

A	B	C	D
Skrue	Beslag	Skruehul	Bundkabinet

iron pan

magnetic circuit

ceramic glass surface

induction coil

induced current

Choosing the right pan

Pan dimensions

Or

L (mm)	W (mm)	H (mm)	D (mm)	A (mm)	B (mm)	X (mm)
590	520	55	51	560+5	490+5	50 mini

A	B	C	D
Skruv	Fä ste	Skruvhå l	Bottenlå da

iron kettle

magnetic circuit

ceramic glass plate

induction coil

induced current

Choose the correct cookware

Always lift pans off the induction hob - do not slide them, otherwise they may scratch the glass.

Pan dimensions

The cooking zones are automatically adapted to the diameter of the pan, up to a limit. However, the bottom of the pan must have a minimum diameter according to the corresponding cooking zone. Place the pan in the center of the cooking zone for the best possible efficiency of the pan.

Or

1. If you want to cancel the pause status, press the STOP+RUN button, and then the cooking zone will return to the power level you set before.

L (mm)	B (mm)	H (mm)	D (mm)	A (mm)	B (mm)	X (mm)
590	520	55	51	560+5	490+5	50 mini

A	B	C	D
Skrue	Brakett	Skruehull	Bunnetui

Precautions

Pan dimensions

or

1. Caution: hot surfaces

P (mm)	L (mm)	K (mm)	D (mm)	A (mm)	B (mm)	X (mm)
590	520	55	51	560+5	490+5	50 vä h.

)n"n( X	)n"n( B	)n"n( A	)n"n( D	)n"n( nɔɪə	)n"n( ɔɪnɪ	)n"n( ʌŋɪk
50 nɪnə7	490+5	560+5	51	55	520	590

E	D	)n"n( C	)n"n( B	)n"n( A
n"n 5 n"n	n"n n"n	20 n"n	50 n"n	760

iron pan

magnetic circuit

Select the correct pans

pan dimensions

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
590	520	55	51	560+5	490+5	50 mini

metal cookware

magnetic circuit

cookware sizes
