USER MANUAL MK550 LOGITECH

Getting started with

Features and troubleshooting, 9

Espanol Instalacion,4

Caracteristicasyresolutiondeproblemas,19

François Installation, 4

Your Keyboard and mouse are now ready for use. Install the Logitech SetPoint Software to do the following:

• Enable and customize the keyboard hotkeys (F keys and media keys)
• Enable the tilt wheel and customize up to 5 buttons on the mouse

www.logitech.com/downloads

Espanol

www.logitech.com/downloads

Français

www.logitech.com/downloads

Portugues

www.logitech.com/downloads

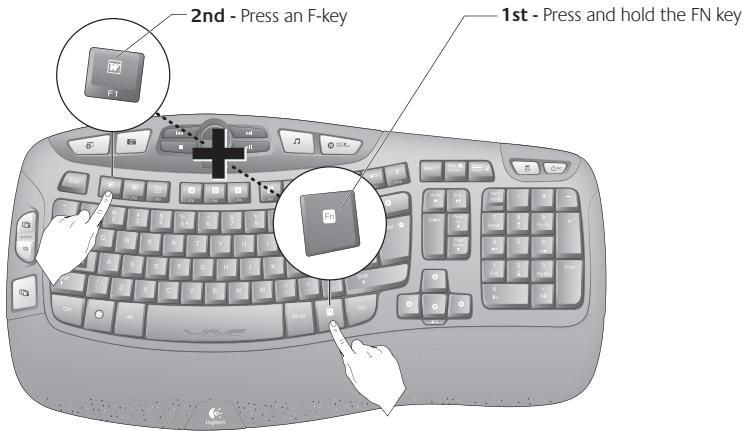

Keyboard features: F-key usage

User-friendly enhanced F-keys let you launch applications easily. To use the enhanced functions (blue icons), first press and hold the FN key; second, press the F-key you want to use.

Tip In the software settings, you can invert the FN mode if you prefer to access directly the enhanced functions without having to press the FN key.

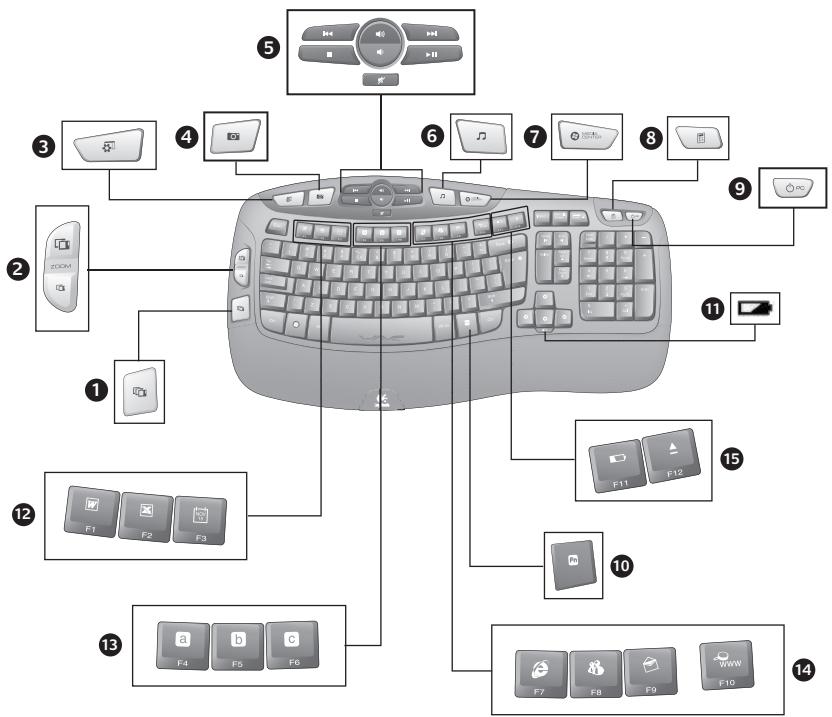

Keyboard features

Keyboard features

1. Application Switcher*
2. Zoom in/out documents and images or scroll windows and Flip 3D*
3. Bring up Windows desktop gadgets (Yahoo® Widgets in Windows XP)*

4. Open Windows Photo Gallery (or My Pictures if Photo Gallery not available on your system)*

5. Productivity zone

FN + F1 Launches document application
FN + F2 Launches spreadsheet application
FN + F3 Launches calendar*

1. Favorites zone

FN + F4 to F6 program your favorite application, folder, or web site with a long, simultaneous press of and the corresponding F4, F5, or F6 key (just like the presets of a car radio)*

1. Multimedia navigation
2. Media player
3. Windows Media Center*
4. Windows Calculator
5. PC sleep
6. FN key (for use with F-keys)

7. Battery status indicator (FN + F11)

8. Internet zone

FN + F7 Launches Internet browser
FN + F8 Launches instant message application*
FN + F9 Launches e-mail application
FN + F10 Launches Windows search

1. Convenience zone

FN + F11 Battery status check
FN + F12 Opens/closes CD-DVD tray*

Mouse features

1. Battery LED
2. Vertical and side-to-side scrolling (Side-to-side scrolling requires software installation.)
3. Back and forward buttons. Customize with other preferred functions, like application switch, through Logitech software.
4. On/Off slider
5. Battery-door release
6. Unifying receiver storage

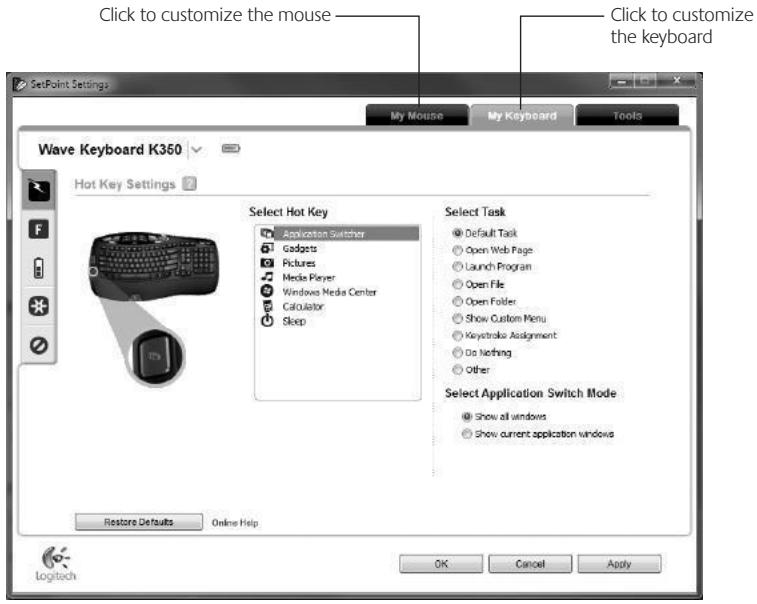

Customizing the keyboard and mouse

1. Go to Start / All Programs / Logitech / Mouse and Keyboard / Mouse and Keyboard Settings to make changes.
2. To customize the keyboard, click the My Keyboard tab. For the mouse, click the My Mouse tab.
3. For either the keyboard or mouse, a series of tabs is shown on the left.

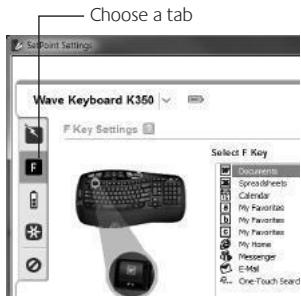

1. Choose a tab, such as the keyboard F-key Settings. A picture of the keyboard is displayed showing F-keys (list 2) to which tasks can be assigned (list 3).

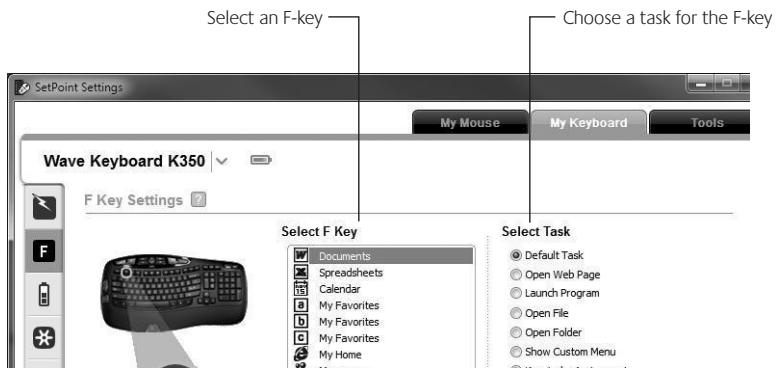

2. In the Select F-key list, highlight the F-key to be reassigned a task.
3. In the Select Task list, highlight the new task.
4. When you are done, click OK to save the new F-key assignments.

Keyboard F-key Settings tab

Battery management

Your keyboard has up to three years of battery life and your mouse has up to two.*

Battery sleep mode

Did you know that your keyboard and mouse go into sleep mode after you stop using them for a few minutes? This feature helps limit battery usage and eliminates the need to keep switching your devices on and off. Both your keyboard and mouse are up and running immediately once you begin using them again.

How to check the battery level for the keyboard

Option 1: Press FN + F11 to check keyboard battery level. If the battery status indicator glows green, the batteries are good. If the indicator blinks red, the battery level has dropped to 10% and you have only a few days of battery power left.

Option 2: Launch the SetPoint Software, and click the Keyboard Battery tab to see the current keyboard battery level.

Battery status indicator

How to check the battery level for the mouse

Option 1: Turn the mouse off then back on using the On/Off switch on the mouse bottom. If the LED on top of the mouse glows green for 10 seconds, the batteries are good. If the LED blinks red, the battery level has dropped to 10% and you have only a few days of battery power left.

Option 2: Launch the SetPoint Software, and click the Mouse Battery tab to see the current mouse battery level.

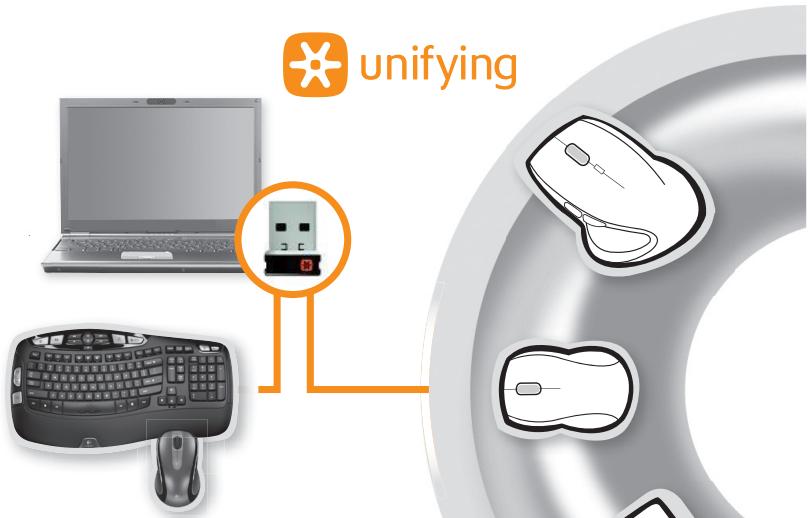

Plug it. Forget it. Add to it.

You've got a Logitech Unifying receiver. Now add a compatible wireless keyboard or mouse that uses the same receiver. It's easy. Just start the Logitech Unifying software* and follow the onscreen instructions. For more information and to download the software, visit www.logitech.com/unifying

*Go to Start / All Programs / Logitech / Unifying / Logitech Unifying Software

Troubleshooting

Keyboard and mouse are not working

Check the USB connection. Also, try changing USB ports.
Move closer? Try moving the keyboard and mouse closer to the Unifying receiver, or plug the Unifying receiver into the receiver extender cable to bring it closer to the keyboard and mouse.
Check battery installation. Also check the battery power of each device. (See Battery management for more information.)

On the mouse bottom, slide the On/Off switch right to turn on the mouse. The Battery LED on the mouse top case should light green for 10 seconds. (See Battery management for more information.)

Troubleshooting

• Are you experiencing slow or jerky cursor movement? Try the mouse on a different surface (e.g., deep, dark surfaces may affect how the cursor moves on the computer screen).

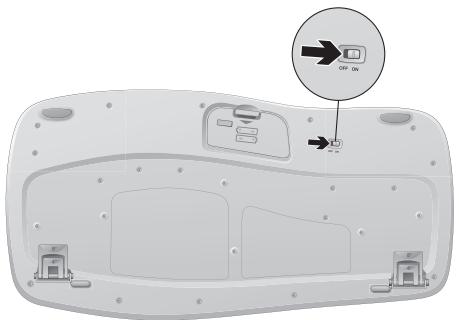

  Is the keyboard turned on? Slide the keyboard Off/On switch to the On position, as shown in the image below.

Re-establish the connection. Use the Unifying software to reset the connection between the keyboard/mouse and Unifying receiver. Refer to the Unifying section in this guide for more information (p. 17).

For more information about using your product, and for ergonomics.

visite www.logitech.com/unifying

*Vá para Iniciar / Todos os programs / Logitech / Unifying / Logitech Unifying Software

www.logitech.com/support

United States	[phone]
Argentina	+00800-555-3284
Brasil	+0 800-891-4173
Canada	[phone]
Chile	1230 020 5484
Latin America	[phone]
Mexico	001 800 578 9619

FCC CE C US LITED LZE ACCESSORY 8KDB	EN 60950-1
M/N:C-U0003 Rating: 5V =, 100mA Approval No.: ETA-0035/2009/WRLO CMIT ID: 2009DJ1025 Z855 N231 FCC ID: JNZCU0003 IC: 4418A-CU0003 MADE IN CHINA Complies with IDA Standards DB101104	M/N:C-U0004 Rating: 5V =, 100mA FCC ID: JNZCU0004 IC: 4418A-CU0004 MADE IN CHINA
	M/N:C-U0007 Rating: 5V =, 100mA FCC ID: JNZCU0007 IC: 4418A-CU0007 MADE IN CHINA

www.logitech.com

© 2010 Logitech. All rights reserved. Logitech, the Logitech logo, and other Logitech marks are owned by Logitech and may be registered. All other trademarks are the property of their respective owners. Logitech assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice.
