Product Type	LCD Television
Model	KLV-V26A10
Brand	Sony
Screen Size	26 inches (66 cm diagonal)
Resolution	WXGA (1366 x 768 pixels)
Dimensions (with stand)	Approx. 662 x 502 x 220 mm
Weight (with stand)	Approx. 10 kg
Power Consumption	Approx. 110 W
Standby Power Consumption	Less than 1 W
Inputs	HDMI, Component, Composite, S-Video, VGA (PC), RF
Audio Output	2 x 10 W speakers
Tuner	Analog and Digital (DVB-T)
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use abrasive cleaners.
Safety	Do not expose to rain or moisture. Ensure proper ventilation.
Spare Parts and Repairability	Contact Sony service center for genuine parts. Manual includes repair information.
Manual Availability	PDF download with 202 pages in multiple languages.

Frequently Asked Questions - Bravia KLV-V26A10 SONY

How do I connect an external device like a DVD player?

Use the HDMI, Component, or Composite inputs on the back of the TV. Select the corresponding input source using the INPUT button on the remote.

How can I adjust the picture settings?

Press the MENU button, navigate to Picture settings, and adjust options like Brightness, Contrast, and Color. You can also select preset modes like Vivid or Cinema.

What should I do if the TV does not turn on?

Check if the power cord is securely connected and the outlet is working. Try pressing the Power button on the TV itself. If still off, unplug for 1 minute and try again. If problem persists, contact support.

How do I clean the screen?

Use a soft, dry cloth to gently wipe the screen. Do not use any liquid cleaners or sprays directly on the screen. For stubborn smudges, slightly dampen the cloth with water.

Can I mount this TV on a wall?

Yes, the TV is VESA compatible (200 x 200 mm). Use a suitable wall mount bracket and follow the instructions in the manual for safe installation.

How do I rescan digital channels?

Press MENU, select Setup or Channels, then choose Auto Tuning or Digital Auto Tuning. The TV will search for available digital broadcasts.

What is the recommended distance for viewing?

For a 26-inch TV, a viewing distance of about 1.5 to 2 meters (5-6.5 feet) is recommended for comfortable viewing.

How do I enable or disable the sleep timer?

Press the SLEEP button on the remote repeatedly to select a time (e.g., 30, 60, 90 minutes). To cancel, press until Off appears.

Where can I find the user manual?

The manual is available for free download in PDF from the product page on notice-facile.com. It includes detailed information in multiple languages.

What should I do if the remote control is not working?

Replace the batteries with new AA ones. Ensure the remote is pointed at the sensor on the TV. Remove any obstacles. If still not working, try resetting the remote by removing batteries and pressing each button.

USER MANUAL Bravia KLV-V26A10 SONY

Operating Instructions

GB

Before operating the TV, please read the "Safety information" section of this manual. Retain this manual for future reference.

Bedienungsanleitung

DE

© 2005 Sony Corporation

WARNING Introduction

• To prevent the risk of electric shock, do not insert the plug cut off from the mains lead into a socket outlet. This plug cannot be used and should be destroyed.
• To prevent the risk of fire or electric shock, do not expose the TV set to rain or moisture.
• Dangerously high voltages are present inside the TV set. Do not open the cabinet. Refer servicing to qualified personnel only.

Thank you for choosing this Sony product. Before operating the TV, please read this manual thoroughly and retain it for future reference.

Trademark information

• "PlayStation" is a trademark of Sony Computer Entertainment, Inc.
• TruSurround technology is used as a virtualizer for Dolby Virtual Surround.
• TruSurround, SRS and symbol are trademarks of SRS Labs, Inc. TruSurround technology is incorporated under license from SRS Labs, Inc.

• This TV incorporates

High-Definition Multimedia

Interface (HDMI™) technology. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Table of Contents

Safety information 4

Precautions .... 7 Disposal of the TV set.... 7

Overview of the remote 8

Overview of the TV buttons and indicators....9

Getting Started

1: Checking the accessories .... 10 2: Inserting batteries into the remote...... 10 3: Connecting an aerial/VCR.... 11 4: Preventing the TV from toppling over.... 12 5: Switching on the TV 13 6: Selecting the language and country/region 13 7: Auto-tuning the TV 14

Watching TV

Watching TV.... 16

Viewing pictures from connected equipment 18

Using the Menu

Navigating through menus .... 19 Overview of the menus.... 20

Picture Adjustment menu.... 21 Mode.... 21

Contrast/Brightness/Colour/Hue/Sharpness/Backlight.... 21

Colour Tone 21

Noise Reduction 22

Dynamic Picture 22

Gamma Correction 22

Reset 22

Sound Adjustment menu.... 23 Effect (sound effect).... 23

Treble/Bass/Balance 23

Auto Volume 23

Dual Sound 24

Volume (headphone volume).... 24

Dual Sound 24

Reset 24

Screen Control menu....25

Auto Format....25

Screen Format....25

Screen Shift....25

Features menu 26

Power Saving 26

Speaker....26

AV2 Output....26

Picture Off 27

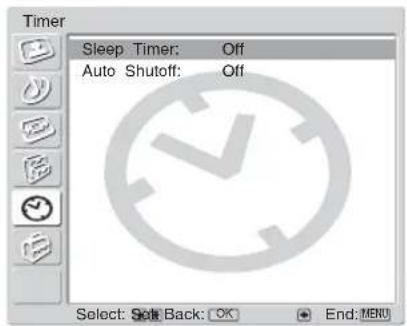

Timer menu 28

Sleep Timer 28

Auto Shutoff....28

Set Up menu....29

Auto Start Up....29

Language....29

Country....29

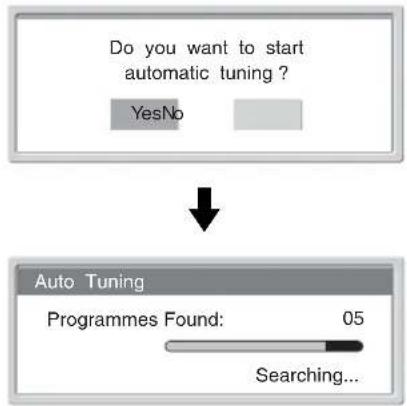

Auto Tuning....30

Programme Sorting 30

Programme Labels....30

AV Preset....31

Manual Programme Preset....31

Using Optional Equipment

Connecting optional equipment ....34

Programming the remote....36

Additional Information

Specifications 38

Troubleshooting....39

Index....41

Safety information

Mains lead

- Unplug the mains lead when moving the TV set. Do not move the TV set with the mains lead plugged in. It may damage the mains lead and result in fire or elec

- If you damage the mains lead, it may result in fire or electric shock.

• Do not pinch, bend, or twist the mains lead excessively. The core conductors may be exposed or broken, causing a short-circuit, which may cause fire or electric shock.
• Do not modify or damage the mains lead.
• Do not put anything heavy on the mains lead. Do not pull the mains lead.
• Keep the mains lead away from heat sources.
• Be sure to grasp the plug when disconnecting the mains lead.
• If the mains lead is damaged, stop using it and ask your dealer or Sony service centre to exchange it.
• Do not use the supplied mains lead on any other equipment.
• Use only an original Sony mains lead, not other brands.

Mains lead/cable protection

Pull out the mains lead/cable by the plug. Do not pull on the mains lead/cable itself.

Mains

Do not use a poor fitting mains socket. Insert the plug fully into the mains socket. A poor fit may cause arcing and result in fire. Contact your electrician to have the mains socket changed.

Optional accessories

Observe the following when installing the TV set using a stand or wall-mount bracket. If you do not do so, the TV set may fall and cause serious injury.

• Use the specified wall-mount bracket or stand.
• Secure the TV set properly, following the instructions supplied with your stand or wall-mount bracket when installing the TV set.
• Be sure to attach the brackets supplied with your stand.

Installation

If the TV set is to be installed on a wall, have the installation carried out by qualified service men.

Improper installation may render the TV set unsafe.

Medical institutions

Do not place this TV set in a place where medical equipment is in use. It may cause malfunction of medical instruments.

Carrying

• Before carrying the TV set, disconnect all the cables from the TV set.
• When you carry the TV set by hand, hold the TV set as illustrated on the right. If you do not do so, the TV set may fall and be damaged or cause serious injury. If the TV set has been dropped or damaged, have it checked immediately by qualified service personnel.
• When transporting it, do not subject the TV set to jolts or excessive vibration. The TV set may fall and be damaged or cause serious injury.
• When you carry the TV set in for repair or when you move it, pack it using the original carton and packing material.
• Carrying the TV set requires two or more people.

Ventilation

- Never cover the ventilation holes in the cabinet. It may cause overheating and result in fire.

- Unless proper ventilation is provided, the TV set may gather dust and get dirty. For proper ventilation, observe the following:

• Do not install the TV set turned backwards or sideways.
• Do not install the TV set turned over or upside down.
• Do not install the TV set on a shelf or in a closet.
• Do not place the TV set on a rug or bed.
• Do not cover the TV set with cloth, such as curtains, or items such as newspapers, etc.

- Leave some space around the TV set. Otherwise, air-circulation may be inadequate and cause overheating, which may cause fire or damage to the TV set.

• When installing the TV set on the wall, leave at least 10 cm space from the bottom of the TV set.
• Never install the TV set as follows:

Air circulation is blocked.

Air circulation is blocked.

Ventilation holes

Do not insert anything in the ventilation holes. If metal or liquid is inserted in these holes, it may result in fire or electric shock.

Placement

• Never place the TV set in hot, humid or excessively dusty places.
• Do not install the TV set where insects may enter.
• Do not install the TV set where it may be exposed to mechanical vibration.
• Place the TV set on a stable, level surface. Otherwise, the TV set may fall and cause injury.
• Do not install the TV set in a location where it may protrude, such as on or behind a pillar, or where you might bump your head on it. Otherwise, it may result in injury.

Water and moisture

• Do not use this TV set near water – for example, near a bathtub or shower room. Also do not expose to rain, moisture or smoke. This may result in fire or electric shock.
• Do not touch the mains lead and the TV set with wet hands. Doing so may cause electric shock or damage to the TV set.

Moisture and flammable objects

• Do not let this TV set get wet. Never spill liquid of any kind on the TV set. If any liquid or solid object does fall through openings in the cabinet, do not operate the TV set. It may result in electric shock or damage to the TV set. Have it checked immediately by qualified service personnel. • To prevent fire, keep flammable objects (candles, etc.) and electric bulbs away from the TV set.

Oils

Do not install this TV set in restaurants that use oil. Dust absorbing oil may enter and damage the TV set.

Fall

Place the TV set on a secure, stable stand. Do not hang anything on the TV set. If you do, the TV set may fall from the stand or wall-mount bracket, causing damage or serious injury.

Do not allow children to climb on the TV set.

Vehicle or ceiling

Do not install this TV set in a vehicle. The motion of the vehicle may cause the TV set to fall down and cause injury. Do not hang this TV set from the ceiling.

Ships and other vessels

Do not install this TV set on a ship or other vessel. If the TV set is exposed to seawater, it may cause fire or damage the TV set.

Outdoor use

• Do not expose the TV set to direct sunlight. The TV set may heat up and this may result in damage to the TV set.
• Do not install this TV set outdoors.

Wiring

• Unplug the mains lead when wiring cables. When hooking up, be sure to unplug the mains lead for your safety. • Take care not to catch your feet on the cables. It may damage the TV set.

Cleaning

• Unplug the mains lead when cleaning the mains plug and this TV set. If you do not, it may result in electric shock.
• Clean the mains plug regularly. If the plug is covered with dust and it picks up moisture, its insulation may deteriorate and result in fire.

Lightning storms

For your own safety, do not touch any part of the TV set, mains lead, or aerial lead during lightning storms.

Continued

Damage requiring service

If the surface of the TV set cracks, do not touch it until you have unplugged the mains lead. Otherwise electric shock may result.

Servicing

Do not open the cabinet. Entrust the TV set to qualified service personnel only.

Small accessories removal and fittable

Keep accessories out of children's reach. If they are swallowed, choking or suffocation may occur. Call a doctor immediately.

Broken glass

Do not throw anything at the TV set. The screen glass may explode by the impact and cause serious injury.

When not in use

For environmental and safety reasons, it is recommended that the TV set is not left in standby when unused. Disconnect from the mains. However, some TV

sets may have features which need the TV set to be left in standby to work correctly. The instructions in this manual will inform you if this applies.

Viewing the TV

• To view the TV comfortably, the recommended viewing position is from four to seven times the screen's vertical length away from the TV set. View the TV in moderate light, as viewing the TV in poor light strains your eyes. Watching the screen continuously for long periods of time can also strain your eyes.
• If the angle of the TV set is to be adjusted, steady the base of the stand with your hand to prevent the TV set from becoming separated from the stand. Be careful not to get your fingers caught between the TV set and the stand.

Volume adjustment

• Adjust the volume so as not to trouble your neighbours. Sound carries very easily at night time. Therefore, closing the windows or using headphones is suggested.
• When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result.

Overloading

This TV set is designed to operate on a 220–240 V AC supply only. Take care not to connect too many appliances to the same mains socket as this could result in fire or electric shock.

Heat

Do not touch the surface of the TV set. It remains hot, even after the TV set has been turned off for some time.

Corrosion

If you use this TV set near the seashore, salt may corrode metal parts of the TV set and cause internal damage or fire. It may also shorten the life of the TV set. Steps should be taken to reduce the humidity and moderate the temperature of the area where the TV set is located.

Precautions

LCD Screen

• Although the LCD screen is made with high-precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD panel and is not a malfunction.
• Do not expose the LCD screen surface to the sun. Doing so may damage the screen surface.
• Do not push or scratch the front filter, or place objects on top of this TV set. The image may be uneven or the LCD panel may be damaged.
• If this TV set is used in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.
• Ghosting may occur when still pictures are displayed continuously. It may disappear after a few moments.
• The screen and cabinet get warm when this TV set is in use. This is not a malfunction.
• The LCD contains a small amount of liquid crystal and mercury. The fluorescent tube used in this TV set also contains mercury. Follow your local ordinances and regulations for disposal.

Fluorescent lamp

This TV set uses a special fluorescent lamp as its light source. If the screen image becomes dark, flickers, or does not appear, the fluorescent lamp has worn out and the LCD screen should be replaced. For replacement, consult qualified service personnel.

Installing the TV set

• Do not install the TV set in places subject to extreme temperature, for example in direct sunlight, or near a radiator, or heating vent. If the TV set is exposed to extreme temperature, the TV set may overheat and cause deformation of the casing or cause the TV set to malfunction.
• The TV set is not disconnected from the mains when the TV set is switched off. To disconnect the TV set completely, pull the plug from the mains.
• To obtain a clear picture, do not expose the screen to direct illumination or direct sunlight. If possible, use spot lighting directed down from the ceiling.
• Do not install optional components too close to the TV set. Keep optional components at least 30 cm away from the TV set. If a VCR is installed in front of the TV set or beside the TV set, the picture may become distorted.

Handling and cleaning the screen surface/cabinet of the TV set

The screen surface is finished with a special coating to prevent strong light reflections.

To avoid material degradation or screen coating degradation, observe the following precautions.

• Do not push on the screen, scratch it with a hard object, or throw anything at it. The screen may be damaged.
• Do not touch the display panel after operating the TV set continuously for a long period as the display panel becomes hot.
• We recommend that the screen surface be touched as little as possible.
• To remove dust from the screen surface/cabinet, wipe gently with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution. You can wash and repeatedly use the soft cloth.
• Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material.
• The ventilation holes can accumulate dust over time. To ensure proper ventilation, we recommend removing the dust periodically (once a month) using a vacuum cleaner.

Disposal of the TV set

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling

of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic office, your household waste disposal service or the shop where you purchased the product.

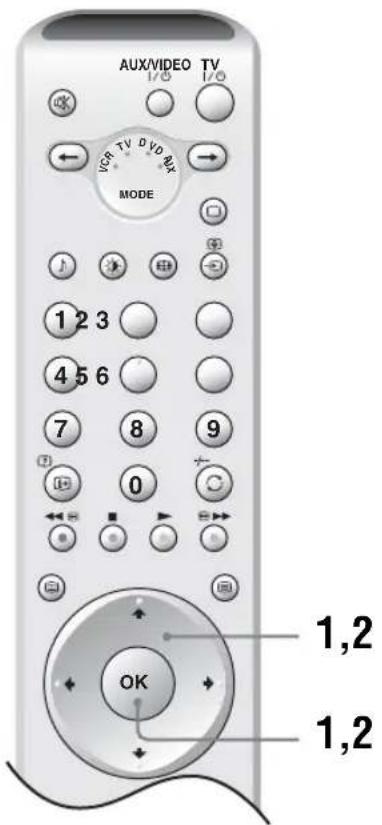

Overview of the remote

① TV I/⏻ - TV standby

Switches off the TV temporarily, and on from standby mode.

②Media selector (page 36)

Selects which equipment you want to operate. A green light will be momentarily lit to show which one you have selected.

③ - TV mode (page 18)

④/→ Input select / Text hold

• In TV mode (page 18): Selects the input source from equipment connected to the TV sockets.
• In Text mode (page 17): Holds the current page.

⑤ Screen mode (page 18)

⑥ Number buttons

• In TV mode: Selects channels. For channel numbers 10 and above, enter the second digit within two seconds.
• In Text mode: Enters the three digit page number to select the page.

⑦/ℰ - Previous channel / VCR double digit

• In TV mode: Returns to the previous channel watched (for more than five seconds).
• In VCR mode: Selects the double-digit channels for Sony's VCR (e.g., for 23, press -/-- and then the 2 and 3).

⑧ - Text (page 17)

⑨ ↑/↓/←/→/OK (page 16, 18, 19)

⑩ - Screen memo (page 16)

⑪ PROG +/- (page 16)

• In TV mode: Selects the next (+) or previous (-) channel.
• In Text mode: Selects the next (+) or previous (-) page.

⑫ MENU (page 19)

⑬ ∠ +/- - Volume

14 Sleep Timer (page 28)

15 - NextView (page 17)

16 Coloured buttons

• In NexTView mode (page 17): Sorts the programmes.
• In VCR and DVD mode (page 36): Operates the main functions of your VCR or DVD.

17/Info/Text reveal

• In TV mode: Displays information such as current channel number and screen mode.
• In Text mode (page 17): Reveals hidden information (e.g., answers to a quiz).

18 - Picture mode (page 21)

19 ♩ – Sound effect (page 23)

20 口 ✗ - Mute (page 16)

21 AUX/VIDEO I/

Switches your equipment on/off, as programmed on the remote (page 36).

Tip

The up/down/left/right, triangle+, PROG+, and number 5 buttons have tactile dots. Use the tactile dots as references when operating the TV.

Overview of the TV buttons and indicators

1. Power

Switches the TV on or off.

2. PROG +/- / up/down

• In TV mode: Selects the next (+) or previous (-) channel.
• In TV menu: Moves through the options up or down.

3. Volume +/- / left/right

• Increases (+) or decreases (-) the volume.
• In TV menu: Moves through the options left or right.

4. Input select/OK

• In TV mode (page 18): Selects the input source from equipment connected to the TV sockets.
• In TV menu: Selects the menu or option, and confirm the setting.

5 (pA-EU 9)

6 - Picture Off/Sleep Timer indicator

• Lights up in green when the picture is switched off (page 27). Only the picture is switched off (the sound remains unchanged).
• Lights up in orange when the Sleep Timer is set (page 28).

7 - Standby indicator

Lights up in red when the TV is in standby mode.

8 - Power indicator

Lights up in green when the TV is switched on.

9 - Remote control sensor

Getting Started

1: Checking the accessories

Remote RM-EA001 (1)

Size AA batteries (R6 type) (2)

Coaxial cable (1)

Mains lead (Type C-6) (1)

Cable holder (1)

Support belt (1) and screw (2)

2: Inserting batteries into the remote

Notes

• Observe the correct polarity when inserting batteries.
• Dispose of batteries in an environmentally friendly way. Certain regions may regulate disposal of the battery. Please consult your local authority.
• Do not use different types of batteries together or mix old and new batteries.
• Handle the remote with care. Do not drop or step on it, or spill liquid of any kind onto it.
• Do not place the remote in a location near a heat source, or in a place subject to direct sunlight, or in a damp room.

3: Connecting an aerial/VCR

A

B

Continued

1 Connect your aerial with the supplied coaxial cable.

If connecting to an aerial only (A)

Connect your aerial to the socket marked with a 7 on the rear of the TV, then go to step 3.

If connecting to a VCR with an aerial (B)

Connect your aerial to the input socket on your VCR.

2 Connect your VCR.

①Connect the output socket on your VCR to the socket marked with a T on the rear of the TV using the RF lead.

②Connect the scart socket on your VCR to the scart socket marked with a circle and 2 on the rear of the TV using a scart lead.

3 Connect the supplied mains lead to the AC IN socket on the rear of the TV.

Note

Do not connect the mains lead to your mains socket until all connections are complete.

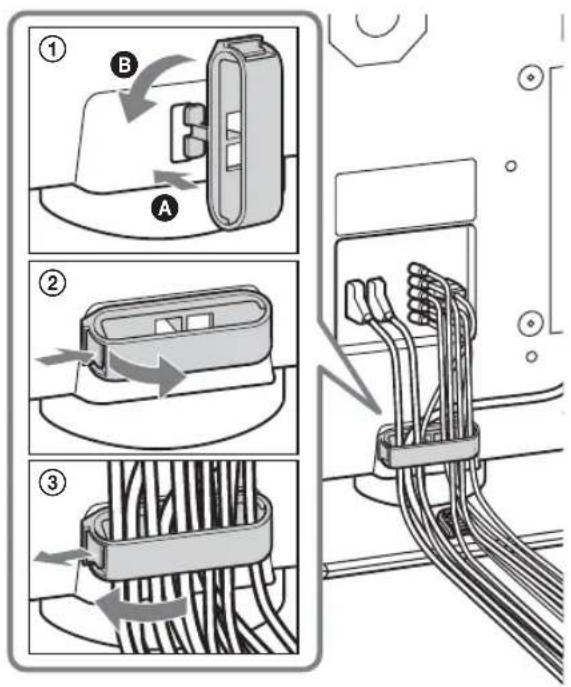

4 Bundle the cable.

①Attach the cable holder to the rear of the TV (A), then turn the cable holder a quarter turn to the left (B). ②Push the clasp lever in to release the lock and open the cover, and then insert the cables. ③Close the cover until it clicks shut and locks.

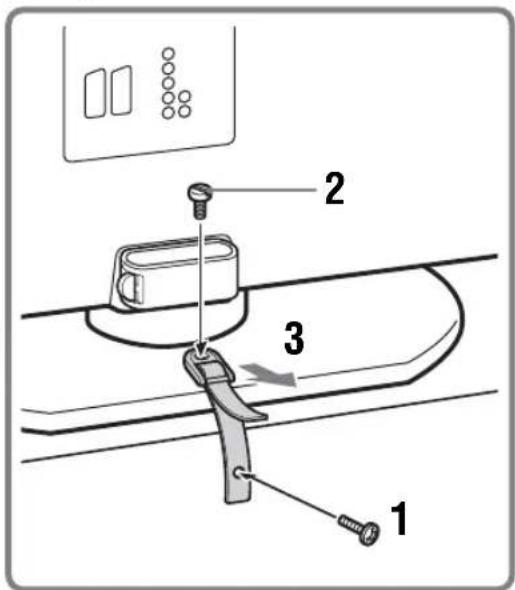

4: Preventing the TV from toppling over

After all connections are completed, secure the TV.

1 Fasten the supplied support belt to the stand with the supplied screw. 2 Fit the supplied support belt to the TV stand, then firmly fasten with the supplied screw using a screw driver or coin, etc. 3 While supporting the TV, tighten the supplied support belt to adjust the length.

5: Switching on the TV

1 Connect the TV to your mains socket (220-240V AC, 50Hz). 2 Press ⏻ on the TV (right side).

When you switch on the TV for the first time, the Language menu appears on the screen, then go to "6: Selecting the language and country/region" on page 14.

When the TV is in standby mode (the ⏻(standby) indicator on the TV (front) is red), press TV I/⏻ on the remote to switch on the TV.

Continued

6: Selecting the language and country/region

When you switch on the TV for the first time, the Language menu appears on the screen.

1 Press ↑/↓ to select the language displayed on the menu screens, then press OK.

2 Press ↑/↓ to select the country/region in which you will operate the TV, then press OK.

If the country/region in which you want to use the TV does not appear in the list, select “-” instead of a country/region.

The message confirming the TV start auto-tuning appears on the screen, then go to "7: Auto-tuning the TV" on page 15.

7: Auto-tuning the TV

After selecting the language and country/region, a message confirming the TV start auto-tuning appears on the screen.

You must tune the TV to receive channels (TV broadcasts). Do the following to search and store all available channels.

1 Press OK to select "Yes".

The TV starts searching for all available channels. This may take some time, please be patient and do not press any buttons on the TV or remote. Once all available channels have been stored, the TV returns to normal operation, displaying the channel stored on channel number 1.

When a message appears for you to confirm the aerial connections

No channels are found. Check all the aerial connections and press OK to start auto-tuning again.

2 When the Programme Sorting menu appears on the screen, follow steps 2 to 3 of "Programme Sorting" (page 30).

If you do not change the order in which the channels are stored on the TV, go to step 3.

3 Press MENU to exit.

The TV has now tuned in all the available channels.

Watching TV

Watching TV

1 Press ⏻ on the TV (right side) to switch on the TV.

When the TV is in standby mode (the ⏻ (standby) indicator on the TV (front) is red), press TV I/○ on the remote to switch on the TV.

2 Press the number buttons or PROG +/- to select a TV channel.

To select channel numbers 10 and above using the number buttons, enter the second digits within three seconds.

Additional operations

To Do this
Turn off the TV temporarily(Standby mode)	Press TV I/⏻.
Turn off the TV completely	Press ⏻ on the TV (right side).
Adjust the volume Press △ + (increase)/- (decrease).
Mute the sound Press ☒. Press again to restore.
Return to the previous channel watched (for more than five seconds)	Press ⭕.
Access the Programme index table	Press OK. To select a channel, press ↑/↓, then press OK.To access the Input signal index table, see page 18.
Switch the TV automatically to the standby mode after a specified time period – Sleep	Press ⏻For details, see page 28.
Temporarily freeze and review the picture on the screen	Press ⭕press again to cancel.

To access Text

Press ☐. Each time you press ☐, the display changes cyclically as follows:

Text → Text over the TV picture (mix mode) → No Text (exit the Text service)

To select a page, press the number buttons or PROG +/-.

To hold a page, press /→

To reveal hidden information, press Ⓗ?

Tips

• Ensure that the TV is receiving a good signal, or some text errors may occur.
• Most TV channels broadcast a Text service. For information on the use of the service, select the index page (usually page 100).
• When four coloured items appear at the bottom of the Text page, Fastext is available. Fastext allows you to access pages quickly and easily. Press the corresponding coloured button to access the page.

To access NexTView

NexTView is an electronic programme guide.

1 When a channel which provides a NexTView service is selected ("NexTView" is displayed as soon as the data is available), press 📄

2 Press ↑/↓/←/→ to select the displayed option, then press OK to confirm.

To turn off NexTView, press again.

① (Art)/ (Entertainment)/ (Children)/ (Art)/ (Sports)/ (News)/ (Movies)/ (Music):

Lists programmes by category.

② (Use y when more than eight channels provide NexTView):

Creates a channel list. You can store up to eight channels. To restore the factory setting channels, select "Auto ▶".

3:

Shows a reminder list (for details, see “⑤ Info”).

4 Programmes:

Displays the programme list by time when the TV receives 50% or less of the NexTView data (“NexTView” is displayed in orange when a channel is selected), and displays the programme list by time and channel when the TV receives more than 50% of the NexTView data (“NexTView” is displayed in black when a channel is selected). The percentage may differ depending on your area.

5 Info:

Displays programme description.

To record the programme (only VCRs which support SmartLink and Timer Programming features), press the red button.

To display a reminder message when the programme is broadcast, press the green button. You can set up to five programmes.

Notes

• Wrong characters appear on the screen if the language used in the NexTView does not match the language set on your TV. Set “Language” to the language used in the NexTView (page 29). Also set “Country” to the country/region from which the NexTView programme is broadcast (page 29).
• “Record” and “Remind” are not available once the programme has started.

To change the screen mode manually to suit the broadcast

Press repeatedly to select Wide, Smart, 4:3, 14:9, or Zoom.

Wide

Displays wide screen (16:9) broadcasts in the correct proportions.

Smart*

Displays conventional 4:3 broadcasts with an imitation wide screen effect. The 4:3 picture is stretched to fill the screen.

4:3

Displays conventional 4:3 broadcasts (e.g., non-wide screen TV) in the correct proportions.

14:9*

Displays 14:9 broadcasts in the correct proportions. As a result, black border areas are visible on the screen.

Zoom*

Displays cinemascopic (letter box format) broadcasts in the correct proportions.

* Parts of the top and bottom of the picture may be cut off.

Tips

• Alternatively, you can set "Auto Format" to "On". The TV will automatically select the best mode to suit the broadcast (page 25).
• You can adjust the portion of the picture when selecting Smart, 14:9, or Zoom. Press ↑/↓ to move up or down (e.g., to read subtitles).

Viewing pictures from connected equipment

Switch on the connected equipment, then perform one of the following operations.

For equipment connected to the SCART sockets using a fully-wired 21-pin SCART lead

Start playback on the connected equipment. The picture from the connected equipment appears on the screen.

For an auto-tuned VCR (page 11)

Press PROG +/-, or the number buttons, to select the video channel.

For other connected equipment

Press → repeatedly until the correct input symbol (see below) appears on the screen.

→1/→…1,→2/→…2:

Audio/video or RGB input signal through the SCART socket /4 or 2 appears only if an RGB source has been connected.

3:

Component input signal through the Y, PB/CB, Pr/Cr sockets +3: and audio input signal through the L/G/S/I, R/D/D/D sockets +3:

4:

Digital audio/video signal is input through the HDMI IN 4 socket. Audio input signal is analogue only if the equipment has been connected using the DVI and audio out socket.

→5/5:→...

Video input signal through the video socket 5 and audio input signal through the audio socket L/G/S/I (MONO), R/D/D/D sockets 5 appears only if the equipment is connected to the S video socket 5 instead of the video socket 5 and S video input signal is input through the S video socket 5.

Additional operations

To Do this

Return to the normal TV operation: Press □.

Access the Input signal index table

Press OK, then press →. To select an input source, press ↑/↓, then press OK.

Using the Menu

Navigating through menus

1 Press MENU to display the menu. 2 Press ↑/↓ to select a menu icon. 3 Press ↑/↓/←/→ to select an option. 4 Press ↑/↓/←/→ to change/set the setting, then press OK.

To exit the menu, press MENU.

To return to the last display, press ←.

Overview of the menus

The following options are available in each menu. For details on navigating through menus, see page 19. Also, see page in parentheses for details of each menu.

①Picture Adjustment

②Sound Adjustment

③Screen Control

④ Features

5Timer

6 Set Up

Note

The options you can adjust vary depending on the situation. Only the options that can be operated are displayed.

Picture Adjustment menu

You can select the options listed below on the Picture Adjustment menu. To select options, see “Navigating through menus” (page 19).

Tip

When you set the "Mode" option to "Vivid" or "Standard", you can adjust only "Mode", "Contrast", "Colour Tone", "Noise Reduction", and "Reset".

Mode

Selects the picture mode.

1 Press OK to select "Mode". 2 Press ↑/↓ to select one of the following picture modes, then press OK.

Vivid: For enhanced picture contrast and sharpness.

Standard: For standard picture. Recommended for home entertainment.

Custom: Allows you to store your preferred settings.

Tip

You can also change the picture mode by pressing repeatedly.

Contrast/Brightness/Colour/Hue/Sharpness/Backlight

1 Press OK to select the option. 2 Press ←/→ to set the level, then press OK.

Tip

"Hue" can only be adjusted for an NTSC colour signal (e.g., U.S.A. video tapes).

Colour Tone

1 Press OK to select "Colour Tone". 2 Press ↑/↓ to select one of the following, then press OK.

Cool: Gives the white colours a blue tint.

Neutral: Gives the white colours a neutral tint.

Warm: Gives the white colours a red tint.

Continued

Noise Reduction

Reduces the picture noise (snowy picture) in a weak broadcast signal.

1 Press OK to select "Noise Reduction". 2 Press ↑/↓ to select one of the following, then press OK. Auto: Automatically reduces the picture noise. High/Low/Off: Modifies the effect of the noise reduction. CNR: Reduces the picture noise when the animation image is received. BNR: Reduces the block picture noise. This is effective for connected DVD player/digital satellite receiver with MPEG playback.

Dynamic Picture

Enhances the picture contrast.

1 Press OK to select "Dynamic Picture". 2 Press ↑/↓ to select "On", then press OK.

Gamma Correction

Adjusts the balance between bright and dark areas of the picture.

1 Press OK to select "Gamma Correction". 2 Press ↑/↓ to set the level, then press OK.

Reset

Reset all the picture settings to the factory settings.

1 Press OK to select "Reset". 2 Press ↑/↓ to select "OK", then press OK.

Sound Adjustment menu

You can select the options listed below on the Sound Adjustment menu. To select options, see “Navigating through menus” (page 19).

Effect (sound effect)

1 Press OK to select "Effect". 2 Press ↑/↓ to select one of the following sound effects, then press OK. Off: Flat response. Natural: Enhances clarity, detail, and sound presence by using “BBE High Definition Sound System ¹ ”. Dynamic: Intensifies clarity and sound presence for better intelligibility and musical realism by using the “BBE High Definition Sound System”. Dolby Virtual ² : Uses the TV speakers to simulate the surround effect produced by a multi channel system.

Tips

• You can also change sound effect by pressing ♩ repeatedly.
• If you set “Auto Volume” to “On”, “Dolby Virtual” is automatically set to “Natural”. *1 Licensed by BBE Sound, Inc. under USP4638258, 4482866. "BBE" and BBE symbol are trademarks of BBE Sound, Inc. *2 Manufactured under licence from Dolby Laboratories. "Dolby" and the double-D trademarks of Dolby Laboratories.

Treble/Bass/Balance

Adjusts higher-pitched sounds (Treble), adjusts lower-pitched sounds (Bass), and emphasizes left or right speaker balance (Balance).

1 Press OK to select the option. 2 Press ←/→ to set the level, then press OK.

Auto Volume

Keeps a constant volume level even when volume level gaps occur (e.g., adverts tend to be louder than programmes).

1 Press OK to select "Auto Volume". 2 Press ↑/↓ to select "On", then press OK. If you set "Effect" to "Dolby Virtual", "Auto Volume" will automatically be switched to "Off".

Tip

Continued

Dual Sound

Selects the sound from the speaker for a stereo or bilingual broadcast.

1 Press OK to select "Dual Sound". 2 Press ↑/↓ to select one of the following, then press OK. Stereo, Mono: For a stereo broadcast. A/B/Mono: For a bilingual broadcast, select “A” for sound channel 1, “B” for sound channel 2, or “Mono” for a mono channel, if available. Tip If you select other equipment connected to the TV, set "Dual Sound" to "Stereo", "A" or "B".

Volume (headphone volume)

Adjusts the volume of the headphones.

1 Press OK to select "Volume". 2 Press ←/→ to set the level, then press OK.

Dual Sound

Selects the sound of the headphones for a stereo or bilingual broadcast.

1 Press OK to select "Dual Sound". 2 Press ↑/↓ to select one of the following, then press OK. Stereo, Mono: For a stereo broadcast. A/B/Mono: For a bilingual broadcast, select “A” for sound channel 1, “B” for sound channel 2, or “Mono” for a mono channel, if available. Tip: If you select other equipment connected to the TV, set “Dual Sound” to “Stereo”, “A” or “B”.

Reset

Resets the “Treble”, “Bass” and “Balance” settings to the factory settings.

1 Press OK to select "Reset". 2 Press ↑/↓ to select "OK", then press OK.

Screen Control menu

You can select the options listed below on the Screen Control menu. To select options, see “Navigating through menus” (page 19).

Auto Format

Automatically changes the screen format according to the broadcast signal.

1 Press OK to select "Auto Format". 2 Press ↑/↓ to select "On", then press OK.

To keep your setting, select "Off".

Tips

• Even if you have selected "On" or "Off" in "Auto Format", you can always modify the format of the screen by pressing repeatedly.
• "Auto Format" is available for PAL and SECAM signals only.

Screen Format

For details about the screen format, see page 18.

1 Press OK to select "Screen Format". 2 Press ↑/↓ to select "Smart", "4:3", "14:9", "Zoom" or "Wide" (see page 18 for details), then press OK.

Screen Shift

Adjusts the position of the picture for each screen format.

1 Press OK to select "Screen Shift". 2 Press ↑/↓ to select one of the following, then press OK.

V Shift: Adjusts the vertical picture position.

H Shift: Adjusts the horizontal picture position.

Reset: Resets to the factory settings. Instead of step 3, press ↑/↓ to select "OK", then press OK.

3 Press ↑/↓ (for vertical picture position) or ←/→ (for horizontal picture position), then press OK.

Tip

When "Screen Format" is set to "4:3" or "Wide", "V Shift" cannot be adjusted.

Features menu

You can select the options listed below on the Features menu. To select options, see “Navigating through menus” (page 19).

Power Saving

Reduces the power consumption of the TV.

1 Press OK to select "Power Saving". 2 Press ↑/↓ to select "Reduce", then press OK.

Speaker

Switches on/off the TV's internal speakers.

1 Press OK to select "Speaker". 2 Press ↑/↓ to select "On" or "Off", then press OK. On: The sound of the TV is output through the TV's speakers. Off: The sound of the TV is output through the external audio equipment connected to the audio output sockets.

AV2 Output

Sets a signal to be output through the socket labelled → / → → 2 on the rear of the TV. If you connect a VCR or other recording equipment to the → 2 socket, you can then record from the equipment connected to other sockets of the TV.

1 Press OK to select "AV2 Output". 2 Press ↑/↓ to select one of the following, then press OK. Auto: Outputs whatever is being viewed on the screen. TV: Outputs broadcast from the aerial. AV1: Outputs signals from equipment connected to the /←-socket. AV5: Outputs signals from equipment connected to the 5/5 socket.

Picture Off

Switches off the picture. You can still listen to the sound with the picture off.

1 Press OK to select "Picture Off".

2 Press ↑/↓ to select "On," then press OK.

The ☒picture Off) indicator on the TV (front) lights up in green. To restore the picture, press any buttons (except △+/- and ♪).

Timer menu

You can select the options listed below on the Timer menu. To select options, see “Navigating through menus” (page 19).

Sleep Timer

Sets a period of time after which the TV automatically switches itself into standby mode.

1 Press OK to select "Sleep Timer". 2 Press ↑/↓ to select the desired time period ("30min"/"60min"/"90min"/"120min"), then press OK. The Sleep Timer indicator on the TV (front) lights up in orange.

Tips

• You can set the sleep timer by pressing repeatedly.
• If you switch off the TV and switch it on again, "Sleep Timer" is reset to "Off".
• "Sleep timer will end soon. Power will be turned off." appears on the screen one minute before the TV switches to standby mode.
• If you press Ⓗ/?, the remaining time in minutes before the TV switches to standby mode is displayed on the screen.

Auto Shutoff

Sets the TV to switch to standby mode automatically when you select the input source and there is no input signal from connected equipment.

In TV mode, this Auto Shutoff function is always set to "On".

1 Press OK to select "Auto Shutoff". 2 Press ↑/↓ to select "On", then press OK.

Set Up menu

You can select the options listed below on the Set Up menu. To select options, see "Navigating through menus" (page 19).

Auto Start Up

Starts the “first time operation menu” to select the language and country/region, and tune in all available channels. Usually, you do not need to do this operation because the language and country/region will have been selected and channels already tuned when the TV was first installed (page 14). However, this option allows you to repeat the process (e.g., to retune the TV after moving house).

1 Press OK to select "Auto Start Up".

2 Press OK to select "Yes".

The Language menu appears on the screen.

3 Follow steps of "6: Selecting the language and country/region" (page 14) and "7: Auto-tuning the TV" (page 15).

Language

Selects the language in which the menus are displayed.

1 Press OK to select "Language".

2 Press ↑/↓ to select the language, then press OK.

All menus will appear in the selected language.

Country

Selects the country/region where you operate the TV.

1 Press OK to select "Country".

2 Press ↑/↓ to select the country/region in which you will operate the TV, then press OK.

If the country/region in which you want to use the TV does not appear in the list, select “-” instead of a country/region.

Continued

Auto Tuning

Tunes in all the available channels.

Usually you do not need to do this operation because the channels are already tuned when the TV was first installed (page 15). However, this option allows you to repeat the process (e.g., to retune the TV after moving house, or to search for new channels that have been launched by broadcasters).

1 Press OK to select "Auto Tuning". 2 Follow step 1 of "7: Auto-tuning the TV" (page 15).

When all available channels have been tuned, the TV returns to normal operation.

Programme Sorting

Changes the order in which the channels are stored on the TV.

1 Press OK to select "Programme Sorting". 2 Press ↑/↓ to select the channel you want to move to a new position, then press OK. 3 Press ↑/↓ to select the new position for your channel, then press OK. Repeat the procedure in steps 2 and 3 to move other channels if required.

Programme Labels

Assigns a channel name of your choice up to five letters or numbers. The name will be displayed briefly on the screen when the channel is selected. (Names for channels are usually taken automatically from Text (if available).)

1 Press OK to select "Programme Labels". 2 Press ↑/↓ to select the channel you want to name, then press OK. 3 Press ↑/↓/←/→ to select the desired letter or number (“□” for a blank space), then press OK. If you input a wrong character, press ↑/↓/←/→ to select ←/→ and press OK repeatedly until the wrong character is selected. Then, press ↑/↓/←/→ to select the correct character and press OK.

4 Repeat the procedure in step 3 until the name is complete.

5 Press ↑/↓/←/→ to select "End", then press OK.

AV Preset

Do the following options.

1 Press OK to select "AV Preset". 2 Press ↑/↓ to select the desired input source, then press OK. 3 Press ↑/↓ to select the desired option below, then press OK.

Option Description
Label Assigns a name to any equipment connected to the side and rear sockets. The name will be displayed briefly on the screen when the equipment is selected.Press ↑/↓ to select one of the following, then press OK.Equipment labels: Uses one of these preset labels.Edit: Creates your own label. Follow steps 3 to 5 of “Programme Labels” (page 30).
Skip	Skips an input source that is not connected to any equipment when you press ↑/↓ to select the input source.After selecting this option, press OK.

Manual Programme Preset

Before selecting "Label"/"AFT"/"Audio Filter"/"Skip"/"Decoder", press PROG +/- to select the programme number with the channel. You cannot select a programme number that is set to skip (page 33).

1 Press OK to select "Manual Programme Preset". 2 Press ↑/↓ to select one of the following options, then press OK.

Continued

Option Description
Programme Presets programme channels manually.
System	1 Press ↑/↓ to select “Programme”, then press OK.2 Press ↑/↓ to select the programme number you want to manually tune (if tuning a VCR, select channel 0), then press ←.3 Press ↑/↓ to select “System”, then press OK.NoteDepending on the country/region selected for “Country” (page 29), this option may not be available.4 Press ↑/↓ to select one of the following TV broadcast systems, then press ←.B/G: For western European countries/regionsD/K: For eastern European countries/regionsI: For the United KingdomL: For France5 Press ↑/↓ to select “Channel”, then press OK.6 Press ↑/↓ to select “S” (for cable channels) or “C” (for terrestrial channels), then press →.7 Tune the channels as follows:If you do not know the channel number (frequency)Press ↑/↓ to search for the next available channel. When a channel has been found, the search will stop. To continue searching, press ↑/↓.If you know the channel number (frequency)Press the number buttons to enter the channel number of the broadcast you want or your VCR channel number.8 Press OK.9 Press ↓ to select “Confirm”, then press OK.10 Press ↓ to select “OK”, then press OK.Repeat the procedure above to preset other channels manually.
Channel
Label	Assigns a name of your choice, up to five letters or numbers, to the selected channel. This name will be displayed briefly on the screen when the channel is selected.Follow steps 3 to 5 of “Programme Labels” (page 30).2 Press ↓ to select “Confirm”, then press OK.3 Press ↓ to select “OK”, then press OK.
AFT Fine-tunes the selected programme number manually if you feelthat a slight tuning adjustment will improve the picture quality.(Normally, fine tuning is performed automatically.)1 Press ↑/↓ to adjust the fine tuning over a range of -15 to +15, then press OK.2 Press ↓ to select “Confirm”, then press OK.3 Press ↓ to select “OK”, then press OK.To restore automatic fine tuning, select “On” in step 1.
Audio Filter Improves the sound for individual channels in the case of distortion in mono broadcasts. Sometimes a non-standard broadcast signal can cause sound distortion or intermittent sound muting when watching mono programmes.1 Press ↑/↓ to select “Low” or “High”, then press OK.If you do not experience any sound distortion, we recommend that you leave this option set to the factory setting “Off”.2 Press ↓ to select “Confirm”, then press OK.3 Press ↓ to select “OK”, then press OK.NoteYou cannot receive stereo or dual sound when “Low” or “High” is selected.
Skip Skips unused channels when you press PROG +/- to select channels. (You can still select a skipped channel using the number buttons.)1 Press ↑/↓ to select “Yes”, then press OK.2 Press ↓ to select “Confirm”, then press OK.3 Press ↓ to select “OK”, then press OK.To restore a skipped channel, select “No” in step 1.
Decoder Views and records the scrambled channel selected when using a decoder connected to the scart connector ☑ either directly or via a VCR.NoteDepending on the country/region selected for “Country” (page 29), this option may not be available.1 Press ↑/↓ to select “On”, then press OK.2 Press ↓ to select “Confirm”, then press OK.3 Press ↓ to select “OK”, then press OK.To cancel this function afterwards, select “Off” in step 1.

Using Optional Equipment

Connecting optional equipment

You can connect a wide range of optional equipment to your TV. Connecting cables are not supplied.

Connecting to the TV (side)

To connect Do this

S VHS/Hi8/DVC camcorder A	Connect to the S video socket S→5 or the video socket 5 and the audio sockets 5 To avoid picture noise, do not connect the camcorder to the video socket 5 and the S video socket S→5 at the same time. If you connect mono equipment, connect to the L/G/S/I socket 5 and set “Dual Sound” to “A” (page 24).
Headphones B	Connect to the ∩ socket to listen to sound from the TV on headphones.

Connecting to the TV (rear)

Continued

To connect Do this

DVD player with component outputC	Connect to the component sockets and the audio sockets #The component signal containing 576p signal format and audio signal are input from the DVD player.
Digital satellite receiver or DVD playerD	Connect to the HDMI IN 4 socket if the equipment has a HDMI socket. The digital video and audio signals are input from the digital satellite receiver. If the equipment has a DVI socket but not an HDMI socket, connect the DVI socket to the HDMI IN 4 socket through a DVI - HDMI adaptor interface (not supplied), and connect the equipment's audio out sockets to the audio in HDMI IN 4 sockets. The digital video and analogue audio signals are input from the equipment.
“PlayStation 2”, DVD player or decoderE	Connect to the scart socket #1. When you connect the decoder, the scrambled signal from the TV tuner is output to the decoder, then the unscrambled signal is output from the decoder. In this case, it will be properly unscrambled if you set “AV2 Output” to “TV” (page 26).
DVD recorder or VCR that supports SmartLinkF	Connect to the scart socket #2. SmartLink is a direct link between the TV and a VCR/DVD recorder. For more information on SmartLink, refer to the instruction manual supplied with your VCR or DVD recorder.
Hi-Fi audio equipmentG	Connect to the audio output sockets to listen to the sound from the TV on Hi-Fi audio equipment. To turn off the sound of the TV speakers, set “Speaker” to “Off” (page 26).

Programming the remote

This remote is preset to operate Sony TVs, most Sony DVDs, VCRs and AUX systems (DAV, DTT Receiver, Home Theatre, etc.)

To control VCRs and DVDs of other manufacturers (and some other Sony VCR, DVD and AUX models), do the following procedure to programme the remote.

Note

Before you start, look up the three-digit code for your brand of DVD, VCR or AUX systems from the “Manufacturer’s codes” on page 37.

1 To programme VCR and DVD:

Press and hold for about six seconds until the green VCR and DVD lights flash.

To programme Sony AUX systems:

Press and hold for about six seconds until the green AUX light flashes.

2 While the relevant lights are flashing, press the number buttons to enter all three digits of the code for your brand of equipment (page 37).

The green light is lit momentarily.

3 Turn on your equipment and check that the following main functions work.

▶ ( playback), ■ (stop), ◀◀ (rewind), ▶▶ (fast forward), channel selection for both VCR and DVDs, MENU and ↑/↓/↔/→ only for DVDs.

If your equipment is not working, or some of the functions do not work

Enter the correct code or try the next code listed for the brand. However, not all brands are covered and not all models of every brand may be covered.

Tip

A small label is provided inside the battery door to allow you to record your brand codes.

Manufacturer's codes

Not all brands are covered and not all models of every brand may be covered.

VCR brand list

Brand	Code
SONY (VHS)	301, 302, 303, 308, 309, 362
SONY (BETA)	303, 307, 310
SONY (DV)	304, 305, 306
AIWA	325, 331, 351
AKAI	326, 329, 330
DAEWOO	342, 343
GRUNDIG	358, 355, 360, 361, 320, 351, 366
HITACHI	327, 333, 334
JVC	314, 315, 322, 344, 352, 353, 354, 348, 349
LG	332, 338
LOEWE	358, 355, 360, 361, 320, 351
MATSUI	356, 357
ORION	328
PANASONIC	321, 323
PHILIPS	311, 312, 313, 316, 317, 318, 358, 359, 363, 364
SAMSUNG	339, 340, 341, 345
SANYO	335, 336
SHARP	324
THOMSON	319, 350, 365
TOSHIBA	337

DVD brand list

Brand	Code
SONY 001, 029, 030, 036, 037, 038, 039, 040, 041, 042, 043, 044, 053, 054, 055
AIWA 021
AKAI 032
DENON 018, 027, 020, 002
GRUNDIG 009, 028, 023, 024, 016, 003
HITACHI 025, 026, 015, 004, 035
JVC 006, 017

Brand	Code
KENWOOD	008
LG 015, 014, 034
LOEWE 009, 028, 023, 024, 016, 003
MATSUI 013, 016
ONKYO	022, 033
PANASONIC	018, 027, 020, 002, 045, 046, 047
PHILIPS	009, 028, 023, 024, 016, 003, 031
PIONEER	004, 050, 051, 052
SAMSUNG	011, 014
SANYO	007
SHARP	019, 027
THOMSON	012
TOSHIBA	003, 048, 049
YAMAHA	018, 027, 020, 002

AUX Sony systems brand list

DVD Home Theatre System

Brand	Code
SONY (DAV)	500, 501, 502

Home Theatre System

Brand	Code
SONY 504, 505

AV receiver

Brand	Code
SONY 505, 506, 507, 508

Digital terrestrial receiver

Brand	Code
SONY 503

Additional Information

Specifications

Display Unit

Power Requirements:

220–240 V AC, 50 Hz

Screen Size:

26 inches

Approx. 66 cm measured diagonally

Display Resolution:

1,366 dots (horizontal) × 768 lines (vertical)

Power Consumption:

110 W

Standby Power Consumption:

0.5 W or less

Dimensions (w × h × d):

Approx. 674.8 × 511.5 × 308.2 mm (with stand)

Approx. 674.8 × 427.7 × 103 mm (without stand)

Mass:

Approx. 18.5 kg (with stand)

Approx. 14.5 kg (without stand)

Panel System

LCD (Liquid Crystal Display) Panel

TV System

Depending on your country/region selection:

B/G/H, D/K, L, I

Colour System

PAL, SECAM

NTSC 3.58, 4.43 (only Video In)

Aerial

75 ohm external terminal for VHF/UHF

Channel Coverage

VHF: E2–E12

UHF: E21–E69

CATV: S1–S20

HYPER: S21–S41

D/K: R1–R12, R21–R69

21-pin Scart connector (CENELEC standard) including audio/video input, RGB input, and TV audio/video output.

21-pin Scart connector (CENELEC standard) including audio/video input, RGB input, selectable audio/video output, and SmartLink interface.

Y: 1 Vp-p, 75 ohms, 0.3V negative sync

PB/CB: 0.7 Vp-p, 75 ohms

Pr/Cr: 0.7 Vp-p, 75 ohms

3 Audio input (phono jacks)

500 mVrms

Impedance: 47 kilo ohms

HDMI IN 4

Video: 1080i, 720p, 576p, 576i, 480p, 480i

Audio: Two channel linear PCM

32, 44.1 and 48 kHz, 16, 20 and 24 bits, or analogue audio input (phono jacks)

Audio output (Left/Right) (phono jacks)

Headphones jack

Sound Output

10 W + 10 W (RMS)

Supplied Accessories

- Remote RM-EA001 (1)

• Size AA batteries (R6 type) (2)

- Coaxial cable (1)

• Mains lead (Type C-6) (1)

- Cable holder (1)

• Support belt (1) and screw (2)

Optional Accessories

• Wall-Mount Bracket SU-WL31

• TV stand SU-FF51

Design and specifications are subject to change without notice.

Troubleshooting

Check whether the ⏻ (standby) indicator is flashing in red.

When it is flashing

The self-diagnosis function is activated.

1 Count how many ⏻ (standby) indicator flashes between each two second break. For example, the indicator flashes three times, then there is a two second break, followed by another three flashes, etc. 2 Press ⏻ on the TV (right side) to switch it off, disconnect the mains lead, and inform your dealer or Sony service centre of how the indicator flashes (number of flashes).

When it is not flashing

1 Check the items in the tables below.

2 If the problem still persists, have your TV serviced by qualified service personnel.


Problem Cause/Remedy
No picture (screen is dark) and no sound	Check the aerial connection.Connect the TV to the mains, and press ⏻ on the TV (right side).If the ⏻ (standby) indicator lights up in red, press TV ⏻.
No picture or no menu information from equipment connected to the scart connector	Check that the optional equipment is on and press /repeatedly until the correct input symbol is displayed on the screen.Check the connection between the optional equipment and the TV.
Distorted picture	Check if any connected optional equipment is installed in front of the TV or beside the TV. When installing optional equipment, leave some space between the optional equipment and the TV.When changing programmes or selecting Text, turn off any equipment connected to the scart connector on the rear of the TV.
Double images or ghosting	Check aerial/cable connections.Check the aerial location and direction.
Only snow and noise appear on the screen	Check if the aerial is broken or bent.Check if the aerial has reached the end of its serviceable life (three to five years in normal use, one to two years at the seaside).
Picture (dotted lines or stripes) noise	Keep the TV away from electrical noise sources such as cars, motorcycles, or hair-dryers.Make sure that the aerial is connected using the supplied coaxial cable.Keep the aerial cable away from other connecting cables.Do not use a 300-ohm twin lead cable as interference may occur.
Picture noise when viewing a TV channel	Select “Manual Programme Preset” in the “Set Up” menu and adjust “AFT” (Automatic Fine Tuning) to obtain better picture reception (page 32).Select “Noise Reduction” in the “Picture Adjustment” menu to reduce the noise in the picture (page 22).
Stripe noise during playback/ recording of a VCR	Video head interference. Keep your VCR away from the TV.Leave a space of 30 cm between your VCR and the TV to avoid noise.Avoid installing your VCR in front of the TV or beside the TV.

Continued

Problem Cause/Remedy
Some tiny black points and/or bright points on the screen	The picture of a display unit is composed of pixels. Tiny black points and/or bright points (pixels) on the screen do not indicate a malfunction.
No colour on programmes	Select “Reset” in the “Picture Adjustment” menu to return to the factory settings (page 22).
No colour or irregular colour when viewing a signal from the Y, PB/CB , PR/CR jacks of →3	Check the connection of the Y, PB/CB , PR/CR jacks of →3. Make sure that the Y, PB/CB , PR/CR jacks of →3 are firmly seated in their respective sockets.

Sound

Problem Cause/Remedy
No sound, but good picture	Press + / - or ※ (Mute).Check that “Speaker” is set to “On” in the “Features” menu (page 26).
Noisy sound	See the “Picture noise” causes/remedies on page 39.
Audio distortion	See “Audio Filter” on page 33.

General

Problem Cause/Remedy
The TV turns off automatically (the TV enters standby mode)	Check if the Sleep Timer function is activated (page 28).Check if the Auto Shutoff is activated (page 28).If no signal is received or no operation is performed in the TV mode for 10 minutes, the TV automatically switches to standby mode.
Some input sources cannot be selected	Select “AV Preset” in the “Set Up” menu and cancel “Skip” of the input source (page 31).
The remote does not function	Check that the remote is set correctly for the equipment you are using.If the remote does not operate the equipment even when the remote has been set correctly to equipment, enter the necessary code set as explained in “Programming the remote” (page 36).Replace the batteries.
Wrong characters appear when viewing the menu/Text/NexTView	Select “Language” and “Country” in the “Set Up” menu and set the language and country/region in which Text/NexTView is provided (page 29). For Cyrillic languages, we recommended that you select Russia if your own country/region does not appear in the list.

Index

Numerics

0-9 buttons 8

14:9 18

4:3 18

A

Accessories supplied 10

Aerial, connecting 11

AFT 32

Audio Filter 33

Auto Format 25

Auto Shutoff 28

Auto Start Up 29

Auto Tuning 14, 30

Auto Volume 23

AUX/VIDEO I/O button 8

AV Preset 31

AV2 Output 26

B

Backlight 21

Balance 23

Bass 23

Batteries, inserting into the remote 10

BBE 23

Brightness 21

C

Channels

auto-tuning 14

selecting 16

Skip 33

Colour 21

Colour Tone 21

Coloured buttons 8

Connecting

Connecting

an aerial/VCR 11

optional equipment 34

Contrast 21

Country 29

D

Decoder 33

Dolby Virtual 23

Dual Sound 24

Dynamic Picture 22

E

Effect (sound effect) 23

F

Fastext 17

Features menu 26

G

Gamma Correction 22

H

Headphones

connecting 34

Dual Sound 24

Volume 24

Hue 21

|

Info (i+) button 8

Input select (-) button 8,9

Input signal index table 18

L

Label 31, 32

Language 29

M

Manual Programme Preset 31

Media selector 8

MENU button 8, 9

Mode (Picture mode) 21

Mute button 8

N

NexTView 17

Noise Reduction 22

Number buttons 8

0

OK button 8, 9

P

Picture Adjustment menu 21

Picture Off indicator 9

Power (1) indicator 9

Power (⏻) switch 9

Power Saving 26

Previous channel ( ) button 8

PROG +/- buttons 8, 9

Programme index table 16

Programme Labels 30

Programme Sorting 30

R

Remote

control sensor 9

inserting batteries 10

overview 8

programming 36

Reset

picture adjustment 22

sound adjustment 24

s

Screen Control menu 25

Screen Format 25

Sound Adjustment menu 23

Sound effect (♪) button 8

Speaker 26

Specifications 38

Standby (⏻) indicator 9

T

Text 17

Text hold ( ) button 8

Text reveal ( ) button 8

Timer menu 28

Treble 23

TV mode ( ) button 8

TV standby (TV I/⏻) button 8

V

VCR

connecting 11

programming 36

VCR double digit (-/-) button 8

Volume (△) +/- buttons 8, 9

W

Wide 18

Z

Zoom 18

ACHTUNG Einführung

Transport

Lüftungsöffnungen

Wiring

1 ⏻ - Power

Cable holder (1)

Notes

Dimensions (W × H × D):

L: F2–F10, B–Q, F21–F69

I: UHF B21-B69

Connections

WARNING Introduction

Transport

Ventilation openings

Oil

Outdoor use

To be continued

Wiring

① ⏻ - On/Off

Cable tie (1)

Remarks

① (Miles)/ (Entertainment)/ (Kids)/ (Art)/ (Sports)/ (News)/ (Movies)/ (Music):

DVD home theater system

Brand code

SONY (DAV) 500, 501, 502

Home theater system

Brand code

SONY 504, 505

AV receiver

Brand code

SONY 505, 506, 507, 508

Digital receivers

Brand code

SONY 503

Antenna/VCR 11

Treble/Bass/Balance 23

Auto Volume 23

Sound Duplo.... 24

Volume (headphone volume) ...... 24

Sound Duplo 24

Resume 24

Menu Screen Control 25

Auto Format 25

Screen Format.... 25

Move Screen.... 25

Transport

Oils

Connect the wires

① ⏻ - Power

Turns the TV on and off.

②PROG +/- /↑ ↓

2: Insert the batteries into the remote control

Notes

4: Prevent the TV from tipping over

1 Connect the TV to the mains power socket (220-240V AC, 50Hz). 2 Press ⏻ on the TV (right side).

① (All)/ (Entertainment)/ (Children)/ (Art)/ (Sports)/ (News)/ (Movies)/ (Music):

Sorts programs by category.

Treble/Bass/Balance

Turns the TV's internal speakers on/off.

inserting the batteries 10

description 8

programming 36

Sensor 9

Teletext 17

Sleep Timer 28

Color tone 21

AV socket 31

Tonalidade 21

V

Videogravador

ligar 11

programar 36

Volume Autom. 23

Z

Zoom 18

ADVARSEL Innledning

Bæring

Oljer

Bruk utendørs

Kabling

⑨ ↑/↓/←/→/OK (side 16, 18, 19)

⑩ -Skjermmemo (side 16)

⑪PROG +/- (side 16)

• In TV mode: Selects next (+) or previous (-) channel.
• In text mode: Selects next (+) or previous (-) page.

12MENU (side 19)

13 ∠+/- - Volume

14 - Sleep timer (side 27)

① ⏻ - Power

Cable holder (1)

Notes

① (Movies)/ (Entertainment)/ (Children) (Art)/ (Sports)/ (Weather)/ (Films)/ (Music):

L: F2–F10, B–Q, F21–F69

I: UHF B21-B69

Terminals

→ 5 audio input (phono plugs)
