Product Type	Kettle
Brand	Philips
Model	Avance Collection HD9450
Capacity	1.7 liters
Power Rating	3000 W
Voltage	220-240 V, 50-60 Hz
Cord Length	0.75 m
Base Type	360° cordless base
Water Level Indicator	Yes
Material	Stainless steel body
Lid	Easy-open button
Filter	Removable scale filter
Finish	Brushed stainless steel
Boil-Dry Protection	Yes
Automatic Shut-Off	Yes
Keep Warm Function	No
Dimensions (H x W x D)	25 x 22 x 15 cm
Weight	1.2 kg
Cleaning	Descaling recommended regularly
Warranty	2 years

Frequently Asked Questions - Avance Collection HD9450 PHILIPS

How do I descale my Philips Avance Collection HD9450 kettle?

To descale, fill the kettle with a mixture of white vinegar and water (1:2 ratio) or use a commercial descaling solution. Boil the mixture, let it sit for 30 minutes, then rinse thoroughly several times with fresh water.

How often should I clean the filter?

Clean the removable scale filter monthly or when you notice scale buildup. Rinse it under running water and use a soft brush if needed. Reinsert it after cleaning.

What is the capacity of the HD9450 kettle?

The kettle has a capacity of 1.7 liters, suitable for boiling up to 7 cups of water.

Does the kettle have a keep-warm function?

No, the Avance Collection HD9450 does not have a keep-warm function. It automatically shuts off after boiling.

What should I do if the kettle does not turn on?

First, check that the power cord is properly connected to the base and the outlet. Ensure the kettle is placed correctly on the base. If it still doesn't work, check for boil-dry protection activation; if the kettle was operated without water, allow it to cool before refilling.

Is the kettle safe to use on a stove?

No, this kettle is an electric kettle designed only for use on its base. Do not place it on a stove or any heat source.

Can I boil less than the minimum water level?

No, always fill above the minimum level (usually 0.5 liters) to avoid triggering the boil-dry protection and damaging the heating element.

How do I clean the exterior of the kettle?

Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or immerse the kettle in water.

What type of warranty does the HD9450 have?

Philips typically offers a 2-year warranty for the Avance Collection HD9450, covering manufacturing defects. Check your local warranty card for details.

Why is my kettle making a loud noise while boiling?

Loud noise can be due to scale buildup on the heating element. Descale the kettle as described in the manual. If noise persists, it may be normal as water approaches boiling.

USER MANUAL Avance Collection HD9450 PHILIPS

APPROVALUOJECIOCTING ATGELONSO

Glass water heater with a Philips logo, no visible text or symbols on the device itself.

2

3

4

5
(1)

6
×2 (Preset Duration)

7

1 Important

Read this important information carefully before you use the appliance and save it for future reference.

Warning

• Avoid spillage on the connector.
• Do not misuse this kettle for other than its intended use to avoid potential injury.
• Do not use the appliance if the plug, the mains cord, the base or the kettle itself is damaged. If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.

- This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in

a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

• Children shall not play with the appliance.
- Keep the mains cord, the base and the kettle away from hot surfaces.
- Do not place the appliance on an enclosed surface (e.g. a serving tray), as this could cause water to accumulate under the appliance, resulting in a hazardous situation.
- Unplug the appliance and let it cool down before you clean it. Do not immerse the kettle or base in water or any other liquid.

Caution

- Only connect the appliance to an earthed wall socket.

• Only use the kettle in combination with its original base.
• Never fill the kettle beyond the maximum level indication. If the kettle has been overfilled, boiling water may be ejected from the spout and cause scalding.
• Be careful: the outside of the kettle and the water in it become hot during and some time after use. Only lift the kettle by its handle. Also beware of the hot steam that comes out of the kettle.
• This appliance is intended to be used in household and similar applications such as farm houses, bed and breakfast type environments, staff kitchen areas in shops, in offices and in other working environments and by clients in hotels, motels and other residential type environments.

Boil-dry protection

- This kettle is equipped with boil-dry protection: it switches off automatically if you accidentally switch it on with no or not enough water in it. Let the kettle cool down for 10 minutes and then lift the kettle off its base. Then the kettle is ready for use again.

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF).

Recycling

Do not throw away the product with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Follow your country's rules for the separate collection of electrical and electronic products. Correct disposal helps prevent negative consequences for the environment and human health.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

2 Overview (fig. 1)

Main unit

① Nourishing kettle lid
② Tea basket holder
③ Nourishing kettle body
④ Power base

Control panel

⑤ Power on/off button
⑥ Cancel/back button
⑦ Navigation button
⑧ Timer button
⑨ Confirm/OK button
⑩ Program LED indicators

Tea basket

⑪ Tea basket with handle

Stewing pot

⑫ Stewing pot storage container
⑬ Stewing pot
⑭ Stewing pot lid
⑮ Stewing pot holder
⑯ Stewing pot container lid

3 Before first use

Thoroughly clean the parts that will come in contact with food before you use the appliance for the first time (see "Cleaning").

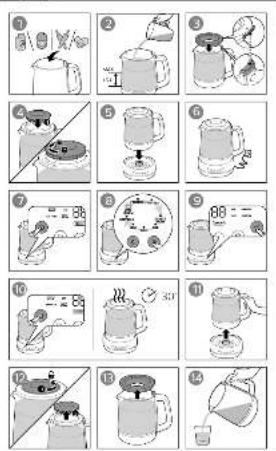

4 Use your nourishing kettle (fig.2)

Follow the steps below to use your nourishing kettle

1 Add ingredients to the kettle.
2 Add water to the kettle.
- Never fill the kettle beyond the maximum water level indication (1.5 L).
3 Fix the tea basket holder to the kettle.
4 Close the lid.
5 Fix the kettle to the power base.
6 Plug in the appliance.
7 Press and hold the On/Off button ⏻ for one second to power on the appliance.
- All the program LEDs light up and the LED of Gentle Brew program is selected by default.
8 Press navigation button (< or >) to select a program.
- When a program is selected, the LED of this program will be highlighted and the duration of this program will be on the LED display.
• See “Preset programs” for program details.
- To change the cooking duration of the selected program, use the timer button and navigation buttons to adjust the timer. See “Adjust program duration” for details.
- To preset time for delayed cooking, use the timer button and navigation buttons to set timer. See "Preset time for delayed cooking" for details.
9 Press the Confirm/OK button to start the program.

• The appliance starts processing.

- The LED of the selected program keeps blinking and the timer starts counting down until processing is completed.

- When processing is completed, the appliance will beep.

→ The appliance will automatically go into “keep warm” mode for 30 minutes after “Gentle brew/baby milk/egg/soup/porridge/fruit tea” program is completed, and then power off automatically. For the programs of Gentle brew/baby milk, the appliance will keep temperature at 40°C. For the programs of Egg/soup/porridge/fruit tea, it will keep processing results warm at 70°C.

10 Press and hold the On/Off button ⏻ to power off the appliance.

11 Unplug the appliance and remove the nourishing kettle from the base.

12 Remove the lid.

13 Pour out the water/ingredients/soup from the kettle carefully.

5 Use your tea basket (fig. 3)

Follow the steps in fig. 3 to assemble and use your tea basket.

Use fruit tea and gentle brew program when tea basket is used.

For preset programs, see “Preset programs”.

Note: Never fill the kettle beyond the maximum level indication for tea (1.25 L).

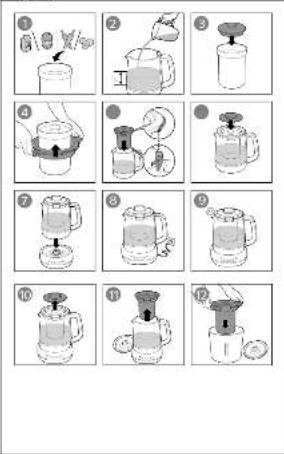

6 Use your stewing pot (fig. 4)

Follow the steps in fig. 4 to assemble and use your stewing pot.

Use soup program when stewing pot is used.

For preset programs, see "Preset programs".

→ Note: Never fill the kettle beyond the maximum level indication for stewing pot (1.0 L).

7 Adjust program duration (fig. 5)

You can use the timer button ⓣ to set the program duration.

1 Prepare your appliance according to step 1 to 7 in "Using your nourishing kettle".

2 Press navigation button (< or >) to select a program.

3 Press the timer button one time to enter timer control mode for adjusting program duration.

→COOKING" (cooking duration LED) lights up.

4 Press navigation button (< or >) to set program duration.

5 Press the Confirm/OK button to confirm and start the program.

8 Preset time for delayed cooking (fig. 6)

You can use the timer button ⓐ to set the time at which you want the appliance to finish cooking. The preset timer is available up to 12 hours.

1 Prepare your appliance according to step 1 to 7 in "Using your nourishing kettle".
2 Press navigation button (< or >) to select a program.
3 Press the timer button two times to enter the preset mode for delayed cooking.
→PRESET" (counting down LED) lights up.

4 Press navigation button (< or >) to set when to finish the program.

5 Press the Confirm/OK button √ → The timer on the LED display starts to count down. → The appliance starts cooking automatically and will complete cooking by the time when counting down ends.

9 Cleaning

Always unplug the base before you clean it

Never immerse the kettle or its base in water.

Clean the kettle thoroughly each time after use. Use water and cleaning detergent together with a soft cloth for best results.

Make sure to dry the product properly before putting it away in storage.

All the accessories are not dish-washable.

Clean the nourishing kettle and the power base

Clean the outside of the kettle and the base with a moistened soft cloth.

Caution: Do not let the moist cloth come into contact with the cord, the plug and the connector of the base.

Descaling the kettle

Depending on the water hardness in your area, scale may build up inside the kettle over time and affect performance of the kettle. Regular descaling makes your kettle last longer, ensures proper function and saves energy.

When scale starts to build up inside the kettle, follow the steps below to descale your kettle:

1 Add white vinegar or slices of fresh lemons to the kettle.
2 Fill the kettle with water to maximum water level
3 Boil the mixture.
4 Wait for 1.5 to 2 hours (depending on the severity of the scale) before rinsing the kettle.
5 Use a brush or cleaning cloth to remove any stain.
6 Fill the kettle with water again and boil it twice before using.

10 Preset programs

Program name	Program purpose	Adjustable duration for each program	Adjustable duration for delayed cooking	Auto Keep warm mode	Max water level
Keep warm	Keep the kettle warm at 70°C for two hours and then power off automatically.	1-4 hours	1.5 -12 hours	✕	1.5 L
Gentle brew[xxwx]	· Brew tea at 40°C.· It is suitable for brewing herbal tea and flower tea. This unique low temperature setting helps to gently release essence of ingredients into water, provide best taste to the drink that can be enjoyed right away.· Note: This program will not boil ingredients to 100°C. Use purified water when preparing the drink.	10-40 minutes	0.5 -12 hours	√40°C	1.5 L
Soup	· Cook ingredients for two hours.· Suitable to process ingredients that requires longer cooking time.	1-4 hours	1.5 -12 hours	√70°C	1.25 L
Porridge	· Cook ingredients for one hours.· Suitable to process ingredients that requires shorter cooking time.	0.5 -2 hours	1 -12 hours	√70°C	1.25 L
Fruit tea [xvot]	·Boil the drink for 20 minutes.·Suitable to prepare herbal tea, flower tea and fruit tea that need to be boiled and well cooked.	10-40 minutes	0.5 -12 hours	70°C	1.25 L
Egg	·Boil eggs for 10 minutes.·Suitable to prepare boiled eggs.	5-30 minutes	0.5 -12 hours	70°C	1.5 L
Baby milk	·Warm water and keep it at 40°C.·It is suitable for preparing baby milk (i.e. using milk powder).·Note: This program will not boil to 100°C. Use purified water for this program.	-	0.5 -12 hours	40°C	1.5 L
Boil water Boil water to 100°C. -			0.5 -12 hours	×	1.5 L

11 Troubleshooting

Issue Potential solution
Overflow happens during cooking	A large amount of foam might form when cooking certain ingredients and this could lead to overflow. To open the lid during cooking could reduce the amount of foam and decrease the chance of overflow. Make sure ingredients in the kettle do not exceed the maximum level indicated on the product. Adding too many ingredients will lead to overflow and should be avoided.
LED “-- --” is flashing and all the keys have no response other than power key.	Kettle is not on the power base while cooking. When a program is running, if you lift the kettle from its base and put it back within five minute, the selected program will resume and the remaining cooking time will be completed. If it takes longer than five minutes before kettle is put back on the power base, then the previously selected program will be cancelled and you would need to restart the program again.
The kettle beeps four times and switches off automatically.	The kettle activated the boil-dry protection. This kettle is equipped with boil-dry protection. This device automatically switches off the kettle if it is accidentally pressed on when there is no water or not enough water in it. The kettle will switch off and power-on light will go off. Let it cool down. The kettle is ready for use again.
I try to switch on the kettle, but it switches off automatically.
Display shows Er 01.
Display shows Er 02.	Food/ingredients stick to the heating plate (e.g. food has coked on the heating plate) and it leads to poor temperature sensing. Clean up the heating plate if coked is on the heating plate.
	If you add water to the glass jar when the appliance is working, it can lead to poor temperature sensing. Make sure no additional water is added to the jar when the appliance is working.
	Operating voltage is not within the operating range (220-240 V). Check and make sure the supply voltage is within the operating range (220-240 V).
Display shows “Hot” when using “Baby Milk” program.	Water exceeded 40°C in the glass Jar. Refill the glass jar with water below 40°C before using “Baby Milk” program
