HD4673 - Kettle PHILIPS - Free user manual and instructions

Product Type	Kettle
Brand	Philips
Model	HD4673
Capacity	1.7 L
Power Consumption	2200 W
Voltage	220-240 V
Material	Stainless steel
Dimensions (L x W x H)	22 x 15 x 25 cm
Weight	1.2 kg
Cordless	Yes, 360° swivel base
Automatic Shut-Off	Yes
Boil-Dry Protection	Yes
Concealed Heating Element	Yes
Filter	Removable, washable
Lid Opening	One-touch, wide opening
Water Level Indicator	Yes, transparent
Handle	Ergonomic, anti-slip
Cleaning	Descaling recommended regularly with vinegar or citric acid
Safety Features	Auto shut-off, boil-dry protection
Color	Silver/Black

Frequently Asked Questions - HD4673 PHILIPS

How do I descale the Philips HD4673 kettle?

To descale, fill the kettle with descaling solution (e.g., vinegar and water, or citric acid) and boil. Let it sit for 15 minutes, then rinse thoroughly. Repeat if needed.

What is the capacity of the Philips HD4673 kettle?

The kettle has a capacity of 1.7 liters, enough for up to 7 cups.

Does the Philips HD4673 have automatic shut-off?

Yes, the kettle automatically shuts off when the water boils or if it is dry. This ensures safety.

Can I wash the kettle in a dishwasher?

No, do not immerse the kettle or base in water. Clean the exterior with a damp cloth and descale the interior as recommended.

Is the heating element concealed?

Yes, the concealed heating element makes cleaning easier and reduces limescale buildup.

How do I clean the limescale filter?

Remove the filter from the spout and rinse under running water. Use a soft brush if necessary. Replace when worn.

What is the power consumption of the HD4673?

The kettle operates at 2200 Watts for fast boiling.

Is the kettle cordless?

Yes, it is cordless with a 360° swivel base, making it easy to lift and pour.

What safety features does the kettle have?

It includes automatic shut-off and boil-dry protection to prevent overheating.

What is the warranty for Philips HD4673?

Typically, Philips offers a 2-year warranty for this model. Check your local terms.

USER MANUAL HD4673 PHILIPS

ENGLISH 4

TIẾNG VIÊT 8

繁體中文 12

한국어 16

ไทย 20

简体中文 24

Thank you for choosing a product from the Philips range. Please read the instructions carefully before using the appliance for the first time.

Important

• Please note that some condensation may occur on the base of your kettle. This is perfectly normal and by no means a manufacturing defect.
• Depending on the hardness of the water in your area, small spots may appear on the heating element of your kettle (even if you have used it only once). This phenomenon is the result of scale build-up and is perfectly normal. Scale consists of naturally occurring minerals that solidify when water is heated and which slowly deposit over a period of time. This can lead to scale build-up on the heating element and on the inside of the kettle over time. The harder the water, the faster scale will build up. Scale can occur in different colours. Although it may look like rust, it is not because this kettle has a stainless steel element. Although scale is perfectly harmless, it can affect the performance of your kettle if it is left to build up over a longer period of time. Please follow the instructions for descaling the kettle in this instruction booklet.
• Boiling water can cause serious burns. Please take care when the kettle contains hot water.
• Keep the kettle and its cord well out of the reach of children and do not let them play with the appliance. Prevent children from pulling at the mains cord. Do not let the mains cord hang over the edge of the work surface.
• Do not fill the kettle beyond the 'MAX' indication.
• WARNING: If the kettle has been overfilled, there is a risk that boiling water will be ejected from the spout.
• This Philips kettle is equipped with a precision boil-control system that will switch the kettle off immediately after the water has reached boiling point.

For type HD4673 only

• This Philips rapid boil kettle can draw up to 13 Amps from your power supply. Ensure that your household electrical system can withstand this consumption.
• We advise you to refrain from running too many other appliances connected to the same circuit while your kettle is in use.

Using the kettle

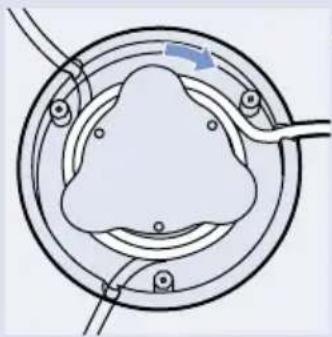

1 Wind excess mains cord around the base of the appliance.
2 Put the base with the kettle on a cool, flat surface, out of the reach of children and put the plug in the wall socket.

Only use the kettle in combination with its original base.

3 Take the kettle off its base.
4 Fill the kettle with water through the spout.

Never fill the kettle while it is standing on its base.

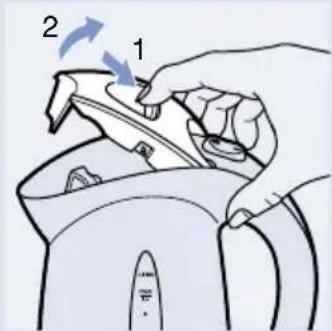

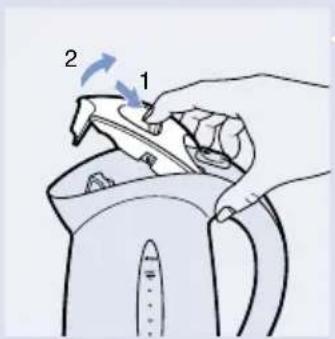

- You can also open the lid to fill the kettle.

Do not put less than 0.1 litre of water in the kettle.

- If the kettle boils dry, it will switch off automatically but the On/Off switch will stay in the "I" position. After 10 minutes the kettle must be lifted off the base to reset its dry-boil protection, you can use the kettle again.

Do not fill the kettle beyond the 'MAX' indication.

- If too much water has been put in the kettle, boiling water may be ejected from the spout.

5 Close the lid and put the kettle on its base.

Make sure the lid is properly closed, otherwise the kettle will boil dry.

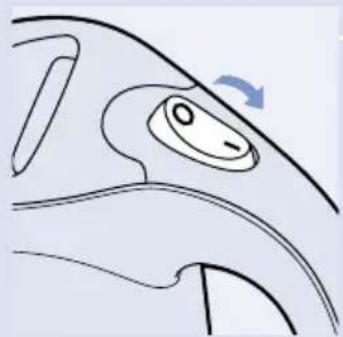

6 Set the On/Off switch to position "I".

The kettle starts heating up.

7 The appliance switches off automatically when the water has reached the boiling point.

The On/Off switch returns to the "O" position.

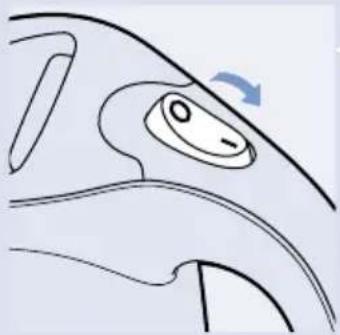

8 You can interrupt the boiling process by setting the On/Off switch to "O".

Cleaning the appliance

1 Unplug the base of the appliance.
2 Clean the outside of the appliance with a cloth moistened with warm water and some cleaning agent.

Do not use any abrasive cleaning agents, scourers etc. to clean the appliance.

Never immerse the kettle or its base in water.

Cleaning the scale filter

Scale is not harmful to your health but it may give your drink a powdery taste. The scale filter prevents scale particles from ending up in your drink. Clean the filter regularly.

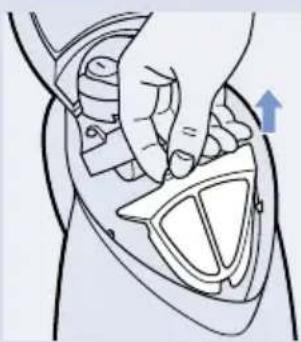

1 Remove the filter.

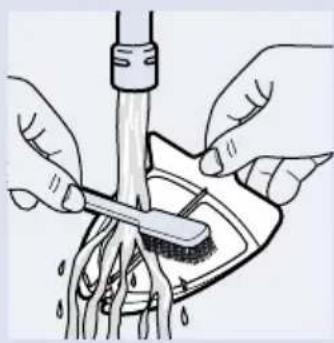

2 Clean the filter under a running tap while gently brushing the filter with a soft nylon brush.

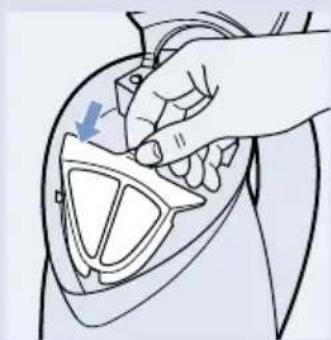

3 Put the filter back into the appliance.

Descaling

Regular descaling will prolong the life of the appliance.

When you descale the kettle, you can also descale the filter at the same time by simply leaving it in the appliance.

1 Fill the kettle with water up to three-quarters of the 'MAX' capacity and bring the water to the boil.
2 After the appliance has switched off, add white vinegar (8% acetic acid) to the 'MAX' level.

3_leave the solution in the kettle overnight.
4 Empty the kettle and rinse the inside thoroughly.
5 Fill the kettle with clean water and boil the water.
6 Empty the kettle and rinse it with clean water again.

Repeat this procedure if there is still some scale in the kettle.

You can also use an appropriate descaler.

Replacement

Replacement filters for the HD4672 and HD4673 are available from your Philips dealer under type number HD4974.

If the mains cord of this appliance is damaged, it must always be replaced by a service centre authorised by Philips, as special tools and/or parts are required.

Guarantee & service

If you need information or if you have a problem, please visit the Philips Web site at www.philips.com or contact the Philips Customer Care Centre in your country (you will find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, turn to your local Philips dealer or contact the Service Department of Philips Domestic Appliances and Personal Care BV.
