Product Type	Electric Fireplace
Model	SKE 1500 A1
Brand	SilverCrest
Heating Power	1500 W (fan heater)
Heat Settings	2 levels (750 W / 1500 W)
Flame Effect	Realistic 3D flame with adjustable brightness
Flame Colors	Multiple color options (e.g., orange, blue)
Thermostat	Adjustable thermostat (15-30°C)
Remote Control	Included, with full function control
Timer	1-9 hours auto shut-off
Safety Features	Overheat protection, tip-over switch, cool-touch glass
Installation	Freestanding, no chimney required
Dimensions (W x H x D)	Approx. 60 x 55 x 25 cm
Weight	Approx. 12 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Cord Length	1.5 m
Material	Metal housing, glass view panel
Maintenance	Wipe with dry cloth; do not use water or solvents
Warranty	2 years manufacturer warranty
Included Accessories	Remote control, user manual

Frequently Asked Questions - SKE 1500 A1 SILVERCREST

How to install the SilverCrest SKE 1500 A1 fireplace?

Place the fireplace on a stable, level surface away from flammable materials. Plug into a standard 220-240V outlet. No permanent installation or chimney required.

Can I use the flame effect without heating?

Yes, you can operate the flame effect independently from the heater. Press the flame button to enjoy the ambiance without heat.

How to clean the fireplace?

Always unplug before cleaning. Wipe the exterior with a soft dry cloth. Do not use water, solvents, or abrasive cleaners. Clean the glass with a glass cleaner if needed.

What does the thermostat do?

The thermostat allows you to set a desired room temperature (15-30°C). The heater will turn off automatically when the room reaches the set temperature and turn back on when it drops.

How to use the remote control?

Insert two AAA batteries (not included) into the remote. Point it at the fireplace receiver. Use buttons to turn on/off, adjust flame brightness, change flame color, set heating level, and timer.

What is the tip-over safety feature?

The fireplace has a tip-over switch that automatically cuts power if the unit is accidentally knocked over, preventing fire hazards.

The heater is not producing warm air. What could be wrong?

Check that heating mode is selected and thermostat is set higher than room temperature. Ensure the unit is not in flame-only mode. Verify power supply and that overheat protection hasn't tripped. If still not working, contact support.

How to set the timer?

Press the timer button repeatedly to select 1 to 9 hours. The display will show the selected time. The fireplace will turn off automatically after that period.

Are replacement parts available?

Yes, parts like remote control, heating element, and glass can be ordered from SilverCrest customer service or authorized dealers. Check the user manual for part numbers.

What should I do if the flame effect stops working?

Ensure the fireplace is powered on and flame mode is activated. If the flame LED is burnt out, it may need replacement. Contact SilverCrest support for assistance.

USER MANUAL SKE 1500 A1 SILVERCREST

Color palette bar with grayscale gradient and a crosshair symbol (no text or labels)

SILVER CREST®

ELECTRIC FIREPLACE SKE 1500 A1

GB

ELECTRIC FIREPLACE

Operating instructions

HU

ELEKTROMOS KANDALLÓ

Kezelési útmutató

CZ

ELEKTRICKÝ KRB

Návod k obsluze

DE AT CH

ELEKTROKAMIN

Bedienungsanleitung

PL

KOMINEK ELEKTRYCZNY

Instrukcja obstugi

\$1

ELEKTRIČNI KAMIN

Navodilo za uporabo

SK

ELEKTRICKÝ KRB

Návod na obsluhu

IAN 90979

GB PL HU SI CZ SK DE AT CH

SKE 1500 A1_13_V1.4_GB_PL_HU_SI_CZ_SK_DE

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

1. Description .... 3
2. Names of parts (see fold-out page).... 4
3. Technical data .... 4
4. Safety information .... 4
5. Unpacking and setting up....6
6. Operation....7
7. Cleaning....8
8. Troubleshooting 8
9. Disposal....9
10. HOYER Handel GmbH Warranty 9

Congratulations on the purchase of your new product.

You have selected a high-quality product. The operating instructions are a constituent part of this product. They contain important information about safety, use and disposal.

Familiarize yourself with all the operating and safety instructions before using the product. Use the product only as described and for the stated spheres of application. If you pass the product on to a third party, always pass on all the documentation as well.

1. Description

1.1 Intended purpose

This SilverCrest SKE 1500 A1 electric heater may be used to heat dry rooms.

This appliance is intended for private use and is not suitable for commercial purposes. The appliance is suitable for providing auxiliary heating. It is less suitable for use on its own to heat large spaces.

The appliance is floor standing only.

This appliance is not suitable for use in vehicles.

1.2 Scope of supply

• 1 electric heater
  • 1 copy of the user instructions

1.3 Markings on the appliance

The adjacent symbol 2 warns against covering the appliance as this could cause a build up of heat leading to damage and the risk of fire.

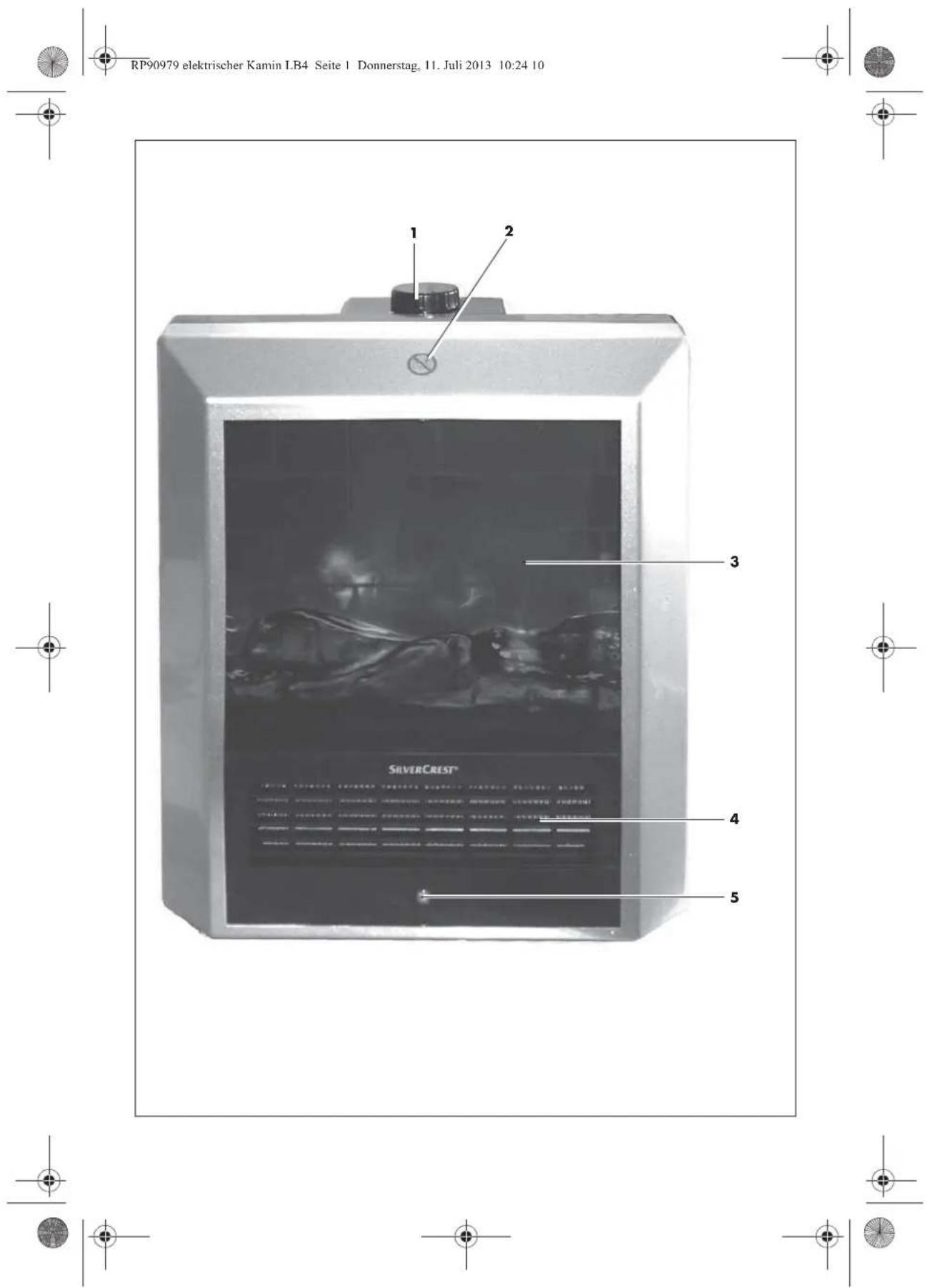

2. Names of parts (see fold-out page)

1 Control knob

4 Air outlet

2 Warning symbol "Do not cover"

5 Power indicator

3 Artificial flame

3. Technical data

Power supply: 230 V \~ / 50/60 Hz

Power: max. 1,500 watt

Protection class: 11

Ambient conditions: 0 °C to +35 °C

CE回

4. Safety information

4.1 Terms used

The following signalling terms are found in these Operating Instructions:

Warning!

High risk. Disregarding the warning may cause injury to life and limb.

Caution!

Medium risk. Disregarding the warning may cause damage to property.

Note:

Low risk. Circumstances that should be taken into account when dealing with this appliance.

4.2 General information

- Before using the appliance, be sure to read these Operating Instructions carefully. They are a component part of the appliance and must be available at all times.

- Use the appliance only for the purpose described (see "1.1 Intended purpose" on page 3).

- Check whether the mains voltage (see type plate on the appliance) agrees with your mains voltage.

- This device is not intended to be used by individuals (including children) with limited physical, sensory or mental capabilities or with a lack of experience and/or lack of knowledge, unless supervised by a person responsible for their safety or they have received instructions from such a person as to how to use the device. Children should always be supervised to ensure that they do not play with the device.

- If there should be any malfunctions, the appliance may only be repaired by our Service Centre.

• The appliance must only be set up on a firm, level, dry and non-flammable surface.

4 GB

图 2-1

[Non-Text]

- Check that the power socket is easily accessible so that you can pull out the mains plug quickly if necessary.

4.3 Protection against electric shock

Warning! The following safety information is intended to protect you against electric shock.

- Only plug the appliance into a correctly installed, earthed wall socket.

- Do not use the appliance if it has fallen on the floor, received a hard blow or fallen into water. In this case, please contact our Service Centre. The contact data can be found in "Service Centre" on page 10.

- The appliance must not under any circumstances be used if it is damaged. Have the device repaired in such cases by a qualified specialist. The contact data can be found in "Service Centre" on page 10.

- If the mains cable for this appliance is damaged, it must be replaced by the manufacturer or a person with similar qualifications in order to avoid a hazard.

- Never use the appliance in the immediate vicinity of a sink, bath tub, shower or swimming pool as might enter the appliance.

• Water or other liquids must never be allowed to enter the appliance. For this reason:

• never use outdoors;
• never place containers filled with liquid, such as drinking glasses, vases etc. on the appliance;
• never use in a very damp environment such as a bathroom.

If nonetheless liquid does enter the appliance, unplug the mains plug immediately and have the appliance

repaired by a qualified specialist. The contact data can be found in "Service Centre" on page 10.

• Never insert fingers or any objects through the protective guards into the inside of the appliance.
• Never touch the appliance, the mains cord or the mains plug with moist hands.
  • Always pull the mains cord out by the plug. Never pull it by the cord itself.
• Ensure that the mains cable is not kinked, twisted or crushed.
• Ensure that the mains cable is not damaged on sharp edges.
• Keep the mains cord away from hot surfaces (such as stove eyes).
• If you are not using the appliance for a prolonged period of time, remove the plug from the wall socket. Only then is the appliance completely free of current.
• You should avoid using extension cords. This is only allowed under very particular conditions:

- The extension cord has to be suited for the appliance's amperage.

- The extension cord must not be installed "loose": it must not be possible to trip over it or within the reach of children.

The extension cord must not by any splashes means be damaged.

- No other devices other than this appliance must be connected to the mains socket, as otherwise overloading of the power supply network could occur (multiple sockets are not allowed!).

- The appliance must not be operated with an external time switch or separate remote control system, such as a wireless remote control socket.

4.4 Protection against the danger of fire

Warning! As the appliance works at high temperatures, please observe the following safety information to prevent fire.

- While the appliance is operating, there must be no flammable objects (e.g. curtains, paper) in the immediate vicinity of the appliance.

- Never use the appliance to dry textiles or other items on, over or in front of the appliance.

• To avoid overheating, the appliance must never be covered.

- When setting up the appliance, maintain a minimum distance of 0.5 m from other appliances and the wall.

- Never operate the appliance in rooms where there is a risk of explosion or in the vicinity of flammable gases or liquids.

- The appliance must never be placed immediately beneath a wall socket, as the heat it generates could damage the electrical installation.

• Always check that air can freely enter and escape. Heat might otherwise build up inside the appliance.

- Never leave the appliance running when it is unattended. The presence of odour is almost always an indication of damage. If you notice any such odour,

unplug the mains plug immediately and have the appliance inspected. The contact data can be found in "Service Centre" on page 10.

4.5 Protection against injury

Warning! To avoid injury, please observe the following information.

- Ensure that it is not possible for anyone to trip over or to get caught up in or step on the mainscable.

- Stay sufficiently far from the appliance to ensure that the fan cannot suck hair or items of clothing into the appliance.

4.6 For the safety of your child

Warning! Children often cannot assess dangers correctly and are injured as a result. Please therefore observe the following:

- This product may only be used under adult supervision to ensure that children do not play with the appliance.

• Always take care to ensure the appliance is kept out of the reach of children at all times.

- Ensure that the packing foil does not become a deadly trap for a child. Packing foils are not toys.

5. Unpacking and setting up

5.1 Setting up the appliance

Note As the appliance and heating coils are supplied with a thin film of grease, there might be a small amount of smoke and odour the first time the appliance is used.

This is not harmful and will stop after a short time. Ensure adequate ventilation during this process.

1. Take the appliance out of the packaging.

6 GB

1. Remove the transport packaging.
2. Check that the appliance has not sustained any damage.

Warning! Ensure that there is sufficient distance from the wall, fixtures and other appliances. The distance must be at least 0.5 m to exclude the risk of fire.

1. Select a location in line with the safety instructions (see "4. Safety information" on page 4).

2. Select a location where the flow of hot air is not directly aimed at people, animals or plants.

3. Insert the power supply plug into a wall socket that complies with the technical data.

Note The appliance consumes up to 7 amps (1,500 watts) of electricity. If you have plugged other power consumers into the same circuit, check that the maximum load for the installed fuse is not exceeded, as otherwise the fuse will trip.

6. Operation

6.1 Switching the appliance on and off

1. Insert the power supply plug into a wall socket that complies with the technical data (see "3. Technical data" on page 4).

The power indicator will light up as soon as the appliance is connected to the power supply 5.

1. Switch the appliance on by turning the control knob 1 to the required function:

Fan running without heater

I: Heater running at level 1 (750 watts)

II: Heater running at level 2 (1,500 watts)

Note The artificial flame 3 lights up with all three functions.

1. Move the control knob 1 to "0" to switch off the appliance.
2. If you are not using the appliance for a long period, pull the power supply plug out. This is the only way to cut off all power to the appliance.

The power indicator will go out as soon as the power supply plug is removed 5.

6.2 Thermal cut-out

For your safety the appliance has a thermal cut-out.

If the temperature inside the appliance becomes too high, the appliance switches off automatically:

1. Remove the power supply plug.
2. Allow the appliance to cool down for 20 minutes.
3. Check whether the air inlet at the rear or air outlet 4 is obstructed and remove the cause.
4. You can then continue to operate it normally.

If you cannot establish a cause and the fault occurs repeatedly, have the appliance repaired or else take it out of use.

图 1

6.3 Safety switch

A safety switch protects the appliance from damage caused by toppling over or shocks.

The safety switch is located inside the appliance and switches it off immediately if it falls over or is subject to a major shock:

- Return the appliance to a stable, upright position.

7. Cleaning

To ensure your appliance gives you lasting service, you should clean it regularly.

Warning! To avoid the danger of an electric shock or burning:

• remove the mains plug before each clean;
• allow the appliance to cool down;
• never immerse the appliance in water;

• never allow water or cleaning agent to run into the appliance.

• Carefully remove major dust deposits from the protective guards with a vacuum cleaner.

• Remove any remaining dirt with a soft brush.

• Clean the outside of the appliance with a damp cloth. You could also use a little washing-up liquid.

Caution! Never use caustic or abrasive cleaning agents, as this could damage your appliance.

1. Wipe the appliance with a cloth moistened with clear water.
2. Do not use the appliance again until it has dried completely.

8. Troubleshooting

Fault Cause Remedy
Appliance cannot be switched on	Faulty fuse or wall socket Select	another wall socket
	Faulty appliance Have repairs carried out at a specialist workshop or dispose of the appliance. You will find the service address in "Service Centre" on page 10.
Appliance switches off automatically	Safety switch has triggered Set the appliance upright (see "6.3 Safety switch" on page 8)
	Thermal cut-out has triggered	Allow the appliance to cool down (see "6.2 Thermal cut-out" on page 7)
		Clean the appliance (see "7. Cleaning" on page 8)

8

GB

Fault Cause Remedy
No flame effect. Lamp for flame effect is defec- tive.	Lamp cannot be replaced.

9. Disposal

9.1 Appliance

The symbol with the crossed-out rubbish bin on wheels means that within the European Union, the product must be disposed of to a sorted rubbish collection. This applies to the product and all accessories which are marked with this symbol. Marked products must not be disposed of via the regular domestic waste but must be handed in to a recycling centre for electrical or electronic

devices. Recycling helps to reduce the use of raw materials and to relieve the environment. It is therefore imperative that you follow the disposal regulations applicable in your country.

9.2 Packaging

If you would like to dispose of the packaging, please observe the corresponding environmental regulations in your country.

You have a warranty on this product which is valid for 3 years from the date of purchase. In the event of this product being defective, you have statutory rights against the seller of the product. These statutory rights are not limited by our warranty as set out below.

Warranty conditions

The warranty period begins with the date of purchase. Please keep the original till receipt in a safe place. This is required as your proof of purchase.

If a defect in materials or workmanship occurs within three years of the date your product was purchased, we will repair or replace the product at our discretion at no

charge to you. This service under warranty assumes that the defective product and the proof of purchase (till receipt) are submitted within the three-year period and that a brief description in writing is provided of what the defect is and when it occurred.

If the defect is covered by our warranty, the repaired product or a new one will be sent back to you. There is no period following repair or replacement of the product.

Warranty period and statutory claims relating to defects

The warranty period is not extended when a service is provided under warranty. This also applies to replaced and repaired parts. Any damage or defects present at purchase must

SKE 1500 A1 9

GB

be reported immediately the product is unpacked. Repairs incurred once the warranty period has expired are chargeable.

Scope of warranty

The product has been carefully manufactured in accordance with strict quality guidelines and was thoroughly checked before being delivered.

The warranty applies to defective materials or workmanship. This was extend to product parts exposed to normal wear and tear (and which can therefore be considered wear parts) or to damage to fragile parts such as switches, batteries or parts made of glass.

This warranty is void if the product is damaged or if it is not used or maintained properly. All the information in the operating instructions should be observed precisely to ensure that the product is used properly.

It is essential to avoid intended uses and actions which are discouraged or warned against in the operating instructions.

The product is intended for only private use and not for commercial purposes.

The warranty is void in the event of misuse, incorrect treatment, use of force or interference by anyone other than our authorized service centre.

Warranty process

Please follow the instructions below to ensure that your claim is processed quickly.

• In case of any enquiry, please keep the article number (for this product: IAN 90979) and the till receipt as proof of purchase.

- The article number can be found on the rating plate, as an engraving, on the cover sheet of your instructions (bottom

left) or as a label on the back or underside of your appliance.

- If malfunctions or any other defects should occur, in the first instance contact the Service Centre mentioned below by telephone or e-mail.

- Once a product has been recorded as defective, you can then send it Freepost to the service address you are given, enclosing the proof of purchase (till receipt) and quoting what the defect is and when it occurred.

ranty does not

You can download these instructions and many other manuals, product videos and software from www.lidl-service.com.

Service Centre

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IR Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

CY Service Cyprus

Tel.: [phone]

E-Mail: [e-mail]

MT Service Malta

Tel.: [phone]

E-Mail: [e-mail]

IAN: 90979

Pure electrical circuit lines without any symbols

Pure geometric crosshair symbols without any text or labels

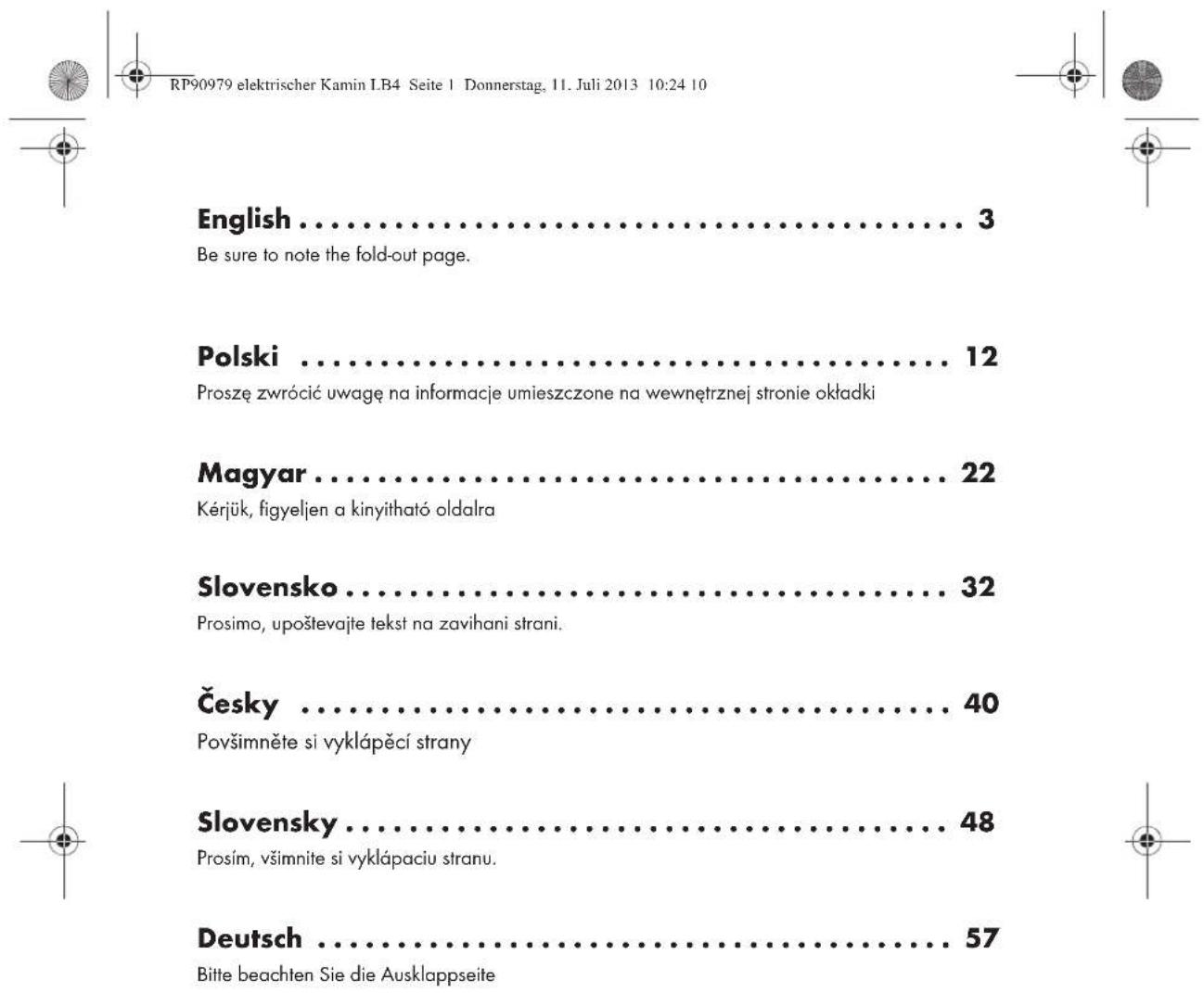

Spis treści

Pure electrical circuit lines without any symbols

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

Tartalom

Pure electrical circuit lines without any symbols

Pure geometric crosshair symbols without any text or labels

Pure electrical circuit lines without any symbols

Pure geometric crosshair symbols without any text or labels

Vsebina

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

Rozsah záruky

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

Pure color palette bar with no text or symbols, showing grayscale gradient and a color swatch (no text or symbols)

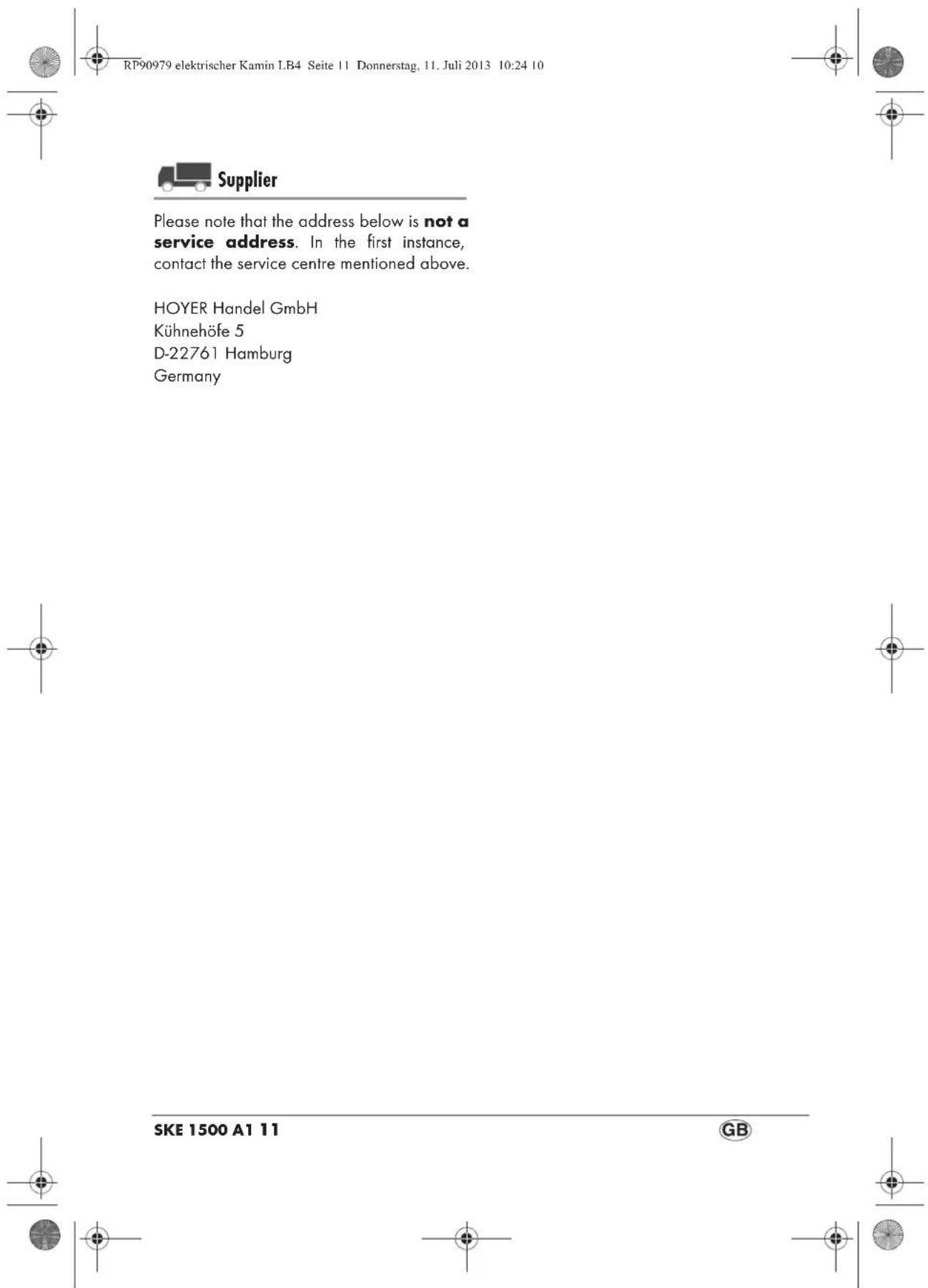

HOYER HANDEL GMBH

Kühnehöfe 5

D-22761 Hamburg
