Q3000 - Alarm system BLAUPUNKT - Free user manual and instructions

Type	Alarm System
Brand	Blaupunkt
Model	Q3000
Dimensions (HxWxD)	120 x 80 x 30 mm
Weight	200 g
Power Supply	12V DC adapter
Backup Battery	3.7V Li-ion, 500 mAh
Alarm Volume	100 dB
Wireless Range	100 m (open field)
Number of Zones	8
Sensors Included	Door/Window sensor, PIR motion sensor
Smartphone Control	Via app (iOS/Android)
Siren Type	Built-in, 100 dB
Operating Temperature	-10°C to 50°C
Installation Type	Wireless, DIY
Material	ABS plastic
Certifications	CE, FCC
Maintenance	Clean with dry cloth, avoid liquids
Safety	User PIN code, remote arm/disarm
Spare Parts	Available via Blaupunkt service centers
Reparability	Battery replaceable, sensors replaceable

Frequently Asked Questions - Q3000 BLAUPUNKT

How do I reset the Blaupunkt Q3000 alarm system?

To reset, press and hold the reset button on the keypad for 5 seconds until you hear a beep. Then enter the default PIN code 1234 to confirm.

Can I add extra sensors to the system?

Yes, the Q3000 supports up to 8 wireless zones. Pair new sensors by entering the settings menu and selecting 'Add Sensor'.

What is the range of the wireless sensors?

The wireless range is up to 100 meters in open field. Walls and obstacles may reduce the range.

How do I change the backup battery?

Open the battery compartment on the back of the keypad. Replace the old battery with a new 3.7V Li-ion 500mAh battery, ensuring correct polarity.

Does the system work without internet?

Yes, the basic alarm functions work locally without internet. Smartphone control requires Wi-Fi connection.

How do I silence a false alarm?

Enter your PIN code on the keypad and press 'Disarm'. If the siren is sounding, it will stop immediately.

What should I do if the keypad is unresponsive?

Check the power adapter and battery. If unresponsive, perform a system reset by removing the battery and unplugging the power for 1 minute.

Can I use the alarm with a home automation system?

The Q3000 can be integrated via Smart Life app compatible with Amazon Alexa and Google Assistant.

How do I clean the alarm system?

Use a soft, dry cloth to wipe the keypad and sensors. Avoid water, solvents, or abrasive cleaners.

What is the warranty period?

Blaupunkt offers a 2-year limited warranty for the Q3000 alarm system from the date of purchase.

USER MANUAL Q3000 BLAUPUNKT

Q3000 Smart Home Alarm

Kit Content and Installation Guide

Table of Contents

1. Introduction ____ 1
2. Installation 4
3. Troubleshooting & Factory Reset 7
4. Specifications 9

Information and illustrations are subject to change within this document. Blaupunkt reserves the right to alter the specification and product design at any time without notice.

1. Introduction

This document includes information to help you install and maintain your Q3000 alarm system and its accessory devices. For information about registration and system operation using Blaupunkt Home Connect cloud server, please refer to the "Blaupunkt Home Connection User Manual" which you can download from the server home page https://eu.bphomeconnect.com/

Kit Contents

Control Panel

The Control Panel is the hub of your alarm system. It must be powered on and connected to the internet at all times. When an alarm signal is transmitted from accessory devices, the Control Panel will activate its built-in buzzer to raise an alarm and report the event to the server, which in turn sends a notification to the user via email or smartphone push notification.

The Control Panel is purposely designed to resemble the appearance of a speaker and blend into your home environment.

- Status LED (Green / Red): Green ON – Disarm Mode

Green Flash – Learning Mode

Red ON – Away Arm Mode

Red Flash – Home Arm Mode

Off – Walk Test Mode

- Status LED (Amber / Red): Amber ON – System has fault

Amber Flash – AC failure

Red Flash – System alarming

Red ON – Alarm Memory

Off - Normal

● Network LED (Amber): Amber ON – Network Error

Off - Normal

• Learn/Rest Button: Used for learning new device or resetting panel to default. ● Battery Switch: Slide to ON to activate and charge built-in battery. ● DC Jack: Connect the DC9V 1A adaptor supplied in the package to power up Control Panel
• Ethernet Port: Connect to your router

IMPORTANT NOTE:

The Battery Switch is set to OFF by factory default. Please make sure to turn the switch to ON after connecting AC power to the Control Panel, otherwise the battery will not be charged and the Control Panel will be without back up power when power fails.

It takes about 72 hours to fully charge the battery. When fully charged, the battery can serve as a backup power source for about 15 hours.

Accessories

All accessories included in the kit content are pre-linked with the Control Panel and do not require manual linking (learning). If learning is required, please refer to the server user manual.

Door Contact

The Door Contact is mounted on the door or window frame to detect door/window opening. When triggered, it will transmit a signal to the Control Panel to alert the condition.

- LED Indicator:

The LED will light up if the Door Contact is triggered under tamper open or low battery status to signal a fault.

- Learn / Test Button:

The Learn / Test button is used to send a signal for learning the Door Contact or to test range.

- Tamper Switch:

The tamper switch is compressed against the door or window frame when installed. When the Door Contact is removed from its installed location, or its cover is opened, the Tamper Switch will be activated.

- Rib Mark:

The Rib Mark marks the location of the Door Contact's internal magnetic switch to help alignment with the magnet.

- Magnet

The magnet is mounted on the door and window and should align with the Rib mark when installed.

PIR Sensor

The PIR Sensor raises an alarm upon detecting an intruder.

Parts Identification:

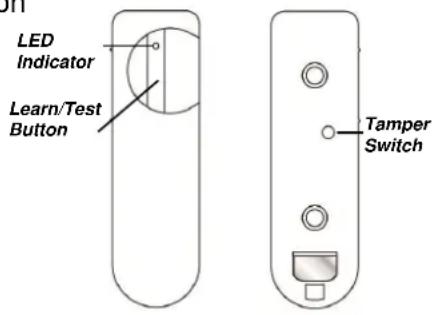

- LED Indicator & Learn & Test Button:

The LED will light up if the PIR Camera detects movement under tamper open or low battery status to signal a fault.

- PIR Sensor:

The PIR Sensor has a detection coverage of about 110 degrees to the front.

- Tamper Switch:

The tamper switch is located inside the PIR and is depressed against the back cover. It will be activated when the back cover is opened.

System Extension

Aside from the devices included in the package, you can further improve the capability of your alarm system by purchasing extra accessories. Such as extra PIR Sensor or Door Contact to extend your protection area; Remote Keypad for a secondary system operation platform; Smoke Detector for fire protection; Temperature Sensor for temperature updates; and more Power Switch for energy management and Home Automation. For information about more accessory devices, please visit www.blaupunkt.com

Before proceeding to install your accessory devices, you should first complete system registration on the Blaupunkt Home Connect server. Please refer to the Quick Start Guide or server user manual to complete the registration process and log into your user account.

Signal Range and Walk Test

All accessory devices in the Q3000 alarm kit use wireless radio protocol to communicate with the Control Panel to save you from the extra labor of wiring the device to the panel. All devices in the alarm system have an approximate range of 30 meters in a typical domestic environment. The range may vary depending on different home conditions. Before installing an accessory device, you should test its signal range at the selected mounting location first. To test signal range, use the Walk Test function from the Blaupunkt Home Connection server, then press the device's test button to transmit a test signal. Refer to the server user manual for more info.

Home Arm Mode Planning

The alarm system functions according to its current "Mode", which determines the system behaviour when a sensor is activated. There are 3 modes:

Disarm Mode: The system will not activate the alarm when a burglar protection sensor, such as a door/window contact or PIR sensor, is triggered. It will only activate the alarm if the user does so manually, or if a fire/water sensor is triggered.

Away Arm Mode: The system will activate the alarm when any sensor is triggered.

Home Arm Mode: The system will only activate the burglar alarm from specific sensors. Sensors set to be ignored under Home Arm mode will not activate the alarm when triggered. With Home Arm mode, you can keep your home perimeter under alert and still be able to move freely within the house.

Home Arm mode allows the system to be partially armed by deactivating some sensors under Home Arm mode. Before installation, you should plan ahead and determine which sensors should be deactivated for Home Arm mode. Usually, sensors deployed at the home perimeter and entry points, such as door contacts on the front gate, should be activated at all times. While sensors located in internal spaces, such as on the 2nd floor, can be deactivated for Home Arm mode. For more info about Home Arm mode settings, please refer to the server user manual.

Tamper Protection

Your intrusion protection sensors (PIR sensors and door contacts) are protected from sabotage attempts by a "tamper switch," which is triggered when the device cover is opened or removed from the mounted surface. When the tamper switch is triggered, the sensor will transmit a signal to the control panel to alert the user that the sensor may be either installed improperly or has been sabotaged. To make sure the tamper switch functions properly, please make sure the switch is fully depressed against the mounting surface when installing your accessory devices.

General Device Location Guideline

- Avoid mounting the control panel and devices close to large metal objects or electrical interference sources, such as refrigerators and microwave ovens, as they could affect signal strength. Wall material also plays a great role in signal penetration efficiency; for example, a brick wall will reduce signal strength much more than a wooden wall.

- For devices that have tamper protection function, mount on an even surface to ensure the tamper is fully closed when mounted. For uneven surfaces, use extra packing material on the back.

Device Location Planning:

PIR Sensor

Mount the PIR sensor at 1.9-2m height for best performance. When mounted at 2m height, the PIR sensor has a range of 12m. PIR sensor detection is most effective when the intruder is moving across its field of view from the sides. Do not mount the PIR sensor in a location that faces the intruder directly. Do not mount the PIR sensor directly exposed to sunlight, which may affect detection sensitivity. Do not point the PIR sensor at windows, moving objects, or sources of heat, e.g., fire or boiler.

Control Panel

The Control Panel should be mounted in a hidden area invisible from outside view. The Control Panel requires Ethernet connection to your router.

Mounting

Door Contact

1. Pull out the plastic battery insulator on the back to activate battery and power on Door Contact.
2. The Door Contact should be mounted on the door/window frame, while the magnet should be mounted on the door/window aligned with the Rib Mark on the Door Contact. The gap between the Door Contact and the magnet should be no more than 15 mm.
3. Choose to install the Door Contact with either screw or adhesive tape. Screw Mounting

The Door Contact has two knockouts on the inside of the back cover where plastic is thinner for wall mounting.

1. Open the Door Contact back cover to reveal the knockouts, break through the knockouts and use the knockouts to mark position on door or window frame.
2. Drill holes into door or window frame at marked location, insert plugs if needed.
3. Screw the back cover into marked location and replace the front cover.
4. Screw the magnet onto the door, the position of the magnet should be aligned with the rib mark on the Door Contact at the same height. If the magnet cannot be placed at same height of Door Contact, a spacer is provided in the package to increase the magnet height.

Adhesive Mounting

Before mounting with double side adhesive tape, you should clean the mounting location with degreaser and make sure there is no cracked paint or uneven surface.

1. Unpeel the cover on the double side adhesive tape, apply the tape to the back of Door Contact, then apply the Door Contact to door or window frame.
2. Use another double side adhesive tape to install the magnet on the door/window.

PIR Sensor

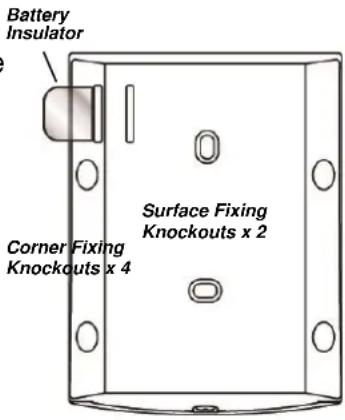

The PIR Sensor has knockouts on the back where plastic is thinner. The 2 central knockouts are for flat wall mounting, and the 4 side knockouts are for corner mounting.

1. Pull out the plastic battery insulator on the back to activate batteries and power on PIR Sensor.
2. Open the PIR Sensor back cover, break through the knockouts and use the knockouts to mark position on wall or corner.
3. Drill holes into the wall or corner at marked location, insert wall plugs if needed.
4. Screw the back cover into marked location and replace the front cover.

This chapter covers the potential issues you may encounter during system operation, and factory reset function

Control Panel

Control Panel Fault Orange LED indicates fault in system, When the LED light up, please login to your Blaupunkt Home Connection Server account to check fault events. The possible fault events include:

● Control Panel / Devices low battery:

-- Change device batteries or charge Control Panel battery accordingly.

- AC power fail:

-- Check AC power connection

● Sensor out of order:

-- Check device battery status and conduct Walk Test to confirm if the Control Panel can receive device signal.

● Device tamper:

-- Close the accessory device tamper switch by checking mounted location and cover screw.

- Interference:

-- Perform Walk Test on all your devices to check if Control Panel can still receive their signals.

PIR Sensor

- PIR Camera LED flashes when activated:

-- PIR is on low battery or tamper switch triggered.

● PIR does not respond to movement:

-- PIR has a built-in 1 minute sleep timer after detecting a movement. PIR will not redetect movement within 1 minute after it is triggered. Please wait for at least 1 minute before testing PIR again.

-- Battery exhausted, please change battery.

● PIR is slow to respond:

-- This is normal. PIR has sophisticated false arm filter setting to prevent accidental trigger. It is also less sensitive when walking directly toward it.

- PIR give false alarm:

-- Make sure pets have no access to protected area.

-- Make sure the PIR is not pointed at source of heat or moving objects.

Door Contact

● Door Contact LED flashes when activated:

-- Door Contact is on low battery or tamper switch triggered.

● Door Contact does not respond to door/window opening

-- Batteries exhausted, please change battery.

-- The magnet is too far away from the Door Contact, please check the gap between the magnet and the Door Contact. Reduce the gap and test the Door Contact again.

Factory Reset

The Factory Reset function will clear all device info and returns all system parameter to default value. After resetting you will need to setup the system by following the instruction in server user manual.

1. Power down Control Panel by disconnecting AC Power and switching off battery switch.
2. Apply AC Power while holding down the button on the back.
3. Keep holding the button for about 5 seconds until the panel emits a long beep and turn on all 3 LEDs.
4. Release button, factory reset is complete.

All Devices

Environmental Condition

-10°C to 40°C, relative humidity 85% non-condensing for Control Panel and all devices.

Radio Operation Range

About 30m in typical domestic installation, range varies depending on building construction, device location, and environment.

Control Panel

Siren Output

96 dBA sound pressure @ 1m minimum

Zones

40 radio devices.

Radio Frequency

868MHZ & 2.4 GHz

Power Supply

DC9V 1A Power Adaptor

Battery

4.8V 1100mAh Ni-MH Rechargeable Battery, charge time 72 hours.

Battery Backup Time

15 hours

PIR Sensor

Radio Frequency

868MHz

Battery

1 x 3V lithium battery

Door Contact

Radio Frequency

868MHz

Battery

1 x CR2 3V lithium battery

Compliance Statement

Declaration of Conformity

This device complies with the requirements of the R&TTE Directive 1999/5/EC and the following harmonized standards have been applied:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC Caution:

To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance may void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices).

Blaupunkt Competence Center Security & Care

Azure Security & Care Corporation

www.blaupunkt.com

6F., No.1, Lane 250, Sinhu 2nd Rd.,

Neihu, Taipei 114, Taiwan
