SRP3016S - Remote control PHILIPS - Free user manual and instructions

Product Type	Universal Remote Control
Brand	Philips
Model	SRP3016S
Dimensions (W x H x D)	4.5 x 22.5 x 2.0 cm
Weight	120 g (including batteries)
Power Source	2 x AAA batteries (not included)
Operating Voltage	3.0 V DC
Transmission Range	Up to 10 meters (30 feet)
Control Type	Infrared (IR)
Number of Keys	28 buttons
Compatible Devices	TV, DVD, Blu-ray, Set-top box, Soundbar, and more (brand specific)
Programming Method	Automatic code search or manual code entry
Code Database	Pre-programmed with 2000+ codes
Setup Codes	Available in user manual and online
Learning Function	Not available (non-learning remote)
Backlight	No
Macro Support	No
Battery Life	Approximately 6 months under normal use
Operating Temperature	0 °C to 45 °C
Housing Material	ABS Plastic
Color	Black
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use liquids or abrasives.
Safety	Keep away from heat sources and moisture. Do not expose to direct sunlight.
Spare Parts Availability	Batteries are user-replaceable. No other spare parts available.
Repairability	Not designed for repair; replace if defective.
Included Accessories	User manual

Frequently Asked Questions - SRP3016S PHILIPS

How do I set up the Philips SRP3016S remote control for my TV?

Turn on your TV. Press and hold the TV button on the remote until the LED blinks twice. Then press and hold the Setup button until the LED blinks twice again. Finally, press the Power button repeatedly until your TV turns off. Press Enter to save the code.

What devices are compatible with the SRP3016S remote?

The SRP3016S works with most brands of TVs, DVD/Blu-ray players, set-top boxes, soundbars, and other IR-controlled devices. It supports over 2000 codes from major brands like Samsung, LG, Sony, and more.

How do I program the remote using manual code entry?

Turn on the device. Press and hold the device button (TV, DVD, etc.) until the LED blinks once. Then press and hold Setup until the LED blinks twice. Enter the 4-digit code from the manual using the number keys. The LED will turn off if the code is correct.

How do I reset the remote control to factory settings?

Press and hold the Setup button until the LED blinks twice. Then press 9 and 9 rapidly. The LED will blink three times to confirm the reset. This clears all programmed codes.

What batteries does the SRP3016S use?

The remote uses 2 AAA alkaline batteries. Insert them with correct polarity as marked in the battery compartment. Replace when the remote becomes unresponsive.

Why is my remote not working even after programming?

Check if the batteries are fresh and inserted correctly. Ensure no obstructions between the remote and the device. Make sure the device is IR-compatible and the correct device mode is selected (TV, DVD, etc.) Try reprogramming with a different code.

Can I use the remote to control multiple devices?

Yes, you can program the remote to control up to 2 devices (e.g., TV and set-top box). Use the corresponding mode buttons (TV, STB) to switch between them.

How do I find the correct code for my device?

Refer to the code list in the included user manual or visit the Philips support website. You can also use the automatic code search method by pressing Power repeatedly until the device turns off.

What is the range of the infrared signal?

The remote works up to 10 meters (30 feet) from the device, within a 30-degree angle. For best performance, avoid direct sunlight or bright lights near the IR receiver.

Does the remote have a learning function?

No, the SRP3016S is a pre-programmed universal remote and does not have a learning function. It uses a built-in code database to control devices.

USER MANUAL SRP3016S PHILIPS

Button Functions....4

Programming Your Remote 6

Direct Code Entry......6

Auto Code Search....7

Controlling Combo Devices....9

Using Your Remote....10

Primary Audio Control 10

Code Identification....11

Reset to Factory Settings....11

Troubleshooting 12

Warranty....13

FCC Statement 14

Congratulations on your purchase of this Philips branded Universal Remote Control. This remote is capable of operating thousands of audio/video devices including TVs, Blu-ray™/DVD players, streaming media players, sound bars, cable receivers and more!

For Remote Help:

byjasco.com/urccodes

Setup

Your universal remote requires two (2) AA batteries (not included). Alkaline batteries are recommended.

Battery Installation

1. On the back of the remote, pull down on the textured surface and slide battery cover downward to remove.
2. Match the (+) and (-) marks on the batteries to the (+) and (-) marks inside the battery compartment, then insert two (2) AAA batteries. Be sure to use fresh batteries.
3. Position battery cover slightly below opening and push upward to lock into place.

NOTE· If your remote stops operating properly, replace the batteries with new ones.

Battery Precautions

• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc), or rechargeable (Ni-Cd, Ni-MH, etc.) batteries.
• Always remove old, weak or worn-out batteries promptly and recycle or dispose of them in accordance with local and national regulations.

Battery Saver

Your remote automatically turns off if the buttons are depressed more than 8 seconds. This will save your batteries should your remote get stuck in a place where the buttons remain depressed (e.g., between the sofa cushions).

Code Saver

You have up to 10 minutes to change the batteries in your remote without losing the codes you have programmed.

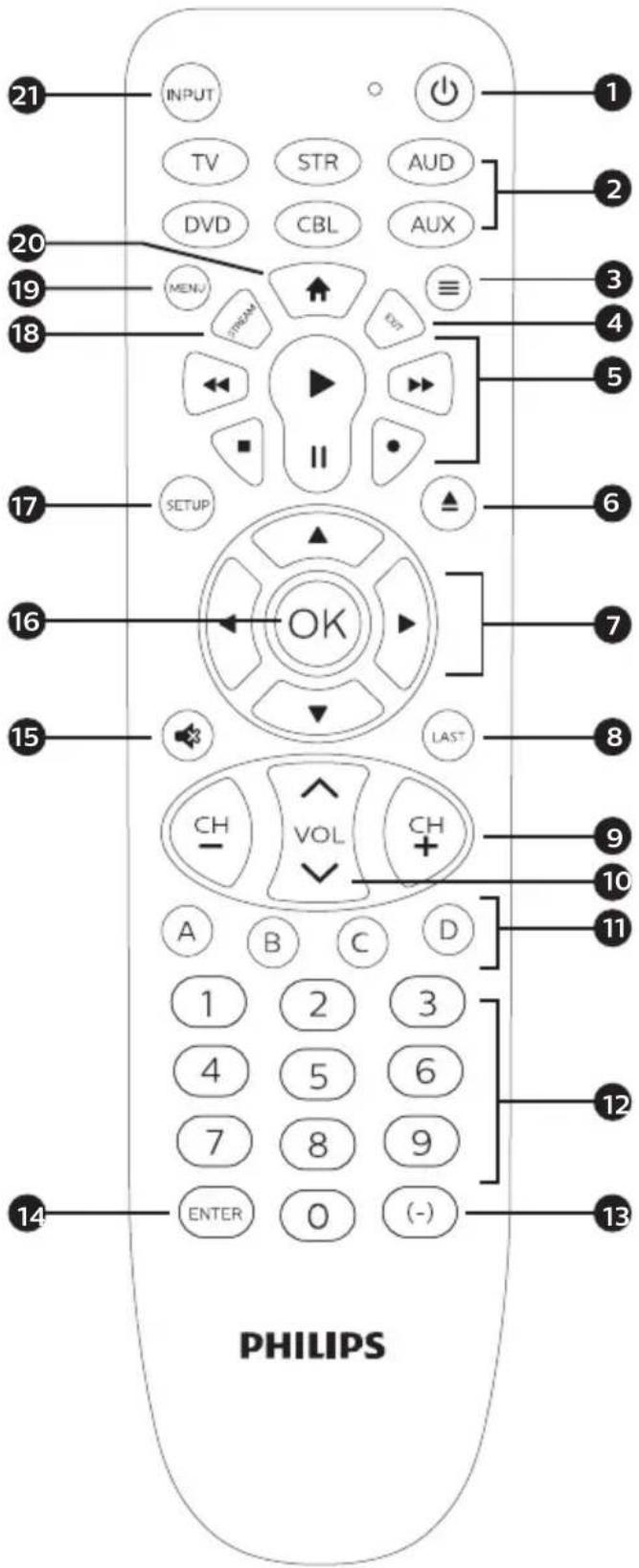

Button Functions

Button Functions

1. Power - Turns devices ON/OFF
2. TV, STR, AUD, DVD, CBL, AUX - Selects the device to control
3. Info/Options - Displays on-screen show/content information
4. Exit - Exit on-screen menus
5. Record, play, stop, rewind, fast forward, pause
6. DVD/Blu-ray™ open/close - open/close a player, or List features on cable/satellite receivers
7. Up/down/left/right menu navigation
8. Last channel - Returns to the previously selected channel
9. Channel up/down
10. Volume up/down
11. ABCD - Access additional features for DVRs, cable and satellite receivers
12. Numbers - Enter numbers for direct channel selection
13. Dash (-) - Use to select digital channels, e.g., 4.1
14. Enter - Some devices require enter to be pressed after channel selection
15. Mute - Mutes sound
16. Ok - Selects menu items for the controlled device
17. Setup - Used to program the remote
18. Streaming App Hotkey - Access top apps like Netflix ^® , Amazon ^® Prime, Hulu ^® and more
19. Menu - Displays the on-screen menu
20. Home/Guide - Easily access features on today's streaming devices, or Guide on cable/satellite receivers
21. Input - Selects video inputs

Programming Your Remote

Your remote is designed to control multiple audio/video devices. To use, you will need to program the remote for your devices. There are two different methods you can use to program the remote, Direct Code Entry or Auto Code Search.

• The Direct Code Entry method is the recommended method as it is the simplest and quickest method in most cases.
• The Auto Code Search method searches through all the codes in the remote to find a code for your device.

NOTE· This remote comes preprogrammed for Roku® boxes and Samsung TVs. Press TV for Samsung TVs and STR for Roku boxes.

Direct Code Entry (Recommended)

1. Locate the Code List included with your remote. Find the section for the type of device you wish to control, (for example TV, STR, AUD, DVD, CBL, AUX). Locate the brand of your device and circle all the remote codes for the brand.

2. Press and hold down the SETUP button on the remote until the red light on the remote control turns on. Release the SETUP button. The red light will remain on.

NOTE· The red light will either be a small light at the top of the remote or the power ON/OFF button.

1. Press and release the device button on the remote for the type of device you wish to control, (for example TV, STR, AUD, DVD, CBL, AUX). The red light will blink once and remain on.

NOTE· Any of the device buttons on the remote can be programmed to control any of your devices. For example, you can use the aux device button on the remote to

Programming Your Remote

control a Satellite Receiver, Digital Converter Box, Streaming Media Player or any device category in the Code List.

1. Use the number buttons on the remote to enter the first 4-digit remote code you circled in the Code List in Step 1. The red light will turn off after entering the fourth digit.

1. Point the remote at the device. Test the buttons on the remote to see if the device responds as you would expect. If the buttons do not operate the device, return to Step 2 above and use the next code that you circled for that device.

2. Repeat steps 1 – 5 for each device you wish to control.

Programming Notes

• Some codes may operate only a few functions of your device. There may be another code in the Code List that controls more functions. Test other codes in the Code List for more functionality.
• If you do not find a remote code that works your device or there are no codes in the Code List for your device, use the Auto Code Search method in the next section to program your remote.
• For combination devices such as a TV/DVD combo or TV/VCR combo, you may have to enter a code for each device.
• Write down the remote codes used to program the remote for future reference.

Auto Code Search

The Auto Code Search is a process where you can search through all the codes stored in the remote to find a code for your device. It is recommended that you read through all the steps below to familiarize yourself with the Auto Code Search before starting the process.

Programming Your Remote

1. Manually turn on the device you wish to control.

NOTE· The Auto Code Search process cannot be used for devices without power ON/OFF capability. Use the Direct Code Entry method in these cases.

1. Press and hold down the SETUP button on the remote until the red light on the remote control turns on. Release the SETUP button. The red light will remain on.

NOTE· The red light will either be a small light at the top of the remote or the power ON/OFF button.

1. Press and release the device button on the remote for the type of device you wish to control, (for example TV, STR, AUD, DVD, CBL, AUX). The red light will blink once and remain on.

2. With the remote pointed at the device, press and release the POWER button on the remote. The remote will send 10 different codes to the device. The red light will blink once for each code and remain on after sending the 10 codes.

Did the device turn off?

• If YES, go to Step 5.
- If NO, repeat Step 4 to test the next 10 codes.

1. Manually turn the device back on.

2. With the remote pointed at the device, press and release the VOL ▲ button. The remote will re-send the first code of the 10 codes from Step 4. The red light will blink once and remain on.

Did the device turn off?

- If YES, you have found a code for the device. Press and release the same device button

Programming Your Remote

you pressed in Step 3. This will store the code in the remote. Go to Step 7.

- If NO, continue to press and release the VOL^ button until the device turns off to test the other 9 codes from Step 4. Be sure to wait approximately 3 seconds after each VOL^ button press to allow the device time to respond to the code. When the device turns off, you have found a code for your device. Press and release the same device button pressed in Step 3. This will store the code in the remote. Go to Step 7.

NOTE.

• The VOL button can be used to go backwards through each batch of 10 codes.

• The red indicator light will flash 2 times after testing the first or last code in each batch of 10.

• Use the remote to turn the device back on. Test the buttons on the remote to see if the device responds as you would expect. If the buttons do not operate the device, return to Step 2 and repeat this process to search for a better code to operate the device.

• Repeat this process for each device you wish to control.

Controlling Combo Devices

Some combo devices (e.g. TV/VCR, TV/DVD, DVD/VCR, etc.) will require you to set up two different device buttons to control both parts of the combo device. For example, if you have a TV/DVD combo, you may need to set up one code under the TV button to control the TV and a separate code under the DVD button to control the DVD.

Using Your Remote

Primary Audio Control

The Primary Audio Control feature allows you to select a single device that the volume buttons always control. For example, the remote can be in TV mode while the volume buttons control the volume on your audio receiver or sound bar instead of your TV.

Enabling the Primary Audio Control

1. Press and hold down the SETUP button on the remote until the red light on the remote control turns on. Release the SETUP button. The red light will remain on.

1. Press and release the device button (TV, AUD, etc.) on the remote for the device you wish to control the volume.

1. Press and release the MUTE button.

1. Press and release the VOL ∧ button. The red light will blink twice and turn off.

Disabling the Primary Audio Control

1. Press and hold down the SETUP button on the remote until the red light on the remote control turns on. Release the SETUP button. The red light will remain on.

1. Press and release the device button (TV, AUD, etc.) programmed to control the Master Volume Feature.

1. Press and release the MUTE button.

1. Press and release the VOL √ button. The red light will blink twice and turn off.

Using Your Remote

Code Identification

1. Press and hold down the SETUP button on the remote until the red light on the remote control turns on. Release the SETUP button. The red light will remain on.

1. Press and release the desired device button (TV, STR, AUD, DVD, CBL, AUX) you would like the code for.

1. Press and release the ENTER button.

1. Press and release the #1 button. Count the number of times the remote light flashes. This is the number corresponding to the first digit of the code. Repeat the process by pressing the #2, #3 and #4 buttons for the remaining digits.

1. Press and release the ENTER button to exit this mode.

Reset to Factory Settings

1. Press and hold down the SETUP button on the remote until the red light on the remote control turns on. Release the SETUP button. The red light will remain on.

1. Press and release the MUTE button.

1. Press and release the number #0 button. The red indicator light will flash twice.

Troubleshooting

Remote does not operate your device.

• Make sure the batteries are fresh and installed correctly.
• Aim the remote directly at your device, and make sure that there are no obstructions between the remote and device.
  • Make sure you select the appropriate device on the remote you wish to control; TV for TV and CBL for cable box.
• Try programming the remote with a different code. See Direct Code Entry section.
• Remote may not be compatible with your device.

Remote does not operate some features of your device.

• Sometimes a particular code might operate a few features but not all. Try programming the remote with a different code from the Code list. See Direct Code Entry section.
• Remote may not be able to operate all features of your device or button names may be different than that of your original remotes.

90-Day Limited Warranty

This warrants this product to be free from manufacturing defects for a period of 90 days from the original date of consumer purchase. This warranty is limited to the repair or replacement of this product only and does not extend to consequential or incidental damage to other products that may be used with this unit. This warranty is in lieu of all other warranties express or implied. Some states do not allow limitations on how long an implied warranty lasts or permit the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific rights, and you may also have other rights which vary from state to state.

Warranty replacement procedure

1. Call our Customer Information Center at 1-844-816-0320 to get a Return Authorization Number (RA#), shipping instructions and a prepaid return address label.
2. Return the remote, freight prepaid, to us. Remotes returned to us must have an RA# included in the mailing address to be accepted.
3. The original purchaser will be asked to send the remote, a copy of the sales receipt for the product, your name, address, phone number and a description of the problem.

MADE IN CHINA

The Philips trademark and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. used under license. This product has been manufactured by Gibson Innovations Limited. It is distributed and warranted by Jasco Products Company LLC, 10 E. Memorial Rd., Oklahoma City, OK 73114. ©2018 Gibson Innovations, all rights reserved.

This product comes with a 90-day warranty. Visit www.philips.com/support for warranty details.

Questions? Contact us at 1-844-816-0320 between 7:00AM—8:00PM CST.

FCC Statement

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

ICES-3(B)/NMB-3(B).
