USER MANUAL SBTH 2.1 A1 SILVERCREST
TARGA GMBH
Coesterweg 45
59494 SOEST
GERMANY
Bluetooth® Headphones
User manual and service information
SK
Slúchadlá Bluetooth®
Safety instructions....6
Health risks due to high volume 6
Operating environment 6
Radio interface....6
Children and persons with disabilities 8
Cleaning / maintenance 8
Storage when not in use....9
Copyright....9
Controls and button functions.... 10
Prior to use 11
Charging the built-in battery....11
First use.... 12
Putting on the headphones....12
Wired operation....12
Wireless operation 13
Switching on/off the headphones....13
Using the multifunction button (2)....13
Pairing 14
Disconnecting 15
Answering / ending call....15
Rejecting call.... 15
Voice control....15
Redialling 15
Increasing / lowering playback volume....15
Selecting previous / next track 16
Starting / pausing playback 16
Auto power OFF 16
Operating overview....16
LED indicator....18
Troubleshooting.... 18
The headphones cannot be switched on....18
No audio signal for Bluetooth ^® connection 18
Pairing is not working.... 19
Not all aforementioned functions are working 19
Environmental and disposal information....19
Conformity information....20
Warranty and servicing advice....20
Information about trademarks
The Bluetooth ^® word mark and logos are registered trademarks of Bluetooth SIG, Inc. (Special Interest Group).
USB is a registered trademark.
Other names and products may be the trademarks or registered trademarks of their respective owners.
Introduction
Thank you for purchasing a SilverCrest product.
The SilverCrest Bluetooth ^® headphones SBTH 2.1 A1 allow you to listen to from your smartphone or PC wirelessly. Their lightweight construction ensures are comfortable to wear while providing a crystal-clear sound with disruptive background noise largely eliminated.
Read how to use the device on the following pages.
This symbol indicates other important information on the topic.
Intended use
This is a consumer electronics device which is used to listen to music at a reasonable volume. It is only designed for private use and not for industrial or commercial purposes. Furthermore, the device may not be used in tropical climates. The manufacturer does not accept any liability for any resulting damage or faults in the event of unauthorised modifications to the device. Only use accessories specified by the manufacturer. Please observe the regulations and laws in the country of use.

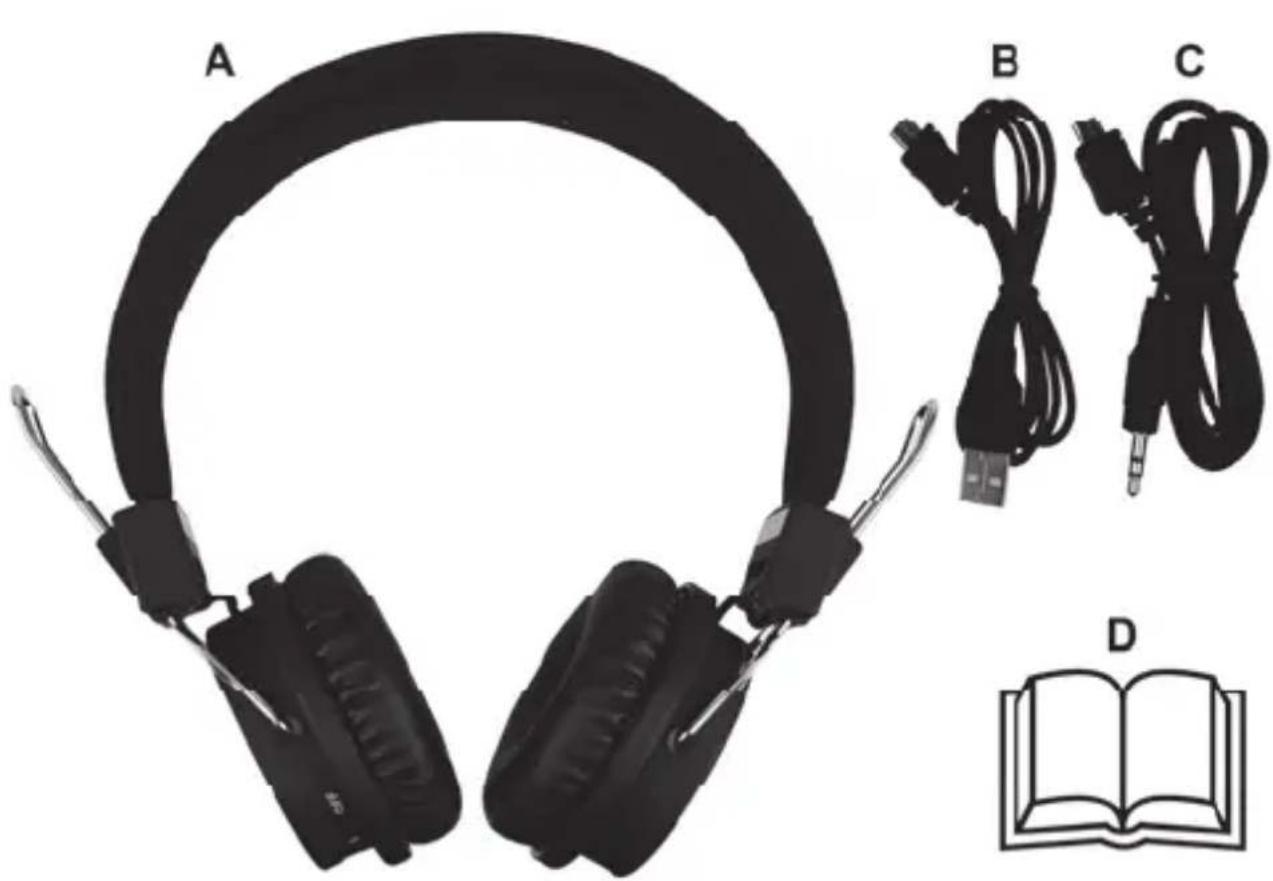

Supplied items
| B USB | charging cable |
| C 3.5mm | stereo jack plug cable |
| D These | operating instructions |
Technical data
| Operating voltage: 5V | ... |
| Battery: lithium polymer | |
| Battery capacity: 600mAh | |
| Bluetooth® specification: V2.1 + EDR | |
| Profile support: A2DP, AVRCP, HSP, HFP | |
| Frequency range: 2.402 to 2.480GHz | |
| Range of Bluetooth® operation max. 10 metres | |
| Charging time: approx. 3.5 hours | |
| Standby time: up to 300 hours | |
| Music playback time: up to 12 hours | |
| BT talk time up to 20 hours (at medium volume) | |
| Wideband characteristic voltage (WBCV): | approx. 84mV |
| Dimensions (W x H x D): approx. 165 x 185 x 65 mm | |
| Weight: approx. 160 g | |
| Operating temperature: 0°C to +45°C | |
| Operating air humidity: max. 85% rel. air humidity | |
| Storage temperature: -20°C to +60°C |
The technical data and design may be changed without notification.
Safety instructions
Before using the Bluetooth ^® headphones SBTH 2.1 A1 for the first time, please read the following instructions carefully and take note of the safety warnings, even if you are familiar with the use of electronic devices. Store these instructions in a safe place for future reference. If you sell the device or pass it on, always include these instructions.
Health risks due to high volume
Take care when using headphones. Listening at high volume for prolonged periods of time can damage your hearing.
Before putting on the headphones, set the volume to the lowest level.
Operating environment
The device is not designed for use in environments with a high temperature or humidity (e.g. bathrooms) or in extremely dusty conditions. Operating temperatures and operating air humidity: 0^ C to 45^ C, max. 85% rel. air humidity.
Radio interface
Turn the device off in aircraft, hospitals, operating rooms or in the vicinity of medical electronic systems. The transmitted radio waves can impair the functionality of sensitive devices. Keep the device at least 20cm away from any pacemakers, since the proper functioning of the pacemaker can be impaired by radio waves. The transmitted radio waves can cause interference in hearing aids. Do not place the device in the vicinity of flammable gases or in an explosion-hazard environment (e.g. paint shop) when the radio components are switched on since the transmitted radio waves can cause an explosion or a fire. The range of the radio waves is dependent on conditions in the surrounding environment. In case of data traffic via
a wireless connection, it is also possible for unauthorised third parties to receive data. Targa GmbH is not responsible for radio or television interference caused by unauthorised changes to this device. In addition, Targa assumes no responsibility for the replacement or exchange of connecting lines and devices not indicated by Targa GmbH. Only the user himself is responsible for the elimination of interference caused by such unauthorised changes and for the replacement or exchange of the devices.
Ensure that
■ no direct heat sources (e.g. heating) can affect the device;
■ no direct sunlight or bright artificial light reaches the device;
- any contact with splashed and dripping water and corrosive liquids is avoided and the device is not operated in the vicinity of water. In particular, the device should never be submerged in liquid (do not place any items filled with liquid, e.g. vases or drinks, on or near the device);
■ no fire sources (e.g. burning candles) are placed on or near the device;
■ the headphones are not thrown into a fire because the integrated battery may explode;
■ no foreign objects penetrate the device;
■ the device is never subjected to extreme temperature fluctuations as this could result in condensation and electrical short circuits. If the device was subjected to extreme temperature fluctuations, however, wait (approx. 2 hours) device has reached ambient temperature before use;
■ the device is never subjected to excessive shocks and vibrations;
■ connected cables are always laid in such a manner that nobody can step on them or trip over them. There is a risk of injury;
- no objects are placed on a connected cable and cables are not connected over sharp edges because they could be damaged otherwise.
Children and persons with disabilities
These headphones can be used by children aged 8 and older and by persons with reduced physical, sensory or mental abilities or lack of experience and knowledge if they are supervised or have been instructed on the safe use of the headphones and understand the resulting risks. Children must not play with the headphones. Cleaning and user maintenance must not be carried out by children without supervision. Always keep plastic packaging away from children.
It poses a suffocation risk!
Cleaning / maintenance
It is necessary to repair the device if it has been damaged in any way, for example, if the housing is damaged, if liquid or objects have penetrated the device or if the product has been exposed to rain or moisture. Repair work is also required if the device is not working properly or has been dropped. If smoke is produced, or there are any unusual sounds or smells, turn the device off immediately. In these cases, the device should not be used until it has been inspected by authorised service personnel. Only have the device repaired by qualified personnel. Never open the housing of the device. Only use a clean, dry cloth for cleaning and never use any corrosive liquids. Never try to open the housing of the device as this would void your warranty.
Storage when not in use
If you will not be using the headphones for a prolonged period, you should recharge the battery at least every 6-12 months to maintain them in working order. Ensure that the storage temperature remains between -20°C and +60°C. The humidity should not exceed 85% rel. air humidity.
If you are not using the headphones or want to transport them, you can fold them in a space-saving manner as shown in the illustration. To do so, first slide the headphone earpieces in the direction of the arrow (1) and then fold them (2).
Copyright
All information contained in these instructions is subject to copyright and is provided for information purposes only.
It is only permitted to copy or duplicate data and information with the express and written consent of the author. This also includes commercial use of the content and data.
The text and illustrations are based on the state of the art at the time of printing.

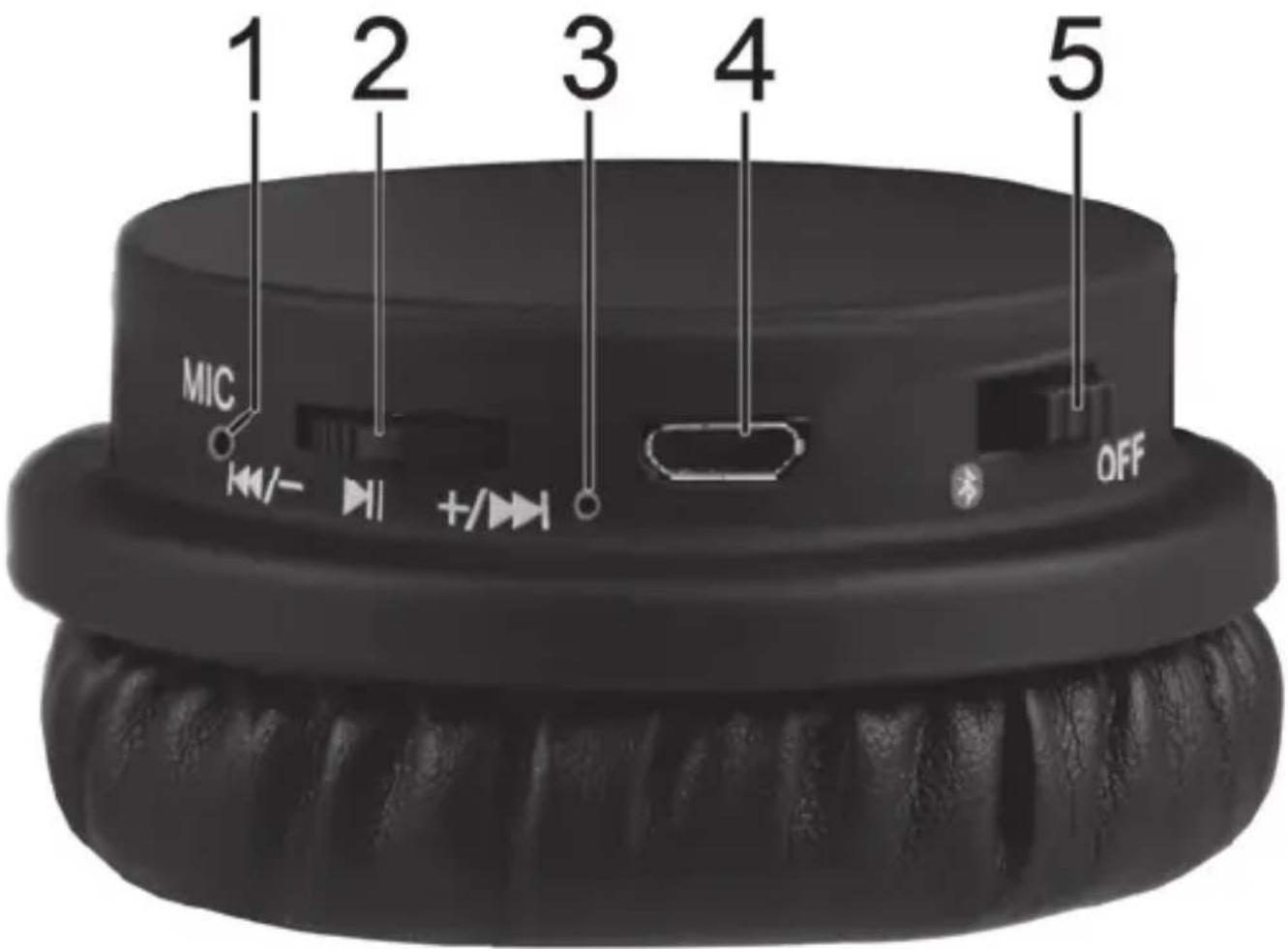

Controls and button functions
These operating instructions have a fold-out cover. The SilverCrest headphones SBTH 2.1 A1 are illustrated with numbers on the inside cover.
The numbers indicate the following:
1 Microphone
2 Multifunction button
- Increase volume / next track ( )
- Stop / start playback ( )
- Lower volume / previous track ( )
3 LED
4 Micro USB socket
5 Switch (OFF / Bluetooth® operation)
Prior to use
You can use the headphones either wired or wirelessly via Bluetooth ^® . Before using the headphones wirelessly for the first time, the built-in battery in the headphones must be fully charged. To do so, proceed as described in the following section.
Charging the built-in battery
Before the first wireless use or when the built-in battery is empty, you charge it as follows:
- Set the switch (5) on the headphones to "OFF".
- Connect the headphones with the enclosed USB charging cable (B) to a computer that is switched on. Insert the small plug of the USB charging cable (B) into the micro USB socket (4) on the headphones and the large plug of the USB charging cable (B) into a free USB socket on your computer.
- The LED (3) of the headphones then lights up orange.
- The LED (3) goes out when the battery is fully charged.
The battery of the headphones can also be charged with a standard USB power supply 5V /500mA (not included).
First use
Putting on the headphones

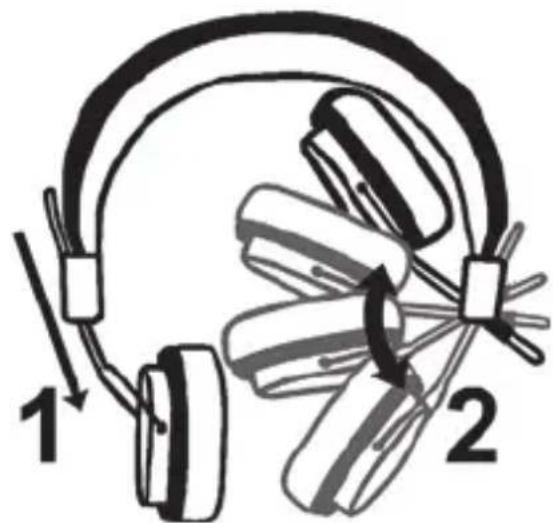

Note the markings on the inside of the headband to put on the headphones correctly: R = right, L = left. The controls and the LED (3) are located on the left side of the headphones.

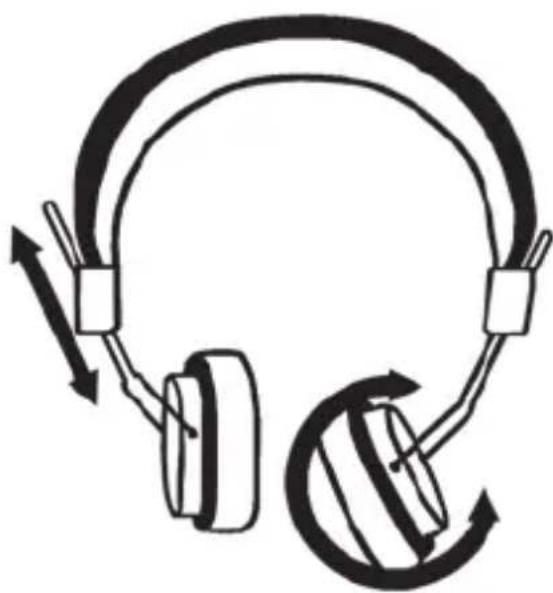

To ensure a perfect fit of the headphones, the size of the headband is infinitely adjustable. See illustration.
• The switch (5) must be in the "OFF" position.
- Connect the jack plug of the 3.5mm stereo jack plug cable (C) to an external audio source.
- Insert the micro USB plug of the 3.5mm stereo jack plug cable (C) into the micro USB socket (4) on the headphones.
- You can use the external audio source to adjust the playback volume. The volume control of the headphones has no function in this case.
For wired operation, the headphones must not be switched on in order to avoid interference.
Wireless operation
Bluetooth ^® technology enables wireless hands-free operation of mobile phones, for example. These headphones allow you to use a Bluetooth ^® enabled device. The range of Bluetooth ^® operation is restricted to approx. 10 metres.
If your playback device supports the Bluetooth ^® profile A2DP, you can also transfer music wirelessly to your headphones. To be able to remotely control the playback device with the headphones, it must also support the AVRCP profile.
Depending on the manufacturer, model and software version of the mobile phone or playback device which is used, the complete functionality of the headphones cannot be guaranteed in all cases.
Switching on/off the headphones
Switch the headphones on by sliding the switch (5) to the position 📄Bluetooth® operation). The LED (3) lights up blue for approx. 2 seconds. To switch them off, slide the switch (5) to the "OFF" position. The LED (3) lights up orange for approx. 2 seconds and then goes out.
Using the multifunction button (2)
The headphones are equipped with a multifunction button (2). To use the various functions, you can press this button in the initial position ▶! You can select the other functions by sliding it in the direction of the symbols +/▶▶| ◀◀/−
All of the following functions depend on the functionality of the mobile phone or playback device which is used.
Pairing
Switch off the headphones. Switch on the headphones with the switch (5). If the LED (3) lights up blue, press the ▶ multifunction button (2) briefly to start the pairing mode. The LED (3) then alternates between flashing orange and blue. The headphones are then in search mode for approx. 3 minutes. During this time, you can connect a compatible device, for example, a smartphone, to the headphones via the Bluetooth® function. Activate the Bluetooth® function of your mobile phone and let it search for Bluetooth® devices nearby. For further details, please read the instructions of your mobile phone. Select the device "SBTH 2.1 A1" from the list of devices which are found and establish the connection. The name of the headphones "SBTH 2.1 A1" now appears in the list of devices connected to your mobile phone. When there is an established connection, the LED (3) flashes blue once briefly about every 10 seconds. As soon as the mobile phone is switched off or is out of range, the headphones switch to standby mode (not connected) and the LED flashes blue twice briefly every 5 seconds.
The pairing process can take up to 30 seconds depending on the mobile phone or playback device which is used.
If you want to connect another device to the headphones, you must repeat the pairing as described previously.
Only one device can be connected at a time to the headphones. As soon as the previously connected device comes within range of the headphones, the connection to this device is established automatically. You may need to confirm the connection on your mobile phone or playback device. The LED (3) flashes orange twice, then blue once followed by blue once every 10 seconds.
If you are asked for a PIN during the pairing process, enter "0000".
Please note that both operating modes (wired and wireless) cannot be used at the same time.
Disconnecting
To disconnect a device, proceed as follows:
Keep ▶ the multifunction button (2) pressed for approx. 5 seconds. The LED (3) lights up orange twice. The device is disconnected.
Answering / ending call
Briefly press ▶ the multifunction button (2) to answer a call. To end a phone call, press ▶ the multifunction button (2) again briefly. This is confirmed by a brief beep.
Rejecting call
To reject an incoming call, press ▶the multifunction button (2) for approx. two seconds until a beep sounds. Release ▶the multifunction button (2) immediately after the beep because the call will not be rejected otherwise.
Voice control
When there is an established connection, press ▶ the multifunction button (2) for approx. two seconds to activate the voice control of your mobile phone.
Redialling
When there is an established connection, press ▶ the multifunction button (2) twice briefly to redial the number that was last called from your mobile phone.
Increasing / lowering playback volume
You can set the playback volume on your mobile phone or playback device and also on the headphones themselves.
- To increase the volume, slide the multifunction button (2) in the +/▶▶ direction. The maximum volume is reached when a beep sounds.
- To lower the volume, slide the multifunction button (2) in the | / - direction. The minimum volume is reached when a beep sounds.
Selecting previous / next track
- In playback mode, slide the multifunction button (2) briefly in the direction to reach the start of the current track, and slide the multifunction button (2) again briefly in the direction to reach the previous track.
- In playback mode, slide the multifunction button (2) briefly in the +/▶▶ direction to reach the next track.
Starting / pausing playback
In playback mode, press ▶ the multifunction button (2) briefly to pause the playback. The playback continues when the button is pressed again.
Auto power OFF
After approx. 10 minutes in standby mode without a connected device, the LED (3) lights up orange once for a longer period and the headphones switch themselves off automatically.
Operating overview
The most important operating steps are briefly summarized in the following table.
| Switching on Bluetooth® function | Slide switch (5) to the position:The headphones connect directly to a previously connected device within range. A confirmation of the known device may be required. |
| Switching off Bluetooth® function | Slide switch (5) to the "OFF" position. |
| Pairing | Slide switch (5) to the position. If the LED (3) lights up blue, press the multifunction button (2) briefly. The LED (3) then alternates between flashing orange and blue. |
| Disconnecting Keep the | multifunction button (2) pressed for approx. 5 seconds. The LED (3) lights up orange twice. |
| Answering call Press multifunction | button (2) briefly. ▶|| |
| Ending call Press multifunction | button (2) briefly. ▶|| |
| Rejecting call Keep the | multifunction button (2) pressed for approx. two seconds until a beep sounds. |
| Voice control When there is | an established connection:Keep ▶the multifunction button (2) pressed for approx. two seconds. |
| Redialling When there is an | established connection:Press ▶the multifunction button (2) twice briefly. |
| Volume up Slide and hold | the multifunction button (2) in the+/▶▶ direction. The maximum volume is reached when a beep sounds. |
| Volume down Slide and hold | the multifunction button (2) in the◀◀/− direction. The minimum volume is reached when a beep sounds. |
| Previous track During playback | slide the multifunction button (2) briefly in the◀direction. |
| Next track During playback, | slide the multifunction button (2) briefly in the+direction. |
| Starting / pausing playback | During playback, press ▶the multifunction button (2) briefly. |
LED indicator
Refer to the table below for the different statuses of the LED (3):
| Switching on Bluetooth® function | LED (3) lights up blue for approx. 2 seconds. |
| Pairing mode LED (3) alternates between flashing orange and blue. | |
| Standby mode (not connected) | LED (3) flashes blue twice briefly every 5 seconds. |
| Connected LED (3) flashes | blue once briefly every 10 seconds. |
| Battery status low LED (3) flashes orange twice briefly every 30 seconds. | |
| Battery is charging LED (3) lights up orange continuously. | |
| Battery charging completed In charging mode: LED (3) goes out. | |
Troubleshooting
The headphones cannot be switched on.
- Charge the battery.
No audio signal for Bluetooth® connection
- Switch on the headphones.
- Try to connect the headphones again to the external audio source.
Pairing is not working
- Check whether the Bluetooth ^ function of the mobile phone or playback device is switched on.
- The distance between the devices is too large, reduce it.
Not all aforementioned functions are working
- All aforementioned functions depend on the functionality of the mobile phone or playback device which is used.
Environmental and disposal information
The integrated battery cannot be removed for disposal.
Dispose of the packaging in an environmentally compatible manner. Cardboard can be put out for municipal paper collections or brought to public collection points for recycling. Films and plastic used for packaging the device are collected by your local disposal services and disposed of in an environmentally compatible manner.
Conformity information
CE This device meets the basic requirements and other relevant regulations of the EMC Directive 2004/108/EC, the Low Voltage Directive 2006/95/EC, the R&TTE Directive 1999/5/EC and the RoHS Directive 2011/65/EU.
Warranty and servicing advice
Warranty of TARGA GmbH
This device is sold with three years warranty from the date of purchase. Please keep the original receipt in a safe place as proof of purchase. Before using your product for the first time, please read the enclosed documentation or online help. Should any problems arise which cannot be solved in this way, please call our hotline. Please have the article number and, if available, the serial number to hand for all enquiries. If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault. Within the warranty period the product will be repaired or replaced free of charge as we deem appropriate. No new warranty period commences if the product is repaired or replaced. Consumables such as batteries, rechargeable batteries and lamps are not covered by the warranty.
Your statutory rights towards the seller are not affected or restricted by this warranty.
Service
Phone: 0207 - 36 50 744
E-Mail: service.GB@targa-online.com
Phone: 01 - 242 15 83
E-Mail: service.IE@targa-online.com
Phone: 800 - 62 175
E-Mail: service.MT@targa-online.com
Phone: 800 - 92 496
E-Mail: service.CY@targa-online.com
IAN: 93495
Manufacturer
TARGA
GmbH
Coesterweg 45
59494 SOEST
GERMANY
Obsah
Ochranné známky 23
Úvod....23
Používanie primerané účelu.... 24
Obsah dodávky 24
Technické údaje 25
Black headboard with earbuds and USB cable, alongside a separate diagram of an open book (no text or symbols on the devices themselves)natural_image
Illustration of a pair of headphones with directional arrows indicating rotation (no text or symbols)Prevádzka s káblom
Two warning symbols: a triangular warning triangle with an exclamation mark and a lightbulb with rays (no text or labels)natural_image
Black headboard with earbuds and two cordages (labeled A, B, C, D) shown alongside an open book illustration (no text or symbols on the main subjects)1 Mikrofon
Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)EU-Declaration of Conformity
Address: Targa GmbH Coesterweg 45 59494 Soest, Germany
Product: Bluetooth Headset Model: SilverCrest SBTH 2.1 A1 Identification number: IAN 93495
The product complies with the requirements of the following European directives:
2004/108/EC Electromagnetic Compatibility 2006/95/EC Low Voltage 1999/5/EC R&TTE 2011/65/EU Restriction of the use of certain hazardous substances in electrical and electronic equipment
Compliance was proved by the application of the following standards:
EMC: ETSI EN 301 489-1 V1.9.2 ETSI EN 301 489-17 V2.1.1
Safety: EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 EN 62479:2010
R&TTE EN 300 328 V1.7.1
Rohs: EN 50581:2012
Year of CE marking: 2014
Soest, 5 ^th of February 2014
Matthias Klauke, Managing Director
- Bluetooth® Headphones SBTH 2.1 A1
- Safety instructions....6
- Copyright....9
- Controls and button functions.... 10
- Prior to use 11
- First use.... 12
- Troubleshooting.... 18
- Environmental and disposal information....19
- Conformity information....20
- Warranty and servicing advice....20
- Information about trademarks
- Introduction
- Intended use
- Supplied items
- Technical data
- Safety instructions
- Health risks due to high volume
- Operating environment
- Radio interface
- Ensure that
- Children and persons with disabilities
- Cleaning / maintenance
- Storage when not in use
- Copyright
- Controls and button functions
- Prior to use
- Charging the built-in battery
- First use
- Putting on the headphones
- Wired operation
- Wireless operation
- Switching on/off the headphones
- Using the multifunction button (2)
- Pairing
- Disconnecting
- Answering / ending call
- Rejecting call
- Voice control
- Redialling
- Increasing / lowering playback volume
- Selecting previous / next track
- Starting / pausing playback
- Auto power OFF
- Operating overview
- LED indicator
- Troubleshooting
- The headphones cannot be switched on.
- No audio signal for Bluetooth® connection
- Pairing is not working
- Not all aforementioned functions are working
- Environmental and disposal information
- The integrated battery cannot be removed for disposal.
- Conformity information
- Warranty and servicing advice
- Warranty of TARGA GmbH
- Service
- Manufacturer
- Obsah
- Ochranné známky 23
- Úvod....23
- Používanie primerané účelu.... 24
- Obsah dodávky 24
- Technické údaje 25
- Prevádzka s káblom
- EU-Declaration of Conformity
Brand : SILVERCREST
Model : SBTH 2.1 A1
Category : Earphones
