SKMH 4 A1 - Earphones SILVERCREST - Free user manual and instructions

Product Type	Earphones (wired)
Brand	SilverCrest
Model	SKMH 4 A1
Driver Type	Dynamic
Impedance	32 Ω
Frequency Response	20 Hz - 20 kHz
Sensitivity	105 dB
Cable Length	1.2 m
Connector Type	3.5 mm jack
Weight	12 g
In-the-Ear Style	In-ear (intra-aural)
Controls	In-line microphone and volume control
Compatibility	Smartphones, tablets, laptops
Care Instructions	Clean with a soft dry cloth; avoid moisture
Safety Precautions	Do not use at high volume for extended periods
Spare Parts Availability	Ear tips replacements available
General Information	SilverCrest quality audio; user manual included

Frequently Asked Questions - SKMH 4 A1 SILVERCREST

How do I properly insert the earphones?

Choose the correct ear tip size (small, medium, large) and gently twist the earphone into your ear canal until it fits snugly. The cable should hang down behind your ear.

How do I clean the earphones?

Use a soft, dry cloth to wipe the earphone body. Remove ear tips and rinse them with lukewarm water, then dry thoroughly before reattaching. Do not use harsh chemicals.

Why is there no sound coming from one side?

Check the audio source balance, ensure the plug is fully inserted, and inspect the cable for damage. Try a different device to rule out compatibility issues.

Can I use these earphones for sports?

Yes, but they are not waterproof. Avoid excessive sweat or rain; consider using a sweat-resistant case or clip.

Are these earphones compatible with my smartphone?

Yes, the 3.5 mm jack works with most smartphones, tablets, and laptops that have a headphone port. For devices without a jack, you may need an adapter.

How do I use the in-line microphone?

The in-line microphone allows you to make calls and use voice assistants. Press the button once to answer/hang up, or double-press to skip tracks (varies by device).

What is the warranty period?

SilverCrest typically offers a 3-year limited warranty. Keep your proof of purchase for service.

Can I replace the ear tips?

Yes, the ear tips are replaceable. You can purchase compatible silicone or foam ear tips online.

How do I store the earphones to prevent tangling?

Use the included carrying pouch or wrap the cable around your fingers before storing. Avoid leaving them loose in a bag.

What should I do if the earphones get wet?

Wipe off excess water immediately and let them air dry completely for 24 hours. Do not use heat sources or insert while damp.

USER MANUAL SKMH 4 A1 SILVERCREST

Operating instructions

GR CY

ΑΚΟΥΣΤΙΚΑ ΙΝ-ΕΑΡ

Οδηγίες χρήσης

DE AT CH

IN-EAR-KOPFHÖRER

Bedienungsanleitung

IAN 274850

GB CY

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

GR CY

GB/CY Operating instructions Page 1

Contents

Introduction....2

Information concerning these operating instructions ..... 2

Copyright 2

Limitation of liability 2

Intended use 2

Warning notes 3

Safety instructions....4

Commissioning 6

Package contents (see fold-out page) 6

Disposal of packaging materials 6

Operation 7

Connecting headphones 7

Inserting the headphones 7

Replacing the ear cushions 7

Cleaning 8

Storage when not in use 8

Troubleshooting 9

Fault causes and rectification 9

Disposal....10

Appendix 10

Technical data 10

Notes on the Declaration of Conformity 11

Warranty 11

Service 12

Importer 12

Introduction

Information concerning these operating instructions

Congratulations on the purchase of your new appliance.

You have selected a high-quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all operating and safety instructions. Use the product only as described and for the specified areas of application. Retain these instructions for future reference. Please also pass on these operating instructions to any future owner.

Copyright

This documentation is protected by copyright. Any copying or reproduction, including in the form of extracts, or any reproduction of images (even in a modified state), is permitted only with the written authorisation of the manufacturer.

Limitation of liability

The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, unauthorised modifications or for the use of non-approved replacement parts.

Intended use

These headphones are a consumer electronics device. They are intended for private use for listening to audio material. Any other or additional usage is considered to be improper use and can lead to damage. No claims of any kind will be accepted for damage arising as a result of incorrect use.

Warning notes

The following warning notice types are used in these operating instructions:

DANGER

A warning notice at this hazard level indicates a potentially hazardous situation.

Failure to avoid this hazardous situation could result in physical injury or death.

▶ Follow the instructions in this warning notice to prevent injury.

CAUTION

A warning notice at this hazard level indicates a potential for property damage.

Failure to avoid this situation could result in property damage.

▶ Follow the instructions in this warning notice to prevent property damage.

NOTE

▶ A note provides additional information that will assist you in using the appliance.

Safety instructions

This section contains important safety instructions for using the product. Improper use may result in personal injury and property damage. To ensure safe operation of the product, follow the safety guidelines set out below:

■ Before use, check the headphones for visible external damage. Do not operate headphones that are damaged or have been dropped.

■ Protect the cable against damage, for example caused by sharp edges, hot areas, clamping or crushing.

If the cables or connections are damaged, have them replaced by an authorised specialist or the Customer Service department.

Children and persons incapable of operating the headphones safely due to their physical, intellectual or motor abilities must only use them under the supervision or direction of a responsible adult. Permit children to use the headphones only under supervision.

DANGER! Do not allow children to play with the packaging material! Keep all packaging materials away from children. Risk of suffocation!

■ Repairs to the headphones may only be carried out by authorised specialist personnel or by the Customer Service department. Improper repairs may put the user at risk. It will also invalidate any warranty claims.

■ Repairs to the headphones during the warranty period may only be carried out by a Customer Service department authorised by the manufacturer, otherwise no additional warranty claims can be considered for subsequent damages.

■ Defective components must always be replaced with original replacement parts. Compliance with the safety requirements can only be guaranteed by using these replacement parts.

- Do not carry out any unauthorised reconstruction or customisation to the headphones.

■ Protect the headphones from moisture and penetration by liquids.

DANGER! Do not operate or place the headphones close to open flames (e.g. candles).

Risk of hearing damage

DANGER

Risks due to extremely high sound levels!

Loud music can lead to hearing damage.

- Avoid extreme sound levels, especially over long periods of time, when you are using these headphones.

Risk of accidents

DANGER

Danger due to impaired perception!

Acoustic warning and indication signals and ambient noise can sound different when you are wearing these headphones. Make yourself aware of how these signals deviate in their sound so that you can recognise the signals in the appropriate situations.

▶ Do not use the headphones while driving a vehicle, riding a bicycle, operating machinery or in any other situation in which impaired perception of ambient noise could put you or other people in danger. Please also observe the statutory provisions and regulations of the country in which you are using the headphones.

Commissioning

Package contents (see fold-out page)

The headphones are supplied with the following components as standard:

• Headphones ① with pre-fitted ear cushions (medium size ②)
• 2 pairs of ear cushions (small ③ and large ④)

- Storage bag ⑤

● These operating instructions (not shown)

NOTE

▶ Check the package for completeness and for signs of visible damage.
If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the Service hotline (see section Service).

Disposal of packaging materials

The packaging protects the headphones from transport damage.

Returning the packaging into the material cycle conserves raw materials and reduces the amount of waste generated.

Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Operation

Connecting headphones

The headphones ① are equipped with a 3.5 mm jack. Many electronic entertainment devices have a corresponding headphone socket. If your audio device has been equipped with a different headphone connector, you may need to use a suitable adapter (not supplied).

Inserting the headphones

■ When putting on the headphones ①, pay attention to the side indicators "R" (right) and "L" (left) on the earpieces.
■ Push one of the earpieces ① into the ear canal. In order to straighten the ear channel somewhat and therefore make the headphone easier to insert, pull the ear backwards and upwards a little.
■ Proceed in the same way to insert the other earpiece ①.

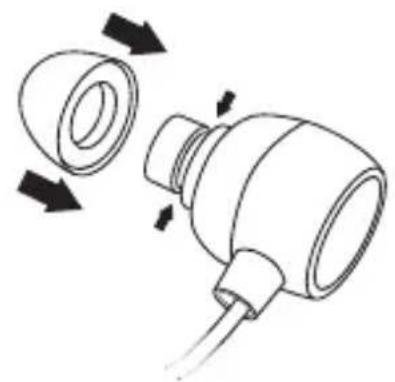

Replacing the ear cushions

The headphones ① are pre-fitted with the medium-sized ear cushions ② on delivery. Depending on the size of your ear, you can use ear cushions (③ or ④) of a different size from those supplied.

NOTE

The better the ear cushion seals off the ear canal, the better the sound quality, particularly at lower frequencies.

■ Use your fingers to carefully pull on the ear cushions ② to detach them from the headphones ① (see fig. 1).

■ Select suitable ear cushions (③ or ④) from those that are supplied. Push these directly onto the headphones ① until they slip into the recesses on the headphones ① (see fig. 2).

Fig. 1 Fig. 2

Cleaning

CAUTION

Do not allow any liquids to get into the headphones ①. This could cause irreparable damage to them.

- Clean the headphones ① and the storage bag ⑤ with a damp cloth.

■ Remove the ear cushions (2, 3 or 4) for cleaning. Clean the ear cushions under running water. Dry the ear cushions properly. Do not push the ear cushions back onto the headphones ① until they are properly dry.

Storage when not in use

■ Store the headphones ① in the storage bag ⑤ in a dry, dust-free location.

Troubleshooting

Fault causes and rectification

The following table will help you to identify and rectify minor malfunctions:

Faults Cause/remedy
No sound is coming from the headphones 1.	The playback device is not switched on or play-back has not started. Switch on the connected playback appliance and/or start playback.
	The volume control of the playback device is set to the minimum volume.Increase the playback volume.
	The 3.5 mm jack is not fully inserted into the play-back device's headphone socket. Push the 3.5 mm jack all the way into the socket.
Sound is coming only from one side of the headphones 1.	The 3.5 mm jack is not fully inserted into the play-back device's headphone socket. Push the 3.5 mm jack all the way into the socket.
	The stereo balance control on the playback device is incorrectly adjusted. Adjust it to the setting you desire.

NOTE

If the malfunction cannot be remedied with the described solution proposals or if other types of malfunctions occur please contact our service department (see section Service).

Disposal

The adjacent symbol of a crossed-out wheelie bin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be handed over to specially set-up collection locations, recycling depots or disposal companies.

This disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

You can obtain further information from your local disposal company or the city or local authority.

Appendix

Technical data

Impedance 16 Ω +/- 3 Ω
Sensitivity 96 dB +/- 4 dB at 1 kHz
Frequency response 20 Hz-20 kHz
Input power max. 50 mW
Wide band characteristic voltage	approx. 90 mV +/- 10%
Connector 3.5 mm jack
Cable length approx. 120 cm
Weight approx. 11 g
Operating temperature 15 to 35°C
Humidity (no condensation) 5-80%

Notes on the Declaration of Conformity

Regarding conformity with essential requirements and other relevant provisions, this appliance complies with RoHS Directive 2011/65/EU. The complete original Declaration of Conformity is available from the importer and may be requested if required (see section Importer).

CE

Warranty

This appliance is provided with a 3-year warranty valid from the date of purchase. This appliance has been manufactured with care and inspected meticulously prior to delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact your Customer Service unit by telephone. This is the only way to guarantee free return of your goods.

NOTE

The warranty only covers claims for material and manufacturing defects, not for damage sustained during carriage, components subject to wear and tear or damage to fragile components such as switches and batteries.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres. Your statutory rights are not restricted by this warranty. The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking, but no later than two days after the date of purchase. Repairs carried out after expiry of the warranty period shall be subject to charge.

Service

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 274850

Service Cyprus

Tel.: [phone]

E-Mail: [e-mail]

IAN 274850

Hotline availability: Monday to Friday 08:00 - 20:00 (CET)

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com
