Product Type	Portable Bluetooth Speaker
Model	SBLD 28 A1
Brand	SilverCrest
Dimensions (W x H x D)	Approx. 160 x 70 x 70 mm
Weight	Approx. 0.5 kg
Power Supply	Built-in rechargeable Li-ion battery, 3.7 V / 2000 mAh, charging via micro USB (5V, 1A)
Bluetooth Version	5.0
Wireless Range	Up to 10 m (without obstruction)
Supported Audio Sources	Bluetooth, AUX (3.5 mm), microSD card, USB (music playback), FM radio
Speaker Output	2 x 5 W RMS (stereo)
Frequency Response	80 Hz – 20 kHz
Hands-Free Function	Yes (built-in microphone)
Controls	Power, Volume +/-, Play/Pause, Tune/Next, Mode, Hands-free button
LED Indicators	Power, Bluetooth pairing, charging status
Care and Cleaning	Wipe with a soft, dry cloth. Do not use abrasive cleaners or solvents.
Safety Warnings	Do not expose to water or high humidity. Do not disassemble. Use only supplied charger.
Spare Parts and Repairability	Battery not user-replaceable; no spare parts available; device must be replaced if defective.
Package Contents	Speaker, micro USB cable, 3.5 mm AUX cable, user manual

Frequently Asked Questions - SBLD 28 A1 SILVERCREST

How do I pair my SilverCrest SBLD 28 A1 with my phone?

Turn on the speaker (hold power button). The LED will blink blue. Enable Bluetooth on your phone and select SBLD 28 A1 from the list. If prompted, enter 0000 as PIN.

What is the battery life of the SBLD 28 A1?

The built-in battery provides up to 8 hours of playtime at moderate volume. Actual battery life varies with volume level and audio source.

How do I charge the speaker?

Connect the supplied micro USB cable to the speaker and a USB power adapter (5V/1A). The LED will turn red during charging and go off when fully charged. Charging time is approximately 3-4 hours.

The speaker is not producing any sound. What should I do?

Ensure the speaker is powered on and the volume is turned up. Check if the audio source is playing and correctly connected (Bluetooth paired or AUX cable inserted). Try switching to a different mode (press Mode button). If using Bluetooth, unpair and re-pair.

How can I reset the SBLD 28 A1?

To reset, simultaneously press and hold the Volume + and Mode buttons for about 2 seconds until the speaker restarts.

Can I listen to FM radio on this speaker?

Yes, press Mode repeatedly to select FM radio mode. The speaker will automatically scan and store available stations. Use the Next and Previous buttons to cycle through saved stations.

Is there an AUX input?

Yes, the speaker has a 3.5 mm AUX input. Connect your device with the supplied AUX cable and press Mode to select AUX mode.

How do I use the hands-free function?

When connected via Bluetooth and a call comes in, press the hands-free button (usually marked with a phone icon) to answer. Press again to end the call. The speaker has a built-in microphone.

Does the speaker support microSD cards?

Yes, insert a microSD card (up to 32 GB, FAT32 format) into the slot. The speaker will automatically play MP3 files from the card. Use Mode to switch to microSD mode.

Is the speaker waterproof?

No, the SBLD 28 A1 is not waterproof. Keep it away from water, rain, and high humidity to avoid damage.

USER MANUAL SBLD 28 A1 SILVERCREST

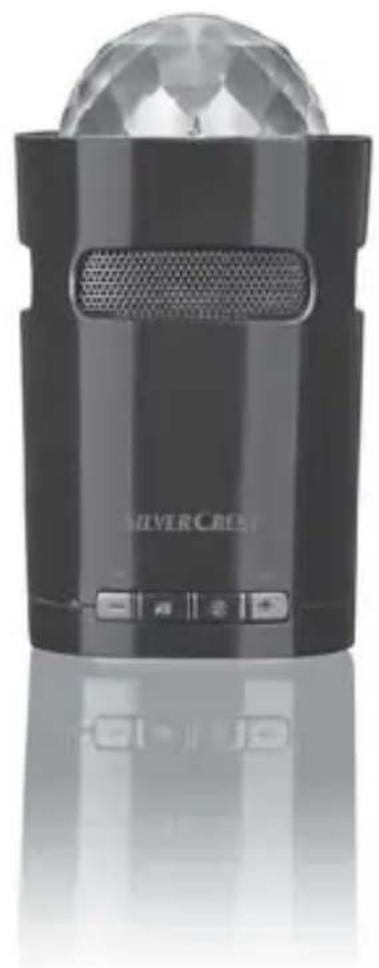

Black silver crystal microphone with a spherical head and speaker grille (no visible text or symbols)

BLUETOOTH® MINI SPEAKER SBLD 28 A1

GB IE NI

BLUETOOTH® MINI SPEAKER

Operating instructions

DE AT CH

BLUETOOTH®-MINILAUTSPRECHER

Bedienungsanleitung

NL BE

BLUETOOTH®

MINI-LUIDSPREKER

Gebruiksaanwijzing

IAN 279430

GB IE

NI NL

GB IE NI

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

NL BE

GB/IE/NI Operating instructions Page 1

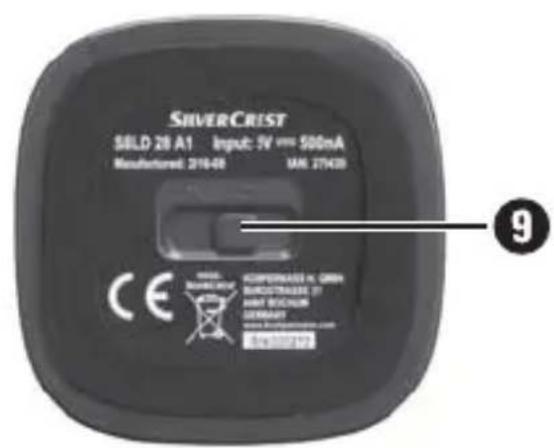

Black industrial device with globe and labeled ports (no readable text or symbols)

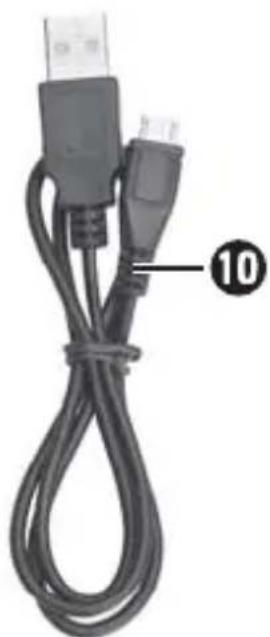

Coiled black cable with two USB connectors, labeled with number 10 (no text or symbols on the cable itself)

Contents

Introduction....3

Information about these operating instructions .... 3

Copyright 3

Notes on trademarks 3

Proper use 4

Warnings 4

Safety 5

Basic safety instructions 5

Description of components 8

Operation 8

Unpacking 8

Check package contents 8

Disposal of the packaging 9

Charging the speaker 10

Handling and use .... 1 1

Switching the speaker on/off....1 1

Power saving mode 11

Pairing the speaker with a Bluetooth® music device ..... 1 2

Operation of the buttons 13

AUX IN operation 14

Troubleshooting 15

Cleaning....15

Storage when not in use 16

Disposal....16

Appendix 17

Technical details 17

Notes on the EU Declaration of Conformity ..... 17

Kompernass Handels GmbH warranty 18

Service 20

Importer 20

Introduction

Information about these operating instructions

Congratulations on the purchase of your new device.

You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Keep these operating instructions as a reference and store them near the product. Please pass on all documentation incl. these operating instructions to any future owner(s), if you sell this product or give it away.

Copyright

This documentation is protected by copyright.

Any copying or reproduction, including in the form of extracts, or any reproduction of images (even in a modified state), is permitted only with the written authorisation of the manufacturer.

Notes on trademarks

USB ^® is a registered trademark of USB Implementers Forum, Inc.

The Bluetooth® logotype and Bluetooth® logo are registered trademarks of Bluetooth SIG, Inc. (Special Interest Group). Any use of the trademarks by Kompernaß Handels GmbH is made under the provisions of a licence.

All other names and products may be trademarks or registered trademarks of their respective owners.

Proper use

This consumer electronics device is used to output audio files, which can be played back via Bluetooth® or 3.5 mm jack cable. This product is ideal as a cheerful, colourful effect on walls and ceilings, but not suitable for lighting rooms in houses. The device is not intended for any other purpose, nor for use beyond the scope described.

The device is not intended for use in commercial or industrial environments. The manufacturer accepts no responsibility for damage caused by failure to observe these instructions, improper use or repairs, unauthorised modifications or the use of unapproved replacement parts. The risk shall be borne solely by the user.

Warnings

The following types of warning are used in these operating instructions:

DANGER

A warning at this hazard level indicates a potentially hazardous situation.

Failure to avoid this hazardous situation could result in severe injuries or even death.

▶ Follow the instructions in this warning notice to avoid the risk of serious injuries or death.

CAUTION

A warning notice at this hazard level indicates a risk of material damage.

Failure to avoid this situation could result in material damage.

▶ Follow the instructions in this warning notice to prevent material damage.

NOTE

▶ A note provides additional information, which will assist you in using the device.

Safety

This section contains important safety instructions for using the device. This device complies with statutory safety regulations. Improper use may result in personal injury and property damage.

Basic safety instructions

To ensure safe operation of the device, follow the safety guidelines set out below:

- Check the device for visible external damage before use. Do not operate a device that has been damaged or dropped.

DANGER! Do not allow children to play with the packaging material! Keep all packaging materials away from children. There is a risk of suffocation!

This device may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities, or lack of experience and knowledge, provided that they are under supervision or have been told how to use the device safely and are aware of the potential risks. Do not allow children to play with the device. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.
If the charger cable or connections are damaged, have them replaced by an authorised specialist or the customer service department.
■ Protect the charger cable from hot surfaces and sharp edges.
■ Ensure that the charger cable is not stretched tightly or kinked.
■ Always place the device on a stable and level surface. It can be damaged if dropped.
■ Do not exert any pressure on the dome of the device.
■ Do not expose the device to direct sunlight or high temperatures. Otherwise it may overheat and be irreparably damaged.
■ The device's light source is very bright. Do not look into the light source directly or through any optical devices.
- Choose a set up location that is above the eye line of the people in the room. Ensure that children or animals cannot look directly into the light source.
DANGER! Never operate the device in the vicinity of open flames (e.g. candles), and do not place burning candles on or next to the device. This will help to prevent fires.
The device may heat up while it is charging. Place the speaker in a well-ventilated location during the charging process and do not cover it.

■ The device is not designed for use in rooms with high temperatures or humidity (e.g. bathrooms) or where there is excessive dust.

■ Protect the appliance from penetration by moisture and liquids. Never submerge the device in water or place objects filled with liquids (e.g. vases) close to the appliance.

■ Switch the device off immediately and disconnect any connected cables from the device if you hear any unusual noises, smell fumes or notice any smoke. Have the device checked by a qualified specialist before using it again.

All repairs must be carried out by authorised specialist companies or by the customer service department. Improper repairs may put the user at risk. It will also invalidate any warranty claims. This device may not be opened by the user.

The appliance has an integrated lithium-ion battery. Mishandling the lithium-ion batteries can cause fires, explosions, leakage of dangerous chemicals or other hazards! Do not throw the device into an open fire.

- Do not make any unauthorised modifications or alterations to the device. This device may not be opened by the user.

Description of components

(See fold-out page for illustrations)

① Dome
② + (▶) button
3 *button
4 button
5 - (◀) button
6 Operating/charging LED
7 3.5 mm jack (AUX IN)
8 Charging socket (POWER INPUT)
9 On/Off switch (ON/OFF)
10 Charging cable (USB to micro-USB)
11 Operating instructions

Operation

Unpacking

◆ Remove all parts and the operating instructions from the box.
◆ Remove all packaging material.

Check package contents

(See fold-out page for illustrations)

The product includes the following components:

• Bluetooth® Mini Speaker SBLD 28 A1
  ● Charging cable (USB to micro-USB)
  • These operating instructions

NOTE

▶ Check the package for completeness and signs of visible damage.

If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the service hotline (see section Service).

Disposal of the packaging

The packaging protects the appliance from damage during transport. The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable.

Returning the packaging to the material cycle conserves raw materials and reduces the amount of waste that is generated. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

NOTE

If possible, keep the original device packaging for the entire duration of the warranty period so that the device can be packaged properly for return shipment in the event of a warranty claim.

Charging the speaker

CAUTION

▶ Use the device only in dry interior rooms.

Before using the device, the integrated battery must be completely charged.

◆ Ensure that the On/Off switch 9 is in the OFF position.
- Connect the USB plug on the charger cable ^10 to a PC or to a USB power supply.
Connect the micro-USB plug of the charging cable ^10 to the charging socket (POWER INPUT) 8 on the device.

NOTE

The operating/charging LED ^6 lights up red during charging. When the battery is fully charged, the charging LED turns off.

NOTE

▶ Charging takes about 3 hours with a charging current of 500 mA. When the battery is fully charged, you can play back music for about 3 hours without lighting, or 1.5 hours with lighting at a medium volume. The playback time may vary depending on usage (volume/lighting).
When the battery is dead, you will hear several beeps within a few seconds and the operating/charging LED 6 flashes red. The device then switches off automatically.

Handling and use

This section provides you with important information on handling and using the device.

Switching the speaker on/off

- Set the On/Off switch to the ON position to turn the loud-speaker on and activate the Bluetooth® function. You will hear a beep and the operating/charging LED 6 flashes blue and red.

- Set the On/Off switch ^9 to the OFF position to switch the loudspeaker off and deactivate the Bluetooth ^ function. You will hear a beep.

Power saving mode

If there is no input signal to the 3.5 mm jack ☑r no playback via Bluetooth®, the speaker switches automatically into power saving mode after 10 minutes.

The operating/charging LED 6 turns off and any existing Bluetooth® connection will be terminated.

- Set the On/Off switch 9 to the OFF position and then back to the ON position to exit power saving mode.

Pairing the speaker with a Bluetooth® music device

Before you can use the speaker, you must pair it with a compatible Bluetooth® device.

- Ensure that the speaker is switched off and the Bluetooth® device is switched on.

- Set the Bluetooth® device so that it scans for other Bluetooth® devices. A detailed description of how to do this can be found in the operating instructions for your Bluetooth® device.

- Set the On/Off switch ^9 to the ON position to turn the loud-speaker on and activate the Bluetooth ^ function. You will hear a beep and the operating/charging LED ^6 flashes blue and red.

Select SBLD 28 A1 from the list of found devices on your Bluetooth® device to pair the two devices. You will hear a short beep when the connection has been successfully established.

The operating/charging LED 6 flashes blue every 2 seconds to represent the established Bluetooth® connection. You can now use the speaker to listen to your favourite tunes wirelessly.

NOTE

The next time you turn on the speaker, it will connect automatically to the last-connected Bluetooth® device. If your Bluetooth® does not automatically reconnect, you will have to re-establish the connection to your Bluetooth® music device manually. A detailed description of how to do this can be found in the operating instructions for your Bluetooth® device.

If you want to connect the speaker to another Bluetooth® device, you must first uncouple the current Bluetooth® device.

Operation of the buttons

Button Function
▶II	▶ Press briefly to play/pause the music.▶ Press and hold for 2 seconds until you hear a beep to end the Bluetooth® connection. The device must be re-coupled with your Bluetooth® device before you can reuse it.
+/▶▶	▶ Press briefly to increase the volume. When you reach the maximum volume you will hear a short beep.▶ Press and hold for 2 seconds to jump to the next track.
- /◀◀	▶ Press briefly to decrease the volume. When you reach the minimum volume (mute), you will hear a short beep.▶ Press and hold for 2 seconds to jump back to beginning of the track. Press and hold again for 2 seconds within 2 seconds to jump to the previous track.
※	This button controls the device lighting in a cycle as follows:▶ Switch on the device: the lighting is switched off.▶ Press once: The lighting pulses in a multicoloured colour change.▶ Press twice: The lighting pulses in a single-coloured colour change to the volume of the music.▶ Press three times: The lighting pulses in a multicoloured colour change to the volume of the music.▶ Press again: The lighting is switched off and the cycle begins again the next time you press the button.

AUX IN operation

You can also listen to music from a portable audio device connected via a 3.5 mm jack cable.

◆ Ensure that the speaker is switched off.
Connect the audio device using a 3.5 mm jack cable to the 3.5 mm jack socket ⑦ on the speaker.
◆ Set the On/Off switch 9 to the ON position to turn the loud-speaker on.
- Start playback on the audio device and set the volume to a moderate level.
- Then set the desired volume using the + (▶) button or the - (◀) button on the speaker.
◆ Press the ▶ 4 button if you want to mute the speaker.

NOTE

If you connect a 3.5 mm jack cable to the device during the playback of audio files via Bluetooth ^® , the device will switch playback automatically to the newly connected device.
If you use a smartphone as your Bluetooth® playback device, the audio playback will be paused when there is an incoming call. Acceptance/termination of the call is carried out via the smartphone. After finishing the call, the playback will be automatically continued.

Troubleshooting

If you cannot pair the speaker to a compatible Bluetooth® music device, proceed as follows:

Make sure that the Bluetooth® function is activated on the music device. When a device is connected via a 3.5 mm jack cable, the Bluetooth® function is deactivated.

◆ Ensure that the speaker is switched on.

If you use several music devices, ensure that any previous connection is disconnected. There may be a previously paired device in range.

Make sure that the speaker is no more than 10 metres from the Bluetooth® device and that no obstacles or electronic devices are placed between them.

Cleaning

CAUTION

▶ To avoid irreparable damage to the device, ensure that no moisture can penetrate the device during cleaning.

▶ Do not use caustic, abrasive or solvent-based cleaning materials. These can damage the surfaces of the device.

- Clean the housing of the appliance with a lightly moistened cloth and a mild detergent only.

Storage when not in use

◆ Store the device in a location which is clean, dry, dust-free and not in direct sunlight.

◆ To ensure a long battery life, charge the battery at regular intervals.

Disposal

Disposal of the device

The adjacent symbol of a crossed-out dustbin means that this device is subject to Directive 2012/19/EU. This directive states that this device may not be disposed of in the normal household waste at the end of its lifecycle, but should be delivered to specially set-up collection locations, recycling depots or disposal companies.

This disposal is free of charge for the user. Protect the environment and dispose of this device properly.

You can obtain further information from your local disposal company or the city or local authority.

Appendix

Technical details

Operating voltage/current	5 V = 500 mA via USB charging port
Bluetooth® specifications	Version 4.1(range of up to 10 metres)
Supported Bluetooth® profiles	A2DP and AVRCP
Output power approx. 2.8 W RMS @ 10% THD
Integrated battery 3.7 V, 500 mAh (lithium-ion)
Operating time approx. 3 hrs. (music playback)
Charging time	approx. 3 hrs. (at a charging current of 500 mA)
Working temperature +15°C to +35°C
Storage temperature +5°C to +40°C
Humidity(no condensation)	5 to 75%
Dimensions (W x D x H) approx. 6.3 x 11 x 6.3 cm
Weight approx. 210 g

Notes on the EU Declaration of Conformity

This device complies with the basic requirements and other relevant provisions of the R&TTE Directive 1999/5/EC, EMC Directive 2014/30/EU and the

RoHS Directive 2011/65/EU.

The complete EU Declaration of Conformity is available from the importer.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

• Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
• You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

- If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

- You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 279430

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhoud

Inleiding 23

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einführung 45

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21 · 44867 BOCHUM · GERMANY

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND / GERMANY

www.kompernass.com
