Product Type	Soundbar with wireless subwoofer
Number of Channels	2.1
Total Power Output	200 W
Soundbar Dimensions (W x H x D)	860 x 59 x 75 mm
Soundbar Weight	1.8 kg
Subwoofer Dimensions (W x H x D)	150 x 300 x 300 mm
Subwoofer Weight	4.5 kg
Power Supply	AC 100-240 V, 50/60 Hz
Power Consumption	25 W (soundbar), 30 W (subwoofer)
Bluetooth Version	4.1
Audio Formats	Dolby Digital, DTS
Inputs	HDMI (ARC), Optical, USB
Sound Modes	Standard, Surround, Game, Bass Boost
Wireless Subwoofer Connectivity	2.4 GHz auto pairing
Cleaning Instructions	Wipe with a dry soft cloth
Safety Precautions	Do not open the device; refer servicing to qualified personnel
Spare Parts Availability	Contact Samsung customer support for spare parts
Repairability	Not user-serviceable; professional repair required
General Information	Samsung HW-K440 Soundbar; includes remote control and wall mount kit

Frequently Asked Questions - HW-K440 SAMSUNG

How do I connect the soundbar to my TV via Bluetooth?

Press the Source button on the remote until BT appears on the display. On your TV, enable Bluetooth and search for 'Samsung HW-K440'. Select it to pair.

Can I wall mount the soundbar?

Yes, the soundbar comes with a wall mount bracket. Use the included screws and anchors. Ensure the wall can support the weight (1.8 kg).

How do I reset the soundbar to factory settings?

With the soundbar on, press and hold the Volume Up and Volume Down buttons simultaneously for 5 seconds. The display will show 'INIT' and then turn off.

What sound modes are available and how do I switch them?

Press the Sound Mode button on the remote to cycle through Standard, Surround, Game, and Bass Boost.

Why is my subwoofer not connecting?

Ensure the subwoofer is within 5 meters of the soundbar and both are powered on. Press the Pair button on the back of the subwoofer for 3 seconds. The blue LED will blink and then stay solid when connected.

The remote control is not working. What should I do?

Check the batteries and replace if needed. Ensure there are no obstructions between the remote and the soundbar. Point the remote directly at the soundbar's IR sensor.

How do I update the firmware?

Firmware updates are done via USB. Download the latest firmware from Samsung's website, copy it to a USB drive, insert it into the soundbar's USB port, and press USB on the remote. The update will start automatically.

There is no sound from the soundbar. How can I troubleshoot?

Check the input source is correct. Verify the HDMI or optical cable is securely connected. Increase the volume. If using Bluetooth, ensure the device is paired and playing audio.

Is the soundbar compatible with any TV?

The soundbar works with any TV that has an HDMI ARC port, optical output, or Bluetooth capability. For best performance, use HDMI ARC.

What is the power consumption in standby mode?

The soundbar consumes less than 0.5 W in standby mode, meeting energy efficiency standards.

USER MANUAL HW-K440 SAMSUNG

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

	CAUTIONRISK OF ELECTRIC SHOCK.DO NOT OPEN.			This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.
				This symbol indicates that important literature concerning operation and maintenance has been included with this product.

	Class II product : This symbol indicates that it does not require a safety connection to electrical earth (ground).
	AC voltage : This symbol indicates that the rated voltage marked with the symbol is AC voltage.
	DC voltage : This symbol indicates that the rated voltage marked with the symbol is DC voltage.
	Caution, Consult instructions for use : This symbol instructs the user to consult the user manual for further safety related information.

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to an AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

CAUTION

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases, on the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

PRECAUTIONS

Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.

During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit.

Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Disconnect the power cable from the AC supply if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using.

Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit to malfunction.

The batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash. Do not dispose of batteries in a fire. Do not short circuit, disassemble, or overheat the batteries. There is a danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type.

WARNING: DO NOT INGEST BATTERY. CHEMICAL BURN HAZARD. The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

CONTENTS

2 GETTING STARTED

2 Safety Information

5 What's Included

6 DESCRIPTIONS

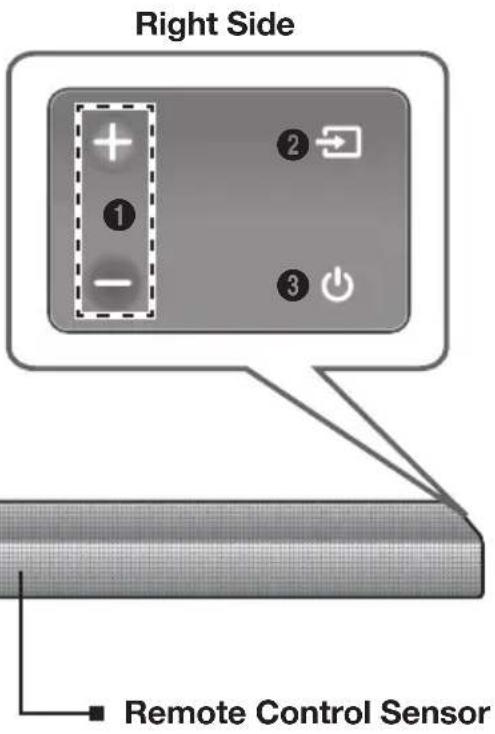

6 Front / Right Side Panel

7 Bottom Panel

8 Remote Control

11 INSTALLATION

11 Installing the Soundbar

11 Installing the Wall Mount 15 Detaching the Soundbar from the Wall

16 CONNECTIONS

16 Connecting the Subwoofer

18 Connecting the SWA-8000S (Sold Separately)

20 Connecting to a TV

20 Connecting to a TV Using a Digital Optical Cable

21 TV SoundConnect

22 Connecting to External Devices

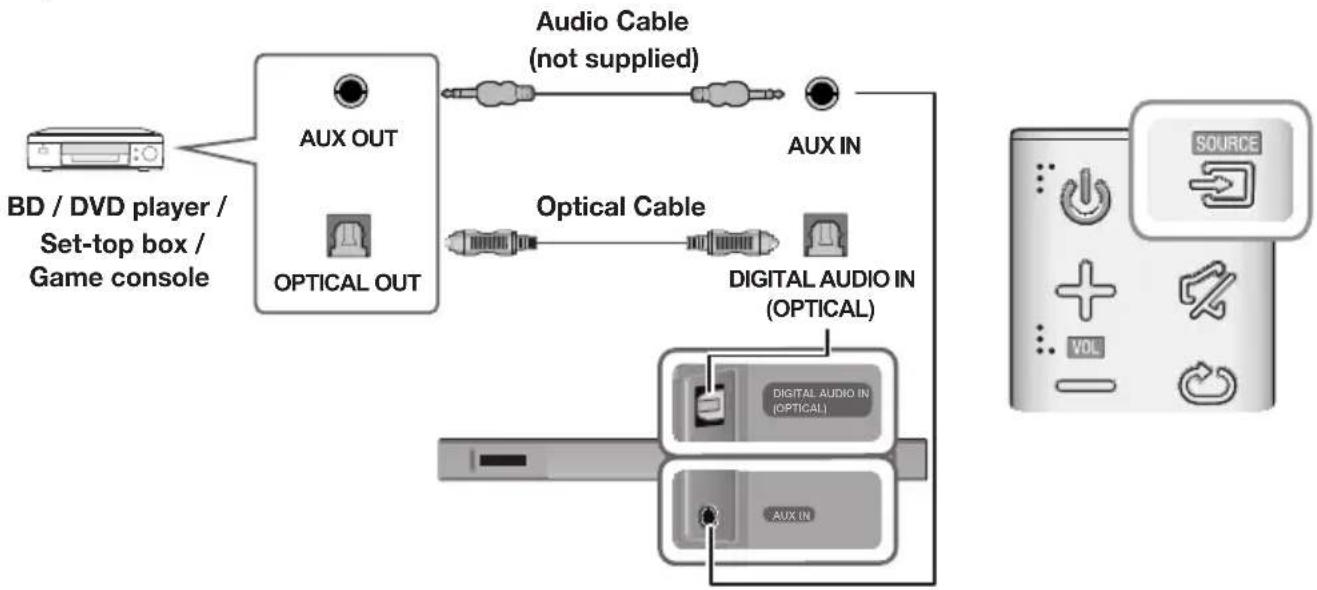

22 Optical or Analogue Audio Cable

23 USB

25 FUNCTIONS

25 Input Mode

26 Bluetooth

30 Software Update

32 TROUBLESHOOTING

32 Troubleshooting

33 APPENDIX

33 Specifications

• Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. • An administration fee may be charged if either (a) an engineer is called out at your request and there is no defect with the product (i.e. where the user manual has not been read). (b) you bring the unit to a repair centre and there is no defect with the product (i.e. where the user manual has not been read).
• You will be informed of the administration fee amount before a technician visits.

WHAT'S INCLUDED

BEFORE READING THE USER'S MANUAL

Note the following terms before reading the user manual.

▶ Icons used in this manual

Icon Term Definition
	Caution	Indicates a situation where a function does not operate or settings may be cancelled.
	Note	Indicates tips or instructions on the page that help you operate a function.

Check for the supplied accessories shown below.

Remote Control / Lithium Battery (3V : CR2032)

Power Cord : 2 EA

AC/DC Adapter (Main Unit)

AC/DC Adapter (Subwoofer)

Optical Cable Wall Mount Guide Holder-Screw : 2 EA

Screw : 2 EA Bracket-Wall Mount L Bracket-Wall Mount R

• The appearance of the accessories may differ slightly from the illustrations above.
• Micro USB to USB adapter cable is sold separately. To purchase, contact a Samsung Service Centre or Samsung Customer Care.

Controls the volume level.

The numeric value of the volume level appears in the front panel display.

② (Source) Button

Selects the D.IN, AUX, BT, TV, or USB input.

- While the unit is powered on, pressing the → button for more than 3 seconds sets the button to act as the ✗ (Mute) button. To cancel the ✗ (Mute) button setup, press the → button for more than 3 seconds again.

③ (Power) Button

Turns the power on and off.

Displays the current mode.

• When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.
• When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.
• If you want to enjoy sound only from the Soundbar, you must turn off the TV's speakers in the Audio Setup menu of your TV. Refer to the owner's manual supplied with your TV.

BOTTOM PANEL

Connect the DC power adaptor to the power supply jack, and then connect the AC power adaptor plug to a wall outlet.

• When disconnecting the power cable of the AC power adaptor from a wall outlet, pull the plug. Do not pull the cable.
• Do not connect this unit or other components to an AC outlet until all connections between components are complete.
• Make sure to rest the AC/DC Adapter flat on a table or the floor. If you place the AC/DC Adapter so that it is hanging with the AC cord input facing upwards, water or other foreign substances could enter the Adapter and cause the Adapter to malfunction.

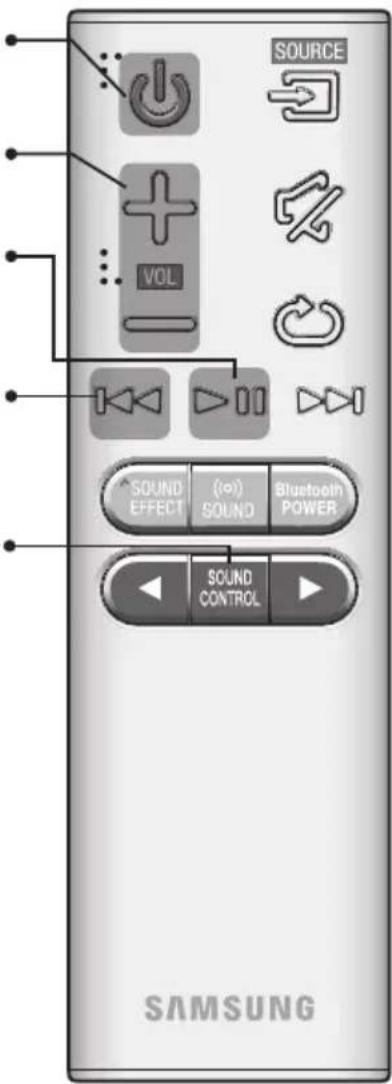

REMOTE CONTROL

SOURCE

Press to select a source connected to the Soundbar.

Mute

You can turn the volume down to 0 with the push of a button. Press again to restore the sound to the previous volume level.

Repeat

Press to set the Repeat function during music playback from a USB device.

OFF - REPEAT : Cancels Repeat Playback.

TRACK - REPEAT : Plays a track repeatedly.

ALL - REPEAT : Plays all tracks repeatedly.

RANDOM - REPEAT : Plays tracks in random order. (A track that has already been played may be played again.)

Skip Forward

If there is more than one file on the device you are playing, and you press the ▶ button, the next file is selected.

Bluetooth POWER

Press the Bluetooth POWER button on the remote to turn the Bluetooth POWER On function on and off. See pages 22 and 27 for details.

((o)) SOUND

Surround Sound adds depth and spaciousness to the sound. Pressing the ((o)) SOUND button repeatedly cycles through the Surround Sound settings : ON - SURROUND SOUND, OFF - SURROUND SOUND

Press and hold the ◀ button for about 5 seconds to turn the Auto Power Link function on or off.

OFF - POWER LINK, ON - POWER LINK

* Auto Power Link

Synchronizes the Soundbar to a connected Optical source via the Optical jack so it turns on automatically when you turn on your TV. (See page 20) Auto Power Link function is only available in the D.IN mode.

SOUND EFFECT

You can select from 6 sound modes - STANDARD (Original Sound), MUSIC, CLEAR VOICE, SPORTS, MOVIE, and NIGHT - depending on the content you want to listen to.

Select the STANDARD mode if you want to enjoy the original sound.

* DRC (Dynamic Range Control)

Lets you apply dynamic range control to Dolby Digital. Press and hold the SOUND EFFECT button for about 5 seconds in STANDBY mode to turn the DRC (Dynamic Range Control) function on or off.

Power

Turns the Soundbar on and off.

Volume

Adjusts the volume level of the unit.

Play / Pause

Press the ▶II button to pause a file temporarily. Press the ▶II button again to play the selected file.

Skip Back

If there is more than one file on the device you are playing, and you press the ◀◀ button, the previous file is selected.

SOUND CONTROL

Press to select TREBLE, BASS, SUBWOOFER LEVEL, AUDIO SYNC, REAR SPEAKER, or REAR LEVEL.

Then, use the ◀, ▶ buttons to adjust the TREBLE or BASS volume from -6 to +6, SUBWOOFER LEVEL volume from -12, -6 to +6.

Press and hold the SOUND CONTROL button for about 5 seconds to adjust the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2KHz, 2.5KHz, 5KHz and 10KHz are selectable and each can be adjusted to a setting between -6 to +6.

If the Soundbar is connected to a digital TV and the video appears out of sync with the audio, press the SOUND CONTROL button to sync the audio with the video. Use the ◀, ▶ buttons to set the audio delay between 0 ms to 300 ms. In USB mode, TV mode, and BT mode, the Audio Sync function may not be available.

To turn on or off the rear speaker sound, select REAR SPEAKER in Sound Control, and then adjust the volume between OFF-RS and ON-RS by using the ◀, ▶ buttons.

To control the volume of the rear level sound, select REAR LEVEL in Sound Control, and then adjust the volume between RS -6 to +6 by using the ◀, ▶ buttons.

- The REAR SPEAKER and the REAR LEVEL mode are only available when you connect the SWA-8000S (sold separately).

• If the SWA-8000S is disconnected, REAR SPEAKER and REAR LEVEL remain displayed but the functions are not available.
• Operate the TV using the TV's remote control.

▶ Controlling the Soundbar using Your TV Remote Control

1. Press and hold the ((o)) SOUND button for more than 5 seconds while the Soundbar is turned on.
2. "ON - TV REMOTE" appears on the Soundbar's display.
3. In the TV's menu, set the TV speaker to external speaker.

• All buttons are not available except the VOL +/- and the ⚪ (Mute) buttons in this function.
• TV menus differ by manufacturer and model. Refer to the TV's user manual for further information.
• This function is not available when the Soundbar is in the TV SoundConnect mode. • Manufacturers supporting this function:

- VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, GRUNDIG, Hisense, RCA

- This function may not be compatible with your TV's remote depending on the remote control's manufacturer.

- To turn off this function, press the ((o)) SOUND button for 5 seconds.

"OFF - TV REMOTE" appears on the Soundbar's display.

INSTALLING THE BATTERY IN THE REMOTE CONTROL

1. Use a suitable coin to turn the remote control's battery cover counterclockwise to remove it as shown in the figure above.

1. Insert a 3V lithium battery. Keep the positive (+) pole facing up when inserting the battery. Put the battery cover on and align the '•' marks side by side as shown in the figure above.

1. Use a suitable coin to turn the remote control battery cover clockwise as far as it will go to fix it in place.

INSTALLING THE SOUNDBAR

INSTALLING THE WALL MOUNT

Installation Precautions

Install on a vertical wall only.

• For the installation, avoid a location with high temperature or humidity, or a wall that cannot sustain the weight of the set.
• Check the strength of the wall. If the wall is not strong enough to support the unit, reinforce the wall or install the unit on a different wall that can support the unit's weight.
• Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs.
• Purchase wall mounting screws according to the type and thickness of the wall you will mount the Soundbar on.

Diameter: M5

Length: 35 mm or longer recommended.

• Connect cables from the unit to external devices before you install it on the wall.
• Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

1. Place the Wall Mount Guide against the wall surface.

• The Wall Mount Guide must be level. - If the TV is mounted on the wall, install the Soundbar at least 5 cm below the TV.

1. Align the Paper Template's Centre Line with the centre of your TV (if you are mounting the Soundbar below your TV), and then fix the Wall Mount Guide to the wall using tape.

- If you are not mounting below a TV, place the Centre Line in the centre of the installation area.

1. Push a pen tip or sharpened pencil tip through the centre of the B-TYPE images on each end of the Guide to mark the holes for the supporting screws, and then remove the Wall Mount Guide.
2. Using an appropriately sized drill bit, drill a hole in the wall at each marking.

- If the markings do not correspond to the positions of studs, make sure you insert appropriate anchors or mollies into the holes before you insert the support screws. If you use anchors or mollies, make sure the holes you drill are large enough for the anchors or mollies you use.

1. Push a screw (not supplied) through each Holder-Screw, and then screw each screw firmly into a support screw hole.

1. Use the two Screws (M4 x L12) to attach both Bracket-Wall Mount L and R to the Soundbar's bottom. For a proper fit, make sure to align the bumps on the Soundbar to the holes on the brackets.

Rear side of Soundbar Right end of Soundbar

- When assembling, make sure the hanger part of Bracket-Wall Mounts faces backwards.

Wall Mount LWall Mount R

- The left and right mounts are different shapes. Make sure to position them correctly.

1. Install the Soundbar with the attached Bracket-Wall Mounts by hanging the Bracket-Wall Mounts on the Holder-Screws on the wall.

- Slightly tilt the Soundbar to insert both Holder-Screw heads into Bracket-Wall Mount holes. Push the Soundbar in the direction of the arrow to make sure both sides are firmly fixed.

DETACHING THE SOUNDBAR FROM THE WALL

1. To separate the Soundbar from the wall mount, push it in the direction of the arrow, and then pull it away from the wall as shown.

• Do not hang onto the installed unit and avoid striking or dropping the unit.
• Secure the unit firmly to the wall so that it does not fall off. If the unit falls off, it may cause an injury or damage the product.
• When the unit is installed on a wall, please make sure that children do not pull any of the connecting cables, as this may cause it to fall.
• For the optimal performance of a wall mount installation, install the speaker system at least 5 cm below the TV, if the TV is mounted on the wall.
• For your safety, if you do not mount the unit on the wall, install it on a secure, flat surface where it is unlikely to fall.

• Do not connect the power cord of this product or your TV to a wall outlet until all connections between components are complete.
• Before moving or installing this product, be sure to turn off the power and disconnect the power cord.

CONNECTING THE SUBWOOFER

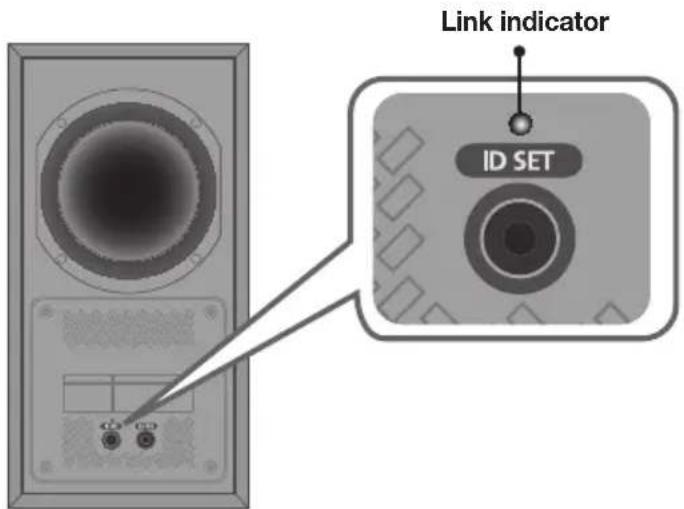

CONNECTING TO THE SUBWOOFER AUTOMATICALLY

The Subwoofer's linking ID is preset at the factory and the main unit and subwoofer should link (connect wirelessly) automatically when the main unit and subwoofer are turned on.

- When the subwoofer is completely connected, the blue LED Link Indicator on the subwoofer stops blinking and glows continuously. The subwoofer's LED indicator modes are listed below:

1	blue ○	Auto-connection is complete.
2	blue ○ blinking	Auto-connection is not complete.
3	blue ○is not lit	a. Is the power cord plugged into the outlet? If not, connect the power plug to the outlet.b. If the power cord is plugged in correctly, check the Soundbar main unit.If your Soundbar main unit is off (in standby mode), the subwoofer will also be in standby mode and the blue LED won't be lit.

CONNECTING TO THE SUBWOOFER MANUALLY

If the blue LED light does not stop blinking when the main unit and subwoofer are turned on, please set the ID by following the steps below.

Important: Before you begin, put the battery into the remote. See page 10 for instructions.

1. Plug the power cords of the main unit and subwoofer into an AC wall outlet.
2. Press the ID SET button on the back of the subwoofer with a small, pointed object for 5 seconds.

The LINK indicator (Blue LEDs) blinks quickly.

1. While the main unit is powered off, press and hold the (Mute) button on the remote control for 5 seconds.
2. The ID SET message appears on the Soundbar's display.
3. To finalise the link, turn the main unit's power on while the subwoofer's Blue LED blinks.

The main unit and the subwoofer should now be linked (connected). The LINK indicator (Blue LED) on the subwoofer should be glowing continuously and not blinking. If the LINK indicator is not solid blue, the linking process has failed. Turn off the main unit and start again from Step 2. You can enjoy better sound from the wireless subwoofer by selecting a Sound Effect. (See page 8)

• Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
• If you use a device that uses the same frequency (2.4GHz) as the Soundbar near the Soundbar, interference may cause some sound interruption.
• The maximum transmission distance of the wireless signal between the main unit and subwoofer is about 10 meters, but may vary depending on your operating environment. If a steel-concrete or metallic wall is between the main unit and the wireless subwoofer, the system may not operate at all, because the wireless signal cannot penetrate metal.
• If the main unit doesn't make a wireless connection, follow steps 1-5 on the previous page to re-set the connection between the main unit and wireless subwoofer.

• The wireless receiving antenna is built into the wireless subwoofer. Keep the unit away from water and moisture.
• For optimal listening performance, make sure that the area around the wireless subwoofer location is clear of any obstructions.

CONNECTING THE SWA-8000S (SOLD SEPARATELY)

• Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit (SWA-8000S) to your Soundbar. (Sold separately)
• Before connecting to the Wireless Receiver Module, connect your subwoofer first.
• Use the speaker cable to connect the wireless receiver module to the speakers.
• Plug the power cord into a power outlet. The LED turns on.
• While the main unit is powered off (in STANDBY mode), press and hold the Ⓧ (Mute) button on the remote control for 5 seconds.
• The ID SET message appears on the Soundbar's display.
• Plug the power cord of the Wireless Receiver Module (SWA-8000S) into an AC wall outlet.
• Turn on your Soundbar when the link indicator (Blue LED) on the SWA-8000S flickers fast.
• When the link indicators (Blue LEDs) on your subwoofer and the SWA-8000S flash and then glow continuously, the SWA-8000S is completely connected.

• This may take a few minutes.

- Once connected, your Soundbar and the Wireless Receiver Module are automatically reconnected even after you turned them off and then on.

If the Wireless Receiver Module is not linked to your Soundbar (displaying the LED indicator in Red), connect them as follows.

1. Turn off your Soundbar.
2. Press the Ⓧ (Mute) button on your remote control for 5~6 seconds until the ID SET message appears on your Soundbar display.
3. Check that the Wireless Receiver Module is in Standby status (the LED indicator is red).
4. Press the ID SET button on the back with a sharp pin for 5~6 seconds until the LINK LED indicator on the Wireless Receiver Module blinks (in blue).
5. Turn on your Soundbar with the ⏻ button on your remote control and wait for a while. They are completely connected to each other if you can see the LINK LED indicator is continuously lit (in blue).

Wireless Receiver Module

- Place these speakers to the side of your listening position. If there isn't enough room, place these speakers so they face each other. Position them about 60 to 90 cm above your ear, facing slightly downward.

• Use the speaker cable to connect the Wireless Receiver Module to the Surround Speakers.
• Each speaker has a coloured label on its back or underside. Each cable has a single coloured band near its end. Match the band on each cable to the speaker label by colour, and then connect the cable to the speaker.

CONNECTING TO A TV

- Important: Before you begin, put the battery into the remote. See page 10 for instructions.

CONNECTING TO A TV USING A DIGITAL OPTICAL CABLE

1. Connect the DIGITAL AUDIO IN (OPTICAL) jack on the Soundbar to the OPTICAL OUT jack of the TV with a digital optical cable.
2. Press the → button on the right side of the Soundbar or the SOURCE button on the remote control to select the D.IN mode.

▶ Auto Power Link

If you have connected the main unit to a TV with a digital optical cable, you can set the Auto Power function ON to have the Soundbar turn on automatically when you turn the TV on.

1. Connect the Soundbar and a TV with a digital optical cable.
2. Press the → button on the main unit's right side or the SOURCE button on the remote control to select the D.IN mode.
3. Press the ◀ button on the remote control for 5 seconds to turn Auto Power Link on or off.

• Auto Power Link is set to ON by default. - Depending on the connected device, Auto Power Link may not function.

TV SOUNDCONNECT

You can enjoy TV sound through your Soundbar when it is connected to a Samsung TV that supports the TV SoundConnect function.

1. Turn on the TV and Soundbar.
2. Press the ➕ button on the main unit's right side or the SOURCE button on the remote control to select the TV mode.
3. On the TV, a message asking whether to enable the TV SoundConnect function appears.
4. Select using the TV's remote control to finish connecting the TV and Soundbar.

• If the TV SoundConnect linking process fails, navigate to SoundConnect in the TV's Sound menu, select Add New Device, and set Add New Device to ON. Then, try again.
• Switching the Soundbar's mode from TV to another mode automatically terminates TV SoundConnect.
• To connect the Soundbar to another TV, the existing connection must be terminated.

- To terminate the existing connection, press and hold the button on the remote for 5 seconds or switch to another mode. To connect to the other TV, follow Steps 1 through 4 above.

• The TV SoundConnect (SoundShare) function is supported by some Samsung TVs released from 2012 on. Check whether your TV supports the TV SoundConnect (SoundShare) function before you begin. (For further information, refer to the TV's user manual.)
• If your Samsung TV was released before 2014, check the SoundShare setting menu.
• If the distance between the TV and Soundbar exceeds 10 meters, the connection may not be stable or the audio may stutter. If this occurs, relocate the TV or Soundbar so that they are within operational range, and then re-establish the TV SoundConnect connection.

• TV SoundConnect Operational Ranges:

- Recommended pairing range: within 2 meters.

- Recommended operational range: within 10 meters.

- The Play/Pause, Next, and Prev buttons on the Soundbar or Soundbar's remote do not control the TV.

▶ Using the Bluetooth POWER On function

The Bluetooth POWER On function is available after you have successfully connected the Soundbar to a Bluetooth compatible TV using TV SoundConnect. When the Bluetooth POWER On function is ON, turning the connected TV on or off will turn the Soundbar's power on and off as well.

1. Connect the TV to your Soundbar using the TV SoundConnect function.
2. Press the Bluetooth POWER button on the Soundbar remote. ON - BLUETOOTH POWER appears on the Soundbar's display.

• ON - BLUETOOTH POWER : The Soundbar turns on and off when you turn the TV on or off. • OFF - BLUETOOTH POWER : The Soundbar only turns off when you turn the TV off.

- This function is supported by some Samsung TVs released from 2013 on.

CONNECTING TO EXTERNAL DEVICES

OPTICAL OR ANALOGUE AUDIO CABLE

This unit comes equipped with one digital optical in jack and one analogue audio (AUX) in jack, giving you two ways to connect it to external devices.

▶AUX Cable

1. Connect AUX IN (Audio) on the main unit to the AUDIO OUT jack of the Source Device using an audio cable.
2. Press the → button on the right side of the Soundbar or the SOURCE button on the remote control to select the AUX mode.

▶Optical Cable

1. Connect DIGITAL AUDIO IN (OPTICAL) on the main unit to the OPTICAL OUT jack of the Source Device using a digital optical cable.
2. Press the → button on the right side of the Soundbar or the SOURCE button on the remote control to select the D.IN mode.

USB

You can play music files located on USB storage devices through the Soundbar.

1. Connect a Micro USB to USB adapter cable with a male USB 2.0 Micro USB plug (Type B) on one end and a standard female 2.0 USB jack (Type A) on the other end to the micro USB jack on your Soundbar.

- The Micro USB to USB adapter cable is sold separately. To purchase, contact a Samsung Service Centre or Samsung Customer Care.

1. Connect your USB device to the female end of the adapter cable.
2. Press the button on the main unit's right side or the SOURCE button on the remote control to select the USB mode.
3. USB appears on the display screen.

• The Soundbar connection to the USB device is complete. - The Soundbar automatically turns off (Auto Power Off) if no USB device has been connected for more than 5 minutes.

▶ Before you connect a USB device

Be aware of the following:

• If the file name of a file on a USB device exceeds 10 characters, it is not displayed on the Soundbar's display.
• This product may not be compatible with certain types of USB storage media.
• The Soundbar supports the FAT16 and FAT32 file systems.

-The NTFS file system is not supported.

• Connect USB devices to the USB port of the product using a USB 2.0 Micro USB plug to standard female 2.0 USB jack adapter cable. Otherwise, you may encounter a USB compatibility problem.
• Do not connect multiple storage devices to the product via a multi-card reader. It may not operate properly.
• Digital camera PTP protocols are not supported.
• Do not remove the USB device while it is transferring files.
• DRM-protected music files (MP3, WMA) from commercial web sites cannot be played.

• External HDDs are not supported. - Mobile phone devices are not supported. - File Format Type Compatibility list:

Extension Codec Sampling Rate Bit Rate
*.mp3	MPEG 1 Layer2 16KHz ~ 48KHz 80kbps~320kbps
	MPEG 1 Layer3 16KHz ~ 48KHz 80kbps~320kbps
	MPEG 2 Layer3 16KHz ~ 48KHz 80kbps~320kbps
	MPEG 2.5 Layer3 16KHz ~ 48KHz 80kbps~320kbps
*.wma	Wave_Format_MSAudio1 16KHz ~ 48KHz 56kbps~128kbps
	Wave_Format_MSAudio2 16KHz ~ 48KHz 56kbps~128kbps
*.aac	AAC 16KHz ~ 96KHz 48kbps~320kbps
	AAC-LC 16KHz ~ 96KHz		128kbps~192kbps5.1ch 320kbps
	HE-AAC	24KHz ~ 96KHz	48kbps~64kbps5.1ch 160kbps
*.wav	-	16KHz ~ 48KHz up to 3000kbps
*.ogg	OGG 1.1.0	16KHz ~ 48KHz 50kbps~500kbps
*.flac	FLAC 1.1.0, FLAC 1.2.1	16KHz ~ 96KHz up to 3000kbps

- If there are too many folders and files stored on the USB device, it may take the Soundbar some time to access and play files.

INPUT MODE

Press the button on the main unit's you want.

right side or the SOURCE button on the remote control to select the mode

Right Side of the Soundbar

Input mode Display
Optical Digital input	D.IN
AUX input	AUX
BLUETOOTH mode	BT
TV SoundConnect	TV
USB mode	USB

The unit turns off automatically in the following situations.

• D.IN / BT / TV / USB Mode

-If there is no audio signal for 5 minutes.

- AUX Mode

-If the AUX cable is disconnected for 5 minutes.

- If there is no KEY input for 8 hours when the AUX cable is connected. (Auto Power Down function can be turned off only in that case.)

To turn off Auto Power Down function, while in AUX mode, press and hold the ▶II button for 5 seconds. ON - AUTO POWER DOWN / OFF - AUTO POWER DOWN appears on the display.

BLUETOOTH

You can connect a Bluetooth device to the Soundbar and enjoy music with stereo sound, all without wires!

TO CONNECT THE SOUNDBAR TO A BLUETOOTH DEVICE

Check if the Bluetooth device supports the Bluetooth compliant stereo headset function.

1. Press the button on the main unit's right side or the mode.

SOURCE button on the remote control to select the BT

• You will see BT READY on the front display of the Soundbar.

1. Select the Bluetooth menu on the Bluetooth device you want to connect. (Refer to the Bluetooth device's user manual.)
2. Select "[AV] Samsung Soundbar Kxxx K-Series" from the list.
3. When the Soundbar is connected to the Bluetooth device, it will display [Bluetooth device name] → BT on the front display.
4. The device name can only be displayed in English. An underline " _ " will be displayed if the name is not in English.
5. If the Bluetooth device has failed to pair with the Soundbar, delete the previous "[AV] Samsung Soundbar Kxxx K-Series" found by the Bluetooth device and have it search for the Soundbar again.
6. Play music on the connected device.

• You can listen to the music playing on the connected Bluetooth device over the Soundbar. - In BT mode, the Play / Pause / Next / Prev functions are not available. However, these functions are available on Bluetooth devices supporting AVRCP.

• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• Only one Bluetooth device can be paired at a time.
• The Bluetooth connection will be terminated when you turn the Soundbar off.
• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

- If there is a strong electrical field around the Soundbar.

• - If several Bluetooth devices are simultaneously paired with the Soundbar.
• - If the Bluetooth device is turned off, not in place, or malfunctions.

- Note that such devices as microwave ovens, wireless LAN adaptors, fluorescent lights, and gas stoves use the same frequency range as the Bluetooth device, which can cause electric interference.

• The Soundbar supports SBC data (44.1kHz, 48kHz).

• Connect only to a Bluetooth device that supports the A2DP (AV) function.
• You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function.
• Once you have paired the Soundbar to a Bluetooth device, selecting "[AV] Samsung Soundbar Kxxx K-Series" from the device's scanned devices list will automatically change the Soundbar to BT mode.

- Available only if the Soundbar is listed among the Bluetooth device's paired devices. (The Bluetooth device and the Soundbar must have been previously paired at least once.)

• Soundbar will appear in the Bluetooth device's searched devices list only when the Soundbar is displaying BT READY.
• In the TV SoundConnect mode, the Soundbar cannot be paired to another Bluetooth device.

BLUETOOTH POWER ON (BLUETOOTH POWER)

If a previously paired Bluetooth device tries to pair with the Soundbar when the Bluetooth POWER On function is on and the Soundbar is turned off, the Soundbar turns on automatically.

1. Press the Bluetooth POWER button on the remote while the Soundbar is turned on.
2. ON - BLUETOOTH POWER appears on the Soundbar's display.

TO DISCONNECT THE BLUETOOTH DEVICE FROM A SOUNDBAR

You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device's user manual.

• The Soundbar will be disconnected. - When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display BT DISCONNECTED on the front display.

TO DISCONNECT THE SOUNDBAR FROM A BLUETOOTH DEVICE

Press the SOURCE button on the remote control or the button on the product's right side to switch from BT to another mode or turn off the Soundbar.

- The connected Bluetooth device will wait a certain amount of time for a response from the Soundbar before terminating the connection. (Disconnection time may differ, depending on the Bluetooth device)

• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters.
• The Soundbar automatically turns off after 5 minutes in the Ready state.

▶ More About Bluetooth

Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a short wireless connection.

- A Bluetooth device may cause noise or malfunction, depending on usage, if:

• A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Soundbar.
• It is subject to electrical variation from obstructions caused by a wall, corner, or office partition.
• It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.
• Pair the Soundbar with the Bluetooth device while they are close together.
• The further the distance between the Soundbar and Bluetooth device, the worse the quality is. If the distance exceeds the Bluetooth operational range, the connection is lost.
• In poor reception areas, the Bluetooth connection may not work properly.
• The Bluetooth connection only works when it is close to the unit. The connection will be automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors.
• This wireless device may cause electric interference during its operation.

USING THE SAMSUNG AUDIO REMOTE APP

Installing the Samsung Audio Remote App

To control the Soundbar with your smart device and the Samsung Audio Remote app, download the Samsung Audio Remote app from the Google Play store.

Market search: Samsung Audio Remote

Launching the Samsung Audio Remote App

To launch and use the Samsung Audio Remote app, touch the Audio Remote icon on your smart device, and then follow the directions on the screen.

The Samsung Audio Remote app is only compatible with Android mobile phones and mobile devices running Android OS 3.0 or later.

SOFTWARE UPDATE

Samsung may offer updates for the Soundbar's system firmware in the future.

If an update is offered, you can update the firmware by connecting a USB device with the firmware update stored on it to the USB port on your Soundbar.

Note that if there are multiple update files, you must load them onto the USB device singly and use them to update the firmware one file at a time.

Please visit samsung.com or contact the Samsung call centre to receive more information about downloading update files.

UPDATING PROCEDURE

1. Connect a Micro USB to USB adapter cable with a male USB 2.0 Micro USB plug (Type B) on one end and a standard female 2.0 USB jack (Type A) on the other end to the micro USB jack on your Soundbar.

- The Micro USB to USB adapter cable is sold separately. To purchase, contact a Samsung Service Centre or Samsung Customer Care.

1. Follow the steps below to download the product software: Go to the Samsung website at (samsung.com/sec) → search for the model name - select the customer support option (the option name is subject to change)
2. Save the downloaded software to a USB stick and select "Extract Here" to unzip the folder.
3. Turn off the Soundbar and connect the USB stick containing the software update to the female port on a Micro USB adapter cable.
4. Turn on the Soundbar. Within 3 minutes, UPDATE is displayed and updating begins.
5. After completion, the power of Soundbar turns off. In this state, press the ▶II button on the remote control for 5 seconds.

- This product has a DUAL BOOT function. If the firmware fails to update, you can update the firmware again.

IF UPDATE IS NOT DISPLAYED

1. Turn off the Soundbar, connect the USB storage device that contains update files to the Soundbar's USB port.
2. Disconnect the power cord, reconnect it, and then turn on the Soundbar.

• Insert a USB device containing the firmware update into the USB port on the main unit.
• Updating firmware may not work properly if audio files supported by the Soundbar are stored in the USB storage device.
• Do not disconnect the power or remove the USB device while updates are being applied. The main unit will turn off automatically after completing the firmware update.
• After update is completed, the user setup in Soundbar is initialised. We recommend you write down your settings so that you can easily reset them after the update. Note that updating firmware resets the subwoofer connection too.

If the connection to the subwoofer is not re-established automatically after the update, refer to page 16. If the software update fails, check that the USB stick is not defective.

• Mac OS users should use MS-DOS (FAT) as the USB format. - Depending on the manufacturer, some USB devices may not be supported.

TROUBLESHOOTING

Before requesting service, please check the following.

The unit will not turn on.
• Is the power cord plugged into the outlet?	→ Connect the power plug to the outlet.

A function does not work when the button is pressed.
• Is there static electricity in the air?	→ Disconnect the power plug and connect it again.

Sound is not produced.
Is the Mute function on?Is the volume set to minimum?	→ Press the (Mute) button to cancel the Mute function.→ Adjust the volume.

The remote control does not work.
Are the batteries drained?Is the distance between the remote control and main unit too far?	→ Replace with new batteries.→ Move closer to the unit.

The TV SoundConnect (TV pairing) failed.
Does your TV support TV SoundConnect?Is your TV firmware the latest version?Does an error occur when connecting?	→ TV SoundConnect is supported by some Samsun TVs released from 2012 on. Check your TV to see if it supports TV SoundConnect.→ Update your TV with the latest firmware.→ Contact the Samsung Call Centre.→ Reset TV SoundConnect and connect again.To reset the TV SoundConnect connection, press and hold the ▶II button for 5 seconds.

The blue indicator on the rear of the subwoofer is not lit and the subwoofer is not producing sound.
• Is the main unit power on?	→ Check the power cord. If the power cord is plugge in correctly, check the main unit. If your main unit is off (in standby mode), the subwoofer will also be in standby mode and the blue LED won't be lit.
• Your subwoofer may not be connected to the main unit of the product.	→ Try to connect your subwoofer again.(See Page 16)

SPECIFICATIONS

GENERAL	USB		5V / 0.5A
	Weight	Main Unit	2.0 kg
		Subwoofer (PS-WK430)	2.9 kg
	Dimensions(W x H x D)	Main Unit	908.5 x 53.5 x 70.5 mm
		Subwoofer (PS-WK430)	155.0 x 300.0 x 293.0 mm
	Operating Temperature Range		+5°C to +35°C
	Operating Humidity Range		10 % to 75 %
AMPLIFIER	Rated Output Power	Main Unit	40W x 4, 6 ohm, THD≤10%
		Subwoofer (PS-WK430)	60W, 3 ohm, THD≤10%

* Design and specifications are subject to change without prior notice. * Nominal specification

- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.

-Weight and dimensions are approximate.

- For more information about the power supply and power consumption, refer to the label attached to the product.

Open Source Licence Notice

To send inquiries and requests regarding open sources, contact Samsung via Email ([e-mail]).

LICENCES

DOLBY

AUDIO

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under licence from DTS Licencing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS 2.0 Channel is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

Wireless Models (including the frequency of 5.15GHz-5.35GHz)

Hereby, Samsung Electronics, declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

The original Declaration of Conformity may be found at http://www.samsung.com, go to Support > Search Product Support and enter the model name.

This equipment may be operated in all EU countries.

This equipment may only be used indoors.

Wireless Models (excluding the frequency of 5.15GHz-5.35GHz)

Hereby, Samsung Electronics, declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

The original Declaration of Conformity may be found at http://www.samsung.com,

go to Support > Search Product Support and enter the model name.

This equipment may be operated in all EU countries.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care Centre.

Country	Contact Centre	Web Site
■Europe
U.K 0330 SAMSUNG (7267864) www.samsung.com/uk/support
EIRE 0818 717100 www.samsung.com/ie/support
GERMANY	0180 6 SAMSUNG bzw.0180 6 7267864*(0,20 €/Anruf aus dem dt. Festnetz, ausdem Mobilfunk max. 0,60 €/Anruf)	www.samsung.com/de/support
FRANCE 01 48 63 00 00 www.samsung.com/fr/support
ITALIA 800-SAMSUNG (800.7267864) www.samsung.com/it/support
SPAIN 34902172678 www.samsung.com/es/support
PORTUGAL 808 20 7267 www.samsung.com/pt/support
LUXEMBURG	261 03 710	www.samsung.com/be_fr/support
NETHERLANDS	0900-SAMSUNG (0900-7267864)(€ 0,10/Min)	www.samsung.com/nl/support
BELGIUM	02-201-24-18	www.samsung.com/be/support(Dutch)www.samsung.com/be_fr/support (French)
NORWAY	815 56480	www.samsung.com/no/support
DENMARK	70 70 19 70	www.samsung.com/dk/support
FINLAND	030-6227 515 www.samsung.com/fi/support
SWEDEN	0771 726 7864 (0771-SAMSUNG)	www.samsung.com/se/support
POLAND	801-172-678* lub [phone] ** (koszt połączeria weclug taryfy operatora)	www.samsung.com/pl/support
HUNGARY	0680SAMSUNG (0680-726-786)0680PREMIUM (0680-773-648)	www.samsung.com/hu/support

Country	Contact Centre	Web Site
AUSTRIA	0800-SAMSUNG (0800-7267864) [Only for Premium HA] 0800-366661 [Only for Dealers] 0810-112233	www.samsung.com/at/support
SWITZERLAND	0800 726 78 64 (0800-SAMSUNG)	www.samsung.com/ch/support (German) www.samsung.com/ch_fr/ support (French)
CZECH	800 - SAMSUNG (800-726786)	www.samsung.com/cz/support
SLOVAKIA	0800 - SAMSUNG (0800-726 786)	www.samsung.com/sk/support
CROATIA	072 726 786 www.samsung.com/hr/support
BOSNIA	055 233 999 www.samsung.com/support
MONTENEGRO	020 405 888 www.samsung.com/support
SLOVENIA	080 697 267 (brezplačna številka) www.samsung.com/si
SERBIA	011 321 6899 www.samsung.com/rs/support
BULGARIA	*3000 Цена в мрежата 0800 111 31 , Безплатна телефонна линия	www.samsung.com/bg/support
ROMANIA	*8000 (apel in retea) 08008-726-78-64 (08008-SAMSUNG) Apel GRATUIT	www.samsung.com/ro/support
CYPRUS 8009	4000 only from landline, toll free	www.samsung.com/gr/support
GREECE	80111-SAMSUNG (80111 726 7864) only from land line ([phone] from mobile and land line
LITHUANIA	8-800-77777	www.samsung.com/lt/support
LATVIA	8000-7267	www.samsung.com/lv/support
ESTONIA	800-7267	www.samsung.com/ee/support

[Correct disposal of batteries in this product]

(Applicable in countries with separate collection systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

User guide

DAN

Back of the soundbar

CONNECTING THE SUBWOOFER

AUTOMATIC CONNECTION TO THE SUBWOOFER

MANUAL CONNECTION TO THE SUBWOOFER

Indgangstilstand Skærm
Optisk Digital indgang	D.IN
AUX-indgang	AUX
BLUETOOTH-tilstand	BT
TV SoundConnect	TV
USB-tilstand	USB

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

FIZ

FIZ

Back of the soundbar

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

Power adapter (Subwoofer)

Optical cable Wall mounting guide Mounting screw: 2 pcs

Screws: 2 pcs

Wall Mounting VWall Mounting H

1. Mount the Soundbar with the attached Wall Mount Bracket on the fixing screws on the wall.

CONNECTING THE SWA-8000S (SOLD SEPARATELY)

• Expand with true wireless sound by connecting a Samsung wireless rear speaker kit (SWA-8000S) to your Soundbar. (sold separately)
• You must connect the subwoofer before connecting the wireless receiver module.
• Use the speaker cable to connect the wireless receiver module to the speakers.
• Connect the power cord to an outlet. The LED lamp lights up.
• When the main unit is turned off (in STANDBY mode), press and hold the ⚫ (Mute) button on the remote control for 5 seconds.
• ID SET appears on the Soundbar display.
• Plug the power cord of the wireless receiver module (SWA-8000S) into a wall outlet.
• Turn on the Soundbar when the connection indicator (blue lamp) on the SWA-8000S blinks rapidly.
• When the connection indicators (blue lamps) on the subwoofer and SWA-8000S blink and then stay lit, the SWA-8000S is fully connected.

KOBLE TIL ET TV-APPARAT

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

INNEHÅLLSFÖRTECKNING

2 KOMMA IGÅNG

2 Säkerhetsinformation

5 Vad ingår

6 BESKRIVNINGAR

ANSLUTA MANUELLT TILL SUBWOOFERN

ANSLUTA SWA-8000S (SÄLJS SEPARAT)

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel
