Brand	SilverCrest
Model	SGR 150 C2
Product Type	Electric Grater
Power Consumption	150 W
Power Supply	220-240 V ~ 50 Hz
Dimensions (approx.)	15 x 16 x 22 cm
Weight (approx.)	1.8 kg
Material	Plastic housing, stainless steel grater drum
Functions	Grating, slicing, shredding with interchangeable cones
Number of Cones	3 (fine, medium, coarse)
Feed Tube Diameter	Approx. 6 cm
Safety Features	Safety switch prevents operation if lid is open, non-slip feet
Cleaning	Detachable parts dishwasher safe
Maintenance	Wipe motor unit with damp cloth, dry thoroughly
Spare Parts Available	Yes, grater cones and pusher can be ordered separately
Reparability	Repairs by qualified personnel only; use original parts
Cable Length	Approx. 1 m
Accessories Included	3 grating cones, food pusher, instruction manual

Frequently Asked Questions - SGR 150 C2 SILVERCREST

How do I assemble the grater cones?

Insert the desired cone into the drum until it clicks into place. Ensure it is securely locked before use.

Can I grate frozen or hard cheeses?

Yes, the appliance can grate hard cheeses. For best results, let cheese sit at room temperature for a few minutes before grating.

Is the motor unit dishwasher safe?

No, only the detachable parts (cones, lid, pusher) are dishwasher safe. Clean the motor unit with a damp cloth only.

What should I do if the grater stops working?

First, check that the lid is properly closed as the safety switch prevents operation. If still not working, unplug and contact customer service.

Can I grate vegetables with peel?

Yes, you can grate vegetables with peel, but wash them thoroughly first. Remove any stones or hard pits.

How do I clean the grater cones?

Remove the cones and wash them in warm soapy water or place them in the dishwasher. Rinse and dry before storage.

What is the maximum capacity?

Do not overload the feed tube. For continuous operation, grate up to 500 g of food at a time then let the motor cool down.

Can I use the grater without the lid?

No, the appliance will not operate without the lid properly closed due to the safety interlock switch.

Where can I get replacement cones?

Replacement cones are available from SilverCrest customer service or authorized dealers. Check the manual for part numbers.

What is the warranty period?

The standard warranty period is 3 years from the date of purchase. Keep your receipt as proof of purchase.

USER MANUAL SGR 150 C2 SILVERCREST

Electric Grater SGR 150 C1

TARGA GMBH

59424 50EST

GERMANY

Last Information Update - Legutobbi cochratus

User manual and service information

(1)

Supplied items.... 4

Technical data 4

Short operating time....5

Safety instructions.... 5

Copyright 10

Description of the controls 11

Prior to use.... 11

First use.... 13

Cylinders....13

Operating steps.... 15

Cleaning 15

Storage 16

Troubleshooting 16

Environmental and disposal information.... 17

Conformity information.... 17

Recipe suggestions.... 18

Warranty and servicing advice 20

Introduction

Thank you for purchasing the SilverCrest SGR 150 C1 electric food grater, hereafter referred to as food grater. It is a modern, high-quality product that will facilitate your work in the kitchen and help you to instantly create tasty dishes and salads. Five easily interchangeable cylinders enable you to cut, grate or shred various vegetables and other suitable foods such as hard cheese or chocolate.

Intended use

This food grater is a household device that is used for cutting, grating or shredding various types of vegetables and other suitable foods. The device should not be used outdoors or in tropical climates. Its use in a company or for commercial purposes is excluded. Use the food grater only for private use in living areas as any other use is not as intended. This food grater meets all relevant norms and standards in conjunction with CE conformity. In the event of any modification to the food grater that was not approved by the manufacturer, compliance with these standards is no longer guaranteed. The manufacturer does not accept any liability for any resulting damage or faults in such cases. Only use accessories supplied by the manufacturer.

Please observe the regulations and laws in the country of use.

Supplied items

• SilverCrest food grater SGR 150 C1
- 5 cylinders
• These operating instructions

These operating instructions have a fold-out cover. The SilverCrest food grater SGR 150 C1 and all accessories and controls are illustrated with a numbering system on the inside of the cover. You can leave this cover page folded out while reading further sections of these operating instructions. Thus you always keep a reference to the relevant accessory/control in sight. The numbers indicate the following:

1 Electric food grater
2 Start button
3 Storage compartment cover
4 Rough cutting cylinder (green marking)
5 Fine cutting cylinder (yellow marking)
6 Grating cylinder (blue marking)
7 Rough shredding cylinder (red marking)
8 Storage compartment
9 Motor shaft
10 Fine shredding cylinder (orange marking)
11 Feed chute
12 Pusher

Technical data

Designation SilverCrest SGR 150 C1
Power supply	220-240V~, 50/60Hz
Power consumption 150W
Short operating time 2 minutes
Safety class	II ☐
Dimensions (W x H x D) approx. 13,6 x 29,2 x 26,5cm
Weight approx. 1,600g
Operating temperature 5°C to 35°C
Operating air humidity 85% rel. air humidity
Permissible storage conditions -10°C	to +50°C, max. 85% rel. air humidity

The technical data and design may be changed without notification.

Short operating time

The short operating time indicates how long the electric food grater (1) can be operated without the motor overheating and becoming damaged. The short operating time for the electric food grater (1) is 2 minutes. After this time, the electric food grater (1) must remain switched off until the motor has cooled down.

Safety instructions

Before using the electric food grater (1) for the first time, always read the following instructions and pay attention to all warnings, even if you are familiar with handling electric devices. Store these operating instructions in a safe place for future reference. If you sell the food grater (1) or pass it on, always include these instructions.

WARNING! This symbol indicates important information for safe operation of the electric food grater (1) and the safety of the user.

This symbol indicates other important information on the topic.

WARNING! This symbol indicates possible health risks up to a risk of fatal injury and/or material damage due to an electrical shock. This symbol identifies products that were tested in terms of their physical and chemical composition and were found to be safe from a health perspective for contact with food in accordance with the requirements of Regulation EC No. 1935/2004.

Children and persons with disabilities

This device must not be used by children. The device and its power cable must be kept away from children. Devices can be used by persons with reduced physical, sensory or mental abilities or lack of experience or knowledge provided they are supervised or have been instructed on the safe use of the device and understand the resulting risks. Children must not play with the device. Small parts can be fatal if swallowed. Always keep plastic packaging out of reach also as it poses a suffocation risk.

Mains cable

Always handle the mains cable by the mains plug and do not pull on the cable itself. Never place furniture or other heavy objects on the mains cable and take care that the cable is not kinked, especially near the mains plug. Do not connect the mains cable over hot or sharp points and edges to prevent damage. Do not use adapter plugs or extension cables that do not comply with applicable safety standards, and do not make any alterations to the mains cable! If the mains cable is damaged, it must be replaced by the manufacturer or its customer service representative or a similarly qualified person to prevent any safety hazards. Never tie a knot in the mains cable

and do not tie cables together. Ensure that the mains cable is placed so that no one can trip over it and it does not cause an obstruction. There is a risk of injury.

Cleaning / maintenance

Servicing is necessary if the electric food grater (1) has been damaged or if liquids or objects have penetrated the housing, if it has been exposed to rain or moisture or if it does not work correctly or has been dropped. If smoke is produced, or there are any unusual sounds or odours, disconnect the mains cable of the electric food grater (1) from the socket immediately. In such cases, the electric food grater (1) should not be used until it has been inspected by authorised service personnel. Only have the device repaired by qualified personnel. Never open the housing of the electric food grater (1). Always remove the mains plug from the socket before cleaning the electric food grater (1). Never immerse the electric food grater (1) in water or hold it under running water when cleaning it.

Be careful when using and cleaning the cylinders (4, 5, 6, 7, 10). The blades are very sharp! There is a risk of injury.

Operation

• The electric food grater (1) must be disconnected from the mains power supply before assembling, dismantling or cleaning it.
• When operating the device, use the supplied accessories only, particularly the pusher (12) and cylinders (4, 5, 6, 7, 10). There is a risk of injury.
• Be careful when operating the device that no long hair, ties or wide clothes are near the rotating parts of the electric food grater (1) as they may get caught in them. There risk of injury.
• Never touch the rotating cylinders (4, 5, 6, 7, 10). There is a risk of injury.
• Remove the mains plug from the socket each time you want to change the cylinder (4, 5, 6, 7, 10). Always wait until the cylinder stops rotating. There is a risk of injury.
• Never use your bare hands to push food into the feed chute (11)! Always use the supplied pusher (12). There is a risk of injury.
• Never operate the electric food grater (1) without a cylinder (4, 5, 6, 7, 10). Never attempt to chop up fibrous foods such as meat or crush very hard foods such as ice cubes or nuts with shells. The electric food grater (1) could be damaged.

- Always remove the mains plug from the socket after using the electric food grater (1) or when it is unattended!

Operating environment

This food grater (1) is suitable for operation only in dry indoor locations.

Always place the electric food grater (1) on a level, firm surface and do not place any objects on it. The electric food grater (1) is not designed for use in environments with a high temperature or humidity (e.g. bathrooms), and must be kept free from dust. Operating temperatures and operating air humidity: 5° C to 35° C, max. 85% rel. air humidity.

Ensure that:

• no direct heat sources (e.g. heating) can affect the electric food grater (1);
• no direct sunlight or bright artificial light reaches the electric food grater (1);
• contact with sprayed and dripping water and corrosive liquids is prevented and the device is never operated near water; in particular it should never be immersed. Never place any objects filled with liquids, for example, vases or drinks, on or near the electric food grater (1);

• no fire sources (e.g. burning candles) are placed on or near the electric food grater (1);

• no foreign objects penetrate the device;

• the electric food grater (1) is not subjected to any extreme temperature fluctuations, as this could result in condensation and electrical short circuits. If the device was subjected to extreme temperature fluctuations, however, wait (approx. 2 hours) until it has reached ambient temperature before use;
• the electric food grater (1) is never subjected to excessive shocks and vibrations.

Storage when not in use

If you will not be using the electric food grater (1) for a prolonged period, disconnect the device from the mains power supply. Ensure that the storage temperature remains between -10°C and +50°C. The humidity should not exceed 85% rel. air humidity.

Copyright

All information contained in these instructions is subject to copyright and is provided for information purposes only. It is only permitted to copy or duplicate data and information with the express and written consent of the author. This also includes commercial use of the content and data. The text and illustrations are based on the state of the art at the time of printing. Subject to change without notice.

Description of the controls

For safety reasons, the Start button (2) must be pressed and held to operate the electric food grater (1). As soon as you release the Start button (2), the electric food grater (1) switches itself off.

Prior to use

Remove the electric food grater SGR 150 C1 and all accessories from the packaging and check that all items have been included. Remove all protective foil. We recommend that you clean all accessories again prior to their initial use.

Inserting/removing cylinder

Now, select one of the 5 enclosed cylinders (4, 5, 6, 7, 10) as required and push it as far as possible into the feed chute (11). For the range of application of the individual cylinders (4, 5, 6, 7, 10), please refer to the diagram in the "Cylinders" section on page 13. Then attach the feed chute (11) with the inserted cylinder (4, 5, 6, 7, 10) to the motor shaft (9). To facilitate this attachment, an arrow (◀) is indicated at the back of the feed chute (11). On the housing of the food grater (1), an open lock ⏻ is indicated on the right next to the motor shaft (9) and a closed lock 🔒 is indicated above it. Proceed as follows:

• Attach the feed chute (11) with the inserted cylinder (4, 5, 6, 7, 10) to the motor shaft (9) so that the arrow (◀) on the feed chute (11) points towards the open lock ⏻ on the housing of the food grater (1).
• Then rotate the feed chute (11) anticlockwise until the arrow (◀) points to the closed lock 🔒 on the housing of the food grater (1).

If the feed chute cannot be used correctly, check whether the cylinder (4, 5, 6, 7, 10) was pushed into it as far as possible.

Store the remaining cylinders (4, 5, 6, 7, 10) in the storage compartment (8) and close it with the storage compartment cover (3). Then attach the storage compartment (8) to the electric food grater (1).

To remove the cylinder, first remove the feed chute (11) from the food grater (1).

- Then rotate the feed chute (11) clockwise until the arrow (◀) points to the open lock ⏻ on the housing of the food grater (1).

You can then remove the cylinder (4, 5, 6, 7, 10) from the feed chute (11).

Proceed as follows:

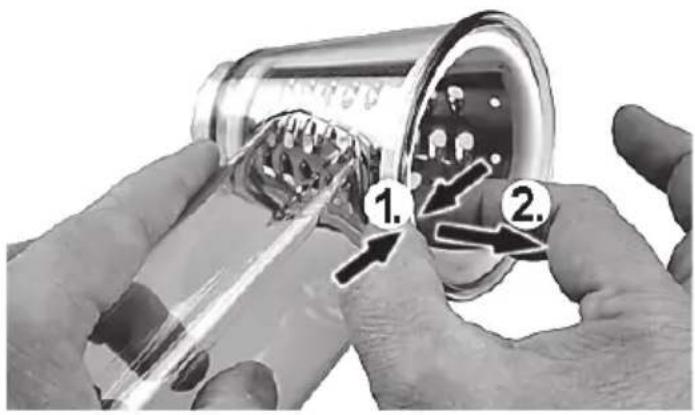

First, remove the pusher (12) from the feed chute (11). Then hold the feed chute (11) with one hand.

1. Use your thumb and index finger of your other hand to grip the edge of the inserted cylinder (4, 5, 6, 7, 10) and feed chute (11) and press them together as shown in the illustration.

2. You can detach the cylinder (4, 5, 6, 7, 10) easily in this manner and then remove it from the feed chute (11).

Be careful when removing the cylinders (4, 5, 6, 7, 10). The blades are very sharp! There is a risk of injury.

Please note that you cannot insert or remove the cylinder (4, 5, 6, 7, 10) while the feed chute (11) is attached to the food grater (1).

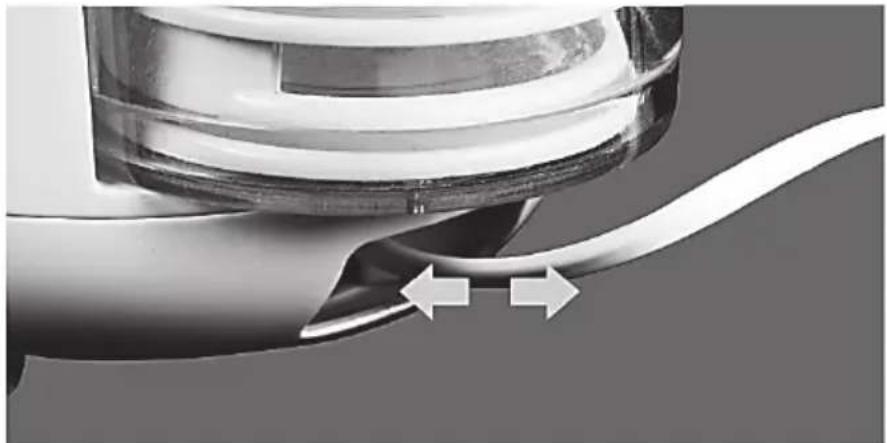

Mains cable/mains cable duct

Now, pull the integrated mains cable as required from the mains cable duct and insert the mains plug into a socket that is always easily accessible. You can store the mains cable again in the mains cable duct after use.

The electric food grater (1) is now ready to use.

Be careful when using and cleaning the cylinders (4, 5, 6, 7, 10). The blades are very sharp! There is a risk of injury.

First use

Cylinders

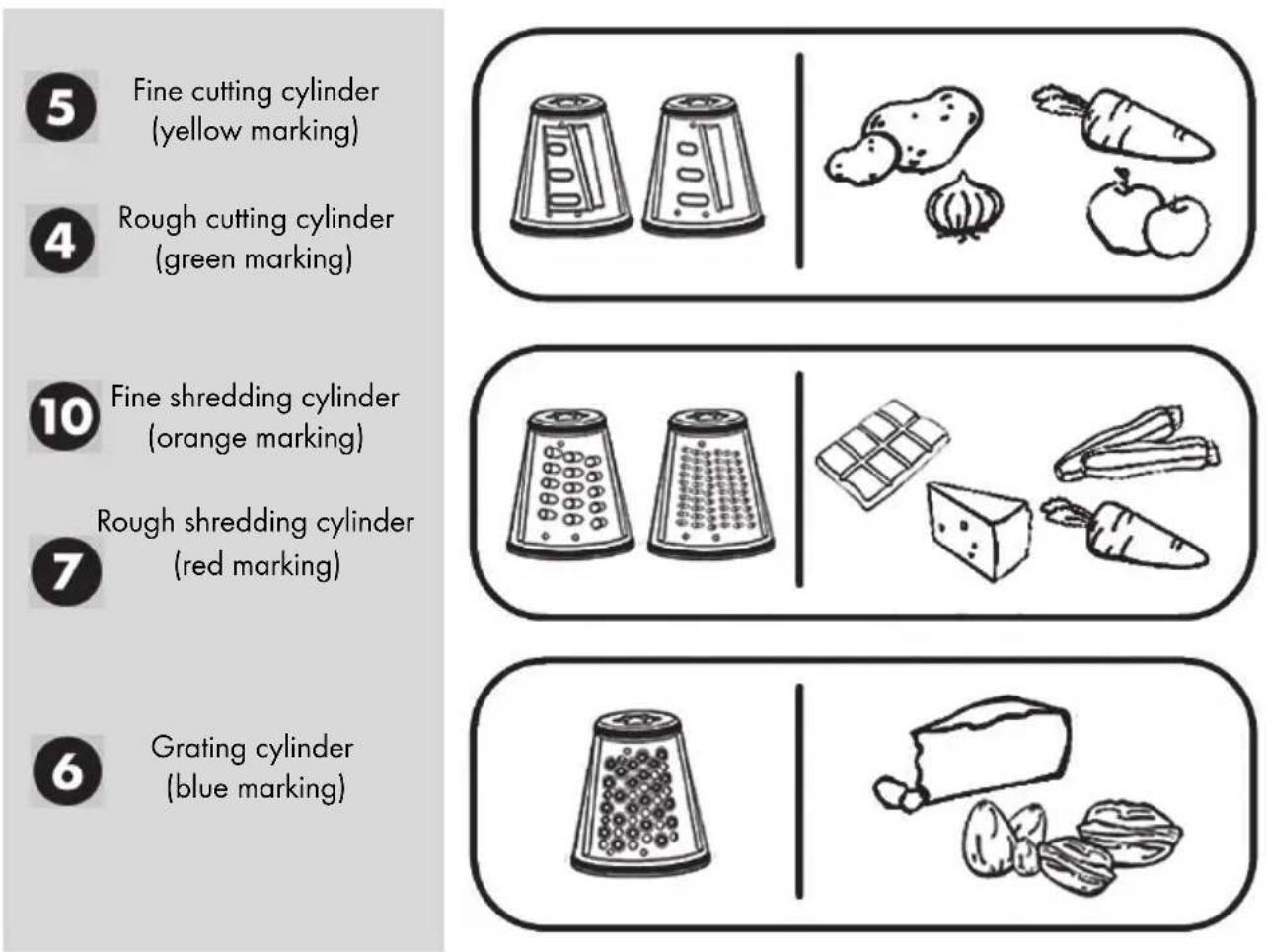

We supply 5 different cylinders (4, 5, 6, 7, 10). To aid visual differentiation, these 5 cylinders (4, 5, 6, 7, 10) are colour-coded.

For the range of applications of the various cylinders, you can refer to the following diagram:

Fine cutting cylinder (yellow marking)

Rough cutting cylinder (green marking)

Fine shredding cylinder (orange marking)

Rough shredding cylinder (red marking)

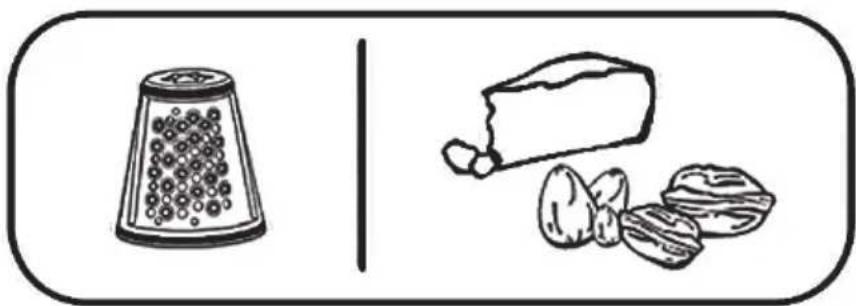

Grating cylinder (blue marking)

The following table should assist you in selecting the appropriate cylinder for selected foods:

Food	Fine cutting cylinder (yellow) 5	Rough cutting cylinder (green) 4	Fine shredding cylinder (orange) 10	Rough shredding cylinder (red) 7	Grating cylinder (blue) 6
Apple	■ ■
Cucumber	■ ■
Hard cheese	■ ■ ■ ■
Hazelnuts, almonds					■
Potatoes	■ ■			■
Kohlrabi	■ ■			■
Coconut meat			■		■
Carrots	■ ■ ■ ■
Pepper	■ ■			■
Parmesan					■
Radishes	■ ■			■
Beetroot	■ ■
Red or white cabbage	■ ■
Chocolate			■ ■ ■
Dry bread					■
Courgette	■ ■ ■ ■
Onions, shallots	■ ■

Operating steps

• Prepare the food to be processed so that it can be inserted easily in the feed chute (11).
- Place a suitable bowl under the opening of the cylinder to collect the processed food.
- Now insert the prepared food in the feed chute (11).
- Press the Start button (2) and keep it pressed. The cylinder (4, 5, 6, 7 or 10) in use then rotates.

To prevent blocking of the cylinder (4, 5, 6, 7, 10) in use, the pusher (12) should be pressed only when the Start button (2) is pressed and the cylinder (4, 5, 6, 7, 10) rotates.

- The food in the feed chute can be inserted into the cylinder using the pusher (12). When the feed chute (11) is empty, you can insert more food if necessary.

The processed food falls forwards from the opening of the cylinder to the bowl placed previously under the device.

• After all prepared foods have been processed, release the Start button (2).

If you want to process larger quantities of food, always observe the short operating time of 2 minutes to avoid damaging the electric food grater (1).

- Remove the mains plug from the socket.

Cleaning

WARNING! Always remove the mains plug from the socket before cleaning. Never immerse the electric food grater (1) in water and never clean it under running water. There is a risk of an electric shock!

WARNING! Be careful when using and cleaning the cylinders (4, 5, 6, 7, 10). The blades are very sharp. There is a risk of injury!

Do not use any aggressive, abrasive or chemical cleaning agents. The surface of the electric food grater (1) and the accessories could be damaged irreparably.

• Remove the mains cable from the socket.
• Remove the 5 cylinders (4, 5, 6, 7, 10) from the storage compartment (8).
• Detach the storage compartment (8) from the electric food grater (1).
• Remove the pusher (12) from the feed chute (11).

• Detach the feed chute (11) from the motor shaft (9).

• Clean the electric food grater (1) with a damp cloth. You can apply a mild detergent to the cloth to remove stubborn dirt. Ensure that you remove all remaining detergent with a wet cloth.

• The 5 cylinders (4, 5, 6, 7, 10), the storage compartment (8), the storage compartment cover (3), the feed chute (11), and the pusher (12) are suitable for cleaning in a dishwasher. Alternatively, you can clean these parts with warm water and a mild detergent. After washing, rinse the parts with clear water. Make sure that all parts are completely dry the next time you use them.
• You can now reattach the cleaned parts to the electric food grater (1) and store cleaned cylinders (4, 5, 6, 7, 10) in the storage compartment (8).

Please note that some foods, for example, carrots or red cabbage, contain natural dyes. The plastic parts of the food grater (1) and the accessories may be discoloured by these dyes. These discolourations do not constitute defects.

Storage

If you will not be using the electric food grater (1) for a prolonged period, store it in a dry and clean location.

• Clean the electric food grater (1) and all accessories as described in the last section.
• Store the 5 cylinders (4, 5, 6, 7, 10) in the storage compartment (8).
• Insert the mains cable so far into the mains cable duct that only the mains plug can be seen.

Troubleshooting

The electric food grater (1) is not working.

• The mains plug is not inserted in the socket. Insert the mains plug into a mains socket.
• The socket is defective. Try plugging the device into another socket which you know is definitely working.
  • The electric food grater (1) is defective. Contact the Service Team.

One of the cylinders (4, 5, 6, 7, 10) cannot be detached.

Always detach the entire feed chute (11) to insert or remove a cylinder (4, 5, 6, 7, 10). Also note the following image for this purpose on page 12.

Environmental and disposal information

When this symbol appears on a product, this indicates that the product is subject to the European Directive 2012/19/EU. All electrical and electronic devices must be disposed of separately from household waste at designated disposal points. Disposal of old devices in this manner will prevent harm to the environment and human health hazards. For further information regarding disposal of old devices in accordance with the directive, contact your local government office or the retailer where you purchased the device.

Remember to protect the environment. Used batteries should not be disposed of in domestic waste. They must be taken to a collection point for old batteries. Please note that only discharged batteries may be deposited in collection bins for portable batteries. Care must be taken to ensure that batteries that are not fully discharged do not short circuit.

Dispose of the packaging in an environmentally compatible manner. Cardboard can be put out for municipal paper collections or brought to public collection points for recycling. Films and plastic used for packaging the device are collected by your local disposal services and disposed of in an environmentally compatible manner.

Conformity information

CE

This appliance complies with the basic requirements and other applicable provisions of the Low Voltage Directive 2006/95/EC, EMC Directive 2004/108/EC, ErP Directive 2009/125/EC and RoHS Directive 2011/65/EU.

To obtain a complete EU Declaration of Conformity, send an e-mail to the following e-mail address: [e-mail]

Recipe suggestions

White or red cabbage salad

◆ 1500g white or red cabbage
◆ 1 pepper
125g sugar
125ml oil
◆ 125ml vinegar
◆ 1 tablespoon salt
◆ 1 pinch pepper

Cut the cabbage with the rough cutting cylinder (4). Chop the pepper with the rough shredding cylinder (7). Mix the oil, vinegar, sugar, salt and pepper and heat this marinade slightly. Pour the lukewarm marinade over the cabbage and let it marinate for several hours. Mix the salad well and season it to your taste with salt and pepper. Enjoy your meal!

Wild garlic and almond pesto

◆ 60g almonds
◆ 60g parmesan
◆ 1 bunch wild garlic (approx. 100g)
◆ 120ml extra virgin olive oil
◆ Salt, pepper to taste

Grate almonds and parmesan with the grating cylinder (6). Mix the almonds, parmesan, olive oil, salt and pepper. Finally, remove the wild garlic from its stalks, chop it finely and stir it into the mixture, and again season to taste with salt and pepper. Enjoy your meal!

Courgette salad

◆ 3-4 small courgettes (approx. 800g)
◆ 1 cucumber
◆ 1 jar Miracle Whip (or yoghurt)
Tabasco to taste
◆ Pepper, salt, paprika
Garlic to taste
◆ 1 bunch chives
◆ 1 small tin sweet corn

Cut or shred the courgettes and cucumber with the rough cutting cylinder (4) or the rough shredding cylinder (7). Finely chop or cut the chives. Mix the courgettes, cucumber, sweet corn, chives and Miracle Whip. Season the salad with salt and pepper. Add a few splashes of Tabasco to give it more flavour. Add some more garlic if desired. Finally, decorate the salad by sprinkling paprika over it before serving. Enjoy your meal!

Potato fritters (4 portions)

◆ 10 large potatoes
◆ 4 large onions
◆ 2 tablespoons flour
◆ 4 large eggs
Salt and pepper
Apple compote
Oil for frying

Prepare the potatoes with the rough shredding cylinder (7) and the onions with the fine cutting cylinder (5). Stir the beaten eggs and flour into the mixture. Season with salt and pepper to taste. Heat the oil in a pan and pour dollops of mashed potato, roughly 10cm wide and not too thick, into the pan. Fry the potato fritters on both sides until golden brown. Serve the potato fritters with apple compote. Enjoy your meal!

Cherry and cream quark with grated chocolate (6 portions)

500g quark
◆ 2 cups cream (400ml)
◆ 2 bars chocolate, chilled (milk or dark chocolate)
◆ 1 jar morello cherries (pitted)
Sugar

Grate the chilled chocolate with the rough shredding cylinder (7). Whip the cream and add sugar to taste. Stir the quark and fold in the cream, grated chocolate and cherries. Enjoy your meal!

Warranty and servicing advice

Warranty of TARGA GmbH

Dear Customer,

This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.

Warranty conditions

The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.

Warranty period and legal warranty rights

The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.

Scope of warranty

The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.

Submitting warranty claims

To ensure speedy handling of your complaint, please note the following:

• Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline.
• Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.
• If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.

Service

Phone: 020 - 70 49 04 03

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: 02 - 20 09 025

E-Mail: [e-mail]

IAN: 273263

Manufacturer

Please note that the following address is not a service address. First contact the service point stated above.

TARGA GmbH

Coesterweg 45

59494 SOEST

GERMANY

Tartalomjegyzék

Bevezető 23
