Product type	Digital storage box with HD TNT reception
Brand	STOREX
Model	TWINBOX 430
Power supply	100-240 V ~ 50/60 Hz
Connectivity	HDMI, composite, YPbPr, coaxial, USB (x2), LAN
Dual tuner	HD TNT - Allows recording one channel while watching another
Recording	Live, scheduled, time-shift on USB device
Supported video formats	Avi, Xvid HD, MPEG HD, MKV, WMV HD, RMVB, VOB
Supported audio formats	MP3, WMA, AAC, WAV, OGG, AC3, DDP, TrueHD, DTS, DTS HD, FLAC, APE
Supported photo formats	HD JPEG, BMP, GIF, PNG, TIFF
Video output	HDMI, composite, YPbPr (up to 1080p)
Audio output	Digital coaxial
WiFi	Via optional USB dongle (not included)
Care	Clean with a soft, dry cloth; unplug before cleaning
Safety	Do not expose to moisture; do not open the casing
Accessories	Remote control, AV cable, power adapter
Warranty	1 year for the device, 3 months for accessories
Technical support	[e-mail], 01 55 85 82 00 (France)

Frequently Asked Questions - TWINBOX 430 STOREX

How to install TNT channels on the TWINBOX 430?

Connect the antenna, then press HOME, go to Setup, select REC, choose your geographic area, then start an automatic search. The channels will be installed.

How to record a live program?

Press the REC button on the remote while watching. Recording starts. Press STOP to stop.

Can I record one channel while watching another?

Yes, thanks to the dual tuner, you can record one channel and watch another simultaneously.

How to schedule a recording in advance?

Press TIMER, then press the RED button to add a program. Fill in the date, start and end time, and confirm.

How to play multimedia files from a USB stick?

Connect the stick, go to File Manager on the home screen, select your device, then choose the file to play.

How to change the menu language?

Go to Setup, SYSTEM, MENU LANGUAGE, and select your language.

How to connect the TWINBOX 430 to the Internet?

Either via Ethernet cable (LAN) or via WiFi with an optional USB dongle. For WiFi, go to Setup, WIRELESS SETUP, choose your network and enter the key.

What to do if the device does not detect channels?

Check the antenna connection, make sure you have selected the correct geographic area, and restart an automatic search. Also check that the TNT signal is available.

How to update the software of the TWINBOX 430?

Go to the STOREX website (www.storex.eu) to download the latest update and follow the instructions in the manual.

What to do in case of a technical problem?

Contact technical support by email ([e-mail]) or by phone. In France: 01 55 85 82 00 (local call). Before that, try restarting the device.

USER MANUAL TWINBOX 430 STOREX

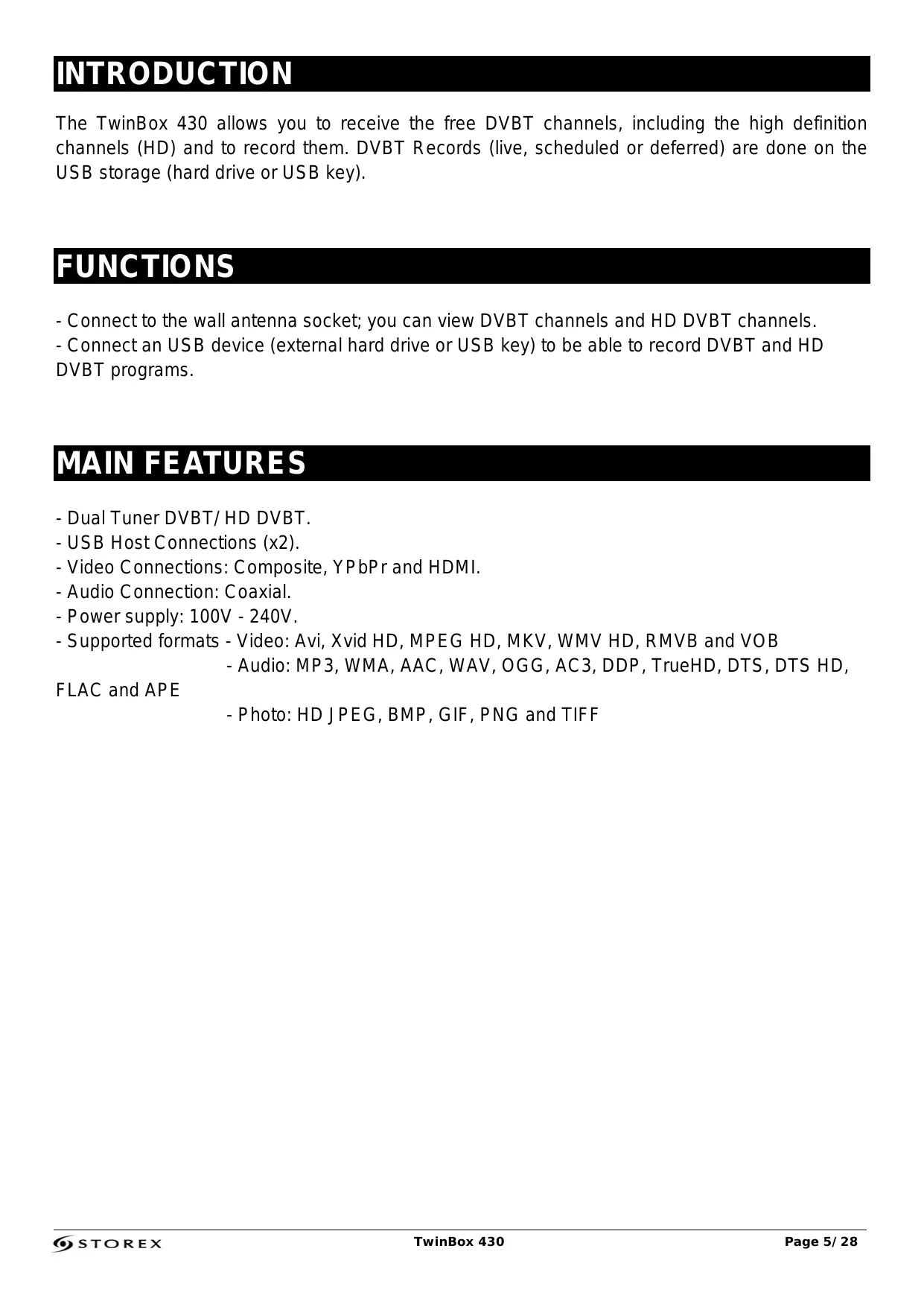

The TwinBox 430 allows you to receive the free DVBT channels, including the high definition channels (HD) and to record them. DVBT Records (live, scheduled or deferred) are done on the USB storage (hard drive or USB key).

FUNCTIONS

• Connect to the wall antenna socket; you can view DVBT channels and HD DVBT channels.
• Connect an USB device (external hard drive or USB key) to be able to record DVBT and HD DVBT programs.

MAIN FEATURES

• Dual Tuner DVBT/ HD DVBT.
• USB Host Connections (x2).
• Video Connections: Composite, YPbPr and HDMI.
• Audio Connection: Coaxial.
• Power supply: 100V - 240V.

• Supported formats - Video: Avi, Xvid HD, MPEG HD, MKV, WMV HD, RMVB and VOB

• Audio: MP3, WMA, AAC, WAV, OGG, AC3, DDP, TrueHD, DTS, DTS HD,

FLAC and APE

• Photo: HD JPEG, BMP, GIF, PNG and TIFF

DESCRIPTION OF REMOTE CONTROL

Remote control 1

Remote control 2

Remote control 1: Corresponds to the real remote control.
Remote control 2: Corresponds to the numeration of the remote control's keys.

No	KEY		FUNCTION
1	STANDBY		Power on / off (standby) the TwinBox 430.
2	MUTE		Enable / disable the sound (mute).
3	NUMERIC KEYS		0-9
4	GOTO		Allows going to a specific point of the video file (Time).
5	INFO		Displays the information of the selected file.
6	RED		Option key.
7	GREEN		Option key.
8	YELLOW		Option key.
9	BLUE		Option key.
10	VOL+/VOL-		Increase / decrease the volume.
11	TIMEShift		Enables the "TIMESHIFT".
12	TIMER		Allows direct access to the programming page.
13	REC		Allows to records the program being viewed.
14	STOP		Stop playing the media.
15	AUDIO		Allows selecting the audio track.
16	TTX		Enable / disable Teletext function
17	SUBTITLE		Enable / disable the display of subtitles.
18	EPG		Allows displaying the EPG screen (Electronic Program Guide).
19	DIRECTIONAL KEYS CONFIRM		Switches between the various files and folders. "√" keys allows to change channels, ↑=CH+, ↓=CH- Play or pause playback of multimedia files. Allows to validate your choice and to see the list of DVBT channels.
20	EXIT		Exits / return to the previous page.
21	HOME		Allows direct access to the main page.
22	PREVIEW		1. Return to previous page when you browse media files. 2. Returns to the previous file when playing media files.
23	FR/FR		Rewind the media file with a read speed of 2x, 4x, 8x ...
24	NEXT		Fast forward the media file with a read speed of 2x, 4x, 8x ...
25	SLOW		1. Go to next page when you browse media files. 2. Go to the next file during when playing media files.
26	ZOOM		Enables slow motion while viewing a video file.
27	REPEAT		1. Video and Music: Repeats the current file or repeat all files in the directory or cancel the repeat function. 2. Photo: Repeats the background music.
29	A-B		Allows setting a point "A" and "B" to enable the repetition of the sequence.
30	SETUP		Allows direct access to the configuration page.
31	OPTION		Displays the list of options in the browser
32	4:3/16:9		Allows toggling the display mode between 4:3 PS, 4:3 LB and 16:9.
33	VIDEO OUT		Allows toggling between video displays modes.

BEFORE STARTING

FRONT VIEW

1. -/CH CH +: To change channel.
2. VFD DISPLAY: To display hour or the time of the film.

INFRARED RECEIVER: To receive the signal from the remote control.

1. POWER: Allows to put the TwinBox 430 in the standby mode.
2. USB HOST: To record your programs and read the contents of your USB devices (USB keys, external hard drives ...).

REAR VIEW

1. ANTENNA IN: To connect an antenna cable from the wall outlet to TwinBox 430.
   ANTENNA OUT: To connect an antenna cable from the TwinBox 430 to the TV.
2. Y / Pb / Pr: To connect an YUV cable to your TV.
3. AV OUT: To Connect the AV cable (from the TwinBox 430 to your TV).
4. COAXIAL: To connect a S-PDIF coaxial cable.
5. HDMI: To connect the HDMI cable to your TV.
6. LAN: To connect a network cable.
7. USB HOST: To read the contents of your USB devices (USB keys, external hard drives ...).
8. AC: To connect the TwinBox 430 to the wall socket.

CONNECT TWINBOX 430 TO YOUR TV

Antenna wall socket

Rear TV

1. Connect your TwinBox 430 to the wall antenna socket to enjoy the DVBT and HD DVBT channels.
2. Connect TwinBox 430 to the TV using the AV cable (depending on your configuration).
3. Connect the power cord into your wall power socket.

INSTALL THE DVBT CHANNELS

Press "HOME" on the remote control and select "Setup" by pressing "ENTER".

1. Select "REC".

1. Choose the geographic area that corresponds to your position.

1. Select "Channel Scan" and then press ENTER. Select "Auto Scan" and press ENTER.

AUTO SCAN: To scan and automatically install the DVBT channels.

MANUAL SCAN: To manually scan and install the DVBT channels.

This progressing bar should appear.

1. Once the channels scan is complete, press ENTER.

VIEW AND RECORD DVBT CHANNELS

VIEWING DVBT CHANNELS

1. Select "DTV".

Use "to change channels.
- Press "i" to display the signal strength.
- Press "□" to change the subtitles.
- Press to display the Electronic Program Guide.

LIVE RECORDING

To be able to record DVBT / HD DVBT channels, you must have previously connected an USB device to the TwinBox 430.

1. Select "DTV".

1. Select the desired channel for recording, using the channel list.

keys or press "ENTER" to display the

1. Press "on your remote control to start recording.

1. Press to stop recording the current program.

HINT: Records are stored directly on the device connected (USB or external hard drive) in the "REC" folder at the root of the device.

You can record one channel and watch another simultaneously, simply proceed in the same way as for normal viewing of a channel.

To schedule a record, you must first press "Timer" on the remote control. The TIMER interface will appear.

1. Press "RED" on your remote control to enter the interface below and add a scheduled program.

1.1. Select the recording source.
1.2. Select the recording date.
1.3. Select the start time of the record.
1.4. Select the end time of the record.
1.5. To select the recording repeat frequency, press "RED" on your remote control.

• Once
• From Monday to Friday
• Sunday
• Tuesday
• Thursday

• Saturday

• Everyday

• From Monday to

Saturday

• Monday
• Wednesday

• Friday

• Select the recording device.

• Press ENTER, a confirmation message will appear. If the settings are right for you, select "Confirm" and press ENTER.

HINT: You can record one channel and watch another simultaneously, simply proceed in the same way as for normal viewing of a channel.

USE OF STORAGE DEVICE

The TwinBox 430 is equipped with two USB HOST ports that allow you to connect an USB key or an external hard drive to the TwinBox 430, to browse it and thus read the multimedia content stored in.

1. Select "File Manager" and then press ENTER.

1. Select your storage device and press "ENTER", select the file you want to view and press "ENTER".

ENJOY THE MULTIMEDIA WORLD

1. Select "File Manager" on the homepage.

1. Select your STOREX server that appears in the list by pressing "ENTER", and select the folder you want to browse or the file you want to read.

1. Enjoy the Multimedia world!

DISPLAY AND LANGUAGE

1. Turn on your TwinBox 430.
2. After startup, select "Setup" to configure your TwinBox 430.

1. Select "VIDEO" and then select "TV System" to select the display resolution.

1. Select "SYSTEM" and then select "MENU LANGUAGE" to change the language.

HINT: The WiFi key is an option of the TwinBox 430, please contact your distributor or visit the website http://www.e-storex.com to acquire a compatible WiFi key.

Connect the WiFi USB device (optional) on one of the USB HOST ports at the back of the unit.

The WiFi wireless Network is available only if the WiFi USB device is connected to the unit and your WiFi router is activated.

1. Select the type of network you wish to connect to your home network.

1. Select "LAN SETTING" to connect with wired networking. Press ENTER and then select OK to set your wired connection.
2. If you wish to have a wireless connection (WiFi) follows the steps below:
3. Select "WIRELESS SETUP" then press "ENTER".

1. The list of available names on your SSID network appears.

1. Enter your key using the virtual keypad. Select OK and then press ENTER to confirm.

1. The connection test begins; confirm your choice by pressing ENTER.

1. You will find the IP address, subnet mask and default gateway if your connection is successful. Press OK to confirm settings.

1. Once the above parameters are accepted, press HOME to return to the main page.

HINT

It is recommended to configure the network after you correctly connect the USB WiFi to the TwinBox 430.
- Please check that the anti-virus or firewall is not blocking access of this unit to the network.

Perhaps you might experience a temporary break and the freeze of the AV content read through the WiFi network because of network speed, video streams input capacity or AV files including HD codes. In this case, please copy them to a USB device or memory card before watching.

STOREX WEBSITE

Go to http://www storex.eu, select "DVBT Recorder" and then select TwinBox 430. You will be able to download the latest full version of the manual and software updates.

TECHNICAL SUPPORT

In order to easily manage your issue, you should contact our support team, we invite you to register your TwinBox 430 guarantee on our website at the following address:

http://garantie storex.eu

For repairing, contact your dealer to repair your TwinBow 430 under guarantee, or send your request via email to the following address:

[e-mail]

or by phone at:

France: 01 55 85 82 00 (local call charge to Paris)

Spain: 902 110 572 ([e-mail])

Monday to Thursday from 9:30 to 19:30 p.m.

Friday from 9:30 to 18:30 p.m.

For more details, please read the full version of user manual (available on the website):

http://www storex.eu

WARRANTY REGISTRATION

We invite you to register your warranty for TwinBox 430 on our website at:

http://garantie storex.eu

GUARANTEE CONDITIONS

STOTEX's available guarantee is valid for 1 year for TwinBox 430 and 3 months long for its accessories (remote control, AV cables, power supply ...).

STOREX TwinBox guarantees your TwinBox 430 against any manufacturing or assembling faults. This guarantee only applies to the first purchase of the TwinBox 430 by the end user and is not transferable if the device is resold. This warranty does not cover any incompatibilities found by end user apart from recommendations specified on the packaging, or any other incompatibility generated by other hardware or software on the computer that is connected to the TwinBox 430. Proof of purchase must be presented to our services to apply STOREX guarantee.

The guarantee doesn't cover failures or defects induced by non-compliance to this manual's instructions, neglect, alteration, improper installation or maintenance, reparation or alteration not authorized by STOREX, improper tests, accident or external factor such as (not exhaustive) excessive heat or dampness, power failures or bad installation / uninstalling of TwinBox 430.

The only contractual obligation endorsed by STOREX pertains to the reparation or replacement of a defective product. In no case, STOREX cannot be held responsible for any loss of data, or its consequences induced by operational fault or a product failure. In any case, STOREX won't be bound to any financial responsibility for any amount exceeding the value of the product purchased by the end user.

This guarantee of your TwinBox 430 is defined and can't be modified, decreased or increased without written consent from STOREX. Furthermore, STOREX cannot be held responsible for any technical advice or service provided pertain to TwinBox 430.

You are not the grantee of this current warranty.

This warranty covers only your TwinBox 430 and is governed by French law.

For any request not covered by this guarantee, please contact STOREX support or log on to www.e-storex.com to order accessory.

HINT: STOREX™ reserves the right to modify the user manual without prior notice according to the product's evolutions. You can find the latest version of the manual on our website:

http://www storex.eu

SECURITY INFORMATION

This device was designed and manufactured to ensure your safety. The security mechanisms built into the product will protect you if you observe the following procedures for installing, operating and troubleshooting:

• Read and follow the instructions below before handling and installation of your equipment;
• Keep these instructions for future reference.

GENERAL

• Do not shake, or it may lead to damage to the device;
• Use only parts and accessories (power supply ...) recommended by the manufacturer;
• Do not move the appliance when in operation.

SAFETY

• To prevent fire or electric shock, do not put the appliance near objects filled with liquids,
• If a heavy object or liquid is dropped on the device, unplug it immediately and send it to check by qualified personnel before re-use.
• When in operation, the housing surface generates heat; Do place the product on a flat and rigid surface and avoid covering it or placing any object on it.

PRODUCT'S POWER SUPPLY

• In case you don't use the product for a long time or during a lightning storm, unplug the unit from the outlet by grabbing the plug itself, without pulling the cable,
• The included power adapter is specific to the product. Using a different adapter may cause damage or accidents.

PLACING OF THE PRODUCT

• Install the appliance away from any equipment with strong attraction such as microwave ovens, big speakers ...
• Place your product in a well ventilated area and on a hard and flat surface to disperse heat from the device.

CLEANING

• Never open the product to clean, otherwise the warranty will be canceled,
• Unplug the product from the wall outlet before cleaning the product,
• Clean the outside of the product and the remote control using a soft, dry cloth. Never use an abrasive pad, scouring powder or solvent such as alcohol or gasoline.

TROUBLESHOOTING

• Refer all troubleshootinging to qualified personnel. Troubleshooting is required when the appliance has been damaged in any way: plug or cord is damaged, liquid spilled into the product, introduction of small objects in the product, exposure to rain or moisture, malfunction, drop of the product...

IMPORTANT HINT

Warning: This product helps maintain a still video image or a picture-screen on your television screen indefinitely. If you leave the still video image or picture-screen on your television screen display for an extended period, you may damage your TV screen. The plasma TVs and projection televisions are sensitive.

SAFETY-ENVIRONMENT

CE Your STOREX product has been tested in laboratory and is consistent with corresponding European Directives for CE marking applicable during the time of marketing.

A traceability of the components of your STOREX product was performed; it showed us that the product complies with Environmental Directive (RoHS) in effect at the time of its release.

At its end of life, do not throw the product in a garbage but bring it to the distributor to your household waste disposal who will get the product in a recycling of electrical waste and electro mechanics and electronics (DEEE).

Your STOREX product was prepared, tested and packaged in a French company certified ISO9001: 2008 by an annual audit by a qualified person of the Bureau Veritas Certification.

HINT

TwinBox 430

is a product range of STOREX

STOREX

www storex.eu

© STOREX - 2011

All trademarks are patented by their respective owners.
