USER MANUAL DO9123C DOMO

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not

be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be. The accessories and parts can also still be obtained at the store where you bought the appliance.

• Enkel in Belgie, Nederland, Luxemburg, Frankrijk en Duitsland.
• Seulement dans la Belgique, le Pays-Bas, le Luxembourg, la France et l'Allemagne.
• Nur in Belgien, die Niederlande, Luxemburg, Frankreich und Deutschland.
• Only in Belgium, the Netherlands, Luxemburg, France and Germany.

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

m = 311 ;

2
）
2

4

5

1

6

6

ENTFERNEN UND EINSETZENDER BACKPLATTEN

Entfernen

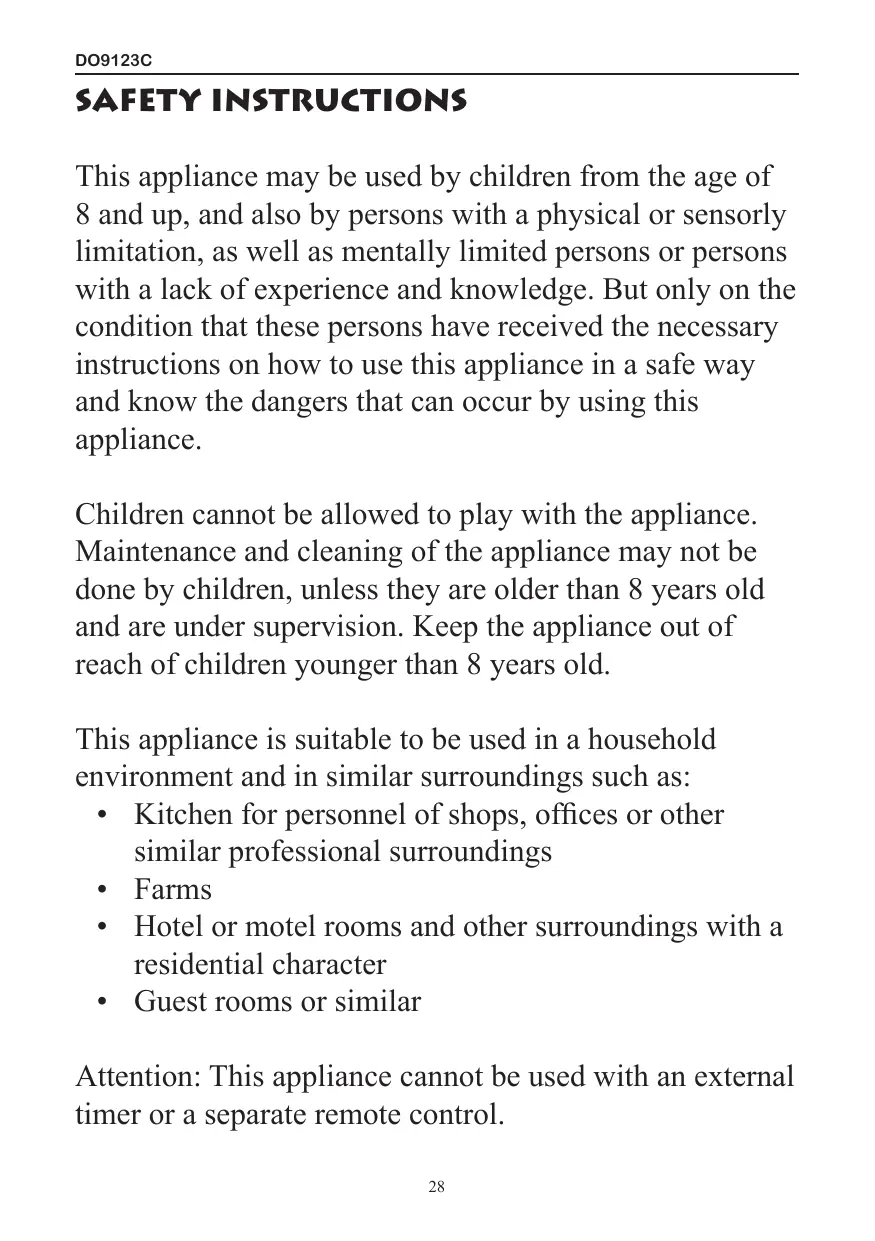

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensorly limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision. Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
  Farms
• Hotel or motel rooms and other surroundings with a residential character
  Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

The appliance can become hot during use. Keep the power cord away from hot parts and don't cover the appliance.

• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
• Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or

electrical stove or in a place where it may come into contact with a warm appliance.

• Do not use the appliance outdoors.
• Only use the appliance for its intended use.
• Always use the appliance on a steady, dry and level surface.
• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
• All repairs should be carried out by the manufacturer or its aftersales service.
• Never immerse the appliance, the cord or the plug in water or any other liquid.
• Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and hot parts or other heat sources.
• Before use, remove all packaging materials and any promotional stickers.

Warning :

Hot surfaces.
- The handle comes warm during use.
- Keep children at a safe distance.

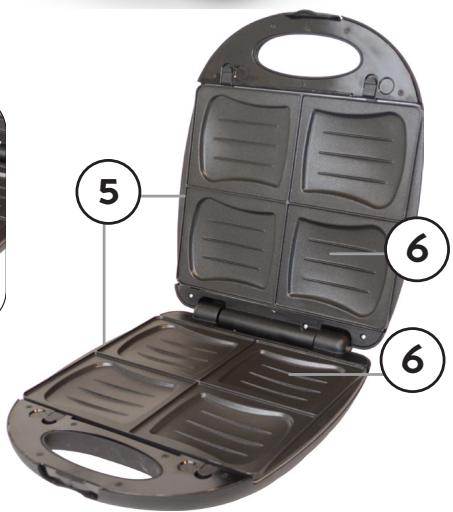

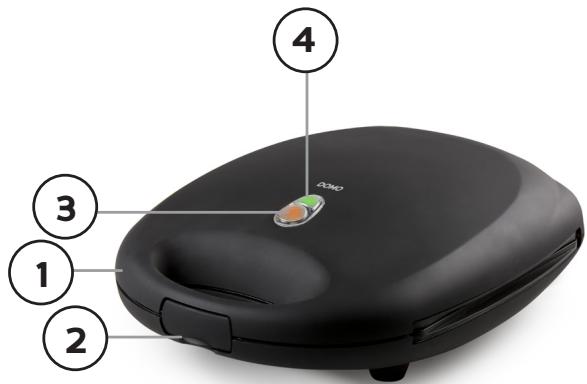

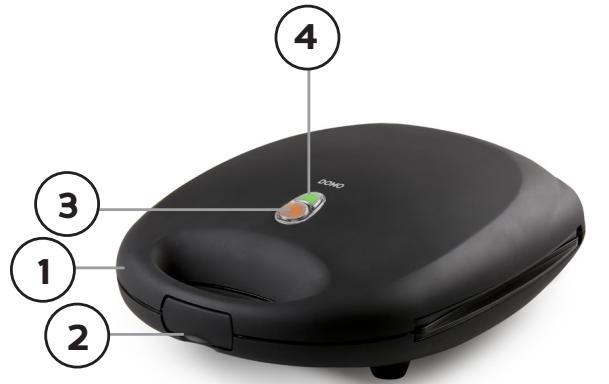

PARTS

1. Handle
2. Lock clip
3. Power indicator
4. Temperature indicator
5. Baking plates
6. Baking surface
7. Baking plate clip-locks
8. Cord storage

REMOVAL AND PLACEMENT OF PLATES

Removal

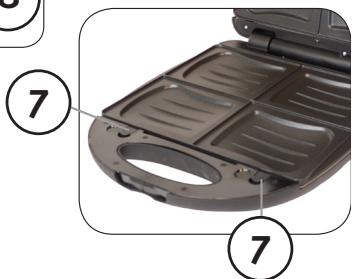

1. Unplug the electric lead and let the appliance cool off completely before removing the plates Open your Family

Croque toasted sandwich maker using the handle. Push the two grill plate clip-locks (7) of the lower plate towards you, one after the other, to remove the plate.

1. As soon as you disconnect the second lock, the plate will unclip. Push the lock of the upper plate away from you to release it. Then remove the plates from the appliance.

Placement

1. Open the appliance.
2. At the bottom of both grill plates there are two ridges that fit into the notches of the appliance. Fit the ridges of the grill plate into the notches.
3. Push the baking plate into place with your two thumbs and then clip to lock. The lock will keep them in place when they are

installed correctly.

1. Do the same for the second grill plate and make sure both are properly installed by closing your Family Croque carefully.

INSTRUCTIONS FOR USE

Before first time use you should clean your Family Croque (see Cleaning) to remove any possible manufacturing residues and dust. With first time use, a fine smoke and odour may be released. This is perfectly normal and will not occur anymore afterwards. We recommend not consuming the very first food you heat in the device.

Plug into the socket.
- Close the lid of your Family Croque.
The red light will switch on. Pre-heating will take approximately 6 minutes.
- When the correct temperature is reached, the temperature indicator will light up green. During baking, this light may switch on and off to indicate the correct temperature is maintained.
Prepare your croques while the appliance heats up.
- To reduce the risk of sticking and to improve the appearance and taste of your croques, you can oil the plates lightly with (sunflower) oil or rub your croques lightly with butter or margarine.
Use oven gloves.
- Put your four croques on the lower plate and close the lid carefully. You can position your croques with a wooden or plastic spatula. Do not use force to close the lid and take care with hot surfaces.
- Let your croque bake for 4 to 5 minutes. This is a good average. Adjust the time to your choice.
- Open the lid carefully (oven gloves!) and remove the croques with a non-metallic spatula. Metal objects can damage the non-stick coating.
Before biting: be careful with hot dishes, the cheese can become very hot.
- Do not overfill the appliance. The excess will drain down along the sides and possibly burn.

CLEANING

• Unplug the appliance and let your Family Croque cool off completely before you begin any maintenance or cleaning.
• Do not immerse the appliance the plug or cord in water or any other liquid.
• Do not use metal utensils, steel wool or other abrasive or corrosive cleaners.
• Wipe the plates clean with absorbent paper or a soft, damp cloth.
  After removing the plates you can wash them in hot soapy water. Wipe dry with a soft cloth.
• To prevent oxidation on the back of the plates it is recommended that you put them back into place in the appliance and then heat them for 1 minute with the lid closed.

You may clean the plates in the dishwasher.
- Place them in the top rack and set your dishwasher to wash, rinse and dry.
Clean the outside of your Family Croque with a damp cloth.
The metal casing can be cleaned with a soft, dry cloth.

TIPS & RECIPE

• A simple tasty croque can be made with cheese and ham between two slices of bread. Through the high moisture content of oven fresh bread it will not brown to a really nice colour. You can use many different types of bread. Remember that dark or whole grain bread absorbs more moisture and therefore require a little more oil or fat (sunflower oil, butter, margarine).
• With young or mature cheese and a slice of ham you will make a delicious croques.
• Fill up with lettuce, gherkins and tomato ketchup. If desired, you can vary with different types of cheese or ham. Adding a piece of pineapple or a fried egg creates a Croque Hawaii or a Croque Madam.
