Product Type	Digital Media Receiver (no CD)
Dimensions (W x H x D)	178 mm x 50 mm x 160 mm
Weight	0.9 kg
Power Supply	12V DC (car battery)
Bluetooth	Version 2.1+EDR, supports hands-free calling and audio streaming
USB Port	Front USB, supports MP3/WMA/WAV files, up to 32 GB
AUX Input	3.5 mm front auxiliary input
Tuner	FM/AM with RDS (Radio Data System)
Amplifier	MOS-FET 50 W x 4 (max power)
Equalizer	13-band graphic equalizer
Display	LCD with white illumination, dot-matrix
Remote Control	Includes wired remote control
Clock	Yes, with RDS time sync
Phone Compatibility	iPhone and Android smartphones
Security	Detachable faceplate for theft prevention
Maintenance	Clean with soft, dry cloth; avoid liquids
Safety	Use correct fuse rating; professional installation recommended
Spare Parts	Not user-serviceable; contact Pioneer authorized service center
General Information	Read manual before use; avoid extreme temperatures and moisture

Frequently Asked Questions - MVH-29BT PIONEER

How do I pair my phone via Bluetooth with the MVH-29BT?

Press the PHONE button, then select 'Add Device' on the unit. On your phone, search for Bluetooth devices and select 'MVH-29BT'. If prompted, enter PIN 0000.

Why won't my USB drive play music?

Ensure the USB drive is formatted as FAT32, contains compatible audio files (MP3/WMA/WAV), and does not exceed 32 GB. Also, check that the files are stored in the root directory or within folders with simple names.

How can I reset the MVH-29BT to factory settings?

Use a pointed object (like a pen tip) to press the reset button located behind the front faceplate. This will clear all settings and paired devices.

Can I stream music from my phone to the MVH-29BT?

Yes, after pairing via Bluetooth, select BT Audio as the source. You can control playback using the unit's controls or your phone.

How can I improve poor FM radio reception?

Make sure the car's antenna is fully extended and firmly connected to the unit. Avoid driving near tall buildings or tunnels. Try adjusting the local seek setting if available.

What audio adjustments are available?

Press the AUDIO button repeatedly to cycle through bass, treble, balance, fader, loudness, and equalizer presets. Use the volume knob to adjust each setting.

How do I set the clock on this stereo?

Press and hold the AUDIO button until the clock display flashes. Then use the left/right arrow buttons to adjust hours and minutes.

Does the MVH-29BT support steering wheel audio controls?

Yes, it is compatible with most aftermarket steering wheel control interfaces via the wired remote input (requires an adapter, sold separately).

How should I clean the display screen?

Gently wipe the screen with a soft, dry cloth. Do not use any liquids, alcohol, or abrasive cleaners as they may damage the display.

What is the maximum power output of the built-in amplifier?

The amplifier provides 50 watts maximum power per channel (4 channels), with an RMS output of 22 watts per channel at 4 ohms.

USER MANUAL MVH-29BT PIONEER

DIGITAL MEDIA RECEIVER

Connections/Installation.... 13

Additional Information.... 17

About this manual:

- In the following instructions, a USB memory or USB audio player are referred to as "USB device".

Declaration of Conformity with regard to the R&TTE Directive 1999/5/EC

Manufacturer:

PIONEER CORPORATION

28-8, Honkomagome 2-chome

Bunkyo-ku, Tokyo 113-0021, Japan

EU Representative's:

Pioneer Europe NV

Haven 1087, Keetberglaan 1,

B-9120 Melsele, Belgium/Belgique

http://www.pioneer-car.eu

Hereby, Pioneer, declares that this MVH-29BT is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Thank you for purchasing this PIONEER product.

To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe WARNINGS and CAUTIONS in this manual. Please keep the manual in a safe and accessible place for future reference.

If you want to dispose of this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For countries not mentioned above, please contact your local authorities for the correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

WARNING

- Do not attempt to install or service this product by yourself. Installation or servicing of this product by persons without training and experience in electronic equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock, injury or other hazards.

- Do not attempt to operate the unit while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the device.

CAUTION

- Do not allow this unit to come into contact with moisture and/or liquids. Electrical shock could result. Also, damage to this unit, smoke, and overheating could result from contact with liquids.

• Always keep the volume low enough to hear outside sounds.

This product is evaluated in moderate and tropical climate conditions under the Audio, video and similar electronic apparatus - Safety requirements, IEC 60065.

If you experience problems

Should this unit fail to work properly, please contact your dealer or nearest authorized PIONEER Service Station.

Getting Started

Basic operation

MVH-29BT

Frequently used operations

Purpose Operation
Turn on the power* Press SRC/OFF to turn	on the power.Press and hold SRC/OFF to turn off the power.

Purpose Operation
Adjust the volume Turn the M.C. dial.
Select a source Press SRC/OFF repeatedly.
Change the display information Press D	SP repeatedly.
Return to the previous display/list	Press BAND/DIMMER ↩.
Return to the normal display from the menu	Press and hold BAND/DIMMER ↩.
Answering/ending a call Press .

* When this unit's blue/white lead is connected to the vehicle's auto-antenna relay control terminal, the vehicle's antenna extends when this unit's source is turned on. To retract the antenna, turn the source off.

Display indication

Indication Description
	Appears when a lower tier of the menu or folder exists.
	Appears when the automatic answering function is set (page 10).
	Appears when the 🔒 button is pressed.
LOC	Appears when the local seek tuning function is set (page 11).
	Appears when random/shuffle play is set (except when BT AUDIO and AOA).
	Appears when repeat play is set (except when BT AUDIO and AOA).
	Appears when a Bluetooth connection is made (page 8).

Detaching the front panel

Detach the front panel to prevent theft. Remove any cables and devices attached to the front panel and turn off the unit before detaching it.

Detach Attach

Important

• Avoid subjecting the front panel to excessive shock.
• Keep the front panel out of direct sunlight and high temperatures. Always store the detached front panel in a protective case or bag.

Setup menu

When you turn the ignition switch to ON after installation, [SET UP :YES] appears in the display.

1 Press the M.C. dial.

The setup menu disappears after 30 seconds of no operation. If you prefer not to set at this time, turn the M.C. dial to select [NO], then press to confirm.

2 Turn the M.C. dial to select the options, then press to confirm.

To proceed to the next menu option, you need to confirm your selection.

Menu Item Description
LANGUAGE Select the language to display the text[ENG](English),[PYC](Russian),[TUR](Turkish)	information from a compressed audio file.
CLOCK SET Set the clock.
FM STEP Select the FM tuning step from 100 kHz or 50 kHz.[100], [50]

3[QUIT :YES] appears when all the settings have been made.

To return to the first item of the setup menu, turn the M.C. dial to select [QUIT :NO], then press to confirm.

4 Press the M.C. dial to confirm the settings.

NOTES

• You can cancel the menu setting by pressing SRC/OFF.
• These settings can be made at any time from the SYSTEM settings (page 12) and INITIAL settings (page 5).

Canceling the demonstration display (DEMO OFF)

1 Press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select [SYSTEM], then press to confirm. 3 Turn the M.C. dial to select [DEMO OFF], then press to confirm. 4 Turn the M.C. dial to select [YES], then press to confirm.

INITIAL settings

1 Press and hold SRC/OFF until the unit turns off. 2 Press the M.C. dial to display the main menu. 3 Turn the M.C. dial to select [INITIAL], then press to confirm. 4 Turn the M.C. dial to select an option, then press to confirm.

NOTE

The options vary depending on the unit.

Menu Item Description
FM STEP Select the FM tuning step from 100 kHz or 50 kHz. [100], [50]
SP-P/O MODE Select [REAR/SUB.W]	when there is a full-range speaker connected to the rear speaker output leads and there is a subwoofer connected to the RCA output.
[SUB.W/SUB.W] Select when there is a passive subwoofer connected directly to the rear speaker output leads and there is a subwoofer connected to the RCA output.
[REAR/REAR] Select when there are full-range speakers connected to the rear speaker output leads and RCA output. If there is a full-range speaker connected to the rear speaker output leads, and the RCA output is not used, you may select either [REAR/SUB.W] or [REAR/REAR].
DIM SETTING Change [SYNC CLOCK], [MANUAL]	the display brightness.
SYSTEM RESET Select [YES], [NO]	[YES] to initialize the unit settings. The unit will be restarted automatically.(Some of the settings may be retained even after resetting the unit.)

Radio

The RDS (radio data system) function only works in areas that broadcast RDS signals for FM stations.

Receiving preset stations

1 Press SRC/OFF to select [RADIO]. 2 Press BAND/DIMMER to select the band from [FM1], [FM2], [FM3], [MW] or [LW]. 3 Press a number button (1/ to 6/ ).

TIP

The button can be also used to select a preset station when [SEEK] is set to [PCH] in the FUNCTION settings (page 11).

Best stations memory (BSM)

The six strongest stations are stored on the number buttons (1/ to 6/ ).

1 After selecting the band, press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select [FUNCTION], then press to confirm. 3 Turn the M.C. dial to select [BSM], then press to confirm.

To seek a station manually

1 After selecting the band, press ◄◀/▶▶ to seek a station. Press and hold ◄◀ then ▶▶ Release to seek an available station. Scanning stops when the unit receives a station. To cancel seek tuning, press ◄◀/▶▶.

NOTE

[SEEK] needs to be set to [MAN] in the FUNCTION settings (page 11).

To store stations manually

1 While receiving the station you want to store, press and hold one of the number buttons (1/∧ to 6/⇐) until it stops flashing.

USB/AUX

Playing back

Disconnect headphones from the device before connecting it to the unit.

USB devices (including Android)

1 Open the USB port cover. 2 Plug in the USB.

NOTE

To automatically switch to [USB] source when a USB device is connected to the unit, set [USB AUTO] to [ON] in the SYSTEM settings (page 13).

CAUTION

Use an optional Pioneer USB cable (CD-U50E) to connect the USB device as any device connected directly to the unit will protrude out from the unit, which could be dangerous.

Before removing the device, stop playback.

AOA connections

A device installed with Android OS 5.0 or later can be connected to the unit via AOA, using the cable supplied with the device.

Listening to music on Android

This function is compatible with devices that have Android OS 5.0 or later installed and also support AOA (Android Open Accessory) 2.0.

1 Press SRC/OFF to select [ANDROID].

NOTE

Some Android devices connected via AOA 2.0 may not work properly or emit sounds due to their own software design, regardless of the OS version.

Basic operations

Purpose Operation
Select a track Press or .	|◀◀ ▶▶|
Fast forward or reverse Press and hold or .	|◀◀ ▶▶|
Pause/resume playback	Press 4/PAUSE.

AUX

1 Insert the stereo mini plug into the AUX input jack. 2 Press SRC/OFF to select [AUX] as the source.

NOTE

If [AUX] is set to [OFF] in the SYSTEM settings, [AUX] cannot be selected as a source (page 12).

Operations

You can make various adjustments in the FUNCTION settings (page 11). Note that the following operations do not work for an AUX device. To operate an AUX device, use the device itself.

Purpose Operation
Select a folder/album*	Press 1/ ∧ or 2/ ∨.
Select a track/song (chapter) Press or .	|◀◀ ▶▶|
Fast forward or reverse Press and hold or .	|◀◀ ▶▶|
Search for a file from a list	1 Press 🔒 to display the list.2 Turn the M.C. dial to select the desired file (folder) name or category, then press to confirm.3 Turn the M.C. dial to select the desired file, then press to confirm.Playback starts.
View a list of the files in the selected folder/category*	Press the M.C. dial when a folder/ category is selected.
Play a song in the selected folder/ category*	Press and hold the M.C. dial when a folder/category is selected.
Repeat play Press 6/ .	→
Random/shuffle play Press 5/ .	××
Pause/resume playback	Press 4/PAUSE.

* Compressed audio files only

Bluetooth

Bluetooth connection

1 Turn on the Bluetooth function of the device. 2 Press to display the phone menu. 3 Turn the M.C. dial to select [BT SETTING], then press to confirm. 4 Turn the M.C. dial to select [ADD DEVICE], then press to confirm.

The unit starts to search for available devices.

• To cancel searching, press the M.C. dial. - If the desired device is not in the list, select [RE-SEARCH]. - If there is no device available, [NOT FOUND] appears in the display.

5 Turn the M.C. dial to select a device, then press to confirm. Press and hold the M.C. dial to switch the displayed device information between the Bluetooth device address and device name. 6 Select [Pioneer BT Unit] shown in the device display. 7 Make sure the same 6-digit number appears on this unit and the device, then select "Yes" on the device.

NOTES

• Depending on the device, the PIN code is required in step 7. In this case, input [0000].
• Only one single device can be paired/registered at any one time. The previously paired/registered phonebook and preset information is overwritten/deleted when a new device is paired/registered to this unit.

TIP

The Bluetooth connection can be also made by detecting the unit from the Bluetooth device. To do so, [VISIBLE] in the Bluetooth settings needs to be set to [ON]. For details on a Bluetooth device operations, refer to the operating instructions supplied with the Bluetooth device.

Bluetooth settings

Menu Item	Description
BT CONNECT[ON], [OFF]	Display the paired Bluetooth devices. “*” appears on the device name when the Bluetooth connection is established.
ADD DEVICE	Register a new device.
A.CONN[ON], [OFF]	Select [ON] to connect to a Bluetooth device automatically.
VISIBLE[ON], [OFF]	Select [ON] so that a Bluetooth device can detect the unit when the unit is connected via Bluetooth to another device.

Menu Item Description

PIN CODE Change the PIN code.
	1 Press the M.C. dial to display the setting mode.2 Turn the M.C. dial to select a number.3 Press the M.C. dial to move the cursor to the next position.4 After inputting the PIN code, press and hold the M.C. dial.After inputting the PIN code, pressing the M.C. dial returns you to the PIN code input display, and you can change the PIN code.
DEV. INFO Switch the device information on the display between the device name and Bluetooth device address.

Bluetooth telephone

First, make a Bluetooth connection with the Bluetooth telephone (page 8).

Important

• Leaving the unit on standby to connect to your phone via Bluetooth while the engine is not running can drain the vehicle's battery.
• Be sure to park your vehicle in a safe place and apply the parking brake before operation.

To make a phone call

1 Press to display the phone menu. 2 Turn the M.C. dial to select [RECENTS] or [PHONE BOOK], then press to confirm. If you select [PHONE BOOK], proceed to step 4. 3 Turn the M.C. dial to select [MISSED], [DIALED] or [RECEIVED], then press to confirm. 4 Turn the M.C. dial to select a name or phone number, then press to confirm.

The phone call starts.

To answer an incoming call

1 Press when a call is received.

Basic operations

Purpose Operation
End a call Press .
Reject an incoming call	Press and hold when a call is received.
Switch between the current caller and a caller on hold	Press the M.C. dial.
Cancel a caller on hold	Press and hold .
Adjust the volume of the caller's voice (When private mode is on, this function is not available.)	Tum the M.C. dial during the call.
Turn the private mode on or off	Press BAND/ during the call.

To preset phone numbers

1 Select a phone number from a phone book or call history. 2 Press and hold one of the number buttons (1/ ∧ to 6/ ⇌). The contact is stored in the selected preset number.

To make a call using a preset number, press one of the number buttons (1/∧ to 6/→), then press the M.C. dial.

Phone menu
Menu Item Description
RECENTS Display the [MISSED]	missed call history.
[DIALED] Display	the dialed call history.
[RECEIVED] Display	the received call history.
PHONE BOOK* Display	by the contacts which have been transferred from your phone. Set [VISIBLE] in the Bluetooth settings to [ON] to browse the contacts via this unit.
PRESET 1-6 Recall the	preset phone numbers. You can also recall the preset phone numbers by pressing one of the number buttons (1/ ∧ to 6/ ⇌).
A.ANSR Select [ON] to [ON], [OFF]	answer an incoming call automatically.
R.TONE Select [ON] if [ON], [OFF]	the ring tone does not come out from the car speakers. Depending on the connected phone, this function may not work.
PB INVT Invert the order of names in the phone book (name view).
PB A.SYNC Select whet [ON], [OFF]	ther or not to transfer the contacts from your phone automatically when your phone is connected to the unit.When connected for the first time, the contacts from your phone are transferred automatically, regardless of the [PB A.SYNC] setting.If you switch from [ON] to [OFF], the auto synchronization will not be performed on the next connection.If you switch from [OFF] to [ON], the auto synchronization will be performed when your phone is connected to the unit.During the auto synchronization, you cannot cancel the synchronization, even if you select [OFF].

Menu Item	Description
BT SETTING	You can adjust various settings for Bluetooth connections. For details on Bluetooth settings, see page 8.

* The contacts on your phone will normally be transferred automatically when the phone is connected. If they are not, use your phone to transfer the contacts.

Bluetooth audio

Important

• Depending on the Bluetooth audio player connected to this unit, the available operations will be limited to the following two levels:
• A2DP (Advanced Audio Distribution Profile) can only play back songs on your audio player.
• AVRCP (Audio/Video Remote Control Profile) can perform functions such as playback, pause, select song, etc. • The sound of the Bluetooth audio player will be muted when the phone is in use.
• When the Bluetooth audio player is in use, you cannot connect to a Bluetooth telephone automatically.
• Depending on the type of Bluetooth audio player you have connected to this unit, operation and information displayed may vary based on availability and functionality.

1 Make a Bluetooth connection with the Bluetooth audio player. 2 Press SRC/OFF to select [BT AUDIO] as the source. 3 Press BAND/ → to start playback.

Basic operations You can make various adjustments in the FUNCTION settings (page 11).

Purpose	Operation
Fast forward or reverse	Press and hold |◀◀ or ▶▶|.
Select a track	Press |◀◀ or ▶▶|.
Repeat play*	Press 6/⇨.
Random play*	Press 5/XX.
Purpose Operation
Pause/resume playback	Press 4/PAUSE.
Search for a file from a list	1 Press 🔒 to display a list.2 Turn the M.C. dial to select the desired folder name, then press to confirm.3 Turn the M.C. dial to select the desired file, then press to confirm.Playback starts.

* Depending on the connected device, these operations may not be available.

Settings

You can adjust various settings in the main menu.

1 Press the M.C. dial to display the main menu.

2 Turn the M.C. dial to select one of the categories below, then press to confirm.

• FUNCTION settings (page 11) • AUDIO settings (page 11) • SYSTEM settings (page 12)

3 Turn the M.C. dial to select the options, then press to confirm.

FUNCTION settings

The menu items vary according to the source.

Menu Item Description
BSM	RADIO
	Store the six strongest stations on the number buttons (1/ ∧ to 6/ ⇌) automatically.

Menu Item Description
LOCAL RADIOFM: [OFF], [LV1], [LV2], [LV3], [LV4]MW/LW: [OFF], [LV1], [LV2]	Restrict the tuning station according to the signal strength.
SEEK RADIO[MAN], [PCH] Assign or	button to see the stations one by one (manual tuning) or select a station from the preset channels.
PLAY BT AUDIO	Start playback.
STOP BT AUDIO	Stop playback.

AUDIO settings

Menu Item Description
FADER*1	Adjust the front and rear speaker balance.
BALANCE	Adjust the left and right speaker balance.

Menu Item Description EQ SETTING

[SUPER BASS], [POWERFUL], [NATURAL], [VOCAL], [CUSTOM1], [CUSTOM2], [FLAT]	Select the equalizer setting.
Select an equalizer band and level for further customizing.
Equalizer band: [80HZ], [250HZ], [800HZ], [2.5KHZ], [8KHZ]
Equalizer level: [+6] to [-6]

LOUDNESS

[OFF], [LOW], [MID], [HI] Compensate for clear sound at low volume.

SUB.W*2

[NOR], [REV], [OFF] Select the subwoofer phase.

SUB.W CTRL*2*3

Cut-off frequency: [50HZ], [63HZ], [80HZ], [100HZ], [125HZ], [160HZ], [200HZ]	Only frequencies lower than those in the selected range are output from the subwoofer.
Output level: [-24] to [+6]
Slope level: [-12], [-24]

BASS BOOST

[0] to [+6] Select the bass boost level.

HPF SETTING

Cut-off frequency: [OFF], [50HZ], [63HZ], [80HZ], [100HZ], [125HZ], [160HZ], [200HZ]	Only frequencies higher than the high-pass filter (HPF) cutoff are output from the speakers.
Slope level: [-12], [-24]

Menu Item Description SLA

[+4] to [-4] Adjust the volume level for each source except RADIO.

*1 Not available when [SUB.W/SUB.W] is selected in [SP-P/O MODE] in the INITIAL settings (page 6).

*2 Not available when [REAR/REAR] is selected in [SP-P/O MODE] in the INITIAL settings (page 6).

*3 Not available when [OFF] is selected in [SUB.W].

SYSTEM settings You can also access to these menus when the unit is turned off. Menu Item Description LANGUAGE

[ENG](English), [PYC](Russian), [TUR](Turkish)

Select the language to display the text information from a compressed audio file.

CLOCK SET

Set the clock (page 5).

12H/24H

[12H], [24H] Select the time notation.

AUX

[ON], [OFF] Set to [ON] when using an auxiliary device connected to the unit.

BT AUDIO

[ON], [OFF] Set the Bluetooth signal on/off.

Menu Item Description BT MEM CLEAR

[YES], [NO] Clear the Bluetooth device data (device information, PIN code, call history, phone book, preset phone numbers) stored in the unit.[CLEARED] appears when data is successfully deleted.
BT VERSION	Displays the system version of the unit and the Bluetooth module.
USB AUTO[ON], [OFF] Select [ON] to automatically switch to[USB] source when a USB device/Android is connected to the unit.Select [OFF] when a USB device/Android is being connected to the unit just for charging.

Connections/Installation

Connections

WARNING

• Use speakers over 50 W (output value) and between 4 Ω to 8 Ω (impedance value). Do not use 1 Ω to 3 Ω speakers for this unit.
• The black cable is ground. When installing this unit or power amp (sold separately), make sure to connect the ground wire first. Ensure that the ground wire is properly connected to metal parts of the car's body. The ground wire of the power amp and the one of this unit or any other device must be connected to the car separately with different screws. If the screw for the ground wire loosens or falls out, it could result in fire, generation of smoke or malfunction.

Ground wire POWER AMP Other devices (Another electronic device in the car) Metal parts of car's body *1 Not supplied for this unit

Important

- When installing this unit in a vehicle without an ACC (accessory) position on the ignition switch, failure to connect the red cable to the terminal that detects operation of the ignition key may result in battery drain.

ACC position No ACC position

• Use of this unit in conditions other than the following could result in fire or malfunction. – Vehicles with a 12-volt battery and negative grounding.
• When speaker output is used by 4 channels, use speakers over 50 W (maximum input power) and between 4 Ω to 8 Ω (impedance value). Do not use 1 Ω to 3 Ω speakers for this unit.
• When rear speaker output is used by 2 Ω of subwoofer, use speakers over 70 W (maximum input power). * Please refer to connection for a connection method. • To prevent a short-circuit, overheating or malfunction, be sure to follow the directions below.
• Disconnect the negative terminal of the battery before installation. -Secure the wiring with cable clamps or adhesive tape. Wrap

adhesive tape around wiring that comes into contact with metal parts to protect the wiring.

- Place all cables away from moving parts, such as the shift lever and seat rails.

- Place all cables away from hot places, such as near the heater outlet.

- Do not connect the yellow cable to the battery by passing it through the hole to the engine compartment.

- Cover any disconnected cable connectors with insulating tape.

- Do not shorten any cables. - Never cut the insulation of the power cable of this unit in order to share the power with other devices. The current capacity of the cable is limited.

- Use a fuse of the rating prescribed.

- Never wire the negative speaker cable directly to ground.

- Never band together negative cables of multiple speakers.

- When this unit is on, control signals are sent through the blue/white cable. Connect this cable to the system remote control of an external power amp or the vehicle's auto-antenna relay control terminal (max. 300mA 12 V DC). If the vehicle is equipped with a glass antenna, connect it to the antenna booster power supply terminal.

- Never connect the blue/white cable to the power terminal of an external power amp. Also, never connect it to

the power terminal of the auto antenna. Doing so may result in battery drain or a malfunction.

- The black cable is ground. Ground cables for this unit and other equipment (especially, high-current products such as power amps) must be wired separately. If they are not, an accidental detachment may result in a fire or malfunction.

This unit

① Rear output or subwoofer output

② Antenna input ③ Power cord input ④ Fuse (10 A) ⑤ Microphone input ⑥ Microphone (3 m)

Power cord

Perform these connections when not connecting a rear speaker lead to a subwoofer.

Perform these connections when using a subwoofer without the optional amplifier.

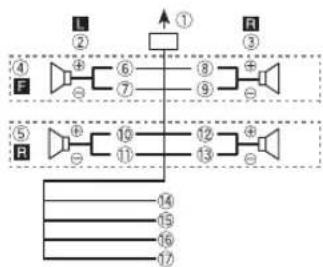

① To power cord input ② Left ③ Right ④ Front speaker ⑤ Rear speaker ⑥ White ⑦ White/black ⑧ Gray ⑨ Gray/black ⑩ Green

⑪ Green/black ⑫ Violet ⑬ Violet/black ⑭ Black (chassis ground) Connect to a clean, paint-free metal location. ⑮ Yellow

Connect to the constant 12 V supply terminal.

⑯ Red Connect to terminal controlled by the ignition switch (12 V DC). ⑰ Blue/white

Connect to the system control terminal of the power amp or auto-antenna relay control terminal (max. 300 mA 12 V DC).

⑱ Subwoofer (4 Ω) ⑲ When using a subwoofer of 2 Ω, be sure to connect the subwoofer to the violet and violet/black leads of this unit. Do not connect anything to the green and green/black leads. ⑳ Not used. ㉑ Subwoofer (4 Ω) × 2

NOTE

Change the initial menu of this unit. Refer to [SP-P/O MODE] (page 6). The subwoofer output of this unit is monaural.

Power amp (sold separately)

Perform these connections when using the optional amplifier.

① System remote control Connect to blue/white cable. ② Power amp (sold separately) ③ Connect with RCA cables (sold separately) ④ To rear output or subwoofer output ⑤ Rear speaker or subwoofer

Installation

Important

• Check all connections and systems before final installation.
• Do not use unauthorized parts as this may cause malfunctions.
• Consult your dealer if installation requires drilling of holes or other modifications to the vehicle.
• Do not install this unit where: - it may interfere with operation of the vehicle. - it may cause injury to a passenger as a result of a sudden stop.

- Optimum performance is obtained when the unit is installed at an angle of less than 60°.

- When installing, to ensure proper heat dispersal when using this unit, make sure you leave ample space behind the rear panel and wrap any

loose cables so they are not blocking the vents.

Leave ample space

DIN mount installation

1 Insert the supplied mounting sleeve into the dashboard. 2 Secure the mounting sleeve by using a screwdriver to bend the metal tabs (90°) into place.

① Dashboard ② Mounting sleeve

• Make sure that the unit is installed securely in place. An unstable installation may cause skipping or other malfunctions.

When not using the supplied mounting sleeve

1 Line up the holes on the mounting bracket with the holes on the sides of the unit to attach the bracket.

2 Screw in one screw on each side to hold the unit in place.

① Tapping screw (φ5 mm × 9 mm, not supplied with product) ② Mounting bracket ③ Dashboard or console

Using the included bracket

Check to make sure that the included bracket matches your particular model of vehicle and then attach it to the unit as shown below.

Removing the unit (installed with the supplied mounting sleeve)

1 Remove the trim ring. ① Trim ring ② Notched tab

• Releasing the front panel allows easier access to the trim ring.
• When reattaching the trim ring, point the side with the notched tab down.

2 Insert the supplied extraction keys into both sides of the unit until they click into place.

3 Pull the unit out of the dashboard.

Installing the microphone

• Install the microphone in a place where its direction and distance from the driver make it easiest to pick up the driver's voice. - Be sure to turn off (ACC OFF) the product before connecting the microphone.

Mounting on the sun visor

1 Fit the microphone into the microphone clip.

① Microphone ② Microphone clip

2 Mount the microphone clip to the sun visor.

① Microphone clip ② Clamps Use separately sold clamps to secure the lead where necessary inside the vehicle.

Install the microphone on the sun visor when it is in the up position. It cannot recognize the driver's voice if the sun visor is in the down position.

Installation on the steering column

1 Fit the microphone into the Microphone Base.

① Microphone ② Microphone base with double-sided tape

2 Attach the microphone on the steering column.

① Microphone Base ② Clamps Use separately sold clamps to secure the lead where necessary inside the vehicle.

3 Keeping it away from the steering wheel.

Additional Information

Troubleshooting

The display automatically returns to the normal display.

→No operations have been made for about 30 seconds. – Perform an operation.

The repeat play range changes unexpectedly.

→Depending on the repeat play range, the selected range may change when another folder or track is being selected or during fast forwarding/reversing.

Select the repeat play range again.

A subfolder is not played back.

Subfolders cannot be played when [FLD] (folder repeat) is selected.

Select another repeat play range.

The sound is intermittent.

You are using a device, such as a cellular phone, that may cause audible interference.

Move electrical devices that may be causing the interference away from the unit.

The sound from the Bluetooth audio source is not played back.

There is a call in progress on a Bluetooth-connected cellular phone.

The sound will be played back when the call is terminated.

A Bluetooth-connected cellular phone is currently being operated. Stop using the cellular phone.

The connection between the unit and the cellular phone is not established correctly after a call made by a Bluetooth-connected cellular phone.

Make a Bluetooth connection between the unit and the cellular phone again.

Error messages

Common

This unit fails to operate or the speaker connection is incorrect.

The protective circuit is activated. Check the speaker connection.

Turn the ignition switch OFF and back to ON again. If the message remains, contact your dealer or an authorized Pioneer Service Station for assistance.

NO XXXX (NO TITLE, for example)

There is no embedded text information.

Switch the display or play another track/file.

USB device

FORMAT READ

Sometimes there is a delay between the start of playback and when you start to hear any sound.

Wait until the message disappears and you hear sound.

NO AUDIO

There are no songs.

Transfer the audio files to the USB device and connect.

The connected USB device has security enabled.

-Follow the USB device instructions to disable the security.

→The connected USB device contains DRM protected files.

–The protected files are skipped.

PROTECT

→All the files on the connected USB device are embedded with DRM.

-Replace the USB device.

N/A USB

→The connected USB device is not supported by this unit.

- Disconnect your device and replace it with a compatible USB device.

HUB ERROR

→The USB device connected via a USB hub is not supported by this unit.

-Connect the USB device directly to this unit using a USB cable.

CHECK USB

→The USB connector or USB cable has short-circuited.

- Check that the USB connector or USB cable is not caught in something or damaged.

→The connected USB device consumes more than maximum allowable current.

- Disconnect the USB device and do not use it. Turn the ignition switch OFF and back to ACC or ON. Connect only compliant USB devices.

ERROR-19

→Communication failed.

-Perform one of the following operations, then return to the USB source.

- Turn the ignition switch OFF and back to ON.

- Disconnect the USB device.

- Change to a different source.

ERROR-23

→USB device was not formatted properly.

-Format the USB device with FAT12, FAT16 or FAT32.

STOP

→There are no songs in the current list.

-Select a list that contains songs.

Bluetooth device

ERROR-10

The power failed for the Bluetooth module of the unit.

Turn the ignition switch OFF and back to ACC or ON.

Handling guidelines

USB storage device

Connections via USB hubs are not supported.

Firmly secure the USB storage device before driving. Do not let the USB storage device fall onto the floor, where it may become jammed under the brake or accelerator pedal.

Depending on the USB storage device, the following problems may occur.

Operations may vary. The storage device may not be recognized. Files may not be played back properly. The device may cause audible interference when you are listening to the radio.

Compressed audio compatibility

Only the first 32 characters can be displayed as a file name (including the file extension) or a folder name.

• The unit may not work properly depending on the application used to encode WMA files.
• There may be a slight delay at the start of the playback of audio files embedded with image data, or audio files stored on a USB device with numerous folder hierarchies.
• Russian text to be displayed on this unit should be encoded in one of the following character sets:
• Unicode (UTF-8, UTF-16)

- A character set other than Unicode that is used in a Windows environment and is set to Russian in the multi-language setting

CAUTION

• Pioneer cannot guarantee compatibility with all USB mass storage devices, and assumes no responsibility for any loss of data on media players, smartphones, or other devices while using this product.
• Do not leave a USB storage device in any place that is subject to high temperatures.

WMA files

File extension .wma
Bit rate 48 kbps to 320 kbps(CBR), 48 kbps to 384 kbps (VBR)
Sampling frequency	32 kHz, 44.1 kHz, 48 kHz

Windows MediaTMAudio Professional, Lossless, Voice/DRM Stream/Stream with video

Not compatible

MP3 files

File extension .mp3
Bit rate 8 kbps to 320 frequency	kbps (CBR), VBR
	16 kHz to 48 kHz (32 kHz, 44.1 kHz, 48 kHz for emphasis)
Compatible ID3 tag version	2.2, 2.3, 2.4
M3u playlist Not compatible
MP3i (MP3 interactive), mp3 PRO	Not compatible

WAV files

File extension.wav
Quantization bits 8 and 16 (LPCM), 4 (MSADPCM)
Sampling frequency	16 kHz to 48 kHz (LPCM), 22.05 kHz and 44.1 kHz (MS ADPCM)

FLAC files

- FLAC files may not be playable, depending on the encoder.

File extension.flac
Sampling frequency	8/11.025/12/16/22.05/24/32/44.1/48 kHz

Quantization bit rate	16 bit
Channel mode 1/2 ch

USB device

- There may be a slight delay when starting playback of audio files on a USB storage device with numerous folder hierarchies.

Playable folder hierarchy	Up to eight tiers (A practical hierarchy is less than two tiers.)
Playable folders Up to 15	500
Playable files Up to 15	000
Playback of copyright-protected files	Not compatible
Partitioned USB device	Only the first partition can be played.

Sequence of audio files

The user cannot assign folder numbers and specify playback sequences with this unit. Sequence of audio file depends on the connected device.

Note that the hidden files in a USB device cannot be played back.

Example of a hierarchy

Level 1 Level 2 Level 3 Level 4 01 to 05: Folder number ① to : Playback sequence

Russian character chart

D: Display C: Character

Copyright and trademark

Bluetooth

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PIONEER CORPORATION is under license. Other trademarks and trade names are those of their respective owners.

WMA

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.

FLAC

Copyright © 2000-2009 Josh Coalson Copyright © 2011-2013 Xiph.Org Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: - Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

- Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES

(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Android™

Android is a trademark of Google Inc.

Specifications

General

Power source:

14.4 V DC (10.8 V to 15.1 V

allowable)

Grounding system: Negative type

Maximum current consumption: 10.0 A

Dimensions (W × H × D):

DIN

Chassis: 178 mm × 50 mm × 97

mm

Nose: 188 mm × 58 mm × 17 mm

D

Chassis: 178 mm × 50 mm × 97

mm

Nose: 170 mm × 46 mm × 17 mm

Weight: 0.5 kg

Audio

Maximum power output:

- 50 W × 4 ch / 4 Ω (for no

subwoofer)

• 50 W × 2 ch / 4 Ω + 70 W × 1 ch / 2

Ω (for subwoofer)

Continuous power output:

22 W × 4 (50 Hz to 15,000 Hz, 5%

THD, 4 Ω load, both channels

driven)

Load impedance:

4 Ω (4 Ω to 8 Ω allowable)

Preout maximum output level: 2.0 V

Loudness contour:

+10 dB (100 Hz), +6.5 dB (10 kHz)

(volume: -30 dB)

Equalizer (5-Band Graphic Equalizer):

Frequency:

80 Hz/250 Hz/800 Hz/2.5 kHz/8

kHz

Equalization range:

±12 dB (2 dB step)

Subwoofer (mono):

Frequency: 50 Hz/63 Hz/80 Hz/

100 Hz/125 Hz/160 Hz/200 Hz

Slope: -12 dB/oct, -24 dB/oct

Gain: +6 dB to -24 dB

Phase: Normal/Reverse

USB

USB standard specification:

USB 2.0 full speed

Maximum current supply: 500 mA

USB Protocol:

MSC (Mass Storage Class)

AOA (Android Open Accessory)

2.0

File system: FAT12, FAT16, FAT32

MP3 decoding format:

MPEG-1 & 2 Audio Layer 3

WMA decoding format:

Ver. 7, 7.1, 8, 9 (2 ch audio)

(Windows Media Player)

FLAC decoding format:

v1.2.1 (Free Lossless Audio

Codec)

WAV signal format:

Linear PCM & MS ADPCM (Non-

compressed)

FM tuner

Frequency range:

87.5 MHz to 108.0 MHz

Usable sensitivity:

11 dBf (1.0 μV/75 Ω, mono, S/N:

30 dB)

Signal-to-noise ratio:

72 dB (IEC-A network)

MW tuner

Frequency range: 531 kHz to 1 602 kHz

Usable sensitivity: 25 μV (S/N: 20 dB)

Signal-to-noise ratio:

58 dB (IEC-A network)

LW tuner

Frequency range: 153 kHz to 281 kHz

Usable sensitivity: 28 μV (S/N: 20 dB)

Signal-to-noise ratio:

58 dB (IEC-A network)

Bluetooth

Version: Bluetooth 3.0 + EDR certified

Output power:

+4 dBm Maximum (Power class 2)

Frequency band(s):

2 400 MHz to 2 483.5 MHz

Bluetooth profiles:

GAP (Generic Access Profile)

SDAP (Service Discovery Application Profile)

HFP (Hands Free Profile) 1.6

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio Distribution Profile)

AVRCP (Audio/Video Remote Control Profile) 1.5

Distribution Profile)

AVRCP (Audio/Video Remote

Control Profile) 1.5

SPP (Serial Port Profile) 1.1

NOTE

Specifications and the design are

subject to modifications without

notice.

Contents

Important

Microphone installation

MSC (Mass Storage Class) AOA (Android Open Accessory) 2.0

File system:

FAT12, FAT16, FAT32

GAP (Generic Access Profile)

SDAP (Service Discovery

Application Profile)

HFP (Hands Free Profile) 1.6

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio

Distribution Profile)

AVRCP (Audio/Video Remote

Control Profile) 1.5

SPP (Serial Port Profile) 1.1

Note:

28-8, Honkomagome 2-chome, Bunkyo-ku,

Tokyo 113-0021, Japan

Pioneer Corporation

PIONEER ELECTRONICS (USA) INC.

P.O. Box 1540, Long Beach, California 90801-1540, U.S.A.

TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

2 Jalan Kilang Barat, #07-01, Singapore 159346

TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202 Australia

TEL: [phone]

PIONEER ELECTRONICS DE MÉXICO S.A. DE C.V.

Blvd. Manuel Ávila Camacho 138, 10 piso

Col.Lomas de Chapultepec, México, D.F. 11000

Tel: [phone], Fax: [phone]

Pioneer Corporation

8F, No. 407, Ruiguang Road, Neihu District, Taipei City

Tel: [phone]

Pioneer Electronics (Hong Kong) Ltd.

5/F, 909 Cheung Sha Wan Road, Kowloon, Hong Kong

Tel: [phone]

© 2016 PIONEER CORPORATION. All rights reserved.
