WD700412 - Electric waffle maker KRUPS - Free user manual and instructions

Product Type	Electric Waffle Maker
Brand	KRUPS
Model	WD700412
Power Supply	220-240 V, 50/60 Hz (see rating plate)
Power	See rating plate
Capacity	Approximately 12 waffles per standard recipe
Cooking Adjustment	8-position thermostat
Temperature Indicator	Green ready light
Operation Indicator	Red indicator light on
Anti-overflow System	Removable batter drip tray
Safety	Safety latches for locking
Cool-touch handle	Yes, stays cool during cooking
Storage	Vertical possible with safety latches
Cleaning	Sponge and dish soap, do not immerse
Dishwasher safe	No, except the batter drip tray
Plate Material	Non-stick (not specified)
Included Accessories	Batter drip tray, ladle
Use	Household use only

Frequently Asked Questions - WD700412 KRUPS

How to use the waffle maker for the first time?

Before first use, remove all packaging and stickers. Open the appliance, ensure the thermostat is set to minimum position 1, then plug it in. The red indicator light turns on. Preheat for 5 to 7 minutes by turning the thermostat to the desired cooking setting. Wait for the green light to come on before adding batter.

How much batter to put in the waffle maker?

Pour the batter using the supplied ladle into each well. The amount should not exceed the separation bar between the wells. For the traditional recipe, fill each well up to the line 5 mm from the edge.

Should the latches be locked during cooking?

No, do not lock the latches during cooking. They are intended for storage or transport. During cooking, the upper shell may rise slightly to allow the batter to spread normally.

How to know if the waffle maker is ready?

The green light comes on when the desired cooking temperature is reached. During use, the light will turn off and on again to indicate that the temperature is maintained, but this does not mean the waffle is cooked.

Why does my waffle maker emit smoke or odor during first use?

This is normal. During first use, there may be a slight release of odor or smoke due to heating of new components. Preheat the appliance empty for 5 to 7 minutes before the first cooking.

How to clean the waffle maker plates?

Set the thermostat to minimum, unplug and let cool in open position. Use a non-metallic sponge with dish soap. Never immerse the appliance. The batter drip tray can be washed by hand or in the dishwasher.

Can the waffle maker be stored vertically?

Yes, to save space, you can store the waffle maker vertically. Lock it with the safety latches and wrap the cord in the provided slot.

What is the basic recipe for traditional waffles?

Ingredients: 300 g flour, 10 g baking powder, a pinch of salt, 75 g sugar, 100 g butter, 2 eggs, and 1/2 liter milk. Mix, let rest for 1 hour, then pour into the waffle maker. Cooking time: about 3 min 30 sec to 4 min 30 sec with thermostat at position 8.

What to do if batter overflows from the waffle maker?

The waffle maker is equipped with a batter drip tray at the back to catch overflow. Wait for complete cooling before emptying the tray. If necessary, use oven mitts to empty it while hot.

Can the appliance be used by children?

No, this appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, unless supervised. Supervise children to ensure they do not play with the appliance.

USER MANUAL WD700412 KRUPS

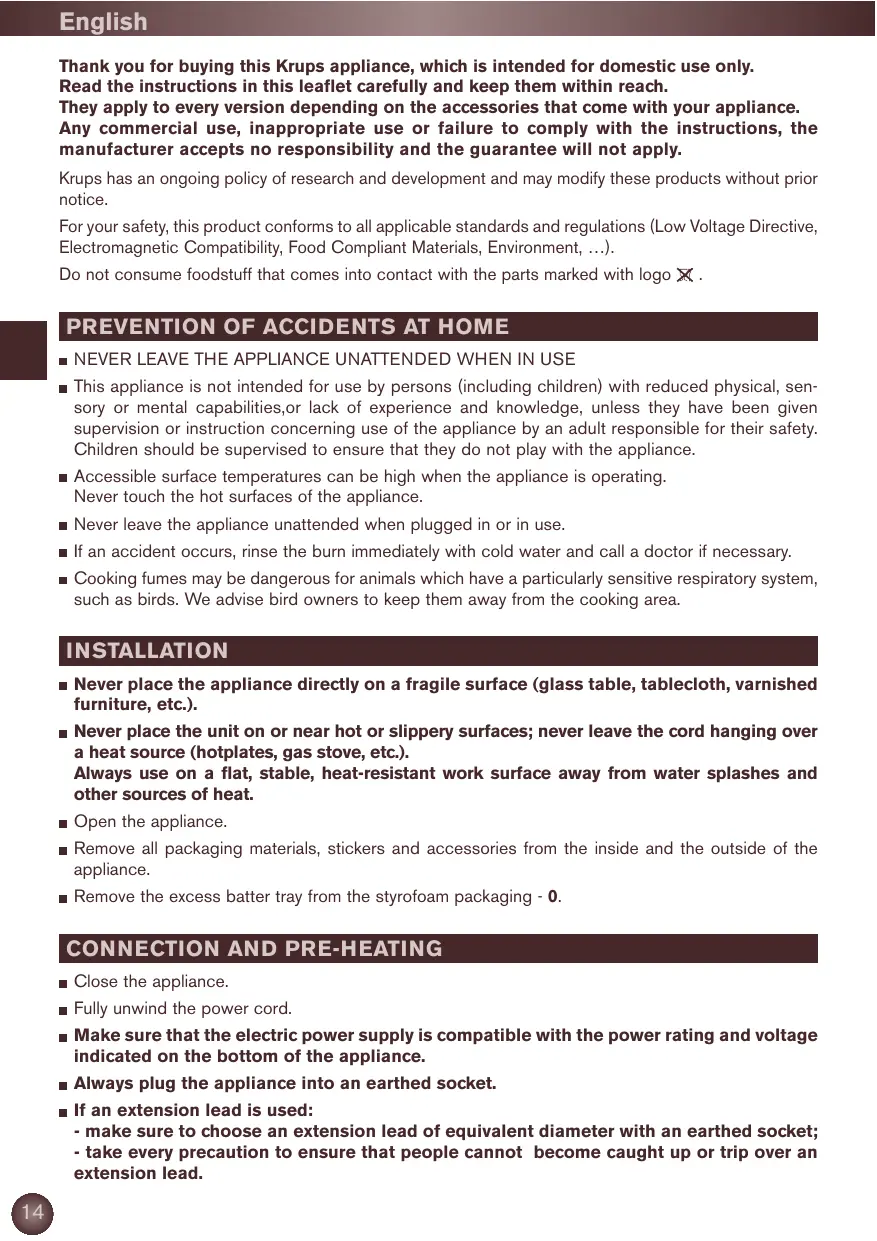

Thank you for buying this Krups appliance, which is intended for domestic use only. Read the instructions in this leaflet carefully and keep them within reach.

They apply to every version depending on the accessories that come with your appliance. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

Krups has an ongoing policy of research and development and may modify these products without prior notice.

For your safety, this product conforms to all applicable standards and regulations (Low Voltage Directive, Electromagnetic Compatibility, Food Compliant Materials, Environment, ...).

Do not consume foodstuff that comes into contact with the parts marked with logo

PREVENTION OF ACCIDENTS AT HOME

NEVER LEAVE THE APPLIANCE UNATTENDED WHEN IN USE
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by an adult responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- Accessible surface temperatures can be high when the appliance is operating. Never touch the hot surfaces of the appliance.
- Never leave the appliance unattended when plugged in or in use.
If an accident occurs, rinse the burn immediately with cold water and call a doctor if necessary.
Cooking fumes may be dangerous for animals which have a particularly sensitive respiratory system, such as birds. We advise bird owners to keep them away from the cooking area.

INSTALLATION

• Never place the appliance directly on a fragile surface (glass table, tablecloth, varnished furniture, etc.).
• Never place the unit on or near hot or slippery surfaces; never leave the cord hanging over a heat source (hotplates, gas stove, etc.). Always use on a flat, stable, heat-resistant work surface away from water splashes and other sources of heat.
  Open the appliance.
• Remove all packaging materials, stickers and accessories from the inside and the outside of the appliance.
  Remove the excess batter tray from the styrofoam packaging - 0.

CONNECTION AND PRE-HEATING

• Close the appliance.
  Fully unwind the power cord.
• Make sure that the electric power supply is compatible with the power rating and voltage indicated on the bottom of the appliance.
  Always plug the appliance into an earthed socket.
  If an extension lead is used:
• make sure to choose an extension lead of equivalent diameter with an earthed socket;
• take every precaution to ensure that people cannot become caught up or trip over an extension lead.

If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
This appliance is not intended to be operated by means of an external timer or separate remote-control system.
- Unlock the appliance using the two safety catches - B on the sides of the appliance - 7. Never handle the safety catches when the appliance is hot. Always unlock the waffle maker before turning on.
- Check that the thermostat - D is in the mini position , then plug the cord into a socket: the red light - 1 will light up.
- On first use, there may be a slight odour and a little smoke during the first few minutes; this is normal.
Pre-heat the waffle maker for 5 to 7 minutes by turning the browness selector to the desired setting - 2. For pre-heating, place the thermostat selector on the chosen cooking position. The green light - 3 will light up when the waffle maker reaches the desired cooking temperature.

COOKING

Each time the waffle maker is used, wait until the green light comes on before pouring batter into the waffle maker plates.
- Close the waffle maker during the cooking cycle.
Do not lock the safety catches on the sides of the waffle maker when cooking.
At the back of the waffle maker there is a unique batter tray - A. This tray catches any excess batter during the cooking cycle. We recommend emptying this tray when the waffle maker is cold. Use oven mitts if the tray must be emptied while the appliance is hot and in use - 6.
Clean the back of the waffle plates between cooking operations. Use a nonstick safe kitchen ustensil to remove the waffle from the waffle maker - 9
- The handle will remain cool during cooking - 4.
- Do not touch the metal body of the waffle maker when the appliance is hot - 5.
- Never run the appliance empty.

Tips for better cooking results

Each time the waffle maker is used, wipe a small amount of cooking oil onto the waffle plates, then wipe with a soft cloth.
Pour the batter with the ladle - E into each waffle plate.
The amount of batter should not go past the separation line between the two cooking plates - 8.
■ Increase or reduce the waffle colour to suit your taste, using the 8-position browning indicator.
- The green light is an indicator that the waffle maker is ready to use.
The green light goes out and lights up again regularly during the cooking process, to show that the selected temperature is maintained. Caution: this does not indicate that the waffle is cooked.
Depending on the type of batter used, cooking cycle times will vary.
- Some steam will be produced during cooking cycles, this is normal and allows for a fuller waffle. During the cooking cycle, the top of the waffle maker will drift upward, allowing the waffle batter to fully expand into the plate cavities. Do not impede this movement. Never lock the waffle maker when in use.
Cooking time depends on the kind and the quantity of batter used in the waffle maker. Cooking time typically takes 3 to 5 minutes.

AFTER USE

Place the thermostat in the mini position
Unplug the electrical cord from the wall socket.
Leave the appliance open to allow it to cool.
- Do not pour very cold water into the waffle maker when it is hot.
Clean the body of the appliance using a sponge and washing-up liquid.
To clean the waffle plates:

• once the appliance is cold, brush with a non metal brush to remove any crumbs.
• rinse the plates with a damp sponge, then wipe with a soft cloth.
• wash the excess batter tray under water with a sponge and washing-up liquid.

This appliance is not dishwasher safe.
- Do not use a scouring pad or scouring powder.
- Do not immerse the appliance in water.
- Never immerse the appliance or electrical cord in water.

STORING

The appliance can be stored vertically to save space.
Use the locks to store the waffle maker in a vertical position - 10 or when moving the waffle maker.
- Close the appliance and lock it shut with the closing clip.
Wind the electrical cord in the space designed for storage.

RECIPE

Traditional waffle

A superb recipe for thick and copious waffles.

Thermostat setting 8

Cooking time: approximately 3 min 30 to 4 min 30 For approximately 12 waffles.

Ingredients:

• 300g plain flour,
• 10g (2 teaspoons) baking powder,
• pinch salt,
• 75 g sugar,
• 100g melted butter,
• 2 eggs,

• 1/2 litre milk.

• Combine the flour and baking powder in a bowl.

• Make a well in the centre and add the salt, sugar, melted butter and eggs.
  Gradually add the milk.
• Let the mixture stand for 1 hour, then pour it into the waffle maker with the ladle - E: 4 ladles filled up to the line (5 mm from the edge) - 8.
• Close the waffle maker and cook for the recommended time. Once the waffles are golden brown, put them on a plate and enjoy them sprinkled with icing sugar.

Waffles are perfect with melted chocolate, whipped cream, jam, a bowl of ice cream or strawberries – the choice is yours.

If you have any problem or queries please contact our Helpline:

0845 602 1454 - UK - [phone] - ROI

or consult our web site www.krups.co.uk

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

Pour the batter with the ladle - E into each waffle plate.
