USER MANUAL KM8105 KRUPS

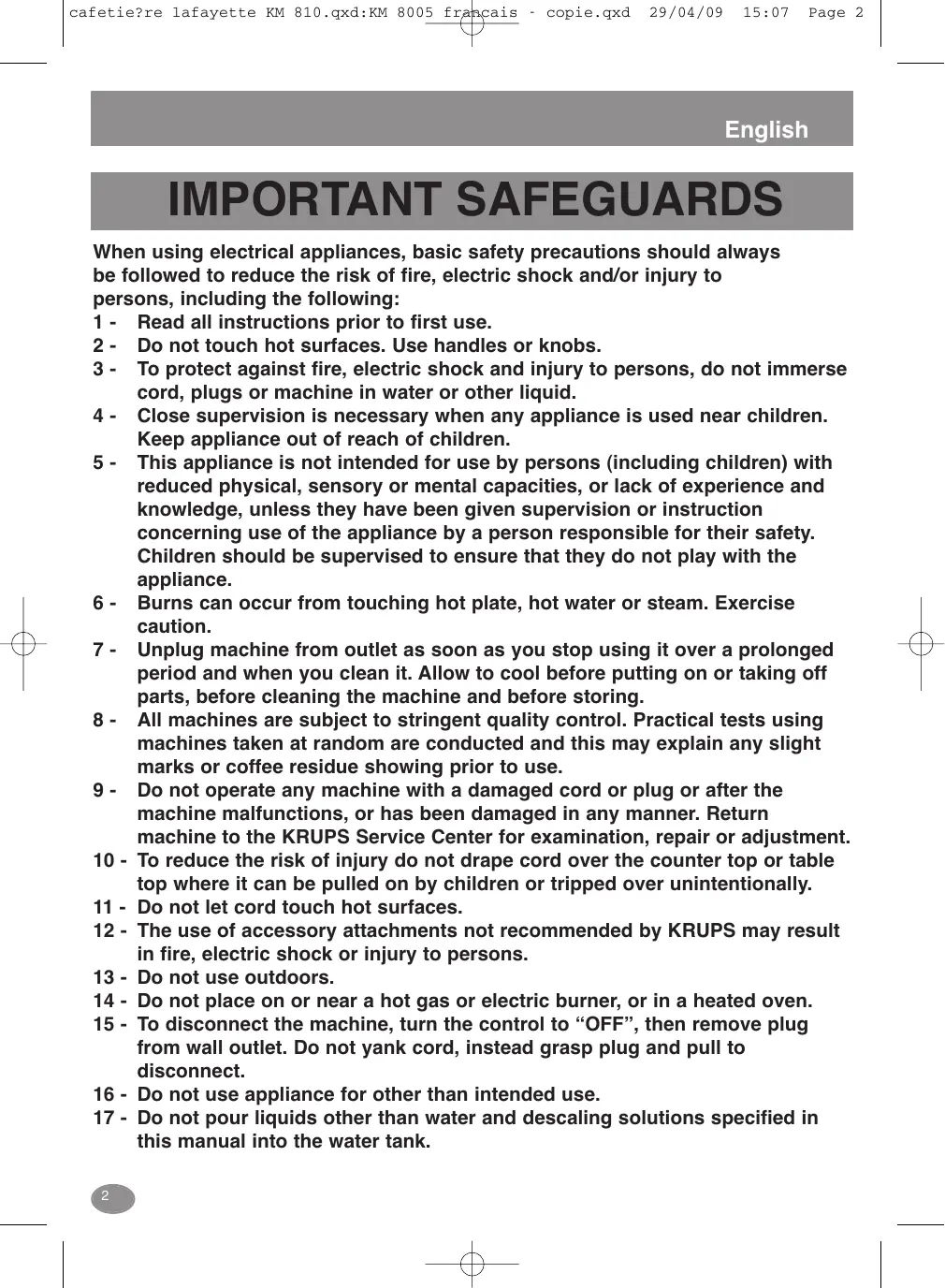

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock and/or injury to persons, including the following:

1 - Read all instructions prior to first use.

2 - Do not touch hot surfaces. Use handles or knobs.

3 - To protect against fire, electric shock and injury to persons, do not immerse

cord, plugs or machine in water or other liquid.

4 - Close supervision is necessary when any appliance is used near children.

Keep appliance out of reach of children.

5 - This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

6 - Burns can occur from touching hot plate, hot water or steam. Exercise

7 - Unplug machine from outlet as soon as you stop using it over a prolonged

period and when you clean it. Allow to cool before putting on or taking off parts, before cleaning the machine and before storing.

8 - All machines are subject to stringent quality control. Practical tests using

machines taken at random are conducted and this may explain any slight marks or coffee residue showing prior to use.

9 - Do not operate any machine with a damaged cord or plug or after the

machine malfunctions, or has been damaged in any manner. Return machine to the KRUPS Service Center for examination, repair or adjustment.

10 - To reduce the risk of injury do not drape cord over the counter top or table

top where it can be pulled on by children or tripped over unintentionally.

11 - Do not let cord touch hot surfaces.

12 - The use of accessory attachments not recommended by KRUPS may result

in fire, electric shock or injury to persons.

13 - Do not use outdoors.

14 - Do not place on or near a hot gas or electric burner, or in a heated oven.

15 - To disconnect the machine, turn the control to “OFF”, then remove plug

from wall outlet. Do not yank cord, instead grasp plug and pull to disconnect.

16 - Do not use appliance for other than intended use.

17 - Do not pour liquids other than water and descaling solutions specified in

this manual into the water tank.

Protect the machine against humidity and freezing. This machine is for household use only. Do not immerse in water. Do not pour water into the appliance if it is still hot. Always close the lid (a) when running the coffee maker. Always place your coffee maker on a flat, stable, heat resistant work surface away from water splashes and any external sources of heat. Glass carafe or insulated pot: A. The carafe is designed for use only with this appliance. It must never be used on a range top. B. Do not set a hot carafe on a wet or cold surface. C. Do not use a cracked carafe or a carafe having a loose or weakened handle. D. Do not clean carafe with harsh cleansers, steel wool pads, or other abrasive materials. E. Do not use the carafe or the insulated pot over an open flame, on an electric stovetop or in an oven. F. Never place your carafe or your insulated pot in a microwave oven, in a dishwasher or on a cooking hob. G. Never put your hand inside the insulated pot. H. Do not use the carafe or the insulated pot without the lid. Your appliance is designed for use with the carafe (c) type (glass or thermal) it was purchased with. Do not use thermal carafes on coffeemakers purchased with a glass carafe and vice versa.

SAVE THESE INSTRUCTIONS

This machine is for household use only. Any servicing other than cleaning and user maintenance should be performed by the nearest authorized Krups Service Center. Visit our website at www.krups.com or contact our Consumer Service department for the service center nearest to you. To reduce the risk of fire or electric shock, do not dismantle the machine. Repairs should be done by an authorized Krups Service Center only.

SHORT CORD INSTRUCTIONS

A. We do not recommend using an extension cord with this device. B. If an extension cord is absolutely necessary :

1 - the marked electrical rating of the extension cord should be at least as

great as the electrical rating of the machine.

2 - the longer cord should be arranged so that it will not drape over the

counter top or table top where it can be pulled on by children or tripped over. C. This appliance has a 3 prong plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way. In the interest of improving products, Krups reserves the right to change specifications without prior notice.

TABLE OF CONTENTS

Description Using for the first time Making coffee Programming the unit Water filtration Cleaning Descaling Cord storage Accessories Coffee brewing guide Troubleshooting

29/04/09 15:07 Page 5 Removable water tank Command panel Cone filter holder Handle of drawer Drawer Cord storage Heating plate / base (according to model) h Glass carafe or thermal jug (according to model) i Water filter change indicator j Water filter holder k Duo water filter

15:07 Page 6 English DESCRIPTION

29/04/09 Keep Warm Descale Min

Display On/Off button Auto-on brewing button Program button Hours and minutes setting buttons Descale button BREWING COFFEE Brewing delicious coffee is an art and a science. Your machine is designed to deliver the ultimate result in the cup, with that result being highly dependent on 4 basic factors : the water, the coffee, the ratio and the grind. Read more about these important factors on the following pages.

USING FOR THE FIRST TIME

Remove all packaging The water filter holder (j) and cartridge (k) are located inside the water tank (a). Please remove before filling water tank. Before brewing coffee for the first time, follow the steps below and run a brew cycle without coffee and without the DuoFilter (k), to rinse the system. Use a full tank of water. Remove the DuoFilter (k) from its plastic covering. Rinse it under tap water for 1 minute. Unhinge the lower part of the holder and insert the DuoFilter (k) into its housing. Replace the water filter holder (j). The coffee machine is ready to use.

1- Lift the removable water tank (a) from the machine and fill it with the desired

amount of cold water. Use filtered water if possible. (Fig 1a/ Fig 1b) fig. 1a fig. 1b

2- Put the water tank (a) back in place in the machine. Take care to insert it securely.

3- Insert the carafe or thermal jug (h) on its plate/base (g). Be sure that the

carafe or thermal jug (h) sits flat and level on the heating plate (g) before starting the brew cycle. Note : If you use the carafe (h) to fill the tank with cold water rinse the carafe (h) with hot water before starting the brew cycle. This will help raise the temperature of the coffee in the carafe (h).

4- Open the drawer (e) and add paper or permanent filter to the brew basket.

Krups original accessories: -#4 paper filters 100-pack. Item # 983 -#4 size gold tone filter. Item # 049 fig. 8

5- Add ground coffee to the basket.

- Measure maximum one rounded coffee scoop per 5 oz. cup of water. - This simple step is critical to the taste of your brewed coffee. - See your brewing guide on page 13 for more detail.

6- Close completely the drawer (e).

As it closes you will feel a magnet secure the draw in place. The machine will not brew if the drawer is not fully closed. fig. 3

7- For immediate brewing, press the ON/OFF button (m) and the brew cycle will begin.

The On/Off button (m) will glow red while the machine is brewing and stay lighted for 2 hours while the coffee is kept warm on the heating plate (g). To use the Auto-On function, see the section “Programming your coffee machine”. Real time clock is displayed on (l). By default setting, 0:00 is showed. DURING THE BREW CYCLE STEAM RISES FROM THE TOP OF THE MACHINE. BE CAREFUL TO KEEP HANDS AWAY FROM THIS AREA UNTIL AFTER THE BREW CYCLE IS COMPLETED ! Auto-Off Function: The heating plate (g) will maintain the temperature in the carafe (h) for 2 hours after which the machine shuts off automatically. This is for safety and convenience. The auto-off time can be adjusted from 30 minutes up to 3 hours in 30 minutes intervals. See page 10 –Programming the machine. For best results brew only as much coffee as you will drink within 30-60 minutes. Pause and Serve Feature: You can remove the carafe (h) during the brew cycles to pour an early cup. Keep in mind that this will change the taste you would normally get from a full pot in a complete cycle. Be sure to replace the carafe (h) quickly to avoid overflow during the brew cycle.

Warning Put the carafe or thermal jug (h) on its plate/base (g) within a maximum of 20 seconds. Hot water continues to drip in the filter holder (c) when the carafe (h) is removed. The overflow of coffee and hot water could cause burns. Do not exceed the maximum capacity of the water tank (a) as shown by the Maxi level written on the water tank. Place the ground coffee into the paper filter or directly into a permanent filter. After use, discard the grounds, and rinse the cone filter holder (c) under running water. When the machine is hot, do not touch the drawer as the surface may be hot. Use the drawer handle.

PROGRAMMING THE UNIT

1 - Adjusting the Time

• Set the clock time by pressing the « h » and « min » buttons (p). To switch between “AM/PM” and 24 hour mode press simultaneously “h” and “min” buttons.

2 - Auto-On setting

• The machine must be in stand by mode, i.e. power on and default time is displayed.
• Press the Program button (o) once, « program » is displayed steady and “9:99” blinks on display (l).
• Press the « H » and « min » buttons (p) to set a time for the machine to brew automatically.
• Press the Program button (o) when done. If no button are pressed for several seconds the programmed start time will be accepted automatically and the display will return to stand by mode showing the real time clock. fig. 6 After programming the automatic start time as described above, be sure to prepare the machine for a brew cycle with water in the tank, coffee in the brew basket and carafe securely in place. Press Auto-On button (n), the machine will brew automatically at the desired time. You can check preset time by pressing the Program button (o). The program will need to be activated when needed again.

By pressing the Program button (o) more than 2s, in real clock time, you can disable the Auto-On by hitting the Auto-On button. Press the Program button (o) twice, “keep warm” is displayed steady and “2:00” blinks on display (l). Use the “H” and “min” buttons (p) to change between 0H30 and 3H00 by step of 0H30. Press the Program button (o) when done.

WATER FILTRATION Krups DuoFilter water filtration system: Vegetable based carbon and resin components provide double acting anti-chlorine and anti-scale filtration. These proporties combine to protect the most delicate flavors in your coffee as well as protecting the machine’s brewing system from the harmful effects of scale. Please review the the section on descaling on page 12. Note: the rotary indicator (i) on the top of the water filter holder (j) can be used as a reminder to change the water filter. Turn the indicator to the month the filter should be changed, referring to the chart below. Example: if you install a new DuoFilter (k) in January (1) you should set the indicator (k) to March (3) or May (5), depending on the hardness of your local water supply: position the number 3 or 5 opposite the index mark. Water type Soft water Hard water Uses Replace Duo Filter every : about 80 2 months about 120 4 months Important:

• The DuoFilter (k) must only be used with water.
• The coffee machine still functions if the water filter is not in place.
• If the coffee machine has not been used for more than one month, rinse the DuoFilter (k) under running water.

It is recommended not to leave the DuoFilter (k) in place for more than 5 months. CLEANING Turn off the coffee machine and remove the plug from the outlet. Do not clean the coffee machine when it is hot. Never immerse the coffee machine in water or put it under running water.

• Clean the body of the coffee machine with a damp cloth or sponge.
• Open the drawer (e), remove the paper or permanent filter. The filter holder (c) can be washed in warm soapy water and rinsed thoroughly, or cleaned in the upper rack of a dishwasher. Note : It is important to regularly clean all components that are contacted by the coffee.The natural oils in coffee can accumulate on these surfaces and quickly begin to contribute unwanted stale flavors to the brew.
• We recommend washing carafes (h) by hand with a mild detergent.
• Do not use scouring agents or harsh cleansers on any part of the coffee machine. fig. 8

DESCALING Your coffee machine should be descaled regularly. The machine tracks the number of brewing cycles and automatically reminds you when it is time to descale. Note : visit www.krupsonlinestore.com for approved descaling products when the descale icon appear on the display:

• Remove the permanent filter (if applicable) from the brew basket. Do not put ground coffee in the filter basket.
• Remove water filtration system from tank.
• Depending on the directions for your descaling product, fill the tank about 1/2 full, add the descaling powder and stir to dissolve.

Press “ON” and let 1/2 of the water to run through and into the carafe, then turn the machine off. fig. 7

Page 13 Let it stand in the machine for 20-30 minutes. Turn the machine on again and let the rest of the water run through. Discard the water and run at least 2 cycles with clear water to rinse. Unused cord can be stored inside the coffee maker (f). Simply push the extra length of cord into the storage compartiment in the back of the machine. ACCESSORIES Accessories can be purchased at many retail stores, or by calling your respective countries consumer service department.

• Duo Filter water filtration cartridges - pack of 2: F472
• Krups descaling solution: F054
• Krups # 4 paper filters : item 983
• Glass carafe or thermal jug

COFFEE BREWING GUIDE

29/04/09 15:07 Page 14 English THE COFFEE Choose your beans wisely. It is best to use premium whole beans from a trusted brand or roaster. Arabica beans provide the best flavors and have less caffeine, while Robusta beans are easier to grow and less expensive, they have less flavor and higher caffeine content. Robusta beans are sometimes used in blends to add a particular bitterness to the brew. Beans can be roasted very lightly to provide a smooth aromatic taste or roasted dark to provide stronger flavors, and anywhere in between. A good roaster will be able to describe the flavors that the beans will impart to your brewed coffee. Note: experiment with different beans and different roasts to identify one or several that suit your tastes. THE RATIO The amount of ground coffee must be carefully measured against the volume of water for each brew cycle. It is important to use enough coffee to avoid over extraction. A small amount of coffee would be overwhelmed by a large volume of hot water. The carafe measures “cups” as 5 oz each. Maximum capacity is slightly more than 50 oz total water volume before brewing. The volume of brewed coffee will be slightly less because the ground coffee will absorb a certain amount. Krups recommends using 7 grams of ground coffee per 5 oz cup of water. 7 grams can be measured in one rounded tablespoon. If the resulting brew seems too strong you can adjust by using slightly less ground coffee. If you prefer a much lighter taste it is best to brew at the recommended ratio and dilute the resulting brew with a measure of hot water. This allows the best flavor to be extracted from the beans while avoiding over extraction of too small an amount of ground coffee.

The water is a critical factor in the taste of your brewed coffee. Filtered water is normally the best choice to help avoid the minerals and chlorine that can be found in municipal water systems. However if your water tastes good then it should be good for four coffee. Never pour milk, prepared coffee, tea, etc. into a water tank (a). THE GRIND The method of grinding and the level of fineness of the grind have a significant impact on the resulting taste of the brewed coffee. Ideally you should grind fresh roasted whole beans just before brewing. Be aware that this machine is set to brew the most common grinds found on store shelves. Typically pre-ground coffees are of a similar size, medium-coarse. A very fine grind will produce much stronger flavors but risks becoming extracted during the brew cycle producing a more bitter taste. You can learn more about coffee grinding and about Krups range of grinders at our website www.krupsusa.com.

The coffee does not brew or the machine does not switch on.

15:07 Page 16 English TROUBLESHOOTING PROBLEM 29/04/09 Appliance appears to be leaking.

It takes a long time to brew.

SOLUTION Check to ensure the appliance is plugged into a working outlet, and the appliance is in the «ON» position. The water tank (a) is empty or is missing. There was a power failure. There was a power surge. Unplug the machine, then plug it back in. The clock must be reset after a power failure. The Auto-Off function switches off the coffee maker. Switch off the coffee maker then switch it back on to make more coffee. For more information, refer to the section « Making coffee ». Water tank (a) is not in place. Drawer is not closed properly. Drawer has been opened during brewing : press On/Off button (m) to restart. Make sure that the water tank (a) has not been filled beyond the max. fill level. It may be time to descale your coffee maker.

• Numerous minerals may accumulate in the coffee maker’s circuit. Periodic descaling of the machine is recommended. More frequent descaling may be necessary depending on the hardness of the water. For more information, refer to the “Descaling” section. NOTE: do not dismantle the machine. The filter holder (c) overflows or the coffee drips too slowly.

The coffee has a bad taste.

With machine equipped with a thermal carafe (h), the coffee temperature is too low.

29/04/09 SOLUTION 15:07 Page 17 English Excessive amount of coffee. We recommend that you use one measuring spoon or one tablespoon of coffee ground per cup. Coffee ground too fine (unsuitable for an automatic coffee maker). The carafe (h) is not well positioned on the hot plate (g). The carafe (h) was removed for more than 20 seconds during brewing and was not correctly put back on the hot plate (g). Some coffee grounds have seeped in between the paper filter and the filter holder (c). The paper filter is not open or is incorrectly positioned. Rinse out the filter holder (c) before putting in the paper filter so that its edges stick to the damp sides of the filter. The coffee maker needs to be cleaned. The coffee grounds are not suited to your coffee maker. The proportion of coffee to water is inadequate. Adjust it to suit your taste. The quality and freshness of the coffee are not optimal. Poor-quality water. Use filtered or bottled water. Read our Coffee Brewing Guide on page 13. Warm the thermal carafe (h) by rinsing with hot water just before brewing. Remove the thermal carafe from the machine after brewing is complete. If your appliance still does not work, please call your respective countries consumer service department.

This Krups’ product is warranted for 1 year from the date of purchase against defects in material and workmanship. During this period, the Krups’ product that, upon inspection by Krups, is proved defective, will be repaired or replaced, at Krups’ option, without charge to the customer. If a replacement product is sent, it will carry the remaining warranty of the original product. This warranty does not apply to any defect arising from a buyer’s or user’s misuse of the product, negligence, failure to follow Krups’ instructions, use on current or voltage other than that stamped on the product, wear and tear, alteration or repair not authorized by Krups, or use for commercial purposes, or appliances not descaled or specified. THE WARRANTIES SET FORTH HEREIN ARE EXCLUSIVE AND NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE, ARE MADE BY KRUPS OR ARE AUTHORIZED TO BE MADE WITH RESPECT TO THE PRODUCT. Some states do not allow limitation on how long an implied warranty lasts or do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. If you believe your product is defective, take the product (or send it postage prepaid) along with proof of purchase to the nearest authorized Krups Service Center. (To find the nearest authorized Krups Service Center visit the Krups website or contact the Krups Consumer Service in your country indicated below). If you send the product, please include a letter explaining the nature of the claimed defect. Krups Service Centre locations can be found by visiting the website www.krupsUSA.com in the USA or www.krups.ca in Canada. When shipping the product to the service center please include a note explaining the issue, a copy of the sales receipt and provide a valid return address on the outside of the shipping box (no PO Boxes). If the product is out of warranty or warranty can’t be validated, the service center will send an estimate of repair for your approval. CONSUMER SERVICE If you have additional questions, please call our Consumer Service Department. It is helpful to have the product available at the time of your call and to know the reference number that can generally be found on the base of the product. USA Phone 1-800-526-5377 Hours* Monday – Friday from 8:00 a.m. – 6:30 p.m. (EST) Letters should be addressed to Groupe SEB – 2121 Eden Road Millville NJ, 08332 Only letters can be accepted at this address. Packages without a return authorization number will be refused. CANADA Phone 1-800-418-3325 Hours* Monday – Friday 8:30 a.m. – 4:30 p.m. (EST) Letters should be addressed to Groupe SEB Canada Inc. 345 Passmore Avenue Toronto, Ontario Canada, M1V 3N8 *Please note hours are subject to change.
