USER MANUAL ORCHESTRO 889 KRUPS

IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following: ● Read all instructions and information in this instruction book and any other literature included in this carton referring to this product before operating or using this appliance. ● Do not touch hot surfaces. Use handles or knobs. ● To protect against fire, electric shock and personal injury do not immerse cord, plugs, or appliance in water or other liquid. ● Close supervision is necessary when any appliance is used by or near children. ● Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance. ● Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Call KRUPS Consumer Service Department (see GUARANTEE OF PERFORMANCE) for repair procedure. ● The use of accessory attachments not recommended or sold by KRUPS may result in fire, electric shock or personal injury. ● Do not use outdoors. ● Do not let cord hang over edge of table or counter, or touch hot surfaces. ● Do not place on or near a hot gas or electric burner, or in a heated oven. ● Plug cord into the wall outlet. To disconnect, turn any control to “off“, then remove plug from wall outlet. ● This appliance is for household use only. Any servicing other than cleaning should be performed by KRUPS. ● Use extreme caution when disposing hot steam.

SAVE THESE INSTRUCTIONS

CAUTION This appliance is for household use. Any servicing other, than cleaning and user maintenance should be performed by an authorized service representative. ● Do not immerse appliance in water or try to disassemble. ● To reduce the risk of fire or electric shock, do not remove the base. No user serviceable parts inside. Repair should be done by authorized service personnel only. ● Check voltage to be sure that the voltage indicated on the name plate agrees with your voltage. ● Never use warm or hot water to fill the water container! Use cold water only! ● Keep your hands and the cord away from hot parts of the appliance during operation. ● Never clean with scouring powders or hard implements.

SPECIAL CORD SET INSTRUCTIONS

Regarding your Cord Set: A. A short power-supply cord (or detachable power-supply cord) is to be provided to reduce risks resulting from becoming entangled in or tripping over a longer cord. B. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. C. If a long detachable power-supply cord or extension cord is used, (1) the marked electrical rating of the detachable powersupply cord or extension cord should be at least as great as the electrical rating of the appliance, (2) if the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and (3) the longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over. D. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

Appliance parts Description a: drawer a: bac b: base grid d: drawer attachment e: spent coffee holder g: outlet height regulator coffee feed funnel

plateau repose tasses m: grinding setter n: coffee-bean container o: steam nozzle o: buse vapeur p: frothing aid p: accessoire cappuccino q: mains flex and storage compartment Operating keys and indicators a: key and indicator “ON/OFF b: key and indicator “rinse” c: key and indicator “1 cup normal” d: key and indicator “1 cup strong” e: key and indicator “2 cups” f: key and indicator “coffeemeal” g: indicator “empty spent coffee holder” h: indicator “fill water tank” i: indicator “remove limescale” j: indicator “clean appliance” k: regulator knob for cup fillquantity

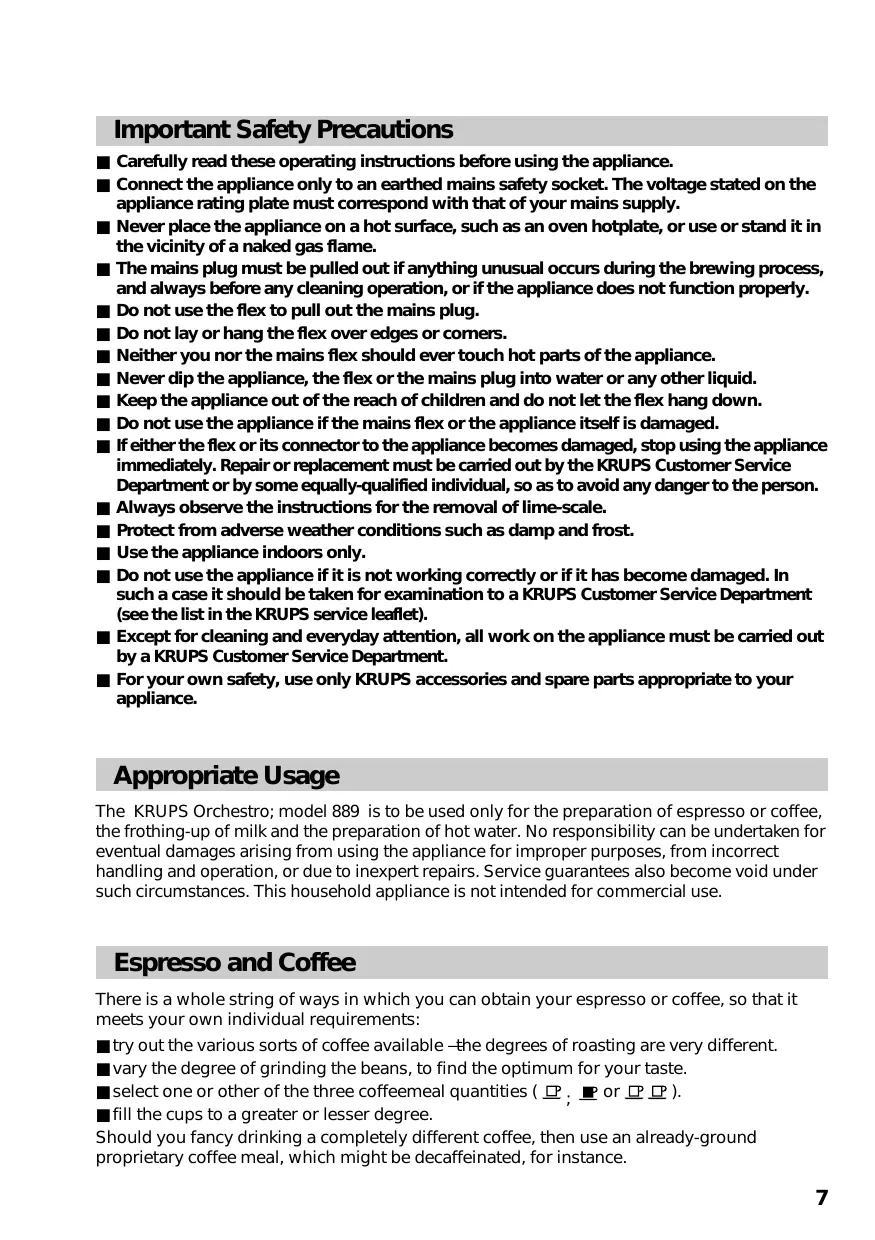

Important Safety Precautions ■ Carefully read these operating instructions before using the appliance. ■ Connect the appliance only to an earthed mains safety socket. The voltage stated on the appliance rating plate must correspond with that of your mains supply. ■ Never place the appliance on a hot surface, such as an oven hotplate, or use or stand it in the vicinity of a naked gas flame. ■ The mains plug must be pulled out if anything unusual occurs during the brewing process, and always before any cleaning operation, or if the appliance does not function properly. ■ Do not use the flex to pull out the mains plug. ■ Do not lay or hang the flex over edges or corners. ■ Neither you nor the mains flex should ever touch hot parts of the appliance. ■ Never dip the appliance, the flex or the mains plug into water or any other liquid. ■ Keep the appliance out of the reach of children and do not let the flex hang down. ■ Do not use the appliance if the mains flex or the appliance itself is damaged. ■ If either the flex or its connector to the appliance becomes damaged, stop using the appliance immediately. Repair or replacement must be carried out by the KRUPS Customer Service Department or by some equally-qualified individual, so as to avoid any danger to the person. ■ Always observe the instructions for the removal of lime-scale. ■ Protect from adverse weather conditions such as damp and frost. ■ Use the appliance indoors only. ■ Do not use the appliance if it is not working correctly or if it has become damaged. In such a case it should be taken for examination to a KRUPS Customer Service Department (see the list in the KRUPS service leaflet). ■ Except for cleaning and everyday attention, all work on the appliance must be carried out by a KRUPS Customer Service Department. ■ For your own safety, use only KRUPS accessories and spare parts appropriate to your appliance. Appropriate Usage The KRUPS Orchestro; model 889 is to be used only for the preparation of espresso or coffee, the frothing-up of milk and the preparation of hot water. No responsibility can be undertaken for eventual damages arising from using the appliance for improper purposes, from incorrect handling and operation, or due to inexpert repairs. Service guarantees also become void under such circumstances. This household appliance is not intended for commercial use. Espresso and Coffee There is a whole string of ways in which you can obtain your espresso or coffee, so that it meets your own individual requirements: ■ try out the various sorts of coffee available — the degrees of roasting are very different. ■ vary the degree of grinding the beans, to find the optimum for your taste. ■ select one or other of the three coffeemeal quantities (

■ fill the cups to a greater or lesser degree. Should you fancy drinking a completely different coffee, then use an already-ground proprietary coffee meal, which might be decaffeinated, for instance.

appliance indicator(s) Before first use ■ Remove the protective foil from the base grid. ■ Remove the strip of paper from the filling funnel of the coffee-beans container. Determining the hardness of the water Before using for the first time or after a change in the hardness of the water, it is necessary to adjust the appliance to the appropriate degree of hardness. You can either find out the water hardness by asking the local water authority or you can determine it by using the test piece in stick form supplied with the appliance. Immerse the test stick in cold water for one second. Shake off the surplus water and determine the hardness by observing the pink-coloured area. Degree of hardness

very soft soft medium hard hard very hard Setting and memorising the water hardness You can set any one of 5 levels of hardness. Appliances are sent out from the factory set to hardness level 3. ■ Plug in at the mains socket, but leave the appliance switched off. The setting of the hardness level is shown by the blinking of the “remove lime-scale” indicator:

■ Press the key for about 3 seconds (1). Upon setting the hardness for the first time, the works setting of level 3 will be shown by the blinking of the “remove lime-scale” indicator and the glowing of the “1 cup normal”, “1 cup strong” and “2 cups” indicators.

appliance indicator(s)

■ Set the hardness level according to the previously determined degree by pressing the key the appropriate number of times (2). The hardness level which has been set will be shown by the number of the following which glow; “remove lime-scale”; “1 cup normal”; ”1 cup strong”; “2 cups”; “coffee-meal”. Example: hardness level 4 Hardness level

Blink appliance Indicators Glow

■ Save the hardness level in the memory by pressing the key (3). If no further hardness setting is made for a period of 30 seconds, the various indicators will cease to glow and the last memorized hardness setting will have been recorded. This memorised setting will remain unchanged even if there is an electricity supply failure. Setting the switch-off mechanism You can set the automatic switch-off period to 1 hour, 3 hours or 5 hours. Alternatively you can de-activate the automatic switch-off mechanism. Appliances are sent out from the factory set to 5 hours. Dependant upon the time period setting, the appliance will switch off automatically that period of time after the last preparation of coffee. The setting of the automatic switch-off will be shown by the alternate blinking of the “fill water tank”; “clean appliance” and the “empty spent coffee holder”; “remove lime-scale” indicators.

appliance indicator(s)

■ Plug in at the mains socket, but leave the appliance switched off. ■ Press the key for about 3 seconds (4). Upon setting the switch-off period for the first time, the factory setting of 5 hours will be shown by the alternate blinking of the “fill water tank”; “clean appliance” and the “empty coffee grounds”; “remove lime-scale” indicators, together with the glowing of the “rinse”, “1 cup normal”, “1 cup strong”, “2 cups” and “coffeemeal” indicators.

■ Set the switch-off period by pressing the key the appropriate number of times (5). The switch-off period which has been set will be shown by the glowing of the “rinse”, “1 cup normal”, “1 cup strong”, “2 cups” and “coffeemeal” indicators. Example: Switch-off period 3 hours. Switch-off period 1hour 3hours 5hours alternate blinking OFF glowing appliance indicators

■ Save the switch-off time in the memory by pressing the key (6). If no further switch-off period setting is made for a period of 30 seconds, the various indicators will cease to glow and the desired switch-off period setting will have been recorded. This memorised setting will remain unchanged even if there is an electricity supply failure.

appliance indicator(s) Preparing the appliance

■ Open the lid of the water tank and take out the water tank (7). ■ Pour fresh, cold water into the water tank until the float in the tank has at least reached the upper position (8). Do not put hot water, mineral water or milk into the water tank. ■ Replace the water tank, pressing it down firmly, so that the base valve opens.

■ Shut the water tank lid. If, when the appliance is switched on, the water tank is missing or further water should be added, the “fill water tank” indicator will glow and the preparation of espresso or coffee will be temporarily prevented. The “fill water tank” indicator will glow before the water tank is quite empty, which ensures, that the current espresso or coffee preparation can be completed and not broken off.

■ Open the lid of the coffee-bean container. ■ Put either espresso- or coffee-beans into the bean container (max 250 g) (9). Caution! Make sure that no foreign bodies, such as small stones amongst the coffee beans, get into the bean container. Any damages due to such foreign bodies getting into the coffee-mill are excluded from the guarantee. ■ Close the lid.

appliance indicator(s) Filling the heating system

■ Place a receptacle underneath the steam nozzle Make sure that the knob for steam/hot water is at the position. ■ Press the key for about one second (10). During the first usage, or when all the steam in the heating system has run out, the “ON/OFF” and “steam” indicators will both blink. ■ Turn the knob for steam/hot water to the position (11a). The pump now supplies water to fill the heating system and the “ON/OFF” indicator will glow. The outflow of water will be stopped automatically. ■ Turn the knob back to the position (11b) and remove the receptacle. 11a 11b Rinsing the system

■ Switch on the appliance by pressing the key. The “ON/OFF“ indicator will blink while the appliance is heating up. When the operating temperature has been reached, the “ON/OFF” and the “rinse” indicators will glow. ■ Place a receptacle beneath the espresso delivery pipe and press the key (12). The rinsing operation will stop automatically. Rinsing will be called for each time the appliance is switched on if the temperature is currently too low or if the correct working temperature has not yet been reached.

appliance indicator(s)

Setting the Grinder You can vary the coarseness of the grinding. A finer setting is usually preferable for lightlyroasted beans and a coarser one for those which are strongly roasted. Appliances are sent out from the factory with a medium setting. ■ Set the desired degree of coarseness (13). Clockwise = coarser grains Anticlockwise = finer grains Caution! The setting is to be varied only during the grinding operation.

Setting the cup-filling quantity You can determine the amount of espresso or coffee to be filled into the cups by using the cupfill regulator knob (14). Setting = a small espresso or coffee. Setting = a large espresso or coffee. ■ Turn the knob to the desired position before preparing espresso or coffee. Note: The knob can also be used to vary the fill-amount during the actual preparation of espresso or coffee. If you want to set the quantity of espresso or coffee for a particular size of cup, then turn the cup-fill knob before the operation to the position and then prepare the espresso or coffee. When the cup is sufficiently full, turn the knob in the flow of liquid stops. direction until the The quantity for two cups is always automatically twice as much as for one cup.

appliance indicator(s) Preparation of espresso and coffee Using coffee beans You have already prepared the appliance. When the rinsing process is finished, the following lamps will glow: “rinse”; “1 cup normal”; “1 cup strong”; “2 cups”; “coffee-meal”. ■ Place one or two cups beneath the espresso delivery pipe. You can raise or lower the delivery pipe to suit the size of your cups (15).

■ Select the desired

key (15). The mill will grind the required amount of coffeemeal. (Remember that you can change the degree of coarseness during the actual grinding). Following this, the coffee-meal will be moistened with a little water for the prebrew. After a short pause, the proper brewing operation will be carried out. Note: If you press the key, you will obtain one cup of strong espresso or coffee. The simultaneous preparation of two cups of strong espresso or coffee is not possible. If you accidentally actuate the key, you can cancel the action by pressing the or the key. Place a receptacle beneath the espresso delivery pipe, however, as a little water will run out. Using ready-ground coffee-meal You have already prepared the appliance. When the rinsing process is finished, the following lamps will glow: “rinse”; “1 cup normal”; “1 cup strong”; “2 cups”; “coffee-meal”.

■ Open the lid of the coffee feed funnel and put in one or two level measuring spoonfuls of espresso- or coffee-meal (16). ■ Press the key (17a). The “coffee-meal” indicator will blink and the “1 cup normal” and “2 cups” indicators will glow. ■ Now select and press the required (17b). 17a

Caution! Do not put more than two level measuring spoonfuls into the feed funnel. The funnel is not a storage receptacle. Neither should you put in less than one level measuring spoonful, otherwise the espresso or coffee delivery will be automatically interrupted. Use only ground coffee-beans and not instant coffee or drink powders. appliance indicator(s) Breaking off the brewing process If you wish to break off the brewing process before it is completed, actuate any one of the following keys:

The process then will be stopped and the spent coffee automatically thrown out. Emptying the spent coffee holder and the drawer The spent coffee holder receives the used coffee-meal and the drawer takes up any remaining water.

■ If the “empty spent coffee holder” indicator glows, raise the drawer slightly and then pull it out (18). Empty both the spent coffee holder and the drawer. The “empty spent coffee holder” indicator will blink if the drawer is either not inserted or if it is not correctly located. Note: Whilst the “empty spent coffee holder” indicator is glowing or blinking, it is not possible to prepare espresso or coffee. ■ Empty the drawer when the drawer-float has risen to the mark (19).

Note: When you remove the drawer together with the spent coffee holder from the appliance before the “coffee grounds holder” indicator begins to glow, always empty the spent coffee holder, as the next indicator otherwise follows too late and the holder could overflow. Preparation of steam Steam can be used for frothing up milk for cappuccino and also for the heating of liquids. Since the production of steam requires a higher temperature than that for the preparation of espresso, the appliance is furnished with an additional pre-heating phase for steam.

■ Press the steam pre-selector key for about one second (20), whereupon the “steam” indicator will blink. When the preheating phase is completed, the “steam” indicator will glow and you can commence the production of steam.

appliance indicator(s) Due to the nature of the system, a little water will run out of the steam nozzle before each time steam is produced. Proceed therefore as follows:

■ Place a separate receptacle beneath the steam nozzle and turn the selector knob for steam/hot water to the position (21). ■ As soon as steam issues from the nozzle, turn the selector knob back to the position and remove the receptacle. Frothing up milk for cappuccino A cappuccino consists of 1/3 each of espresso, milk and milk-froth. Fill a large cup 1/3 with espresso. Then froth up the milk for the cappuccino. Use the separate frothing aid to achieve the optimum result. ■ Push the frothing aid onto the steam nozzle. Note: Use the frothing aid only for the frothing-up of milk. ■ Pour about 100 ml of low-fat milk into a small, narrow jug of not more than

0.5 litre capacity which will fit below the steam nozzle of the appliance.

Note: The milk should be well-cooled and the jug used should also be cold, so do not rinse it first in warm water. ■ Hold the jug under the frothing aid in such a way, that the nozzle section dips completely into the milk. ■ Turn the selector knob for steam/hot water to the

position (22). Hold the jug steady during the frothing operation and do not allow the nozzle to touch the bottom of the jug, so as not to impede the outflow of steam. ■ After the frothing operation, turn the knob for steam/hot water to the position and remove the receptacle. Then add the milk and the milkfroth to the espresso. ■ Clean the frothing aid and the steam nozzle with a moist cloth immediately after the frothing operation is finished. ■ To remove any eventual residue of milk from the steam nozzle, place a receptacle beneath the nozzle and turn the knob for steam/hot water to the position for just a moment.

appliance indicator(s) Heating liquids ■ Pull off the frothing aid

■ Press the steam pre-selector key (23), whereby the “steam” indicator will blink. When the pre-heating is completed, the “steam” indicator will glow and you can commence the production of steam. ■ Hold the vessel containing the liquid under the steam nozzle and dip the nozzle into the liquid. Turn the selector knob for steam/hot water to the position (24).

■ When the liquid is sufficiently heated, turn the knob back to the position and remove the vessel. ■ Clean the steam nozzle with a moist cloth immediately after the heating operation is finished. ■ To remove any eventual residues from the steam nozzle, place a receptacle beneath the nozzle and turn the knob for steam/hot water to the position for just a moment. Concluding the production of steam The preparedness of the appliance to produce steam can be cancelled in 2 different ways:

1. ■ After steam has been produced, turn the selector knob for steam/hot

water to the position. After about 10 minutes, the appliance will automatically cease to be ready for steam production and the “ON/OFF“and “steam“ indicators will blink.

2. If you want to prepare espresso or coffee immediately after producing

steam: ■ After the steam has been produced, turn the selector knob for steam/hot water to the position. Turn off the steam pre-selection by pressing the steam pre-selector key , whereby the “ON/OFF“ and “steam“ indicators will blink. In order to prepare espresso or coffee as usual, you must either cool down the appliance from the steam temperature to the espresso and coffee temperature, or fill the heating system. ■ Place a receptacle beneath the steam delivery pipe. ■ Turn the selector knob for steam/hot water to the position. The outflow of water will be stopped automatically. ■ Return the selector knob for steam/hot water to the position, whereby the “ON/OFF“, “rinse“, “1 cup normal“, “1 cup strong“, “2 cups“ and “coffee-meal“ indicators will glow. You can then prepare espresso or coffee as usual.

appliance indicator(s) Preparing hot water With this appliance, you can prepare hot water for making instant drinks,etc. ■ Place a cup beneath the steam nozzle and turn the selector knob for steam/hot water to the position. ■ When the cup is sufficiently filled with hot water, return the selector knob to the position. Switching off the appliance ■ Place a receptacle beneath the espresso delivery pipe and press the key. A rinsing operation will then be automatically carried out, after which the appliance will switch itself off. Note: This rinsing operation will also be carried out when the pre-set automatic switch-off mechanism comes into play. Cleaning and general care ■ Always pull out the mains plug before any cleaning operation and allow the appliance to cool down. Do not use any materials which scratch, scrape or corrode. Wipe the casing inside and outside with a moist cloth only. ■ Clean the drawer, drawer attachment, spent coffee holder and base grid with warm water and washing-up liquid (25). ■ Rinse out the water tank with fresh water. ■ Never put the appliance or any of its parts into the dishwasher.

Caution! The steam nozzle can become very hot. Be careful not to burn or scald yourself. Never assemble or disassemble the steam nozzle whilst it is hot. ■ Clean the steam nozzle immediately after the milk-frothing operation by allowing the appliance to produce steam for 1-2 seconds, thus blowing any residue out of the nozzle. Then wipe down the nozzle with a moist cloth. If the nozzle has become blocked, clear it with a needle. Where necessary, the steam nozzle can be screwed out in an anticlockwise direction using the hexagonal key on the measuring spoon, after which it can be thoroughly cleaned (26). After cleaning, screw back the nozzle in a clockwise direction. appliance indicator(s)

The frothing aid can be dismantled in order to clean it thoroughly. ■ Pull the two parts A and C from the metal tube B (27). Rinse all 3 parts in warm water. If the small suction opening in part A has become blocked, you can poke it clear it with the aid of a needle. The cleaning programme You must carry out the cleaning programme after 250 preparations of espresso or coffee, or after 180 rinsing operations. Provided the appliance is switched on, this requirement will be announced by the glowing of the “clean appliance” indicator. Note: You may continue to use the appliance, however, but should carry out the cleaning programme as soon as conveniently possible. Carrying out the cleaning programme The “ON/OFF“ indicator will glow during the cleaning programme. The “clean appliance” indicator will blink whilst the appliance is working and will glow when the cleaning operation is stopped. The mains plug must be inserted, but the appliance must be switched off and the selector knob for steam/hot water must be at the position.

■ Start the cleaning programme by pressing the key for about 3 seconds (28). The “ON/OFF”, “empty spent coffee holder” and “clean appliance” indicators will glow, as will also the “fill water tank” indicator if there is insufficient water in the tank. ■ Empty the drawer and the spent coffee holder and then replace them in the appliance. If necessary, fill the water tank with water. The cleaning programme requires about 1.25 litres of water and the tank must therefore be a good 2/3 full.

■ Replace the water tank in the appliance, whereby the “ON/OFF” and “clean appliance” indicators will glow and the “coffee-meal” indicator will blink. ■ Open the lid of the coffee feed funnel and drop a KRUPS cleaning tablet into the funnel. The lid must remain open during the whole of the cleaning programme (29).

appliance indicator(s)

■ Press the key (30), whereupon the pump will take up water intermittently. After a while, the action will stop and the “empty spent coffee holder” indicator will glow. ■ Take out and empty the drawer with the spent coffee holder. Then replace these parts. The “coffee-meal” indicator will blink. ■ Press the key once again and the cleaning programme will then continue. The “empty spent coffee holder” appears a further twice. After emptying the drawer, continue the cleaning programme by pressing the key. A further rinsing operation is necessary to complete the cleaning programme and the “rinse” indicator will glow. ■ Press the key. After this rinsing operation the cleaning programme is finished and all indicators will be extinguished. ■ Take out the drawer with the base grid and the spent coffee holder. Clean these parts in warm water and washing-up liquid. Then dry the parts and return them to the appliance. The cleaning programme takes about 15 minutes to complete. Caution! Use only KRUPS cleaning tablets. No responsibility can be taken for damage arising from the use of cleaning tablets supplied by other manufacturers. You can obtain KRUPS cleaning tablets from the KRUPS service unit. Note: If at the commencement you have too little water in the water tank, you will be warned by the glowing of the “fill water tank” indicator. Just add sufficient water to the tank and the cleaning process will then automatically continue. Note: If the drawer is inadvertently removed, you will be warned of its absence by the blinking of the “empty spent coffee holder” indicator. Just replace the drawer and the cleaning process will then automatically continue. Note: If the selector knob for steam/hot water is actuated in error, you will be warned by the blinking of the “ON/OFF” and “steam” indicators. Just return the selector knob to the position and the cleaning process will then automatically continue. Note: If during the cleaning programme the key is pressed, or if there should be a power failure, the cleaning programme must be started afresh right from the beginning. In this case you will require a second cleaning tablet.

appliance indicator(s) The lime-scale removal programme The amount of lime-scale deposited is dependent on the hardness of the water used. When it is necessary to carry out lime-scale removal, you will be warned of this when the appliance is switched on by the glowing of the “remove lime-scale” indicator. Note: You can continue to use the appliance, but should carry out the lime-scale removal programme as soon as conveniently possible. Caution! Use only KRUPS lime-scale removal agent or citric acid or tartaric acid. No responsibility can be taken for eventual damage arising from the use of other materials. You can obtain lime-scale removal materials from the KRUPS service unit. Do not under any circumstances use the conventional amidosulphonic acid or any materials containing such acid, as this can damage your appliance. Carefully check the composition of any lime-scale removal materials which you propose to use. Carrying out the lime-scale removal programme During the lime-scale removal process, the “ON/OFF” indicator will glow. The “remove lime-scale” indicator will blink while the appliance is working and will glow if and when the removal programme is stopped. The mains plug must be inserted, but the appliance must be switched off. The selector knob for steam/hot water must be at the position.

■ Start the lime-scale removal programme by pressing the key for about 3 seconds (31). The “ON/OFF”, “empty spent coffee holder” and “remove lime-scale” indicators will glow, as will also the “fill water tank” indicator if there is no or very little water in the tank. ■ Empty the drawer and the spent coffee holder and return them to the appliance. ■ If necessary, empty the water tank. ■ Dissolve 4 level tablespoonfuls (about 40 g) of the lime-scale removal material in 1/2 a litre of lukewarm water and pour the solution into the water tank. ■ Replace the water tank. The “ON/OFF” and “steam” indicators will blink. ■ Place a sufficiently large receptacle (at least 300 ml capacity) beneath the steam pipe.

appliance indicator(s)

■ Turn the selector knob for steam/hot water to the position (32). The de-scaling solution will be pumped intermittently through the steam nozzle. When the steam system is de-scaled, the “empty spent coffee holder” indicator will glow. ■ Take out and empty the drawer with the spent coffee holder. Then replace these parts. The “ON/OFF” and “steam” indicators will blink. ■ Turn the selector knob for steam/hot water to the position. The de-scaling process will now continue and the de-scaling solution will run intermittently into the drawer. ■ When the “fill water tank” and “empty spent coffee holder” glow, rinse out the water tank thoroughly. Fill the tank with fresh water (at least 1 litre a good half tankful) and return it to the appliance. ■ Remove the drawer, empty it and return it to the appliance. The “ON/OFF” and “steam” indicators will blink. ■ Place a sufficiently large receptacle (at least 300 ml capacity) below the steam nozzle (32). ■ Turn the selector knob for steam/hot water to the position (32). The water will be pumped intermittently through the steam nozzle. ■ When the “empty spent coffee holder” indicator glows, take out and empty the drawer with the spent coffee holder. Then replace these parts. The “ON/OFF” and “steam” indicators will blink. ■ Turn the selector knob for steam/hot water to the position. The rinsing procedure will continue and the water will run intermittently into the drawer. ■ When the rinsing operation is completed, the “empty spent coffee holder” indicator will glow. Empty the drawer and replace it. The “ON/OFF” and “rinse” indicators will glow. ■ Place a receptacle beneath the espresso delivery pipe and press the key. After the rinsing operation, all indicators will be extinguished. ■ Remove the drawer with the base grid and spent coffee holder. Clean these parts with warm water and washing-up liquid. Then dry them thoroughly and return them to the appliance. The lime-scale removal programme takes about 25 minutes to complete.

appliance indicator(s) Note: If there is too little water for the rinsing operation in the water tank, the “fill water tank” indicator will glow. Just add sufficient water to the tank and the rinsing process will automatically continue. Note: If the drawer is inadvertently removed, the “empty spent coffee holder” indicator will blink. Just replace the missing drawer and the descaling programme will automatically continue. Note: If the selector knob for steam/hot water is unintentionally actuated, the “ON/OFF” and “steam” indicators will blink. Just turn the knob to the position and the de-scaling programme will automatically continue. Note: If, during the course of the de-scaling programme, the key is pressed, or if there is a power failure, the programme will have to be restarted from the beginning. Driving off steam from the heating system Before you transport the appliance, you must empty the heating system, particularly if there is danger of frost damage. ■ Insert the mains plug, but leave the appliance switched off.

■ Place a receptacle beneath the steam pipe and turn the selector knob for steam/hot water to the position. Then press the steam pre-selector key about 3 seconds (33). for Whilst the steam is being driven off, the steam indicator will blink and the “ON/OFF” indicator will glow. As soon as both indicators are extinguished, turn the selector knob for steam/hot water to the position. Flex storage compartment

Any unnecessary length of flex can be stored in the compartment located at the rear of the appliance (34).

Appliance warning signals, possible causes and remedies Warning signals Causes Remedies Indicators glow ■ The appliance is in readiness to produce steam ■ Actuate the steam key Indicators blink ■ Water tank not correctly inserted or removed during the espresso or coffee preparation ■ Insert water tank correctly and fill the heating system ■ Steam has just been produced ■ Cool down the appliance from steam to the espresso-/coffee temperature or fill the heating system. ■ Selector knob for steam/hot water in the incorrect position ■ Turn the selector knob for steam/ hot water to the correct position Indicators blink ■ 5000 lots of espresso or coffee have been prepared ■ Switch off the indicator or let KRUPS Service Unit carry out maintenance Indicator glows ■ Too little water in the water tank ■ Add further water to the tank ■ The float is defective or stuck ■ Rinse out the tank and, if necessary, remove lime-scale ■ Spent coffee holder full ■ Empty the spent coffee holder ■ Drawer inserted too soon after emptying ■ Wait 10 seconds and then insert ■ “Empty spent coffee holder” indicator appears too soon ■ Empty the spent coffee holder when the appliance is switched off Indicator blinks ■ Drawer is not correctly inserted ■ Insert the drawer correctly Indicators blink alternate ■ Allow the appliance to stand for about an hour at room temperature ■ Various causes ■ Switch off the appliance, pull out the mains plug and switch on again after an hour Indicator glows ■ Let KRUPS Service Unit check the appliance

Problems, possible causes and remedies Problems Cause Remedies Espresso or coffee is not hot enough ■ The cups are too cold ■ Pre-warm the cups with hot water Only a small amount of espresso or coffee runs out ■ Too little coffee-meal has been used ■ Use the correct quantity of coffee-meal ■ The coffee-bean container is empty ■ Add further coffee-beans ■ Unsuitable milk, either too old, wrong fat content or too warm ■ Use different milk ■ Steam nozzle is blocked ■ Clean the steam nozzle ■ Air suction hole in the frothing aid is blocked ■ Clean the frothing aid ■ Some foreign body in the grinder ■ Let the KRUPS service unit examine the appliance Too little froth produced when frothing up The mill makes a very loud noise ■ Continue using the appliance, but only with pre-ground coffee Drawer with attachment and spent coffee holder cannot be re-inserted ■ Electricity supply failure or the mains plug not inserted ■ Insert mains plug and insert only the drawer and attachment. Then switch on the appliance and insert the spent coffee holder. The cleaning programme refuses to start ■ Steam has just been produced ■ Fill the heating system

appliance indicator(s) Switching off the announcement “5000 espresso or coffee preparations” When 5000 preparations of espresso and/or coffee have been made, the “ON/OFF”, “fill water tank”, “empty spent coffee holder”, “clean appliance” and “remove lime-scale” indicators will all blink for approx. 8 seconds when the appliance is switched on. After these 5000 preparations, it is advisable for the appliance to be serviced by the KRUPS Service Unit. If you do not wish this recommended servicing to be carried out, you can cancel the blinking of these indicators. ■ With the appliance switched off, but with the mains plug inserted, press the key for about 3 seconds. The 5 red indicators will then blink for 3 seconds and the appliance will be switched off. After a further 5000 preparations, the “ON/OFF”, “fill water tank”, “empty spent coffee holder”, “clean appliance” and “remove lime-scale” indicators will again all blink for 3 seconds. Transporting the appliance ■ Save the original packing material for protection when transporting the appliance. ■ Before transporting the appliance, always drive off steam from the heating system. Disposal The packaging materials exclusively comprise environmentally-friendly materials, which should be disposed of only through the authorised local recycling channels. Information regarding the disposal of appliances no longer required can be obtained by asking the appropriate department of the local authority. Limited One Year Warranty Your KRUPS #889 is covered by the following warranty: If within one year from date of purchase if the usage does not exceed 3000 brewing cycles this KRUPS product fails to function because of defects in materials or workmanship, KRUPS North America will, at its option, repair or replace the unit without charge, provided the owner has a proof of date of purchase. This warranty will be void if malfunction was caused by damage to the product by accident, misuse, use on frequency or voltage other than marked on the product and/or described in the instructions, abuse including tampering, damage in transit, or use for commercial purposes. This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state.

GUARANTEE OF PERFORMANCE

This fine KRUPS product is manufactured according to a rigid code of quality standards, and, with minimum care, should give years of satisfying service. However, should the need arise for repairs or for replacement parts within or after the warranty period, please call our CONSUMER SERVICE DEPARTMENT: (800) 526-5377 24-hours a day, 7 days a week You will be provided with specific instructions on how to get your product repaired. The department will also be able to answer any general product questions you may have. Before calling the Consumer Service Department, please have the type number of your KRUPS appliance available. You must have this information before calling our Consumer Service Department so that we may better answer your questions. The type number can be located by looking at the bottom of your appliance. This product is Type #889 Any general correspondence can be addressed to: KRUPS North America, Inc. P.O. Box 3900 Peoria, IL 61612
