Product Type	Electric Barbecue
Brand	FAGOR
Model	BBC-850
Power Supply	Mains (standard household plug)
Cooking Surface	Non-stick grill with smooth zone (vegetables) and ridged zone (meat)
Thermostat	Adjustable, with red (selection) and blue (heating) indicator lights
Safety Device	Push-button disconnection of the connection assembly
Included Accessories	Grill, drip tray, connection assembly with thermostat and cord
Grill Maintenance	Lukewarm water and soft sponge, mild products; dry carefully the inside of the socket housing
Drip Tray Maintenance	Dishwasher safe or hand wash with soft sponge
Connection Assembly Maintenance	Slightly damp cloth, never immerse
Recommended Food Types	Meat, fish, sausages, poultry, vegetables
Indicative Cooking Times	Meat 6-10 min, fish 20-25 min, sausages 10-15 min, poultry 20 min
Prohibited Use	Do not use coal, do not cover the grill, do not cut on the grill
Recommended Utensils	Wood or heat-resistant plastic
Repairability	Contact an authorized technical support service; use original spare parts
Compliance	European Directives on Electromagnetic Compatibility and Low Voltage
Use	Household use only

Frequently Asked Questions - BBC-850 FAGOR

How to clean the FAGOR BBC-850 barbecue grill?

First unplug the appliance and let it cool down. Remove the connection assembly using the push-button. Clean the grill with lukewarm water with a little dish soap and a soft sponge. Dry thoroughly, especially the inside of the socket housing. Never use metal brushes or abrasive products.

Can I use charcoal in this barbecue?

No, this barbecue is electric and must not use any solid or liquid fuel. Use only the provided heating element. The use of charcoal is prohibited and dangerous.

What utensils can I use on the grill?

Use only utensils made of wood or heat-resistant plastic. Do not cut food on the grill and do not use sharp or pointed objects to handle food to preserve the non-stick coating.

Is the drip tray dishwasher safe?

Yes, the drip tray (3) can be washed in the dishwasher or by hand with a soft sponge and hot water with dish soap.

What to do if the power cord is damaged?

If the cord, plug, or connection assembly is damaged, contact an authorized Technical Assistance Center approved by the manufacturer to have it replaced. Do not attempt to repair it yourself.

How to adjust the cooking temperature?

Turn the thermostat (6.1) to align the desired temperature with the red indicator light. The blue indicator light turns off during heating and turns back on when the temperature is reached.

Can I cover the grill with aluminum foil?

No, it is forbidden to cover the grill with aluminum foil or similar products. This could damage the appliance and create a fire hazard.

How to safely disconnect the connection assembly?

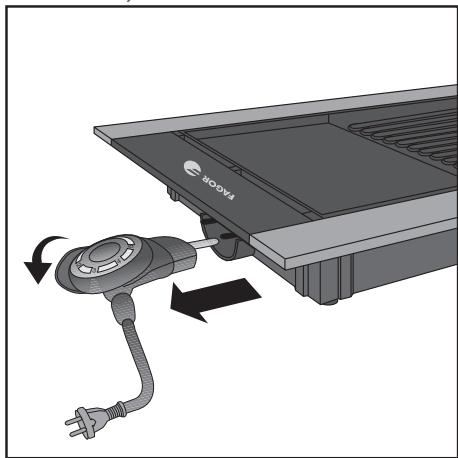

Before cleaning, turn the push-button disconnection (6.3) toward the thermostat to remove the connection assembly from the socket housing (Figure 4). Make sure the appliance is unplugged from the mains.

Which foods to cook on the smooth part and on the ridged part?

The smooth surface is suitable for cooking vegetables (vegetables, etc.), while the ridged surface is ideal for meat (steaks, sausages, etc.).

How long does it take to cook fish?

The indicative cooking times for fish are 20 to 25 minutes. Adjust according to thickness and taste. Refer to the table in the manual for other foods.

USER MANUAL BBC-850 FAGOR

The manufacturer reserves the right to modify the models described in this User's Manual.

3D rendering of a rectangular electronic device with ventilation grilles and a labeled 'FAOOR' logo (no text or symbols on the device itself)

BARBACOA / GRELHADOR PARA CHURRASCO / BARBECUE / GRILL / GRIGLIA / МПАРМПЕКИОУ / GRILLSÜTÖ / БАРБЕКЮ (ГРИЛ – ПЛОЧА) / ГРИЛЬ

MOD.:

BBC-850

N.I.F. F-20.020.517 - B. San Andrés, n. 18 • Apartado 49 - 20500 MONDRAGON (Guipúzcoa) ESPAÑA

FAGOR

Fig. 2 2. Ábra Ámb. 2 Obr. 2 Prc. 2 Elk. 2 Rys 2

Fig. 4 4. Ábra Фиг. 4 Abb. 4 Obr. 4 Рис. 4 Eik. 4 Rys 4

Fig. 3 3. Ábra Фиг. 3 Abb. 3 Obr. 3 Рис. 3 Eik. 3 Rys 3

Diagram of an electric vehicle charging plug connected to a rack-mounted fan (no text or symbols visible)

Diagram of a device with an electric plug connected to a fan panel, showing directional arrows (no text or symbols present)

Fig. 1 Abb. 1 Eik. 1

[Non-Text]

1. Ábra Obr. 1 Rys 1

Фиг. 1 Рис. 1

Fig. 1 Abb. 1 Elk. 1 1. Ábra Obr. 1 Rys 1 Фиг. 1 Рис. 1 2 1 Floor 3 4 5 6

6.3 6.2 6.1

ES

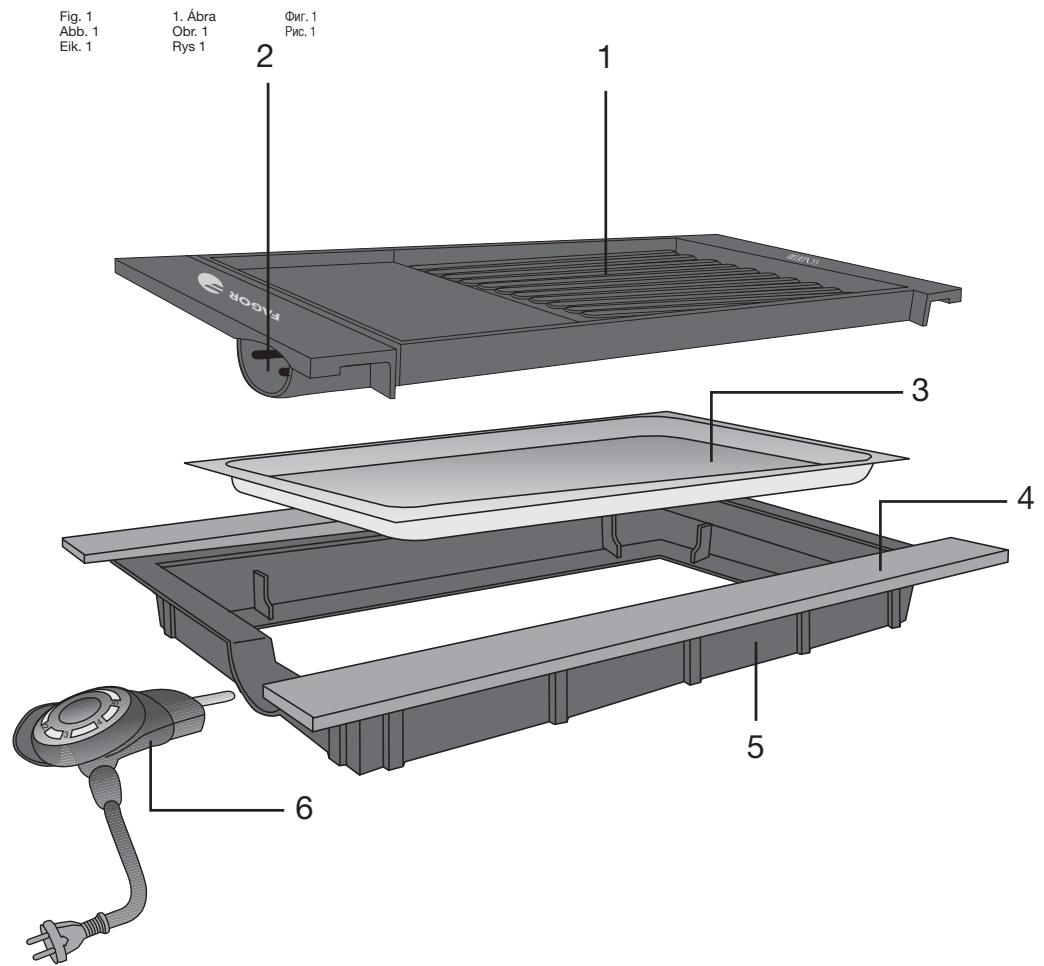

1. DESCRIPCIÓN

1. Grill plate
2. Plug socket
3. Drip tray
4. Handles
5. Base

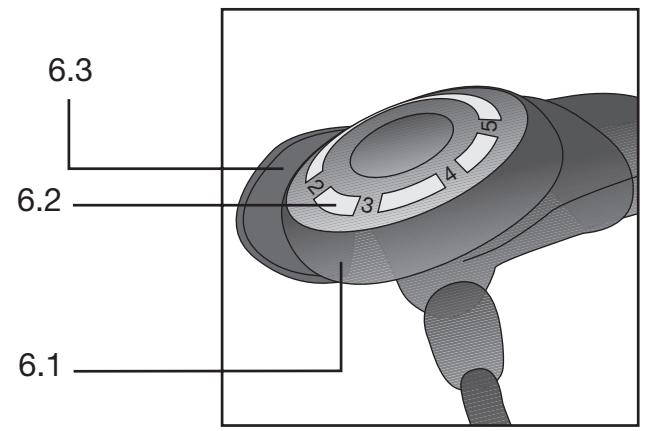

6. Power unit

6.1 Thermostat
6.2 Indicator lights
6.3 Disconnect button

2. TECHNICAL CHARACTERISTICS

See characteristics plate.

This product complies with the European Directives on Electromagnetic Compatibility and Low Voltage.

3. SAFETY PRECAUTIONS

• Before using this appliance for the first time, read the following instructions carefully and keep them for future reference.
• Make sure that the mains voltage in your home corresponds to that indicated on the appliance.
• In the event of incompatibility between the mains socket and the appliance plug, replace the socket with a suitable one, using a qualified professional.
• The electrical safety of the appliance is only guaranteed if it is connected to an efficient earth installation, as foreseen in applicable electrical safety regulations. If in doubt, contact a qualified professional.
• The use of adaptors, multiple sockets and or extension cables is not recommended. Where it is not possible to avoid their use, only adaptors or extensions that comply with applicable safety regulations should be used, and ensuring that the indicated voltage limit is not exceeded.

• After removing the packaging, check that the appliance is in perfect condition, if in doubt, contact the nearest Technical Support Service.

• Packaging elements (plastic bags, polystyrene foam, etc.), should not be left within the reach of children because they can be dangerous.

• The appliance is for domestic use only. Any other use is considered unsuitable or dangerous.
• The manufacturer shall not be responsible for any damages that may arise from improper or inadequate use, or for repairs conducted by non-qualified personnel.
• Do not touch the appliance with wet or damp hands or feet.
• Keep the appliance separate from water or other liquids, to avoid electric shock; do not connect the appliance to the mains if it is on a damp surface.
• Place the appliance on a dry, firm and stable surface.
• Do not allow children or the disabled to handle the appliance unsupervised.
• This appliance should not be used by physically, sensorially or mentally handicapped people or people without experience or knowledge of it (including children), unless they are supervised or instructed in the use of the appliance by a person responsible for their safety.
• Children should be watched to ensure they do not play with the appliance.
• For greater protection, we recommend installing a residual current device (RCD) with an operational residual current not exceeding 30 mA. Ask your installer for advice.
• Do not leave the appliance unattended when it is turned on because it can be dangerous.
• When removing the plug never pull on the cable.
• Unplug the appliance before cleaning or maintenance.
• In the event of fault or malfunction where the appliance is not to be used, turn off the appliance and do not attempt to repair. If a repair is required, contact a Technical Assistance Service authorised by the manufacturer and request the use of original spare parts.

• If the cable for this appliance is damaged, contact an authorised Technical Assistance Service for it to be replaced.

• Do not leave the appliance exposed to the elements (rain, sun, ice, etc.).

• Do not use or let any part of the appliance come into contact or near hot surfaces (kitchen gas or electric hobs or ovens).
• Do not use detergents or abrasive sponges to clean the appliance.
• Do not touch the hot surfaces. Use the handles.
• Do not let the cable come into contact with the hot parts of the appliance.
• Before turning on the barbecue, make sure that there are no flammable objects near or above the barbecue. For example, curtains, wallpaper, clothing, dishcloths, etc.
• Place the appliance on a firm, stable and horizontal surface.
• When the appliance is in use, it generates very high temperatures and there is a risk of burning yourself. Do not touch the hot surfaces.
• The user should not leave the barbecue unattended whilst it is in use.
• Use the barbecue with extreme care when there are children around.
• Do not use charcoal or any other type of fuel.
• Do not cover the grill plate with aluminium foil or similar products.
• Do not place frying pans or saucepans on top of the grill plate.
• Do not move the appliance whilst it is hot.
• If the power unit, the cable or the plug are damaged, only contact an authorised Technical Help Centre so that they can replace it.
• Before plugging the appliance in, put the thermostat in the "0" position.
• Only use wooden or heatproof plastic utensils
• Do not cut food on top of the grill plate.
• Do not use sharp objects to handle the food.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.
• Only use the appliance with the mains connection assembly provided. Do not use any other type of mains connection.

4. BEFORE USING FOR THE FIRST TIME

• Before using the barbecue for the first time, clean the grill plate (1) and the drip tray (3) with warm water, liquid soap and a soft sponge. Do not use abrasive detergents or metal scourers.
• After cleaning, the grill plate (1) must be dried. Special care must be taken to dry the inside of the plug socket (2) thoroughly.

Assembling the barbecue:

- Place the base of the barbecue (5) onto a firm, stable, horizontal and heatproof surface. Onto the base, first place the drip tray (3) and then the grill plate (1).

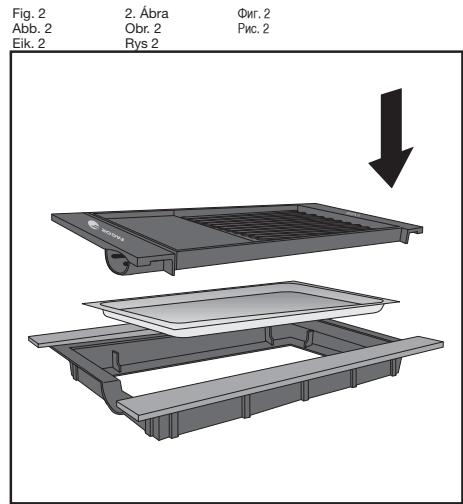

N.B.: The grill plate must be assembled as shown in figure 2 so that the plug socket (2) coincides with the exact curve for the socket in the base of the barbecue (5). Only then will the barbecue be level.

• Turn the thermostat (6.1) so that the "0" position lines up with the indicator lights (6.2).

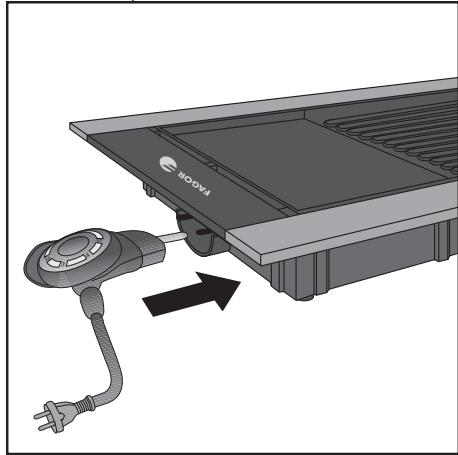

• Insert the power unit (6) into the plug socket (2) as shown in figure 3.

5. OPERATING INSTRUCTIONS

1. Assemble the barbecue as instructed in the previous section.
2. Grease the grill plate (1) with oil, butter or margarine.
3. Plug in the appliance. The red and blue indicator lights (6.2) will come on.
4. Turn the thermostat (6.1) and select the desired cooking temperature, lining it up with the red indicator light. The blue indicator light will go out, indicating that the grill plate (1) is heating up.
5. Once the grill plate (1) reaches the selected temperature, the blue indicator light on the power unit (6) will come on.
6. Place the food to be cooked onto the grill plate. The smooth surface is suitable for grilling vegetables and the ribbed surface for grilling meat.
7. After use, turn the thermostat (6.1) to

the "0" position, unplug the appliance and wait for it to cool down before cleaning.

The following table will serve as a guide to the cooking time for each type of food:

Type of food	Cooking time (min.)
Meat	6-10 (depending on thickness)
Fish	20-25
Sausages	10-15
Poultry	20

This table is for guidance purposes and you can therefore vary the cooking time to suit your taste.

6. RECOMMENDATIONS FOR USE

• To prolong the life of the non-stick coating on the grill plate:
• Only use wooden or heatproof plastic utensils.
• Do not cut food on the plate, or use sharp objects to handle the food.
• Do not leave plastic objects which may melt on top of the plate while in use.
• Try to make sure that the food is cut evenly so that it can be cooked properly.

7. CLEANING AND MAINTENANCE

Before cleaning, unplug the appliance and wait until it cools down completely. Before cleaning the grill plate, move the disconnect button (6.3) towards the thermostat (6.1) to extract the power unit (6) from the plug socket (fig. 4). Clean the grill plate (1) with warm soapy water and a soft sponge. After cleaning, the grill tray must be dried by paying special attention to the plug socket (2) area which must be completely dry. Do not use metal scourers or abrasive detergents as they may damage the non-stick surface.

The drip tray (3) can be washed in a dishwasher or with a sponge and hot soapy water.

Clean the power unit (6) by wiping it with a slightly damp cloth. Do not immerse it in water or in any other liquid.

8. INFORMATION FOR THE CORRECT DISPOSAL OF ELECTRICAL AND ELECTRONIC APPLIANCES

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to

a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

To remind you that you must collaborate with a selective collection scheme, the symbol shown appears on the product warning you not to dispose of it in traditional refuse containers.

For further information, contact your local authority or the shop where you bought the product.
