Product type	Built-in hood
Brand	FAGOR
Model	3CFT-MINI TILE
Usage	Filtering version (recirculation) or suction version (external extraction)
Number of speeds	3 speeds + stop
Lighting	Halogen lamp 12V - 20W max (G4)
Grease filter	Removable metal filter, dishwasher safe
Charcoal filter	Activated charcoal filter (for recirculation version), washable and dryable in oven
Minimum safety distance	≥ 40 cm for electric hob, ≥ 65 cm for gas or mixed
Power supply	220-240 V ~ 50/60 Hz (check rating plate)
Motor power	Not specified, standard approximately 150-250 W
Noise level	Not specified, typically 50-65 dB(A)
Material	Stainless steel / glass (control panel)
Controls	Push buttons for light and speeds
Air outlet diameter	Standard 120-150 mm (check manual)
Filter maintenance	Grease filter: monthly cleaning; charcoal filter: every 2 months
Lamp replacement	Halogen G4 12V 20W max, accessible after removing cover
Weight	Approximately 8-12 kg (estimate)
Dimensions (W x D x H)	Approximately 60 x 50 x 15 cm (estimate)
Warranty	Standard manufacturer 2 years
Included accessories	Charcoal filter (depending on version), fixing dowels, drilling template
Safety	Disconnection mandatory before maintenance; do not use without filter

Frequently Asked Questions - 3CFT-MINI TILE FAGOR

What is the minimum distance between the hood and the hob?

The minimum distance is 40 cm for an electric hob and 65 cm for a gas or mixed hob. If the cooking appliance instructions specify a greater distance, that takes precedence.

How to clean the grease filter?

The grease filter should be cleaned once a month with a non-aggressive detergent, by hand or in a dishwasher at low temperature and quick cycle. Dishwashing may discolor the filter without affecting its performance.

How to maintain the charcoal filter?

The charcoal filter can be cleaned every two months with hot water and a suitable detergent or in a dishwasher at 65°C. After washing, remove excess water and dry the pad in the oven at 100°C for 10 minutes. Replace the pad every 3 years or if damaged.

How to replace the hood bulb?

First unplug the appliance. Make sure the bulb is cool. Remove the protective cover with a small flat-head screwdriver. Replace the bulb with a halogen G4 12V 20W max without touching the bulb with your hands. Close the cover by snapping it back on.

Can I use the hood in suction version with external extraction?

Yes, if you have an exhaust duct. You then need to install a connection ring on the upper outlet B and remove the charcoal filter. The hood is delivered ready for the filtering version, but can be converted.

What to do if the hood does not turn on?

First check that the plug is connected and the circuit breaker hasn't tripped. If the light doesn't work, check that the bulb is correctly inserted. For persistent problems, contact customer service.

How often should I clean the hood?

Clean the exterior and interior of the hood at least once a month, at the same time as the grease filter. Use a damp cloth with a neutral liquid detergent. Never use alcohol or abrasive products.

Can children use the hood?

No, the appliance is not intended for use by children or persons with reduced capabilities without supervision. Children must be supervised to ensure they do not play with the appliance.

How to install the hood correctly?

Before installation, check the dimensions and sturdiness of the wall. Use the provided drilling template to drill 3 holes of ∅8 mm, fix the support bracket with dowels, then hang the hood. Make the electrical connection and ensure the filters are in place.

What to do in case of non-compliance with safety instructions?

Failure to follow cleaning and maintenance instructions may result in a fire risk. The manufacturer declines all responsibility for damages caused by improper use.

USER MANUAL 3CFT-MINI TILE FAGOR

EN Instruction on mounting and use

Diagram showing a downward arrow with a rectangular object above it, labeled '2' (no text or symbols on the diagram itself)

Diagram of two rectangular panels with dashed lines indicating internal structure, labeled '3' (no text or symbols on panels)

Illustration of a gloved hand holding a small blue object, with a tool and circular components above it (no text or symbols)

Consult the designs in the front pages referenced in the text by alphabet letters.

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined.

Caution

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

Before any cleaning or maintenance operation, disconnect the hood from the mains by removing the plug or disconnecting the home mains switch.

The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or know-how, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.

Children should be monitored to ensure that they do not play with the appliance.

Never use the hood without effectively mounted grating.!

The hood must NEVER be used as a support surface unless specifically indicated.

The premises must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The suctioned air must not be conveyed into a conduit used for the disposal of the fumes generated by appliances that combust gases or other fuels.

The flaming of foods beneath the hood itself is severely prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and burst into flames.

As regards the technical and safety measures to be adopted for fume discharging it is important to closely follow the relations provided by the competent authorities.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH, it is in any event necessary to proceed in accordance with the maintenance instructions provided in this manual)..

Failure to follow the instructions as concerns hood and filter cleaning will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly mounted because of the possible risk of electric shocks.

We decline any responsibility for any problems, damage or fires caused to the appliance as the result of the non-observance of the instructions included in this manual.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Use

The hood has been made for use in the internal recirculating filtering version.

Cooking fumes and steam are aspirated inside the hood, filtered and cleaned, passing through the fat filter/s and the carbon filter/s that MUST be supplied with the hood.

The hood is supplied in the FILTERING version and is used without an extracted fumes discharger conduit.

Fumes and steam are recycled through the F deflector.

If you intend using the product in the SUCTION version, it is necessary to have an evacuation conduit going from the upper B exit to the extraction hole towards the exterior.

In this case a connection ring has to be installed on the B extraction hole and the carbon filter removed.

A telescopic flue is available (as an accessory).

Installation

The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood must be not less than 40cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area apply a bi-polar switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

Mounting

Before beginning installation:

• Check that the product purchased is of a suitable size for the chosen installation area.
• To facilitate installation, remove the fat filters and the other parts allowed and described here, dismantle and mount it.
  To remove see also the relative paragraphs.
• Remove the active carbon (*) filter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want lo use the hood in the filtering version.
• Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing them and keeping them.
• If possible, disconnect and move freestanding or slide-in range from cabinet opening to provide easier access to rear wall/ceiling. Otherwise put a thick, protective covering over countertop, cooktop or range to protect from damage and debris. Select a flat surface for assembling the unit. Cover that surface with a protective covering and place all canopy hood parts and hardware in it.
• Disconnect the hood during electrical connection, by turning the home mains switch off.
• In addition check whether near the installation area of the hood (in the area accessible also with the hood mounted) an electric socket is available and it is possible to connect a fumes discharge device to the outside (only suction version).
• Carry out all the masonry work necessary (e.g. installation of an electric socket and/or a hole for the passage of the discharge tube).

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

In the case of the presence of panels and/or walls and/or lateral wall units check that there is sufficient space to install the hood and that access to the command panel is easy.

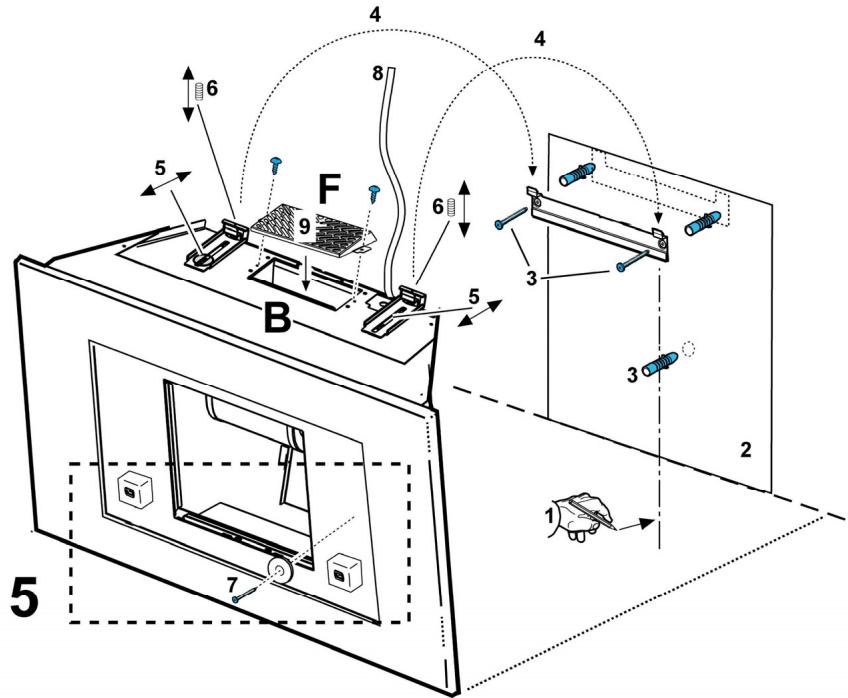

Fig. 5

• Trace a central line on the wall in order to ease mounting (1), position the hole template in a way that the middle line printed on top corresponds to the central line marked previously and the lower side of the mask corresponds to the lower part of the hood once mounted. (2).
• Make 3 holes ∅ 8 mm with a drill and fix the support bracket with two dowels and screws to the wall (3), insert the third dowel into the lower hole.
• Open the vapour scheme and remove the grease filters (see relevant paragraph).
  • Hang the hood (4), regulate the position (5-6) and fasten

it securely with one screw and washer(7).

• Carry out electrical connections (8), but leave the hood disconnected from the general electrical main panel.
  • Install the grille/deflector F (9).
  • Mount the grease filters and close the vapour scheme.
  Warning! Make sure that the carbon filter is already mounted on the back of the grease filter, or in case it's missing, buy it and install it.

Description of the hood

Fig. 1

1. Control panel
2. Grease filter
3. Grease filter release handle
4. Halogen lamp
5. Perimeter suction panel

Operation

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

a. ON/OFF light switch
b. Speed 1/OFF switch
c. 2-speed selection
d. 3-speed selection

Maintenance

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

Cleaning

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

WARNING:

Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks.

Therefore, we recommend oserving these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

Panel

Maintenance of the panel

Dismantling:

Extract with decision (LOWER SIDE) and rotate upwards.

Cleaning:

the panel should be cleaned with the same frequency as the fat filters, using a cloth soaked in neutral liquid detergents.

Avoid the use of products containing abrasives. DO NOT USE ALCOHOL!

Montage:

Proceed in the reverse direction for dismantling.

Attention! Always check that the panel is fixed in its place well.

Grease filter

Fig. 2

Traps cooking grease particles.

This must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

To remove the grease filter, pull the spring release handle.

Charcoal filter (filter version only)

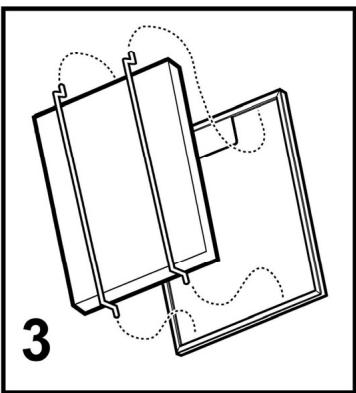

Fig. 3

It absorbs unpleasant odours caused by cooking.

The charcoal filter can be washed once every two months using hot water and a suitable detergent, or in a dishwasher at 65^ C (if the dishwasher is used, select the full cycle function and leave dishes out).

Eliminate excess water without damaging the filter, then remove the mattress located inside the plastic frame and put it in the oven for 10 minutes at 100^ C to dry completely. Replace the mattress every 3 years and when the cloth is damaged.

- Montage

Open the steam screen and remove the grease filter.

Install the carbon filter on the back of the grease filter and fix with two rods.

Attention! The rods are included in the carbon filter packing and not on the hood.

• To dismantle the filter act in the reverse manner.

Replacing lamps

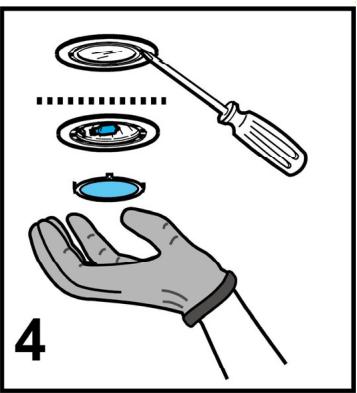

Fig. 4

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

1. Using a flat head screwdriver or equivalent tool, carefully pry loose the light cover.

2. Remove the damaged light and replace with a new 12 Volt, 20 Watt (Maximum) halogen light made for a G-4 base SUITABLE FOR USE IN OPEN LUMINAIRES. Follow package directions and do not touch new light with bare hands.

3. Reinstall the light cover. (it will snap shut).

If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.
