WS9292FM - Range hood Atag - Free user manual and instructions

Product type	Extractor hood
Brand	Atag
Model	WS9292FM
Width	60 cm
Depth	50 cm
Height	60-80 cm (adjustable)
Net weight	12 kg
Power supply	230 V ~ 50 Hz
Control type	Touch electronic
Lighting	Integrated LED
Number of speeds	3
Suction system	Centrifugal
Filters	Washable metal + Activated carbon (optional)
Noise level (max)	65 dB(A)
Airflow (max)	650 m³/h
Evacuation type	Recirculation or external evacuation
Energy class	B
Metal filter maintenance	Dishwasher washing recommended every month
Charcoal filter replacement	Every 6 months
Safety	Automatic shut-off optional
Spare parts available	Filters, LED bulbs, remote control
Manual	72 pages, multilingual (FR, EN, DE, NL, etc.)

Frequently Asked Questions - WS9292FM Atag

How to install the Atag WS9292FM hood?

Installation must be carried out by a professional. The hood is mounted on the wall or under a cabinet. Follow the drilling dimensions indicated in the manual. Make sure the distance between the hob and the hood is at least 65 cm for electric cooking and 75 cm for gas cooking.

How to clean the metal filters?

The metal filters can be cleaned in the dishwasher or by hand with hot water and detergent. Let them dry completely before putting them back. Regular cleaning (every month) maintains suction performance.

How often to replace the charcoal filters?

The charcoal filters must be replaced every 6 months to ensure good odor control. They are not washable. An indicator on the hood can remind you of the deadline.

The hood is noisy, what to do?

Check that the filters are not clogged. A blocked filter increases noise. Make sure the hood is securely fastened and that no object is in contact with the blades. If the noise persists, contact customer service.

How to replace the LED bulb?

Unplug the hood. Open the lighting cover. Replace the defective LED bulb with a bulb of the same type and power (see manual). Close and reconnect. The LED bulb is a spare part available.

Why doesn't the hood turn on?

Check the power supply: the fuse or circuit breaker. Make sure the plug is properly connected. If the hood is controlled by remote control, check the batteries. Otherwise, contact a technician.

Can the hood be used without external evacuation?

Yes, the hood can operate in recirculation mode with a charcoal filter. The air is purified and then returned to the kitchen. This mode requires a charcoal filter installed.

What is the maximum suction power?

The maximum airflow is 650 m³/h at the highest speed. Performance may vary depending on the evacuation mode and filter condition.

How to adjust the suction speed?

Use the touch keys on the hood or the remote control (if provided). Generally, 3 speeds are available: speed 1 for gentle cooking, speed 3 for strong odors.

Where to find spare parts for the Atag WS9292FM hood?

Spare parts (filters, bulbs, remote control) are available from Atag customer service or on the official website. Consult the manual for exact references.

USER MANUAL WS9292FM Atag

instructions for use cooker hood

anvendelse emhætte

ATAG

WS9211FM

WS9192FM

WS9292FM

Exterior view of a stainless steel kitchen range hood (no text or symbols visible)

NL

Hand pointing at a circular diagram with a right-turn arrow, no text or symbols present

Koolstofffilter

Illustration of hands installing or adjusting a mechanical component with arrows indicating motion (no text or symbols)

Montage

deel.

Diagram of a cylindrical object inside a transparent container with an arrow indicating direction, no text or symbols present.

Afvoeren

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a black rectangular block below (no text or labels)

Hand holding a tool interacting with a circular diagram showing a road sign (no text or symbols present)

Illustration of hands installing or adjusting a mechanical component with arrows indicating motion (no text or symbols)

Montage

partie inférieure.

Diagram of a cylindrical object inside a transparent container with an arrow indicating force or movement, no text or symbols present.

Élimination

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

Hand pointing at a circular diagram with a right-turn arrow, no text or symbols present

Kohlefilter

Illustration of hands operating a mechanical component with arrows indicating motion (no text or symbols)

Montage

Diagram of a cylindrical object inside a transparent container with an arrow indicating direction, no text or symbols present.

Entsorgen

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

Cleaning	8
Removing the grease filter	9
Replacing the carbon filter	9
Lighting	10

Installation

	General	11
	Electric connection	12
	Mounting the extraction unit 13

Appendix

Disposal of packaging and appliance

15

Introduction

Please read these instructions carefully to become informed quickly of all possibilities offered by this appliance. These instructions contain information for your safety and information about the maintenance of the appliance.

Please retain the operating and installation instructions. Any subsequent user of this appliance may also benefit from them.

Please read the separate safety instructions first before use.

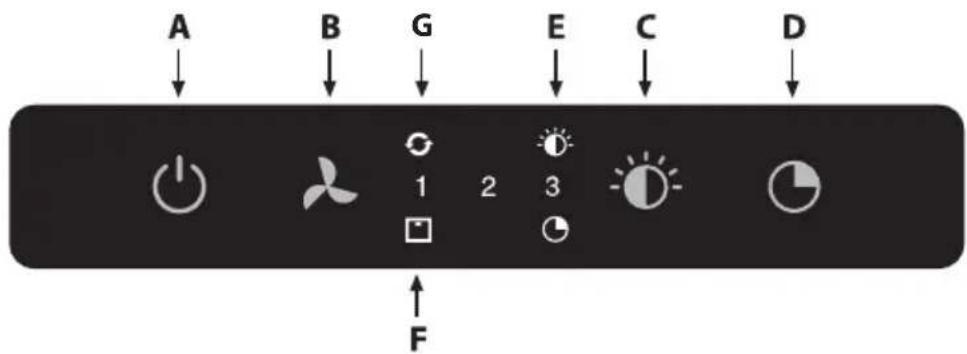

Description

A: Switching the fan on/off
B: Lowering/increasing air extraction capacity
C: Switching lighting on/off and dimming the lighting
D: Timer function
E: Lighting indicator
F: Filter indicator
G: Clean air indicator

Operating instructions

Switching the fan on and off

- Use the On/Off button (A) to switch on the fan and select the desired setting with button 'B'.

If you press the button (B) once, when the hood is switched off, the hood will be switched on at the lowest setting. By pressing the button (B) again, you select a higher setting. You can select one of three settings plus an intensive setting.

One LED will light up at setting 1; two will light up at setting 2 and all three will light up at setting 3.

- Switch on the intensive setting by pressing 'B' and holding it for min. 5 seconds until the third LED starts flashing.

You switch off the intensive setting early by pressing button 'A', as a result of which the hood switches off, or by pressing button 'B', which will result in the hood switching back to the previously selected setting.

The intensive setting automatically switches the speed back to the previously selected setting after 10 minutes.

Switching the lighting on and off

- Use button 'C' to switch the lighting on and off and adjust the intensity of the light.

Lighting indicator 'E' will light up as soon as the lighting has been switched on. The lighting can be dimmed steplessly.

Clean Air function:

The Clean Air function allows you to freshen the air in your kitchen automatically for a maximum of 24 hours.

• Please ensure that the cooker hood is switched off.
• Press button ‘A’ until the ‘Clean Air’ indicator ‘G’ lights up.
  The cooker hood switches on automatically for 10 minutes every hour at the lowest speed setting. During extraction, LED 1 will light up. If the hood switches off after 10 minutes, indicator 'G' will flash until the hood switched on again after 50 minutes.
• Switch off the Clean Air function early by pressing a random button (except the one for lighting).

Switching on the Timer

• Switch on the cooker hood with button 'A'.
• Adjust the extraction strength level with button 'B'.
  The timer can be switched on with every setting, except the intensive setting.
• Press the Timer button 'D'.
  The cooker hood switches off automatically after 15 minutes. Switch off the Timer function by pressing button 'D' again or by switching off the cooker hood with button 'A'.

Grease filter indication

After 30 working hours, the filter indication 'F' will light up.

• Clean the grease filter.
• Reset the filter indicator. While the hood is switched off, press button 'B' for 3 seconds until the filter indicator is turned off.

Carbon filter indicator

After 120 working hours, the filter indication 'F' will flash.

• Replace the carbon filters.
• Reset the filter indicator. While the hood is switched off, press button 'B' for 3 seconds until the filter indicator is turned off.

Cleaning

Important! Before all maintenance, disconnect the cooker hood from the mains power first by pulling the plug out of the socket or by turning off the home's master switch. The hood needs to be cleaned regularly, both inside as well as outside (at least as frequently as the grease filter cleaning). Do not use abrasive cleaners.

Do not use alcohol!

Important! If the instructions regarding cleaning the appliance or cleaning or replacing the filters are not followed, this can cause a fire. These instructions need to be observed!

The manufacturer is not liable for damage to the motor or fire damage resulting from incompetent maintenance or from non-adherence to the above safety instructions.

Cooker hood

Clean the cooker hood with soapy water and a soft cloth. Then wash off with clean water. Do not use aggressive cleaning agents such as caustic soda. The cooker hood finish stays in good condition if it is buffed periodically following the application of wax.

Stainless steel cooker hoods

Do not use scouring pads or other abrasive cleaners on stainless steel cooker hoods. Finish with a non-abrasive, non-polishing agent and buff with the structure of the stainless steel.

Metal grease filters

Metal grease filters should be cleaned once a month (or when indicated by the filter cleaning indicator – if present on the model) using a neutral cleaning agent, either by hand or in the dishwasher on a short, low-temperature programme. Place the grease filters with the openings facing downwards in the dishwasher so the water can run out of the filter. Aluminium grease filters become dull as a result of dishwasher cleaning agents. This is normal and does not effect the working.

Grease filters

Hand pointing at a circular diagram with a road sign and arrow (no text or symbols)

Carbon filter

Illustration of hands installing or adjusting a mechanical component with arrows indicating motion (no text or symbols)

Removing grease filters

Switch off the mains power! Remove the plug from the socket or turn off the switch in the fuse box. Open the panel and pull the special handle to remove the filter.

The carbon filter

Use a carbon filter if the cooker hood is not connected to a outlet duct. Put a carbon filter frame into position for this, which can be purchased separately. This needs to be done once-only.

1. Open the panel.
2. Remove the grease filter.
3. Attach the carbon filter to the grille.
4. Put the grease filter into position.

The regenerable active carbon filter must be washed by hand with neutral cleaning products that are not abrasive, or in the dishwasher at a maximum temperature of 65 °C (the washing should be done without any plates, dishes, cups, etc. in the machine).

Remove the excess water without damaging the filter, remove the holder and let the filter dry in the oven for at least 15 minutes at a maximum temperature of 100 °C . The filters must be replaced after no more than 3 years, or if the filter has been damaged. It is important that the grease filter and the regenerable active carbon filter are properly dry before they are put into position again.

Operation:

• When using the carbon filter, more sound is created than when using the cooker hood with an extractor.
• The operation of a carbon filter is optimal at a lower motor speed. You should, therefore, avoid using the boost function.

Lighting

Defective LED lighting must be replaced by an installer.

General

This appliance should be connected to the mains power by a registered installer, who knows and applies the correct safety specifications. The appliance meets European requirements.

Important information:

• The distance between the lowest point of the cooker hood and a gas hob should be at least 65 cm. With an electric, ceramic or induction hob this distance should be at least be 45 cm.
• If the appliance is connected to an existing ducting outlet, no other appliances should be connected to that outlet (such as a heater or boiler).
• Follow the applicable local regulations regarding the ventilation of gas appliances.
• With a short exhaust-air pipe and few bends, the cooker hood will work better.
  • Prior to drilling check that there are no pipes or cables present.
• The cooker hood connection pipe is 120 mm or 150 mm in diameter. It is best to use this diameter for the ducting pipe.

Electrical connection

This appliance is manufactured in class I, it must therefore be connected to the earth system.

Make sure the supply voltage ratings correspond with those stated on the appliance data plate. The connection to the mains is carried out as follows:

BROWN = phase L

BLUE = phase N

YELLOW/GREEN = Earth

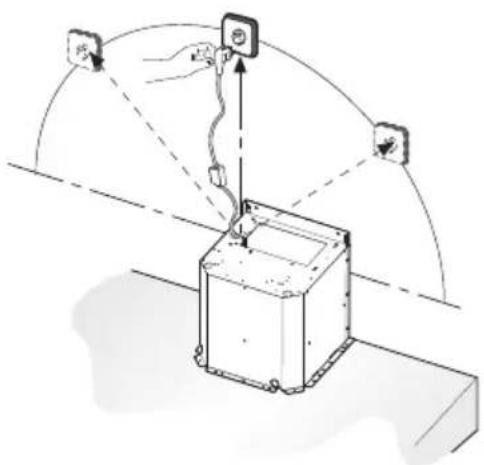

During the electrical connection make sure that the electrical socket is equipped with earth connection.

This canopy hood has been provided with a power plug. When installing the hood, make sure that this plug remains accessible.

Attention:

If you want to make a fixed connection, ensure that a multi-pole switch with a distance between contacts of 3 mm is installed in the supply cable.

max. 140 cm

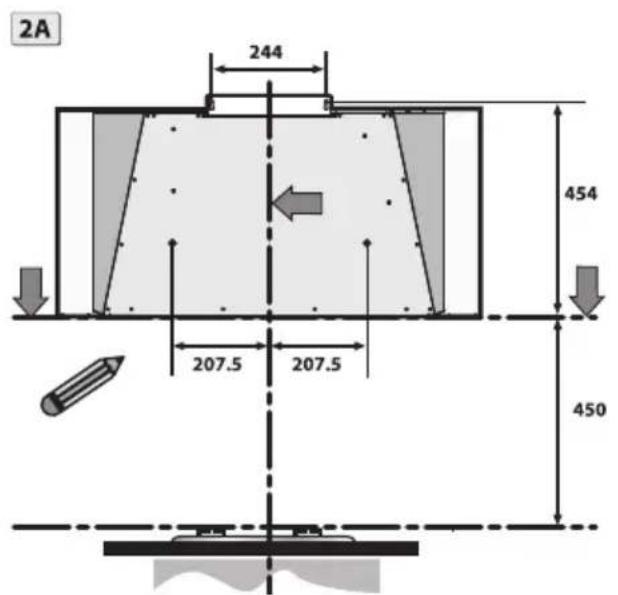

Assembly

• Outline the underside of the hood on the wall, taking into account the minimum distance between the hood and the cooking section.
• Mark the 4 holes using the template.
• Place the 4 wall plugs 'A' and the 2 screws 'B'.
• Please note! Set screws 'D' must be tightened firmly.

• Hang the cooker hood onto the 2 screws 'B'.
• Ensure the cooker hood is level with the screws 'D'.
• Screw the hood to the wall with the 2 screws 'B'.

- Place the wall socket inside the telescopic chimney. - Connect the flange to the air extraction opening using an air duct. - Place the bottom telescopic chimney on the cooker hood. - Adjust the width of the hanging bracket of the upper telescopic chimney.

- Mark off and drill the holes to attach the hanging bracket.

- Place the 2 wall plugs.

- Screw the hanging bracket to the wall with the 2 screws 'A'. Align the hanging brackets with the cooking hood. Take the distance to the ceiling into account.

- Slide the upper telescopic chimney from above in the bottom

section.

- Slide the upper telescopic chimney upwards and attach this to the hanging bracket with the 2 screws 'B'.

Please note; Use the appropriate screws and plugs for mounting the cooker hood, which are suitable for the type of wall (concrete, plaster board, etc.) to which the cooker hood is being attached.

Diagram of a cylindrical object inside a transparent container with an arrow indicating direction, no text or symbols present.

Disposal

Disposal of packaging and appliance

Sustainable materials have been used during manufacture of this appliance. This appliance must be disposed of responsibly at the end of its service life. Ask your local authorities for more information about how to do this.

The appliance packaging is recyclable. The following materials may have been used:

• cardboard;
  • polyethylene film (PE);
  • CFC-free polystyrene (PS rigid foam).

Dispose of these materials in a responsible manner and in accordance with government regulations.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

The product has been marked with a crossed-out dustbin symbol to remind you of the obligation to dispose of electrical household appliances separately. This means that the appliance may not be included with normal domestic refuse at the end of its service life. The appliance must be taken to a special municipal centre for separated waste collection or to a dealer providing this service.

Separate processing of household appliances prevents the potentially negative consequences for the environment and health that can arise as a result of inappropriate processing. It ensures that the materials of which the appliance is composed can be recovered to obtain significant savings in energy and raw materials.

CE

Declaration of Conformity

We hereby declare that our products satisfy the applicable European directives, orders and regulations, as well as the requirements stated in the referenced standards.
