Product type	Steam station (steam generator)
Brand	Bosch
Model	TDS1606
Power	2400 W
Steam pressure	6 bar
Continuous steam flow	120 g/min
Variable steam flow	Yes
Water tank capacity	1.4 L
Soleplate type	Eloxal soleplate (anodized aluminium)
Anti-calc function	Integrated anti-calc system
Automatic cleaning	Calc‘n Clean function
Automatic shut-off	Yes, after 8 minutes of inactivity
Power cord	Length 2 m
Weight	4.1 kg (with base)
Dimensions (L x W x H)	35 x 24 x 32 cm
Power supply	220-240 V, 50-60 Hz
Removable tank	Yes
Fill indicator	No
Maintenance	Regular descaling with Calc‘n Clean function
Safety	Soleplate lock, automatic shut-off
Spare parts	Tank, soleplate, anti-calc filter available
Repairability	Repairability index 8.2/10 (Bosch estimate)

Frequently Asked Questions - TDS1606 BOSCH

How to descale my Bosch TDS1606 steam station?

Use the Calc‘n Clean function: fill the water tank, plug in the appliance, set steam to maximum and press the Calc‘n Clean button for 3 seconds. Let the cycle finish (about 5 minutes). Repeat if necessary.

Why is no steam coming out?

Check that the water tank is sufficiently filled. If the problem persists, descaling is probably necessary (see previous question). Also ensure that the soleplate is not clogged.

What type of water should I use?

Use tap water. If your water is very hard, mix it with 50% demineralized water. Never use pure distilled water or chemically softened water.

How to clean the soleplate?

Let the soleplate cool down, then wipe it with a damp cloth. For stubborn residues, use a specific cleaner for aluminium soleplates. Avoid abrasive products.

The station stops by itself, is this normal?

Yes, the automatic shut-off function turns off the appliance after 8 minutes of inactivity. To reactivate it, press the power button.

How to adjust the temperature?

The Bosch TDS1606 steam station automatically adjusts temperature based on steam flow. There is no manual adjustment. Use the steam setting to adapt to your fabrics.

Can I use the station without water?

No, never operate the station without water in the tank, as this would damage the heating element. Always fill before use.

How to store the station after use?

Turn off and unplug the appliance. Wait for it to cool completely. Empty the remaining water from the tank. Wrap the cord around the storage base. Lock the iron's soleplate onto the base.

The soleplate is scratching, what to do?

This may be due to limescale residues or burnt fabric. Clean the soleplate with a damp microfiber cloth. If necessary, use a baking soda paste. Avoid steel wool.

Where to find spare parts for the TDS1606?

Spare parts (tank, soleplate, anti-calc filter) are available on the Bosch website or from authorized retailers. Use the exact model number (TDS1606) for the search.

USER MANUAL TDS1606 BOSCH

Register your new Bosch now: www.bosch-home.com/welcome

sensixx B10L

BOSCH

Index

DEUTSCH 6
ENGLISH 12
FRANÇAISE 18
ITALIANO 24
NEDERLANDS 30
DANSK 36
NORSK 42
SVENSKA 48
SUOMI 54
ESPAÑOL	60
PORTUGUÊS	66
ΕΛΛΗΝΙΚΑ	72
TÜRKÇE	78
POLSKI	84
MAGYAR 90
УКРАЇНСЬКА	96
РУССКИЙ	102
ROMÂN 108
العربية	119

Thank you for buying the sensixx B10L steam station, the new steam-ironing system from Bosch.

Carefully read through the operating instructions for the appliance and safeguard them for future reference.

You can download this manual from the local homepages of Bosch.

Open the leaflet sides

General safety instructions

• The iron must not be left unattended while it is connected to the supply mains.
• Remove the plug from the socket before filling the appliance with water or before pouring out the remaining water after use.
• Boiler's cap must not be opened during use.
• The appliance must be used and placed on a stable surface.
• When placed on its stand, make sure that the surface on which the stand is placed is stable.
• The iron should not be used if it has been dropped, if there are visible signs of damage or if it is leaking water. It must be checked by an authorized Technical Service Centre before it can be used again.
• With the aim of avoiding dangerous situations, any work or repair that the appliance may need, e.g. replacing a faulty mains cable, must only be carried out by qualified personnel from an Authorised Technical Service Centre.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down. • CAUTION. Hot surface. Surface is liable to get hot during use.
• This appliance has been designed exclusively for domestic use and must not be used for industrial purposes. This appliance must be used only for the purposes for which it was designed, i.e. as an iron. Any other use will be considered improper and consequently dangerous. The manufacturer will not be held responsible for any damage arising from misuse or improper use.
• This appliance is to be connected and used in accordance with the information stated on its characteristics plate.
• This appliance must be connected to an earthed socket. If it is absolutely necessary to use an extension cable, make sure that it is suitable for 16A and has a socket with an earth connection.
• If the safety fuse fitted in the appliance blows, the appliance will be rendered inoperative. To restore normal operation the appliance will have to be taken to an authorised Technical Service Centre.
• The appliance must never be placed directly under the tap to fill the water tank.
• Unplug the appliance from the mains supply after each use, or if a fault is suspected.
• The electrical plug must not be removed from the socket by pulling the cable.
• Never immerse the iron in water or any other fluid.
• Do not leave the appliance exposed to weather conditions (rain, sun, frost, etc.)

Important:

• This appliance reaches high temperatures and produces steam during use, which could cause scalds or burns if not used properly.
• The steam hose, base station, metal plate at the bottom of the removable iron pad (2*) and in particular the iron can get hot when used. This is normal.
• Never aim the steam at people or animals.
• Do not allow the power cable to come into contact with the soleplate when it is hot.
• Be aware that the system can keep on steaming for a short additional time after releasing the steam trigger. This is a normal function.

Advice on disposal

Our goods come in optimised packaging. This basically consists in using non-contaminating materials which should be handed over to the local waste disposal service as secondary raw materials. Your local town council can give you information about how to dispose of obsolete appliances.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Description

1. Boiler's cap
2. Removable iron pad *
3. Mains cable and hose storage compartment
4. Mains cable
5. Steam hose
6. "Steam ready" pilot light
7. "on / off" pilot light (on)
8. Main power switch (0/I)
9. Housing with internal steam generator
10. Temperature control knob
11. Steam release button
12. Iron pilot light
13. Soleplate
14. Steam button lock *
15. Filling funnel
16. Carrying handles

* Model dependent

Preparation

1. Remove any label or protective covering from the soleplate.
2. Place the appliance horizontally on a solid, stable surface.

Model dependent:

You may remove the iron pad (2) from the appliance and place the iron on it on another solid, stable, horizontal surface. Never rest the iron on the appliance without the iron pad!

1. Open the boiler's cap (1). Fill the boiler carefully using always the funnel (15), and close the cap firmly.

Filling with warm water reduces the waiting time for heating up.

Do not overfill the boiler.

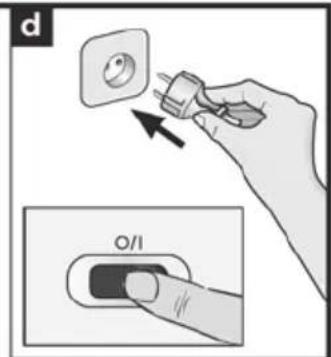

1. Unwind the mains cable (4) fully and plug it into an earthed socket.
2. Switch the main power button (8) on (position "I")
3. The "Steam ready" indicator lamp (6) will light up after approximately 7 minutes, indicating that the appliance is ready to use.
4. If the "steam ready" lamp (6) lights and steam is not released when pressing the steam release button (11), refill the water tank.

1. Refilling the boiler

See the leaflet sides

Attention! Risk of burns!

careful when opening the cap, steam may escape.

1. Press the steam button (11) to check that no more steam is generated. Only then should the boiler be refilled.
2. Set the appliance switch (8) to the off position ("0") and unplug the steam station from the mains. Then wait for at least 2 minutes.
3. Open the cap (1) carefully and slowly. Allow remaining steam to escape.
4. Refill the boiler using always the funnel (15). Do not overfill the boiler.
5. If there is water left around the filling inlet, dry it with a towel before closing the boiler.
6. Close the cap firmly.

Important:

• Normal tap water can be used. To prolong the optimum steam function, mix tap water with distilled water in a 1:1 ratio. If the tap water in your area is very hard, mix tap water with distilled water in a 1:2 ratio. You can inquire about water hardness with your local water supplier. - To avoid damage and/or contamination of the boiler, do not use perfumed water, vinegar, starch, descaling agents, additives, or any other type of chemical product.

Any damage caused by the use of the aforementioned products will void the guarantee.

- The iron is not designed to rest on its heel. Always position it horizontally on the iron pad (2).

Model dependent:

The iron pad can be placed into the specially designed recess on the appliance or somewhere suitable alongside the ironing area.

Never rest the iron on the appliance without the iron pad!

- During its first use, the iron may produce certain vapors and odors, along with white particles on the soleplate. This is normal and will stop after a few minutes.

2. Setting the temperature

See the leaflet sides

1. Check the ironing instruction label on the garment to determine the correct ironing temperature.
2. Turn the temperature selector (10) to the required setting:

●	Synthetics
●●	Silk – Wool
●●●	Cotton – Linen

1. The indicator lamp (12) will remain lit while the iron is heating and go out as soon as the iron has reached the selected temperature.

Tips:

• Sort your garments out based on their cleaning symbol labels, always starting with clothes that have to be ironed at the lowest temperatures.
• If you are not sure what the garment is made of then begin ironing at a low temperature and decide on the correct temperature by ironing a small section not usually seen when worn.

3. Ironing with steam

See the leaflet sides

1. Turn the temperature selector (10) to the required setting
2. Press the steam release button (11) to release steam.

Attention:

• When ironing on a lower temperature setting “•”, only press the steam release button (11) for a few seconds at a time. If you find that water is dripping out of the soleplate, set the temperature to a higher position (take care that the garment can be ironed on this heat temperature setting).
• At the beginning of each use, it is possible that drops of water will be dispensed alongside steam. Therefore, it is advisable to try the iron on the ironing board or a piece of cloth to start with.

Tip: for better ironing results, iron the last strokes without steam to dry the garment.

(model dependent)

To get permanent steam, press the lock button (14*) and slide it backwards until it locks. To switch off the permanent steam, slide the lock button forward.

Important:

- The steam hose may get hot if you are ironing for long periods.

Ironing without steam

1. Set the required ironing temperature.
2. Begin ironing but without pressing the steam release button (11).

4. Vertical steam

↑ See the leaflet sides

Never direct the steam jet at garments that are being worn.

Never aim the steam at people or animals.

1. Set the temperature control to the “••” or “max” position.
2. You can steam iron curtains and hanging garments (jackets, suits, coats...) by holding the iron in a vertical position and pressing the steam release button (11). Operate the iron vertically at a distance of 10 to 20 cm

5. Cleaning the Boiler

↑ See the leaflet sides

To extend the life of your steam generator and to avoid any build-up of scale, it is essential that you rinse out the boiler after several hours of use (approximately after 50 hours). If the water is hard, increase the frequency.

Do not use descaling agents for rinsing out the boiler, as they could damage it.

1. Check that the appliance is unplugged and cold for more than 2 hours.
2. Unscrew the boiler's cap (1).
3. Empty the boiler above a sink by holding the appliance upside down.
4. Fill the boiler with 500 ml of fresh water.
5. Shake the base unit for a few moments and then empty it completely over a sink or bucket.
6. To obtain the best result, we recommend that this operation is done twice.
7. Close the cap.

6. Rinsing the iron steam chamber

↑ See the leaflet sides

Caution! Risk of burns!

This procedure helps to remove scale particles out of the steam chamber.

This cleaning procedure may be performed occasionally (approximately once a year), when after a long period of use with very hard water, scale particles start to come out of the soleplate.

a) Ensure that the iron is cooled down. b) Set the temperature selector (10) of the iron to the "min" position. c) Fill the tank with tap water. d) Plug in the mains cable and set the main power switch (8) to the "I" position. e) Wait until the "steam ready" indicator lamp (6) lights up.

f) Hold the iron over the sink or a container to collect the water.

g) Press the steam release button (11) and gently shake the iron. Boiling water and steam will come out, carrying scale and/or deposits that might be there. This could take approximately 5 minutes.

h) Set the temperature selector (10) of the iron to the "max" position, without pressing the steam release button (11). The water in the steam chamber will start evaporating. Wait until all the water inside the chamber has been evaporated.

i) To clean the soleplate, immediately rub off any residue by running the hot iron over a dry cotton cloth.

7. Storing the appliance

↑ See the leaflet sides

1. Set the main power to the "0" position and disconnect the mains cable.
2. Always allow the appliance to cool down before storing it.
3. Place the iron on the iron pad, standing on the soleplate.
4. Empty the boiler and store the mains cable and the steam hose in the storage compartment. Do not wrap the cords too tight.
5. Use the carrying handles (16) on the sides when moving the appliance.

Cleaning & Maintenance

↑ See the leaflet sides

Attention! Risk of burns!

Always unplug the appliance from the mains supply before carrying out any cleaning or maintenance operation on it.

1. After ironing, pull out the plug and allow the appliance to cool down before cleaning.
2. Wipe the housing, handle, and iron body with a damp cotton cloth.
3. If the soleplate is soiled with dirt or scale, clean it with a damp cotton cloth.
4. If the cloth is synthetic, it may melt due to the high temperature on the soleplate (13). Switch off the steam and rub off any residue immediately with a thickly folded, dry cotton cloth.
5. Never use abrasive products or solvents. To keep the soleplate (13) smooth, avoid hard contact with metal objects. Never use a scouring pad or chemicals to clean the soleplate.

Fabric protection soleplate cover *

See fold-out page

(model dependent)

The fabric-protection soleplate cover is used for steam-ironing delicate garments at maximum temperature without damaging them. Use of the soleplate cover also eliminates the need for a cloth to prevent shine on dark materials.

It is advisable to first iron a small section on the inside of the garment to see if it is suitable.

To attach the soleplate cover to the iron, place the tip of the iron into the end of the soleplate cover and pull the elastic strap over the lower rear of the iron until it fits tightly. To release the soleplate cover, pull the elastic strap and remove the iron.

The fabric-protection soleplate cover may be purchased from customer service or specialist shops.

Name of accessory: TDZ2045

Tips to help you save energy

Steam production consumes the most energy. To help minimize the energy used, follow the advice below:

• Start by ironing the fabrics that require the lowest ironing temperature. Check the recommended ironing temperature on the garment label.
• Try to iron the fabrics while they are still damp and reduce the steam setting.
• If you tumble dry your fabrics before ironing them, set the tumble drier on the 'iron dry' programme.
• If the fabrics are damp enough, you can iron without steam.

Problem Possible causes Solution
The steam generator does not come on.	1. There is a connection problem.2. The main power button is not switched on.	1. Check the mains cable, the plug and the socket.2. Switch the main power button (8) to the on position.(“I”)
The iron does not heat up.	1. The main power button is not switched on.2. The temperature control knob is set to the “min” position.	1. Switch the main power button (8) to the on position.(“I”)2. Set the temperature control knob (10) to the desired position.
The iron begins to smoke when switched on.	1. During first use: Certain components on the appliance have been lightly greased at the factory and may produce a little smoke when initially heated.2. During later use: the soleplate may be soiled.	1. This is completely normal and will stop after a short while.2. Clean the soleplate according to the cleaning instructions in this manual.
Water flows through the holes on the sole plate.	1. Temperature control (10) setting is too low.2. The water is condensing inside the pipes because steam is being used for the first time or has not been used for a long time.	1. Turn the temperature control to a higher setting (between “•” and “max”) and wait until the pilot light (12) goes out.2. Point the iron away from the ironing area and press the steam release button (11) until steam is produced.
Dirt comes out through the sole plate.	1. There is a build-up of scale or minerals in the boiler.2. Chemical products or additives have been used.	1. Clean the boilerUse tap water mixed 50% with distilled or demineralised water. If the tap water in your district is very hard, mix tap water with distilled water 1:2.2. Clean the sole plate with a damp cloth.Never add products to the boiler
The iron does not produce any steam.	1. The boiler is not switched on or is empty.	1. Switch the main power button (8) to the on position.(“I”) and/or fill the boiler
The ironed garment turns dark and/or sticks to the soleplate.	1. The selected temperature is too high and has damaged the garment.	1. Select a suitable temperature for the material and clean the sole plate with a damp cloth.
The soleplate turns brown.	1. This is a regular consequence of usage.	1. Clean the soleplate regularly with a damp cloth.
Loss of pressure during ironing.	1. Steam release button activated during a long period of time.	1. Use the steam release button (11) with intervals. This improves the ironing result as the textiles will be dried and stay smooth better.

If the above does not solve the problem, get in touch with authorized technical service.

General safety instructions

General safety instructions

Bosch Home Appliance Group

P.O. Box 83 01 01

D-81701 Munich

Germany

www.bosch-home.com
