1231x - Calculator IBICO - Free user manual and instructions

Product Type	Desktop Calculator
Brand	Ibico
Model	1231x
Dimensions (L x W x H)	18.5 x 12.0 x 3.2 cm
Weight	210 g (with batteries)
Power Supply	2 LR44 batteries (button cell), integrated solar power
Battery Life	Approximately 2 years under normal use
Display	8-digit LCD screen + 2 signs
Main Functions	Basic calculations (+, -, ×, ÷), memory, percentage, square root
Memory	1 memory key (M+, M-, MR, MC)
Keyboard	Rubber keys, standard layout
Care and Cleaning	Clean with a soft, dry cloth. Do not use solvents.
Safety	Do not expose to moisture, shocks, or extreme temperatures.
Spare Parts and Repairability	Batteries and battery holder are replaceable. Other parts not available separately.
General Information	Solar/battery calculator, ideal for school or light professional use.

Frequently Asked Questions - 1231x IBICO

How to turn the calculator on or off?

The calculator turns on automatically when you press a key or when ambient light is sufficient (solar model). To turn it off, it goes into sleep mode automatically after a few minutes of inactivity.

What to do if the calculator displays nothing or shows faint digits?

First check the orientation of the batteries (LR44). If the screen remains dim, replace the batteries. Also clean the contacts with a dry cloth. The solar function may require sufficient light.

How to use the memory function?

Press M+ to add the displayed number to memory, M- to subtract it, MR to recall the value, and MC to clear memory. Memory can store a single number.

How to perform a percentage calculation?

Enter the base number, press × or ÷, then the percentage, and finally the % key. For example: 100 × 10 % gives 10.

What does the display 'E' or 'Error' mean?

An error message appears in case of division by zero or overflow (result exceeding 8 digits). Press the CE or C key to clear the error.

How to change the batteries?

Turn the calculator over, open the battery compartment (usually with a Phillips screwdriver), remove the old batteries and insert two new LR44 batteries observing polarity (+/-). Close the cover.

Does the calculator work without batteries?

Yes, if exposed to sufficient light (natural or artificial), the solar cell can power the calculator without batteries. However, batteries are needed for use in the dark.

How to clear the display?

Press the C (Clear) key once to clear the last number entered, or twice to clear all ongoing calculations. The CE key clears only the current entry.

Can I use the calculator for scientific calculations?

No, the Ibico 1231x is a basic calculator with only arithmetic operations, memory, percentage, and square root. It is not suitable for trigonometric or logarithmic functions.

What to do if a key does not respond?

Clean the keyboard with a cotton swab slightly moistened with isopropyl alcohol (with the calculator turned off). If the problem persists, it may be a mechanical defect; contact customer service or replace the device.

USER MANUAL 1231x IBICO

	1231X	1232X	1491X
Type	Electronic Printing / Display Calculator	Electronic Printing / Display Calculator	Electronic Printing / Display Calculator
Keyboard	10-key system	10-key system	10-key system
Capability	12 digits	12 digits	14 digits
Display	12 digit Liquid Crystal Display	Green and easy-to-read fluorescent display / 12 digits for numerals, 1 digit for symbols (on the left of the display panel)	14 digit Liquid Crystal Display
Printing	Standard Epson M-80 printer head / 12 digits for numerals, 1 digit for decimal point, 2 digits for symbols, 3 digits for punctuation	Epson M-80S printer head / 12 digits for numerals, 1 digit for decimal point, 2 digits for symbols, 3 digits for punctuation	S11 SeikoLT Thermal Printer / 14 digits for numerals, 1 digit for decimal point, 2 digits for symbols, 3 digits for punctuation
Printout color	Black/Red, two-color ribbon (negative results are printed in red)	Black/Red, two-color ribbon (negative results are printed in red)	Black, Negatives in bold
Ink Roll	GR41/GR51	GR41/GR51	-
Printing speed	3.5 lines/second	4.1 lines/second	10 lines/second
Paper roll	Width 58mm (2-11/16")/ Inner diameter 12mm (1/2")/ Outer diameter 50mm (2")	Width 58mm (2-11/16")/ Inner diameter 12mm (1/2")/ Outer diameter 50mm (2")	Width 58mm (2-11/16")/ Inner diameter 12mm (1/2")/ Outer diameter 50mm (2")
Operating temperature	32°F to 104°F (0°C to 40°C)	32°F to 104°F (0°C to 40°C)	32°F to 104°F (0°C to 40°C)
Power source	AC 220-240V 50/60 Hz	AC 220-240V 50/60 Hz	AC 220-240V 50/60 Hz
Power consumption	14 W	14 W	35 W
Dimensions	W230 x D300 x H75 mm	W230 x D300 x H75 mm	W230 x D300 x H92 mm
Weight	1.8 kg	1.8 kg	1.4 kg

Operation and maintenance

Before turning on

Remove the ribbon cushion placed on the ribbon. The ribbon cushion is located under the printer cover. Check the rating label on the bottom of the calculator to see if the rated voltage corresponds to the local voltage before you plug in AC cord.

CAUTION

If this calculator is not installed and used properly (in strict accordance with this instruction manual), it may compromise its characteristics.

This calculator is made of sturdy materials, which provide adequate protection under normal usage. There is a limit to the amount of dropping this unit can withstand. Reasonable care is required to protect the display and other components.

• Do not use or place this calculator in areas of high or low temperature, high humidity, direct sunlight, or a dusty atmosphere for long periods. Excessive exposure to these conditions could result in poor performance, damage to the cabinet or functional failure of the LSI or other components. Also, avoid using the calculator near audio equipment since interference may result.
• Do not use incorrect electrical supply.
• Do not expose to physical shock or to water in order to maintain good performance.
• Do not cover the calculator when it is turned on as the unit may overheat.
• Do not open the cabinet. Do not replace original components or accessories with any that are not approved by IBICO, or carried out by unauthorized personnel.
• Do not use thinner, petrol or alcohol to clean the calculator. Use a silicone treated cloth or a cloth dampened with gentle cleaning liquid that will not damage the calculator.

How to install or replace the paper roll

1 Turn on the power switch.
2 Allow the paper holder to click into place.
3 Cut the edge of the paper roll straight with scissors for proper feeding through the printer head. Insert the edge of the paper roll into the paper slot.
4 Press the "Paper Feed" key (5) to feed in the paper until it appears through the printer.
5 Install the paper roll in the paper holder by stretching both ends of the paper holder.

Note:

• Do not over-stretch the paper holder.
• To remove the paper roll from the printer mechanism, pull the paper roll forward after cutting the paper on the paper roll side.

How to install or replace 1231X the ink roller 1232X

1 Turn off the power switch.
2 Push the printer cover inward and upward in order to remove it from the cabinet.
3 Move spool holder to remove both spools.
4 Insert new ink spools. Make sure that the black side of ribbon is up and that the ribbon goes through the ribbon guide in the right direction (A).
5 Return the printer cover to the original position.

Keyboard and switch

SWITCH INDEX

1 Print Mode, Item Counter and Grand Total

P : Calculation performed on both the display and the printer NP / AC : Calculation performed on the display only IC : Calculation with item-count, print and display GT : Calculation with Grand Total.

1231X & 1491X: Any total taken with T key is automatically accumulated to the memory. The accumulated grand total can be recalled by pressing the memory MC key;

1232X: Any total taken with T key is automatically accumulated to MII. The accumulated grand total can be recalled by pressing MII then the MC key;

2 Decimal Point

Calculation by pressing the T, +, -, =, % or MC keys is normally completed in the decimal point position predetermined by the decimal point selection switch. When the integral part of the entry number or calculated result exceeds the integral digits incidentally regulated by the decimal point selection, the whole integral part predominates over the decimal part.

A : Add mode. The decimal point is automatically placed before the last two digits in addition and subtraction.
0, 1, 2, 3, 4, 6 : For multiplication and division, decimal point is set to the result of the calculation. For addition and subtraction, decimal point is set to all entries.
0 : Integral number only
1:1 decimal place
2:2 decimal places
3:3 decimal places
4 : 4 decimal places
6:6 decimal places
F : Floating decimal point. Automatic floating point for decimally accurate computing.

3 Round-up / Round-off / Round-down

(Depending on decimal point system. If decimal point system is in floating point mode, this switch will be neglected.)

↓ : Calculation in Round-down mode
5/4 : Calculation in Round-off mode
↑ : Calculation in Round-up mode

4Σ

.: Calculation without Sigma
Σ : Calculation with Sigma. The results of multiplication or division calculations completed by the = or % keys are automatically added to the accumulator. The sum of these accumulations is displayed by pressing Subtotal key and displayed and cleared by pressing the Total key.

KEY INDEX

5 Paper Feed: Advance the paper roll.
6 Square Root: The Square root is calculated from the contents of the display.

Keyboard and switch continued

7 Foreign currency: Convert the displayed value to foreign currency.

8 Local currency: Convert the displayed value to local currency.

9 Rate: Tax rate and exchange rate setting.

10 TAX Plus / TAX I Plus: Calculate an amount including VAT with VAT rate preset by RATE key.

11 TAX Minus / TAX I Minus: Calculate an amount excluding VAT with VAT rate preset by RATE key.

1231X

12a TAX II Plus: Calculate an amount including VAT with VAT rate preset by RATE key.

13a TAX II Minus: Calculate an amount excluding VAT with VAT rate preset by RATE key.

14a Time Mode: Set the calculator to Time Mode. +, -, S, and T will all be calculated and displayed in Time Mode (Hours, Minutes)

1232X

12b IC: Calculation with item count.

13b Grand Total: Print and clear the grand total memory.

14b Memory II: Can do calculation on memory II by press memory II key follow by memory plus, memory minus, memory recall or memory clear key.

1491X

12c AC: Automatically recalls calculation made in "AC" mode

13c Call: Check each calculation step by step. Performs quick replay by continuous press.

14c Void: Enables correction for each calculation step

15 Digit shift: Shifts right the displayed number per digit before any function key is pressed. It allows you to correct a mistaken digit entry without clearing the entire display.

16 Sign change: Change the displayed number from plus to minus and minus to plus.

17 Gross Profit Margin: To calculate the true retail price from the cost price and a desired gross margin.

18 Clear Entry /Clear

CE : Clear the last number (displayed number) entered before any function key is pressed

C : Clear all except memory content and grand total memory.

19 Numbers, double zero and triple zero: Set the number to be entered.

20 Decimal point: Set the decimal point.

21 Subtraction

22 Addition

23 Delta Percent: The percent change to the reference value can be calculated. Constant calculation is possible when A is assumed to be a constant number. This calculation is also possible via % instead of =.

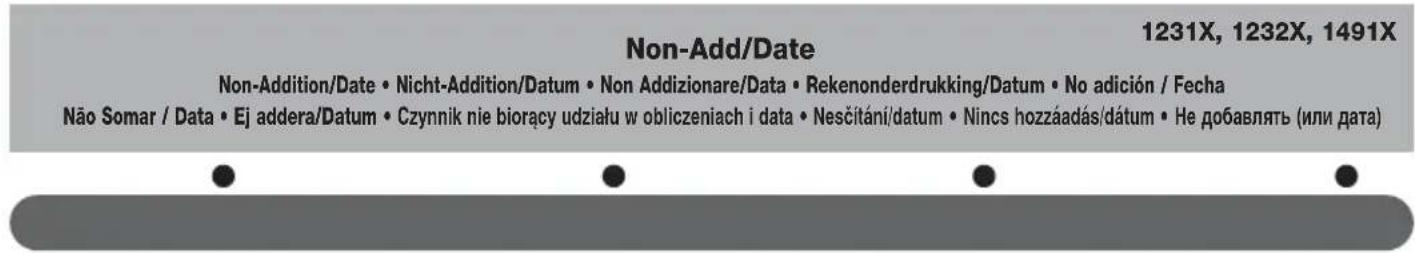

24 Non-Add/Print: Print displayed content and does not perform calculation; prints the figure in the display even if the print switch is in "NP" position.

25 Subtotal: Obtain intermediate result of addition and subtraction.

26 Total: Obtain total result of addition and subtraction. Pressing this key clears the total register. When this key is pressed with the "GT" switch engaged, the result is accumulated automatically in the memory register.

27 Percentage: Convert percentage to the decimal value; also, convert for add-on and discount calculation.

28 Division

29 Multiplication

30 Equal: To get the result in multiplication or division.

31 Memory Clear: Clear the memory content after recalling its contents to the display and/or to printed paper.

32 Memory Recall: Recall the memory content to the display and/or to printed paper.

33 Memory Minus: Subtract the displayed number or calculated result from the memory.

34 Memory Plus: Accumulate the displayed number or calculated result directly in the memory.

How to select "00" version or "000" version

Install the desired keys (keys kit provided) and remove the existing version with a car key if needed.

1 Version 0 00 000 . (all key of the same size)

Turn Power OFF then turn Power ON while pressing CE/C & key 1 for 5 seconds. "L-01" appears on the display. This version is now set and you can start your calculations.

2 Version . 0 00 000 (all keys of the same size)

Turn Power OFF then turn Power ON while pressing CE/C & key 2 for 5 seconds. "L-02" appears on the display. This version is now set and you can start your calculations.

3 Version 0 00 . (extra large 0 key)

Turn Power OFF then turn Power ON while pressing CE/C & key 3 for 5 seconds. "L-03" appears on the display. This version is now set and you can start your calculations.

Displayed symbols

1231X

-	: Minus (negative)
M	: Memory occupied
	: Local Currency
	: Foreign Currency
DEC	: Decimal Value
TIME	: Calculator in Time Mode
GPM	: Mark Up
%	: Delta Percent
RATE	: Tax rate and Exchange rate
TAX I	: Current Tax I rate
TAX II	: Current Tax II rate
TAX I/II+	: Tax I/II rate plus calculation
TAX I/II-	: Tax I/II rate minus calculation

1232X

-	: Minus (negative)
M	: Memory occupied
•	: Grand total or memory II occupied
E	: Overflow - error

1491X

-	: Minus (negative)
M	: Memory occupied
LOCAL : Local Currency
FC	: Foreign Currency
GPM	: Mark Up
%	: Delta Percent
RATE	: Tax rate and Exchange rate
TAX +	: Tax rate plus calculation
TAX -	: Tax rate minus calculation
80VOIDCALL+ =	: Auto Call / Call / Void
x ÷
*◇

Printed symbols

1231X

C* : Restart Calculator

C : Clear

+ : Add

- : Subtract or negative

x : Multiply

÷ : Divide

% : Percentage

* : Total (result)

# : Non-add or date

M : Gross profit margin

K : Foreign currency

K= : Exchange rate

R% : Current Tax rate

M+ : Add to memory

M- : Subtract from men

M+ : Add negative value

M- : Add negative value

MS : Memory subtotal

MT : Memory total and

MS : Memory subtotal is

MT : Memory total is ne

G+ : Add to memory ll

G- : Subtract from men

G+ : Add negative value

G- : Add negative value

GS : Memory ll subtotal

GT : Grand total or mem

memory ll clear

GS : Memory ll subtotal

GT : Grand total or mem

value

S : Subtotal

T : Total

T+ : Total added to the

= : Equal

... : Overflow - error

Δ* : Difference

Δ% : Percentage Differe

Δ : Difference to add

Δ - : Difference to subt

+% : Result of add-on

-% : Result of percent o

R : Square Root

1232X

C* : Restart Calculator

C : Clear

+: Add

- : Subtract or negative

x : Multiply

÷ : Divide

% : Percentage

* : Total (result)

#: Non-add or date

M : Gross profit margin

K : Foreign currency

K= : Exchange rate

R% : Current Tax rate

M+ : Add to memory

M- : Subtract from memory

M+ : Add negative value in memory plus

M- : Add negative value in memory minus

MS : Memory subtotal

MT : Memory total and memory clear

MS : Memory subtotal is negative value

MT : Memory total is negative value

S : Subtotal

T : Total

MT+: Total added to the Grand Total

=: Equal

... : Overflow - error

Δ* : Difference

Δ% : Percentage Difference

Δ : Difference to add

Δ : Difference to subtract

+% : Result of add-on

-% : Result of percent discount

R : Square Root

1491X

C* : Restart Calculator

CL : Clear

+ : Add

- : Subtract

x : Multiply

÷ : Divide

ST : Subtotal

TL : Total

% : Percentage

+% : Result of add-on

-% : Result of percent discount

% : Percentage for mark up and tax

* : Total (result)

# : Non-add or date

MU : Gross profit margin

FC : Foreign currency

LC : Local currency

R : Foreign currency rate

: Foreign currency exchanged

: Local currency exchanged

M+ : Add to memory

M- : Subtract from memory

MS : Memory subtotal

MT : Memory total and memory clear

= : Equal

√ : Square Root

Δ : Tax amount

Δ* : Difference

Δ% : Percentage Difference

T : Value Added Tax

... : Overflow - error

Tx+: Tax plus

Tx- : Tax minus

R% : Square Root

T% : Total added to the Grand Total

Overflow error conditions

When an overflow error occurs, the overflow error sign "E" appears on the extreme left of the display and the overflow error symbol "... is printed when print mode is selected. Press the CE/C keys to reset. Dividing by zero (0) will result in an error condition.

3 Version 0 00 . (touche 0 extra large)

-% : Result of percent discount

M : Bruto winstmarge

M : Bruto winstmarge

-% : Result of percent discount

Simple line drawing of two circular loops mounted on a horizontal support frame (no text or symbols)

A

Simple line drawing of a mechanical device with two circular components and connecting rods (no text or symbols)

√
X

Addition and Subtraction with Item Count

1231X, 1232X, 1491X

Addition et Soustraction avec Compteur d'Opérations • Addition und Subtraktion mit Positionszähler • Addizione e Sottrazione con il Contatore Addendi Optelling en aftrekking met regeltelling • Sumas y restas con el contador de elementos • Somas e Subtracções com o Contador de Parcelas Addition och Subtraktion med Item Count/Posträknare • Dodawanie i odejmowanie ze zliczaniem pozycji • Ščitání a odečitání v režimu počitání položek Összeadás és kivonás tételszámlálással • Сложение и вычитание с подсчетом пунктов

EXAMPLE:0.4 + 3.1 - 1 = ?

$$ . 4 + 0. 4 0 0. 4 0 + $$

$$ 3. 1 + 3. 5 0 3. 1 0 + $$

$$ 1 - 2. 5 0 1. 0 0 - $$

$$ \mathbf {T} 2. 5 0 0 0 3 $$

2.50 T

Rounding for Addition and Subtraction

1231X, 1232X, 1491X

EXAMPLE:3.41 + 4.16 = S? - 1.14 = T?

$$ 3. 4 1 + 3. 4 1 3. 4 1 + $$

$$ 4. 1 6 + 7. 5 7 4. 1 6 + $$

$$ \mathbf {s} 7. 5 7 0 0 2 $$

$$ 1. 1 4 - 6. 4 3 7. 5 7 \mathrm{s} $$

$$ \textbf {T} 6. 4 3 1. 1 4 - $$

003

6.43 T

Item Count

1232X

Compteur d'Opérations • Postenzähler • Conteggio Voci • Itemteller • Recuento de unidad Contagem de Itens • Räknare • Licznik pozycji • Počitání položek • Tételszámlálás • Подсчет пунктов

EXAMPLE:3.4 + 2.1 + 4.16 = ?

$$ 3. 4 + 3. 4 0 3. 4 0 + $$

$$ 2. 1 + 5. 5 0 2. 1 0 + $$

$$ 4. 1 6 + 9. 5 5 4. 1 6 + $$

$$ \textbf {T} 9. 6 6 9. 6 6 \textbf {T} $$

$$ \mathbf {I C} 3. 0 0 3 $$

$$ \mathbf {I C} 3. 2 2 3. 2 2 * $$

$$ \begin{array}{r l} & \text { EXAMPLE: #23401 } \ & \quad 0 4. 0 1. 2 0 0 1 \ & \quad 3. 4 1 + 4. 1 6 = S? \ & \quad 2 3 4 0 1 # / D 2 3. 4 0 1. # 2 3 4 0 1 \ & . 0 4. 0 1. 2 0 0 1 # / D 0. 0 4 0 1 2 0 0 1 # 0 4. 0 1. 2 0 0 1 \ & \quad 3. 4 1 + 3. 4 1 3. 4 1 + \ & \quad 4. 1 6 + 7. 5 7 4. 1 6 + \ & \quad S 7. 5 7 0 0 2 \end{array} $$

$$ 7. 5 7 \mathrm{S} $$

$$ \begin{array}{r l} & \text { EXAMPLE: } [ 1 5. 3 \times (- 9. 2 7) ] \div [ 1. 0 9 \times 2. 2 ] = ? \ & \quad 1 5. 3 \times 5. 3 0 1 5. 3 0 \times \ & \quad 9. 2 7 + / - \div - \quad 1 4 1. 8 3 1 9. 2 7 - \ & \quad 1. 0 9 \div - 1 3 0. 1 2 0 1 8 3 4 8 6 1. 0 9 - \ & \quad 2. 2 = - \quad 5 9. 1 5 2. 2 0 = \end{array} $$

$$ 5 9. 1 5 - * $$

Exponent

1231X, 1232X, 1491X

Exposant • Exponent • Esponenziale • Exponent • Exponente

Exponente • Exponent • Wykładnik • Exponent • Kitevő • Показатель степени

EXAMPLE:2 ^3 = 2 × 2 × 2 = ?

$$ \begin{array}{l} 2 \times 2. 2. x \ \mathbf {x} 4. 2. \mathbf {x} \ = 8. 2. = \ \end{array} $$

1. *

Multiplication and Division with Accumulation

1231X, 1232X, 1491X

Multiplication et Division avec Accumulation • Multiplikation und Division mit Akkumulation • Moltiplicazione e Sottrazione con Accumulo

$$ 3. 1 1 = 4 8 2. 0 5 3. 1 1 = $$

T 1,880.19 1 880.19 T

748.44 +

649.70 +

482.05 +

Last Entry Correction

1231X, 1232X, 1491X

Correction du Dernier Chiffre • Korrektur des letzten Eintrages • Correzione ultima cifra • Verbetering van het laatst ingevoerde cijfer Corrección de última cifra • Correcção da Última Parcela • Korrektion av senaste operation • Korekta ostatniej wprowadzonej wartości Korekce poslední zadané hodnoty • Utolsó bejegyzés javitása • Поправка последней записи

$$ \mathrm{EXAMPLE:123+456+789=?} $$

$$ 1 2 3 + 1 2 3. 1 2 3. + $$

$$ 4 5 6 7 \quad 4, 5 6 7, 4 5 6. + $$

$$ \rightarrow \Rightarrow $$

$$ + 5 7 9. 0 0 3 $$

$$ 7 8 9 + 1, 3 6 8. 1 3 6 8. T $$

$$ \mathbf {T} 1, 3 6 8. $$

$$ 4 5 6. 7 8 9. + $$

Delta Percent

1231X, 1232X, 1491X

Delta pourcentage • Delta Prozent • Delta percentuale • Delta percentage • Porcentaje de incremento Delta

Percentagem de aumento Delta • Delta procent • Procent Delta • Procentuální delta • Delta százalék • Дельта процент

EXAMPLE: What value of increase is 120 to 1200?

$$ 120 \Delta \% \quad 120.00 $$

$$ 1 2 0 0 = 9 0 0. 0 0 1 2 0 0. 0 0 = $$

$$ 1 2 0. 0 0 \Delta $$

$$ 1 0 8 0. 0 0 \Delta^ {*} $$

$$ 9 0 0. 0 0 \Delta \% $$

NOTE: Clear Memory before using Grand Total function.

NOTE: Clear Memory before using Grand Total function.

NOTE: Clear Grand Total before using Memory function.

Gross Profit Margin

1231X, 1232X, 1491X

Calcul de Marge Brute • Bruttomarge • Profitto Lordo • Bruto winstmarge • Cálculo de margen bruto

Cálculo de Margem Bruta • Bruttoförtjänstmarginal • Cena brutto z marzą • Hrubá marže • Bruttó haszonkulcs • Валовая прибыль

EXAMPLE:Price + Tax (14%) = 200 Price without tax?

$$ \begin{array}{l} 2 0 0 \mathrm{GPM} 2 0 0. 0 0 2 0 0. 0 0 \mathrm{M} \ 1 4 - - 1 4. 0 0 1 4. 0 0 - \ = 1 7 5. 4 4 1 4. 0 0 \ \end{array} $$

$$ \begin{array}{c} - \% \ 2 4. 5 6 \overline {{\Delta^ {*}}} \ 1 7 5. 4 4 * \end{array} $$

EXAMPLE: Purchase price = 60 Selling price (32% margin) ?

$$ \begin{array}{l} 6 0 \mathrm{GPM} 8 0. 0 0 6 0. 0 0 \mathrm{M} \ 32 = 88.2432.00 \% \ \end{array} $$

$$ \begin{array}{l} 2 8. 2 4 \Delta * \ 8 8. 2 4 * \end{array} $$

Tax +/- Function

1231X, 1232X, 1491X

(Tax I +/-, Tax II +/-) = 1231X only

Fonction Tax +/- • Steuern +/- Funktion • Funzioni Tax +/- • Belastingfunctie +/- • Función Tax +/-

Função Taxa +/- • Skatt +/- Funktion • Funkcje przycisku Tax +/- • Daňová funkce +/- • Adó +/- funkció • Halor +/- функция

EXAMPLE: Tax Rate = 19.6%

To enter the rate in memory, press the key RATE until the display is blinking.

RATE (press until blinking) 0.

19.6 TAX+ 19.6

19.6 R%

EXAMPLE:Price without tax = 300 Price with tax ?

300 TAX+ 358.80

300.00

19.6 R%

58.80 Δ

358.80 T

EXAMPLE:Price with tax = 358.80 Price without tax?

358.8 TAX- 300.00

358.80

19.6 R%

58.80

300.00 T

Currency Exchange

1231X, 1232X, 1491X

Conversion de Devises • Währungsumrechnung • Cambiavalute • Wisselkoers • Cambio de divisa

Taxa de Câmbio • Växelkurs • Przelicznik walut • Výměna měny • Valutaátszámítás • Валютный обмен

There are 13 Foreign currency rates available in memory and the default is preset to 1.

• The way to select a position to set your desired rates.
• Press and hold the key RATE until display is blinking.
• Press the key 📄, display will appear "r-01 1".
• Press the key +, to forward to next rate.
• Press the key =, to backward to previous rate.
• Enter required rate followed by pressing the key
• The current rate is now set.

- If you want to change the Foreign Currency to default rate, power OFF the machine, then power ON the machine while pressing CE/C and +. Then "r-CC" will appear on the display and the default rate is set.

RATE (press until blinking) 0.

$$ \begin{array}{c c c} R - & R - 0 1 & 1. \ R - & R - 0 2 & 1. \end{array} $$

6.55957 6.55957

6.559576.55957 K

You have activated the rate, now you can start your calculations.

EXAMPLE:1 Foreign currency = 6.55957 Local currency

$$ 1 0 0 0 + 2 0 0 0 = \text { Total }? $$

(15.5 × 9.27) ÷ (1.09 × 2.2) = Total Local ?

$$ 1 0 0 0 + 1, 0 0 0. 0 0 1 0 0 0. 0 0 + $$

$$ 2 0 0 0 + 3, 0 0 0. 0 0 2 0 0 0. 0 0 + $$

$$ T 3, 0 0 0. 0 0 3 0 0 0. 0 0 T $$

457.35

$$ 1 5. 3 \times 1 5. 3 0 1 5. 3 0 x $$

$$ 9. 2 7 \div 1 4 1. 8 3 1 9. 2 7 \div $$

$$ 1. 0 9 \div 1 3 0. 1 2 0 1 8 3 4 8 6 1. 0 9 \div $$

$$ 2. 2 = 5 9. 1 5 2. 2 0 = $$

LOCAL 388.00

3 000.00 ÷

6.55957 K=

457.35 *

59.15 *

59.15 x

6.55957 K=

388.00 *

Time Calculation

1231X

Mode Temps • Zeit Modus • Modalità Tempo • Tijd modus • Modo de tiempos

Modo de Horário • Tidsläge • Tryb czasu • Časového modu • Idő üzemmód • Режим времени

NOTE:The "TIME" symbol is displayed when Time Mode is ON.

EXAMPLE:12 hour 34 minutes + 5 hour 12 minutes - 1 hour 20 minutes = ?

$$ \begin{array}{l} \text { TIME MODE } 0 0 - 0 0 0 0 0 0 \mathrm{C} \ 1 2 3 4 + 1 2 - 3 4 1 2 3 4 + \ 0 5 1 2 + 1 7 - 4 6 0 5 1 2 + \ 0 1 2 0 - 1 6 - 2 5 0 1 2 0 - \ \texttt {S 1 6 - 2 6 1 6 2 6 S} \ \textbf {T} 1 6 - 2 8 1 6 2 6 \textbf {T} \ \end{array} $$

$$ \begin{array}{l} 1 2 3 4 + 1 2 - 3 4 1 2 3 4 + \ 0 5 1 2 + 1 7 - 4 6 0 5 1 2 + \ 0 1 2 0 - 1 6 - 2 5 0 1 2 0 - \ \texttt {S 1 6 - 2 6 1 6 2 6 S} \ \textbf {T} 1 6 - 2 8 1 6 2 6 \textbf {T} \ \end{array} $$

EXAMPLE:5 hour 23 minutes x 4 = ?

$$ 1 1 \text { hour } 5 4 \text { minutes } \div \frac {8 = ?}{+ ?} $$

$$ 0 5 2 3 \times \quad \text { DEC } \quad 5. 3 8 3 3 3 3 3 3 3 3 5. 3 8 3 3 3 3 3 3 3 3 3 x $$

$$ \begin{array}{l} 4 = \quad \text { DEC } 2 1. 5 3 4. 0 0 = \ + 2 1 - 3 2 2 1 3 2 + \ \end{array} $$

$$ 1 1 5 4 \div \quad \text { DEC } \quad 1 1. 9 0 1 1. 9 0 \div $$

$$ 8 = \quad \text { DEC } \quad 1. 4 9 8. 0 0 = $$

$$ + 2 3 - 0 1 0 1 2 9 + $$

$$ \textbf {T} 2 3 - 0 1 2 3 0 1 \mathrm{T} $$

EXAMPLE: Calculate weekly salary

Normal working time 9:00-17:00 rate \$10.00/hour

Over time 1 17:00-21:00 rate \$15.00/hour

Over time 2 21:00-24:00 rate \$20.00/hour

Punch card Monday 9:00-17:00

Tuesday 9:00-22:30

Wednesday 9:00-23:00

Thursday 9:00-19:15

Friday 9:00-20:00

Every Lunch Time 12:00-13:00 (1 hour)

Time Calculation

1231X

Mode Temps • Zeit Modus • Modalità Tempo • Tijd modus • Modo de tiempos

Modo de Horário • Tidsläge • Tryb czasu • Časového modu • Idő üzemmód • Режим времени

CE/C 00-00 00 00 C
1700 + 17-00 17 00 +
0900 - 08-00 09 00 -
0100 - 07-00 01 00 -
T 07-00 07 00 T
x	DEC	7.00 7.00 x
5 =	DEC	35.00 5.00 =
			35.00 *
x	DEC	35.00 35.00 x
10 =	DEC	350.00 10.00 =
			350.00 *
M+	DEC M	350.00 350.00 M+
CE/C	M	00-00 00 00 C
2230 +	M	22-30 22 30 +
2100 -	M	01-30 21 00 -
2300 +	M	24-30 23 00 +
2100 -	M	03-30 21 00 -
T	M	03-30 03 30 T
x	DEC M	3.50 3.50 x
20 =	DEC M	70.00 20.00 =
			70.00 *
M+	DEC M	70.00 70.00 M+
CE/C	M	00-00 00 00 C
2100 +	M	21-00 21 00 +
1700 -	M	04-00 17 00 -
2100 +	M	25-00 21 00 +
1700 -	M	08-00 17 00 -
1915 +	M	27-15 19 15 +
1700 -	M	10-15 17 00 -
2000 +	M	30-15 20 00 +
1700 -	M	13-15 17 00 -
T	M	13-15 13 15 T
x	DEC M	13.25 13.25 x
15 =	DEC M	198.75 15.00 =
			198.75 *
M+	DEC M	198.75 198.75 M+
MR	DEC M	618.75 618.75 MS
MC	DEC	618.75 618.75 MT

Auto Call / Call / Void

1491X

EXAMPLE:(123 × 3) - (456 ÷ 3) = ? (333 × 3) - (456 ÷ 3) = ?

	00	0.
123 x	01	123.
3 +	03	369.
456 ÷	04	456.
3 -	06	217.
S	07	217.
T	08	217.

AC	CALL 01	123. x
	CALL 02	3. +
	CALL 03	369. *
	CALL 04	469. ÷
	CALL 05	3. -
	CALL 06	- 152. *
	CALL 07	217. ◊
	CALL 08	217. *

CALL	CALL 01	123. X
VOID	VOID CALL 01	123. X
333 VOID	CALL 01	333. X

AC	CALL 01	333.×
	CALL 02	3.+
	CALL 03	999.*
	CALL 04	456.÷
	CALL 05	3.-
	CALL 06	-152.*
	CALL 07	847.◇
	CALL 08	847.*

#/D

08

847.

01	333. X
02	3. =
	999. +
04	456. ÷
05	3. =
	-152. -
07	847. ST
08	847. TL

CE/C

00

0.

Guarantee

Operation of this machine is guaranteed for one year from date of purchase, subject to normal use. Within the guarantee period, GBC will at its own discretion either repair or replace the defective machine free of charge. Defects due to misuse or use for inappropriate purposes are not covered under the guarantee. Proof of date of purchase will be required. Repairs or alterations made by persons not authorised by GBC will invalidate the guarantee. It is our aim to ensure that our products perform to the specifications stated. This guarantee does not affect the legal rights which consumers have under applicable national legislation governing the sale of goods.

Garantie
