Super SX VS01G511 - Vacuum Cleaner SIEMENS - Free user manual and instructions

Product type	Canister vacuum with bag
Brand	Siemens
Model	Super SX VS01G511
Power consumption	1200 W
Bag capacity	4 liters
Filter type	Washable HEPA 13 filter
Operating radius	9 meters
Noise level	76 dB(A)
Dimensions (W x D x H)	30 x 30 x 50 cm
Weight	6 kg
Power cord	7 meters, automatic rewinder
Included accessories	Crevice tool, parquet brush, upholstery nozzle
Closing system	Hood closing clip
Bag change indicator	Yes, indicator light
Floor type	Hard floors and carpets
Power adjustment	Electronic with dial
Warranty	2 years
Filter maintenance	Clean every 3 months under cold water
Cable storage	Automatic rewinder
Repairability	Spare parts available (bag, filter, belt)

Frequently Asked Questions - Super SX VS01G511 SIEMENS

How do I change the dust bag of the Siemens Super SX VS01G511 vacuum cleaner?

Unplug the device. Open the hood by pressing the clip. Remove the full bag by pulling the tab. Insert a new Siemens type G bag until it clicks. Close the hood.

How do I clean the HEPA filter of my vacuum cleaner?

The HEPA filter should be cleaned every 3 months or when the indicator lights up. Remove the filter from the compartment, gently tap it to remove dust, then rinse it under cold water without detergent. Let it air dry for 24 hours before reinstalling.

What should I do if the vacuum cleaner does not turn on?

Check that the electrical outlet works and the cord is properly plugged in. Check the condition of the fuse in the plug (if applicable). If the problem persists, the cable or switch may be defective: contact customer service.

Can I vacuum liquids with this vacuum cleaner?

No, this vacuum cleaner is designed only for dry cleaning. Vacuuming liquids would damage the motor and void the warranty.

Which dust bags should I use for the Siemens Super SX VS01G511?

Use replacement bags Siemens type G or compatible quality bags. Never reuse a disposable bag.

How do I retract the power cord into the vacuum cleaner?

Hold the plug and press the automatic rewinder pedal. The cord retracts automatically. Do not let it twist.

Why is the vacuum cleaner making an abnormal noise?

An unusual noise may be due to an obstruction in the tube or nozzle, a full bag, or a clogged filter. Check each element and remove any blockages.

How do I clean the parquet brush?

Remove the brush from the tube. Use scissors to cut hair and threads wrapped around the brush roller. Wipe with a damp cloth to remove dust. Let dry before reassembling.

Where can I find spare parts for this vacuum cleaner?

You can order spare parts (bag, filter, nozzle, belt) from shop.siemens.com or from authorized dealers. Always use Siemens parts to ensure safety.

What should I do if the vacuum cleaner loses suction?

This may be due to a full bag, a clogged filter, or a blocked hose. Check each element: change the bag, clean the filter, inspect the hose for obstructions. Also make sure the power setting is not at minimum.

USER MANUAL Super SX VS01G511 SIEMENS

Instructions for use

VSX1

de Gebrauchsanweisung ....2 en Instructions for use ....9 fr Notice d'utilisation .....16 it Instruzioni per l'uso .....23 nl Gebruiksaanwijzing ....30 da Brugsanvisning ....37 no Bruksanvisning ....44 sv Bruksanvisning ....51 fi Käyttöohje ....58 es Instrucciones de uso ....65 pt Instruções de utilização .....72 el Οδηγίες χρήσεως ....79 tr Kullanma talimatı .....86 pl Instrukcja obsługi .93 hu Használati utasitás .....100 bg Инструкция за ползване .....107 ru Руководство по эксплуатации .....114 ro Instructiuni de utilizare .....121 uk Інструкція з експлуатації .....128 141 ershadas الاستخدام ar

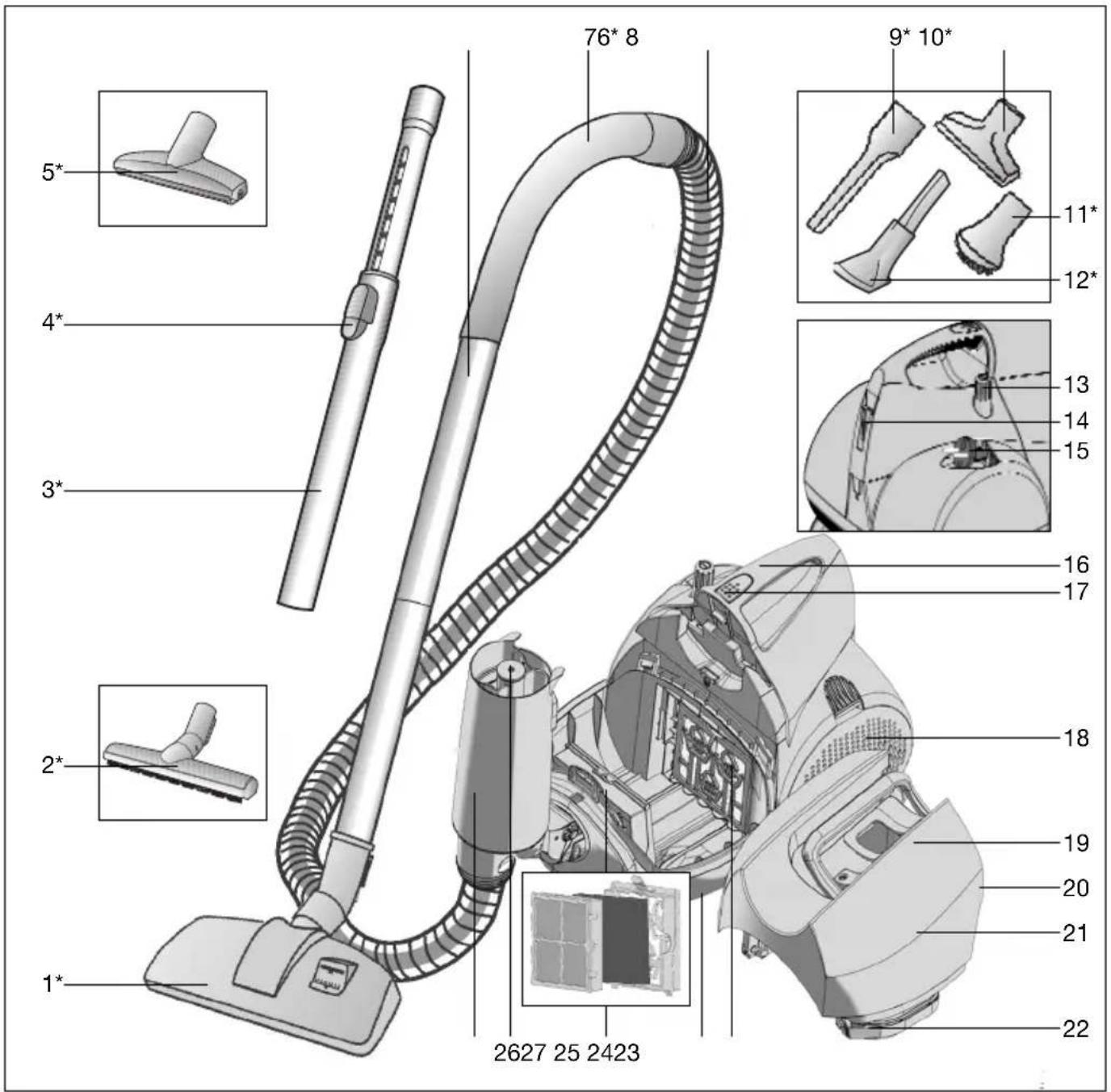

Gerätebeschreibung

2341

5 Pet hair upholstery nozzle*

6 Fixed tube*

7 Handle*

8 Flexible hose

9 Crevice nozzle*

10 Upholstery nozzle*

11 Hard furnishings brush*

12 Multi-purpose nozzle *

13 On/off button with electronic suction regulator

14 Parking aid

15 Power cord

16 Carrying handle

17 Cylinder release button

18 Exhaust filter*

19 Dust container

20 Emptying button

21 Maximum level mark

22 Dust container flap

23 Motor protection filter

24 Storage aid

25 Filter cartridge with foam filter and fluff filter

26 Dust separator twist-lock cover

27 Cylinder

*Dependent on model purchased

Optional accessories

A Parquet and wet tool VZ103WD

Suitable for use on parquet, laminate, stone, floorboards, tiles, lino etc. (test the floor wipes on an inconspicuous area before using on a sensitive hard floor finish or a hard floor with specific care requirements).

Vacuums and wet wipes the floor at the same time. Uses standard floor wipes. Includes pack of 15 floor wipes.

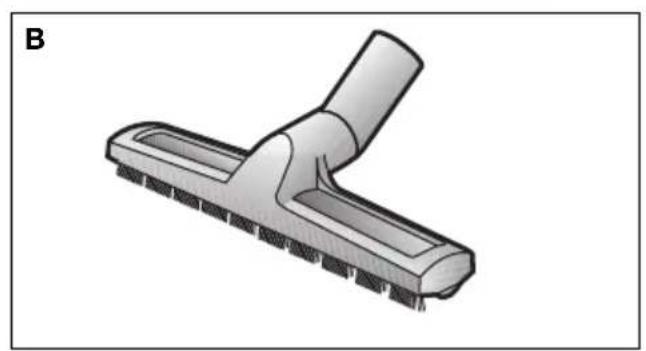

B Hard floor brush VZ122HD

For vacuuming hard floors (parquet flooring, laminate flooring, wooden floorboards, stone floors, etc.)

Replacement parts

Particle filter (1),

product code 642879

Foam filter (2),

product code 608113

Fluff filter (3)

product code 608110

Schwarzvlies (4)

product code 642881

2341

en

Please keep this instruction manual.

When passing the vacuum cleaner on to a third party, please also pass on this instruction manual.

Intended use

This vacuum cleaner is intended for domestic use and not for commercial use.

Only use this vacuum cleaner in accordance with the instructions in this instruction manual.

The manufacturer will not accept any responsibility for damage caused by improper use or incorrect operation.

Therefore, please note the following points.

The vacuum cleaner must only be operated with:

■ manufacturer's replacement parts, accessories and optional accessories

The vacuum cleaner is not to be used for:

■ vacuuming persons or animals

■ vacuuming up:

- insects or spiders.

– hazardous, sharp-edged, hot or burning substances.

- damp or liquid substances.

- highly flammable or explosive substances and gases.

- Ash, soot from tiled stoves and central heating systems.

Safety information

This vacuum cleaner complies with the recognized rules of technology and the relevant safety regulations. We confirm that it complies with the following European directives: 89/336/EEC (amended by Directives 91/263/EEC, 92/31/EEC and 93/68/EEC). 73/23/EEC (amended by Directive 93/68/EEC).

■ Always observe the information on the rating plate when using the vacuum cleaner and connecting to the power supply.

■ Never vacuum without the dust container and the particle filter with foam filter and fluff filter => This can damage the vacuum cleaner.

■ Only allow children to use the vacuum cleaner under supervision.

- Keep the vacuum cleaner away from the face when using nozzles and tubes.

=> There is a risk of injury.

■ Never carry the vacuum cleaner by the power cord or flexible hose.

■ Fully extend the power cord when using the vacuum cleaner continuously for several hours.

■ When disconnecting the appliance from the mains, pull the plug, not the power cord.

■ Do not pull the power cord around sharp corners or allow it to become trapped.

■ Unplug the vacuum cleaner from the mains before carrying out any work on it.

■ Do not use the vacuum cleaner if it is damaged. Unplug the power cord from the mains if a fault is detected.

■ For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit replacement parts to the vacuum cleaner.

■ Protect the vacuum cleaner from moisture and sources of heat.

■ The vacuum cleaner is not suitable for use on building sites.

=>Vacuuming up building rubble could damage the vacuum cleaner.

■ Switch off the vacuum cleaner when it is not in use.

■ At the end of its life, the vacuum cleaner should be disposed of in an appropriate manner.

Disposal information

Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transport.

It is made of environment-friendly materials and can be recycled.

Dispose of packaging that is no longer required at an appropriate recycling point.

■ Used vacuum cleaners

Used vacuum cleaners still contain many recyclable materials.

Therefore, please take used vacuum cleaners to your retailer or recycling centre so that they can be recycled.

For current disposal methods, please enquire at your appliance dealership or local council.

Please note

- Only connect the appliance to a socket that is protected by at least a 16 amp fuse.

If a fuse is tripped when you switch on the vacuum cleaner, this may be because other electrical appliances which have a high current draw are connected to the same power circuit. To prevent the fuse from tripping, select the lowest power setting before switching the vacuum cleaner on, and increase the power only once it is running.

Fold out picture pages.

Before using for the first time

Figure 1*

Push the handle onto the flexible hose until it engages.

Setting up

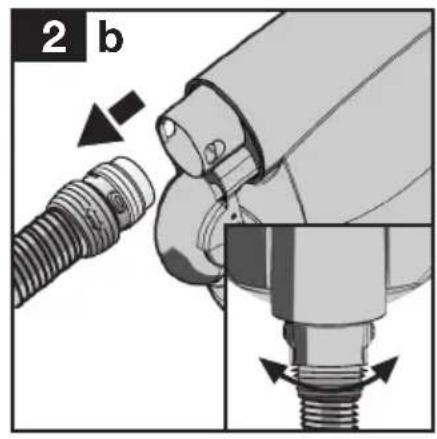

Figure 2

a) Push the flexible hose into the opening at the front of the vacuum cleaner.

b) To remove the flexible hose, turn to release the catch and pull the hose out.

Figure 3*

Push the handle into the fixed/telescopic tube. To remove it, turn the handle slightly and pull it out of the tube.

Figure 4*

Insert the fixed/telescopic tube into the floor tool.

To remove it, turn the tube slightly and pull it out of the floor tool.

Figure 5*

a) Connect the fixed tubes together, or b) Unlock the telescopic tube to adjust its length by moving the sliding button in the direction of the arrow.

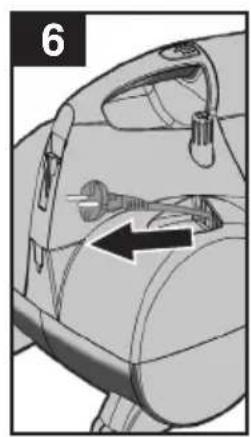

Figure 6

Holding the power cord by the plug, pull out the required length and plug the plug into the mains socket.

Figure 7

Press the on/off button in the direction of the arrow to switch your vacuum cleaner on/off.

Figure 8

Adjust the suction by turning the on/off button in the direction of the arrow. Set the power setting to maximum for the best results when vacuuming.

Vacuuming

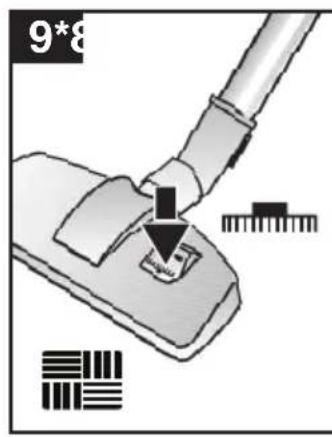

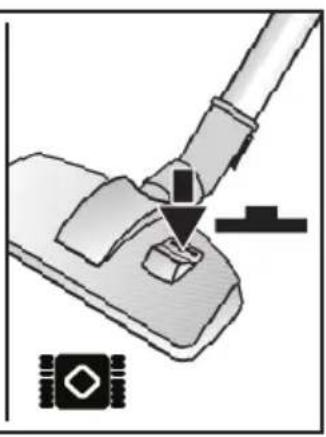

Figure 9

Adjust the adjustable floor tool:

■ Rugs and carpets =>

■ Hard floors/parquet =>

Figure 10* Assuming with accessories

Attach the nozzles to the tube or handle as required:

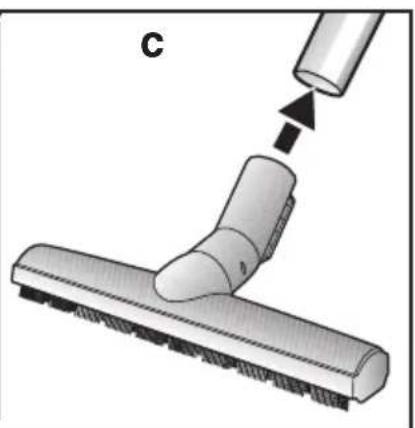

a) Crevice nozzle for vacuuming crevices and corners, etc. b) Upholstery nozzle for vacuuming upholstered furniture, curtains, etc. c) Hard furnishing brush for cleaning window frames, cabinets, mouldings, etc.

d) Hard-floor brush* for vacuuming hard floors (parquet flooring, laminate flooring, wooden floorboards, stone floors, etc.)

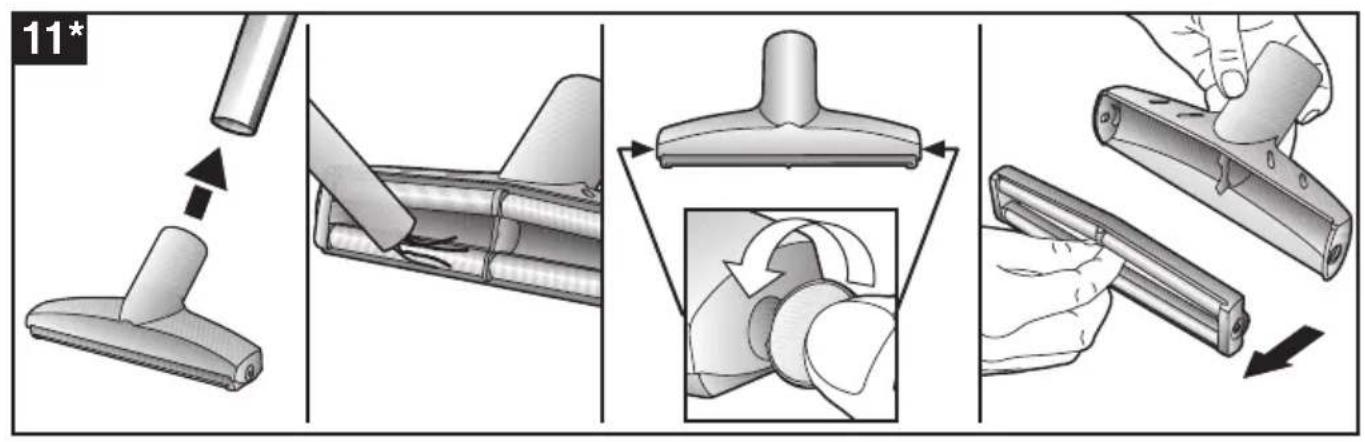

Figure 11*

Pet hair upholstery nozzle

■ For easy and thorough removal of pet hair (attach to handle or suction pipe as required). ■ To clean the pet hair upholstery nozzle, simply vacuum using the handle. ■ If it is very dirty, the pet hair upholstery nozzle can also be opened. To do this, turn the two screws on the sides of the nozzle (e.g. using a coin) and remove the inner part from the nozzle. ■ After cleaning, replace the inner part (make sure it is correctly seated) and screw to the housing.

Figure 12

You can use the parking aid on the back of the vacuum cleaner if you wish to stop vacuuming for a short time.

Once you have switched off the vacuum cleaner, slide the catch on the floor tool into the groove at the rear of the appliance.

Figure 13

To store or transport the vacuum cleaner, use the storage aid on the underside of the vacuum cleaner.

Stand the vacuum cleaner up on its end. Slide the catch on the floor tool into the groove on the underside of the appliance.

CAUTION: Do not operate in an

- upright/vertical position.

Figure 14

The appliance can also be carried using the carrying handle when vacuuming steps, for example.

When the work is done

Figure 15

Unplug the vacuum cleaner. Tug the power cord briefly and let go. The cable then rewinds automatically.

Figure 16*

Unlock the telescopic tube by moving the sliding button in the direction of the arrow and slide one tube into the other.

Emptying the dust container and cleaning the particle filter

To achieve optimum vacuuming results, the dust container should be emptied and all the filters should be cleaned after every vacuuming job and, at the latest, when the maximum fill level is reached.

Emptying the dust container

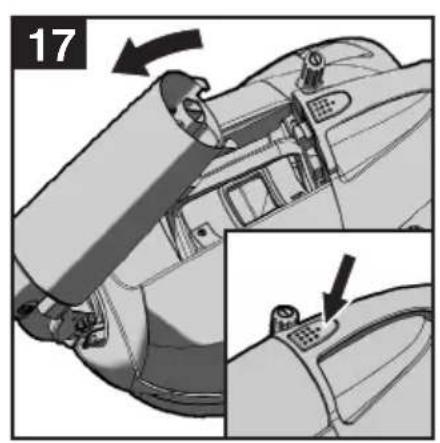

Figure 17

Use the release button to unlock the cylinder.

The cylinder releases upwards.

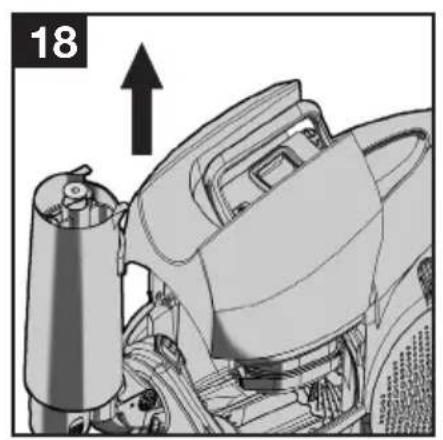

Figure 18

Remove the dust container from the vacuum cleaner using the handle.

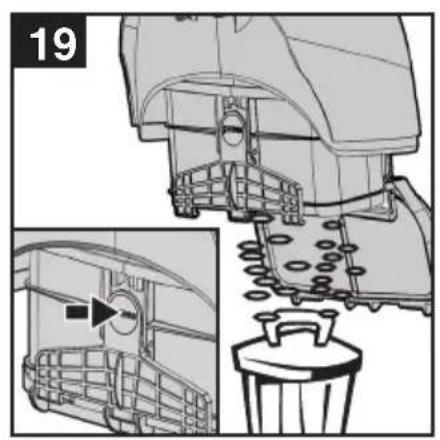

Figure 19

Press the button (PRESS) to release the dust container flap and empty the container into the rubbish bin.

Emptying the dust container

Figure 20

Close the dust container flap and click it into place at all 3 catches.

Cleaning the foam filter and fluff filter

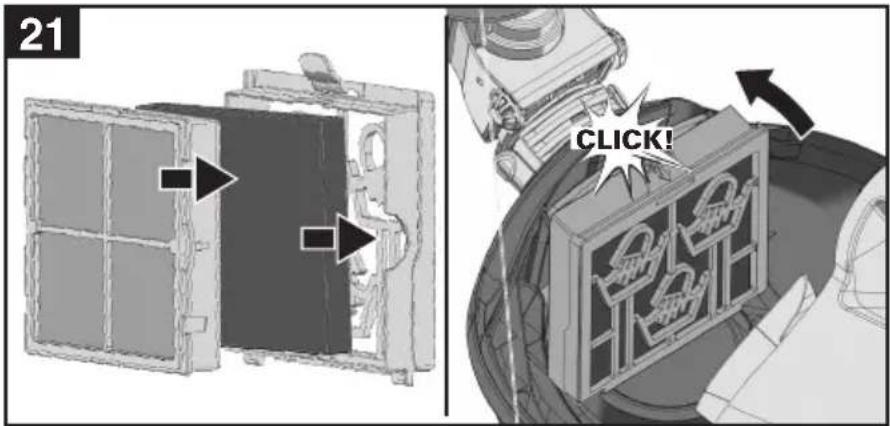

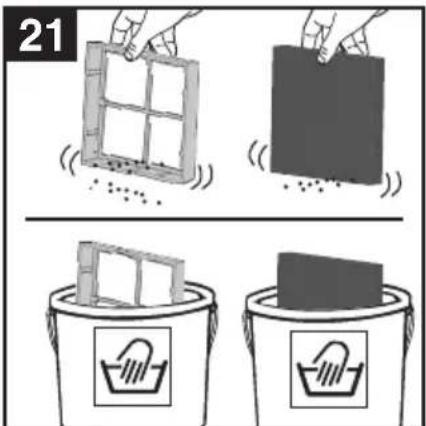

Figure 21

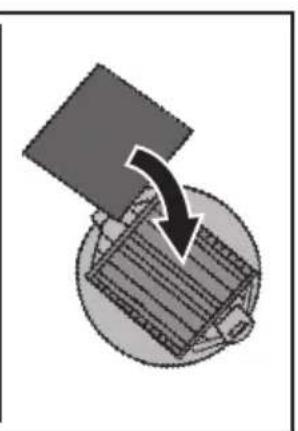

Open the filter cartridge and take out the filter frame with the fluff filter and foam filter. Remove the fluff filter and foam filter from the filter frame and clean them by tapping out the dirt. If the filters are very dirty, they should both be rinsed out. Insert the foam filter into the fluff filter and clip into the filter frame. Insert the filter frame into the filter cartridge and click into place, in the direction of the arrow.

Cleaning the motor protection filter

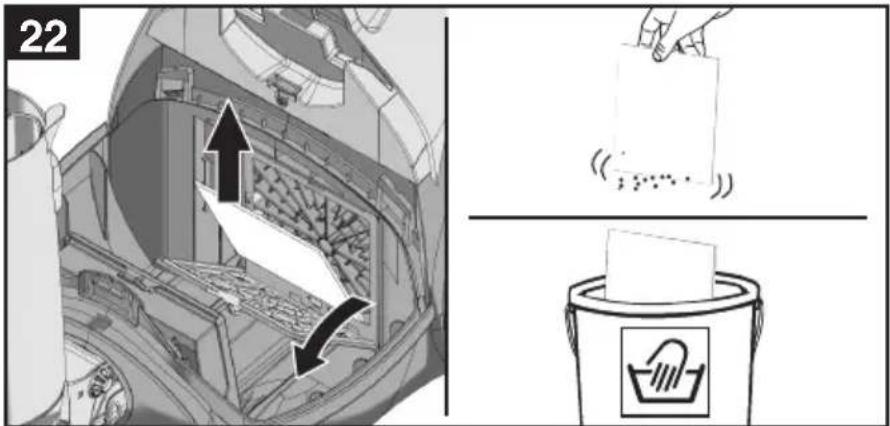

Figure 22

Open the motor protection filter flap. Remove the micro filter and shake it clean. If the micro filter is very dirty, it should be rinsed out. A replacement micro filter may be ordered via the After Sales service. Replacement part number: 642879

CAUTION: The vacuum cleaner must only be operated with the motor protection filter, foam filter and fluff filter fitted. The filters must be completely dry before they are refitted in order to ensure that they function correctly and to prevent the formation of odours or bacteria (wait about 24 hours).

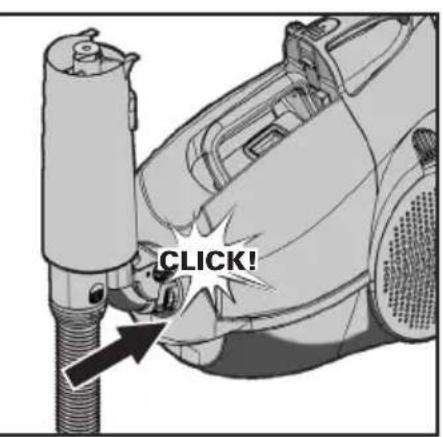

Figure 23

Fit the dust container into the vacuum cleaner (make sure it is fitted correctly). Push the cylinder back into position, closing the vacuum cleaner (you will hear a positive click).

CAUTION: The cylinder can only be

● engaged if the dust container is fitted correctly.

Cleaning the washable exhaust filter (made by Schwarzvlies)

Figure 24

■ Open the exhaust filter cover. ■ Remove the exhaust filter.

Figure 25

■ Clean the exhaust filter by knocking out the dirt. ■ If the exhaust filter is very dirty, it should be rinsed out (or washed in the washing machine at 40°C). ■ Fit the exhaust filter. ■ Close the exhaust filter cover.

■ CAUTION: The filter must be completely

- dry before it is refitted in order to ensure that it functions correctly and to prevent the formation of odours or bacteria (wait about 24 hours).

The exhaust filter may be ordered via our After Sales Service.

Replacement part number: 642881

Cleaning the cylinder and joint

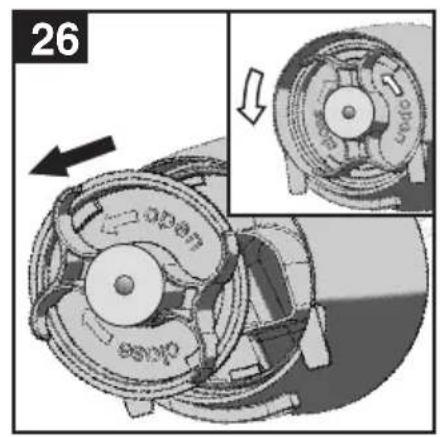

Figure 26

■ Use the release button to unlatch the cylinder. The cylinder folds forward (see Fig. 17). ■ Turn the dust separator twist-lock cover anticlockwise and remove it from the dust separator. ■ Clean the cylinder and cylinder cover as required.

Figure 27

■ Replace the dust separator twist-lock cover and lock into position by turning in a clockwise direction. ■ Push the cylinder back into position, closing the vacuum cleaner (you will hear a positive click) (see Fig. 23).

Figure 28

■ The cylinder can also be removed from the vacuum cleaner to clean the joint in the event of malfunctions caused by large objects being vacuumed up. ■ When replacing the joint, you must hear it engage.

CAUTION: The inside of the separator may

become scratched with use and start to look opaque. This does not, however, affect the performance of the vacuum cleaner in any way, i.e. it will continue to function as normal.

Care

Always switch off the vacuum cleaner and disconnect the power cord from the mains before cleaning the appliance. The vacuum cleaner and plastic accessories can be cleaned with a commercial plastic cleaner.

Do not use a scourer, glass-cleaning agent, or all-purpose cleaning product. Never immerse the vacuum cleaner in water.

The dust compartment can, if necessary, be cleaned with a second vacuum cleaner or simply wiped with a dry cloth or dusting brush.

Frequently asked questions

What kind of dirt can be vacuumed using the vacuum cleaner?

All kinds of household dirt can be vacuumed using the SX1. When vacuuming fine particles, note that the motor protection filter, foam filter, and fluff filter must be cleaned at regular intervals to guarantee the optimum function of the vacuum cleaner.

Should the dust container be emptied after each use of the vacuum cleaner?

The dust container should be emptied after each use for hygiene reasons, or at the latest when the maximum level (see the mark) is reached.

How often should filter cartridges and motor protection filters be cleaned/rinsed out?

Ideally, the filters should be cleaned after each use, especially after vacuuming fine particles, either by tapping or rinsing, depending on the

level of dirt.

The motor protection filter, foam filter and fluff filter must be cleaned at the latest when the maximum level (see max. marking on dust container) has been reached.

How often should the washable exhaust filter be cleaned/rinsed?

The washable exhaust filter should be cleaned regularly for hygiene reasons by tapping the dust out and must be rinsed through at least once every 6 months (or washed in the washing machine at 40°C).

What is the best way to transport my vacuum cleaner?

The SX1 can be transported easily using the ergonomic carrying handle, e.g. for vacuuming the stairs. It is best to hold/carry the tube with the floor tool in the other hand.

Troubleshooting small problems

Problem	Cause	Solution
Suction power becomes noticeably weaker	The filter cartridge / motor protection filter is heavily soiled.	Clean the motor protection filter, fluff filter and foam filter by tapping out the dust or rinsing (Fig. 17, 21-23).Caution: After rinsing, replace the motor protection filter, foam filter and fluff filter only once they are completely dry (after approximately 24 hours).
	The nozzle is blocked	Vacuum the nozzle, e.g. using the crevice nozzle
	The hose / telescopic tube is blocked.	Slide the telescopic tube together and separate the suction pipe sections.Loosen and remove the blockage.
	The hose / handle is blocked	Separate the hose from the vacuum cleaner and handle Loosen and remove the blockage.
	The dust separator is blocked	Remove the twist-lock cover from the dust separator, loosen and remove the blockage. Clean the dust separator with a damp or dry cloth if necessary.Replace the twist-lock cover (Fig. 26, 27)
	The dust separator joint is blocked	Detach the dust separator from the vacuum cleaner, remove the blockage and click the joint back into the vacuum cleaner (Fig. 28).
Bottom flap of the dust container does not close	The bottom flap is soiled	Clean the bottom flap, e.g. with a damp or dry cloth.When closing the flap, ensure that it is fitted correctly.

Black non-woven fabric 4) ident. no. 642881

Frequently asked questions

Keep the instruction manual.

Keep the instruction manual in a safe place.

The instruction manual must accompany the vacuum cleaner if it changes owners.

Intended use

The vacuum cleaner is only intended for household use and not for commercial or industrial purposes.

Foam filter (2),

Lint sieve (3)

Identification no. 608110

Black fleece (4)

Identification no. 642881

Keep the instruction manual.

filter

foam (2),

Identification no. 608113

lint sieve (3)

Identification no. 608110

black wadding (4)

Part number 642881

fi

Filter foam (2),

Black filter (4)

First use

Figure 1*

pt

foam material (2),

Code 608113

lint filter (3)

Code 608110

black wadding (4)

Code 642881

tr

Fiber filter (3) Ident. no. 608110

Black nonwoven fabric (4) Ident. no. 642881

2341

hu

black felt (4)

foam (2),

black felt (4) Ident. no. 642881

Fallersleber Straße 50

40227 Düsseldorf

Oberbilker Allee 270 A

44287 Dortmund

Rodenbergstraße 47

45141 Essen

Bamlerstraße 1 a

47805 Krefeld

BSH Home Appliances Pty Ltd

57-63 McNaughton Roads

3168 CLAYTON

[phone]

[phone]

www.bosch.com.au/sha/default.asp

BA Bosnia-Herzegovina

"HIGH" d.o.o.

Odoba_ina 57

Sarajewo 71000

Tel.: 033 - 21 35 13

Info-Line: 061 - 10 09 05

mailto:[e-mail]

BE Belgium, Belgien, Belgique

BSH Home Appliances s.a. n.v.

Old Wolverton (P.O.Box 118)

MK12 5ZR Milton Keynes

Tel.: [phone]

Fax: (1908) 328660

www.boschappliances.co.uk/

GR Greece, Hellas

BSH Ikiakes Syskeves ABE

17km Ethnikis Odou Athinon-Lamias

& Potamou 20

14574 Kifissia

Tel.: [phone]

Fax: [phone]

HK Hong Kong

BSH Home Appliances Limited

Unit 1&2B, 7th Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui - Hongkong/Kowloon

[phone]

[phone]

www.bosch-shop.com.hk/

HR Croatia

Andabaka Commerce

Gunduliceva 10

21000 Split

Tel.: [phone]

Info-Line: (21) 322 010

[e-mail]

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

[e-mail]

IR Ireland

Appliance Care

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Tel.: [phone]

Fax: [phone]

Outside of 01-area: 18903 22222

IS Iceland

Smith & Norland H/F

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italy, Italia

BSH Élettrodomestici SpA

Via. M. Nizzoli 1

20147 MILANO MI

Tel.: [phone]

Fax: [phone]

Numero verde 800.018346

KZ Kazakhstan

Kombitechnozentr Ltd.

Shewchenko 147B

0480096 Almaty

Tel.: [phone]

Fax: [phone]

LB Lebanon

Teheni, Hana & Co.

P.O. Box 11-4043

90449 JDEIDE

Tel.: [phone]

Fax: [phone]

[e-mail]

LT Lithuania

Ogmios Pulsas Ltd.

P. Luksio Str. 23

2600 Vilnius

Tel.: [phone]

Fax: [phone]

[e-mail]

LU Luxembourg

BSH Service

72 Buluju street, house 2.

1067 Riga

Tel.: [phone]

Fax: [phone]

[e-mail]

MK Macedonia

RIMEKO SG

Londonska 19

1000 Skopje

Tel.: [phone]

MT Malta

Aplan Limited

Aplan Centre B - Kara By Pass

B - Kara BKR

Tel.: [phone]

Fax: [phone]

[e-mail]

NL Netherlands

14-16 Constellation Drive

1310 Mairangi Bay Auckland

Tel.: [phone]

Fax: [phone]

PL Poland

BSH Home Appliances (SEA) Pte.

Ltd.

Cemal Sahir Sok. No. 26-28

80470 Mecidiyeköy - Istanbul

Tel.: [phone]

Fax: [phone]

www.siemensevaletleri.com

TW Taiwan

Achelis Taiwan Co., Ltd.

6th floor, No 2. Sec.3

Min Sheng E. Road

Taipei

Tel.: [phone]

Fax: [phone]

www.achelis.com.tw

Customer Service Centers · Central Service Depots · After-Sales Service · Service Assistance

Central Service Station · Technical Assistance · Service Centers · Appliance Service · Maintenance

UA Ukraine, Україна

KNEB

SP "Trans-Service"

tel: [phone]

LLC "Deutschelektroservice"

tel.: [phone]

LLC "Tri O Service"

tel: [phone]

VN Vietnam

T&C Co., Ltd

34 Ngu Truong To St.

Ba Dinh District

Hanoi

Tel.: [phone]

Fax:[phone]

[e-mail]

YU Yugoslavia

SZR Specialized Electronics

III Bulevar 34, Block 23

11070 New Belgrade

Tel.: [phone]

Fax: [phone]

Info-Line: [phone]

[e-mail]

ZA South Africa

BSH-SA

15th Rd., Randjespark

Private Bag X36, Randjespark

1685 Midrand - Johannesburg

Tel.: [phone]

Fax: [phone]

DE Warranty

GB Conditions of guarantee

For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.

FR Conditions de garantie

de

This appliance is labelled in accordance with European Directive 2002/96/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU

fr

es
