Product Type	Upright Vacuum Cleaner
Model	Impact Plus FC8384
Brand	Philips
Color	Red and Grey
Dimensions (H x W x D)	110 cm x 30 cm x 25 cm
Weight	5.5 kg
Power Supply	220-240 V, 50-60 Hz
Power Consumption	1800 W
Cord Length	8 m
Dust Capacity	2.0 L (bagless)
Filtration System	HEPA filter
Noise Level	80 dB
Cleaning Radius	9 m
Attachments Included	Crevice tool, dusting brush, upholstery tool
Main Functions	Carpet and hard floor cleaning
Maintenance	Clean filter regularly, empty dust cup
Safety Precautions	Do not use on wet floors; keep away from water
Spare Parts Availability	Filters, belts, brush rollers available
Repairability	User-serviceable filters and brush; professional repair for motor
Suitable Floor Types	Hard floors, carpets, rugs

Frequently Asked Questions - Impact Plus FC8384 PHILIPS

How do I clean the HEPA filter?

Remove the filter from the vacuum and tap it gently to remove dust. For deeper cleaning, rinse with cold water and let it air dry completely for 24 hours before reinstalling. Do not use detergent or heat.

How often should I empty the dust cup?

Empty the dust cup after each use or when the maximum fill line is reached. For optimal performance, do not let the cup become overfilled.

Why is my vacuum losing suction?

Check for blockages in the hose, brush roll, or filter. Clean the filter and empty the dust cup. Also ensure the brush roll is not wrapped with hair or debris.

How do I replace the brush roll belt?

Unplug the vacuum. Remove the bottom plate, take out the old belt, and loop the new belt around the motor pulley and brush roll. Reassemble the plate. Refer to the manual for exact steps.

Can I use this vacuum on hardwood floors?

Yes, the Impact Plus FC8384 is safe for hard floors. It has a brush roll that can be turned off or adjusted for delicate surfaces.

How long is the power cord?

The power cord is 8 meters long, allowing a cleaning radius of approximately 9 meters.

What attachments come with the vacuum?

It includes a crevice tool for tight spaces, a dusting brush for furniture, and an upholstery tool for fabric surfaces.

Is the vacuum bagless?

Yes, it is bagless with a transparent dust cup, so you can see when it needs emptying. No bags required.

How do I change the HEPA filter?

Unplug the vacuum. Open the filter compartment, remove the old filter, and insert a new Philips HEPA filter. Close the compartment securely.

What does the 'Impact' feature do?

The Impact technology uses powerful air pressure to dislodge embedded dirt from carpets, improving deep cleaning performance.

USER MANUAL Impact Plus FC8384 PHILIPS

Register your product and get support at

www.philips.com/welcome

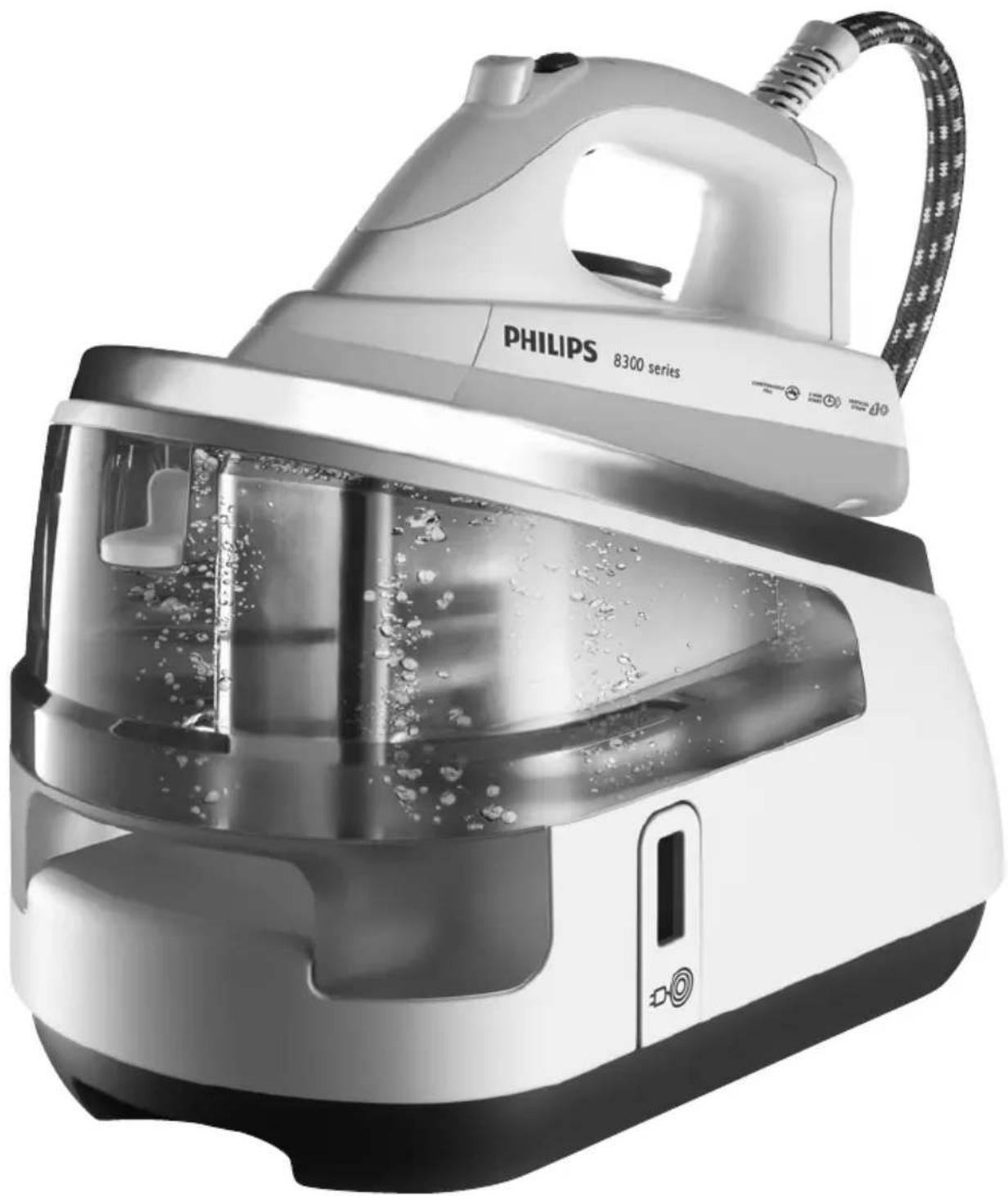

GC8300 series

ENGLISH 6

БЪЛГАРСКИ 17

ČEŠTINA 29

EESTI 40

HRVATSKI 51

MAGYAR 63

ҚАЗАҚША 75

LIETUVIŠKAI 87

LATVIEŠU 98

POLSKI 110

ROMÂNĂ 122

РУССКИЙ 134

SLOVENSKY 147

SLOVENŠČINA 159

SRPSKI 170

УКРАЇНСЬКА 182

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

The powerful pressurised ironing system produces non-stop steam to make ironing easier. Thanks to the large water tank, you can iron without interruption. When the water tank is empty, you can detach it and refill it immediately.

We hope you enjoy using this ironing system.

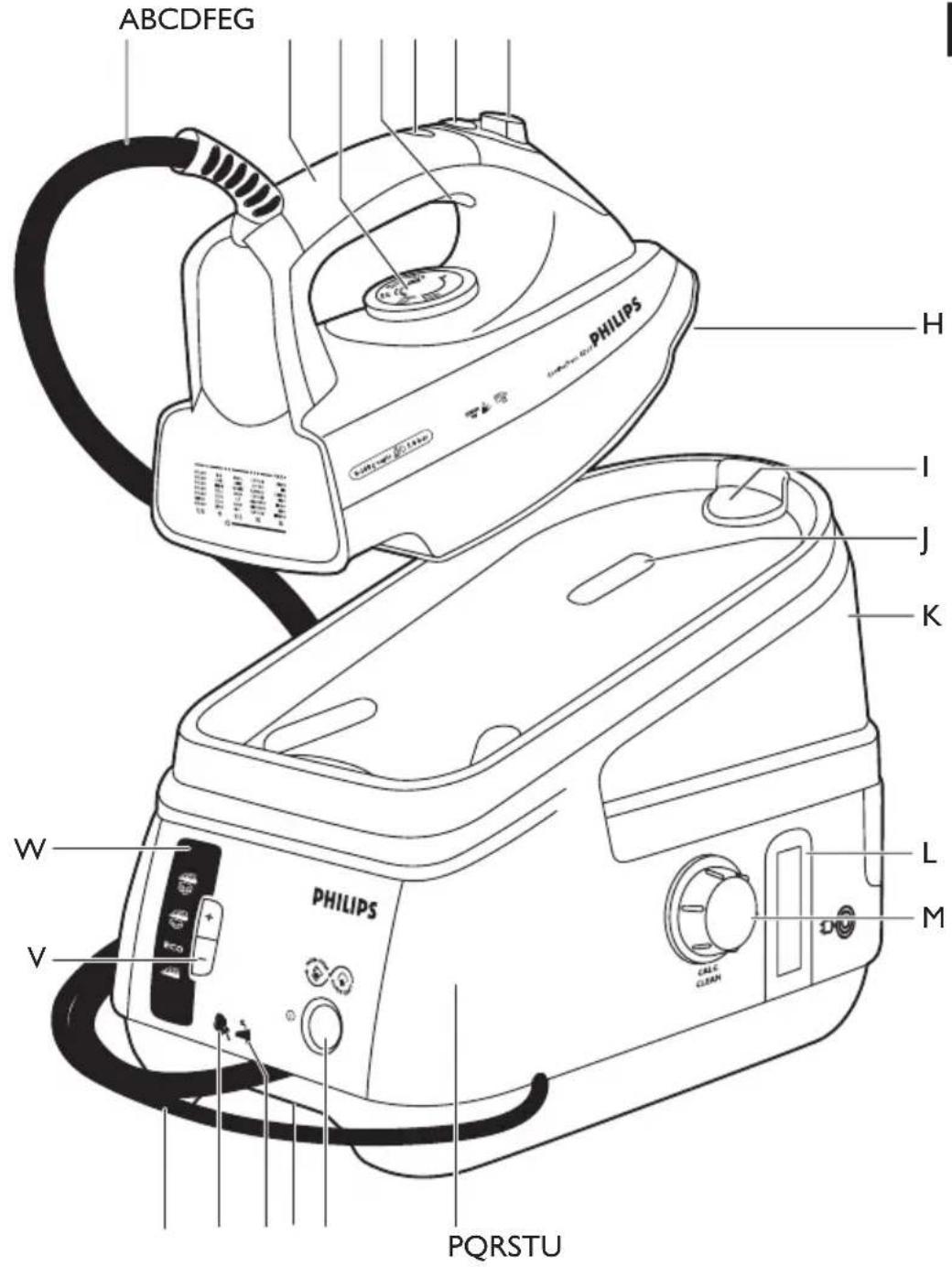

General description (Fig. 1)

A Supply hose B Handle C Temperature dial D Steam trigger E Temperature light F Steam lock G Shot-of-steam button (GC8325/GC8320 only) H Soleplate I Safe storage lock (GC8325/GC8320 only) J Iron stand K Detachable water tank L Cord & hose storage hook M Calc-Clean rinsing cap N Filling opening - Water tank release lever P Steam generator R Transport handgrip S Water tank refill light (GC8325/GC8320 only) T Calc-Clean light (GC8325/GC8320 only) U Mains cord V Steam buttons (+/-) (GC8325/GC8320 only) - = maximum steam - = moderate steam - ECO = minimum steam - = no steam

Q On/off button with power-on light (GC8325/GC8320 only)

W Steam generator control panel with steam light (GC8325/GC8320 only)

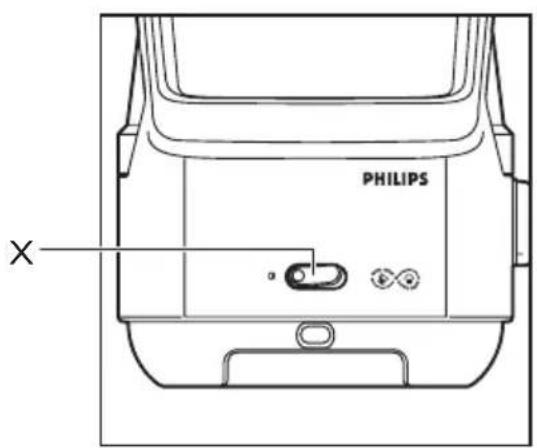

X On/off switch with power-on light (GC8210 only)

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

Never immerse the iron or the steam generator in water.

Warning

Check if the voltage indicated on the type plate corresponds to the local mains voltage before you connect the appliance.

• Do not use the appliance if the plug, the mains cord, the supply hose or the appliance itself shows visible damage, or if the appliance has been dropped or leaks.
• If the mains cord or the supply hose is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
• Never leave the appliance unattended when it is connected to the mains.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not let the mains cord and supply hose come into contact with the hot soleplate of the iron.
• If steam escapes from under the Calc-Clean rinsing cap when the appliance heats up, switch off the appliance and tighten the Calc-Clean rinsing cap. If steam continues to escape when the appliance heats up, switch off the appliance and contact a service centre authorised by Philips.
• Never remove the Calc-Clean rinsing cap when the steam generator is hot.
• Do not use any other cap on the steam generator than the Calc-Clean rinsing cap that has been supplied with the appliance, as this cap also functions as a safety valve.

Caution

• Only connect the appliance to an earthed wall socket.
• Check the mains cord and the supply hose regularly for possible damage.
• Always place and use the iron and the steam generator on a stable, level and horizontal surface.
• The soleplate of the iron can become extremely hot and may cause burns if touched.
• When you have finished ironing, when you clean the appliance, when you fill or empty the water tank and also when you leave the appliance even for a short while: put the iron on the iron stand, switch off the appliance and remove the mains plug from the wall socket.
• Rinse the steam generator regularly according to the instructions in chapter 'Cleaning and maintenance'.
• This appliance is intended for household use only.

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Before first use

Note: The iron may give off some smoke when you use it for the first time. This is normal and stops after a short while.

Note: Some particles may come out of the soleplate when you use the iron for the first time. This is normal; the particles are harmless and stop coming out of the iron after a short while.

Note: When you switch on the appliance, the steam generator may produce a pumping sound. This is normal; the sound tells you that water is pumped into the steam generator.

1 Remove any sticker or protective foil from the soleplate and clean the soleplate with a soft cloth.

Preparing for use

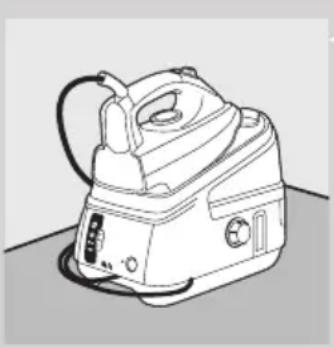

1 Place the steam generator on a stable and level surface, e.g. on the hard part of the ironing board or on a table.

Filling the detachable water tank

You can fill the water tank at any time during use.

Do not put hot water, perfume, vinegar, starch, descaling agents, ironing aids or other chemicals in the water tank.

Do not overfill the water tank, otherwise water may spill out of the filling opening when you reinsert the water tank.

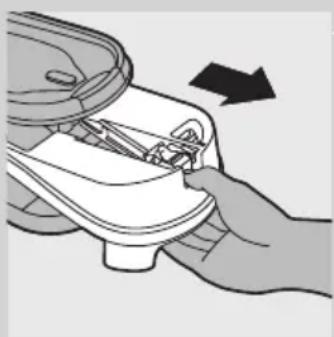

1 Remove the detachable water tank from the steam generator. 2 Fill the water tank with tap water up to the MAX indication.

Note: If the tap water in your area is very hard, we advise you to mix it with an equal amount of distilled water.

3 Slide the water tank firmly back into the steam generator ('click').

Note: If the water tank is not properly placed, the iron does not produce any steam.

Water tank refill light (GC8325/GC8320 only)

When the water tank is empty, the water tank refill light starts flashing and steam ironing is no longer possible.

1 Remove the water tank and fill it. 2 Put the water tank back into the steam generator. The iron is ready for steam ironing again.

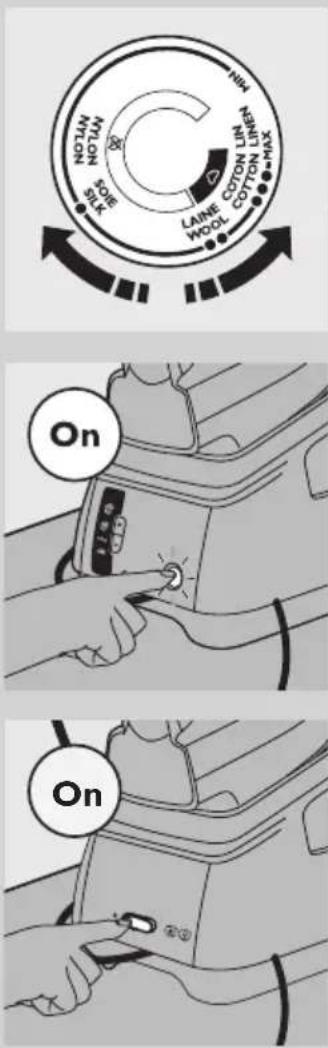

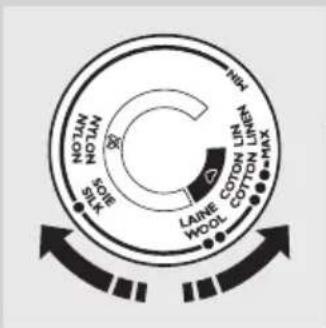

Setting the temperature

1 Check the laundry care label of the article to be ironed to determine the required ironing temperature.

• ● for synthetic fabrics (e.g. acrylic, viscose, polyamide) and silk
• ●● for wool
• ●●● for cotton
• MAX for linen

2 To set the required ironing temperature, turn the temperature dial to the appropriate position. 3 Put the mains plug in an earthed wall socket. 4 Switch on the appliance.

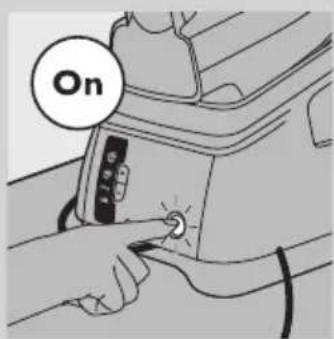

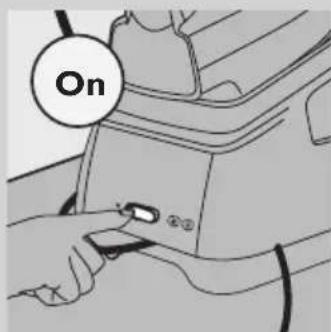

- GC8325/GC8320 only: Press the on/off button once.

The power-on light of the on/off button goes on.

The temperature light on the iron goes on. When the iron has reached the set temperature, the temperature light goes out.

Note: During ironing, the temperature light goes on from time to time. This indicates that the iron is heating up to the set temperature.

The steam light starts flashing. After approx. 2 minutes, the steam light stays on continuously to indicate that the steam generator is ready for steam ironing. - GC8210 only: Set the on/off switch to 'on'. The power-on light in the on/off switch goes on. The temperature light on the iron goes on. When the iron has reached the set temperature, the temperature light goes out.

Note: During ironing, the temperature light goes on from time to time. This indicates that the iron is heating up to the set temperature.

After approx. 2 minutes, the steam generator is ready for steam ironing.

Tips

• If you do not know what kind or kinds of fabric an article is made of, determine the right ironing temperature by ironing a part that is not visible when you wear or use the article.
• If the fabric consists of various kinds of fibres, always select the temperature required by the most delicate fibre, i.e. the lowest temperature. For example: if a fabric consists of 60% polyester and 40% cotton, it must be ironed at the temperature indicated for polyester (●) and without steam.
• Start ironing the articles that require the lowest ironing temperature, i.e. those made of synthetic materials.
• If you set a lower temperature during ironing, wait until the iron has cooled down to the set temperature before you continue ironing. To make the iron cool down faster, simply press the steam trigger or iron a piece of cloth.

Using the appliance

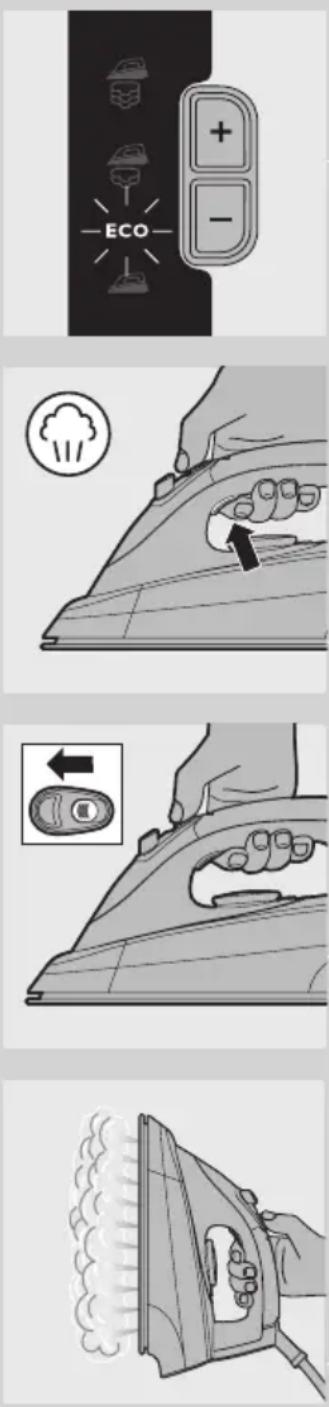

Steam ironing

The supply hose may become hot during a long ironing session.

Note: The system may occasionally produce a pumping sound during steam ironing. This is normal and tells you that water is pumped into the steam generator.

1 Make sure there is enough water in the water tank. 2 Make sure the appliance is plugged in and switched on (see chapter 'Preparing for use'). 3 Set the required ironing temperature (see chapter 'Preparing for use'). Steam ironing is only possible at ironing temperatures higher than ●●.

4 GC8325/GC8320 only: Set the required steam setting with the + and - buttons on the steam generator control panel.

for maximum steam (temperature setting MAX). for moderate steam (temperature settings ●●● to MAX). ECO for minimum steam (temperature settings ●● to MAX).

for no steam (temperature settings ● to MAX).

The steam light flashes to indicate that the steam generator is heating up.

After approx. 2 minutes, the steam light stays on continuously to indicate that the steam generator is ready for steam ironing.

Note: During ironing, you can adjust the steam setting with the + and - steam buttons. It takes a few moments before the amount of steam is adjusted.

5 Press the steam trigger to start steam ironing.

When you put down the iron during ironing, put it on its heel or on the iron stand.

The opening and closing of the steam valve in the steam generator causes a clicking sound. This is normal.

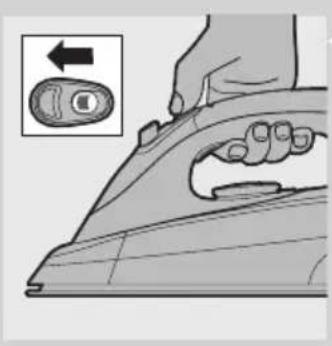

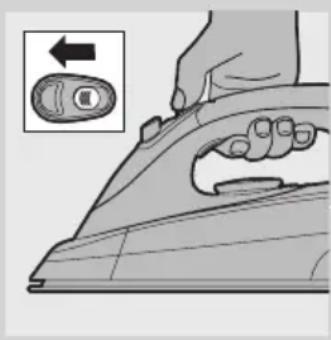

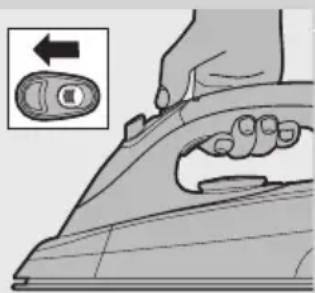

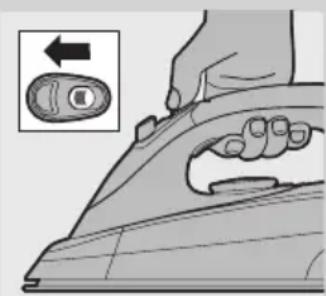

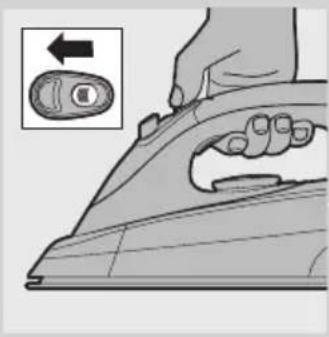

Steam lock function

The steam lock allows you to steam iron non-stop without having to press the steam activator continuously.

• When you slide the steam lock forwards, the iron produces steam continuously. To stop steaming, slide the steam lock backwards.
• When the steam lock is deactivated, the iron only produces steam when you press the steam trigger.

Note: Release the steam lock when you put the iron on its heel or on the iron stand. This prevents that hot steam escapes from the iron or that the iron stand gets wet.

Vertical steaming

Never direct the steam at people.

1 Hold the iron in vertical position and press the steam trigger to steam iron hanging curtains and clothes (jackets, suits, coats).

Shot of steam (GC8325/GC8320 only)

A powerful shot of steam helps to remove stubborn creases.

1 Set the temperature dial to a position between ●●● and MAX.

2 Press the shot-of-steam button.

Note: Use the shot-of-steam function intermittently. If water droplets come out of the soleplate, let the iron heat up for at least one minute before you use the shot-of-steam function again.

Ironing without steam

There are one or two ways to iron without steam:

• All types: Simply start ironing without pressing the steam trigger.
• GC8325/GC8320 only: Select steam setting (no steam) and start ironing.

Tips

• When you steam iron woollen fabrics, shiny patches may occur. To prevent this, use a dry pressing cloth or turn the article inside out and iron the reverse side.
• Silk, woollen and synthetic materials: iron the reverse side of the fabric to prevent shiny patches.
• Iron velvet and other fabrics that tend to acquire shiny patches in one direction only (along with the nap) while you apply very little pressure.
• Do not use steam when you iron coloured silk. This could cause stains.

Cleaning and maintenance

After ironing

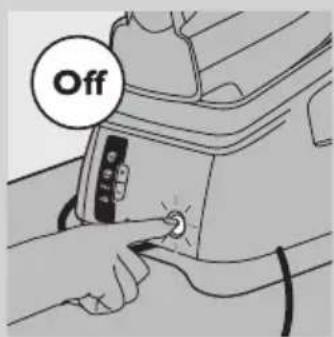

1 Put the iron on the iron stand (see chapter 'Storage') and switch off the appliance. 2 Remove the mains plug from the wall socket and let the appliance cool down. 3 Wipe scale and any other deposits off the soleplate with a damp cloth and a non-abrasive (liquid) cleaner. 4 Clean the upper part of the iron and the outside of the steam generator with a moist cloth. 5 Empty the water tank after cleaning.

Calc-Clean function

Never remove the Calc-Clean rinsing cap when the steam generator is hot.

VERY IMPORTANT: Rinse the steam generator once a month or after every 10 times of use, to prevent damage to the appliance and for optimal steaming performance.

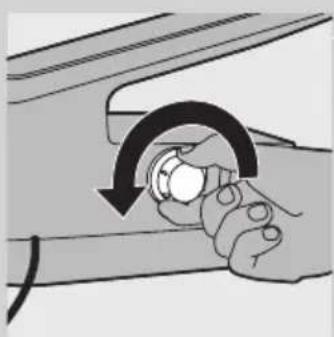

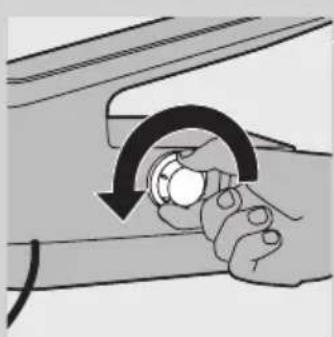

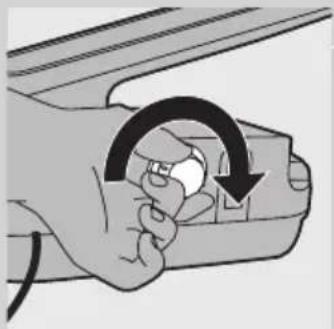

1 Unplug the appliance and let it cool down for 2 hours. 2 Remove the detachable water tank. 3 Hold the steam generator with both hands and shake well.

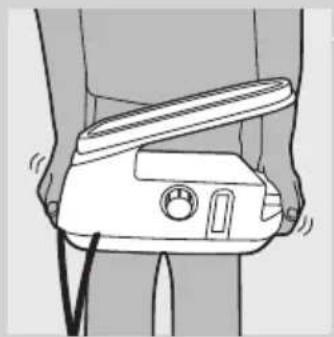

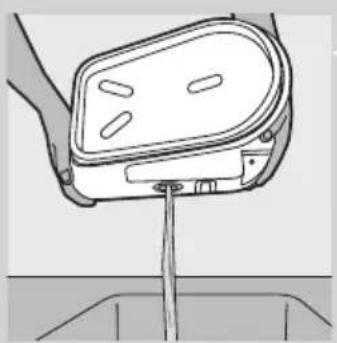

4 Turn the steam generator on its side with the Calc-Clean rinsing cap facing upwards, and remove the Calc-Clean rinsing cap.

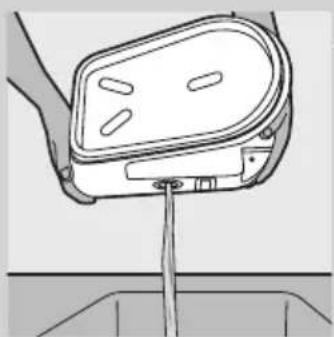

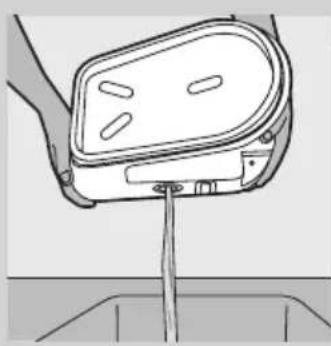

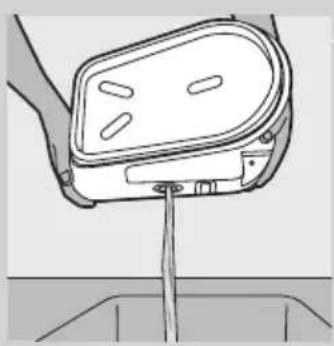

5 Empty the steam generator into the sink.

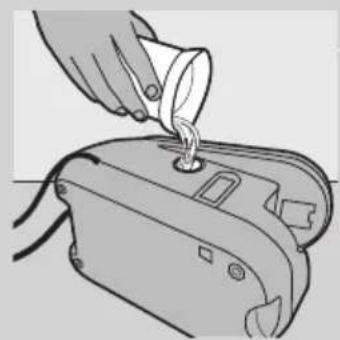

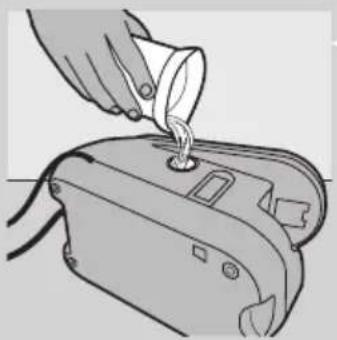

6 Fill the steam generator with fresh water and shake again.

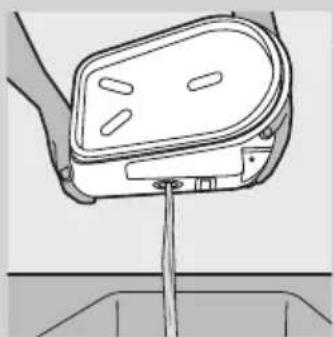

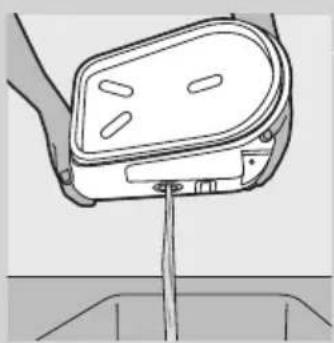

7 Empty the steam generator into the sink again. 8 Repeat steps 6 & 7 twice to obtain the best result.

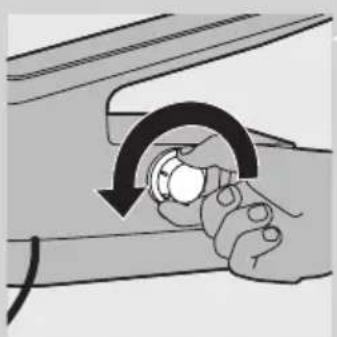

9 Screw the Calc-Clean rinsing cap tightly back onto the steam generator.

Calc-Clean light (GC8325/GC8320 only)

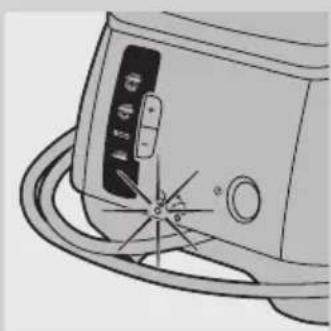

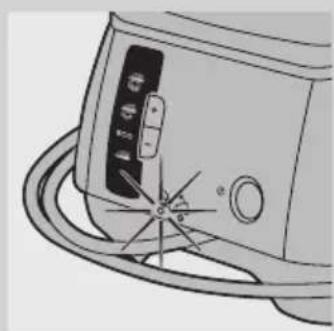

1 The Calc-Clean light flashes for 30 seconds when it is time to rinse the steam generator. The steam generator does not heat up during these 30 seconds. 2 Switch off the appliance immediately and let it cool down. Do not use the Calc-Clean function when the steam generator is hot. 3 Use the Calc-Clean function as described above.

Storage

Always let the appliance cool down before you store it.

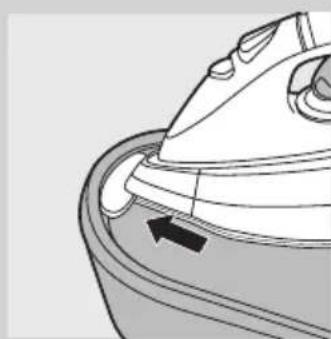

1 GC8325/GC8320 only: Insert the tip of the iron into the safe storage lock on the stand.

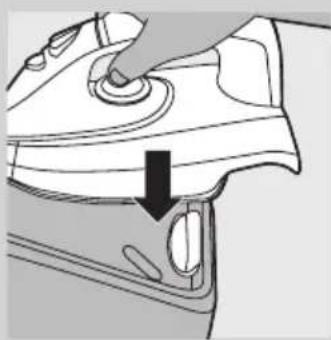

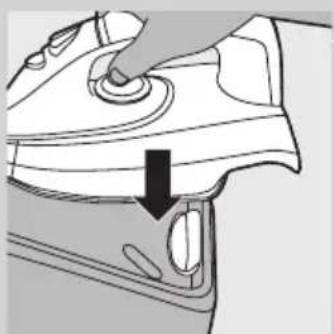

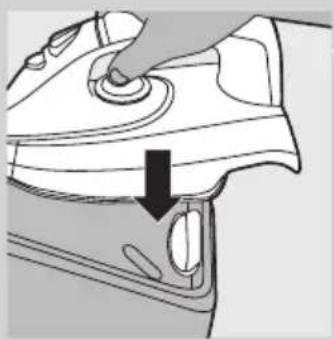

2 GC8325/GC8320 only: Press down the back of the iron firmly ('click'). 3 Empty the water tank.

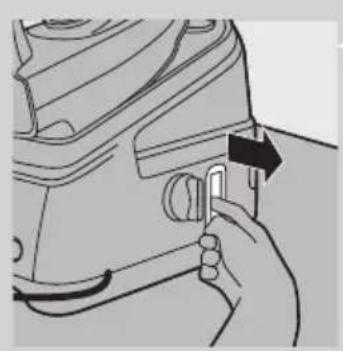

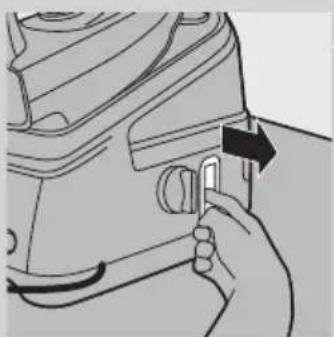

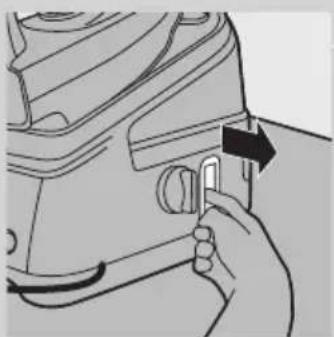

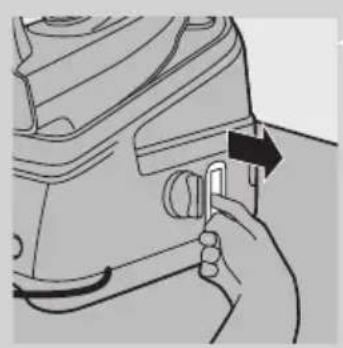

4 Pull out the cord & hose storage hook.

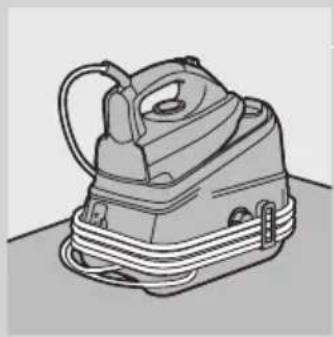

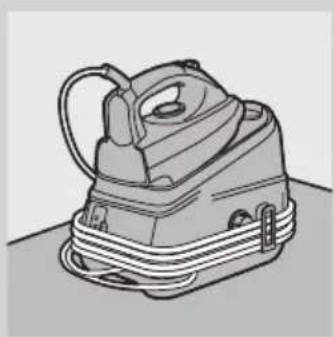

5 Secure the supply hose and mains cord.

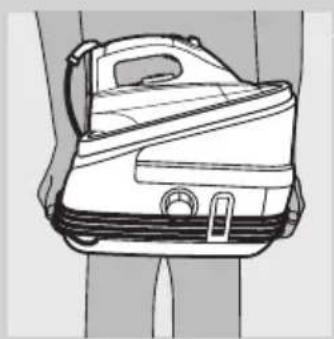

6 To move the appliance, carry it by the handgrips on either side of the steam generator.

Environment

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee & service

If you need service or information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, contact the Consumer Care Centre in your country.

Problem Cause Solution

The appliance does not become hot.	There is a connection problem. Check the mains cord, the plug and the wall socket.
	You have not switched on the appliance. GC8325/GC8320: Press the on/off button. GC8210: set the on/off switch to 'on'.
	The set temperature is too low. Set a higher temperature.
Smoke comes out of my new iron when I switch it on.	Some parts of the appliance have been lightly greased in the factory and may initially give off some smoke when heated.	This phenomenon is normal and ceases after a short while.
The iron does not produce any steam.	There is not enough water in the water tank.	Fill the water tank. See chapter 'Preparing for use', section 'Filling the detachable water tank'.
	The steam generator has not heated up sufficiently.	Wait approx. 2 minutes. GC8325/ GC8320 only: wait until the steam light stays on continuously.
	The set ironing temperature is too low for steam ironing.	Set a temperature of ●● or higher.
	GC8325/GC8320 only: You have set steam setting (no steam).	Set steam setting ECO, (moderate steam) or (maximum steam).
	You have not placed the water tank properly in the steam generator.	Place the water tank properly in the steam generator ('click').
	When the iron is set to a very high temperature, the steam produced is dry and hardly visible. It is even less visible when the ambient temperature is relatively high and it is entirely invisible when the temperature is set to MAX.	Set the iron to a lower temperature, e.g. ●●, to check if the iron actually produces steam.
Water droplets come out of the soleplate.	The set temperature is too low for steam ironing.	Set a temperature of ●● or higher.
	When you start steam ironing and when you stop steam ironing for a while, the steam still present in the supply hose cools down and condenses into water. This causes water droplets to come out of the soleplate.	This is normal. When you start ironing or when you continue ironing after an interruption, hold the iron over an old cloth and press the steam trigger. Wait until steam instead of water comes out of the soleplate.

Problem Cause Solution

Flakes and impurities come out of the soleplate or the soleplate is dirty.	Impurities or chemicals present in the water have deposited in the steam vents and/or on the soleplate.	Clean the soleplate with a damp cloth.
The appliance produces a pumping sound.	Water is pumped into the steam generator.	This is normal.
	The pumping sound does not stop. Unplug the iron immediately and contact an authorised Philips service centre.
The iron produces steam continuously.	The steam lock has been set to 'on'. Set the steam lock to 'off' if you only want to obtain steam when you press the steam trigger (see section 'Steam lock function').
Dirty water comes out of the soleplate.	Too much scale and minerals have accumulated inside the steam generator.	Rinse the steam generator. See chapter 'Cleaning and maintenance'.
Steam escapes from under the Calc-Clean rinsing cap when the appliance heats up.	You have not tightened the Calc-clean rinsing cap properly.	Switch off the appliance, tighten the Calc-Clean rinsing cap and switch on the appliance again. If steam continues to escape when the appliance is heating up, switch off the appliance and contact a service centre authorised by Philips.
The iron does not produce enough steam/the amount of steam decreases and increases during steam ironing.	When the appliance pumps water into the steam generator, the steam amount sometimes decreases. This is probably when you think that the iron does not produce enough steam. However, this is a normal phenomenon and the steam output normalises within a few seconds.	To optimise the steam output, release the steam lock when you do not need steam and when you put down the iron.
Wet spots appear on the fabric during ironing.	The wet spots that appear on the fabric after you have steam ironed for some time may be caused by steam that has condensed onto the ironing board. Iron the wet spots without steam for some time to dry them. If the underside of the ironing board is wet, wipe it with a piece of dry cloth.	To prevent steam from condensing onto the ironing board, use an ironing board with a wire mesh top.
GC8325/GC8320 only: Water droplets come out of the soleplate when I use the shot-of-steam function.	Steam may have condensed in the hose, the temperature may have been set below ●●● or the appliance may not be ready for steam ironing.	Make sure the temperature is set to ●●● or higher. Steam iron for a few seconds before you use the shot-of-steam function.

4 Pull out the hook for the cable and hose.

2 Press the steam trigger.

Always let the appliance cool down before storing it.

1 Models GC8325/GC8320: insert the tip of the iron into the safety storage lock on the base.

1 Detach the water tank from the steam generator.

2 Fill the water tank up to the MAX mark.

• ● for synthetics (acrylic, viscose, polyamide) and silk
• ●● wool
• ●●● cotton
• MAX za lan

2 To set the appropriate ironing temperature, turn the temperature dial to the appropriate position. 3 Plug the plug into a grounded wall outlet. 4 Turn on the appliance.

- Only GC8325/GC8320: Press the on/off button once.

Do not remove the Calc-Clean rinse cap while the steam generator is hot.

4 Turn the steam generator on its side with the Calc-Clean rinse cap facing up and remove the Calc-Clean rinse cap.

CROATIAN58

5 Empty the steam generator into the sink.

6 Fill the steam generator with fresh water and shake it again.

7 Pour the water from the steam generator into the sink again.

9 Tightly fasten the Calc-Clean rinse cap onto the steam generator.

Calc-Clean indicator (only GC8325/GC8320)

1 When it is time to rinse the steam generator, the Calc-Clean indicator blinks for 30 seconds.

1 Only GC8325/GC8320: Insert the tip of the iron into the rest slot for safe storage on the base.

2 Only GC8325/GC8320: Press the back of the iron firmly down ("click").

3 Empty the water tank.

4 Pull out the hook for storing the cable and hose.

5 Attach the steam hose and power cord.

6 Carry the appliance using the handles on both sides of the steam generator.

Environment protection

- Do not dispose of the appliance with normal household waste when it can no longer be used, but take it to a designated recycling point. This will help protect the environment.

Warranty and service

If you need service or information or have a problem, visit the Philips website, www.philips.com, or contact the Philips Consumer Care Center in your country (the phone number is in the international warranty leaflet). If there is no Consumer Care Center in your country, contact your local Philips dealer.

Troubleshooting

This chapter describes the most common problems you might encounter when using the appliance. If you cannot solve the problem with the information below, contact the Consumer Care Center in your country.

Problem Cause Solution

Aparat se ne zagrijava.	Problem je u napajanju. Provjerite kabel, utikač i zidnu utičnicu.
	Niste uključili aparat. GC8325/GC8320: Pritisnite gumb za uključivanje/isključivanje. GC8210: prekidač za uključivanje/isključivanje postavite na “on” (uključeno).
	Postavili ste prenisku temperaturu. Postavite višu temperaturu.
Iz novog glačala izlazi dim kada ga uključim.	Neki dijelovi glačala su malo podmazani u tvomici i zbog toga malo dime prilikom zagrijavanja.	To je normalno i ubrzo će prestati.
Glačalo ne proizvodi paru.	U spremniku nema dovoljno vode. Napunite spremnik za vodu. Pogledajte poglavlje “Priprema za korištenje”, odjeljak “Punjenje spremnika za vodu”.
	Generator pare nije se dovoljno zagrijao.	Pričekajte oko 2 minute. Samo GC8325/ GC8320: pričekajte dok indikator pare ne počne stalno svijetliti.
	Postavljena temperatura glačanja preniska je za glačanje s parom.	Postavite temperaturu od ●● ili višu.
	Samo GC8325/GC8320: Postavili ste postavku pare (bez pare).	Postavite postavku pare ECO, (umjerena količina pare) ili (najveća količina pare).

Problem Cause Solution

	Spremnik za vodu niste ispravno stavili u generator pare.	Spremnik za vodu ispravno stavite u generator pare (“klik”).
	Ako je temperatura glačanja postavljena na vrlo visoku vrijednost, para je vrlo suha i skoro nevidljiva. Još je manje vidljiva ako je temperatura okoline visoka, a potpuno nevidljiva ako je temperatura glačanja postavljena na MAX.	Postavite temperaturu glačanja na nižu vrijednost, npr. ●●, kako biste provjerili proizvodi li glačalo paru.
Iz površine za glačanje kapa voda.	Postavljena temperatura je preniska za glačanje s parom.	Postavite temperaturu od ●● ili višu.
	Kada glačate s parom i privremeno prekinete, para preostala u crijevu za dovod pare se ohladi i kondenzira. To uzrokuje kapanje vode iz površine za glačanje.	To je normalno. Kada počnete glačati ili kada nastavite glačati nakon kratkog prekida, držite glačalo iznad stare krpe i pritisnite gumb za paru. Pričekajte da iz površine za glačanje počne izlaziti para umjesto vode.
Komadići kamenca i prljavštine ispadaju iz površine za glačanje ili je površina za glačanje prljava.	Nečistoće ili kemikalije u vodi nakupile su se otvorima za paru i/ili na površini za glačanje.	Očistite površinu za glačanje vlažnom krpom.
Aparat proizvodi zvuk pumpanja.	Voda se potiskuje u generator pare. To je potpuno normalno.
	Zvuk pumpanja ne prestaje. Odmah izvucite kabel iz napajanja i kontaktirajte ovlašteni servis tvrtke Philips.
Glačalo neprestano proizvodi paru.	Gumb za zaključavanje pare postavljen je u položaj “on” (uključeno).	Gumb za zaključavanje pare postavite na ‘off’ (isključeno) ako želite paru samo prilikom pritiska gumba za paru (pogledajte odjeljak “Funkcija za zaključavanje pare”).
Prljava voda izlazi is površine za glačanje.	U generatoru pare se nakupilo previše kamenca i minerala.	Isperite generator pare. Pogledajte poglavlje “Čišćenje i održavanje”.
Prilikom zagrijavanja aparata para izlazi ispod poklopca za Calc-Clean ispiranje.	Niste dovoljno pritegnuli poklopac za Calc-Clean ispiranje.	Isključite aparat, učvrstite poklopac za Calc-Clean ispiranje i ponovo uključite aparat. Ako para i dalje izlazi prilikom zagrijavanja aparata, isključite ga i obratite se ovlaštenom servisu tvrtke Philips.

Problem Cause Solution

Glačalo neproizvodi dovoljnopare / za vrijeme glačanja s paromkoličina parese smanjuje ipovećava.	Kada aparat potiskuje vodu ugenerator pare, količina pare seponekad smanjuje. Vjerojatno jeto onda kada mislite da glačalo neproizvodi dovoljno pare. Međutim,to je normalna pojava i u roku odnekoliko sekundi dovod pare senormalizira.	Za optimiziranje proizvodnje pareoslobodite prekidač kada vam para nijepotrebna i kada spušate glačalo.
Za vrijeme glačanja na tkanini sepojavljuju vlažnemrlje.	Vlažne mrlje koje se pojavljuju natkanini nakon glačanja s parom mogubiti rezultat kondenziranja pare nadasci. Izglačajte vlažne točke bez parekako biste ih osušili. Ako je donjastrana daske vlažna, obrišite je krpom.	Kako biste spriječili kondenziranje pare nadasci, koristite dasku sa žičanom mrežom.
Samo GC8325/GC8320: Kapi vodeizlaze iz površineza glačanje prilikomkorištenja funkcijeza mlaz pare.	Para se možda kondenzirala u crijevu,možda je temperatura postavljenaispod ●●● ili aparat možda nijespreman za glačanje s parom.	Provjerite je li temperatura postavljena na●●● ili višu razinu. Prije korištenja funkcijeza mlaz pare prvo neko vrijeme glačajtes parom.

Introduction

After placing it in the storage location, wait until the appliance has cooled down.

5 Empty the steam generator over the sink.

6 Fill the steam generator with fresh water and shake it well again.

7 Empty the steam generator again over the sink.

Calc-Clean light (only for models GC8325/GC8320)

2 Only for models GC8325/GC8320: Press firmly down on the back of the iron (a click is heard).

3 Empty the water tank.

Steaming in vertical position

2 Only for models GC8325/GC8320: Firmly press the back of the iron (a click is heard).

4 Pull out the hook for storing the cord and hose.

1 Place the steam generator on a stable and flat surface, for example on the hard part of the ironing board or on a table.

1 Remove the detachable water tank from the steam generator. 2 Fill the water tank with tap water up to the MAX mark.

2 Set the temperature control to the appropriate ironing temperature by moving it to the appropriate temperature mark. 3 Insert the mains plug into an earthed wall socket. 4 Switch on the appliance.

- Only GC8325/GC8320: Press the on/off button.

The power-on indicator on the on/off button lights up. The temperature indicator on the iron lights up. When the iron reaches the set temperature, the temperature indicator goes out.

Note: During ironing, the temperature indicator lights up occasionally. This means that the iron is heating up to the set temperature.

The steam release indicator starts blinking. After approximately two minutes, the steam release indicator lights up continuously, which means the steam generator is ready for steam ironing. - GC8210 only: Set the on/off switch to "on". The power-on indicator on the on/off switch lights up. The temperature indicator on the iron lights up. When the iron reaches the set temperature, the temperature indicator goes out.

Note: During ironing, the temperature indicator lights up from time to time. This means that the iron is heating up to the set temperature.

After approximately two minutes, the steam generator is ready for steam ironing.

Tips

2 Press the steam boost button.

7 Empty the steam generator again into the sink. 8 For optimal results, repeat steps 6 and 7 twice.

Before storing the appliance, let it cool down.

1 GC8325/GC8320 only: Insert the tip of the iron into the locking mechanism for safe storage on the stand.

2 GC8325/GC8320 only: Press the rear part of the iron firmly downwards ("click"). 3 Empty the water tank.

4 Pull out the cord and hose storage clip.

5 Store the supply hose and mains cord.

6 To move the appliance, hold it by the handles on both sides of the steam generator.

Environment

1 Place the steam station on a stable, flat surface, i.e., on a firm part of the ironing board or on a table.

1 Unlock the detachable water tank from the steam station. 2 Fill the tank with tap water up to the maximum level. Note: If the water in your area is very hard, we recommend mixing it with an equal amount of distilled water. 3 Place the tank back onto the steam station ("click"). Note: If the water tank is not properly placed, the iron will not produce steam.

Indicator that the water tank needs to be refilled (only models GC8325/GC8320)

When the water tank is empty, the indicator starts to blink and it is no longer possible to iron with steam.

1 Remove the water tank and fill it with water. 2 Put the water tank back onto the steam tank. ▶The iron is ready for steam ironing again.

Setting the temperature

1 Check the garment label to determine the required ironing temperature.

• ● for synthetic fabrics (e.g. acrylic, viscose, polyamide) and silk
• ●● for wool
• ●●● for cotton
• MAX for linen

2 To set the required ironing temperature, turn the temperature dial to the appropriate position. 3 Plug the appliance into an earthed socket. 4 Switch on the appliance.

- Only GC8325/GC8320: Press the on/off button once.

The power indicator on the on/off switch lights up. The temperature indicator lights up. When the iron reaches the set temperature, the temperature indicator goes out.

Note: During ironing, the temperature indicator lights up from time to time. This indicates that the iron is heating up to the set temperature.

The steam indicator starts to blink. After 2 minutes, the steam indicator remains on, which means that the steam tank is ready for steam ironing. - Only model GC8210: Set the on/off switch to 'on'. The power indicator on the on/off switch goes out. The temperature indicator lights up. When the iron reaches the set temperature, the temperature indicator goes out.

Note: During ironing, the temperature indicator lights up from time to time. This indicates that the iron is heating up to the set temperature.

After 2 minutes, the steam tank is ready for steam ironing.

Tips

Vertical steam ironing

A powerful steam burst helps remove stubborn wrinkles.

1 Set the temperature control to a position between ●●● and MAX.

2 Press the steam burst button.

Note: The steam burst function should be used with pauses. If water droplets come out of the soleplate, let the iron heat up for at least one minute before using the steam burst function again.

Dry ironing

There are one or two ways to iron without steam:

- All models: Start ironing without pressing the steam release switch.

- Only GC8325/GC8320: Select the steam setting (no steam) and start ironing.

Tips

• When ironing woolen garments with a steam iron, shiny marks may appear. Use a dry cloth over the garment or turn the garment inside out and iron it that way.
• Silk, wool, and synthetic materials: iron the inside of the fabric to avoid shiny marks.
• Velvet and other fabrics that may show shiny marks should be ironed only in one direction (with the nap), applying very light pressure.
• Do not use steam when ironing colored silk. This could cause stains.

4 Turn the steam tank on its side so that the Calc-Clean rinse cap is facing upwards and remove the Calc-Clean rinse cap.

5 Empty the steam tank.

6 Pour clean water into the steam tank and shake it again.

7 Empty the steam tank again.

9 Tightly fasten the Calc-Clean rinse cap onto the steam tank.

Calc-Clean indicator (GC8325/GC8320 only)

1 The Calc-Clean indicator flashes for 30 seconds when the steam tank needs to be rinsed.

During those 30 seconds, the steam tank does not heat up.

2 Immediately switch off the appliance and let it cool down.

2 GC8325/GC8320 only: Firmly press the rear part of the iron downwards ("click").

3 Empty the water tank.

4 Pull out the cord and hose storage hook.

5 Store the supply hose and power cord.
