Product type	Wall-mounted decorative hood
Brand	Bosch
Model	DWK096650
Width	90 cm
Depth	50 cm
Height	60-110 cm (telescopic)
Net weight	18 kg
Power supply	230 V ~ 50 Hz
Motor power	220 W
Number of speeds	3 + intensive
Lighting	2 x LED 3 W
Max noise level	65 dB(A)
Max airflow	620 m³/h
Filtration type	Metal grease filter + charcoal filter (optional)
Evacuation mode	Extraction or recirculation
Grease filter cleaning	Dishwasher or manual
Saturation indicator	Yes, for grease and charcoal filter
Automatic shut-off	Yes, after 10h
Energy class	A+
Spare parts	Filters, bulbs, remote control (depending on version)
Repairability	Repairability index 8.0/10

Frequently Asked Questions - DWK096650 BOSCH

How to install the DWK096650 hood?

Installation must be carried out by a qualified professional. Observe safety distances: at least 65 cm above an electric hob, 75 cm for a gas hob. Securely fix the wall bracket and connect the exhaust duct (if extraction mode) or install the charcoal filter (if recirculation).

How to clean the grease filters?

The metal grease filters can be washed in the dishwasher or by hand with hot water and detergent. Dry them completely before putting them back. Clean them about every 2 months.

When to replace the charcoal filter?

The activated charcoal filter should be replaced every 4 to 6 months depending on use. The saturation indicator will alert you when necessary.

How to change the LED bulb?

Cut off the power supply. Open the lighting cover, unclip the defective bulb and insert a new compatible LED bulb (type G9, 3W). Close the cover and restore power.

What to do if the hood no longer works?

First check that the appliance is plugged in and the circuit breaker has not tripped. Then check the remote control (batteries) or the control panel. If nothing works, contact Bosch customer service.

How to set the automatic shut-off timer?

Press the timer button (clock) to activate the delayed shut-off. You can choose a duration of 5, 10 or 15 minutes depending on the model. The hood will turn off automatically after this delay.

Can I use the hood in recirculation mode without duct?

Yes, the DWK096650 hood can operate in recirculation mode. You must install a recirculation kit (charcoal filter and deflector). The air is filtered and then returned to the room.

What is the sound power at maximum speed?

At intensive speed, the noise level can reach 65 dB(A), which corresponds to normal conversation. At reduced speed, the noise is significantly lower (about 50 dB(A)).

How to reset the filter saturation indicator?

After cleaning or replacing the filter, press and hold the indicator button (usually symbolized by a filter) for 3 seconds until the light goes out.

Where to find spare parts?

Spare parts (filters, bulbs, remote control) are available on the Bosch website or from authorized dealers. Use the reference DWK096650 to identify compatible parts.

USER MANUAL DWK096650 BOSCH

Black-and-white photo of a hand holding a plate of cooked rice with visible vegetable pieces (no text or symbols)

DKE 995 F

Illustration of a stainless steel kitchen chimney with ventilation grilles (no text or symbols)

de Gebrauchsanleitung en Instructions for Use fr Mode d'emploi nl Gebruiksaanwijzing it Instruzioni sull'uso es Instrucciones de manejo pt Instruções de Serviçio sv Bruksanvisning no Bruksanvisning fi Käyttöohje da Brugsanvisning

Household Appliances

Technical line drawing of a mechanical assembly with a grid base and structural components (no text or symbols)

Filter und Wartung

Fettfilter:

Illustration of hands installing or adjusting a heat exchanger panel (no text or symbols visible)

Illustration of hands installing or adjusting a wall-mounted panel with ventilation slots (no text or symbols visible)

Illustration of a window frame installation with hand and close-up details showing structural details (no text or symbols)

Illustration of hands holding a corrugated metal panel with a handle, no text or symbols visible

Illustration of hands installing or adjusting a heat exchanger panel (no text or symbols visible)

Illustration of a magnifying glass with a circular lens and handle (no text or symbols)

Illustration of a hand holding a cable with a magnified inset showing a device inside a circular frame (no text or symbols)

Störungen

Rainbow air pressure can be obtained, provided combustion air can escape through non-lockable openings, e.g. in doors, windows, air-intake/exhaust-air wall boxes or by other technical procedures, such as reciprocal interlocking, etc.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the air pressure, the entire ventilation system in the house/apartment must be taken into account. If using cooking appliances, e.g. hob and/or gas cooker, this rule does not apply.

Government regulations must be observed for the conveyance of exhaust air.

Operating mode

Exhaust-air mode:

☐ The extractor-hood fan extracts the kitchen vapours and conveys them through the grease filter into the atmosphere.

☐ The grease filter absorbs the solid particles in the kitchen vapours.

☐ The kitchen is kept almost free of grease and odours.

If the extractor hood is in exhaust-air mode and a flue-type heater is running at the same time (e.g. gas, oil or solid-fuel heaters, continuous-flow heaters, water heaters), ensure that the fireplace has an adequate air supply for combustion.

Safe operation requires that the low air pressure in the room in which the fireplace is located does not exceed 4 Pa (0.04 mbar).

Before using for the first time

Important notes:

This extractor hood complies with all relevant safety regulations.

Repairs should only be carried out by qualified specialists.

Improperly executed repairs can give rise to significant hazards for the user.

The appliance is not intended for use by young children or infirmed persons without supervision. Young children should be supervised to ensure they do not play with the appliance

The appliance should only be connected up to the mains and taken into use by a qualified specialist.

⚠ Dispose of packaging materials properly (see Installation instructions).

Light bulbs must always be fitted when the extractor hood is in use.

⚠️ Defective bulbs should be replaced immediately to prevent the remaining bulbs from overloading.

Before using for the first time

⚠️ Never operate the extractor hood without a grease filter.
⚠️ Overheated fat or oil can easily catch fire.

If you are cooking with fat or oil, e.g. chips, etc., never leave the cooker unattended.

⚠ Do not flambé food directly under the extractor hood.

! Risk of grease filter catching fire due to flames.

⚠️ Restrictions apply to the use of the extractor hood over a solid-fuel burner (coal, wood, etc.). (See Installation instructions).

Gas hobs / gas cookers

⚠️ Always use gas hobs in a proper and safe manner.

Important:

The flames from the gas hob must always be covered by pots or pans.

The intense heat generated by the gas flames could cause damage to the extractor hood.
☐ The heat load of all the hotplates which is produced during operation must not exceed 11.3 kW, irrespective of the installed nominal output.
☐ Exception: The hotplates may be operated briefly (max. 15 minutes) at a heat load up to 13.5 kW if at least fan setting 2 has been permanently switched on. (Otherwise, there is a risk of burns if the housing surfaces are touched).

Operating procedure

⚠ The most effective method of removing vapours produced during cooking is to:

☐ Switch the ventilator ON as soon as you begin cooking.
☐ Switch the ventilator OFF a few minutes after you have finished cooking.

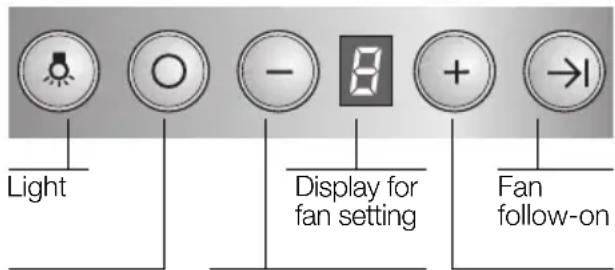

Fan OFF Reduce fan speed Fan ON and increase speed

Acoustic signal:

☐ When a button is pressed, this is verified by an acoustic signal.

Switching off the acoustic signal:

☐ Simultaneously press buttons 0 and + until a signal is emitted after approx. 3 seconds.

Switching on the acoustic signal:

☐ Repeat the process.

Setting the required fan speed:

☐ Press the + button. The fan speed is increased by one step.
☐ Press the – button. The fan speed is reduced by one step.

☐ Press the 0 button. The displayed ☐ goes out shortly afterwards.

Or:

- Keep pressing the – button until the fan switches off. The displayed ☐ goes out shortly afterwards.

Operating procedure

Intensive setting:

Maximum power is obtained at the intensive setting. It is only required for short intervals.

☐ Keep pressing the + button until a 📋 appears in the display.
☐ If the intensive setting is not cancelled by hand, the fan will automatically switch back to step 2 after 10 minutes.

Fan follow-on:

☐ Press the →button. The fan continues to run at step 1 for 10 minutes, and at the same time a dot flashes in the display. After this period the fan switches off automatically.

Lighting:

Briefly press the 🔒 button to switch the light on and off.
☐ The light can be switched on at any time, even though the fan is switched off.

☐ Adjusting the brightness: Hold down the ⚙ button until the desired brightness is obtained.

Switching on the light automatically, e.g. via a timer:

☐ Fan and light must be switched off.

Switching on:

Simultaneously press the – and →I buttons.

☐ After approx. 3 seconds the light switches on to acknowledge the setting.

Switching off:

Repeat the process with the light switched on.

☐ After approx. 3 seconds the light switches off to acknowledge the setting.

Technical line drawing of a mechanical assembly with grid and bracket components (no text or symbols)

Filters and maintenance

Grease filter:

two metal grease filters are inserted to soak up the fatty remains of the kitchen steam.

The filters are made of non-inflammable metal.

Caution:

As the filter becomes more and more saturated with grease, not only does the risk of it catching fire increase but the efficiency of the extractor hood can also be adversely affected.

Important:

Danger of fire, which can occur through the accumulation of heat when deep frying or roasting, can be prevented by timely cleaning.

Saturation indicator: - +

When the grease filters reach saturation point, an acoustic signal is sounded for 10 seconds after the fan has switched off, and an appears in the display. The grease filters should be cleaned straight away.

Cleaning the grease filter:

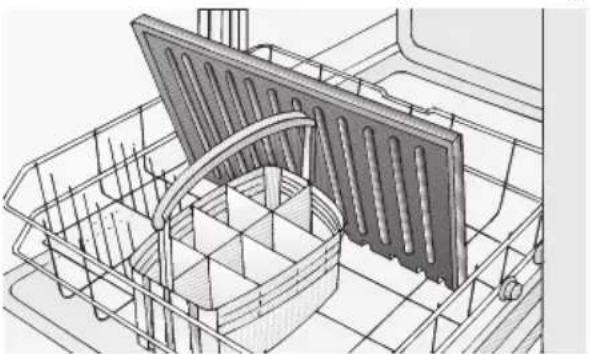

☐ The filters can be cleaned in a dish-washer. It is however possible that they will become slightly discoloured.
☐ Insert the outer filter so that the hooking-in holes are at the bottom and the rinsing water can run off.
Do not clean very soiled grease filters together with dishes.
☐ When cleaning the filters by hand, soak them in hot soapy water first of all. Then brush the filters clean, rinse them thoroughly and leave the water to drain off.

Important:

Cancel the \( \overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\overline{\}}}}}}}}}}}}}}}}}}}}}}}}}}}}}

☐ Press the 0 button.

Filters and maintenance

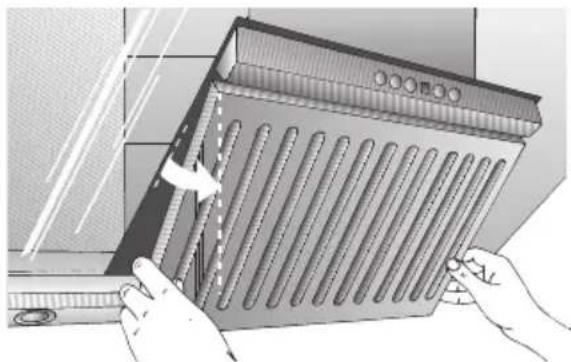

Removing the grease filter:

1. Pull the bottom of the most outer filter until it comes away from the magnets.

Illustration of hands installing or adjusting a heat exchanger panel with a handle (no text or symbols visible)

1. Unhook the filter in a vertical position from the top.

Illustration of hands installing or adjusting a wall-mounted device with ventilation slots (no text or symbols visible)

1. Press the notch on the inner filter and fold the filter down.

Inserting the grease filter:

1. Insert the inner filter at the back and fold the filter upwards.

Illustration of a window frame installation with hand and close-up details showing structural details (no text or symbols)

1. Hook in the outer filter in a vertical position.

Illustration of hands holding a corrugated metal panel with ventilation slots, no text or symbols visible

1. Press the filter to the back, until the magnets take hold.

Illustration of hands installing or adjusting a heat exchanger panel with cooling fins (no text or symbols visible)

Cleaning and care

Disconnect the extractor hood from the electricity supply by pulling out the mains plug or switching it off at the fuse box.

☐ At the same time as you clean the grease filters, clean off any grease from all accessible parts of the housing. This significantly reduces the fire hazard and ensures that the extractor hood performs as effectively as possible.
☐ Use a hot detergent solution or a mild window cleaner to clean the canopy of the extractor hood.
☐ Do not scrape off any dirt that has dried on but loosen it up with a damp cloth.
☐ Do not use abrasive cleaning agents or sponges that could cause scratches.
☐ Note: Do not use alcohol (spirit) on plastic parts, otherwise the surface may become matt in appearance.

Caution: Ensure that the kitchen is adequately ventilated. Avoid naked flames!

⚠ Clean the operating buttons with a mild soapy solution and a soft, damp cloth only. Do not use stainless-steel cleaner to clean the operating buttons.

Stainless steel surfaces:

☐ Use a mild non-abrasive stainless steel cleaner.
☐ Clean the surface in the same direction as it has been ground and polished.

Do not use any of the following to clean stainless steel surfaces: abrasive sponges, cleaning agents containing sand, soda, acid or chloride!

Aluminium, painted and plastic surfaces:

☐ Use a soft, non-linting window cloth or micro-fibre cloth.
☐ Do not use dry cloths.
☐ Use a mild window cleaning agent.
☐ Do not use aggressive, acidic or caustic cleaners.
☐ Do not use abrasive agents.

Replacing the light bulbs

1. Switch off the extractor hood and pull out the mains plug or switch off the electricity supply at the fuse box.

When switched on, the halogen bulbs become very hot. Even for some time after the bulbs have been switched off there is still a risk of burns.

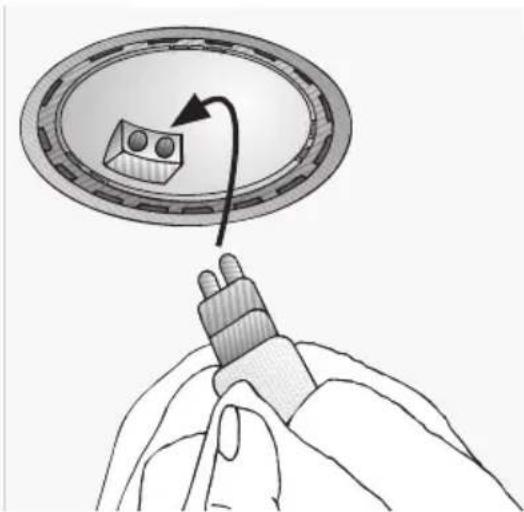

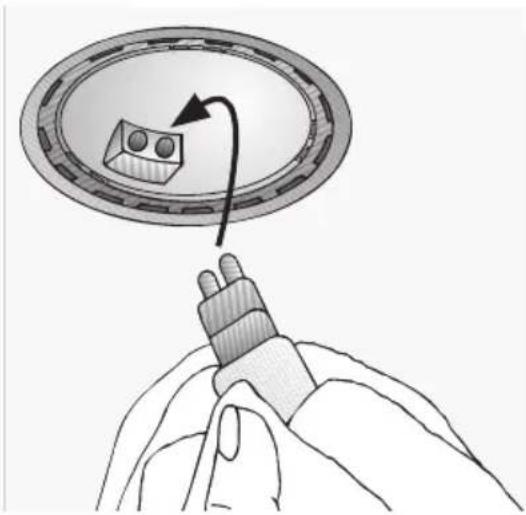

1. Remove the bulb ring with a screwdriver or similar tool.

2. Replace the halogen light bulb (conventional halogen bulb, 12 Volt, max. 20 Watt, G4 cap).

Caution: Refer to for plug-in lampholder.

Take hold of the bulb with a clean cloth..

1. Re-insert the bulb ring.

2. Plug the appliance into the mains or switch it on at the fuse box.

Note: If the light does not function, check that the bulbs have been inserted correctly.

Illustration of a magnifying glass with a circular lens and handle (no text or symbols)

Illustration of a hand holding a cable with a magnified inset showing a component inside a circular frame (no text or symbols)

If you encounter a problem

If an ≡ appears in the display:

☐ See "Filters and maintenance" Section.

If is not possible to operate the extractor hood:

☐ Disconnect the extractor hood from the mains electricity supply by pulling out the plug or switching it off at the main fuse box.

Wait for approx. 1 minute and then switch it on again.

If you have any questions or if a fault occurs, please call Customer Service.

(See list of Customer Service representatives).

When you call, please quote the following:

E-Nr.

FD

Enter the relevant numbers into the box above. The E-Nr. (product no.) and FD (production date) are shown on the nameplate which can be seen inside the extractor hood after the filter frame has been detached.

Ventilation intensive:

Technical line drawing of a mechanical assembly with a grid base and internal components (no text or symbols)

Filtre et entretien

Filtres à graisse:

Illustration of hands holding a heat exchanger with cooling fins (no text or symbols visible)

Illustration of hands installing or adjusting a panel with ventilation grilles (no text or symbols visible)

Illustration of a window frame installation with hand and close-up details showing structural details (no text or symbols)

Illustration of hands holding a corrugated metal panel with a handle, no text or symbols visible

Illustration of hands installing or adjusting a heat exchanger panel with cooling fins (no text or symbols visible)

Illustration of a magnifying glass with a circular lens and handle (no text or symbols)

Illustration of a hand holding a cable with a magnified inset showing a component inside a circular frame (no text or symbols)

Dérangements

Technical line drawing of a shopping basket with a metal plate and rack, no text or symbols present

Filter en onderhoud

Vetfilters:

Illustration of hands installing or adjusting a heat exchanger panel (no text or symbols visible)

Illustration of hands installing or adjusting a wall-mounted panel with ventilation slots (no text or symbols visible)

Illustration of a window frame installation with hand and magnified detail showing structural details (no text or symbols)

Illustration of hands holding a corrugated metal panel with a handle, no text or symbols visible

Illustration of hands installing or adjusting a heat exchanger panel (no text or symbols visible)

Let op: plugfitting.

Illustration of a magnifying glass with a circular lens and handle (no text or symbols)

Illustration of a hand holding a cable with a magnified inset showing a component inside a circular frame (no text or symbols)

Storingen

Technical line drawing of a mechanical assembly with grid lines and a central plate (no text or symbols)

Illustration of hands installing or adjusting a heat exchanger panel (no text or symbols visible)

Illustration of hands installing or adjusting a panel with ventilation grilles (no text or symbols visible)

Illustration of a window frame installation with hand and close-up details showing structural details (no text or symbols)

Illustration of hands holding a corrugated metal panel with a handle, no text or symbols visible

Illustration of hands installing or adjusting a heat exchanger panel (no text or symbols visible)

Illustration of a magnifying glass with a circular lens and handle (no text or symbols)

Illustration of a hand holding a cable with a magnified inset showing a component inside a circular frame (no text or symbols)

Guasti

Technical line drawing of a structural framework with grid and panel components (no text or symbols)

Importante:

Illustration of hands installing or adjusting a heat exchanger panel (no text or symbols visible)

Illustration of hands holding a heat exchanger with cooling fins and airflow arrows (no text or symbols)

Montar los filtros antigrasa:

Illustration of a window frame installation with hand and close-up details showing structural details (no text or symbols)

Illustration of hands holding a rectangular device with vertical slots, next to a mechanical component (no text or symbols visible)

Illustration of hands installing or adjusting a heater panel with heat exchanger (no text or symbols visible)

Illustration of a magnifying glass with a circular lens and handle (no text or symbols)

Illustration of a hand holding a cable with a magnified inset showing a component inside a circular frame (no text or symbols)

Technical line drawing of a shopping basket with a metal rack and slatted panel (no text or symbols)

Illustration of hands installing or adjusting a heat exchanger panel (no text or symbols visible)

Illustration of hands installing or adjusting a wall-mounted panel with ventilation slots (no text or symbols visible)

Illustration of a window frame installation with hand and close-up details showing structural details (no text or symbols)

Illustration of hands holding a corrugated metal panel with a handle, no text or symbols visible

Illustration of hands installing or adjusting a heat exchanger panel (no text or symbols visible)

Illustration of a magnifying glass with a circular lens and handle (no text or symbols)

Illustration of a hand holding a cable with a magnified inset showing a component inside a circular frame (no text or symbols)

Anomalias

Technical line drawing of a mechanical assembly with a grid base and structural components (no text or symbols)

Filter och skötsel

Fettfilter:

Illustration of hands installing or adjusting a heat exchanger panel (no text or symbols visible)

Illustration of hands installing or adjusting a heat exchanger panel with cooling fins (no text or symbols visible)

Illustration of a window frame installation with hand and close-up details showing structural details (no text or symbols)

Illustration of hands holding a corrugated metal panel with a handle, no text or symbols visible

Illustration of hands installing or adjusting a heat exchanger panel (no text or symbols visible)

Illustration of a magnifying glass with a circular lens and handle (no text or symbols)

Illustration of a hand holding a cable with a magnified inset showing a component inside (no text or symbols)

Råd vid fel

Technical line drawing of a mechanical assembly with grid and bracket components (no text or symbols)

Viktig:

Illustration of hands installing or adjusting a heat exchanger panel (no text or symbols visible)

Illustration of hands installing or adjusting a panel with ventilation grilles (no text or symbols visible)

Illustration of a window frame installation with hand and close-up details showing structural details (no text or symbols)

1. Heng det ytre filteret inn i loddrett stilling.

Illustration of hands holding a corrugated metal panel with ventilation slots, no text or symbols present

Illustration of hands installing or adjusting a heater panel with heat exchanger (no text or symbols visible)

Rengjøring og pleie

Illustration of a magnifying glass with a circular lens and handle (no text or symbols)

Illustration of a hand holding a cable with a magnified inset showing a component inside a circular frame (no text or symbols)

Forstyrrelser

Technical line drawing of a mechanical assembly with grid and bracket components (no text or symbols)

Tärkeää:

Illustration of hands installing or adjusting a heat exchanger panel (no text or symbols visible)

Illustration of hands installing or adjusting a wall-mounted panel with ventilation slots (no text or symbols visible)

Illustration of a window frame installation with hand and close-up details showing structural details (no text or symbols)

Illustration of hands holding a rectangular panel with vertical slats, next to a window frame (no text or symbols visible)

Illustration of hands installing or adjusting a heater panel with heat exchanger (no text or symbols visible)

Puhdistus ja hoito

Illustration of a magnifying glass with a circular lens and handle (no text or symbols)

Illustration of a hand holding a cable with a magnified inset showing a component inside a circular frame (no text or symbols)

Häiriöt

Technical line drawing of a mechanical assembly with a grid base and structural components (no text or symbols)

Filter og service

Fedtfiltre:

Illustration of hands holding a heat exchanger with cooling fins (no text or symbols visible)

Illustration of hands holding a corrugated metal panel with ventilation slots, no text or symbols present

1. Tryk på spærhagen på det indvendige filter og klap filteret ned.

Illustration of a window frame installation with hand and close-up insets showing structural details (no text or symbols)

Illustration of hands holding a corrugated metal panel with a handle, no text or symbols visible

Illustration of hands installing a heat exchanger panel with cooling fins (no text or symbols visible)

Illustration of a magnifying glass with a circular lens and handle (no text or symbols)

Illustration of a hand holding a cable with a magnified inset showing a component inside a circular frame (no text or symbols)

Driftsforstyrrelser
