GYT11012SB - Kettle AEG - Free user manual and instructions

Product Type	Electric Kettle
Brand	AEG
Model	GYT11012SB
Capacity	1.7 L
Power	2200 W
Supply Voltage	220-240 V ~ 50/60 Hz
Dimensions (L × W × H)	22 × 15 × 24 cm
Weight	1.0 kg
Material	Stainless steel
Color	Black and stainless steel
Swivel base	Yes, 360°
Water level indicator	Yes, transparent
Limescale filter	Yes, removable
Auto shut-off at boiling	Yes
Overheating protection	Yes
Dry operation protection	Yes
Maintenance and cleaning	Clean the exterior with a damp cloth. Descale regularly with vinegar or a descaling product.
Spare parts	Available from AEG after-sales service
Repairability index	7/10
Warranty	2 years (depending on country)

Frequently Asked Questions - GYT11012SB AEG

How to descale my AEG GYT11012SB kettle?

Fill the kettle halfway with a mixture of water and white vinegar (1:1) or use a commercial descaling product. Bring to a boil, let it sit for 15 minutes, rinse several times with clean water.

Why does the kettle not shut off automatically?

Check that the lid is properly closed and that the kettle contains enough water. If the problem persists, the switch or sensor may be defective; contact customer service.

How to clean the exterior of the kettle?

Use a soft, damp cloth. Do not use abrasive products or steel wool. Dry thoroughly after cleaning.

What is the capacity of the AEG GYT11012SB kettle?

The maximum capacity is 1.7 liters, which allows boiling the equivalent of 7 to 8 cups of water.

What is the power of the kettle?

The power is 2200 watts, ensuring rapid boiling in a few minutes.

Can I heat a small amount of water (less than 250 ml)?

It is not recommended to heat less than 250 ml to avoid damaging the heating element. Respect the indicated minimum level.

Does the kettle contain BPA?

The parts in contact with water are made of stainless steel and are BPA free. All plastics used are certified BPA-free.

How to use the kettle safely?

Fill with water between the min and max levels, close the lid, place the kettle on its base and turn it on. Never leave the kettle unattended while in operation.

What is the warranty of the AEG GYT11012SB kettle?

The standard warranty is 2 years (depending on the country of purchase). Keep the receipt as proof of purchase.

Where can I find spare parts for this kettle?

Spare parts (filter, lid, base) are available through AEG after-sales service or on the brand's official website. Use the model number GYT11012SB.

USER MANUAL GYT11012SB AEG

Modern kitchen interior with white cabinets, black sink, and large stainless steel refrigerator (no visible text or symbols)

AEG

Image 2

Installation layout

Image 4

Operation mixer side Fonctionnement côté mitigeur Funktionstätigkeit der mischbatterie Funktion blanderside Toiminta hanan puoli Virkemåte blandebatteriets side Funktion blandarsida Werking zijde mengkraan Funzionamento lato miscelatore

Image 5

Operation boiling water Fonctionnement Côté Eau Bouillante Funktionstätigkeit Für Kochendes Wasser Funktion Side Med Kogende Vand Toiminta Kuuman Veden Puoli Virkemåte På Siden For Kokvarmt Vann Funktion Kokande Vattensida Werking Zijde Kokend Water Funzionamento lato acqua bollente

Image 6

Boiling water side use Emploi côté eau bouillante Einsatz von kochendem wasser Brug side med kogende vand Käyttö kuuman veden puoli Bruk av siden for kokvarmt vann Användning kokande vattensidan Gebruik zijde kokend water Utilizzo lato acqua bollente

CONTENTS

1. PRE-INSTALLATION INFORMATION......8
2. INSTALLATION....10
3. WORKING....10
4. MAINTENANCE....11

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler -features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage@advice, brochures, trouble shooter, service information:

www.aeg.com

Register your product for better service:

www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

Whem contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information.

General information and tips.

Environmental

information.

Subject change without notice.

1. PRE-INSTALLATION

1.1

Important

! 1.3 Package content (Image 1)

Qualified staff should read very carefully these instructions before installation and/or maintenance of the product. Afu Mixer B - Base C - Fastening set D - Spacer for the fastening E - Gaskets

1.2

work

Before installation and setting to

Attention! The feeding pipes have to be rinsed thoroughly before the installation of the mixer, so that no shavings, welding or hemp residual or other dirt can be found in the pipes. Foreign bodies can enter the mixer through the rinsed pipes or the general water plant and could damage the washers/ring washers. In order to guarantee a long use of the product, install the angle valve equipped with filter and clean them regularly.

Before the setting to work, unscrew the aerator and rinse it very well.

Technical data

• Maximum working pressure 5 bar

- Recommended working pressure 3 bar (in case of water pressure higher than 5 bar install pressure reducers)

Respecting this indications, will

maintain the warranty rights, ensures the declared properties of the products and warrant the complete reliability.

- Before assembling the hose, please check the appropriate crimping of both sides of the hoses.

- Don't tighten by tools.

Illustration showing a hand holding a cylindrical object and a grid-patterned mechanical component with a cross mark (no text or symbols)

- Hand-tighten O-ring seal connectors until feeling a mechanical rest.

- Don't set the hose in the wall.

- Tighten the hose without any twis or tension.

- Prolonged contact with any substance, even scarcely aggressive, can cause external braid damage and subsequent flexible burst.

- Before bending the hose please consider a straight part of 2 times the external diameter.

- Maintain minimum bend radius (DN= nominal internal diameter):

DN6 = 25mm

DN8 = 30mm

DN10 = 35mm

DN13 = 45mm

- Hand-tighten connectors with gasket seal (nuts) then apply 1/4 turn using an appropriate wrench.

- Do not expose the hose to lateral stress nor overtight by any tool (ex. during the installation of the faucet stud or the drain pop-up lever).

2. INSTALLATION

3. WORKING

2

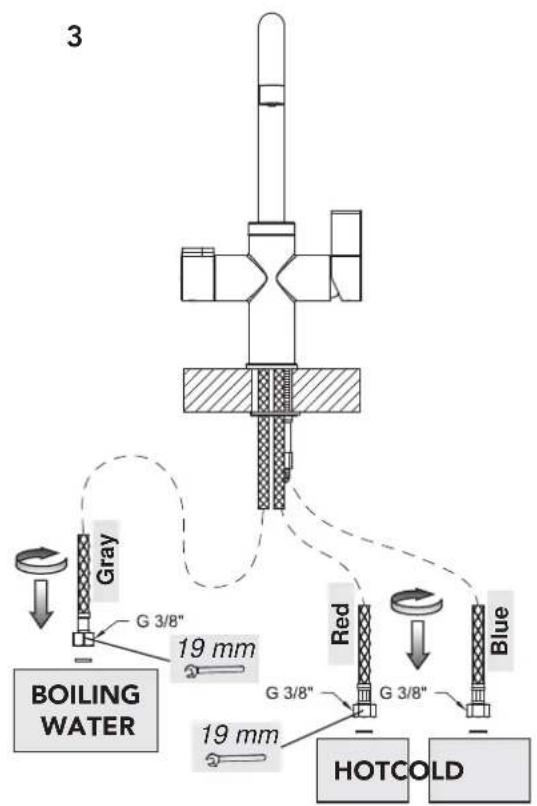

.1 Please follow exactly the following

sequence (Image 3)

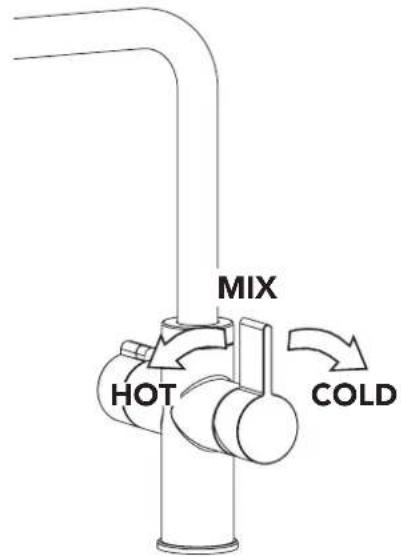

.1 Operation mixer side (Image

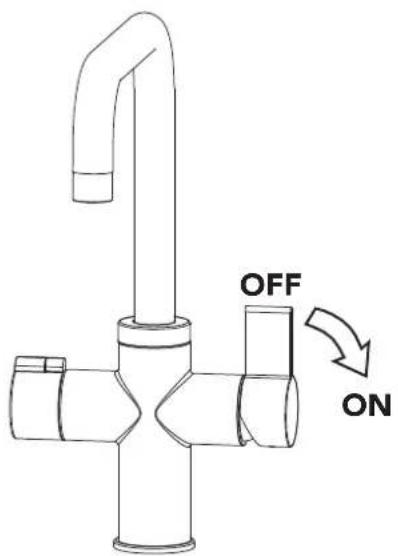

- Open the handle to the right to start water supply; the more the handle is opened the more water is supplied.

2.2

For UK market

- Turn up the handle to open cold water, ns of turn it down to open hot water.

If necessary for network connections of the taps and fittings use adapter 3/8 - 1/2" with the relative seals present in the kit GYB06116XA.

3.2

Operation boiling water

2.3

Warning!

In case of "COMBI" configuration for installation of the mixer valve GYBMIX16XA and relative connections pay attention to the directions in the system's handbook included in the package of the boiler

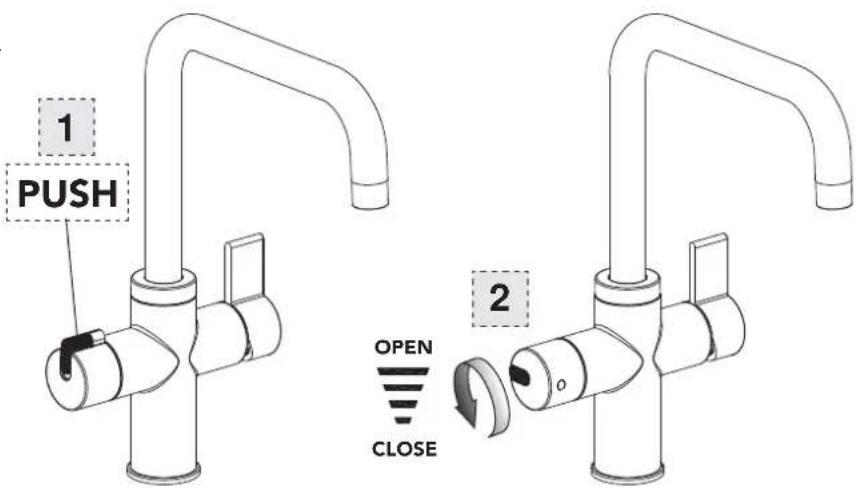

The tap has a handle with safety funct (especially for kids) for boiling water enabled with a pressure and rotation motion. The handle retracts if released and locks automatically.

WARNING! The temperature of wa flow can reach values that may case burnings.

3.3

Boiling water side use

To get the best results, for example to prepare coffee or tea, it is necessary to let "first water" flow. This allows removing air bubbles. This allows removing air bubbles that are in the water and tend to form a layer of foam on the preparation.

IMPORTANT! keep the container to fill so to contain completely the water supply spout. So you avoid boiling water splashes and the tap will be used safely.

Use only appropriate containers for hi temperature water.

3.4 Warning!

At the expiry of warranty terms the product should undergo full maintenance, first of all of all functional parts, for an optimal use of the product.

This maintenance should be carried o every two years by qualified staff.

4. MAINTENANCE

4.1 Directions for product cleaning

Water contains scale deposit in variable quantity, which remains on the surface of the product, leaving deposits once water has evaporated. It is possible to prevent the formation of scale deposits, and keep your product clean drying it always with a soft cloth immediately after use.

NEVER USE DETERGENTS, SOLVENTS, CHEMICAL AGENTS, ABRASIVE MOPS, METALLIC WIPES, ALCOHOL, ETC. that would damage irremediably product surfaces, damaging its esthetic, its gloss and its satin finish.

CLEAN ONLY WITH WATER AND NEUTRAL SOAP DRYING WITH A SOFT CLOTH.
