Product Type	Handheld Steam Cleaner
Model Number	GC610
Brand	Philips
Color	White/Blue
Dimensions (LxWxH)	30 x 10 x 20 cm
Weight	1.0 kg
Power Supply	AC 220-240V, 50/60 Hz
Power Consumption	1000 W
Water Tank Capacity	200 ml
Heating Time	Approx. 30 seconds
Steam Output	Continuous steam up to 15 g/min
Steam Pressure	Up to 3 bar
Cable Length	4 m
Material	Plastic housing with metal soleplate
Included Accessories	Detail nozzle, brush, fabric gripper, measuring cup
Safety Features	Automatic shut-off, lockable trigger, safety cap
Maintenance	Descale regularly with vinegar solution
Warranty	2 years
Usage	For cleaning sealed hard surfaces, fabrics, and garments
Repairability	Spare parts available; user-replaceable water tank seal

Frequently Asked Questions - ProTouch GC610 PHILIPS

How do I use the Philips ProTouch GC610 steam cleaner?

Fill the water tank with distilled water, plug in, wait for 30 seconds for heating, then press the trigger to release steam. Use the appropriate accessory for the surface.

What accessories are included with the GC610?

The package includes a detail nozzle for narrow spaces, a brush for scrubbing, a fabric gripper for steaming clothes, and a measuring cup for filling.

Can I use tap water in the steam cleaner?

It is recommended to use distilled or demineralized water to avoid scale buildup. If using tap water, descale more frequently.

How do I clean and maintain the steam cleaner?

After each use, empty the water tank and let it dry. For descaling, fill the tank with a mixture of vinegar and water (1:3), heat, and steam until empty. Rinse thoroughly.

Is the steam cleaner safe to use on all surfaces?

Use only on sealed hard surfaces (tiles, glass, stainless steel), upholstery, and garments. Avoid unsealed wood, waxed surfaces, and delicate fabrics that may shrink.

What does the automatic shut-off feature do?

The automatic shut-off activates when the device is left unused for 8 minutes, preventing overheating and saving energy. It also activates if the steam cleaner is knocked over.

How long is the power cord?

The power cord is 4 meters (13 feet) long, giving you flexibility to move around without needing an extension.

Can I use the steam cleaner vertically for garments?

Yes, attach the fabric gripper and use the device in a vertical position to steam hanging clothes, removing wrinkles and odors.

What is the heat-up time for the steam cleaner?

The device heats up in approximately 30 seconds. An indicator light shows when it is ready to use.

Where can I find replacement parts for the GC610?

Replacement parts such as nozzles, brushes, and water tank seals are available on the Philips website or authorized retailers. Check the user manual for part numbers.

USER MANUAL ProTouch GC610 PHILIPS

Always there to help you

始终如一地为您提供帮助

Register your product and get support at

请登录以下网址并得到相应的帮助

www.philips.com/welcome

ProTouch

GC610

GC612

Question?

Contact Philips

有疑问？

请联系飞利浦

User manual

用户手册

PHILIPS

3

5

6

12

13

14

15

16

17

19

22

23

25

EN

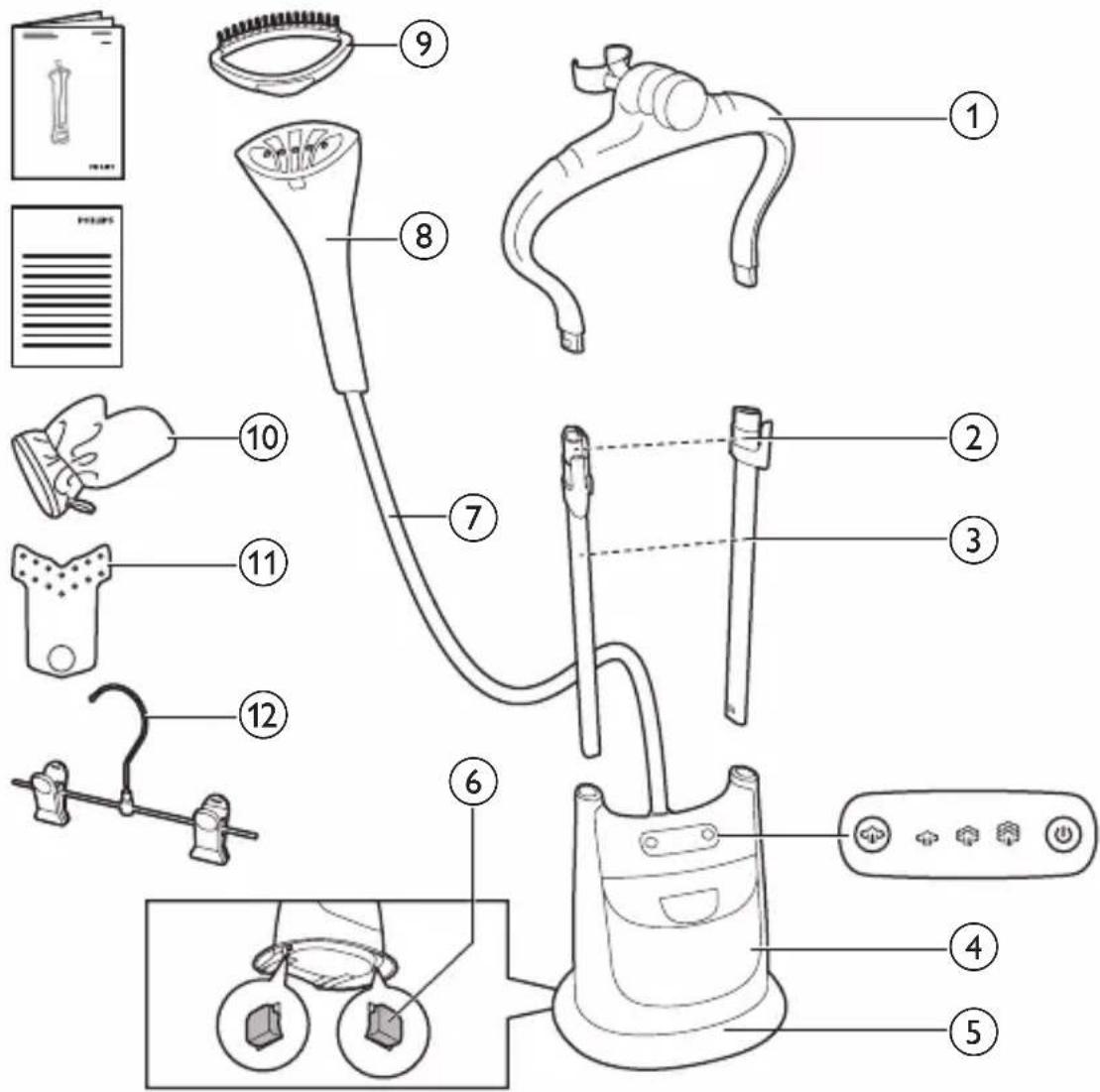

① Hanger
② Pole clips
③ Poles
④ Water tank
⑤ Base
⑥ Pole release lock

⑦ Steam supply hose
⑧ Steamer head
⑨ Brush
⑩ Glove
⑪ Collar aid
⑫ Pants hanger

ZH-S

EN

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Important

Read this important information carefully before you use the appliance and save it for future reference.

Danger

- Never immerse the appliance in water or any other liquid, nor rinse it under the tap.

Warning

• Check if the voltage indicated on the type plate of appliance corresponds to the local mains voltage before you connect the appliance.
• Do not use the appliance if the plug, the mains cord or the appliance itself shows visible damage, or if the appliance has been dropped or leaks.
• Do not connect the appliance to a D.C. Supply.
• Always return the appliance to a service centre authorised by Philips for examination or repair. Do not attempt to repair the appliance yourself, otherwise the guarantee becomes invalid.
• If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
• Never leave the appliance unattended when it is connected to the mains.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• When you have finished steaming, when you fill or empty the water tank, when you perform cleaning and rinsing, and also when you leave the appliance even for a short while, remove the mains plug from the wall socket.
• Keep the appliance and its mains cord out of reach children.
• Only connect the appliance to an earthed wall socket.

Caution

• Check the mains cord regularly for possible damage.

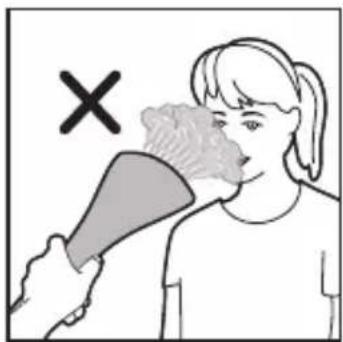

• Beware of hot steam and hot water that comes out from steamer nozzle during use. Steam and hot water can cause burns.
• The nozzle of steamer head can become extremely hot and may cause burns if touched.
• This appliance is intended for household use only.

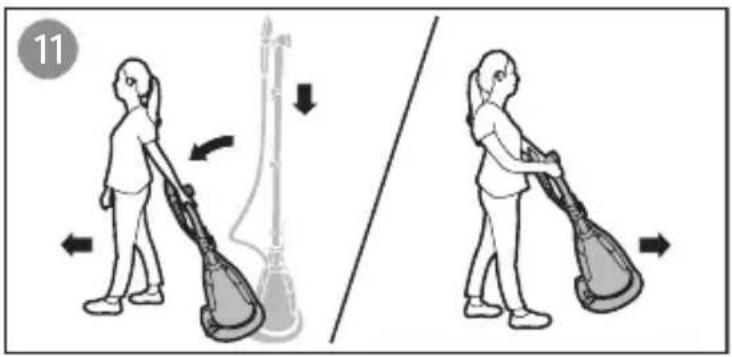

• Do not place the steamer base on top of table or chair but rather keep the steamer base on the floor during usage duration.

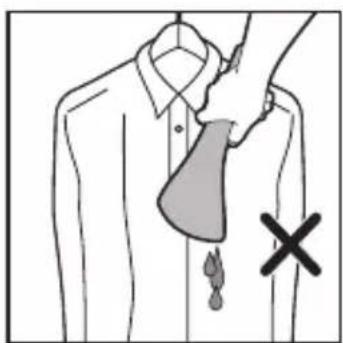

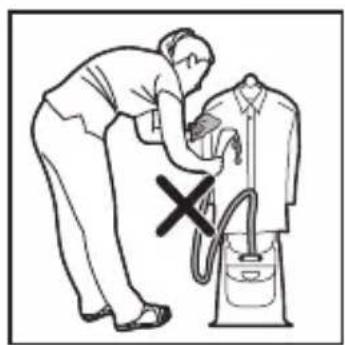

• If the hose forms a U shape, steam condenses in the hose. This causes irregular steam or water droplets to come out of the steamer head.
• Steam may damage or cause discolouration of certain wall or door finishes.
• Do not use the appliance when the water tank is empty.
• Do not let the mains cord come into contact with hot steam when the appliance is in operation.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

Environment

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee and service

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

ZH-S

简介

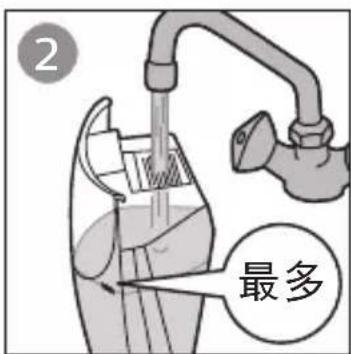

EN Your appliance has been designed to be used with tap water.

Note: Do not add perfume, vinegar, mineral water, starch, descaling agents, ironing aids, chemically descaled water or other chemicals as they may cause water spitting, brown staining, or damage to your appliance.

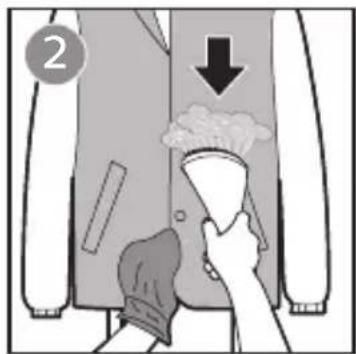

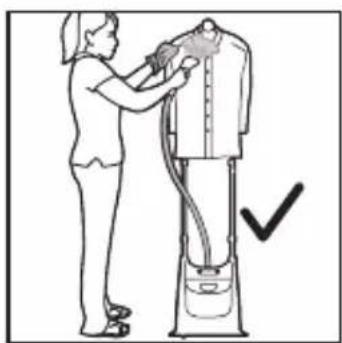

EN Tip: To avoid burns, wear the glove provided on the hand with which you are holding the garment.

EN The brush improves steam penetration into thick and heavy fabrics for faster results. Brush slowly with the bristles touching the garment.

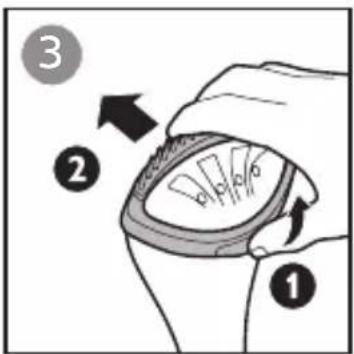

Caution: Do not attach or detach the brush while the steam is on or the steamer head is hot.

ZH-S ----毛刷可增强蒸汽对厚重纤维的渗入，更快定型。用刷毛缓慢刷拭衣物。

EN The collar aid supports the garment for easier steaming to remove wrinkles in special areas of the garment, such as collar, pockets and sleeve cuffs.

EN Safety auto-off

When the water tank is removed or the water is below MIN level indication, the power button flashes.

ZH-S 安全自动关熄

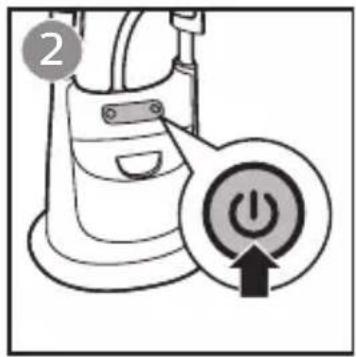

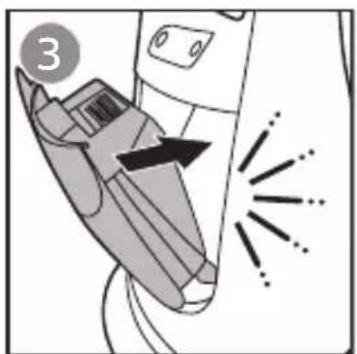

EN Refill the water tank above MIN level indication and insert it back. Press power button to resume steaming.

EN If the power button is not pressed to resume steaming within 8 minutes, the appliance starts to cool down and power button continues to flash.

EN Press power button to let the appliance reheat.

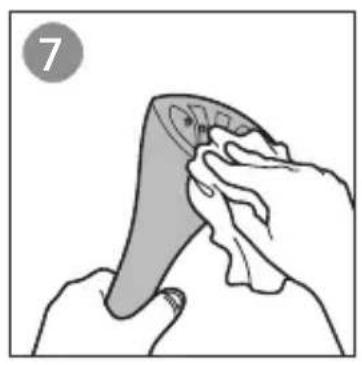

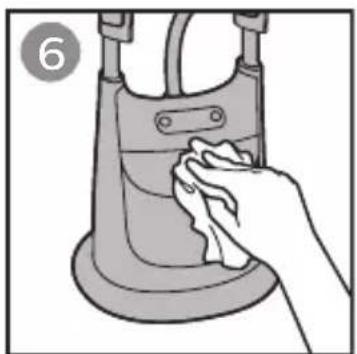

EN Clean the appliance and wipe any deposits off the steamer head with a damp cloth and a non-abrasive liquid cleaning agent.

Note: Never use scouring pads, abrasive cleaning agents or aggressive liquids such as alcohol, petrol or acetone to clean the appliance.

Steamers with heated block technology need to be descaled regularly to ensure steam performance. With our new PureSteam Technology, the heated block is automatically descaled while generating steam, and there is no water left inside, so it is more hygienic and you don't need to rinse it.

EN In case you need to disassemble the appliance, follow the steps below.

Problem	Possible cause Solution

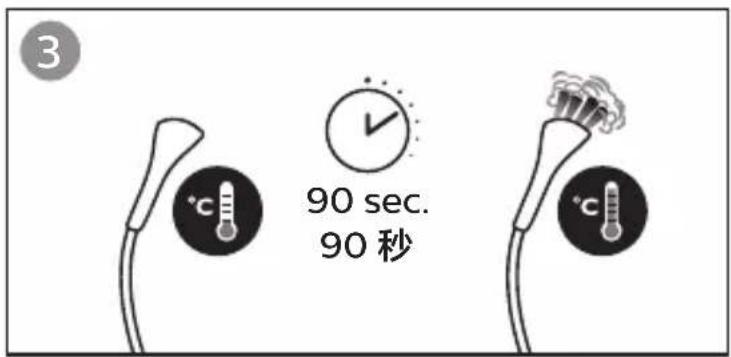

The appliance produces no steam.	The steamer has not heated up sufficiently.The water level is below the MIN level indication or the tank is not inserted properly (power button flashes).	Let the appliance heat up for 90 seconds.Refill the water tank above MIN level and insert it back fully. Press power button to resume steaming.
The appliance produces a loud pumping sound.	The water level is below the MIN level indication or the tank is not inserted properly.	Refill the water tank above MIN level and insert it back fully.
Poles do not stay in place and keep falling down.	The pole clips have not been fastened properly.Poles have not been inserted into the base properly.	Fasten the pole clips.Insert the poles into the base until you hear a “click” sound.
A few water droplets are seen outside the water tank and on the appliance when water tank is removed.	This is normal. Special design guides condensed steam back to the water tank, to prevent dripping and to have a cooler hose.	You may wipe off the water droplets.

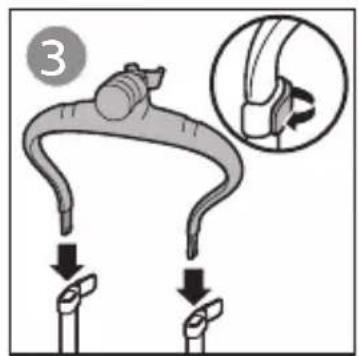

Hanger cannot be inserted into the poles.	Pole clips are not fully opened.	Open pole clips fully (180°) and insert the hanger.

ZH-S

PHILIPS

产品：-飞利浦挂烫机

型号：-GC610, GC612

额定电压：-220V\~

额定频率：-50Hz

额定输入功率：-2000 W

生产日期：- 请见产品本体

产地：-中国浙江嘉兴

飞利浦（中国）投资有限公司-

上海市静安区灵石路718号A1幢
