USER MANUAL CS2A 200 H HOTPOINT

Climatic Class	Amb. T. (°C)
SN	From 10 to 32
N	From 16 to 32
ST	From 16 to 38
T	From 16 to 43

GUIDA RICERCA GUASTI

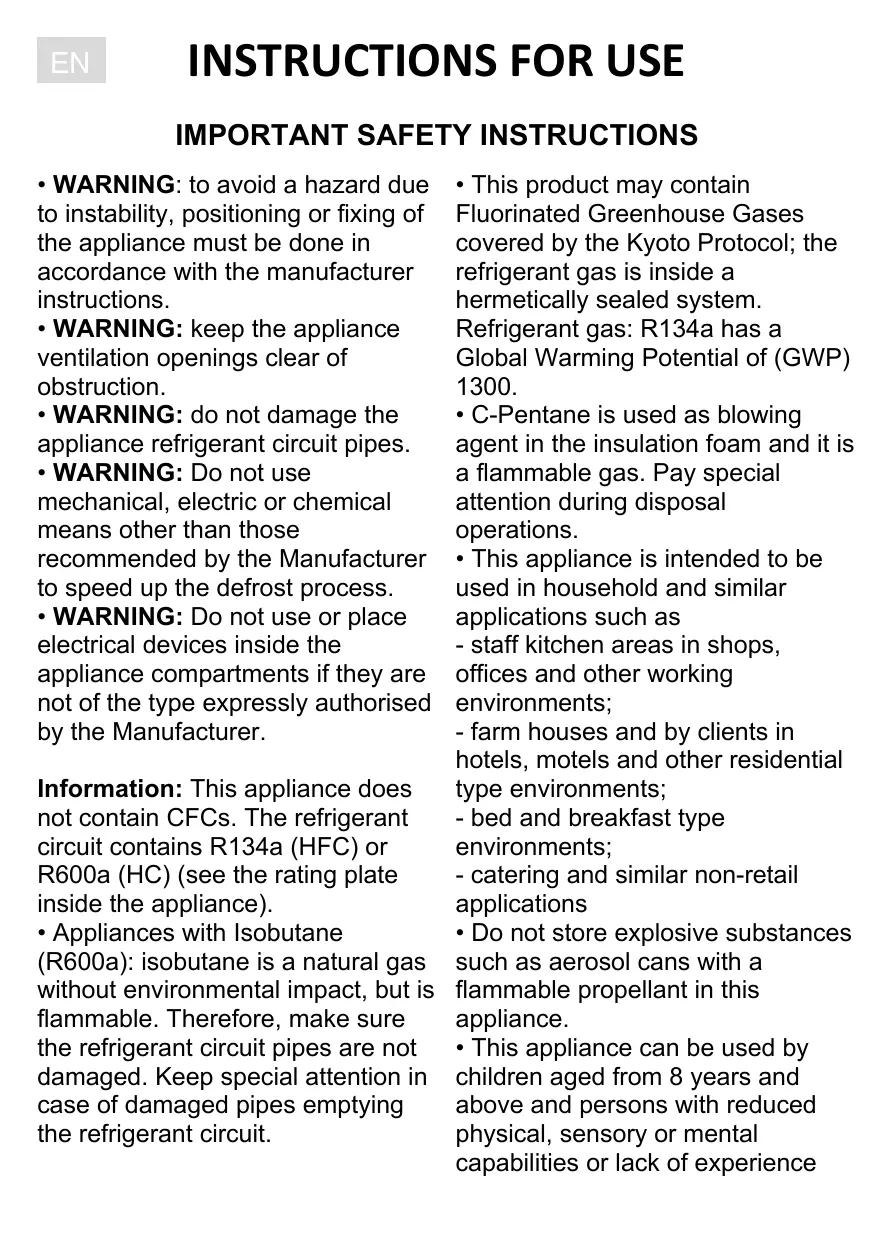

IMPORTANT SAFETY INSTRUCTIONS

• WARNING: to avoid a hazard due to instability, positioning or fixing of the appliance must be done in accordance with the manufacturer instructions.
• WARNING: keep the appliance ventilation openings clear of obstruction.
• WARNING: do not damage the appliance refrigerant circuit pipes.
• WARNING: Do not use mechanical, electric or chemical means other than those recommended by the Manufacturer to speed up the defrost process.
• WARNING: Do not use or place electrical devices inside the appliance compartments if they are not of the type expressly authorised by the Manufacturer.

Information: This appliance does not contain CFCs. The refrigerant circuit contains R134a (HFC) or R600a (HC) (see the rating plate inside the appliance).

• Appliances with Isobutane (R600a): isobutane is a natural gas without environmental impact, but is flammable. Therefore, make sure the refrigerant circuit pipes are not damaged. Keep special attention in case of damaged pipes emptying the refrigerant circuit.

• This product may contain Fluorinated Greenhouse Gases covered by the Kyoto Protocol; the refrigerant gas is inside a hermetically sealed system. Refrigerant gas: R134a has a Global Warming Potential of (GWP) 1300.

• C-Pentane is used as blowing agent in the insulation foam and it is a flammable gas. Pay special attention during disposal operations.
• This appliance is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience

INSTRUCTIONS FOR USE

and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Cleaning and user maintenance shall not be made by children without supervision.
• To avoid the risk of children becoming trapped and suffocating, do not allow them to play or hide inside the appliance.
• It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by means of an accessible multi-pole switch installed upstream of the socket in conformity with national safety standards.

• Plug the appliance into a grounding socket: the appliance must be correctly connected to an approved earthing system.

• Do not use single/multi adapters or extension cords.

• During installation, make sure the appliance does not damage the power cable.
• Do not pull the appliance power cable
• The appliance must be handled and installed by two or more persons.
• Installation and maintenance including replacement of the supply cord must be carried out by the manufacturer or a qualified technician, in compliance with the manufacturer's instructions and the local safety regulations in force. In order to avoid a hazard do not repair or replace any part of the appliance including the supply cord, unless specifically stated in the user manual.

SAFEGUARDING THE ENVIRONMENT

1. Packing

The packing material is 100 % recyclable and bears the recycling symbol . For disposal, comply with the local regulations. Keep the packing materials (plastic bags, polystyrene parts, etc.) out of the reach of children, as they are a potential source of danger.

2. Scrapping/Disposal

The appliance is manufactured using recyclable material.

This appliance is marked in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring the correct disposal of this appliance, you can help prevent potentially negative consequences for the environment and the health of persons.

The symbol on the appliance, or on the

accompanying documents, indicates that this appliance should not be treated as domestic waste but must be taken to a special collection centre for the recycling of electrical and electronic equipment. When scrapping the appliance, make it unusable by cutting off the power cable and removing the doors and shelves so that children cannot easily climb inside and become trapped.

Scrap the appliance in compliance with local regulations on waste disposal, taking it to a special collection centre; do not leave the appliance unattended even for a few days, since it is a potential source of danger for children.

For further information on the treatment, recovery and recycling of this product, contact your competent local office, the household waste collection service or the shop where you purchased the appliance.

INSTRUCTIONS FOR USE

Declaration of conformity (C)

• This appliance has been designed for preserving food and is manufactured in compliance with Regulation (CE) No. 1935/2004.
• This appliance has been designed, manufactured

and marketed in compliance with:

• safety objectives of the "Low Voltage" Directive 2006/95/CE (which replaces 73/23/CEE and subsequent amendments);

• the protection requirements of Directive "EMC" 2004/108/EC.

BEFORE USING THE APPLIANCE

To ensure best use of your appliance, carefully read the operating instructions which contain a description of the product and useful advice. Keep these instructions for future reference.

1. After unpacking the appliance, make sure it is not damaged and that the door closes properly. Any

damage must be reported to the dealer within 24 hours of delivery of the appliance.

1. Wait at least two hours before switching the appliance on, to ensure that the refrigerant circuit is fully efficient.
2. Clean the inside of the appliance before using it.

PRECAUTIONS AND GENERAL RECOMMENDATIONS

INSTALLATION

• Be careful not to damage the floors (e.g. parquet) when moving the appliance.
• Make sure the appliance is not near a heat source.
• Install and level the appliance on a floor strong enough to take its weight and in a place suitable for its size and use.
• The appliance is arranged for operation in places where the temperature comes within the following ranges, according to the climatic class given on the rating plate. The appliance may not work properly if it is left for a long time at a temperature outside the specified range.

Climatic Class	Amb. T. (°C)
SN	From 10 to 32
N	From 16 to 32
ST	From 16 to 38
T	From 16 to 43

• Make sure the voltage specified on the rating plate corresponds to that of your home.

SAFE USE

• Do not store or use petrol, flammable liquids or gas in the vicinity of this or other electrical appliances.
  The fumes can cause fires or explosions.

• Do not swallow the contents (non-toxic) of the ice packs (in some models).

• Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns.

• For products designed to use an air filter inside an accessible fan cover, the filter shall be always in position when the refrigerator is in function.
• Before carrying out any maintenance or cleaning operation, unplug the appliance or disconnect it from the power supply.
• Use the refrigerator compartment only for storing fresh food and the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes.
• Do not store glass containers with liquids in the freezer compartment since they may break.
• Avoid storing unwrapped food in direct contact with internal surfaces of the refrigerator or freezer compartments.
• "The bulb used inside the appliance is specifically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009)".

The Manufacturer declines any liability for injury to persons or animals or damage to property if the above advice and precautions are not respected

INSTRUCTIONS FOR USE

ENERGY-SAVING TIPS

• Install the appliance in a dry, well ventilated room far away from any heat source (e.g. radiator, cooker, etc.) and in a place not exposed directly to the sun. If required, use an insulating plate.
• To guarantee adequate ventilation follow installation instructions.
  Insufficient ventilation on back of the product increases energy consumption and decreases cooling efficiency.
• The internal temperatures of the appliance may be affected by the ambient temperature, frequency of door opening, as well as location of the appliance. Temperature setting should take into consideration these factors.

• Allow warm food and drinks to cool down before placing in the appliance.

• After placing the food check if the door of compartments closes properly, especially the freezer door.

• Reduce to a minimum door opening.
• When thawing frozen food, place them in the refrigerator. The low temperature of the frozen products cools the food in the refrigerator.
• Damaged gasket must be replaced as soon as possible.
• High energy class products are fitted with high efficiency motors that remain operational for longer, but have a low power consumption. Do not worry if the engine continues to run for longer periods.

DESCRIPTION AND USE

DIAGRAM OF THE APPLIANCE (Fig. 1)

1. Lid handle.
2. Lock (if provided).
3. Seal.
4. Defrost water drain plug (depending on model).
5. Control panel.
6. Basket (depending on model).
7. Condenser (located at the rear).

INSTALLATION

Refer to chapter "Before using the appliance".
- Unpack the appliance.
- Remove the 4 protection pieces inserted between lid and appliance (Fig 3).
- Warning: two of the four protection pieces must be fitted in the seat of the condenser plastic supports, located at the rear of the product

(Fig. 3).

This is necessary to ensure the correct distance from the wall.

• Ensure that the defrosting water drainage plug (if provided) is correctly positioned (4).
• For best operation of the appliance and in order to avoid damage when the lid is opened, leave a space of at least 7cm from the rear wall and 7cm at the sides.
• Fit the accessories (if provided).

DIAGRAM OF THE CONTROL PANEL (Fig. 2)

a. Red LED: when flashing, it indicates that an alarm condition is present see TROUBLESHOOTING GUIDE"

b. Green LEDs: they indicate that the appliance is in operation, and the temperature has been set as follows:
b1 less cold temperature (right light on), use this setting with partial loads will optimize energy consumption.
b2 middle temperature (center light on)
b3 very cold temperature (left light on)

ALL Green LEDs ON: FAST FREEZING function is active; see the section "freezing fresh food".
C. Temperature setting button: to adjust the set temperature and to activate/deactivate the fast freezing operations.

To select the desired temperature, repeatedly press the setting button (3): each time the button is pressed, the set temperature is updated.

To activate/deactivate fast freezing function, pressing for approximately 3 seconds: all green LEDs flash simultaneously 3 times and then remain lit.

Note:

The settings will be saved in the memory even if a power cut occurs. The time needed for the temperature inside the freezer to reach the set value, can vary depending on climatic conditions and the set temperature itself.

INSTRUCTIONS FOR USE

Switching on the appliance

• Plug in the appliance.
• The green LED lights up (middle temperature).
• The red LED flashes to indicate that the temperature inside the appliance is not yet sufficiently low for food storage. The red LED will normally switch off within the first six hours after the appliance is switched on.
• Place food inside the product only when the red LED has switched off.

Note:

Thanks to the efficient lid seal, the appliance lid will not reopen easily immediately after closing. Wait a few minutes before re-opening the lid of the appliance.

FREEZING FOOD

Preparation of fresh food for freezing

• Before freezing, wrap and seal fresh food in: Aluminium foil, cling film, air and water-tight plastic bags, polyethylene containers with lids, provided they are suitable for freezing foods.
• Food must be fresh, mature and of prime quality in order to obtain high quality frozen food.
• Fresh vegetables and fruit should preferably be frozen as soon as they are picked to maintain the full original nutritional value, consistency, colour and flavour.
• Always leave hot food to cool before placing in the appliance.

Freezing fresh food

• Place foods to be frozen in direct contact with the walls of appliance (Fig. 4)

A) -foods to be frozen,

B)-foodsalreadyfrozen.

• Avoid placing foods to be frozen in direct contact with food already frozen.

• For best and fastest freezing, foods should be split into small portions; this will also be useful when the frozen items are to be used.

• At least 24 hours before storing fresh foods inside the product for freezing, activate the fast freezing function by pressing button c for approximately 3 seconds. All green LEDs (b) comes on.

• Introduce the food to freeze inside the appliance, and keep the door of the appliance closed for 24 hours. After this period the food will be frozen. The fast freezing function can be deactivated pressing

button C for approximately 3 seconds.

If the fast freeze function is not manually deactivated, it will be automatically deactivated by the appliance after 50 hours.

FOOD STORAGE

Refer to the table on the appliance.

Classification of frozen foods

Put the frozen products into the appliance and classify them; the storage date should be indicated on the packs, to allow use within expiry dates listed in months in Fig. 5 for each type of food.

Advice for storing frozen food

When purchasing frozen food products:

• Ensure that the packaging is not damaged (frozen food in damaged packaging may have deteriorated). If the package is swollen or has damp patches, it may not have been stored under optimal conditions and defrosting may have already begun.
• When shopping, leave frozen food purchases until last and transport the products in a thermally insulated cool bag.
• Once at home, place the frozen foods immediately in the appliance.
• Avoid, or reduce temperature variations to the minimum Respect the best-before date on the package.
• Always observe the storage information on the package.

Note:

Eat fully or partially defrosted foods immediately. Do not refreeze unless the food is cooked after it has thawed. Once cooked, the thawed food can be refrozen. If there is a long power failure:
- Do not open the appliance lid except to place ice packs (if provided) over the frozen foods on the right and left of the appliance. This will slow down the rise in temperature.

DEFROSTING THE APPLIANCE

The appliance should be defrosted when the thickness of ice on the walls reaches 5-6 mm.

• Disconnect the appliance from the mains power supply.
• Remove the packs of food from the appliance and wrap them close together in newspaper and store in a very cool place or thermally insulated bag.
• Leave the appliance lid open.
• Remove the internal defrost water drain plug (depending on model) (Fig. 6)
• Remove the external defrost water drain plug (depending on model) and reposition it as shown in the figure 6
• Place a bowl beneath the drainage channel to collect the residual water. If available, use the divider (Fig. 6)
• Speed up defrosting by using a spatula to detach the ice from the appliance walls.
• Remove the ice from the bottom of the appliance.

INSTRUCTIONS FOR USE

• In order to avoid permanent damage to the appliance interior, do not use pointed or sharp metal instruments for removing the ice.
• Do not use abrasive products or heat up the interior artificially.
• Dry the interior of the appliance thoroughly.
• On completion of the defrosting, refit the plug.

CARE AND MAINTENANCE

• Remove the ice from the upper edge (see the Troubleshooting Guide).
• Clean the inside after defrosting, using a sponge dampened with warm water and/or mild detergent.
• Clean the side motor cooling grille (depending on model).
• Remove dust from the condenser on the rear of the appliance.

Before carrying out maintenance, unplug the appliance.

Do not use abrasive products, scourers or stain-removers (e.g. acetone, trichloroethylene) to clean the appliance.

To obtain the best results from your appliance, carry out cleaning and maintenance at least once a year.

CHANGING THE LID LIGHT BULB (if provided)

• Disconnect the appliance from the mains power supply.
• Remove the diffuser by following the sequence of steps shown in the figure 7.
• Unscrew the light bulb and replace it with an identical bulb of the same wattage and voltage.
• Refit the diffuser and plug in the appliance.

TROUBLESHOOTING GUIDE

1. The red LED flashes.

• Is there a power failure?
• Is a defrosting operation in progress?
• Is the appliance lid properly closed?
• Is the appliance placed near a heat source?
• Are the ventilation grille and condenser clean?

2. All LEDs flash at the same time.

• Contact the After-Sales Service.

3. The appliance is too noisy.

• Is the appliance perfectly horizontal?
• Is the appliance in contact with other furniture or objects that may cause vibrations?
• Has the packaging been removed from under the appliance?

Note: Gurgling noises from the refrigerating circuit after the compressor cuts out are perfectly normal.

4. All LEDs are off and the product is not working.

• Is there a power failure?
• Is the plug properly inserted in the socket?
• Is the electric cable intact?

5. All LEDs are off and the product is working.

• Contact the After-Sales Service.

6. The compressor runs continuously.

• Have hot foods been put in the appliance?
• Has the appliance lid been left open for a long time?
• Is the appliance placed in a very warm room or near heat sources?
• Has the fast freeze function been activated? (all Green LEDs ON)

7. Too much ice on the upper edge.

• Are the defrost water drainage plugs correctly positioned?
• Is the appliance lid properly closed?
• Is the appliance lid seal damaged or deformed? (See chapter "Installation")
• Have the 4 protection pieces been removed? (See chapter "Installation")

8. Formation of condensate on the external walls of the appliance.

• It is normal for condensation to form under certain atmospheric conditions (humidity above 85% ) or if the appliance is located in a damp or poorly ventilated room. The performance of the appliance is in no way affected.

9. The layer of ice on the internal walls of the appliance is not uniform.

• This phenomenon is quite normal.

ASSISTANCE

Before calling for Assistance:

• Check if the malfunction can be solved on your own (see Troubleshooting).
• If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre.

Communicating:

• type of malfunction;
• appliance model (Mod.);
• the service number (the number after the word SERVICE on the rating plate on the rear of the appliance).

Never call on unauthorized technicians and always refuse spare parts which are not originals.

MODE D'EMPLOI

CONSIGNES DE SECURITE IMPORTANTES

Climatic Class	Amb. T. (°C)
SN	From 10 to 32
N	From 16 to 32
ST	From 16 to 38
T	From 16 to 43

Climatic Class	Amb. T. (°C)
SN	From 10 to 32
N	From 16 to 32
ST	From 16 to 38
T	From 16 to 43

Climatic Class	Amb. T. (°C)
SN	From 10 to 32
N	From 16 to 32
ST	From 16 to 38
T	From 16 to 43

Climatic Class	Amb. T. (°C)
SN	From 10 to 32
N	From 16 to 32
ST	From 16 to 38
T	From 16 to 43

Climatic Class	Amb. T. (°C)
SN	From 10 to 32
N	From 16 to 32
ST	From 16 to 38
T	From 16 to 43

Climatic Class	Amb. T. (°C)
SN	From 10 to 32
N	From 16 to 32
ST	From 16 to 38
T	From 16 to 43

Climatic Class	Amb. T. (°C)
SN	From 10 to 32
N	From 16 to 32
ST	From 16 to 38
T	From 16 to 43

-ПepekoHaItecЯ,ио ВелчИн haHapуг,3a3NaueHa ha nacnopTHi TabnUci, BiDnOBiDa e HaBbH y Bac ydoma.

BE3NEUHBE NKOPUCTAHN

• He 36ebpiraTe Ta He BnKOpNCTOByte 6eH3nHOBI u HNIJIeKo3aMmNCTI pIDHN aBO ra3 no6bI3y cboIOru n IHINX eNEKTPnuHnx npJuaIbI. IxHI BNapn MoKyTb npIn3BecTI dO NOkeXi aBO BVbxy.

• He npokobTuTe BmICT (HeTOKcHn) naketib i3 JbOdom (y DeaKnx MoDeJx).

• He IKTe KBy6nKI bOdy a6o 6pykTobn IiD opa3y nICJI BITraHn HIOr O 3 MOpO3NtBHO BIDInHeHH, OCKJIbKn CE MOKe Ipn3BecTe N Do O6MOpOKeHH.

• Y dekux MOeJx nepe6aueHO BVKOpncTahnH fiNbTprB NiD KpnuKOIO BENTINrTopa. Lc fiNbTpN 3aBXdMaTOb 6yTN BCTaHOJIeHi, KOIN ppaOe XONODINbHNK.
  -Пелевский Мбдь-якх робит i3 ouишени abo texhiyuHoro obcnyrobyBaHH BAITrHiT BnIky 3 po3eTKn abo Bi'd'ednaite npinaD biD eJeKtpomepeki.
  BVKOPNCOTOBYTe XOLOINbHe BIDINIeHnHaIe IJI36epirAHnCBIXNx npOyKTiB, aMOpOzINbHe —TlkbN dIa 36epirAHn 3AmopOKeHnx npOyKTiB, 3AmopOxyBaHHn CBIXN npOyKTiB i npInroTyBaHHKyBKn IbOdy.
• He 3bepiraTe B MOpO3nIbHOMy BiDJIneHi CkPnHi KOHTeHepn 3 pIDINHAMN, OCKIbKN BOHN MOKytb po3KOJIoTnCi.
• He 36epiraIte B MOpO3nIbHOMy Ta XoJOnIbHOMy BiDIneHnIe H3arOpyTi npOdykTn B 6e3nocepEiNbOMy KOHTaKTI 3 BHyTpiiuHiIMN CTiHKamn Cxix BiDIneHb.

CXEMA INPUNA dy (pnc.1)

1. Pучka DBepurT.
2. Φικcatop (3a ḤαRBHOCTi).
3. yüjìnběnhèn。
4. 3aTnUka 3JINBHorO OTbOpy IJRA CTiKaHnTaIoi BOJN (3aJIeXHO BiD MoJeI).
5. NaheJIb KepyBaHHa.
6. KoUSHK (3aJIeXHO BiI MoIeJI).
7. KoHdEHCaTOp (po3TaIIOBaHn Ha 3aHn i CTiHci npHaJy).

YCTAHOBJIENH

-ДиВ.po3дл«ПepeД ВИКОРИСТAHЯМ пиЛаду»
- Poznakuyte npnila.
- 3HimItb 4 3axnchi fikcaTopn, po3taowobHi mix DBepeTAMn Ta npnaDom (pnc.3).
- YBAGA!Два 3ЧOTnрьх 3axnchnx φikcatopib MaHTb 6Byt npKpInJIeHi Do pIaCTNkOBHX ONOpHIX KOHCTpyKcII KOHdEHCATopa, kI PO3TaUOBAHO Ha 3aHi n CTiHci npIaNady (Pnc.3).

LHe Heo6xIDnO DnA 3a6e3neueHnHaIeXHOi BiDCTaHi Do CTiHN.

3AMOPOXyBAHHI PPOyKTIB

PiIroTOBka CBixnx npOdykTb Do 3aMOpoxyBaHHA

• Ipeed 3amopoxybaHnM cbixnx npodykTIB IX Heo6xIHO uIbHO ynaKByTN, BnKOpNCTOBYUOn Onde 3 TakORO: aIIOmiHieBa QofJIra, XapOBA nIIIBKa, NOBITPOta BOHOnePONHKHI NpactNKoBI nakTeN, NOnIETrHeBOI KOHTeHepri 3 KPMUKAM (3a yMOBN, UO BOHN pnpdaTHi DnIa3mOpoxybaHHAIXi).
  • Μιδό σθρματην 3amopoxehi προγκτην Ḁλήνιωιο γκόκτι, σπίδν ΒυκρούστουβγΑντι Αςκίν, Φερερίπι Ta BΙΝΚΟΚΑΚΙΗ προγκτην.
• 36epertn Bci xapovbi Blactnbocti, KOHCNTEHIO, KONIP i CMAK CBHXO OBOH i fpykTIB, IX NOTIOHO 3AMOPOKyBaTN JKHANBIDNe NcIaN 3bpanHH.
• 3aBxdi DabaiTe rapayi iXi oxoIohTyN, nepu HIX KlaCTn II B MOpO3NJbHy KaMepy.

3amopoxyBaHHcBixnx npoDyKTiB

-KnaIITb npOduKTH, iaki NTOpIOHO 3AMOPo3HTN, TAKIM YHOM, IIOB BOH B6e3IOcepeHbO TOpKaINcC CTiHOK npnIaDy (pcu.4).

A) npOdykTn, rKi nOtpiHo 3amOp03nTn,
B) 3amopoxKeHipoodykTN.
- Po3tauOByte npOdyKTn, kriNtpi6H0 3aMop03ntn, TAKIM YHOM, LIO BOH He TopKaINcB XKe 3aMOp0XeHIX npOdyKTIb.
Дян haйрацоу Та haишьдцоу 3amopoxeHH npodykTN cNID po3dny Ha maneHbki nopui; TE takOZ 3pyuHoi nCtBnKOpNTaHH 3amopoxeHHx pOdykTIB.
1.Пинаймни за 24 roДи До розтувань CBIXKIN pOrykTIB y npinlaДлд зamopoKyBaHHЯ AKTINByTe ФИнLCIIO WbIDIKOTO 3amopoKjYBaHHЯ,HaTMCHyBLHи IyTpmyOu npOTaROM npi6IIN3HO 3ceKHyD KHNky C. 3ACBITaTBc BciCBITIOJIOHI INdikatOpN 3eNeHORO kONbOpy (b).
2.ПомстITb npOdyKTH B MOpO3nIbHy KaMepy BCEpeDnHi npIaNy He BeIdkPnBaiTe DBePcraTa npToTROM 240ndH. KOnI ue TepMin MNHe, npOdyKTH 6yDyTb 3amopoxKeHi. UoB BMnKHyTn FyHKUIO WbUdKOro 3amopoxKyBaHHa,HaTINCHb I yTpImyTe KHONKY C npOTROM npN6n3Ho 3 cekyHd.
JaKIO yHKIIO 1BIVDKOTO 3AMOPOxyBAHnHE 6yHe BIMKHyTO BYUHy, 3a 50 RoINH BOHa BIMKHetbca ABOTMATNHO.

36EPIRAHHN POKDYKTIB

Ozhainomteca 3 TaBnUkoH NaPnlaDi. Klnacnfkaia 3amopoxeHnx npodykTIB

PO3MOPOXyBAHHN IPNJADy

KoJIrTOBUnHaNbOdy Ha cTInkax npnnaDy Docrae 5- 6 MM, IOrO nOTpiBHO p03MOPo3NTN.

Bid'edhaTe npnnaD BiD dKepena KINBneHn.
BHTnBnkyHn3 npOyKamn 3 npnaady nobropnHb xyci paoom y rataety. Y Takomy BnIaI 36epiraiTe nakynHb D yxe xoJOnHOMy micu afo TePiIOJIaJIH cymui.
- 3aIIuIte BiDUnHHeHMMn DBepeyTa npInaNy.
- YcepeDnHi npInaHy BHTaRHTb BTyIky 3IINBHOrOTBOPy nIa CTiKaHHa TaIoi BOi (3aIeXHo BiD MoEnei) (pnc.6).
BITRAHHTB 3OBHIJHO 3ATMHY 3NIBHO OTBOPY DnI CTiKaHHa TAO BOIN (3aENXHO BID MODeNi) I BCTaHOBITI, KI 3O6paKeHo H pucyHky 6.
- PömticitbI rIbn6Oky NocdyHIny NiI OTBOpOM KaHany DnIy BOBDiIBeDeHNHa, Siob 3i6pAnu 3aIIwK BodN. JaKIo y BAc e DiJIbHnK, BNkOPiCtOByTne Ioro (Pnc. 6).
- Ⅲo6 npuBnDnHTn po3MOpOxHn, 3a DOnOMorOIO IonoATKn BiDfKpe6Itb NiD BiD CTiHOK npnnaIy.
Budanitb liid 3dHa MOpO3nIbHoI kamepN.

IHCTPyKlii 3 BnKOpNCTAHHЯ

• He BnKOpNCTOByIte roctpi MeTaeBi npedMeTI nIbI BnDaJIeHnJIbOy, IIOB He NOnIKoDITN BHyTpIiHIO NOBepxHIO pnpaNy.
• He BnKOpNCTOByIte abpa3nBHi mATEpiAIn Ta 7uTyrHOn He niiirpibaiTe BHyTpiUHIO uactHny npnIaNy.
• PeTeIbHO npoTpIb BHyTpIshIO nobepxHIO npnAyn doCyxa.
• 3aBepuBpI pO3MopoxyBaHH, BCTaBTe Ha3aD 3aTtky.

DOrJIaI TEXHlYHe OeCnYrOByBAHHa

Budanltb nI, 10o yTbOpBcra Ha BepxHbomy kpa npnnay (DnB. «PiociBHK 3 ycHenn HecnpabHOCTeN»).
P1nra 03MOpOxyBAHn PnpnaDy OChte Te HOro BHyTpiUHIO NOBepXHIO 3a DoIOMORO YGKIN,3MOeHOI B TepNI BoTi/aabo Cna6KOmy PO3HHI MmHORO 3aco6y.
OuNCTbTe bokOBy peWitKy oxoIOJxHnY dBnryHa (3aJIeXHO BID MoJeI).
- BnTpIb nIi 3 KOHdEHCatopa Ha 3aHi CTiHci npnIaIy.

Nepu HIX 3diHOBaTn TexHcYe o6CnyROByBaHH npiIaNy, BiKIOUcyIb NOrO BiD eNEKTOxMHNHn. He BIKOPNCOTByte dIra OUYIeHHn npiIaNy abpa3aNHI 3ac0Bn, MetaneBi MoaAnKn a6o 3ac0B nIy BmBeDEHHn pIIM (HanpNKnaD, aueToH, TpNXlopTeJnEh).

JIO6 3a6e3neuHTn JAKOMORA Kpaue
fHyHKUOHyBaHHn npHJaDy, pIPOBObTe YHcSeHHN I
06cIpyROByBaHHN npHaNHMi pa3 Ha Pik.
3AMIHAEJIKETPNUHOI JAMIMIN (3a HABBHOcti)

Climatic Class	Amb. T. (°C)
SN	From 10 to 32
N	From 16 to 32
ST	From 16 to 38
T	From 16 to 43

CIHAZIN BUZUNUN COZULMESI
