USER MANUAL BFS 1222.1 HOTPOINT

Positioning and connection

Description of the appliance, 11

Overall view

Start-up and use, 12

Starting the appliance

Using the freezer to its full potential

Maintenance and care, 13

Switching the appliance off

Cleaning the appliance

Avoiding mould and unpleasant odours

Defrosting the appliance

Precautions and tips, 14

General safety

Disposal

Respecting and conserving the environment

Troubleshooting, 15

Assistance, 16

! Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance.
! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning and connection

Positioning

1. Place the appliance in a well-ventilated humidity-free room.
2. Do not obstruct the rear fan grills. The compressor and condenser give off heat and require good ventilation to operate correctly and save energy.
3. Ensure the appliance is away from any sources of heat (direct sunlight, electric stove, etc.).

Electrical connections

After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket ensure the following:

• The appliance is earthed and the plug is compliant with the law.
• The socket can withstand the maximum power of the appliance, which is indicated on the data plate located inside the freezer (e.g. 150 W).
• The voltage is in the range of values indicated on the data plate located inside the freezer (e.g. 220-240V).
• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it (see Assistance). Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.
! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced by authorised technicians only (see Assistance).
! The manufacturer declines any liability should these safety measures not be observed.

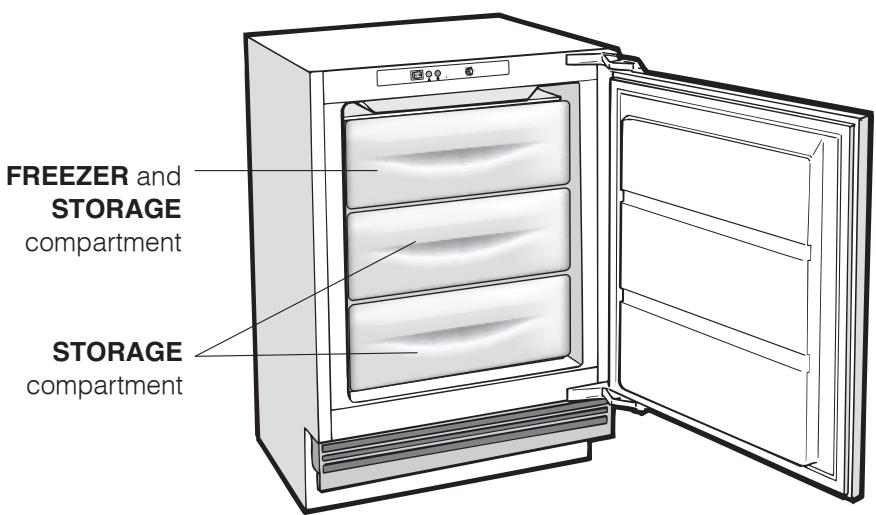

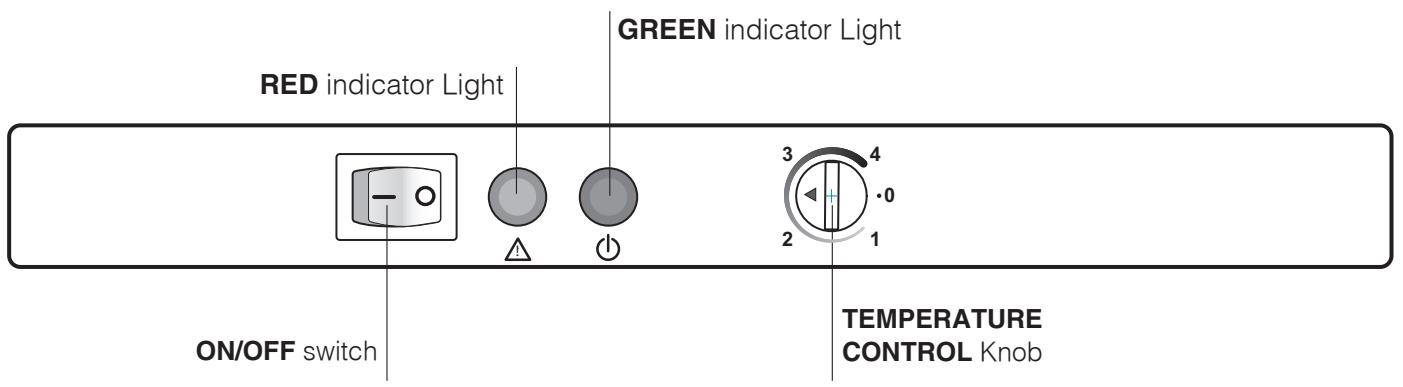

Overall view

The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directly represent the appliance purchased.

GREEN indicator light

This is illuminated when the appliance is connected to the electricity mains (press the ON/OFF switch so it is in the - position).

RED Light

This light goes on when the temperature inside the appliance is not sufficient to preserve foodstuffs.

TEMPERATURE ADJUSTMENT knob

This automatically adjusts the temperature inside the appliance.

Increasingly cold temperatures may be selected by moving the knob from position 1 to position 4.

Starting the appliance

! Before starting the appliance, follow the installation instructions (see Installation).

! Before connecting the appliance, clean the compartments and accessories well with lukewarm water and bicarbonate.

1. Plug the appliance in and make sure the GREEN and RED indicator lights are illuminated (press the ON/OFF switch so it is in the - position)..
2. When the red indicator light switches off, turn the TEMPERATURE ADJUSTMENT knob to a medium position. The freezer is now ready to be used.

Using the freezer to its full potential

• Use the TEMPERATURE CONTROL knob to adjust the temperature.

1 = warmest 4 = coldest

We recommend, however, a medium position.

• Do not re-freeze food that is defrosting or that has already been defrosted. These foods must be cooked and eaten (within 24 hours).
• Fresh food that needs to be frozen must not come into contact with food that has already been defrosted. Fresh food must be stored in the top FREEZER and STORAGE compartment.
• Do not place glass bottles which contain liquids, and which are corked or hermetically sealed in the freezer because they could break.
• The maximum quantity of food that may be frozen daily is indicated on the plate containing the technical properties located within the freezer (for example: Kg/24h: 4).

• Placing large amounts of fresh food in the freezer may temporarily increase the temperature inside the appliance (this is indicated when the RED indicator light illuminates). This situation, as it is only temporary, does not adversely affect the storage conditions of food that is already frozen.

• In order to obtain a greater amount of space in the freezer compartment, you may remove the bins (except the lowest bin and the special COOL CARE ZONE bin, which has an adjustable temperature) and place the food directly onto the evaporator plates.

! Do not open the door during freezing.
! If there is a power cut or malfunction, do not open the freezer door. This will help maintain the temperature inside the freezer, ensuring that foods are conserved for at least 9 -14 hours.
! RED Indicator Light. When this red light comes on for a prolonged period of time, it means that the freezer is not functioning properly and the temperature is rising too much. (Call your Service Centre)

This warning light might come on for a brief period when:

a) the door is left open for an extended period of time (when the freezer is being loaded or unloaded).

Switching the appliance off

During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply:

1. Switch the appliance off (press the ON/OFF switch so that it is in the o position and the GREEN indicator light is off);
2. pull the plug out of the socket.

Cleaning the appliance

• The external and internal parts, as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use solvents, abrasive products, bleach or ammonia.
• The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully.

Avoiding mould and unpleasant odours

• The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly.
• If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open.

Defrosting the appliance

! Follow the instructions below.

Do not use objects with sharp or pointed edges to defrost the appliance as these may damage the refrigeration circuit beyond repair.

If the frost layer is greater than 5mm , it is necessary to defrost manually:

1. Switching the appliance off.
2. Wrap frozen foods in newspaper and place them in another freezer or in a cool place.
3. Leave the door open until the frost has melted completely. This can be made easier by placing containers with lukewarm water in the freezer compartment..
4. Clean and dry the freezer compartment carefully before switching the appliance on again.
5. Wait for approximately 2 hours, i.e. until the ideal storage conditions have been restored, before placing food in the freezer compartment.

! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

This appliance complies with the following Community Directives:

• 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments;

-89/336/EEC of 03.05.89 (Electromagnetic

Compatibility) and subsequent amendments;

• 2002/96/CE..

General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must be used to store and freeze food products by adults only and according to the instructions in this manual.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
• Do not touch the appliance with bare feet or with wet or moist hands and feet.
  WARNING: do not damage the refrigerant circuit.
• Do not touch the internal cooling elements: this could cause skin abrasions or frost/freezer burns.
• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.
• Always switch the appliance off and unplug it before cleaning it or carrying out any maintenance work. It is not sufficient to press the ON/OFF button so that it is in the o position (GREEN indicator light illuminated) to eliminate all electrical contact.
• In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance.
• Do not use any sharp or pointed utensils or electrical equipment - other than the type recommended by the manufacturer - inside the frozen food storage compartments.
• Do not put ice cubes taken directly from the freezer into your mouth.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Keep packaging material out of the reach of children! It can become a choking or suffocation hazard.

Disposal

• Observe local environmental standards when disposing packaging material for recycling purposes.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Respecting and conserving the environment

• Install the appliance in a fresh and well-ventilated room. Ensure that it is protected from direct sunlight and do not place it near heat sources.
• Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy.
• Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly. If circulation is impeded, the compressor will work continuously.
• Do not place hot food directly into the refrigerator. The internal temperature will increase and force the compressor to work harder and will consume more energy.
• Defrost the appliance if ice forms (see Maintenance). A thick layer of ice makes cold transference to food products more difficult and results in increased energy consumption.
• Regularly check the door seals and wipe clean to ensure they are free of debris and to prevent cold air from escaping (see Maintenance).

If the appliance does not work, before calling for Assistance (see Assistance), check for a solution from the following list.

Malfunctions:

The green GREEN indicator light does not illuminate.

The RED indicator light remains illuminated constantly.

The motor runs continuously.

The appliance makes a lot of noise.

The RED indicator light is illuminated for brief periods of time

Possible causes / Solutions:

• The plug has not been inserted into the electrical socket, or not far enough to make contact, or there is no power in the house.
• The door is not closed properly or has been open continuously.
• The TEMPERATURE ADJUSTMENT knob is not in the correct position.
• The door is not closed properly or is continuously opened.
• The outside ambient temperature is very high.

• The thickness of the frost exceeds 2-3 mm (see Maintenance).

• The appliance has not been installed on a level surface (see Installation).

• The appliance has been installed between cabinets that vibrate and make noise.

• The internal refrigerant makes a slight noise even when the compressor is off. This is not a defect, it is normal.

• A large amount of non-frozen food has been placed inside, causing the temperature inside the freezer to rise temporarily. As this is a short-term situation, it does not adversely affect the storage conditions of food that has already been frozen.

• The door has been left open for a long time (when placing food inside or taking it out). In this case, the illumination of this light is not an indicator of any freezer fault/problem.

Before calling for Assistance:

• Check if the malfunction can be solved on your own (see Troubleshooting).
• If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre

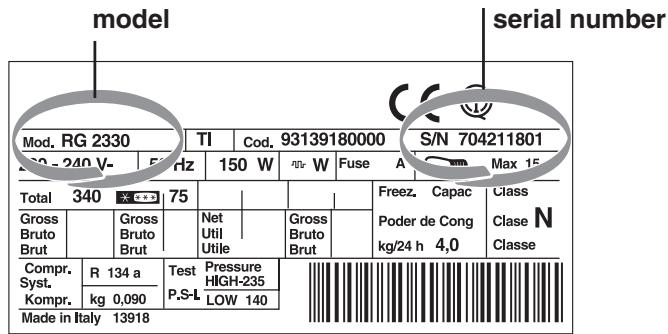

Communicating:

type of malfunction
- appliance model (Model)
- serial number (S/N)

Information can be found on the rating plate located inside the appliance.

Never call on unauthorized technicians and always refuse spare parts which are not originals.

Italiano, 1

GB

English, 9

F

Français, 17

Deutsch, 25

NL

Nederlands, 33

E

Espanol, 41

Portuges, 49

RU

Pycckn,57

BFS 1222.1

Sommaire

Installation, 18

Causes / Solution possibles:

IpeodotbpaueHne IoBJIeHn IJIeCEHN HEnpIyTHbIX 3anaxOB

3aMeHaJaMnOuKn

PpeoctopoxhOCTn npekomeHdaaun, 62

Obuine npabila 6e3oapanchoctn

YtJnI3aIyra

3KoHOMn 3IeKtpOaHeprnn n OxpaHa OkpykaUoSei cpebl

HencnpaBHOCTN MeToDbInx yctpaHeHn,63

TexHnueeckoe o6cnyxnbHne, 64

!Baxho coxpaHnTb daHnoe pyKOBOdCTBO dnia nocJeuOux KOncYbTaUaMn. B cnyae npodaJn, nepeaun 3dEInna nn pni nepeee3de Ha HOByo KBapTpy Heo6XoIMo PnOBepNTb, YTObI pyKOBOdCTBO OCTaBAIOCB BmecTe C N3dEInnEM, DnI TORO YTObI eTO HOBBI BIADELeC MOR O3HaKOMNTbcra C npabINaMI 3KcPnPyatauNN XONODINbHNka N C COOTBETCTBYUcIMN npedynpeKDeHnA M.

!BnMaTeIbHo npOuHTaTe nHCTpyKcNt: B Hx CoepXaTcBaxHbIe CBeDeHnO 6yCTaHOBKe, 3KcPnyatauN u 6e3OpacHOCTn 3dEIny.

PacnoJoxeHne n noDcoeHHeHne

PacnoJoxeHne

1. YctaHOBnTE n3dJIne B cyXOM NOMEuEHN C XOPOSei BEHTNJLJruee..
2. He 3akpbibaiTe BeHTnIaHOnHHbIe peWetKn, pacnoJIOKeHHbIe B 3aDHeu YacTn N3JeNIA: KOMnPecccOp IN KOHDeHCATOp BBipabatbBAOT TENlO, IN dIy INCpapBHO fYHKUHOHnpOBAHn Tpe6yeTcX OPOsAa BEHTNJLIAzI, yTO I03BOJraT TaKke COKpaNTb paCXoJ 3JIeKTPo3HeprIn.
3. He yctaHabnBaIte n3dJeIne pIamc cNtOCHKamn TeIJa. (npA MoN COJIHeuHbI CBET, KXOHHbIe PIIITbI).

3NeKtpnueckoe IODCOEHNHeHne

Iocne IocTaBKn N3dJIyN yCTaHOBnTe eTo B VeRTnKaJbHoe IIOJoxHeNe I IOJoxDnTe He MeHee 3 Yacob Nepeed erO IODcoEINHeHem K CeTn 3JeKTPoPnTAnHn. Ipeed IODcoEINHeHem BnIKn N3dJIyN K 3JeKTPnueCKoN p03eTKe Heo6xOIMNo PnoBepNTcJeDyUoee:

3JIeKTPnuecka pO3eTKa DOJIXHa 6bITb CoeINHeHa C 3a3EmJeHHeM N COOTBeTCTBOBaTb HOpMaTnBAM;
3JNeKtpnuecka pO3eTka DoJIxHa 6bIb paCHTaHa Ha MaKcImaJIbHyIO MOUHOCt bN3dEINr, yKa3aHHyO Ha Ta6NIuChe C TexHueCKmX xaPakTepcNTkAmu, pacNoJIOxKeHHoB B JLeBOM HIXHem yRlpy BHYTpIn XoJIoNbHoi KaMepbl (Ha npImep, 150 Bt);
HaprajkeHne 3JIeKTpOuNTaHnI DOJIxHO 6bITb B npedeJax, yKa3aHHbIX Ha Ta6JIuYKe C TexHnueckmX xaApakTepcntiKamn, pacNoIOxKeHHoB JLeBOM HuxHem yrIy BHyTpN xOJOniNbHoN kamepbI (HaPpMep, 220-240 B);
3JIeKtpUeCKa po3eTKa DOJXHa 6bITb COBMeCTUMa C BUNKOI N3dEINIA.

B npotnbHOM cnyae nopyuHTe 3aMeHy BnIKn n3denny ynoJHMOUeHHOMy texHnky (cM.ObcnjxNBaHne); He nCNoJIb3yIte yDInHnTeNn TpOHNKn.

I N3dennne DoJnxHo 6blb yCTaHOBnEHO TaKIM O6pa3OM, UTO6bl 3NeKTPnueckn npoBOu n 3NeKTPop03eTka 6bln Inerko DOctynHbl.

I ΘeKtpnueckn npoBOD n3dEINr He DoJIKeH 6bITb corHyT nnCkAT.

!PeryIyRnO npOBepaTe coCToHne 3NeKtpnueckoro npBOoda n3deJInu npu Heo6xOdImocTn nopUaIte ero 3aMeHy TOnbKO yN0JIHOMOeHHbIM TexHnikam (CM. O6cnykBaHne).

！HnmaCnmaet CceBa Bckyu OTBeTCTBHeHOctb BCnyae HecO6JIOpDeHnBblIeONcaHbIX npaBnJ.

O6uBn

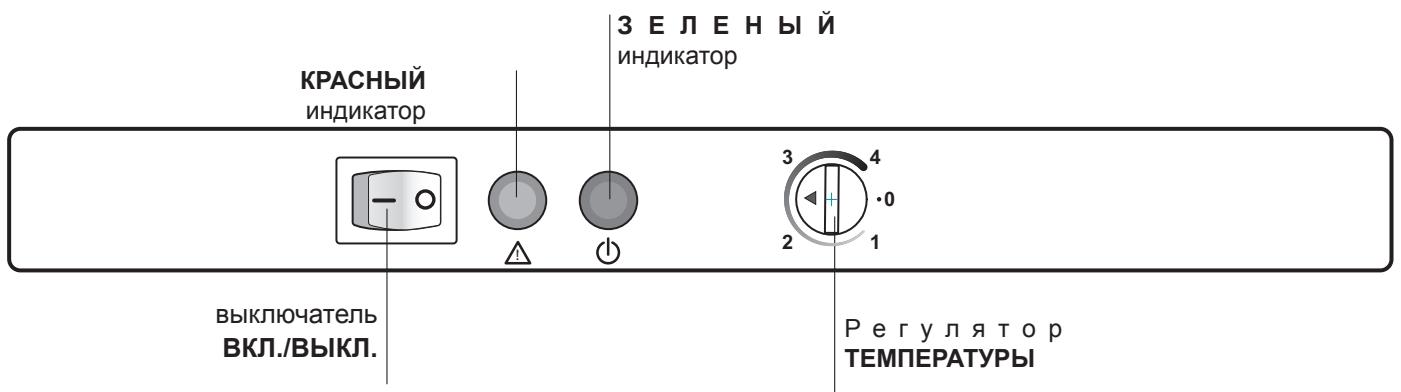

PyKOBODCTBO NO 3KcNpyatauH NTHOCHTC K HECKOJIbKM MOeJIaM, PO3TOMy BO3MOJHO, YTO Ha pncyHKe Ioka3aHbI DeTaH, OTnUHbIe OT npNo6peTeHHoro Bamn n3deJIa. OnPcAHe HAn6oJIee cNoXhIX KOMJIeKTyUOxix PrnBeDeHO Ha CNeDyUOxNxCpaHnuaX.

3EJIeHbI INHdNkATOp

3aropaetc npn npoklouhen npnbopa K 3JeKtpocetn (HaxaTb BklnuoyateB BKN./BblKJ. Ha -).

KPACHbIM INHdNkaTop

3EJIENbI INHdNkaTOp He BKJIOUaETc.

KPACHbI INHdNkATOp NOcToaHHo BKNoUeH.

Komnpceccop pa6oTaet HenpepbIBHO.

XoIOnIbHnK pa6OtaeT cIIuKOM uMHO.

KPACHbI INdkaTop 3aropaetcHa KopoTkoe Bpemr

Bo3moXhIe npuHbI / MeToDbI yCTpaHeHn:

• BnIka He coeDInHeHa c 3JIeKtpuYeCKo pO3eTKoI nn CoeDInHeHa IINOxo n He oBecneuBaet KOHTaTa, INI ONKIIQUHINOC bJIeKTPoNITaHne.
  -ДерцakempeiПLOXOЗakpbIaИИчАTOKpbIbAeTc.
  PykoTka PEGYJATOPA TEMPEPATYPbI yctaHOBneHa B HnpaBnblHom nIOJOxHn.
  -ДоверцakemрьллохозakpbitaичacToOTkpblBaetc.
  CnIuKOM BbICOKa TeMpepaTpaB nOmeueHIn.
  ToIiunHa cIOna INHe IpeBbIaAeT 2-3 MM (cM. TexHnueckoe obCnyKuBaHne).
• I3dJIeIe yCTaHOBJIeHO HepOBHO (cM. YCTaHOBka).
• Izdenie yctaHOBNeHO Mekdy Bn6pnpuyOuIMN NIN ShymOn3daIOUIMN KxohhbIMN 3IeMeHTAMN INI PpeDMeTAMN.
  XnaaareHTBznpKyIaIINpOIN3BOIDITJeKmIyM TaKKe npn OCTaHOBJIeHHOM KOMPpeCCope: 3TO He YBJIeTcH HeNCnPabHOCTbIO, a HOpMaJIbHbIM YBJIeHNHeM.
  B MOpO3nIbHyu KaMepy 6bIIO NOMEseHO 6oJIbIooe KOJIueCTBO CBexHX IpoDyKTOB DJIa 3aMopaxuBaHna, KOTOpbIE BpeMeHNO Bbl3BaJI NOBbISeHne TempepaTypbI B Kamepe. TaK KaK DaHNa CHTyaCIN BpeMeHHa, OHa He BIIraET Ha COxpaHHOCt b Uxke 3aMopoxeHHbIX IpoDyKTOB.
  -Довца octaanacb OTkpbltoi CnIshkom DoIro (В пpocece 3aRpy3kn nIN BbIgpy3kn npOdykTOB).B 3tOM cnyae BKJIuoyehne INHdNkaTopa He O3NaHaET HNKAKOTOc60Я nIN aHOMaJIM MOpO3NJbHOK KAmepbl.

Ipeed Tem kak o6paTntbca B LcHtp TexHnueckoro 06cJyXnBaHHa:
