Product Type	Split Air Conditioner
Brand	Sharp
Model	AY-AP9FHR
Cooling Capacity	9000 BTU/h
Heating Capacity	9000 BTU/h
Refrigerant	R32
Compressor Type	Inverter
Power Supply	220-240V, 50/60Hz, 1 Phase
Indoor Unit Dimensions (WxDxH)	Approx. 790 x 210 x 290 mm
Outdoor Unit Dimensions (WxDxH)	Approx. 730 x 250 x 550 mm
Weight (Indoor Unit)	Approx. 8.5 kg
Weight (Outdoor Unit)	Approx. 25 kg
Energy Efficiency Ratio (EER)	3.21 W/W
Airflow Volume	Up to 500 m³/h
Noise Level (Indoor)	21-39 dB(A)
Noise Level (Outdoor)	49 dB(A)
Filter Type	Washable Anti-Allergy Filter
Control Type	Remote Control + Smartphone App compatible
Operating Temperature (Cooling)	-15°C to 46°C
Operating Temperature (Heating)	-15°C to 24°C
Special Features	J-Tech Inverter, Plasmacluster Ion, Self-Cleaning
Maintenance & Cleaning	Clean air filter every 2 weeks; professional check yearly
Safety	Auto restart, overcurrent protection, anti-corrosion coating
Spare Parts & Repairability	Filters, remote, PCB, fan motor available; serviceable lifespan 10+ years

Frequently Asked Questions - AY-AP9FHR SHARP

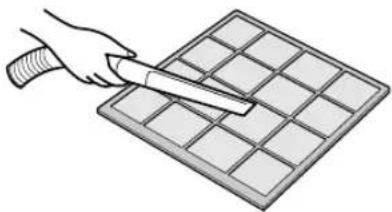

How do I clean the air filter of my Sharp AY-AP9FHR?

Turn off and unplug the unit. Open the front panel, remove the filter, and wash it with water. Dry completely before reinstalling. Clean every 2 weeks for optimal performance.

What should I do if the air conditioner does not cool?

Check the thermostat setting, clean the filter, ensure the outdoor unit is not blocked, and allow 3 minutes for compressor restart. If problem persists, contact service.

Can I use the AY-AP9FHR for heating in winter?

Yes, this model is a heat pump with a reversing valve. It can provide heating down to -15°C. Ensure the remote is set to HEAT mode.

What does the Plasmacluster Ion function do?

It releases positive and negative ions to deactivate airborne viruses, mold, and bacteria, improving indoor air quality. It can be turned on/off via remote.

How do I pair the unit with my smartphone?

Download the Sharp Air app, create an account, and follow the in-app instructions. Press the WiFi button on the indoor unit until it flashes, then connect.

What type of refrigerant does the AY-AP9FHR use?

It uses R32 refrigerant, which has lower global warming potential than R410A. Always hire a certified technician for servicing.

How do I reset the air conditioner to factory settings?

With the unit off, press and hold the 'FAN' and 'TEMP UP' buttons simultaneously for 3 seconds. A beep indicates reset. Refer to manual for details.

What is the J-Tech Inverter?

It is Sharp's inverter technology that adjusts the compressor speed to maintain desired temperature, reducing energy consumption and noise.

Why does the outdoor unit fan continue running after shutdown?

This is normal operation to remove residual heat from the compressor. The fan will stop automatically after a few minutes.

How can I obtain spare parts or repair service?

Contact an authorized Sharp service center. Common spare parts like filters, remote, and PCB are available. The unit is designed for easy access and repairability.

USER MANUAL AY-AP9FHR SHARP

Technical line drawing of a cylindrical air conditioner unit (no text or symbols)

New Refrigerant R410A

INDOOR UNIT

UNITÀ INTERNA

UNIDADE INTERIOR

ΕΣΩΤΕΡΙΚΗ ΣΥΣΚΕΥΗ

iç ÜNİTE

ВНУТРЕНИЙ БЛОК

AY-AP12FHR-WH AE-A12FHR

* Plasmacluster is a trademark of SHARP Corporation.

AY-AP7FHR

AY-AP7FHR-WH

AY-AP9FHR

AY-AP9FHR-WH

AY-AP12FHR

AY-AP12FHR-WH

SPLIT TYPE

ROOM AIR CONDITIONER

OPERATION MANUAL

POKOJOWY KLIMATYZATOR TYPU SPLIT

INSTRUKCJA OBSŁUGI

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

A. Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states, private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

B. Information on Disposal for Business Users.

1. In the European Union

If the product is used for business purposes and you want to discard it:

Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities.

For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU

If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.

The battery supplied with this product contains traces of Lead.

For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste!

There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation. Please contact your local authority for details on the collection and recycling schemes.

For Switzerland: The used battery is to be returned to the selling point.

For other non-EU countries: Please contact your local authority for correct method of disposal of the used battery.

This manual explains the proper use of your new air conditioner. Please read this manusl carefully before using the product. This manual should be kept in a safe place for handy reference.

CONTENTS

• IMPORTANT SAFEY INSTRUCTIONS .... E-1
• ADDITIONAL NOTES ON OPERATION .. E-3
• TIPS ON SAVING ENERGY ...... E-3
• PART NAMES..... E-4
• USING THE REMOTE CONTROL ..... E-7
• BASIC OPERATION ...... E-8
- ADJUSTING THE AIR FLOW DIRECTION ..E-9

• PLASMACLUSTER OPERATION ......E-10
  • TURBO OPERATION ....E-11
• ONE-HOUR OFF TIMER ......E-11
  • TIMER OPERATION.....E-12
• AUXILIARY MODE ......E-14
• MAINTENANCE ......E-15
• BEFORE CALLING FOR SERVICE ......E-16

IMPORTANT SAFETY INSTRUCTIONS

WARNINGS FOR USE

1 Do not pull or deform the power supply cord. Pulling and misuse of the power supply cord can result in damage to the unit and cause electrical shock.
2 Be careful not to expose your body directly to the outlet air for a long time. It may affect your physical conditions.
3 When using the air conditioner for infants, children, elderly, bedridden, or disabled people make sure the room temperature is suitable for those in the room.
4 Never insert objects into the unit. Inserting objects can result in injury due to the high speed rotation of internal fans.
5 Ground the air conditioner without fail. Do not connect the grounding wire to gas pipe, water pipe, lightning rod or telephone grounding wire. Incomplete grounding may cause electric shock.
6 If anything is abnormal with the air conditioner (ex. a burning smell), stop the operation immediately and turn the circuit breaker OFF.
7 The appliance shall be installed in accordance with national wiring regulations. Improper cable connection can cause the power supply cord, plug and the electrical outlet to overheat and cause re.
8 If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. Use only the manufacture-speci ed power cord for replacement.

WARNINGS FOR INSTALLATION / REMOVAL / REPAIR

- Do not attempt to install/remove/repair the unit by yourself. Incorrect work will cause electric shock, water leak, re etc. Consult your dealer or other qualified service personnel for the installation/removal/repair of the unit.

IMPORTANT SAFETY INSTRUCTIONS

CAUTIONS FOR USE

1 Open a window or door periodically to ventilate the room, especially when using gas appliances. Insuf cient ventilation may cause oxygen shortage.
2 Do not operate the buttons with wet hand. It may cause electric shock.
3 For safety, turn the circuit breaker off when not using the unit for an extended period of time.
4 Check the outdoor unit mounting rack periodically for wear and to make sure it is rmly in place.
5 Do not put anything on the outdoor unit nor step on it. The object or the person may fall down or drop, causing injury.
6 This unit is designed for residential use. Do not use for other applications such as in a kennel or greenhouse to raise animals or grow plants.
7 Do not place a vessel with water on the unit. If water penetrates into the unit, electrical insulations may deteriorate and cause electric shock.
8 Do not block the air inlets nor outlets of the unit. It may cause insufficient performance or troubles.
9 Be sure to stop the operation and turn the circuit breaker off before performing any maintenance or cleaning. A fan is rotating inside the unit and you may get injured.
10 Do not splash or pour water directly on the unit. Water can cause electrical shock or equipment damage.
11 This appliance is not intended for use by young children or in rm persons without supervision.
Young children should be supervised to ensure that they do not play with the appliance.

CAUTIONS FOR LOCATION / INSTALLATION

• Make sure to connect the air conditioner to power supply of the rated voltage and frequency.
  Use of a power supply with improper voltage and frequency can result in equipment damage and possible fire.
• Do not install the unit in a place where inflammable gas may leak. It may cause fire. Install the unit in a place with minimal dust, fumes and moisture in the air.
• Arrange the drain hose to ensure smooth drainage. Insufficient drainage may cause wetting of the room, furniture etc.
• Make sure a leak breaker or a circuit breaker is installed, depending on the installation location, to avoid electrical shock.

ADDITIONAL NOTES ON OPERATION

D.B. = Dry-bulb W.B. = Wet-bulb

- The built-in protective device may prevent the unit from operating when used out of this range.

- Condensation may form on the air outlet if the unit operates continuously in the COOL or DRY mode when humidity is over 80 percent.

WHEN POWER FAILURE OCCURS

This air conditioner has a memory function to store settings when a power failure occurs. After power recovery, the unit will automatically re-start in the same settings which were active before the power failure, except for timer settings. If the timers were set before a power failure, they will need to be re-set after power recovery.

PREHEATING FUNCTION

In the HEAT operation, the indoor fan may not start for two to five minutes after the unit is turned on to prevent cold air from blowing out of the unit.

DE-ICING FUNCTION

• When ice forms on the heat exchanger in the outdoor unit during the HEAT operation, an automatic de-icer provides heat for about 5 to 10 minutes to remove the ice. During de-icing, the inside and outside fans stop operating.
• After de-icing is completed, the unit automatically resumes operation in the HEAT mode.

HEATING EFFICIENCY

• The unit employs a heat pump that draws heat from the outside air and releases it into the room. The outside air temperature therefore greatly affects the heating efficiency.
• If the heating efficiency is reduced due to low outside temperatures, use an additional heater.
• It takes time to warm up and heat the entire room because of the forced air circulation system.

TIPS ON SAVING ENERGY

Below are some simple ways to save energy when you use your air conditioner.

SET THE CORRECT TEMPERATURE

• Setting the thermostat 1^ higher than the desired temperature in the COOL mode and 2^ lower in the HEAT mode will save approximately 10 percent in power consumption.
• Setting the temperature lower than necessary during cooling operation will result in increased power consumption.

BLOCK DIRECT SUNLIGHT AND PREVENT DRAFTS

- Blocking direct sunlight during cooling operation will reduce power consumption.

- Close the windows and doors during cooling and heating operations.

SET PROPER AIR FLOW DIRECTION TO OBTAIN THE BEST AIR CIRCULATION

KEEP FILTER CLEAN TO ENSURE THE MOST EFFICIENT OPERATION MAKE MOST OF THE TIMER OFF FUNCTION

DISCONNECT THE POWER CORD WHEN THE UNIT IS NOT USED FOR AN EXTENDED PERIOD OF TIME

- The indoor unit still consumes a small amount of power when it is not operating.

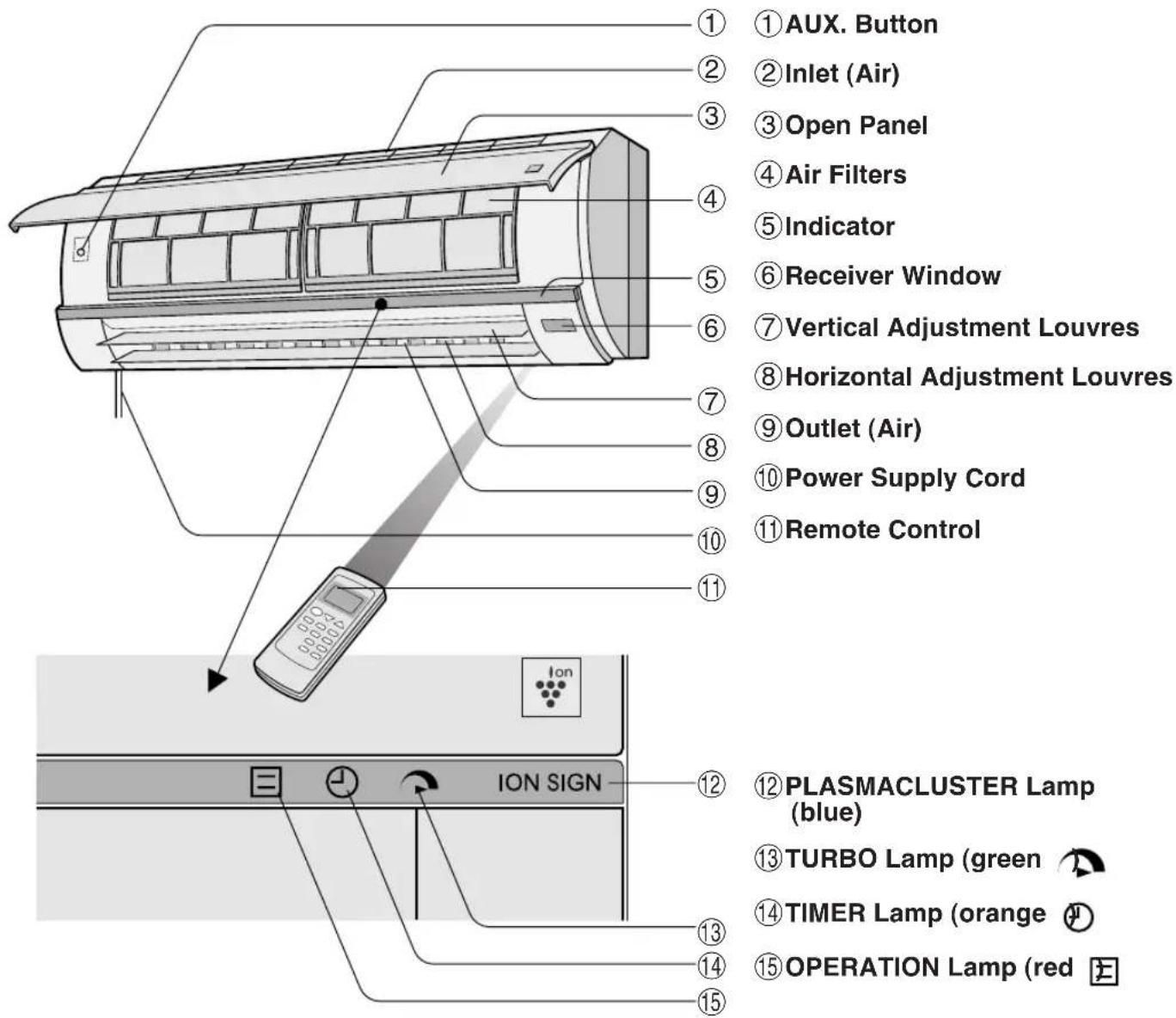

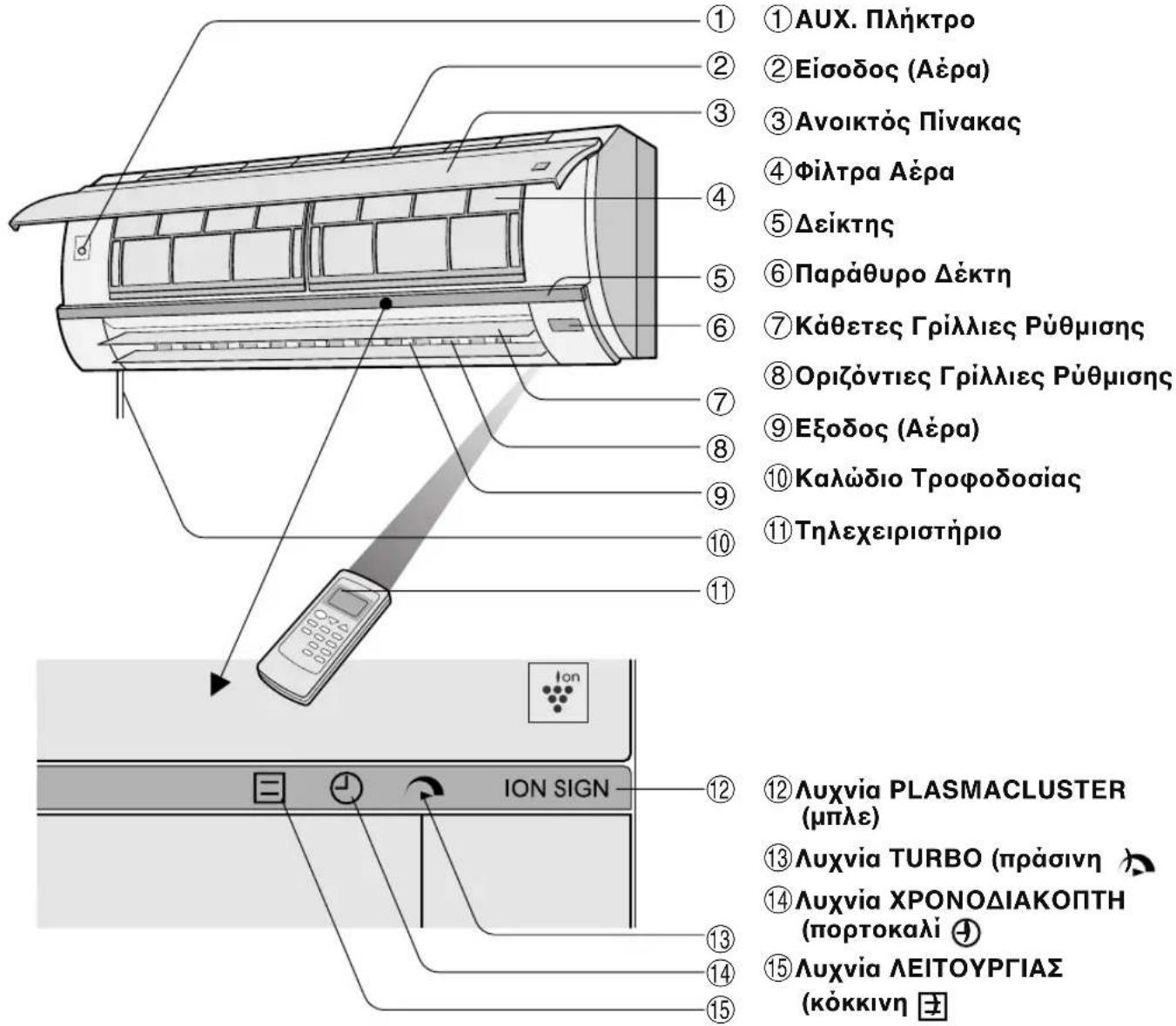

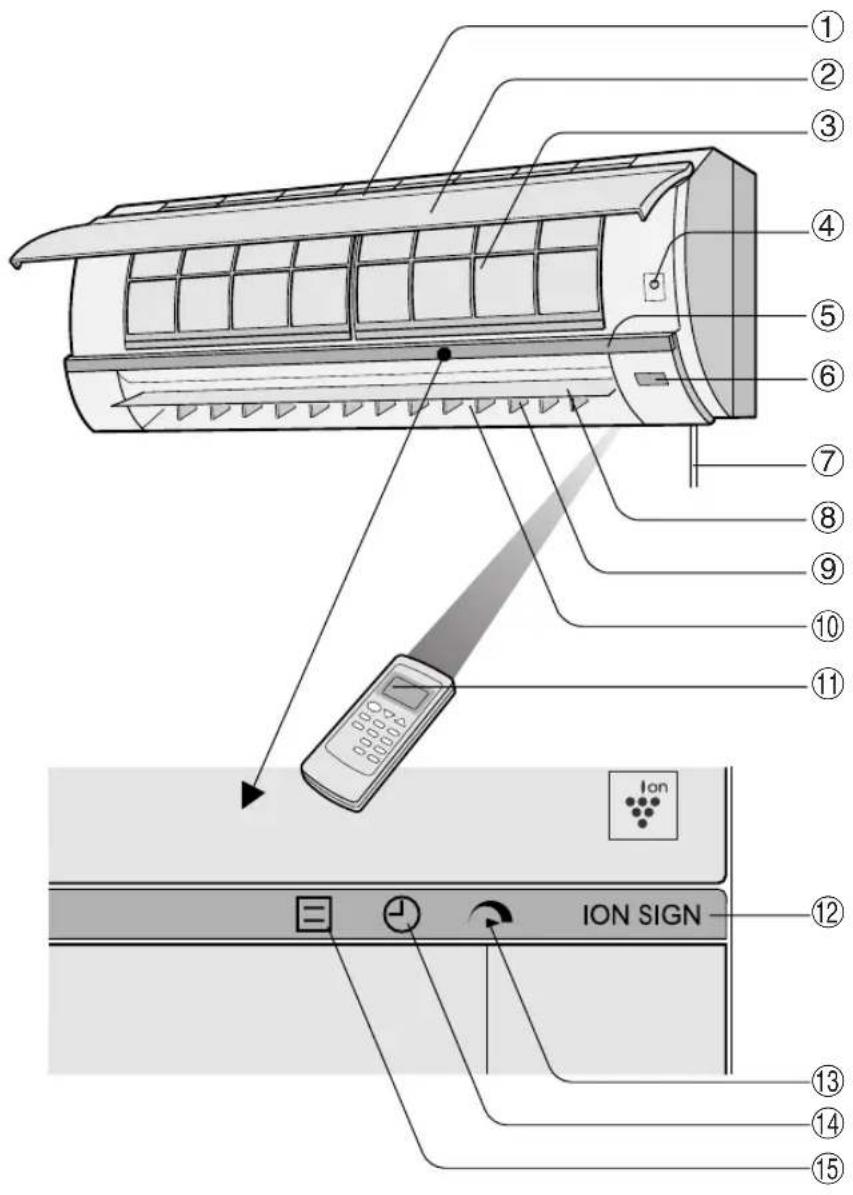

INDOOR UNIT (AY-AP7FHR/AY-AP7FHR-WH/AY-AP9FHR/AY-AP9FHR-WH)

⑯Inlet(Air)

⑰ Refrigerant Tube and Interconnecting Cord

⑱Drainage Hose

⑲ Outlet(Air)

NOTE: Actual units might vary slightly from those shown above.

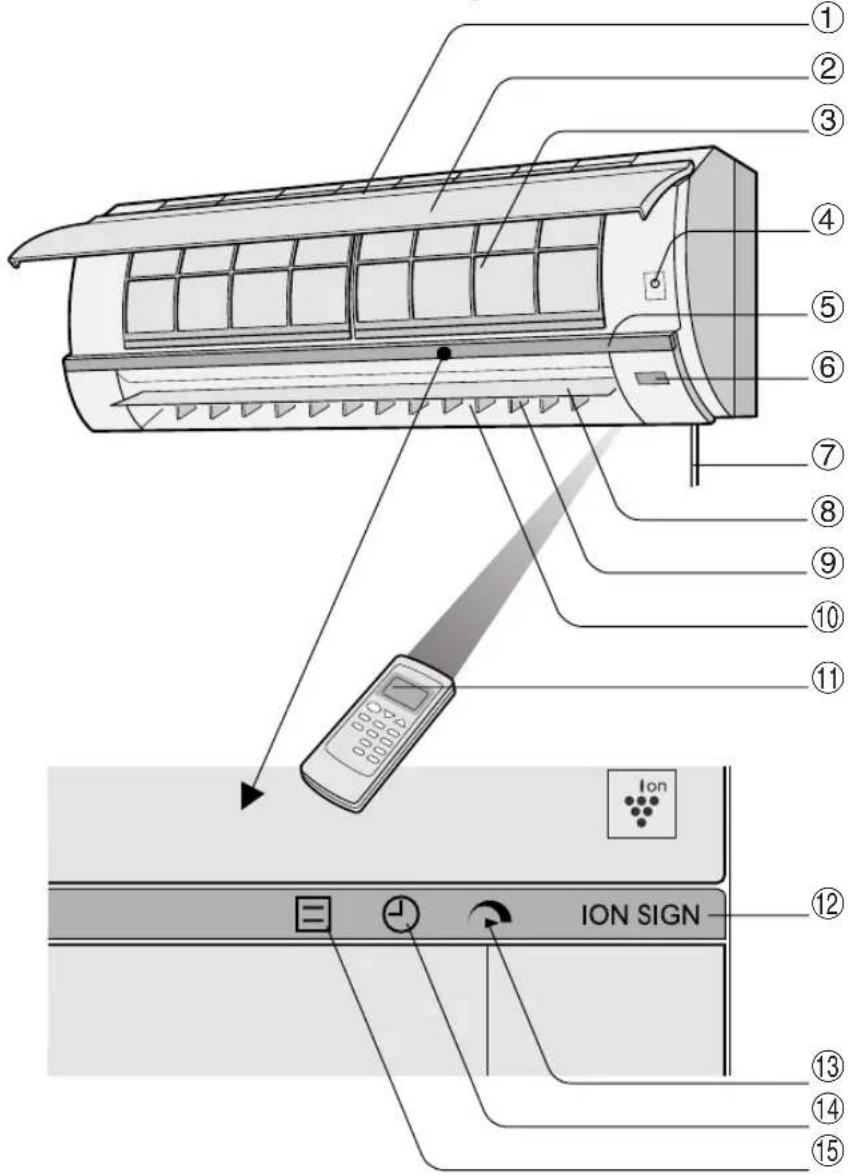

INDOOR UNIT (AY-AP12FHR/AY-AP12FHR-WH)

NOTE: Actual units might vary slightly from those shown above.

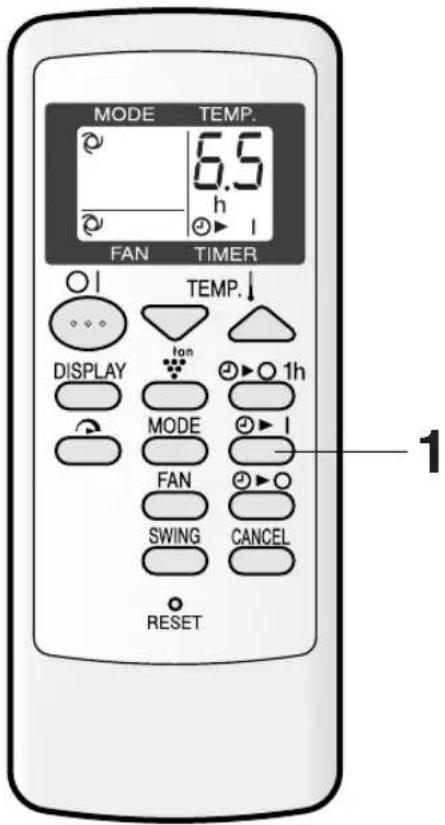

REMOTE CONTROL

①TRANSMITTER
②DISPLAY (Liquid Crystal Display)
③ON/OFF Button
④TEMP. Button
⑤DISPLAY Button
⑥PLASMACLUSTER Button
⑦ONE-HOUR OFF TIMER Button
⑧MODE Button
⑨ TIMER ON Button (for setting the timer)
⑩FAN Button
⑪ TIMER OFF Button (for setting the timer)
⑫ SWING Button
⑬ TIMER CANCEL Button
⑭TURBO Button
⑮RESET Button

L.C.D. REMOTE CONTROL DISPLAY

⑯MODE SYMBOLS

: AUTO : HEAT

: COOL : DRY

⑰TURBO SYMBOL

⑱ PLASMACLUSTER SYMBOL

⑲FAN SPEED SYMBOLS

Indicates when timer on or timer off is set.

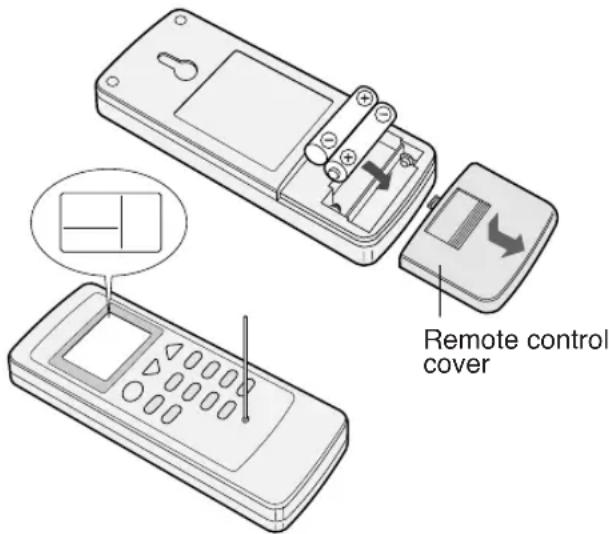

LOADING BATTERIES Use two size-AAA (R03) batteries.

1 Remove the battery cover at the back of the remote control.
2 Insert batteries in the compartment, making sure the ⊕ and ⊖ polarities are correctly aligned.
- Lines will be indicated on the display when batteries are properly installed.
3 Reinstall the battery cover.
4 Press the RESET button using a thin stick.

NOTES:

• The battery life is approximately one year in normal use.
• When you replace the batteries, always change both batteries, and make sure they are the same type.
• If the remote control does not operate properly after replacing the batteries, press the RESET button using a thin stick.
• If you will not be using the unit for a long time, remove the batteries from the remote control.

HOW TO USE THE REMOTE CONTROL

Point the remote control towards the unit's signal receiver window and press the desired button. The unit generates a beep when it receives the signal.

• Make sure there is no curtain or other object between the remote control and the unit.
• The remote control can send signals from up to 7 metres away.

Illustration of a mobile air conditioner with a digital display and pointer, no text or symbols present

CAUTION

• Do not allow the signal receiver window to receive strong direct sunlight, since it can adversely affect its operation. If the signal receiver window is exposed to direct sunlight, close a curtain to block the light.
• Using a fluorescent lamp with a quick starter in the same room may interfere with transmission of the signal.
• The unit can be affected by signals transmitted from the remote control of a television, VCR or other equipment used in the same room.
• Do not leave the remote control in direct sunlight or near a heater. Also, protect the unit and remote control from moisture and shock which can discolour or damage them.

TIPS ABOUT AUTO MODE

In the AUTO mode, the temperature setting and mode are automatically selected according to the room temperature when the unit is turned on.

Modes and Temperature Settings

Room temp.at operationstart-up	Automatic Operation
	Mode	Temperature Setting
Below 21°C	HEAT	23°C
21°C-24°C	DRY	Room Temp. at start-up
24°C-26°C	COOL	24°C
26°C-28°C	COOL	25°C
Above 28°C	COOL	26°C

Press the MODE button to select the operation mode.

AUTO HEAT COOL DRY

Press the ON/OFF button to start operation.

- The red OPERATION lamp ( ☐ on the unit will light.

Press the TEMP. button to set the desired temperature.

AUTO/DRY MODE

The temperature can be changed in 1^ C increments within the range of 2^ C higher to 2^ C lower from the temperature automatically determined by the air conditioner.

COOL/HEAT MODE

The temperature can be set within the range of 18 to 32°C.

Press the FAN button to set the desired fan speed.

AUTO SOFT LOW HIGH

- In the DRY mode, the fan speed is pre-set to AUTO and cannot be changed.

To turn off the unit, press the ON/OFF button again.

- The red OPERATION lamp ( ☐ on the unit will turn off.

VERTICAL AIR FLOW DIRECTION

Press the SWING button on the remote control once.

- The vertical adjustment louvre will change its angle continuously.

Press the SWING button again when the vertical adjustment louvre is at the desired position.

• The louvre will stop moving within the range shown in the diagram.
- The adjusted position will be memorized and will be automatically set to the same position when operated the next time.

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

Adjustment range

COOL and DRY modes HEAT mode

The adjustment range is narrower the SWING range in order to prevent condensation from dripping.

The range is wide and air flow can be directed toward the floor.

HORIZONTAL AIR FLOW DIRECTION

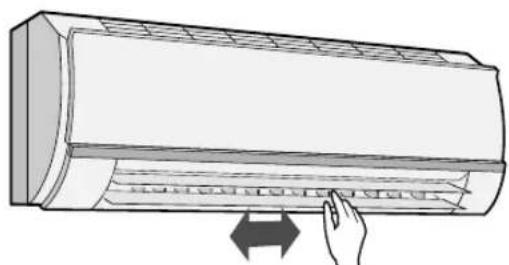

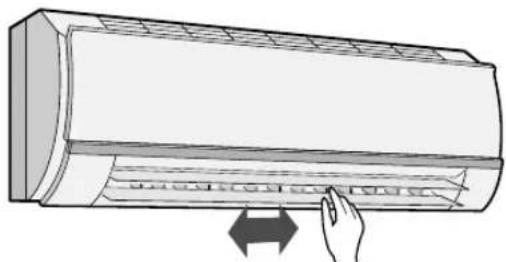

Hold the horizontal adjustment louvre as shown in the diagram and adjust the air flow direction.

Illustration of a hand pressing down on a curved air conditioner cover (no text or symbols)

Illustration of a hand pressing down on a curved air conditioner cover (no text or symbols)

(AY-AP7FHR/AY-AP7FHR-WH/AY-AP9FHR/AY-AP9FHR-WH) (AY-AP12FHR/AY-AP12FHR-WH)

CAUTION

Never attempt to adjust the vertical adjustment louvres manually.

• Manual adjustment of the vertical adjustment louvre can cause the unit to malfunction when the remote control is used for adjustment.
• When the vertical adjustment louvre is positioned at the lowest position in the COOL or DRY mode for an extended period of time, condensation may result.

Do not adjust the horizontal adjustment louvre to the extreme left or right in the COOL mode with the fan speed set to "SOFT( ▼) " for an extended period of time.

Condensation may form on the louvres.

PLASMACLUSTER OPERATION

The Plasmacluster ion generator inside the air conditioner will release positive and negative Plasmacluster ions into the room.

Approximately the same numbers of positive and negative ions released into the air will reduce some airborne mold.

1 During operation, press the PLASMACLUSTER button.

• The remote control will display "lon"
• The blue PLASMACLUSTER lamp on the unit will light up.

TO CANCEL

Press the PLASMACLUSTER button again.

- The PLASMACLUSTER lamp on the unit will turn off.

NOTES:

• Use of the PLASMACLUSTER operation will be memorized, and it will be activated the next time you turn on the air conditioner.
  • To turn off the PLASMACLUSTER lamp, press the DISPLAY button.
• When the PLASMACLUSTER button is pressed while the unit is not operating, the PLASMACLUSTER operation will be performed without accompanying air conditioning mode (eg, HEATING or COOLING). The mode symbol of the remote control will go off and the fan speed can not be set AUTO.

TURBO OPERATION

In this operation, the air conditioner fan works at "extra high" speed with a setting temperature of 15^ C in COOL and DRY modes and 32^ C in HEAT mode to rapidly cool or heat the room.

1 Press the TURBO button during operation.

• The remote control will display "
• The temperature display will go off.
- The green TURBO lamp ( ) on the unit will light up.

TO CANCEL

Press the TURBO button again.

• TURBO operation will also be cancelled when the operation mode is changed, or when the unit is turned off.
• The green TURBO lamp ( ) on the unit will turn off.

NOTES:

• You cannot set the temperature or fan speed during TURBO operation.
• After the unit has run for 30 minutes in TURBO operation, the fan setting will become the "HIGH" speed, and temperature setting will become 18^ in COOL and DRY modes.
  • To turn off the TURBO lamp, press the DISPLAY button.

ONE-HOUR OFF TIMER

When the ONE-HOUR OFF TIMER is set, the unit will automatically turn off after one hour.

1 Press the ONE-HOUR OFF TIMER button.

• The remote control will display " /h ⓐ▶ O
• The orange TIMER lamp ( ☑ on the unit will light up.
  • The unit will stop operating after one hour.

TO CANCEL

Press the CANCEL button.

- The orange TIMER lamp ( ☑ on the unit will turn off.

Alternatively, turn the unit off by pressing the ON/OFF button.

- The red OPERATION lamp (☐) and the orange TIMER lamp (☐) on the unit will turn off.

NOTES:

• The ONE-HOUR OFF TIMER operation has priority over TIMER ON and TIMER OFF operations.
• If the ONE-HOUR OFF TIMER is set while the unit is not operating, the unit will operate for an hour at the formerly set condition.
• If you wish to operate the unit for another hour before the ONE-HOUR OFF TIMER is activated, press the ONE-HOUR OFF TIMER button again during operation.

TIMER OFF

The unit will turn off automatically according to your setting.

Timer duration can be set from a minimum half an hour (30 minutes) to a maximum of 12 hours.

Up to 9.5 hours, you can set in half-hour (30-minute) increments, and from 10 to 12 hours, in 1-hour increments.

Display shown when you set the unit to ture off 2.5 hours later.

Point the remote control at the signal receiver window on the unit.

1 Press the TIMER OFF ( ⏻ button and set the time as desired.

- The time setting will change as you press the button as follows,

Hold the button down to speed through the settings.

- The orange TIMER lamp ( ⏻ ) on the unit will light.

- The unit will generate a beep when it receives the signal.

- The time setting will count down to show the remaining time.

When the TIMER OFF is set, the temperature setting is automatically adjusted to prevent the room from becoming excessively cold while you sleep. (Auto Sleep function)

COOL/DRY MODE:

- One hour after the timer operation begins, the temperature setting rises 1^ higher than the original temperature setting.

HEAT MODE:

- One hour after the timer operation begins, the temperature setting drops 3^ lower than the original temperature setting.

TO CANCEL TIMER

Press the CANCEL button.

- The orange TIMER lamp ( ⏻ ) on the unit will turn off.

TO CHANGE TIMER SETTING

Press the TIMER button which you wish to change, (TIMER OFF or TIMER ON) and change the time setting.

TIMER ON

The unit will turn on automatically according to your setting.

Timer duration can be set from a minimum of half an hour (30 minutes) to a maximum of 12 hours.

Up to 9.5 hours, you can set in half-hour (30 minute) increments, and from 10 to 12 hours, in 1-hour increments.

Display shown when you set the unit to reach the desired room temperature 6.5 hours later.

Point the remote control at the signal receiver window on the unit.

1 Press the TIMER ON ( 🔊 button.

- The time setting will change as you press the button as follows.

Hold the button down to speed through the setting.

• The orange TIMER lamp ( ⏻ ) on the unit will light.
• The unit will generate a beep when it receives the signal.
• The time setting will count down to show the remaining time.

Select the mode, temperature and fan speed setting as desired.

• When the temperature is set with the TIMER ON, the temperature will show in the display for 5 seconds and then return to the time display.
• If you do not change the setting, the unit will operate using the most recent settings.
• The unit will turn on prior to the set time to allow the room to reach the desired temperature by the programmed time. (Awaking function)

• The latest time setting will be memorized and will appear on the remote control display the next time you set the TIMER OFF or TIMER ON.
• The TIMER OFF and TIMER ON can not be set together. Only the most recent TIMER setting will be valid.
• While ONE-HOUR OFF TIMER is set, the TIMER OFF and TIMER ON setting are unavailable.
• If the ONE-HOUR OFF TIMER is set while the TIMER OFF or TIMER ON is activated, the TIMER ON or TIMER OFF setting will be cancelled.

Use this mode when the remote control is not available.

TO TURN ON

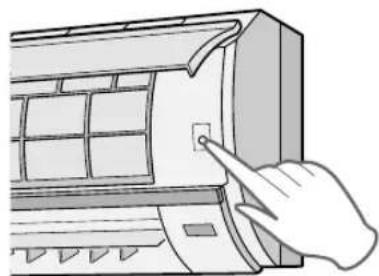

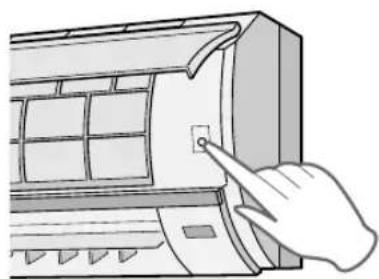

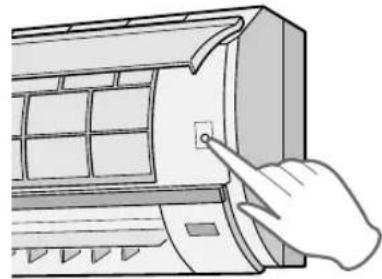

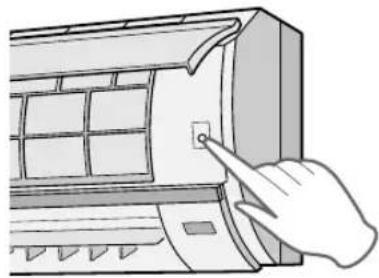

Lift the front panel of the indoor unit and press the AUX. button on the operation panel.

• The red OPERATION lamp (☐) on the unit will light and the unit will start operating in the AUTO mode.
• The fan speed and temperature setting are set to AUTO.

TO TURN OFF

Press the AUX. button on the operation panel again.

- The red OPERATION lamp (☐) on the unit will turn off.

NOTE:

If the AUX. button is pressed during normal operation, the unit will turn off.

(AY-AP7FHR/AY-AP7FHR-WH) (AY-AP9FHR/AY-AP9FHR-WH)

Illustration of a hand pressing a button on an air conditioner unit (no text or symbols visible)

(AY-AP12FHR/AY-AP12FHR-WH)

Illustration of a hand pointing at a computer monitor (no text or symbols visible)

Be sure to disconnect the power cord from the wall outlet or turn off the circuit breaker before performing any maintenance.

CLEANING THE FILTERS

The air filters should be cleaned every two weeks.

Illustration of a hand using a tool to cut a grid-patterned surface (no text or symbols)

1 TURN OFF THE UNIT

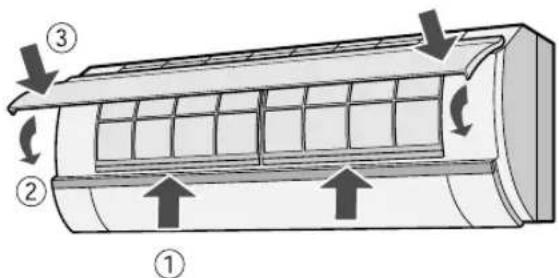

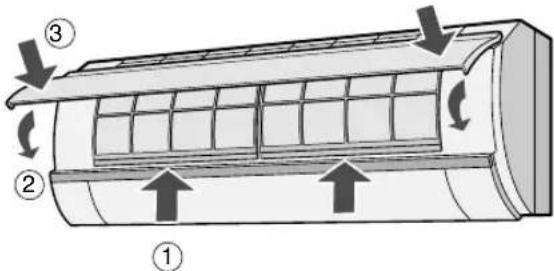

2 REMOVE THE FILTERS

① Lift the open panel.
②Push the air filters up slightly to unlock them.
③Pull the air filters down to remove them.

3 CLEAN THE FILTERS

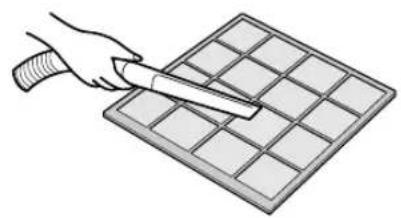

Use a vacuum cleaner to remove dust. If the filters are dirty, wash them with warm water and a mild detergent. Dry filters in the shade before reinstalling.

4 REINSTALL THE FILTERS

①Reinstall the filters in the original positions.
②Close the open panel.
③Push the arrow-marked points shown left firmly to lock it in place.

CLEANING THE UNIT AND THE REMOTE CONTROL

• Wipe them with a soft cloth.
• Do not directly splash or pour water on them, or it can cause electrical shock or equipment damage.
• Do not use hot water, thinner, abrasive powders or strong solvents.

MAINTENANCE AFTER AIR CONDITIONER SEASON

1 Operate the unit in the COOL mode, temperature setting 32^ C, for about half a day to allow the mechanism to thoroughly dry.
2 Stop the operation and unplug the unit. Turn off the circuit breaker, if you have one exclusively for the air conditioner.
3 Clean the filters, then reinstall them.

MAINTENANCE BEFORE AIR CONDITIONER SEASON

1 Make sure that the air filters are not dirty.
2 Make sure that nothing obstructs the air inlet or outlet.
3 Check the outdoor mounting rack periodically for wear and to make sure it is firmly in place.

BEFORE CALLING FOR SERVICE

The following conditions do not denote equipment malfunctions

UNIT DOES NOT OPERATEThe unit will not operate if it is turned on immediately after it is turned off. The unit will not operate immediately after the mode is changed. This is to protect the internal mechanisms. Wait 3 minutes before operating the unit.	SWISHING NOISEThe soft, swishing noise is the sound of the refrigerant flowing inside the unit.
	WATER VAPOURIn the COOL and DRY operation, water vapour can sometimes be seen at the air outlet due to the difference between the room air temperature and the air discharged by the unit.In the HEAT operation, water vapour may flow out of the outdoor unit during de-icing.
UNIT DOES NOT SEND OUT WARM AIRThe unit is preheating or de-icing.
ODORSCarpet and furniture odors that entered into the unit and the air conditioner's inner component odors at the early stage of installation may be sent out from the unit.	ODOR EMITTED FROM THE PLASMACLUSTER AIR OUTLETThis is the smell of ozone generated from the Plasmacluster Ion generator. The ozone concentration is very small, posing no adverse effect on your health. The ozone discharged into the air rapidly decomposes, and its density in the room will not increase.
CRACKING NOISEThe unit may produce a cracking noise. This sound is generated by the friction of the front panel and other components expanding or connecting due to a temperature change.
A LOW BUZZING NOISE EMITTEDThis is a sound emitted when the unit is generating Plasmacluster ions.

If the unit appears to be malfunctioning, check the following points before calling for service.

IF THE UNIT FAILS TO OPERATE

Check to see if the circuit breaker has tripped or the fuse has blown.

IF THE UNIT FAILS TO COOL (OR HEAT) THE ROOM EFFECTIVELY
Check the filters. If dirty, clean them.	Check the outdoor unit to make sure nothing is blocking the air inlet or outlet.	Check the thermostat is proper setting.
Make sure windows and doors are closed tightly.	A large number of people in the room can prevent the unit from achieving the desired temperature.	Check whether any heat-generating appliances are operating in the room.

IF THE UNIT FAILS TO RECEIVE THE REMOTE CONTROL SIGNAL
Check whether the remote control batteries have become old and weak.	Try to send the signal again with the remote control pointed properly towards the unit's signal receiver window.	Check whether the remote control batteries are installed with the polarities properly aligned.

Please call for service when OPERATION lamp and TIMER lamp on the indicator panel blink.

Symbol of a trash bin crossed out by two crossed lines, with a blank rectangular base below (no text or symbols)

UNITÀ INTERNA (AY-AP7FHR/AY-AP7FHR-WH/AY-AP9FHR/AY-AP9FHR-WH)

UNITÀ INTERNA (AY-AP12FHR/AY-AP12FHR-WH)

⑫ Spia PLASMACLUSTER (blu)
⑬ Spia TURBO (verde
⑭ Spia TIMER (arancione Ⓥ)
⑮ Spia di FUNZIONAMENTO (rossa ☒)

⑱ SIMBOLO PLASMACLUSTER

⑲ SIMBOLI DI VELOCITÀ DEL VENTILATORE

Illustration of a wall-mounted air conditioner with a handheld remote control (no text or symbols)

PRECAUZIONI

Diagram of a cylindrical air duct with internal grooves and a directional arrow indicating compression (no text or symbols)

Illustration of a hand pressing down on a curved air conditioner cover (no text or symbols)

Line drawing of a hand pressing down on a curved air conditioner cover (no text or symbols)

(AY-AP7FHR/AY-AP7FHR-WH/AY-AP9FHR/AY-AP9FHR-WH) (AY-AP12FHR/AY-AP12FHR-WH)

PRECAUZIONI

(AY-AP7FHR/AY-AP7FHR-WH) (AY-AP9FHR/AY-AP9FHR-WH)

Illustration of a hand pressing a button on an air conditioner unit (no text or symbols visible)

(AY-AP12FHR/AY-AP12FHR-WH)

Illustration of a hand pointing at a computer monitor (no text or symbols visible)

Illustration of a hand using a tool to cut a grid-patterned surface (no text or symbols)

1 SPEGNETE L'UNITÀ

2 RIMUOVETE I FILTRI

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

UNIDADE INTERIOR (AY-AP7FHR/AY-AP7FHR-WH/AY-AP9FHR/AY-AP9FHR-WH)

①Entrada (Ar)

②Painel aberto

③Filtros de ar

④Botão AUX.

⑤Indicador

⑥Janela receptora

⑱SÍMBOLO PLASMACLUSTER

⑲SÍMBOLOS DA VELOCIDADE DA VENTOINHA

NOTAS:

Illustration of a car air conditioner with a handheld flash unit (no text or symbols)

ATENÇÃO

MODO FRIO/CALOR

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

Margem de regulação

Illustration of a hand pressing down on a curved air conditioner cover (no text or symbols)

Illustration of a hand pressing down on a curved air conditioner cover (no text or symbols)

(AY-AP7FHR/AY-AP7FHR-WH/AY-AP9FHR/AY-AP9FHR-WH) (AY-AP12FHR/AY-AP12FHR-WH)

ATENÇÃO

(AY-AP7FHR/AY-AP7FHR-WH) (AY-AP9FHR/AY-AP9FHR-WH)

Illustration of a hand pressing a button on an air conditioner unit (no text or symbols visible)

(AY-AP12FHR/AY-AP12FHR-WH)

Illustration of a hand pointing at a printer or scanner (no text or symbols visible)

Illustration of a hand using a tool to cut a grid-patterned surface (no text or symbols)

1 DESLIGAR A UNIDADE

2 RETIRAR OS FILTROS

Symbol of a trash bin crossed out by two crossed lines, with no text or numbers present.

THΛΕΧΕΙΡΙΣΤΗΡΙΟ (ΑΥ-ΑΡ12FHR/ΑΥ-ΑΡ12FHR-WH)

Illustration of a mobile phone emitting a light beam from a cylindrical air conditioner (no text or symbols)

ΠΡΟΣΟΧΗ

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

Περιοχή ρύθμισης

Illustration of a hand pressing down on a curved air conditioner cover (no text or symbols)

Illustration of a hand pressing down on a wall-mounted air conditioner unit (no text or symbols)

(AY-AP7FHR/AY-AP7FHR-WH/AY-AP9FHR/AY-AP9FHR-WH) (AY-AP12FHR/AY-AP12FHR-WH)

ΠΡΟΣΟΧΗ

(AY-AP7FHR/AY-AP7FHR-WH) (AY-AP9FHR/AY-AP9FHR-WH)

Illustration of a hand pressing a button on an air conditioner unit (no text or symbols visible)

(AY-AP12FHR/AY-AP12FHR-WH)

Illustration of a hand pressing down on a printer (no text or symbols visible)

Illustration of a hand using a tool to clean or adjust a grid-patterned surface (no text or symbols)

iç ÜNİTE (AY-AP7FHR/AY-AP7FHR-WH/AY-AP9FHR/AY-AP9FHR-WH)

⑱PLASMACLUSTER SEMBOLÜ

⑲FAN HIZI SEMBOLLERİ

OTOMATİK : Manuel ayar

⑳SICAKLIK VE ZAMANLAYICI GERİ SAYIM GÖSTERGESİ

②1AKTARMA SEMBOLÜ

②ZAMANLAYICI AÇMA/ZAMANLAYICI KAPAMA GÖSTERGESİ

Illustration of a single air conditioner with a handheld device emitting a beam of light (no text or symbols)

UYARI

SOĞUTMA/ISITMA MODU

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

Ayar aralığı

Illustration of a hand pressing down on a curved air conditioner cover (no text or symbols)

(AY-AP7FHR/AY-AP7FHR-WH/AY-AP9FHR/AY-AP9FHR-WH) (AY-AP12FHR/AY-AP12FHR-WH)

Illustration of a hand pressing down on a curved air conditioner cover (no text or symbols)

UYARI

BİR SAAT SONRA KAPANMA AYARI

(AY-AP7FHR/AY-AP7FHR-WH) (AY-AP9FHR/AY-AP9FHR-WH)

Illustration of a hand pressing a button on an air conditioner unit (no text or symbols visible)

(AY-AP12FHR/AY-AP12FHR-WH)

Illustration of a hand pressing down on a computer screen (no text or symbols visible)

Illustration of a hand using a tool to cut a grid-patterned surface (no text or symbols)

1 ÜNİTEYİ KAPATIN

2 FILTRELERİ ÇIKARIN

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Illustration of a wall-mounted air conditioner with a handheld sensor emitting light (no text or symbols)

ВНИМАНИЕ

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a curved air conditioner cover (no text or symbols)

Illustration of a hand pressing down on a wall-mounted air conditioner unit (no text or symbols)

(AY-AP7FHR/AY-AP7FHR-WH/AY-AP9FHR/AY-AP9FHR-WH) (AY-AP12FHR/AY-AP12FHR-WH)

ОСТОРОЖНО

(AY-AP7FHR/AY-AP7FHR-WH) (AY-AP9FHR/AY-AP9FHR-WH)

Illustration of a hand pressing a button on an air conditioner unit (no text or symbols visible)

(AY-AP12FHR/AY-AP12FHR-WH)

Illustration of a hand pointing at a computer monitor (no text or symbols visible)

Illustration of a hand using a tool to cut a grid-patterned surface (no text or symbols)

1 ВЫКЛЮЧИТЕ АППАРАТ

2 ВЫНЬТЕ ФИЛЬТРЫ

AY-AP9FHR,AY-AP9FHR-WH/AE-A9FHR

AY-AP12FHR,AY-AP12FHR-WH/AE-A12FHR

AY-AP9FHR.AY-AP9FHR-WH/AE-A9FHR

AY-AP12FHR,AY-AP12FHR-WH/AE-A12FHR

Symbol of a trash bin crossed with no visible text or labels

JEDNOSTKA WEWNETRZNA (AY-AP7FHR/AY-AP7FHR-WH/AY-AP9FHR/AY-AP9FHR-WH)

INDOOR UNIT (AY-AP12FHR/AY-AP12FHR-WH)

⑱ WSKAŹNIK PLASMACLUSTER

⑲ WSKAŻNIKI SZYBKOŚCI WENTYLATORA

⑳ WSKAŹNIK TEMPERATURY I USTAWIEŃ TIMERA
②1 WSKAŹNIK NADAWANIA
⑳ WSKAźNIK TRYBU PRACY TIMERA

Illustration of a wall-mounted air conditioner with a handheld remote control (no text or symbols)

OSTRZEŻENIA

TRYBY COOL I HEAT

Diagram of a mechanical component with internal grooves and a curved arrow indicating rotation (no text or symbols)

Zakres regulacji

Diagram of a hand pressing down on a wall-mounted air conditioner unit (no text or symbols)

(AY-AP7FHR/AY-AP7FHR-WH/AY-AP9FHR/AY-AP9FHR-WH)

Illustration of a hand pressing down on a curved air conditioner cover (no text or symbols)

(AY-AP12FHR/AY-AP12FHR-WH)

TRZEŻENIA

WŁĄCZANIE KLIMATYZATORA

(AY-AP7FHR/AY-AP7FHR-WH) (AY-AP9FHR/AY-AP9FHR-WH)

Illustration of a hand pressing a button on an air conditioner unit (no text or symbols visible)

(AY-AP12FHR/AY-AP12FHR-WH)

Illustration of a hand pressing down on a computer monitor (no text or symbols visible)

Illustration of a hand using a tool to cut a grid-patterned panel (no text or symbols)

1 WYŁĄCZ KLIMATYZATOR.

2 WYJMIJ FILTRY.
