USER MANUAL WML 700 EX.M HOTPOINT

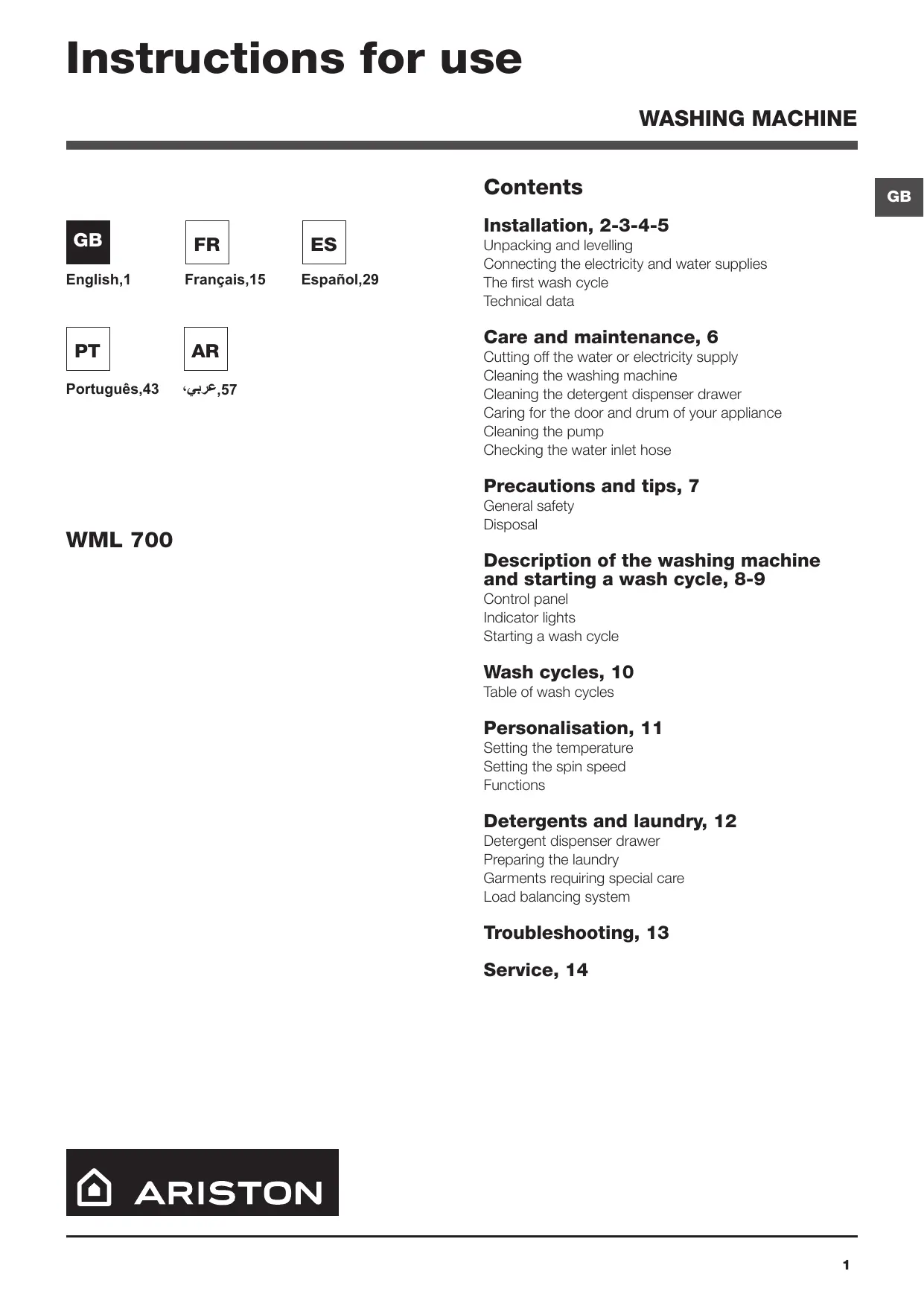

Instructions for use

WASHING MACHINE English,1 Français,15 Español,29 PT AR Português 43 422,57

(Ô\ ARISTON Contents

Installation, 2-3-4-5

Unpacking and levelling

Connecting the electricity and water supplies The first wash cycle

Care and maintenance, 6

Cutting off the water or electricity supply Cleaning the washing machine

Cleaning the detergent dispenser drawer Caring for the door and drum of your appliance Cleaning the pump

Checking the water inlet hose

Precautions and tips, 7 General safety Disposal

Description of the washing machine and starting a wash cycle, 8-9

Starting a wash cycle

Wash cycles, 10 Table of wash cycles

Personalisation, 11 Setting the temperature Setting the spin speed Functions

Detergents and laundry, 12 Detergent dispenser drawer

Preparing the laundry

Garments requiring special care

Load balancing system

! This instruction manual should be kept in a safe place for future reference. If the washing machine is sold, transferred or moved, make sure that the instruction manual remains with the machine so that the new owner is able to familiarise himself/herself with its operation and features.

! Read these instructions carefully: they con- tain vital information relating to the safe instal- lation and operation of the appliance.

Unpacking and levelling Unpacking

1. Remove the washing machine from its packaging.

2. Make sure that the washing machine has not been damaged during the transportation process. fit has been damaged, contact the retailer and do not proceed any further with the installation process.

8. Remove the 3 protective screws (used during transpor- tation) and the rubber washer with the cor- responding spacer, located on the rear part of the appliance (see figure).

4. Close off the holes using the plastic plugs provided.

5. Keep all the parts in a safe place: you will need them again if the washing machine ne- eds to be moved to another location.

! Packaging materials should not be used as toys for children.

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furni- ture cabinets or anything else.

2. If the floor is not perfectly level, com- pensate for any une- venness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measu- red in relation to the worktop, must not exceed 2°.

Levelling the machine correctly will provide

it with stability, help to avoid vibrations and excessive noise and prevent it from shifting while it is operating. If it is placed on carpet or a rug, adjust the feet in such a way as to allow a sufficient ventilation space underneath the washing machine.

Connecting the electricity and water supplies

Connecting the water inlet hose

1. Connect the inlet hose by screwing it to a cold water tap using a 8/4 gas threaded connection (see figu- re).

Before performing the connection, allow the water to run freely until it is perfectly clear.

2. Connect the inlet hose to the washing machine by screwing it onto the correspon- ding water inlet of the appliance, which is situated on the top right-hand side of the rear part of the ap- pliance (see figure).

3. Make sure that the hose is not folded over or bent.

! The water pressure at the tap must fall within the range of values indicated in the Technical data table (see next page).

! If the inlet hose is not long enough, contact a specialised shop or an authorised technician.

! Never use second-hand hoses.

! Use the ones supplied with the machine.

Ô ARISTON Connecting the drain hose

Connect the drain hose, without bending it, to a drain duct or

a wall drain situated between 65 and 100 cm from the floor;

alternatively, placed it over the edge of a basin, sink or tub, fa- stening the duct sup- plied to the tap (see figure). The free end of the hose should not be underwater.

! We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the mains socket, make sure that:

e the socket is earthed and in compliance with the applicable law;

e the socket is able to sustain the appliance's maximum power load indicated on the Tech- nical Data Plate fixed on the machine;

e the supply voltage is included within the values indicated on the Technical Data Plate fixed on the machine.

e the socket is compatible with the washing machine's plug. ff this is not the case, repla- ce the socket or the plug.

Your appliance is now supplied with a 13 amp fused plug it can be plugged into a 18 amp socket for immediate use. Before using the appliance please read the instructions below.

WARNING - THIS APPLIANCE MUST BE EARTHED.

THE FOLLOWING OPERATIONS SHOULD BE CARRIED OUT BY A QUALIFIED ELECTRI- CIAN.

When replacing a faulty fuse, a 13 amp ASTA approved fuse to BS 1362 should always be used, and the fuse cover re-fitted. If the fuse cover is lost, the plug must not be used until a replacement is obtained.

Replacement fuse covers:

If a replacement fuse cover is fitted, it must be of the correct colour as indicated by the colou- red marking or the colour that is embossed in words on the base of the plug. Replacements can be obtained directly from your nearest Service Depot.

If your appliance has a non-rewireable moul- ded plug and you should wish to re-route the mains cable through partitions, units etc., please ensure that either:

the plug is replaced by a fused 13 ampere rewireable plug bearing the BSI mark of ap- proval.

the mains cable is wired directly into a 13 amp cable outlet, controlled by a switch, (in compliance with BS 5733) which is accessible without moving the appliance.

Disposing of the plug:

Ensure that before disposing of the plug itself, you make the pins unusable so that it cannot be accidentally inserted into a socket.

Instructions for connecting cable to an alterna- tive plug:

Important: the wires in the mains lead are co- loured in accordance with the following code: Green & Yellow Earth

As the colours of the wires in the lead may not correspond with the coloured markings iden- tifving the terminals in your plug, proceed as follows:

Connect Green & Yellow wire to terminal marked E or + or coloured Green or Green & Yellow.

Connect Brown wire to terminal marked L or coloured Red.

Connect Blue wire to terminal marked N or coloured Black.

If a 13 amp plug (BS 1363) is used it must be fitted with a

18 amp fuse, either in the plug or adaptor or at the distribution board.

If you are in any doubt regarding the electrical supply to your machine, consult a qualified electrician before use.

How to connect an alternative plug:

The wires in this mains lead are coloured in accordance with the following code:

BLUE NEUTRAL (N) BROWN LIVE (L) GREEN & YELLOW EARTH (E)

cROSS-BaR GORD GRIP.

Disposing of the appliance:

When disposing of the appliance please re- move the plug by cutting the mains cable as close as possible to the plug body and dispo- se of it as described on the previous page.

! The washing machine should not be installed in an outdoor environment, not even where the area is sheltered, because it may be very dangerous to leave it exposed to damp, rain and thunderstorms.

! When the washing machine is installed, the mains socket must be within easy reach.

! Do not use extensions or multiple sockets.

!The power supply cable must never be bent or dangerously compressed.

! The power supply cable must only be repla-

ced by an authorised serviceman.

Warning! The company denies all liability if and when these norms are not respected.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using the programme “Auto Clean” (see “Cleaning the washing machine”).

Ô ARISTON Technical data Model WML 700 width 59.5 cm

Electrical connections

please refer to the technical data plate fixed to the ma- chine

Water con- | MPa (10 bar)

n minimum pressure nections 0.05 MPa (05 bar)

drum capacity 46 litres ï up to 1000 rotations per

Spin speed ne P Test wash cycles in accordance Programme 4: With re- Eco Cotton 60°C. gulations Programme 4: 1061/2010 Eco Cotton 40°C. and 1015/2010

This appliance conforms to the following EC Directives: - 2004/108/EC (Electroma- gnetic Compatibility)

- 2006/96/EC (Low Voltage)

- 2012/19/EU - WÉEE Care and maintenance

Cutting off the water and electri- city supplies

< Turn off the water tap after every wash cycle. This will limit wear on the hydraulic system in- side the washing machine and help to prevent leaks.

+ Unplug the washing machine when cleaning it and during all maintenance work.

Cleaning the washing machine

+ The outer parts and rubber components

of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

+ The washing machine has a “Auto Clean” programme for its internal parts that must be run with no load in the drum.

To help the wash cycle you may want to use either the detergent (i.e. a quantity 10% the quantity specified for lightly-soiled garments) or special addlitives to clean the washing machine. We recommend running a cleaning programme every 40 wash cycles.

To start the programme press buttons À and

B simultaneously for 5 seconds (see figure). The programme will start automatically and Will run for about 70 minutes. To stop the cycle press the START/ PAUSE button.

Cleaning the detergent dispenser drawer

Remove the dispen- ser by raising it and pulling it out (see figure).

Wash it under running water; this operation should be repeated frequently.

Caring for the door and drum of your appliance

< Always leave the porthole door ajar in order to prevent unpleasant odours from forming.

The washing machine is fitted with a self-clea- ning pump which does not require any mainte- nance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber which protects the pump, situated in its bottom part.

! Make sure the wash cycle has finished and unplug the appliance.

To access the pre-chamber:

1. using a screwdri- ver, remove the cover panel on the lower front part of the wa- shing machine (see figure);

2. unscrew the lid by rotating it anti- clockwise (see figu- re): a little water may trickle out. This is perfectly normal;

3. clean the inside thoroughly;

4. screw the lid back on;

5. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use second-hand hoses.

Precautions and tips

1 This washing machine was designed and constructed in accordance with international safety regulations. The fol- lowing information is provided for safety reasons and must therefore be read carefully.

+ This appliance was designed for domestic use only.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabi- lities or lack of experience and knowledge if they have been given supervision or instruc- tion concerning use of the appliance in a safe way and understand the hazards invol- ved. Children shall not play with the applian- ce. Cleaning and user maintenance shall not be made by children without supervision.

Do not touch the machine when barefoot or with wet or damp hands or feet.

Do not pull on the power supply cable when unplugging the appliance from the electricity socket. Hold the plug and pull.

Do not open the detergent dispenser drawer while the machine is in operation

Do not touch the drained water as it may reach extreme- ly high temperatures.

Never force the porthole door. This could damage the safety lock mechanism designed to prevent accidental opening. Ifthe appliance breaks down, do not under any circum- stances access the internal mechanisms in an attempt to repair it yourself.

Always keep children well away from the appliance while it is operating.

The door can become quite hot during the wash cycle.

If the appliance has to be moved, work in a group of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy. Before loading laundry into the washing machine, make sure the drum is empty.

«Disposing of the packaging materials: observe local regu- lations so that the packaging may be re-used.

<The European Directive 2012/19/EU - WEEE on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old applian- ces must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Description of the washing machine and starting a wash cycle

Detergent dispenser drawer: used to dispense detergents and washing additives (see “Detergents and laundry”).

ON/OFF button: switches the washing machine on and off.

WASH CYCLE knob: programmes the wash cycles. Du- ring the wash cycle, the knob does not move.

FUNCTION buttons with indicator light: used to select the available functions. The indicator light corresponding to the selected function will remain lit.

TEMPERATURE knob: sets the temperature or the cold wash cycle (see “Personalisation”).

SPIN SPEED knob: sets the spin speed or exclude the spin cycle completely (see “Personalisation”).

WASH CYCLE PROGRESS/DELAY TIMER indicator lights: used to monitor the progress of the wash cycle. The illuminated indicator light shows which phase is in progress.

Ifthe Delay Timer function has been set, the time remaining until the wash cycle starts will be indicated (see next page).

DOOR LOCKED indicator light: indicates whether the door may be opened or not (see next page).

\ | START/PAUSE | button with indicator FUNCTION light

buttons with indicator lights

START/PAUSE button with indicator light: starts or tem- porarily interrupts the wash cycles.

NB. To pause the wash cycle in progress, press this button; the corresponding indicator light will flash orange, while the indicator light for the current wash cycle phase will remain lit in a fixed manner. If the DOOR LOCKED g indicator light is switched off, the door may be opened (wait approximately 3 minutes).

To start the wash cycle from the point at which it was inter- rupted, press this button again.

This washing machine, in compliance with new energy sa- ving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again.

Ô ARISTON Indicator lights

The indicator lights provide important information. This is what they can tell you:

Ifthe DELAY TIMER function has been activated (see “Per- sonalisation”), after the wash cycle has been started the indicator light corresponding to the selected delay period will begin to flash:

LE As time passes, the remaining delay will be displayed and the corresponding indicator light will flash:

6h on + 9h = © 12h = +7

Once the set delay has elapsed, the flashing indicator light will switch off and the selected wash cycle will begin.

Starting a wash cycle

Wash cycle phase indicator lights

Once the desired wash cycle has been selected and has begun, the indicator lights switch on one by one to indicate which phase of the cycle is currently in progress

End of wash cycle » END Function buttons and corresponding indicator lights When a function is selected, the corresponding indicator light will illuminate:

If the selected function is not compatible with the pro- grammed wash cycle, the corresponding indicator light will flash and a sound alert (3 beeps); the function will not be activated.

If a function which is incompatible with another function selected previously, only the most recent selection will remain active.

@ Door locked indicator light

If this indicator light is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damage, wait for the indicator light to switch off before you open the appliance door (wait approximately 3 minutes). N.-B. Ifthe DELAY TIMER function is activated, the door cannot be opened; pause the machine by pressing the START/PAUSE button if you wish to open it.

TIfthe START/PAUSE indicator light (orange) flashes rapidly at the same time as the function indicator light, this indicates a problem has occurred (see “Troubleshooting”).

1. Turn the washing machine on by pressing the ON/OFF button. All the indicator lights will turn on for a few seconds, then only the indicator lights relative to the selected programme settings will remain lit and the START/PAUSE indicator light will flash.

. Load the laundry and close the door. . Set the WASH CYCLE knob to the desired programme. . Set the washing temperature (see “Personalisation”).

. Measure out the detergent and washing additives (see “Detergents and laundry").

2. 3. 4 5. Set the spin speed (see “Personalisation”). 6. 7. Select the desired functions.

. Start the wash cycle by pressing the START/PAUSE button and the corresponding indicator light will remain lit in a fixed

To cancel the set wash cycle, pause the machine by pressing the START/PAUSE button and select a new cycle.

9. At the end of the wash cycle the END indicator light will switch on. The DOOR LOCKED indicator light will switch off, indi- cating that the door may be opened (wait approximately 3 minutes). Take out your laundry and leave the appliance door ajar to make sure the drum dries completely. Switch the washing machine off by pressing the ON/OFF button.

Table of wash cycles

8 Detergents & £ $ n Max. | Max, | LL lé 2 |Pescription of the wash cycle temp. spood ë £ É 2 É ÈS: ; ACIEIE 1_jAnti Stain 40° 1000 | e [e]e|e 4 180" 2 [Whites 60° 1000 | e |e|-]e 4180 8 |Cotton: ightiy soled resistant and délicate colours ace 0 00e else )7 is 4_|Eco Cotton 60° (1): heavy soiled whites and resistant colours. 60° _[1000[ - [e]-]e |] 7 |1es" 4 [Eco Cotton 40° (2): light soled resistant and delicate colours: 40 | 1000 ele 7 18 5 |Synthetics: heavi solled resistant colours. 6 |l100!elele|e 3120 5 |Synthetics (3}: lghiy solled resistant colours. 10 li00w!elel ele |3 lo 6 jAntiallergy 60° |1000[ - [e)-]e | 4 [185 7 [Baby 40° [100 | e [e|e]e | 3 [145 8 [Woo for wool, cashmere, etc. 20° goo | - [el |e 15/80 9 [Pelicates 30° 0 - [el-lel11)7s 10 (Lana fr una ak al cotes vien eur een by han co 100)" |e)-)e1ss]00 Cotton 20°: lightiy soiled resistant and delicate colours. 20° _|1000|[ - [e]e]e |7 [180 Eco Cottons Cold Water] 1000 | - | e[ - | e | 7 |100' Eco Synthetics Cold Water! 1000 | - |e[ - | e | 3 [75 Eco Fast 30 Cold Water] 800 | - [e[ - | e | 3 | 30° Rinse - 1000[ - |-[Je]e 7 |4 Spin and Pump out - 1000 | - |-|-|-)7 10 Pump out only * - |-l-|[-]-171|5

+ 2 If you select programme Ti and exclude the spin cycle, the machine will drain only.

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary accor- ding to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selectecl.

1) Test wash cycle in compliance with regulation 1061/2010: set wash cycle 4 with a temperature of 60°C. This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of bath electrcify and water consumption; it should be used for garments which can be washed at 60°C . The actual washing temperature may dilfer from the indicated value.

2) Test wash cycle in compliance with regulation 1061/2010: set wash cycle 4 with a temperature of 40°C. This cycle is designed for cotton loads with a normal soil level and is the most eficient in terms of both electrcity and water consumption; it should be used for garments which can be washéd at 40°C . The actual washing temperature may differ from the indicated value.

For all Test Institutes: 2) Long wash cycle for cottons: set wash cycle 4 with a temperature of 40°C. 3) Long wash cycle for synthetics: set wash cycle 5 with a temperature of 40°C.

Anti Stain: the programme 1 is suitable to heavily-soiled garments with resistant colours. It ensures a washing class that is higher than the standard class (A class). When running the programme, do not mix garments of different colours. We recom- mend the use of powder detergent. Pre-treatment with special additives is recommended if there are obstinate stains. Whites: use this cycle 2 to wash white clothes. The programme is designed to maintain the brightness of white clothes over time. Use powder detergent for best results.

Anti allergy: use programme 6 to remove major allergens such as pollen, mites, cat's and dog's hair.

Baby: use the special wash cycle 7 to remove the remove the soiling typically caused by babies, while removing all traces of detergent from nappies in order to prevent the delicate skin of babies from suffering allergic reactions. The cycle has been designed to reduce the amount of bacteria by using a greater quantity of water and optimising the effect of special disinfec- ting additives added to the detergent.

The Eco Cycles assure energy saving by eliminating the need of heating water and it's an advantage both to your energy bill and the environment! These innovative Eco programmes (12 Eco Cottons, 13 Eco Synthetics and 14 Eco Fast 30”) are available for various fabrics and different quantity of garment; they have been designed to guarantee a high cleaning action even at low temperature and can be used for lightly to medium soiled loads. Eco Cycles give the best results thanks to an intensified wash action, water optimization and are carried out in the same average time of a standard cycle. For the best washing results with Eco Cycles we recommend the usage of a liquid detergent.

Cotton 20°: the programme 11 ideal for lightly soiled cotton loads. The effective performance levels achieved at cold temperatures, which are comparable to washing at 40°, are guaranteed by a mechanical action which operates at varying

speed, with repeated and frequent peaks.

Personnalisation Ô ARISTON Setting the temperature Turn the TEMPERATURE knob to set the wash temperature (see Table of wash cycles).

The temperature may be lowered, or even set to a cold wash (5).

The washing machine will automatically prevent you from selecting a temperature which is higher than the maximum value set for each wash cycle

! Exception: if the 3 programme is selected, the temperature can be increased up to a value of 90°C:

Setting the spin speed

Turn the SPIN SPEED knob to set the spin speed for the selected wash cycle. The maximum spin speeds available for each wash cycle are as follows: Wash cycles Maximum spin speed

Cottons 1000 rpm Synthetics 1000 rpm Wool 800 rpm

The spin speed may be lowered, or the spin cycle can be excluded altogether by selecting the symbol &. The washing machine will automatically prevent you from selecting a spin speed which is higher than the maximum speed set for each wash cycle

The various wash functions available with this washing machine will help to achieve the desired results, every time To activate the functions:

1. Press the button corresponding to the desired function;

2. the function is enabled when the corresponding indicator light is illuminated.

- [fthe selected function is not compatible with the programmed wash cycle, the corresponding indicator light will flash and a sound alert (3 beeps); the function will not be activated.

- fa function which is incompatible with another function selected previously, only the most recent selection will remain active.

This option offers a high-performance wash due to the greater quantity of water used in the initial phase of the cycle, and due to the increased wash cycle duration, is particularly useful for the removal of stubborn stains. It can be used with or without bleach. If you desire bleaching, insert the extra tray compartment (4) into compartment 1. When pouring in the bleach, be careful not to exceed the “max” level marked on the central pivot (see figure pag. 12).

By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. At the end of the cycle the washing machine will perform slow rotations of the drum: the EASY IRON indicator light will flash and the END phase will remain lit in a fixed manner. To end the cycle, press the START/PAUSE button or the EASY IRON button.

\P/ Prewash If this function is selected, the pre-wash cycle will run; this is useful for removing stubborn stains. N.B.: Put the detergent in the relevant compartment.

This timer delays the start time of the wash cycle by up to 12 hours

Press the button repeatedly until the indicator light corresponding to the desired delay time switches on. The fifth time the button is pressed, the function will be disabled.

N.B. Once you have pressed the START/PAUSE button, the delay time may only be decreased if you wish to modify it

Detergents and laundry

Detergent dispenser drawer

Good washing results also depend on the correct dose of detergent: adding too much detergent will not necessa- rily result in a more efficient wash, and may in fact cause build up on the inside of your appliance and contribute to environmental pollution.

! Use powder detergent for white cotton garments, for pre-washing, and for washing at temperatures over 60°C.

! Follow the instructions given on the detergent packaging.

? Do not use hand washing detergents because these create too much foam.

Open the detergent di- spenser drawer and pour in the detergent or washing additive, as follows.

compartment 1: Pre-wash detergent (powder) Before pouring in the detergent, make sure that extra com- partment 4 has been removed.

compartment 2: Detergent for the wash cycle (powder or liquid)

ff liquid detergent is used, it is recommended that the removable plastic partition A (supplied) be used for proper dosage.

If powder detergent is used, place the partition into slot B. compartment 3: Additives (fabric softeners, etc.) The fabric softener should not overflow the grid.

extra compartment 4: Bleach

Preparing the laundry

- Divide the laundry according to: - the type of fabric/the symbol on the label - the colours: separate coloured garments from whites. + Empty all garment pockets and check the buttons. + Do not exceed the listed values, which refer to the weight of the laundry when dry: see “Table of wash cycles”.

How much does your laundry weigh?

1 pillow case 150-200 g 1 tablecloth 400-500 g

Garments requiring special care

Woo! - Woolmark Apparel Care - Green:

the wool wash cycle of this machine has been approved by The Woolmark Company for the washing of wool gar- ments labelled as “hand wash” provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine.

In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark.

Delicates: use programme 9 to wash very delicate gar- ments having strasses or sequins.

We recommend turning the garments inside out before washing and placing small items into the special bag for washing delicates.

Use liquid detergent on delicate garments for best results. To wash silk garments and curtains select cycle 9 and then function A ; the machine will end the cycle while the laundry is soaking and the Æ=_ indicator light will flash. To drain the water so that the laundry may be removed, press the START/PAUSE button or the = button.

Load balancing system

Before every spin cycle, to avoid excessive vibrations and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load

Troubleshooting Ô ARISTON Your washing machine could fail to work. Before contacting the Technical Assistance Centre (see ‘Assistance”), make sure that the problem cannot be solved easily using the following list.

Problem: The washing machine does not + The appliance is not plugged into the socket fully, or is not making contact. switch on. + There is no power in the house. The wash cycle does not start. + The washing machine door is not closed properly. + The ON/OFF button has not been pressed. + The START/PAUSE button has not been pressed + The water tap has not been opened. + A delayed start has been set (see “Personalisation”). The washing machine does not + The water inlet hose is not connected to the tap.

take in water (the indicator light for + The hose is bent. the first wash cycle stage flashes . The water tap has not been opened. rapidly). + There is no water supply in the house. + The pressure is too low. + The START/PAUSE button has not been pressed

The washing machine continuously + The drain hose is not fitted at a height between 65 and 100 cm from the floor takes in and drains water. (see “installation”). + The free end of the hose is under water (see “installation”). + The wall drainage system is not fitted with a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and contact the Assistance Service. If the dwelling is on one of the upper floors of a building, there may be problems relating to water drainage, causing the washing machine to fill with water and drain continuously. Special anti-draining valves are available in shops and help to avoid this inconvenience.

The washing machine does not + The wash cycle does not include draining: some wash cycles require the drain drain or spin. phase to be started manually. + The EASY IRON function has been activated: To complete the wash cycle, press the START/PAUSE button (‘Personalisation”). + The drain hose is bent (see “nstallation”). + The drainage duct is clogged.

The washing machine vibrates a lot. The drum was not unlocked correctly during installation (see “installation”. during the spin cycle. + The washing machine is not level (see “installation”). + The washing machine is trapped between cabinets and walls (see “nstallation”).

The washing machine leaks. + The water inlet hose is not screwed on proper (see “nstallation”) + The detergent dispenser drawer is blocked (for cleaning instructions, see “Care and maintenance”). + The drain hose is not fixed properly (see “nstallation”).

The START/PAUSE indicator light + Switch off the machine and unplug it, wait for approximately 1 minute and

(orange) and the function indicator then switch it back on again. lights flash rapidly. I the problem persists, contact the Technical Assistance Service. There is too much foam. + The detergent is not suitable for machine washing (it should display the text

“for washing machines” or “hand and machine wash”, or the like). + Too much detergent was used.

Before calling for Assistance:

+ Check whether you can solve the problem alone (see “Troubleshooting”);

+ Restart the programme to check whether the problem has been solved;

+ Ifthis is not the case, contact an authorised Technical Assistance Centre using the telephone number provided on the guarantee certificate

1 Always request the assistance of authorised technicians.

Have the following information to hand:

+ _the type of problem;

+ _the appliance model (Modi.);

+ _the serial number (S/N).

This information can be found on the data plate applied to the rear of the washing machine, and can also be found on the front of the appliance by opening the door.

Anomalies: Causes / Solutions possibles:

6h on + 9h = © 12h © +7

WML 700 at e= 59.5 > ll

.('sbanastl" il) of 5 sal Le ju us.
