HW-J8501R - Soundbar SAMSUNG - Free user manual and instructions

Product type	Soundbar
Brand	Samsung
Model	HW-J8501R
Dimensions (W x H x D)	1160 x 75 x 145 mm
Weight	5.5 kg
Power supply	120-240 V, 50/60 Hz
Power consumption	50 W
Output power	600 W
Number of channels	9.1 channels
Main features	Bluetooth, Wi-Fi, HDMI ARC, USB, Dolby Digital, DTS, SoundShare, Multiroom Link
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use chemical products.
Safety	Do not expose to moisture. Use only the supplied adapter.
Spare parts and repairability	Contact Samsung customer service for parts. Repairability index: 7/10.
General information	Made in China. 2-year warranty.

Frequently Asked Questions - HW-J8501R SAMSUNG

How to connect the soundbar to my TV?

Use an HDMI ARC or optical cable to connect the soundbar to your TV. Make sure the HDMI ARC port is enabled in the TV settings.

The soundbar does not turn on, what should I do?

Check that the power cable is properly connected and the outlet works. If the problem persists, try resetting the soundbar by unplugging it for 30 seconds.

How to use the Bluetooth function?

Press the Source button on the soundbar until Bluetooth appears. Turn on Bluetooth on your mobile device and select 'Samsung HW-J8501R' from the list.

Can I connect wireless rear speakers?

Yes, this soundbar is compatible with Samsung SWA-9000S wireless rear speakers (sold separately). Follow the installation guide to pair them.

How to adjust the subwoofer volume?

Use the supplied remote control to adjust the subwoofer level (WOOFER button). You can also do this via the Samsung Audio Remote app.

What to do if the sound is out of sync with the picture?

Go to the soundbar menu and enable the 'Sync' or 'Audio Sync' function to adjust the audio delay. You can also adjust this setting from your TV.

How to clean the soundbar?

Use a soft, dry cloth to dust the grille and casing. Never use abrasive products or solvents.

Can I use the soundbar without a remote?

Yes, you can use the physical buttons on the back of the soundbar to turn on/off, change source, and adjust volume.

How to update the firmware?

Download the latest update from the Samsung website and put it on a USB flash drive. Plug the drive into the soundbar, then follow the on-screen instructions (via the Samsung Audio Remote app).

The soundbar is unresponsive, what should I do?

Perform a factory reset: press and hold the 'Volume -' and 'Source' buttons simultaneously for 5 seconds. The soundbar will restart.

USER MANUAL HW-J8501R SAMSUNG

For further information, refer to the Web Manual.

Web manual : www.Samsung.com → Support →

Product name search → HW-J8500R or HW-J8501R

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

	CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPEN			This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.
				This symbol indicates that important literature concerning operation and maintenance has been included with this product.

	Class II product : This symbol indicates that it does not require a safety connection to electrical earth (ground).
~	AC voltage : This symbol indicates that the rated voltage marked with the symbol is AC voltage.
	DC voltage : This symbol indicates that the rated voltage marked with the symbol is DC voltage.
	Caution, Consult instructions for use : This symbol instructs the user to consult the user manual for further safety related information.

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to a AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

CAUTION

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

PRECAUTIONS

1. Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the rear of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7\~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.
2. During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit.
3. Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit to malfunction.
4. Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Unplug the power cable from the AC wall socket if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using.
5. The battery used with this product contains chemicals that are harmful to the environment. Do not dispose of the battery in the general household trash. Do not expose the battery to excess heat, direct sunlight, or fire. Do not short circuit, disassemble, or overheat the battery. Danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type.

WARNING: DO NOT INGEST BATTERY. CHEMICAL BURN HAZARD.

The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

CHECKING THE COMPONENTS

Soundbar Main Unit

② AC/DC Adapter ③ Power Cord

Subwoofer

① Power Cord

Remote Control / Battery

√ Use Cat 7 (*STP Type) cable for the connection.

* Shielded Twist Pair

CONNECTING ELECTRICAL POWER

Use the power components (1, 2, 3) to connect the power supplies in the following order:

Subwoofer → Soundbar Main Unit

√ For more information about the power supply and power consumption, refer to the label attached to the product. (Label : Bottom of Soundbar main unit)

Rear of Subwoofer

Connecting electrical power

Rear of the Soundbar Main Unit

DC 24V (Power Jack)

√ Make sure to rest the AC/DC Adapter flat on a table or the floor. If you place the AC/DC Adapter so that it is hanging with the AC cord input facing upwards, water or other foreign substances could enter the Adapter and cause the Adapter to malfunction.

CONNECTING THE SUBWOOFER TO THE SOUNDBAR MAIN UNIT

You can enjoy rich bass tones and better sound quality by linking the subwoofer to the Soundbar main unit.

Soundbar Main Unit

Subwoofer

The Soundbar main unit and subwoofer should link (connect wirelessly) automatically when the Soundbar main unit and subwoofer are turned on. When auto-connection is complete, the blue indicator on the top of the subwoofer stops blinking and glows blue continuously.

√ If the indicator on the top of the subwoofer displays in red or flashes in blue, the subwoofer has not automatically connected. If this occurs, follow the directions below to connect the subwoofer manually.

√ Important: Before you begin, put the battery into the remote. See page 17 for instructions.

1. Plug the power cords of the Soundbar main unit and subwoofer into an AC wall outlet.

2. Press the ID SET button on the rear of the subwoofer for 5 seconds. The red indicator on the top of the subwoofer turns off and the blue indicator flashes rapidly.

3. Press the 📋 button on your remote control for 5 seconds while the Soundbar main unit is turned OFF.

4. The ID SET message appears on the display of the Soundbar main unit for a short period of time, and then disappears.

1. While the subwoofer's indicator is flashing blue, press the ⏻ button on your remote control or on the top of the Soundbar main unit to turn on the Soundbar main unit.

2. The connection is complete if the indicator on the top of the subwoofer stops flashing and glows continuously.

√ If the connection process fails, the blue indicator will flash continuously. Go to Step 2 and start again.

CONNECTING TO YOUR TV

You can enjoy TV sound after connecting the Soundbar to your TV with or without a cable.

√ Important: Before you begin, put the battery into the remote. See page 17 for instructions.

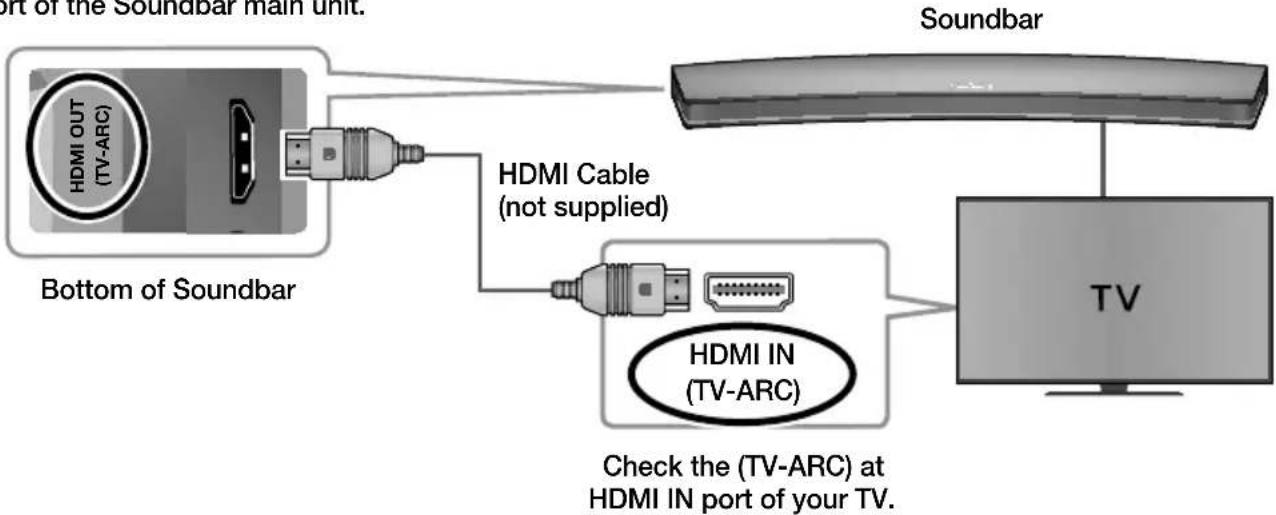

Method 1. Connecting with a Cable

Check the HDMI OUT (TV-ARC)

port of the Soundbar main unit.

1. Connect the HDMI cable (not supplied) as in the picture above.
2. TV ARC appears on display of the product and TV sound is output.

√ If TV sound is not output, press the ➕ button on the top of your Soundbar or the SOURCE button on the remote control to select the D.IN mode on Soundbar main unit display. Then, the D.IN mode is changed to TV ARC and TV sound is output.
√ If the Soundbar main unit display does not change to TV ARC, check the cable connections.
√ You can conveniently control the volume of the Soundbar and interlock power supply.

Method 2. TV SoundConnect (Linking to a Samsung TV with Bluetooth)

1. Turn on your Samsung TV and the Soundbar.

2. Select TV mode in your Soundbar display by pressing the ➕ button on the top of the Soundbar or the SOURCE button on your remote control. (Modes are displayed in the following order: D.IN → AUX → HDMI → BT → TV.)

1. When the connection message shown below appears on the TV screen, select with your TV remote control.

Select with your TV remote control.

1. The Soundbar outputs TV sound.

√ If the TV SoundConnect linking process fails, navigate to SoundConnect in the TV's Sound menu, select Add New Device, and set Add New Device to ON. Then, try again.
√ If your Soundbar is connected to your TV through TV SoundConnect, you can conveniently control the volume with the Soundbar's remote or the TV's remote.
√ The TV SoundConnect (Soundshare) function is only available in some Samsung TV products released since 2012.
√ If you want to disconnect the existing connection to your TV and establish a new connection to another TV, press the ▶II button on your remote control for more than 5 seconds.
√ In the TV SoundConnect mode, the Soundbar cannot be paired to another Bluetooth device.
√ Do not place electronic devices or metallic objects on top of the product. e.g., Wired/wireless router, set-top box, or modem.
√ Placing the product on the floor may degrade wireless network performance, depending on the floor material.

Method 3. Connecting to a Wireless Network

Installing the Samsung Multiroom App and Connecting Wirelessly

To install Samsung Multiroom app for the first time, follow the steps shown below.

1. Press and hold the SPK ADD button on the rear of the Soundbar for more than 1 second.

- There is a notification sound and the message "ADD SPEAKER" appears on the Soundbar's main unit. Afterwards, the message "WIFI READY" appears when standby-for-connection mode activates.

1. Connect your smart device (smart phone, tablet, etc.) to your wireless router.

Rear of Soundbar

Internet Wireless Router Smart Device

1. Install the Samsung Multiroom app on your smart device (smart phone, tablet, etc.).
2. Launch the Samsung Multiroom app.

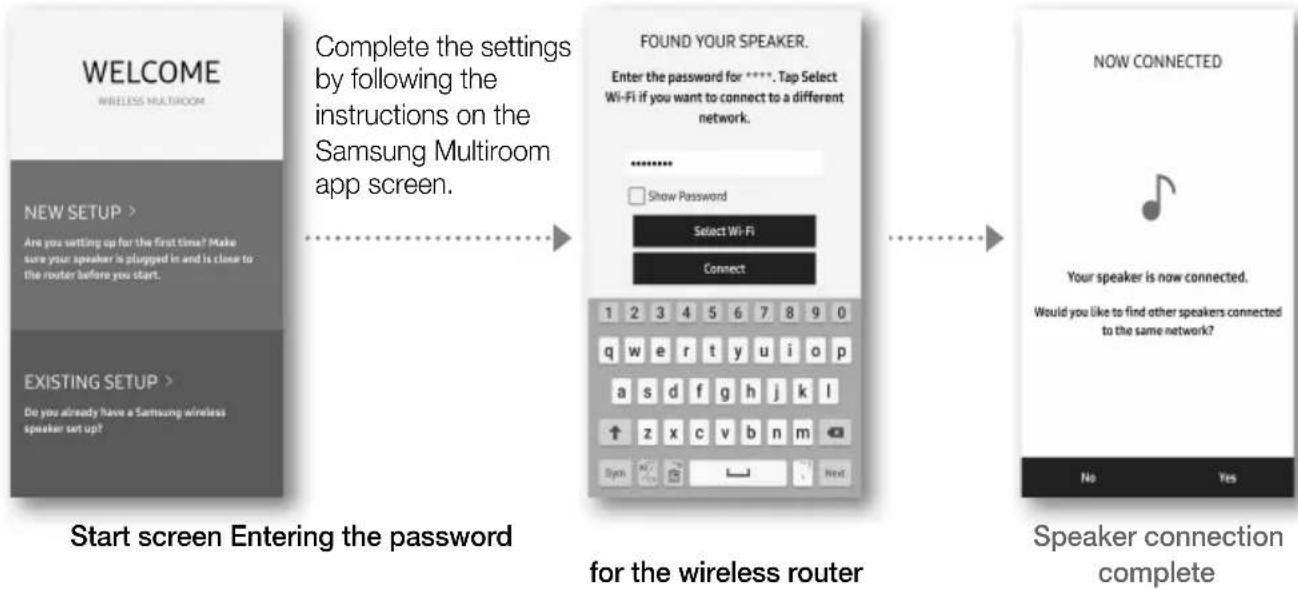

1. Complete the initial settings by following the instructions on the app screen.

√you must enter the password of your wireless router to connect your Soundbar to your wireless network through Samsung Multiroom app.

√ If your wireless router has no designated password, the app completes the initial settings without asking you to enter a password.

Adding the Soundbar to an Existing Multiroom Audio System

If the Samsung Multiroom app is already installed for use with another multiroom audio device, follow these steps to add the Soundbar.

1. Press and hold the SPK ADD button on the rear of the Soundbar for more than 1 second.

- There is a notification sound and the message "ADD SPEAKER" appears on the Soundbar's main unit. Afterwards, the message "WIFI READY" appears when standby-for-connection mode activates.

Rear of Soundbar

1. Connect your smart device (smart phone, tablet, etc.) to your wireless router.

Internet Wireless Router Smart Device

1. Launch the Samsung Multiroom app.
2. Touch ≡ to go to the list of all speakers.
3. Select More > Add New Speaker in the app, and then follow the instructions on the app screen.

Complete the settings by following the instructions on the Samsung Multiroom app screen.

Start screen Selection of network
Speaker addition complete

√ To connect a different network, select No.

You must enter the password of your wireless router to connect your Soundbar to your wireless network through the Samsung Multiroom app.

If your wireless router does not have a designated password, the app completes the initial settings without asking you to enter a password.

Connecting the Soundbar to your Samsung Smart TV

You can connect your TV to the Soundbar through a wireless network and enjoy the TV sound.

√ Important: Make sure that the TV and Soundbar are connected to the same network. (How to check your Samsung TV network : Home menu → Network → Network Status)

Configuring Settings from your Samsung Smart TV

√ To play sound via the Soundbar, make sure that your TV model supports the Multiroom feature (Samsung Smart TVs released after 2014).
√ If the TV is disconnected from the wireless network due to a change to the input source of the Soundbar, use the TV menu to re-establish the connection.

■ For TVs released in 2016

1. Home menu → Settings (💡) → Sound → Sound Output → Select [Samsung] HW-Jxxxx (Wi-Fi)
2. TV sound is output.

■ For TVs released in 2015

1. Home menu → Sound → Speaker List → Select [Samsung] HW-Jxxxx (Wi-Fi)
2. TV sound is output.

■ For TVs released in 2014

1. Home menu → Sound → Speaker Settings → Select Multiroom Link - Settings → Soundbar+Surround
2. From the Soundbar position, select "J8500" and select "OK".
3. Home menu → Sound → Speaker Settings → Select TV Sound Output → Multiroom Link

1. TV sound is output.

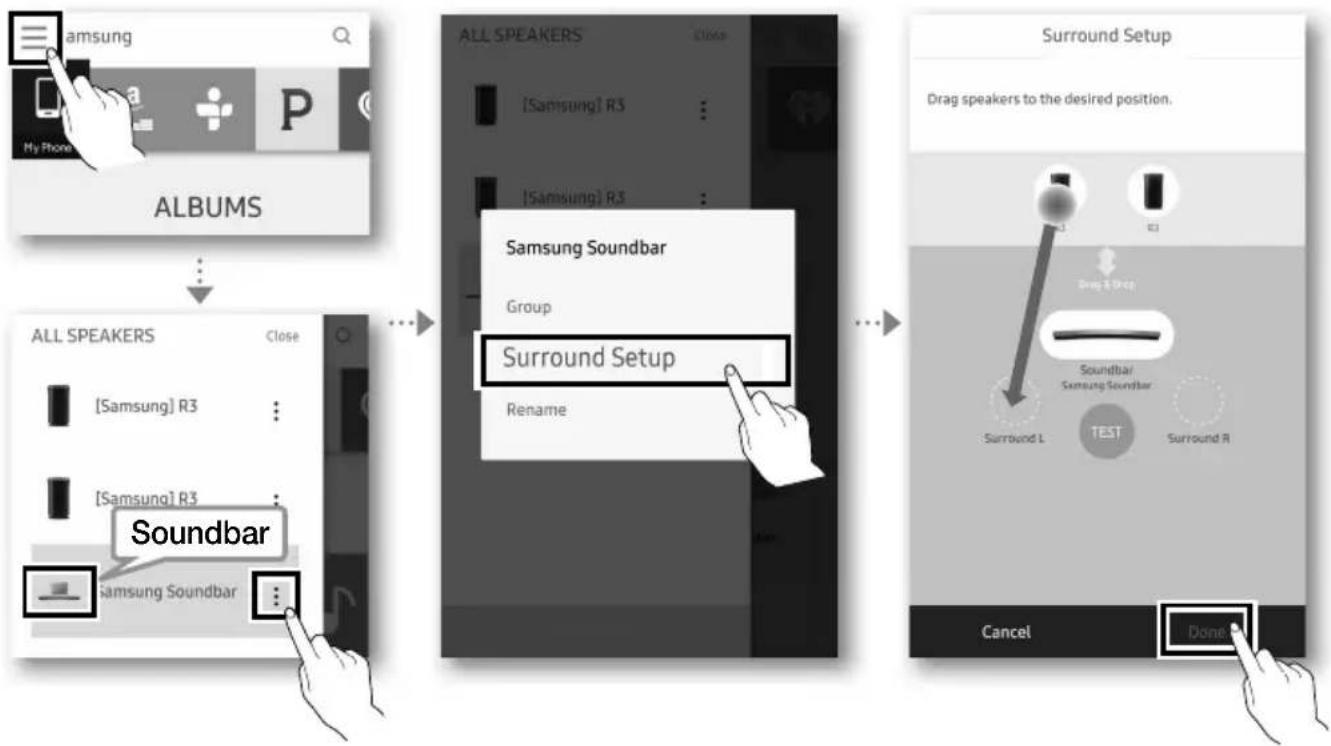

Connecting Samsung Multiroom Audio System to the Surround

You can enjoy three-dimensional sound in surround mode after connecting two Multiroom Audios and a Soundbar.

√ Surround connection between a Multiroom Audio and a Soundbar is unavailable.

1. Touch ≡ to go to the list of all speakers.
2. Touch : on the right of the Soundbar model name.
3. Touch Surround Setup. Select Done after dragging the speaker to the desired location.
4. Surround connection is completed.

√ Refer to the web manual for connection between the TV and the surround.

CONNECTION VIA BLUETOOTH

You can connect a Bluetooth device to the Soundbar and enjoy music with stereo sound, all without wires!

√ It is not possible to connect multiple Bluetooth devices at the same time.

1. Press the button on the top of the Soundbar or the SOURCE button on the remote control to select BT.
2. Select the Bluetooth menu on the Bluetooth device you want to connect. (Refer to the Bluetooth device's user manual.)
3. Select "[Samsung] HW-Jxxxx" from the list.

- When the connection is established between the Soundbar and Bluetooth device, the front display window of the Soundbar displays [Bluetooth device name] → BT.

1. Play music on the connected device.

[If failed to connect to the Bluetooth device / If device searching is needed again]

- Delete the previous "[Samsung] HW-Jxxxx" found by the Bluetooth device and have it search for the Soundbar again.

√ If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
√ In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters.
√ The Soundbar automatically turns off after 15 minutes in the Ready state.
√ The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

• If there is a strong electrical field around the Soundbar.
• If several Bluetooth devices are simultaneously paired with the Soundbar.
• If the Bluetooth device is turned off, not in place, or malfunctions.

√ Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

Disconnecting the Soundbar from the Bluetooth device

Press the SOURCE button on the remote control or the ➞ button on the product's top to switch from BT to another mode or turn off the Soundbar.

- The connected Bluetooth device will wait a certain amount of time for a response from the Soundbar before terminating the connection. (Disconnection time may differ, depending on the Bluetooth device)

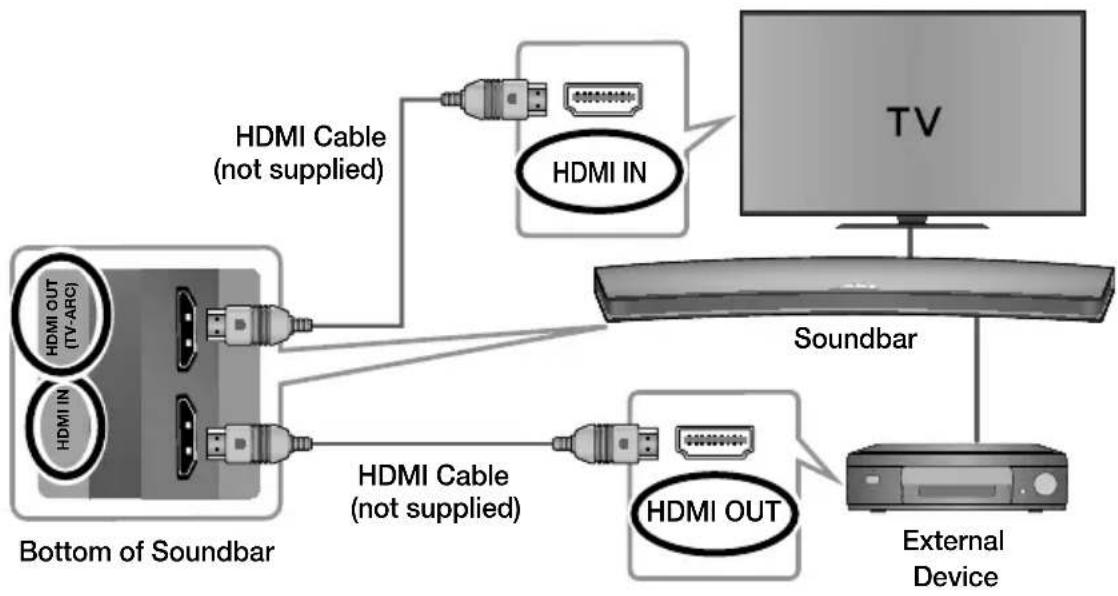

CONNECTING TO AN EXTERNAL DEVICE

You can enjoy sound from separate external devices such as a BD player/game console/set-top box, etc. by connecting them to your Soundbar.

1. Connect the HDMI cable (not supplied) as in the picture above.
2. Press the button on top of your Soundbar or the SOURCE button on your remote control to select HDMI mode.
3. The Soundbar shows HDMI on its display and output sound.

SOFTWARE UPDATE

Samsung may offer updates for the Soundbar's system firmware in the future.

Auto Update

The automatic update function is enabled on the Soundbar by default. Automatic firmware updates are searched for and performed if the Soundbar is connected to the Internet, irrespective of whether it is turned on or off.

√ To use the Auto Update function, the Soundbar must be connected to the Internet.

The Wi-Fi connection to the Soundbar will be terminated if its power cord is disconnected or the power is cut off. If the power is cut off, turn on the Soundbar and reconnect it.

Updating with USB

If an update is offered, you can update the firmware by connecting a USB device with the firmware update stored on it to the USB port on your Soundbar.

For more information about how to download update files, go to the Samsung Electronics website at (samsung.com/sec) → search for the model name → download the firmware from the customer support menu option. The option name can vary.

INSTALLING THE WALL MOUNT

Installation Precautions

• Install on a vertical wall only.
- Do not install the Soundbar system in a location with high temperature and/or humidity. Install the system on a stable wall that can bear the weight of the Soundbar main unit.
- Check the strength of the wall. To install the Soundbar system on a wall that may not bear the Soundbar main unit weight, reinforce the wall before installation. If this is not possible, install the system on another wall, one stable enough to bear the weight of the Soundbar main unit.
- Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs.
- Purchase wall mounting screws according to the type and thickness of the wall you will mount the Soundbar on.
- Diameter : M5
- Length: 35 mm or longer recommended.
- Connect cables from the unit to external devices before you install it on the wall.
- Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

For Soundbar Main Unit (Wallmount Components)

Holder-Screw 1 (4 EA)	Holder-Screw 2(for Soundbar main unit fixing) (4 EA)
Wall-Mount Bracket	Holder-Fix Mount(for wall-mount fixing)

1. Place the Soundbar as shown in the illustration, ensuring that none of the buttons touch the surface it is lying on. You can use the Soundbar's packaging to support its two ends.
2. If the Holder-Foot (3 EA) and Holder-Support (2 EA) are attached, remove them.

1. Fix Holder-Screw 1 (4 EA) and Holder-Screw 2 (for Soundbar main unit fixing) (4 EA) into the holes of the Soundbar tightly as shown in the illustration.

1. Insert the Wall-Mount Screws into the 3 holes one by one to fix the Wall-Mount Bracket on the wall.

√ Recommended screw : M5

1. Mount the Soundbar on the Wall-Mount Bracket in order of the following illustration (1 → 2).

5

1. Fix the Holder-Fix Mount (for wall-mount fixing) to join the Wall-Mount Bracket with the Soundbar.

6

√ Wall-Mount Screws are not provided.

√ Since different types of wall-mount screws are required depending on your wall, you should check your wall before installation and purchase the appropriate wall-mount screws to use.

REMOTE CONTROL BUTTONS & FEATURES

Inserting Battery before using the Remote Control

1. Use a suitable coin to turn the remote control's battery cover counterclockwise to remove it as shown in the figure below.
2. Insert a 3V lithium battery. Keep the positive (+) pole facing up when inserting the battery. Put the battery cover on, and then align the '●' marks side by side as shown in the figure below.
3. Use a suitable coin to turn the remote control battery cover clockwise as far as it will go to fix it in place.

1	Power	Turns the Soundbar on and off.
2	SOURCE	Press to select a source connected to the Soundbar.
3	Mute	Sets the volume temporarily to 0.Press again to cancel.
4	Volume	Adjusts the volume level of the unit.
5	Play / Pause	Press the ▶II button to pause a music temporarily.Press the ▶II button again to play the selected music.
	Skip Forward	Selects the next file.
	Skip Back	Selects the previous file.
	Repeat	The Repeat function is available only when playing back music from Songs on phone or DMS of Samsung Multiroom app.OFF-REPEAT: Cancels Repeat Playback.TRACK-REPEAT: Plays a track repeatedly.ALL-REPEAT: Plays all tracks repeatedly.
6	Surround Sound	The Surround Sound function adds depth and a sense of space to sound.When this button is pressed, ON or OFF is repeatedly alternated.
7	SOUNDCONTROL	You can select from TREBLE, BASS or AUDIO SYNC.To control the volume of the treble or bass sound, select TREBLE or BASS in Sound Settings, and then adjust the volume between -3~+3 by using the , buttons.If the video and audio between the TV and your Soundbar are not synchronized, selectAUDIO SYNCin Sound Settings, and then set audio delay between 0~300 milliseconds by using the , buttons.
8	SOUND EFFECT	You can select from 6 sound modes: STANDARD, MUSIC, CLEAR VOICE, SPORTS, MOVIE, and NIGHT.NIGHT ModeWhen changing a channel or music source, the volume difference between different music input sources is automatically adjusted to be suitable for listening.
9	Anynet+	You can turn the Anynet+ and Auto Power Link on or off.The Anynet+ and Auto Power Link work in reverse to each other.Anynet+: if connected through HDMI cable, you can control your Soundbar with the Samsung TV remote control.Auto Power Link: the Soundbar is automatically turned on when turning on the TV connected through optical input.
10	WOOFER	You can adjust the subwoofer volume between -12, or -6~+6 levels.
11	STREAMINGMUSIC	You can enjoy internet radio through Streaming Music.You can select your desired station from 3 internet radio stations by default.To use Streaming Music function, you should connect your Soundbar to a network.

TROUBLESHOOTING

Before seeking assistance, check the following.

The unit will not turn on.

Is the power cord plugged into the outlet?

Connect the power plug to the outlet.

A function does not work when the button is pressed.

Is there static electricity in the air?

→ Disconnect the power plug and connect it again.

Sound is not produced.

Is the Mute function on?

Press the (Mute) button to cancel the function.

Is the volume set to minimum?

Adjust the Volume.

The remote control does not work.

Is the battery drained?

Replace with new battery.

Is the distance between the remote control and Soundbar main unit too far?

Move the remote control closer to the Soundbar main unit.

The TV SoundConnect (TV pairing) failed.

Does your TV support TV SoundConnect?

TV SoundConnect is supported by some Samsung TVs released from 2012 on. Check your TV to see if it supports TV SoundConnect.

Is your TV firmware the latest version?

Update your TV with the latest firmware.

Does an error occur when connecting?

Contact the Samsung Call Centre.

Reset TV SoundConnect and connect again. To reset the TV SoundConnect connection, press and hold the ▶II button for 5 seconds.

The red LED on the subwoofer blinks and the subwoofer is not producing sound.

Your subwoofer may not be connected to the Soundbar main unit.

Try to connect your subwoofer again. See page 5.

The subwoofer drones and vibrates noticeably.

Try to adjust the vibration of your subwoofer.

Press the WOOFER button on your remote control to adjust its value (between -12, -6 \~ +6).

LICENCE

DOLBY AUDIO

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

For DTS patents, see http://patents.dts.com. Manufactured under licence from DTS Licencing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS 2.0 Channel is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

HDMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licencing LLC in the United States and other countries.

Spotify®

• The Spotify Software is subject to third party licences found here : www.spotify.com/connect/third-party-licenses.
• For more information about Spotify Connect, please visit www.spotify.com/connect

OPEN SOURCE LICENCE NOTICE

For further information on Open Sources used in this product, please visit the website: http://opensource.samsung.com

IMPORTANT NOTE ABOUT SERVICE

• Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
• An administration fee may be charged if either:
  a. An engineer is called out to your home at your request and there is no defect in the product.
  b. You bring the unit to a repair centre and there is no defect in the product.
• You will be advised of the amount of the administration fee before any work is done or a home visit is made.

SPECIFICATIONS

GENERAL	Weight	Soundbar Main Unit	5.0 kg
		Subwoofer(PS-WJ8500R / PS-WJ8501R)	10.6 kg
	Dimensions(W x H x D)	Soundbar Main Unit	1450.0 x 60.0 x 185.0 mm
		Subwoofer(PS-WJ8500R / PS-WJ8501R)	500.0 x 332.0 x 181.0 mm
	Operating Temperature Range		+5°C to +35°C
	Operating Humidity Range		10 % to 75 %
AMPLIFIER	Rated Output Power	Soundbar Main Unit	21W x 9, 8 ohm, THD≤10%
		Subwoofer(PS-WJ8500R / PS-WJ8501R)	161W, 3 ohm, THD≤10%

• Nominal specification
• Design, specifications and App screen are subject to change without prior notice.
• Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
• Weight and dimensions are approximate.
• For more information about the power supply and power consumption, refer to the label attached to the product. (Label : Bottom of Soundbar main unit)

Precaution : The product will restart automatically if you turn on/off Wi-Fi/Ethernet.

Overall Standby Power Consumption (W)(All the network ports are “ON” condition)		2.9W
Wi-Fi/Ethernet	Port deactivation method	Press Wi-Fi SETUP button on the product for 30 seconds to turn Wi-Fi/Ethernet On / Off.
Bluetooth Port	deactivation method	Press SPK ADD button on the product for 30 seconds to turn Bluetooth On / Off.

Wireless Models (including the frequency of 5.15GHz-5.35GHz)

• Hereby, Samsung Electronics, declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
  The original Declaration of Conformity may be found at http://www.samsung.com, go to Support > Search Product Support and enter the model name.
  This equipment may be operated in all EU countries.
  This equipment may only be used indoors.

Wireless Models (excluding the frequency of 5.15GHz-5.35GHz)

- Hereby, Samsung Electronics, declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

The original Declaration of Conformity may be found at http://www.samsung.com, go to Support > Search Product Support and enter the model name.

This equipment may be operated in all EU countries.

[Correct disposal of batteries in this product]

(Applicable in countries with separate collection systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.

If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

For information on Samsung's environmental commitments and product specific regulatory obligations e.g.

REACH visit: samsung.com/uk/aboutsamsung/samsungelectronics/corporate citizenship/data_corner.html

② AC/DC адаптер ③ Захранваш кабел

Събуфер

① Захранващ кабел

Събуфер

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

② AC/DC adapter ③ Kabel za napajanje

Subwoofer

① Kabel za napajanje

1. Priključite kabele napajanja glavne jedinice Soundbar i subwoofer u zidnu utičnicu s izmjeničnom strujom.
2. Tipku ID SET na poledini subwoofera držite pritisnuto 5 sekundi. Crveni će se indikator na vrhu subwoofera isključiti, a plavi će indikator početi brzo bljeskati.
3. Pritisnite gumb na daljinskom upravljaču na 5 sekundi dok je glavna jedinica Soundbar ISKLJUČENA.
4. Poruka ID SET prikazuje se na zaslonu glavne jedinice Soundbar tijekom kratkog razdoblja, a zatim nestaje.

1. Umetnite Vijke zidnog nosača u 3 rupe jednu po jednu kako biste pričvrstili Zidni nosač na zid.

√ Preporučeni vijak : M5

1. Učvrstite Pričvrsni klin (za učvršćivanje stalka za zid) kako biste spojili Zidni nosač sa zvučnikom Soundbar.

6

√ Vijke zidnog nosača nisu pruženi.

√ S obzirom da su potrebne različite vrste vijaka za zidni nosač ovisno o vašem zidu, provjerite vrstu zida prije ugradnje i kupite odgovarajuće vijke za zidni nosač.

GUMBI I ZNAČAJKE DALJINSKOG UPRAVLJAČA

Umetanje baterije prije upotrebe daljinskog upravljača

1. Upotrijebite odgovarajuću kovanicu za okretanje poklopca baterije na daljinskom upravljaču suprotno od smjera kazaljke na satu kao što je prikazano na slici u nastavku.
2. Umetnite litijsku bateriju od 3 V. Prilikom umetanja baterije pozitivan pol (+) mora biti usmjeren prema gore. Stavite poklopac baterije, a zatim poravnajte oznake „•” jednu pored druge kao što je prikazano na slici u nastavku.
3. Da biste poklopac baterije daljinskog upravljača vratili na mjesto, u njegov utor postavite kovanicu i okrećte je udesno dokle god možete.

1	Napajanje	Uključuje i isključuje napajanje uređaja Soundbar.
2	SOURCE	Pritisnite za odabir izvora povezanog s uređajem Soundbar.
3	Isključivanje zvuka	Trenutno postavlja glasnoću na 0.Pritisnite ponovno za poništavanje.
4	Glasnoća	Namještanje razine glasnoće uređaja.
5	Reprodukcija/privremeno zaustavljanje	Pritisnite gumb ▶II za privremeno zaustavljanje glazbe.Pritisnite gumb ▶II ponovo za reprodukciju odabrane glazbe.
	Preskoči naprijed	Odabire sljedeću datoteku.
	Preskoči unatrag	Odabire prethodnu datoteku.
	| Ponovi	Značajka za ponavljanje dostupna je samo kad puštate glazbu s popisa pjesama na telefonu ili DMS-a Samsungove aplikacije Multiroom.OFF-REPEAT : otkazuje ponovnu reprodukciju.TRACK-REPEAT : ponavlja reprodukciju zapisa.ALL-REPEAT : ponavlja reprodukciju svih zapisa.
6	Surround zvuk	Funkcija Surround zvuk dodaje dubinu i osjećaj prostora zvuku.Kada je taj gumb pritisnut, ON i OFF se opetovano izmjenjuju.
7	SOUND CONTROL	Na raspolaganju su vam mogućnosti TREBLE, BASS i AUDIO SYNC.Da biste kontrolirali glasnoću visokih i niskih zvukova, odaberite TREBLE ili BASS u Postavkama zvuka pa zatim prilagodite glasnoću između vrijednosti -3 i +3 pomoću tipki [],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[,[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[],[], postavite odgodu zvuka na neku vrijednosti između 0 i 300 milisekundi.
8	SOUND EFFECT	Možete odabrati jedan od 6 načina zvuka: STANDARD, MUSIC, CLEAR VOICE, SPORTS, MOVIE, i NIGHT.NIGHT NačinPrilikom promjene kanala ili izvora glazbe, razlika u glasnoći između različitih ulaznih izvora glazbe automatski se prilagođava tako da bude pogodna za slušanje.
9	Anynet+	Mogućnosti Anynet+ i Auto Power Link možete uključiti ili isključiti.Značajke Anynet+ i Auto Power Link rade u suprotnosti jedna s drugom.Anynet+: Kada se poveže pomoću HDMI kabela, uređajem Soundbar možete upravljati pomoću daljinskog upravljača za Samsungov televizor.Auto Power Link: Soundbar se automatski uključuje kada se uključuje televizor povezan optičkim ulazom.
10	WOOFER	Glasnoću subwoofera možete podesiti između razina -12 ili -6~6.
11	STREAMING MUSIC	Putem značajke Strujanje glazbe možete slušati internetski radio.Po zadanom su vam na raspolaganju tri internetske radiostanice.Da biste koristili funkciju Strujanje glazbe, morate povezati Soundbar s mrežom.

RJEŠAVANJE PROBLEMA

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

REACH, posjetite stranicu: samsung.com/uk/aboutsamsung/samsungelectronics/corporate citizenship/data_corner.html

BEZPEČNOSTNÍ INFORMACE

BEZPEČNOSTNÍ VAROVÁNÍ

ABYSTE PŘEDEŠLI RIZIKU ÚRAZU ELEKTRICKÝM PROUDEM, NEODNÍMEJTE ZADNÍ KRYT PŘÍSTROJE. UVNITŘ PŘÍSTROJE NEJSOU ŽÁDNÁ SERVISNÍ MÍSTA. OPRAVU SVĚRŽTE KVALIFIKOVANÉMU SERVISNÍMU TECHNIKOVI.

② AC/DC adaptér ③ Napájecí kabel

Subwoofer

Subwoofer

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

Subwoofer

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

② Vahelduvvoolu-/Alalisvooluadapter

③ Toitejuhe

Bassikölar

① Toitejuhe

Kaugjuhtimispult/patarei

Bassikõlar

Internet Traadita ruuter Nutiseade

1. Installige nutiseadmesse (nutitelefon, tahvelarvuti vms) rakendus Samsung Multiroom.
2. Käivitage rakendus Samsung Multiroom.

1. Sisestage Seinakruvid ükshaaval 3 auku, et Seinakronstein seinale kinnitada.

√ Soovitatav kruvi: M5

1. Kinnitage Paigaldusfiksaator (seinale kinnitamiseks), et Seinakronstein Soundbariga ühendada.

6

√ Seinakruvid pole tootega kaasas.

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

② Adaptateur CA/CC

Caisson de basse

Pied de support Fixation de support

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

Υπογούφερ

② Τροφοδοτικό AC/DC

③ Καλώδιο ρεύματος

① Καλώδιο ρεύματος

Υπογούφερ

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

Távirányító / Elem

Mélyhangsugárzó

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

② Adattatore CA/CC

Subwoofer

La TV supporta TV SoundConnect?

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

Zemfrekvenču skalrunis

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

① Maitinimo laidas

Nuotolinio valdymo pultas / baterija

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

① Przewód zasilania

Pilot / Bateria

Subwoofer

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

② Adaptor de c.a./c.c

③ Cablu de limentare

Subwoofer

① Cablu de limentare

Telecomandă/baterii

Subwoofer

Internet Router wireless Dispositiv intelligent

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

NOTĂ IMPORTANTĂ DESPRE SERVICE

② AC/DC adapter ③ Kabl za napajanje

Subwoofer

① Kabl za napajanje

Daljinski upravljač/baterije

√ Koristite Cat 7(*STP tip) kabl za vezu.

* Oklopljena upredena parica

PRIKLJUČIVANJE ELEKTRIČNOG NAPAJANJA

Koristite komponente za napajanje (①, ②, ③) da biste povezali napajanje sledećim redosledom: Subwoofer → Glavni uređaj Soundbar

√ Više informacija u vezi sa napajanjem i pošnjom energije potražite na nalepnici na proizvodu. (Oznaka : Donji deo Glavnog Uređaja Soundbar)

Zadnja strana sabvufera

Zadnja strana glavnog uređaja Soundbar

Subwoofer

1. Ukopčajte kablove za napajanje glavnog uređaja Soundbar i sabvufera u zidnu utičnicu sa naizmeničnom struijom.

2. Pritisnite taster ID SET na zadnjoj strani subwoofera i držite ga pritisnutim 5 sekundi. Crveni indikator na vrhu subwoofer zvučnika će se isključiti, a plavi indikator će početi ubrzano da treperi.

3. Držite pritisnuto dugme na daljinskom upravljaču 5 sekundi dok se glavni uređaj Soundbar ne ISKLJUČI.

4. Na ekranu glavnog uređaja Soundbar će se nakratko prikazati poruka ID SET, koja će zatim nestati.

1. Dok indikator sabvufera treperi plavom bojom, pritisnite dugme na daljinskom upravljaču ili 🚪 na vrhu glavnog uređaja Soundbar da biste ga uključili.

2. Povezivanje je završeno kada indikator na vrhu sabvufera prestane da treperi i počne neprekidno da svetli.

√ Ako postupak priključivanja ne uspe, plavi indikator će neprekidno da treperi. Predite na korak 2 i počnite ponovo.

POVEZIVANJE SA TELEVIZOROM

1. Stavite Zavrtnje za montažu na zid jedan za drugim u 3 otvora da biste na zid montirali Nosač za montažu na zid.

√ Preporučeni zavrtanj: M5

1. Montirajte uređaj Soundbar na Nosač za montažu na zid redosledom prikazanim na slici (1 → 2).

5

1. Pričvrstite Držač-fiksiranje nosača (za fiksiranje nosača na zidu) kako biste spojili Nosač za montažu na zid sa uređajem Soundbar.

6

1	Napajanje	Uključuje i isključuje Soundbar uređaj.
2	SOURCE	Pritisnite da biste izabrali izvor povezan na Soundbar uređaj.
3	Isključivanje zvuka	Omogućava vam da jačinu zvuka privremeno podesite na 0.Pritisnite ponovo da otkažete.
4	Jačina zvuka	Prilagođava nivo jačine zvuka uređaja.
5	Reprodukcija/Pauza	Pritisnite dugme ▶II da biste privremeno pauzirali muziku.Ponovo pritisnite dugme ▶II da biste reprodukovali izabranu muziku.
	Preskakanje unapred	Omogućava vam da izaberete sledeću datoteku.
	Preskakanje unazad	Omogućava vam da izaberete prethodnu datoteku.
	Ponavljanje	Funkcija ponavljanja je dostupna samo prilikom reprodukovanja muzike iz fascikle Pesme na telefonu ili sa servera za digitalne medijume aplikacije Samsung Multiroom.OFF-REPEAT: Otkazuje ponavljanje reprodukovanja.TRACK-REPEAT: Ponovo reprodukujte numeru.ALL-REPEAT: Ponovo reprodukuje sve numere.
6	Surround zvuk	Funkcija Surround zvuk dodaje zvuku dubinu i osećaj prostora.Kada se ovo dugme pritisne, ON ili OFF se neprekidno menjaju.
7	SOUND CONTROL	Možete da izaberete TREBLE, BASS i AUDIO SYNC.Da biste kontrolisali jačinu zvuka, visoke tonove ili bas, izaberite TREBLE ili BASS u podešavanjima zvuka, a zatim podesite jačinu zvuka između -3~+3 korišćenjem dugmadiAko video i audio zapisi između televizora i Soundbar uređaja nisu sinhronizovani, izaberiteAUDIO SYNCu podešavanjima zvuka, a zatim podesite kašnjenje zvuka između 0~300 milisekundi korišćenjem dugmadi
8	SOUND EFFECT	Na raspolaganju vam stoji 6 zvučnih režima: STANDARD, MUSIC,CLEAR VOICE, SPORTS, MOVIE i NIGHT.NIGHT RežimPrilikom promene kanala ili izvora muzike, razlika u jačini zvuka između različitih ulaznih izvora muzike automatski se prilagođava tako da bude odgovarajuća za slušanje.
9	Anynet+	Možete da uključite ili isključite opcije Anynet+ i Auto Power Link.Anynet+ i Auto Power Link funkcionišu nasuprot jedan drugom.Anynet+: Ako je priključivanje obavljeno putem HDMI kabla, možete da kontrolišete Soundbar pomoću daljinskog upravljača za Samsung televizor.Auto Power Link: Soundbar se automatski uključuje prilikom uključivanja televizora priključenog putem optičkog ulaza.
10	WOOFER	Jačinu zvuka subwoofer uređaja možete da podesite između nivoa -12 ili -6~+6.
11	STREAMING MUSIC	Možete da uživate u radio programu na Internetu pomoću opcije Strimovanje muzike. Podrazumevano možete da izaberete željenu radio stanicu između 3 Internet radio stanice. Da biste mogli da koristite opciju strimovanja muzike, potrebno je da povežete Soundbar uređaj na mrežu.

REŠAVANJE PROBLEMA

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

Za DTS patente, pogledajte http://patents.dts.com. Proizvedeno pod licencom kompanije DTS Licensing Limited. DTS, simbol, kao i DTS i simbol zajedno su registrovani zaštitni znaci, a DTS 2.0 Channel je zaštitni znak kompanije DTS, Inc. © DTS, Inc. Sva prava zadržana.

HDMI

Pojmovi HDMI, High-Definition Multimedia Interface i HDMI logotip su zaštitni znaci ili registrovani zaštitni znaci kompanije HDMI Licensing LLC u Sjedinjenim Američkim Državama i drugim zemljama.

Spotify®

• Softver Spotify je predmet licenci nezavisnih proizvođača koje možete pronaći ovde : www.spotify.com/connect/third-party-licenses.
• Za dodatne informacije o funkciji Spotify Connect posetite www.spotify.com/connect

OBAVEŠTENJE O LICENCI OTVORENOG IZVORNOG KODA

Za dodatne informacije o otvorenim izvornim kodovima korišćenim u ovom proizvodu posetite veb lokaciju: http://opensource.samsung.com

VAŽNA NAPOMENA O SERVISIRANJU

• Slike i ilustracije koje su upotrebljene u ovom korisničkom uputstvu date su samo kao reference i mogu se razlikovati od vašeg proizvoda.
• Administrativni troškovi mogu biti naplaćeni u sledećim slučajevima:
  a. tehničar je pozvan u vaš dom na vaš zahtev i ako proizvod nije u kvaru (tj. ako niste pročitali ovo korisničko uputstvo),
  b. vi donesete uređaj u servisni centar, a proizvod nije u kvaru (tj. ako niste pročitali ovo korisničko uputstvo).
• I znos tih administrativnih troškova biće vam saopšten pre obavljanja bilo kakvih radova ili kućne posete.

SPECIFIKACIJE

OPŠTE	Težina	Glavni uređaj Soundbar	5,0 kg
		Subwoofer(PS-WJ8500R / PS-WJ8501R)	10,6 kg
	Dimenzije(Š x V x D)	Glavni uređaj Soundbar	1450,0 x 60,0 x 185,0 mm
		Subwoofer(PS-WJ8500R / PS-WJ8501R)	500,0 x 332,0 x 181,0 mm
	Opseg radne temperature		+5 °C do +35 °C
	Radni opseg vlažnosti vazduha		10 % do 75 %
POJAČALO	Nominalna izlazna snaga	Glavni uređaj Soundbar	21W x 9, 8 OHM, THD≤10%
		Subwoofer(PS-WJ8500R / PS-WJ8501R)	161W, 3 OHM, THD≤10%

• Nominalne specifikacije

- Dizajn, specifikacije i ekran „Aplikacija“ su podložni izmenama bez prethodnog obaveštavanja.

- Samsung Electronics Co., Ltd zadržava pravo da promeni specifikacije bez prethodne najave.

- Težina i dimenzije su približne.

Subwoofer

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

② Napetostni pretvornik AC/DC

③ Napajalni kabel

Nizkotonski zvočnik

Daljinski upravljalnik/ baterija

√ Za povezavo uporabite kabel Cat 7 (vrsta kabla *STP).

* Oklopljen sukan dvovod

PRIKLJUČITEV ELEKTRIČNEGA NAPAJANJA

Nizkotonski zvočnik

1. Vijak držala 1 (4x) in Vijak držala 2

1. Vijake za stenski nosilec v tri luknje vstavite enega po enega, da Stenski nosilec pričvrstite na zid.

√ Vijake za stenski nosilec niso priloženi.

√ Ker so glede na vrsto zida potrebne različne vrste stenskih vijakov, pred namestitvijo preverite zid in nabavite ustrezne stenske vijake.

GUMBI NA DALJINSKEM UPRAVLJALNIKU IN FUNKCIJE

Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

Patente za tehnologijo DTS najdete na http://patents.dts.com. Izdelano po licenci DTS Licensing Limited. Ime & oznaka DTS, navedena skupaj ali ločeno, sta registrirani blagovni znamki, DTS 2.0 Channel pa je blagovna znamka družbe DTS, Inc. © DTS, Inc. Vse pravice pridržane.

HDMI

© 2016 Samsung Electronics Co., Ltd. All rights reserved.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care Centre.

Country	Contact Centre	Web Site
■ Europe
U.K 0330 SAMSUNG (7267864) www.samsung.com/uk/support
EIRE 0818 717	00 www.samsung.com/ie/support
GERMANY	0180 6 SAMSUNG bzw.0180 6 7267864*(0,20 €/Anruf aus dem dt. Festnetz, aus dem Mobilfunk max. 0,60 €/Anruf)	www.samsung.com/de/support
FRANCE 01 48	63 00 00 www.samsung.com/fr/support
ITALIA 800-SAMSUNG (800.7267864) www.samsung.com/it/support
SPAIN 3490217	2678 www.samsung.com/es/support
PORTUGAL 808	20 7267 www.samsung.com/pt/support
LUXEMBURG 261	03 710	www.samsung.com/be_fr/support
NETHERLANDS	0900-SAMSUNG (0900-7267864)(€ 0,10/Min)	www.samsung.com/nl/support
BELGIUM 02-20	1-24-18	www.samsung.com/be/support(Dutch)www.samsung.com/be_fr/support (French)
NORWAY	815 56480	www.samsung.com/no/support
DENMARK	70 70 19 70	www.samsung.com/dk/support
FINLAND	030-6227 515	www.samsung.com/fi/support
SWEDEN	0771 726 7864 (0771-SAMSUNG)	www.samsung.com/se/support
POLAND	801-172-678* lub [phone] ** (koszl potączenia według taryfy operatora)	www.samsung.com/pl/support
HUNGARY	0680SAMSUNG (0680-726-786)0680PREMIUM (0680-773-648)	www.samsung.com/hu/support

Country Contact Centre		Web Site
AUSTRIA	0800-SAMSUNG (0800-7267864) [Only for Premium HA] 0800-366661 [Only for Dealers] 0810-112233	www.samsung.com/at/support
SWITZERLAND	0800 726 78 64 (0800-SAMSUNG)	www.samsung.com/ch/support (German) www.samsung.com/ch_fr/ support (French)
CZECH	800 - SAMSUNG (800-726786)	www.samsung.com/cz/support
SLOVAKIA	0800 - SAMSUNG (0800-726 786)	www.samsung.com/sk/support
CROATIA	072 726 786 www.samsung.com/hr/support
BOSNIA	055 233 999 www.samsung.com/support
MONTENEGRO	020 405 888 www.samsung.com/support
SLOVENIA	080 697 267 (brezplačna številka) www.samsung.com/si
SERBIA	011 321 6899 www.samsung.com/rs/support
BULGARIA	*3000 Цена в мрежата 0800 111 31 , Безплатна телефонна линия	www.samsung.com/bg/support
ROMANIA	*8000 (apel in retea) 08008-726-78-64 (08008-SAMSUNG) Apel GRATUIT	www.samsung.com/ro/support
CYPRUS 8009 4000 only from landline, toll free		www.samsung.com/gr/support
GREECE	80111-SAMSUNG (80111 726 7864) only from land line ([phone] from mobile and land line
LITHUANIA	8-800-77777	www.samsung.com/lt/support
LATVIA	8000-7267	www.samsung.com/tv/support
ESTONIA	800-7267	www.samsung.com/ee/support
