USER MANUAL HB 0601 DSL0 HOTPOINT

Illustration of kitchen utensils including blender, spatula, Hotpot Ariston mixer, and whisk (no text or symbols)

EN Operating instructions

FR Mode d'emploi

C

TURBO

1. Speed-adjusting dial
2. ON/OFF button
3. Turbo button
4. Motor unit
5. Blender attachment
6. Beaker
7. Beaker soft lid
8. Whisk attachment (only on some models)
9. Bowl lid (only on some models)
10. Chopper blade (only on some models)
11. Bowl (only on some models)
12. Bowl soft lid

Read this manual thoroughly before using and save it for future reference

IMPORTANT INFORMATION ON SAFETY

Before using the electrical appliance, the following basic precautions should always be followed including the following:

1. Read all instructions.

2. Before using check that the voltage of wall outlet correspond to the one shown on the rating plate.

3. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest

authorized service facility for examination, repair or electrical or mechanical adjustment.

1. If the supply cord is damaged it must be replaced by the manufacturer or a authorized service agent or a qualified technician in order to avoid a hazard.

2. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. always disconnect the blender from the supply if it is left unattended and before assembling, disassembling or

cleaning;

1. Do not let cord hang over edge of table or hot surface.
2. Do not immerse upper part of blender into water as this would give rise to electric shock.
3. Close supervision is necessary when your appliance is being used near children or infirm persons.
4. Avoid contacting moving parts.
5. Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running.
6. The appliance cannot be used for chopping ice or blending hard and dry substance, otherwise the blade could be blunted.
   12.To reduce the risk of

injury, never place cutting blade on base without first putting bowl properly in place.

1. Be sure chopper lid is securely locked in place before operating appliance.
2. The use of accessory not recommended by the manufacturer may cause injuries to persons.
3. Do not operate the appliance for other than its intended use.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
5. Children should be supervised to ensure

that they do not play with the appliance.

18.Do not use outdoors.
19. Save these instructions.
20. Take care of potential injury from misuse.
21. Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
22. Do not allow children to use the blender without supervision.
23. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

USING THE BLENDER (A)

Attention: Blades are very sharp, handle with care. Ensure that the hand-held blender is unplugged from the power outlet before assembling or removing the attachments.

Attention: Max operation time without load is 15 seconds.

Attention: Max operation time with load cannot exceed 1 minute, and a 3 minutes rest time must be respected after two consecutive cycles.

1. To assemble the detachable shaft with the motor unit, turn the shaft anti-clockwise direction until tightened. To disassemble, just turn in the adverse direction.

2. Simply plug the hand-held blender to power outlet.

3. Lower the blender into the food. Then press and hold the START button to operate. At the same time you can select desired speed setting by dialing the speed control dial and the speed will increase gradually when you dial the speed control dial from right to left.
4. To start operating by pressing and hold the TURBO button is possible as well:, the appliance will operate at the highest speed all the time.

Note: When operating by the TURBO button, the speed will not change even if you operate the speed control dial.

1. Stop the blender by releasing the START or the TURBO button.

Blades and discs are very sharp: handle with care.

USING THE CHOPPER ATTACHMENT (ONLY ON SOME MODELS) (B)

Caution: Maximum operation duration per time cannot exceed 1 minute, and a 3 minutes rest time must be observed after two consecutive cycles.

1. Place the chopper bowl on a clean, level surface.
2. Assemble the stainless chopping blade into the chopper bowl, as shown in Fig.1.
3. Place food into the chopper bowl.

Note: Remove the bone of the meat, cut small pieces, then place the meat into the bowl.

Note: The max quantity of meat can't exceed 200g.

1. Assembly the lid onto the chopper bowl
2. Insert the motor unit into the hole of the chopper lid, and turn in clockwise direction to lock.
3. Plug the appliance to the power outlet. Then press and hold the START button to operate. At the same time you can select desired speed setting by dialing the speed control dial and the speed will increase gradually when you dial the speed control dial from right to left. To start operating by pressing and hold the TURBO button is possible as well:, the appliance will operate at the highest speed all the time.

Note: When operating by the TURBO button, the speed will not change even if you operate speed control dial.

1. Stop the appliance by releasing the START or the TURBO button.
2. Unplug the power outlet firstly, then remove the motor unit from the chopper lid by turning it anticlockwise.
3. Open the chopper lid and remove the chopped food.

Caution: To reduce the risk of injury, never place cutting blade on base without first putting properly in place.

Caution: Be sure the chopper lid is securely locked before operating appliance.

Caution: After chopping you shall disassemble the motor unit from the chopper lid firstly, then ve the chopper lid. Never remove the chopper lid he motor unit in place.

USING

THE

BEATER

(ONLY

EGG-WHITES

ON

SOME

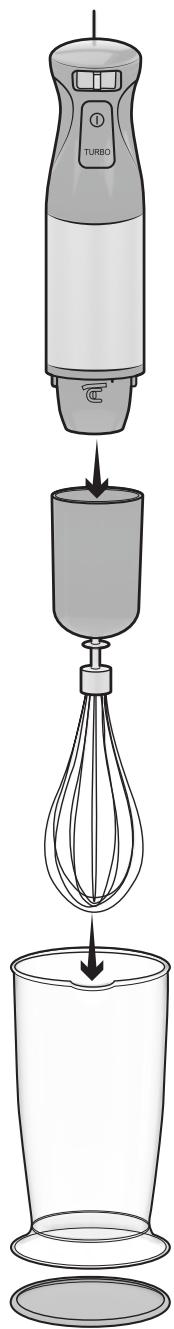

MODELS) (C)

Note: Maximum operation duration per time cannot exceed 2 minutes, and a 3 minutes rest must be observed after two consecutive cycles.

1. To assemble the egg white beater with the motor unit, turn the whisk anti-clockwise until tightened. To disassemble, just turn clockwise.
2. Plug the hand-held blender to power outlet.
3. Place food into the beaker.
4. Lower the hand-held blender into food. Then press and hold the START button to operate. At the same time you can select desired speed setting by dialing the speed control dial and the speed will increase gradually when you dial the speed control dial from right to left. To start operating by pressing and hold the TURBO button is possible as well:, the appliance will operate at the highest speed all the time.

Note: When operating by the TURBO button, the speed will not change even if you operate speed control dial.

1. Stop the hand-held blender by releasing the START button or the TURBO button.

CLEANING AND MAINTENANCE

1. Unplug the appliance and remove the detachable stem.
   Note: Do not immerse the detachable stem of the blender in water because the lubrication on bearings may be washed away.

1. Wash the detachable stem under running water, without the use of abrasive cleaner or detergents. After finishing cleaning the detachable stem, place it upright so that any water which may have got in can be drained out.

Note: The stem is a dishwasher-safe component.

1. Wash the cup, bowl, beater and blade in warm soapy water.

Note: The bowl and the beater are not recommended to be placed in the dishwasher the plastic component deteriorates through aged use of dishwasher cleaning.

1. Wipe the motor unit with a damp cloth. Never immerse it in water for cleaning as an electric shock may occur.

2. Dry thoroughly.

Caution: Blades are very sharp, handle with care.

TIP

Between processing tasks, hold the hand-held blender in a cup half filled with water and turn on for a few seconds.

ENVIRONMENT DISPOSAL

FRIENDLY

The European Directive 2012/19/UE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream.

Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.
