Product Type	Outdoor Access Point
Brand	TP-Link
Model	WBS210
Dimensions (L x W x H)	160 x 100 x 45 mm
Weight	300 g
Power Supply	PoE (Power over Ethernet) 802.3af
Power Consumption	7 W max
Frequency	2.4 GHz
Maximum Data Rate	300 Mbps (802.11n)
Wireless Standards	IEEE 802.11b/g/n
Ports	1 Ethernet port 10/100 Mbps with PoE
Antennas	2 external omnidirectional antennas (5 dBi)
Operating Temperature	-30°C to 70°C
Operating Humidity	10% to 90% non-condensing
Protection Rating	IP65 (weather-resistant)
Operating Modes	Access point, client, WDS repeater
Wireless Security	WEP, WPA/WPA2-PSK, WPA-Enterprise
Management	Web interface, SNMP
Maintenance	Clean with a soft dry cloth
Cleaning	Use a non-abrasive cloth
Usage Safety	Avoid exposure to water and excessive dust
Spare Parts	PoE adapter, antennas (optional)
Repairability	Not user-repairable, contact technical support

Frequently Asked Questions - WBS210 TP-LINK

How to reset TP-Link WBS210 to factory settings?

Press and hold the Reset button on the back of the device for about 10 seconds until the LEDs flash. Release, the device will reboot with factory settings.

What is the default IP address to access the management interface?

The default IP address is 192.168.0.254. Connect via a browser with username admin and password admin.

How to configure the WBS210 in access point mode?

Connect the device to your network via the Ethernet port with PoE. Access the web interface, go to Operating Mode and select Access Point. Configure SSID and security, then apply.

Does the WBS210 support Power over Ethernet (PoE)?

Yes, it supports PoE 802.3af. You can power it via an Ethernet cable using a PoE injector or PoE switch.

What are the LED indicators and what do they mean?

The Power LED lights green when the device is on. The WLAN LED flashes green during wireless activity. The LAN LED indicates Ethernet connection.

How to extend Wi-Fi signal range with the WBS210?

You can use WDS Repeater mode. In the interface, select this mode, scan the main network, enter the security key, and apply.

Can the WBS210 be used outdoors?

Yes, it is designed for outdoor use with an IP65 rating, resistant to dust and water jets.

How to secure my Wi-Fi network with this device?

In the interface, go to Wireless Security and choose WPA2-PSK with a strong password. Avoid using WEP as it is less secure.

What if I forgot the administrator password?

Perform a factory reset by holding the Reset button for 10 seconds. This will erase all settings, including the password.

Can I connect multiple WBS210 in a mesh network?

Yes, you can configure multiple units in WDS mode to create a mesh network. Each access point must be configured with the same SSID and channel.

USER MANUAL WBS210 TP-LINK

Hardwareinstallation

Diagram showing a mechanical assembly with a piston and connecting rod (no text or symbols)

Note: The image may differ from the actual product.

Typical Network Topology

■ Managed Mode

Via Centralized Management Software

A computer running the centralized management software, which can be in the same or different subnet with the APs, is used to centrally manage the APs.

You can get the corresponding software from our website http://www.tp-link.com

Via Hardware Controller (for Omada APs)

The hardware controller can be in the same or different subnet with the APs. The management host is used to log in to the hardware controller to centrally manage the APs

■ Standalone Mode

Hardware Connection

Choose a method to connect your device according to the accessories.

■ Via PoE Switch

Some APs can be powered via the PSE device (such as a PoE switch) which complies with Power Source Class 2 (PS2) or Limited Power Source (LPS) of IEC 62368-1 Note: Availability depends on the actual product. Please refer to the product specifications.

■ Via PoE Adapter

Some APs can be powered via the PoE adapter Note: Availability depends on the actual product. Please refer to the product specifications.

Or

Hardware Installation

1 Choose a method to mount the device

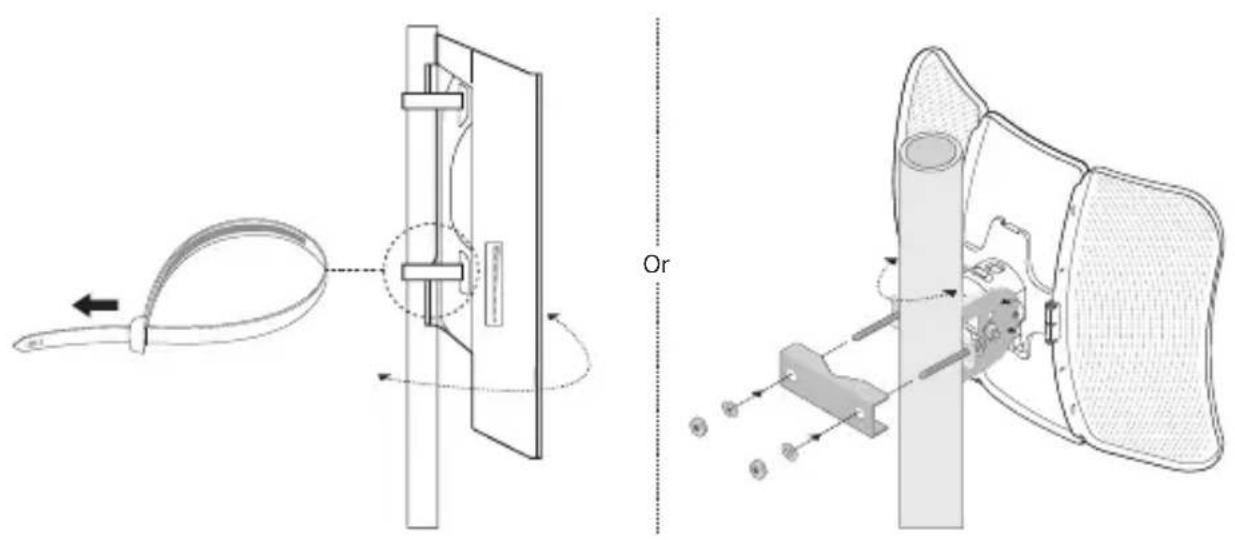

■ Mounting the Device on a Pole

At the selected site, attach the device to a suitable point of the pole and then approximately align the device to the direction that you have oriented.

■ Mounting the Device on the Wall (for the product with mounting brackets)

Mount the mounting bracket to the preferred position in the wall Push and slide the device to lock it into place Then connect the antennas to the device

Diagram showing a mechanical assembly with a cylindrical component and a vertical rod, no text or symbols present.

2 Install the waterproof seal (For certain devices)

Before installing, fit the Ethernet cable through the spiral cover, bracket, and O-ring Then follow the steps as shown in the picture:

(1) Connect the Ethernet cable to the port
(2) Fit the O-Ring to the head of the bracket, and screw the bracket to the body of the device.
(3) Fit the Ethernet cable through the seal's slit with the thicker side towards the bracket
(4) Plug the seal to the bracket
(5) Screw the spiral cover to the bracket

Software Configurations

■ Managed Mode

To configure mass devices via a centralized management software or a wireless controller, please refer to the corresponding User Guide You can download the User Guide from our website http://www.tp-link.com

■ Standalone Mode

To configure a device through a web-based management system, please follow the steps below

1. Launch a web browser and enter the IP address of your device in the address bar and press Enter

Note:

• For Omada APs, you can check the IP address through the product label.

• For other products, the default IP address is 192.168.0.254 and the IP address of your computer should be set as 192.168.0.x ("x" is any number from 1 to 253).

• Enter admin for both User Name and Password for login

• Change the default User Name and Password to protect your device, then start configuring the device.

Technical diagram showing two mechanical assembly configurations with labeled components and directional arrows (no text or symbols present)

Diagram showing a mechanical assembly with a tool and a vertical component, no text or symbols present

Pure mechanical diagram showing a lever and shaft assembly without any text, numbers, or symbols

Pure mechanical diagram showing a lever and shaft assembly without any text, numbers, or symbols

Diagram of a mechanical device with a lever and handle, showing motion direction (no text or symbols)

Diagram showing a mechanical assembly with a lever and pin, no text or symbols present

Diagram showing a mechanical assembly with a lever and pin, no text or symbols present

Diagram showing a mechanical assembly with a piston and lever mechanism (no text or symbols)

Diagram showing a mechanical assembly with a lever and a cylindrical component, no text or symbols present

Diagram showing a mechanical assembly with a tool and a vertical component, no text or symbols present

Diagram showing a mechanical assembly with a piston and lever mechanism (no text or symbols)

• Keep the device away from fire or hot environments. DO NOT immerse in water or any other liquid.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us
• Do not use damaged charger or USB cable to charge the device
• Do not use any other chargers than those recommended.
• Do not use the device where wireless devices are not allowed
• Adapter shall be installed near the equipment and shall be easily accessible.
• Adapter should be used indoors where the ambient temperature is lower than or equal to 40 °C
• The plug on the power supply cord is used as the disconnect device, the socket-outlet shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of device. Please use this product with care and operate at your own risk.

Español

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU, (EU) 2015/863

The original EU declaration of conformity may be found at https://www tp-link com/support/ce/

Español

https://www tp-link com/support/ce/

Ελληνικό

https://www tp-link com/support/ce/

Italiano

https://www tp-link com/support/ce/

Português

https://www tp-link com/support/ce/

Suomi

https://www tp-link com/support/ce/

Nederlands

https://www tp-link com/support/ce/

Svenska

https://www tp-link com/support/ce/

Norsk

https://www tp-link com/support/ce/

Dansk

For TP-Link Branded Products Only. For the information about warranty period, policy and procedures, please visit https://www.tp-link.com/en/support

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE)

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.

Español

For technical support, the user guide and other information, please visit https://www tp-link com/support/, or simply scan the QR code.
