USER MANUAL VDL20ST2 VELLEMAN

STROBOSCOPE 20 W STROBOSCOOP 20 W STROBOSCOPE 20 W ESTROBOSCOPIO 20 W STROBOSKOP 20 W

Black industrial lamp with a handle and central display (no visible text or symbols)

USER MANUAL 3 GEBRUIKERSHANDLEIDING 8 MODE D'EMPLOI 13 MANUAL DEL USUARIO 18 BEDIENUNGSANLEITUNG 23

CE

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing HQPower™! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

	Keep this device away from children and unauthorized users.
	This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.Children shall be supervised to ensure that they do not play with the appliance.
		Indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids. Never put objects filled with liquids on top of or close to the device.

VDL20ST2

	Risk of electroshock when opening the cover. Touching live wires can cause life-threatening electroshocks. Do not disassemble or open the housing yourself. Have the device repaired by qualified personnel.Be very careful during the installation: touching live wires can cause life-threatening electroshocks.DO NOT disassemble or open the cover under any circumstances. Touching live wires can cause life-threatening electroshocks.Do not crimp the power cord and protect it against damage.Warning! If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid any hazard.
	Always disconnect mains power when the device is not in use or when servicing or maintenance activities are performed. Handle the power cord by the plug only.
	There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.
	Do not stare directly at the light source, as this may cause• epileptic seizure in sensitive people• temporarily loss of sight (flash blindness)• permanent (irreversible) eye damage.
	Caution: Device heats up during use. Never cover the device and keep the ventilation slots free from dust and obstructions at all times.The housing might heat up during usage. Keep minimum distances around the device for sufficient ventilation. Place the device on a flat, heat resistant surface. Do not place the device on carpets, fabrics...
	Do not use the device when damage to housing or cables is noticed. Do not attempt to service the device yourself but contact an authorised dealer.

- This stroboscope should only be used indoors with an alternating current of max. 230 V\~, 50 Hz.

- Select a location where the device is protected against extreme heat, dust and moisture. Respect a minimum distance of 0.5 m between the device's light output and any illuminated surface.

- Use the original packaging if the device is to be transported.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

Keep this device away from dust and extreme temperatures. Make sure the ventilation openings are clear at all times. For sufficient air circulation, leave at least 1" (± 2.5 cm) in front of the openings.

Protect this device from shocks and abuse. Avoid brute force when operating the device.

• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. All other uses may lead to short circuits, burns, electroshocks, crash, etc. Using the device in an unauthorized way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Due to constant product improvements, the actual product appearance might differ from the shown images.
• Product images are for illustrative purposes only.
• Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the device against damage by leaving it switched off until it has reached room temperature.
• Keep this manual for future reference.

4. Features

• 20 W
  • ABS housing with mounting bracket

5. Overview

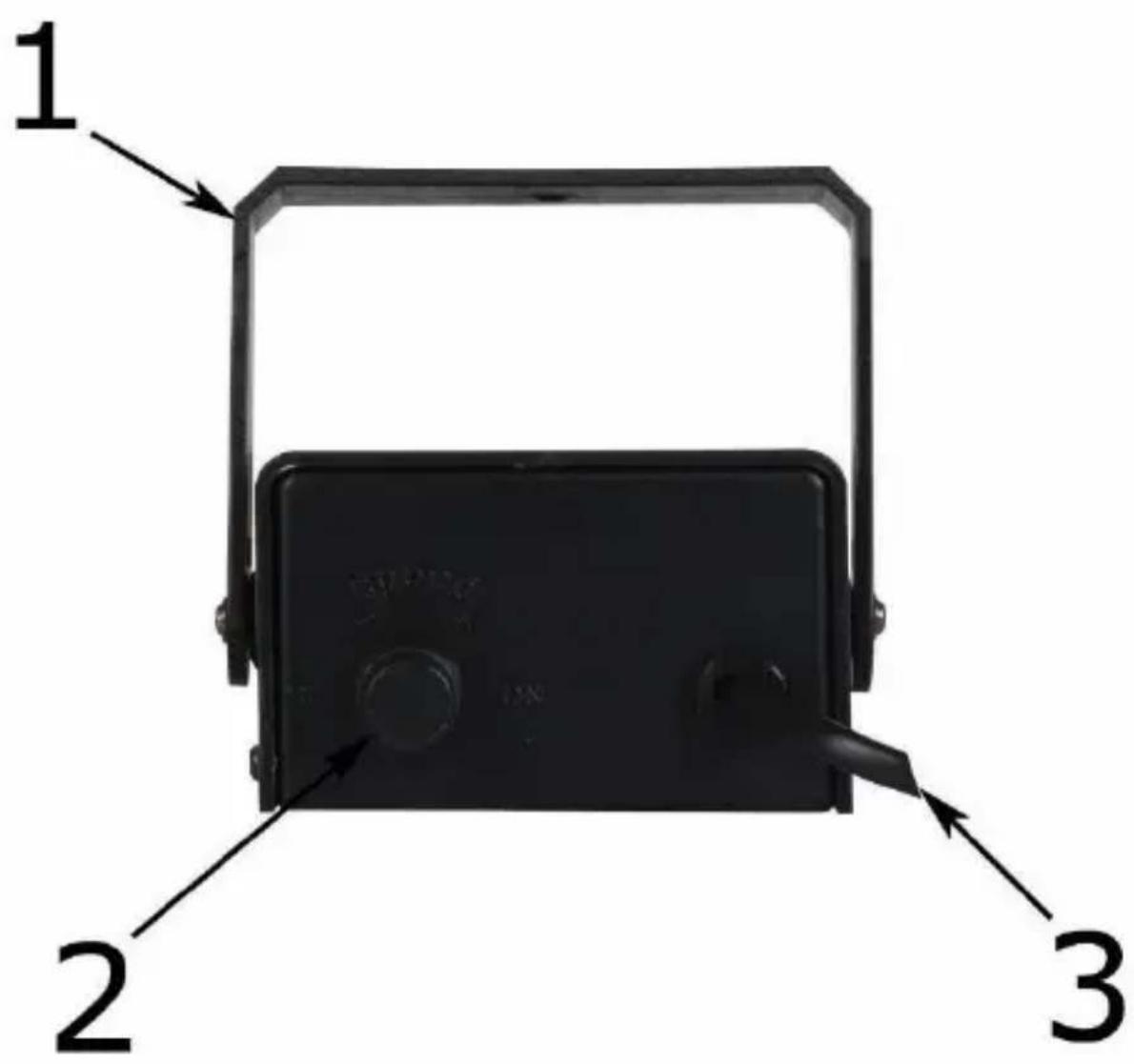

Refer to the illustrations on page 2 of this manual.

1	mounting bracket
2	on-off/speed button

3	power cord

6. Installation

• The installation construction should be able to support a minimum point load of 10 times the weight of the device.
• The installation must always be secured with a secondary attachment e.g. a safety cable (VDLSC7 or VDLSC8).
• Never stand directly below the device when it is being mounted, removed or serviced. Have a qualified technician check the device once a year and once before you bring it into service.
• Overhead mounting requires extensive experience: calculating workload limits, determining the installation material to be used... Have the material and the device itself checked regularly. Do not attempt to install the device yourself if you lack these qualifications as improper installation may result in injuries.
• The installation has to be approved by an expert before the device is taken into service.
• Replace the glass pane when it is damaged.

7. Operation

1. Aim the stroboscope toward the area to be illuminated.
2. Connect the stroboscope to the mains.
3. Set the flash frequency (0 to 2 flashes per second) by means of the speed knob at the rear.
4. Adjust the desired inclination angle via the mounting bracket and tighten the bracket screws.
5. Disconnect from the mains after use.

8. Cleaning and Maintenance

• All screws should be tightened and free of corrosion.
• The housing, the glass pane, the mounting supports and the installation location (e.g. ceiling, suspension, trussing) should not be deformed, modified or tampered with.
• The electric power supply cables must not show any damage. Have a qualified technician maintain the device.
• Disconnect the device from the mains prior to maintenance activities.
• Wipe the device regularly with a moist, lint-free cloth. Do not use alcohol or solvents.
• There are no user-serviceable parts. Only authorized dealers may maintain and service this device.

9. Technical Specifications

colour	black
power supply	230 V~, 50 Hz
dimensions	85 x 125 x 53 mm
weight	270 g

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.hqpower.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
