USER MANUAL AQ105D 69D EU/A HOTPOINT

Unpacking and levelling

Connecting the electricity and water supplies

Technical data

Care and maintenance, 4

Cutting off the water and electricity supplies

Cleaning the machine

Cleaning the detergent dispenser drawer

Caring for your appliance drum

Cleaning the pump

Checking the water inlet hose

Precautions and advice, 5

General safety

Load balancing system

Disposal

Opening the porthole door manually

Description of the machine, 6-7

Touch control panel

Running a wash cycle, 8

Wash cycles and options, 9

Table of wash cycles

Wash options

Detergents and laundry, 10

Detergent

Preparing the laundry

Washing recommendations

Trouble shooting, 11

Assistance, 12

! This instruction manual should be kept in a safe place for future reference. If the washing machine is sold, given away or moved, please ensure the manual is kept with the machine, so that the new owner may benefit from the advice contained within it.
! Read these instructions carefully: they contain vital information relating to the safe installation and operation of the appliance.
! Inside the pack containing this manual, you will also find the guarantee and all the details necessary for installation.

Unpacking and levelling

Unpacking

1. Once you have removed all the packaging from the washing machine, make sure it has not been damaged during transportation. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

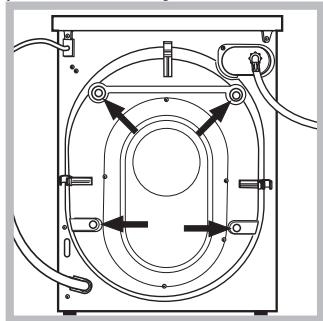

1. Remove the 4 protective screws (used during transportation) and the corresponding spacer, located on the rear part of the appliance (see figure).

2. Close off the holes using the plastic plugs supplied in the pack.

3. Keep all the parts in a safe place; they will be needed again if the washing machine is moved to another location, to prevent the inside of the appliance being damaged.
   ! Packaging materials should not be used as toys for children.

Levelling

1. Place the washing machine on a flat sturdy floor, without resting it up against walls or cabinets.

Line drawing of a car door corner with a circular vent and directional arrow (no text or symbols)

1. If the floor is uneven, the front feet of the machine may be adjusted until it reaches a horizontal position (the angle of inclination must not exceed 2 degrees).

! If the appliance is levelled correctly, it will be more stable and much less likely to cause vibrations and noise while it is operating, particularly during the spin cycle.
! If it is placed on carpet or a rug, adjust the feet in such a way as to allow a sufficient ventilation space underneath the washing machine.

Connecting the electricity and water supplies

Connecting the water inlet hose

! Before connecting the inlet hose to the water supply, run the water until it is perfectly clear.

Line drawing of a mechanical valve or pump component with directional arrow (no text or symbols)

1. Connect the inlet hose to the machine by screwing it onto the cold water inlet of the appliance, which is situated on the top right-hand side of the rear part of the appliance (see figure).

Technical line drawing of a mechanical component with two views: top shows a flanged knob and ring, bottom shows a cylindrical base (no text or symbols)

1. Connect the inlet hose by screwing it to a cold water tap using a 3/4 gas threaded connection (see figure).

2. Make sure that the hose is not folded over or bent.

! The water pressure at the tap must fall within the values indicated in the Technical data table (see next page).
! If the inlet hose is not long enough, contact a specialised shop or an authorised technician.
! Never use second-hand or old inlet hoses; use the products supplied with the machine.

Connecting the drain hose

65 - 100 cm

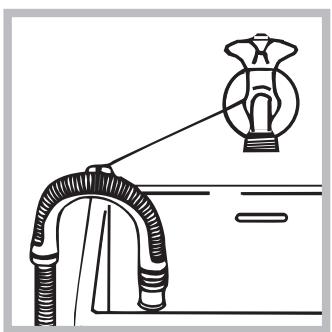

Connect the drain hose to drain duct piping or a wall drain located between 65 and 100 cm above the floor, making sure it is not bent at all.

Diagram of a pipe connection with a magnified inset showing a connector (no text or symbols)

Alternatively, rest the drain hose on the side of a washbasin or bathtub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

! We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity socket, make sure that:

• the socket is earthed and complies with all applicable laws;
• the socket is able to withstand the maximum power load of the appliance as indicated in the Technical data table (see opposite);
• the power supply voltage falls within the values indicated in the Technical data table (see opposite);
• the socket is compatible with the plug of the appliance. If this is not the case, have the socket or the plug replaced.

! The machine must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions.

! The mains socket must remain within easy reach after the washing machine has been installed.

! Do not use extension cords or multiple sockets.
! The cable should not be bent or compressed.
! The power supply cable and plug must only be replaced by authorised technicians.

Warning! The company shall not be held responsible in the event that these regulations are not respected.

Technical data
Model	AQ105D 69D
Dimensions	width 59.5 cmheight 85 cmdepth 64,5 cm
Capacity	from 1 to 10 kg
Electrical connections	please refer to the technical data plate fixed to the machine
Water connections	maximum pressure1 MPa (10 bar)minimum pressure0.05 MPa (0.5 bar)drum capacity 71 litres
Spin speed	up to 1600 rotations per minute
Test wash cycles in accordance with directives1061/2010 and1015/2010	programme 60°C ;Cotton standard 60°C.programme 40°C ;Cotton standard 40°C.
	This appliance conforms to the following EC Directives:- 2004/108/EC (Electromagnetic Compatibility)- 2006/95/EC (Low Voltage)- 2012/19/EU

Cutting off the water and electricity supplies

• Turn off the water tap after every wash cycle. This will limit wear on the hydraulic system in the machine and help to prevent leaks.
• Unplug the appliance when cleaning it and during all maintenance work.

Cleaning the machine

The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser drawer

Diagram showing hand operating a device with labeled parts and directional arrows indicating action steps

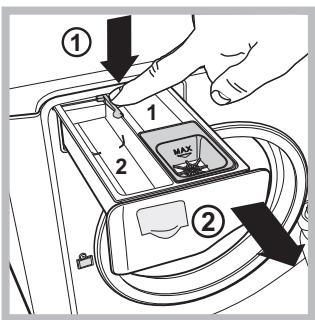

To remove the drawer, press lever (1) and pull the drawer outwards (2) (see figure). Wash it under running water; this procedure should be repeated frequently.

Caring for your appliance drum

- Always leave the door ajar to prevent unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the protective pre-chamber at the base of the pump.

! Make sure the wash cycle has finished and unplug the appliance.

To access the pre-chamber:

1 2

Line drawing of hands opening a door with a circular vent, no text or symbols present

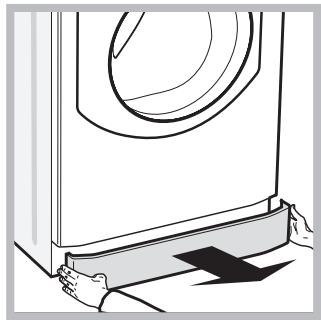

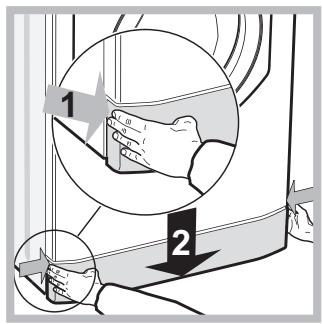

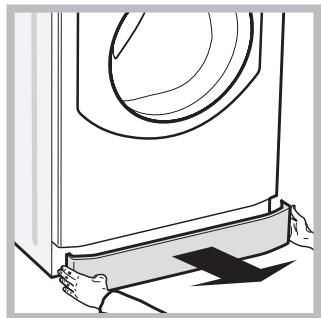

1. take off the cover panel on the front of the machine by first pressing it in the centre and then pushing downwards on both sides until you can remove it (see figures);

Diagram of a mechanical component with a rotating knob and directional arrows, no text or symbols present

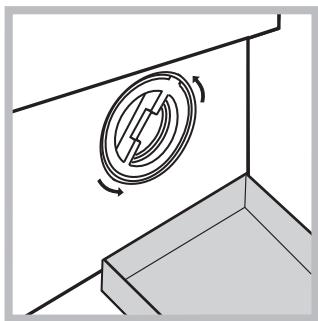

1. position a container so that it will collect the water which flows out (approximately 1.5 l) (see figure);

2. unscrew the lid by rotating it in an anti-clockwise direction (see figure);

3. clean the inside thoroughly;

4. screw the lid back on;
5. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

Precautions and tips

! The machine was designed and constructed in accordance with international safety regulations. The following information is provided for safety reasons and must therefore be read carefully.

General safety

• This appliance was designed for domestic use only.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Do not touch the machine when barefoot or with wet or damp hands or feet.
- Do not pull on the power supply cable when unplugging the appliance from the electricity socket. Hold the plug and pull.
- Do not touch the drained water as it may reach extremely high temperatures.
- Never force the porthole door. This could damage the safety lock mechanism designed to prevent accidental opening.
- If the appliance breaks down, do not under any circumstances access the internal mechanisms in an attempt to repair it yourself.
- Always keep children well away from the appliance while it is operating.
- If it must be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.
- Before loading laundry into the washing machine, make sure the drum is empty.

Load balancing system

Before every spin cycle, to avoid excessive vibrations before every spin and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.

Disposal

• Disposing of the packaging materials: observe local regulations so that the packaging may be re-used.
• The European Directive 2012/19/EU relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials

inside the machine, while preventing potential damage to the atmosphere and to public health.

The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection.

For more information relating to the correct disposal of household appliances, owners should contact their local authorities or appliance dealer.

Opening the porthole door manually

In the event that it is not possible to open the porthole door due to a powercut, and if you wish to remove the laundry, proceed as follows:

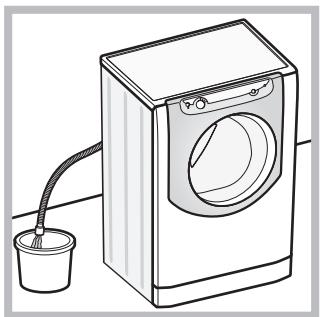

Line drawing of a washing machine with a bucket and outlet tube (no text or symbols)

1. remove the plug from the electrical socket.

2. make sure the water level inside the machine is lower than the door opening; if it is not, remove excess water using the drain hose, collecting it in a bucket as indicated in the figure.

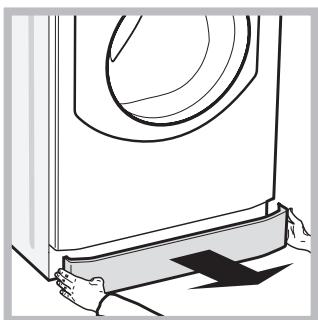

3. remove the cover panel on the lower front part of the washing machine (see overleaf).

Hand holding a device with a black arrow pointing to the button (no text or symbols visible)

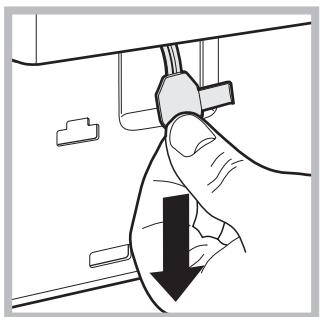

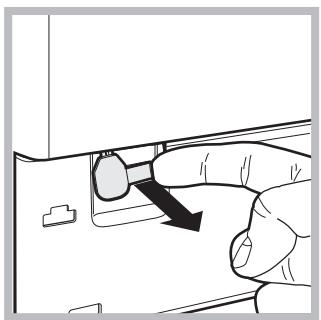

1. pull outwards using the tab as indicated in the figure, until the plastic tie-rod is freed from its stop position; pull downwards until you hear a "click", which indicates that the door is now unlocked.

Hand holding a small electronic component with a black downward arrow indicating a process or operation (no text or symbols present)

1. open the door; if this is still not possible repeat the procedure.

2. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Description of the machine

EN

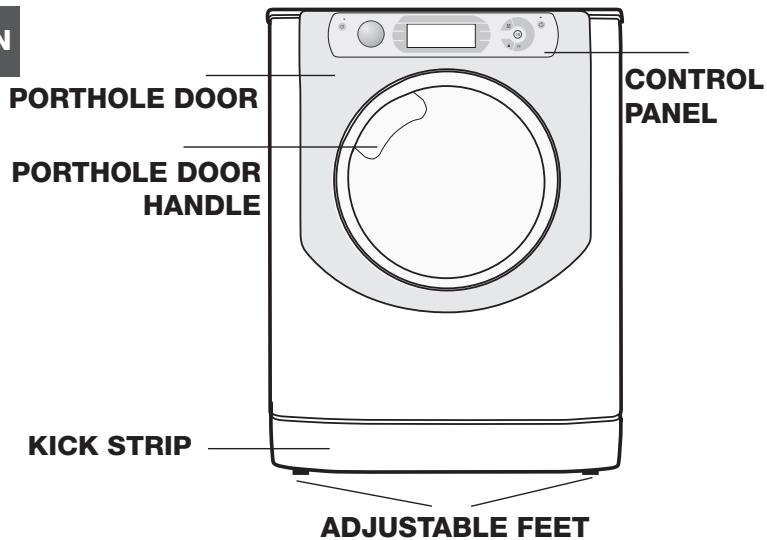

PORTHOLE DOOR PORTHOLE DOOR HANDLE KICK STRIP CONTROL PANEL ADJUSTABLE FEET

PORTHOLE DOOR

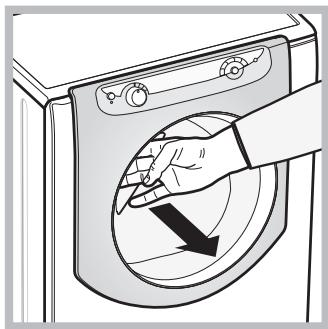

Illustration of a hand opening a washing machine with a black arrow indicating clockwise motion (no text or symbols)

Always use the handle to open the porthole door (see figure).

DETERGENT DISPENSER DRAWER

Diagram of a washing machine interior showing fan blades and vent (no text or symbols)

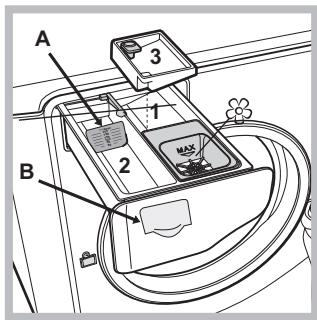

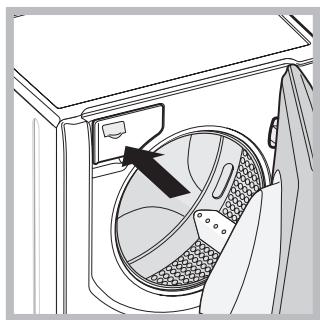

The detergent dispenser drawer is located inside the machine and can be accessed by opening the door. For more information on detergent measures, please refer to the chapter entitled "Detergents and laundry".

A 3 1 B 2 MAX

1. pre-wash compartment: use powder detergent. ! Before pouring in the detergent, make sure that extra compartment 3 has been removed.
2. main wash compartment: If liquid detergent is used, it is recommended that the removable plastic partition A (supplied) be used for proper dosage. If powder detergent is used, place the partition into slot

B.

1. extra compartment: Bleach

! The use of extra compartment 3 excludes the pre-wash function.

washing additives compartment: for fabric softener or liquid additives. We recommend that the maximum level indicated by the grille is not exceeded, and that concentrated fabric softeners are diluted.

DIRECT INJECTION SYSTEM

The washing machine features the innovative “Direct Injection” technology that quickly solubilises the detergent and efficiently activates all the various components. The system guarantees the complete use and dissolution of the detergent, which is mixed with water before reaching the garments. This ensures better cleaning results already at low temperatures, providing significant energy savings while perfectly protecting colours and fibres. The “Direct Injection” technology is activated automatically in all the cycles.

TOUCH CONTROL PANEL

0° 00 30

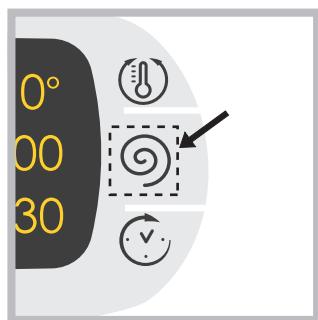

To adjust the settings, gently press the icon inside the sensitive (touch control) area as illustrated in the figure.

Standby mode

This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF ⏻ button briefly and wait for the machine to start up again. Consumption in off-mode: 0,5 W Consumption in Left-on: 0,5 W

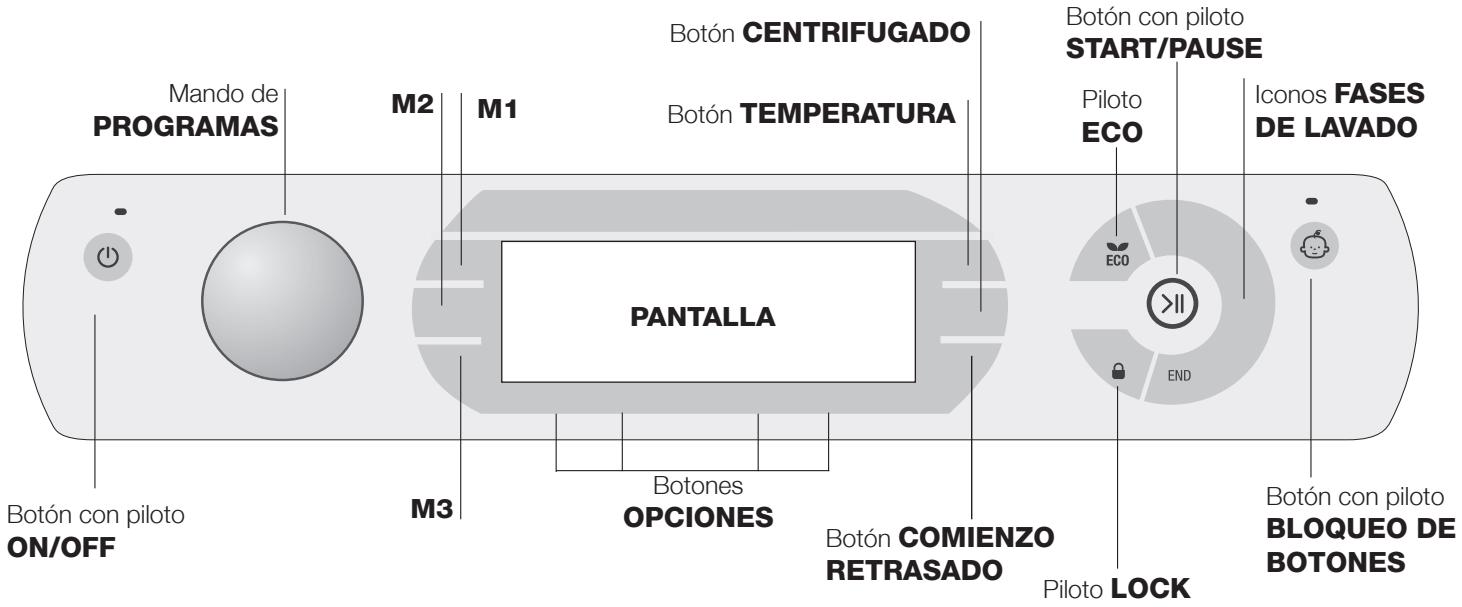

Touch control panel WASH CYCLE SELECTOR knob M2 M1 SPIN button TEMPERATURE button DISPLAY START/PAUSE button with indicator light ECO indicator light ECO WASH CYCLE PHASE icons ON/OFF M3 OPTION buttons DELAYED START button CONTROL PANEL LOCK button with indicator light

DOOR LOCKED indicator light

Button with ⏻ ON/OFF indicator light: press this briefly to switch the machine on or off. The green indicator light indicates that the machine is switched on. To switch off the washing machine during the wash cycle, press and hold the button for approximately 3 seconds; if the button is pressed briefly or accidentally the machine will not switch off. If the machine is switched off during a wash cycle, this wash cycle will be cancelled.

WASH CYCLE SELECTOR knob: may be turned in either direction. To select the most suitable wash cycle, please refer to the "Table of wash cycles".

The knob will not move during the wash cycle.

M1-M2-M3 buttons: press and hold one of the buttons to store a cycle with your own set preferences in the memory of the machine. To recall a previously-stored cycle, press the corresponding button.

TEMPERATURE 📋 button: press to modify or exclude the temperature setting; the value selected will appear on the display above (see "Running a wash cycle").

SPIN CYCLE Ⓤ button: press to modify or exclude the spin cycle; the value selected will appear on the display above (see "Running a wash cycle").

DELAYED START ⬇ button: press to set a delayed start for the selected wash cycle; the set delay time will appear on the display above (see "Running a wash cycle").

OPTION buttons: press to select the available options. The indicator light corresponding to the selected option will remain lit (see "Running a wash cycle").

WASH CYCLE PHASE icons: these illuminate to indicate the progress of the wash cycle (Wash 🚙️ – Rinse 🚗️ – Spin 📋️ – Drain 🏠️). The text END lights up when the cycle is complete.

START/PAUSE button with indicator light: when the green indicator light flashes slowly, press the button to start a wash cycle. Once the cycle has begun the indicator light will remain lit in a fixed manner. To pause the wash cycle, press the button again; the indicator light will flash in an orange colour. If the "Door locked" 🔒 indicator light is switched off, the door may be opened. To start the wash cycle from the point at which it was interrupted, press the button again.

DOOR LOCKED 🔒 indicator light: indicates that the porthole door is locked. To open the door, pause the wash cycle (see "Running a wash cycle").

CONTROL PANEL LOCK 🤨 button with indicator light: to activate or deactivate the control panel lock, press and hold the button for approximately 2 seconds. when the indicator light is illuminated, the control panel is locked (apart from the ON/OFF button).. This means it is possible to prevent wash cycles from being modified accidentally, especially where there are children in the home.

ECO indicator light: the ECO icon lights up when, after altering the washing parameters, an energy saving of at least 10% is made. Furthermore, before the machine enters “Standby” mode, the icon will light up for a few seconds; when the machine is switched off the estimated energy saving will be around the 80% mark.

CHANGE LANGUAGE.

The first time the machine is switched on, the first language will flash on the display. The “Λ”, “OK” and “V” symbols will appear on the display, in line with the 3 buttons on the right-hand side. The languages change automatically every 3”; alternatively, they can be changed by pressing the buttons next to the “Λ” and “V” symbols. Use the “OK” button to confirm the language, which will be set after 2”. If no buttons are pressed, the automatic language change will begin again after 30”.

To change the language, switch the machine on and off again; in the 30" time period after it has been switched off, press and hold the temperature 📄 +spin Ⓐ +delayed ⚡ start buttons simultaneously for 5". A short sound alert will be emitted and the set language will flash on the display. Press the buttons next to the "A" and "V" symbols to change the language. Use the button next to the "OK" symbol to confirm the language, which will be set after 2". If no buttons are pressed, the language set previously will be displayed after 30". Switch on the machine.

WARNING: before you use the washing machine for the first time, run a wash cycle with detergent and no laundry, using the 90° cottons cycle without pre-wash.

1. SWITCH THE MACHINE ON. Press the ⏻ button. All the indicator lights will illuminate for 1 second and the text AQUALTIS will appear on the display; the indicator light corresponding to the ⏻ button will then remain lit in a constant manner and the START/PAUSE indicator light will flash.
2. SELECT THE PROGRAMME. Turn the PROGRAMME KNOB left or right, until the required programme has been selected; the name of the programme will appear on the display. A temperature and spin speed is set for each programme; these may be adjusted. The cycle duration will also appear on the display.
3. LOAD THE LAUNDRY. Open the porthole door. Load the laundry, making sure you do not exceed the maximum load value indicated in the table of wash cycles on the following page.
4. MEASURE OUT THE DETERGENT. Pull out the detergent dispenser drawer and pour the detergent into the relevant compartments as described in "Description of the machine".
5. CLOSE THE PORTHOLE DOOR.
6. CUSTOMISE THE WASH CYCLE. Use the relevant buttons on the control panel:

Modify the temperature and/or spin speed.

The machine automatically displays the maximum temperature and spin speed values set for the selected cycle, or the most recently-used settings if they are compatible with the selected cycle. The temperature can be decreased by pressing the ⏻ button, until the cold wash “OFF” setting is reached. The spin speed may be progressively reduced by pressing the ⏱ button, until it is completely excluded “OFF”. If these buttons are pressed again, the maximum values are restored.

! Exception: if the 60^ programme is selected, the temperature can be increased up to a value of 90^ .

Setting a delayed start.

To set a delayed start for the selected cycle, press the corresponding button repeatedly until the required delay period has been reached. During the setting procedure, the delay period and the text “Starts in:” will be displayed, along with the flashing √ symbol. After the delayed start has been set, the √ symbol will remain fixed on the display, which will also indicate the duration of the selected cycle with the text “Ends in:” and the cycle duration. Press the DELAYED START button just once to display the delay time set previously. After the countdown has begun, the display will show the text “Starts in:” and the delay period. Once the set delay time has elapsed, the machine will begin its cycle and the display will show “Ends in:” and the time remaining until the end of the cycle.

To remove the delayed start option, press the button until the display shows the text OFF; the ⬇ symbol will disappear.

Modify the cycle settings.

• Press the button to activate the option; the name of the option will then appear on the display and the corresponding indicator light will illuminate.

• Press the button again to deactivate the option; the name of the option will then appear on the display followed by the text OFF, and the corresponding indicator light will switch off.
  ! If the selected option is not compatible with the selected wash cycle, this incompatibility will be signalled by the flashing of the indicator light and a sound alert (3 beeps); the option will not be activated.
  ! If the selected option is not compatible with another option that has been selected previously, the indicator light corresponding to the first option selected will flash and only the second option will be activated; the indicator light corresponding to the button will remain lit in a constant manner.
  ! The options may affect the recommended load value and/or the duration of the cycle.

• START THE PROGRAMME. Press the START/PAUSE button. The corresponding indicator light remains lit in a fixed manner and the porthole door locks (the 🔊 DOOR LOCKED indicator light illuminates). The icons corresponding to the wash cycle phases will light up during the cycle to indicate which phase is currently in progress.

To change a wash cycle once it has already started, pause the washing machine by pressing the START/PAUSE button; then select the desired cycle and press the START/PAUSE button again.

To open the door during a wash cycle, press the START/PAUSE button; if the DOOR LOCKED 🔒 indicator light is switched off you may open the door. Press the START/PAUSE button again to restart the wash cycle from the point at which it was interrupted.

1. THE END OF THE WASH CYCLE. This is indicated by the illuminated text END. The porthole door may be opened immediately. If the START/PAUSE indicator light is flashing, press the button to end the cycle. Open the door, unload the laundry and switch off the machine.

! If you wish to cancel a cycle which has already begun, press and hold the ⏻ button until the cycle stops and the machine switches off.

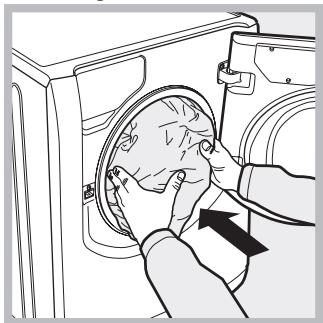

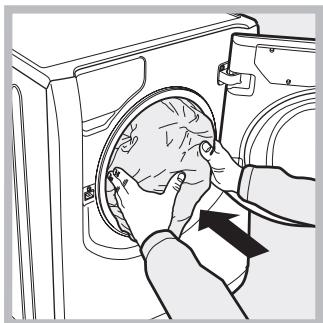

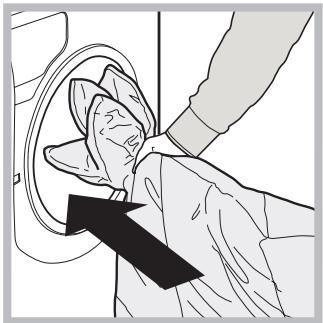

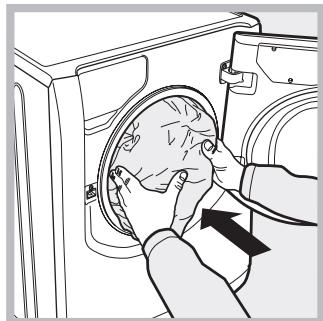

Bag for quilts, curtains and delicate garments

The Aqualtis washing machine makes it easier for you to wash even the most valuable and delicate garments in complete confidence thanks to the special bag which protects the laundry (this is supplied with the machine). We recommend that the bag is used every time you wash quilts and padded items with an outer layer made using synthetic material.

Wash cycles and options

Table of wash cycles

Icon	Description of the wash cycle	Max. temp. (°C)	Max. speed (rpm)	Detergent and additives				Max. load (kg)	Residual dam-ness %	Energy con- sumption kWh	Total water It	Cycle duration
				Prewash	Wash	Bleach	Fabric softener
	Synthetics Resistant	60°	800	●	●	●	●	5	48	1,21	74	125'
	Synthetics Resistant (4)	40°	800	●	●	●	●	5	48	0,71	72	105'
	Coloureds Intensive	40°	1600	●	●	-	●	9	-	-	-	175'
	Multi Colour	20°	1600	-	●	-	●	9	-	-	-	185'
	Darks	30°	800	-	●	-	●	6	-	-	-	80'
	Shirts	40°	600	-	●	●	●	2,5	-	-	-	85'
	Duvets: for down-stuffed garments.	30°	1200	-	●	-	●	3,5	-	-	-	120'
	Bed&Bath for bedlinen and towels.	60°	1600	●	●	●	●	10	-	-	-	160'
	Rinse	-	1600	-	-	●	●	10	-	-	-	49'
	Spin and Pump out	-	1600	-	-	-	-	10	-	-	-	16'
	Anti Allergy Plus	60°	1600	-	●	-	●	6	-	-	-	210'
	Anti Allergy Delicate	40°	1600	-	●	-	●	6	-	-	-	230'
	Ultradelicates	30°	0	-	●	-	●	1	-	-	-	80'
	Wool: for wool, cashmere, etc.	40°	800	-	●	-	●	2,5	-	-	-	105'
	Mix 30': to refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand).	30°	800	-	●	-	●	4	71	0,20	44	30'
	Cotton Standard 60°C (1): heavily soiled whites and resistant colours.	60° (Max. 90°)	1600	●(3)	●	●	●	10	44	0,95	60	200'
	Cotton Standard 40°C (2): lightly soiled whites and delicate colours.	40°	1600	-	●	●	●	10	44	0,92	88	185'

The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary according to factors such as water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.

Note: 10 minutes after the START, the machine will recalculate the time remaining until the end of the wash cycle on the basis of the load inside it; this value will then be shown on the display.

1) Test wash cycle in compliance with directive 1061/2010: set wash cycle 60^ with a temperature of 60^ .

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 60^ C. The actual washing temperature may differ from the indicated value.

2) Test wash cycle in compliance with directive 1061/2010: set wash cycle 40^ with a temperature of 40^ .

This cycle is designed for cotton loads with a normal soil level and is the most efficient in terms of both electricity and water consumption; it should be used for garments which can be washed at 40^ C. The actual washing temperature may differ from the indicated value.

3) At 60 °C the "Prewash" function cannot be selected.

For all Test Institutes:

2) Long wash cycle for cottons: set wash cycle 40^ with a temperature of 40^ .

4) Long wash cycle for synthetics: set wash cycle ⚠️ with a temperature of 40^ C.

Wash options

Super Wash

3 1 2 MAX

This option offers a high-performance wash due to the greater quantity of water used in the initial phase of the cycle, and due to the increased wash cycle duration, is particularly useful for the removal of stubborn stains. It can be used with or without bleach. If you desire bleaching, insert the extra tray compartment (3) into compartment 1. When

pouring in the bleach, be careful not to exceed the “max” level marked on the central pivot (see figure). To bleach laundry without carrying out a full wash cycle, pour the bleach into the extra compartment 3, select the “Rinse” cycle 🤨 and activate the “Super Wash” option 🤨.

! It cannot be used in conjunction with 📁, 📋, 📊, 📅, 🌐, 🍎, 🍻, 🍼, 🍺, 🍻, 🍽, 🍾.

Extra rinse

By selecting this option, the efficiency of the rinse is increased and optimal residual detergent removal is guaranteed. It is particularly useful for skin which is sensitive to detergents. We recommend this option is used with a full load of washing, or when a large amount of detergent is required.

! It cannot be used in conjunction with 📂, 🌘, 🍊, 🌞, 🌿, 📁.

Easy Iron

By selecting this option, the wash and spin cycles will be modified in order to reduce the formation of creases.

At the end of the cycle the washing machine drum will rotate slowly; the "Easy Iron" and START/PAUSE indicator lights will flash. To end the cycle press the START/PAUSE button or the "Easy Iron" button.

! It cannot be used in conjunction with ⏚, ⏱, ⏻, ⏽, Ⓞ, Ⓤ, Ⓝ.

Prewash

If this function is selected, the pre-wash cycle will run; this is useful for removing stubborn stains.

N.B.: put the detergent in the relevant compartment.

! It cannot be used in conjunction with 📋, 📊, 📅, 📞, 🌐, 🍎, 🍻, 🍼, 🍺, 🍻, 🍼, 🍽, 30℃ (60°), 40℃.

Detergents and laundry

Detergent

The type and quantity of detergent required depend on the type of fabric you are washing (cotton, wool, silk, etc.), as well as its colour, the washing temperature, the level of soiling and the hardness of the water in the area. Measuring out the detergent carefully will avoid wastage and help to protect the environment: although they are biodegradable, detergents still contain ingredients which alter the balance of nature. We recommend the following:

• use powder detergents for white cotton garments and pre-washing.
• use liquid detergents for delicate cotton garments and for all low-temperature wash cycles.
• use gentle liquid detergents for wool and silk garments. The detergent should be poured into the relevant compartment - or the dispenser placed directly inside the drum - before the wash cycle begins. In the latter case, it will not be possible to select the Cottons with pre-wash cycle.
  ! Use powder detergent for white cotton garments, for pre-washing, and for washing at temperatures over 60°C
  ! Follow the instructions given on the detergent packaging.
  ! Do not use hand washing detergents because these create too much foam.

Preparing the laundry

• Shake out the garments before loading them into the machine.
• Divide the laundry according fabric type (symbol on the washing instruction label) and colour, making sure you separate the coloured garments from the white ones;
  • Empty all pockets and check the buttons;
• Do not exceed the values listed in the “Table of wash cycles”, which refer to the weight of the laundry when dry.

How much does your laundry weigh?

1 sheet	400-500 g
1 pillowcase	150-200 g
1 tablecloth	400-500 g
1 bathrobe	900-1200 g
1 towel	150-250 g
1 pair of jeans	400-500 g
1 shirt	150-200 g

Washing recommendations

Coloureds Intensive: use the cycle on light coloured garments to remove tough stains without damaging the integrity and brightness of the colours. The cycle is studied to guarantee a 60° performance at only 40°. We recommend the use of detergents suitable to wash coloured clothes.

Multi Colour: use the 📋 cycle to wash medium-soiled multi-coloured garments or garments of different colours. Cycle designed to ensure colour care while achieving a 40° performance at just 20°. We recommend using detergents that are suitable for coloured washes and active already at low temperatures.

! We always recommend a separate wash for running garments and the first time you wash a new coloured item.

Darks: use cycle 📋 to wash dark-coloured garments. This programme is designed to maintain dark colours over time. We recommend using a liquid detergent for the best results when washing dark-coloured garments.

Shirts: use the special 📁 wash cycle to wash shirts in different fabrics and colours to guarantee they receive the best possible care.

Duvets: to wash double or single duvets (the weight of which should not exceed 3,5 kg), cushions or clothes padded with goose down such as puffa jackets, use the special 📄 wash cycle. We recommend that duvets are placed in the drum with their edges folded inwards (see figure) and that no more than ¾ of the total volume of the drum is used. To achieve the best results, we recommend that a liquid detergent is used and placed inside the detergent dispenser drawer.

Illustration of a hand inserting a small object into a device, with an arrow indicating direction (no text or symbols present)

Illustration of hands installing or adjusting a baby's seat inside a washing machine (no text or symbols visible)

Quilts: to wash quilts with a synthetic outer layer, use the bag provided and set the wash cycle to 📄.

Bedlinen and towels: Use programme ☐ to wash bed linen and towels in one single cycle: it optimises softener performance and helps you save time and energy. We recommend the use of powder detergent

Anti Allergy Plus 📍: cycle studied for cotton laundry and other resistant fabrics to guarantee the removal of the main allergens such as pollen, mites, cat and dog hair.

Anti Allergy Delicate ☑: cycle studied for cotton laundry and other resistant fabrics to guarantee the removal of pollen and cat and dog hair already at 40°.

Ultradelicates: use programme 📁 to wash very delicate garments having strasses or sequins.

We recommend turning the garments inside out before washing and placing small items into the special bag for washing delicates. Use liquid detergent on delicate garments for best results.

To wash Silk garments and Curtains (these should be folded and placed inside the bag provided), select cycle ⏻ and then option ≡ (in this case it will also be possible to enable the "Extra Rinse" option); the machine will end the cycle while the laundry is soaking and the ≡ indicator light will flash. To drain the water so that the laundry may be removed, press the START/PAUSE button or the ≡ button.

Wool: the wool wash cycle on this Hotpoint-Ariston machine has been tested and approved by The Woolmark Company for washing wool garments labelled as hand washable provided that the garments are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. Hotpoint-Ariston is the first washing machine brand to be approved by The Woolmark Company for Apparel Care- Platinum for its washing performance and consumption of energy and water.

(M1135)

Your washing machine could occasionally fail to work. Before contacting the Technical Assistance Centre (see “Assistance”), make sure that the problem cannot be solved easily using the following list.

Problem:

The washing machine does not switch on.

The wash cycle does not start.

The washing machine does not fill with water.

The washing machine door remains locked.

The machine continuously fills with water and drains.

The washing machine does not drain or spin.

The machine vibrates a lot during the spin cycle.

The washing machine leaks.

The icons corresponding to the "Phase in progress" flash rapidly at the same time as the ON/OFF indicator light.

There is too much foam.

The washing machine door remains locked.

Possible causes / Solutions:

• The appliance is not plugged into the socket fully, or not enough to make contact.
  • There is no power in the house.

- The door is not closed properly.

- The START/PAUSE button has not been pressed.

- The water tap has not been opened.

- A delayed start has been set.

- The water inlet hose is not connected to the tap.

- The hose is bent.

• The water tap has not been opened.

- There is no water supply in the house.

• The pressure is too low.

- The START/PAUSE button has not been pressed.

- If you have selected the function, at the end of the cycle the washing machine drum will rotate slowly; to end the cycle press the START/PAUSE button or the button.

- The drain hose is not fitted at a height between 65 and 100 cm from the floor (see "Installation").

- The free end of the hose is under water (see "Installation").

- If the dwelling is on one of the upper floors of a building, there may be problems relating to water drainage, causing the washing machine to fill with water and drain continuously. Special anti-draining valves are available in shops and help to prevent this inconvenience.

- The wall drainage system is not fitted with a breather pipe.

- The wash cycle does not include draining: Some wash cycles require the drain phase to be started manually (see "Wash cycles and options").

- The 📋 option is enabled: to complete the wash cycle, press the START/PAUSE button ("Wash cycles and options").

- The drain hose is bent (see Installation).

- The drainage duct is clogged.

- The drum was not unlocked correctly during installation (see "Installation").

- The machine is not level (see "Installation").

- The machine is trapped between cabinets and walls (see "Installation").

- The load is unbalanced (see “Detergents and laundry”).

- The water inlet hose is not screwed on properly (see "Installation").

- The detergent dispenser is blocked (to clean it, see “Care and maintenance”).

- The drain hose is not fixed in place properly (see "Installation").

- Switch off the machine and unplug it, wait for approximately 1 minute and then switch it back on again. If the problem persists, contact the Technical Assistance Service.

- The detergent is not suitable for machine washing (it should display the text “for washing machines” or “hand and machine wash”, or the like).

- Too much detergent was used.

- Perform the manual unlocking procedure (see "Precautions and tips").

Before calling for Assistance:

• Check whether you can solve the problem by yourself (see "Trouble shooting");
• Restart the wash cycle to check whether the problem has been solved;
• If it has not, contact the Authorised Technical Assistance Service.

! If the washing machine has been installed or used incorrectly, you will have to pay for the call-out service.

! Always request the assistance of authorised technicians.

Please have the following information to hand:

• the type of problem;
• the appliance model (Mod.);
• the serial number (S/N).

The above information can be found on the data plate located on the appliance itself.

COMMISSION DELEGATED REGULATION (EU) No 1061/2010

Brand	HOTPOINT/ARISTON
Model	AQ105D 69D EU/A
Rated capacity in kg of cotton	10.0
Energy efficiency class on a scale from A+++ (low consumption) to G (high consumption)	A+++
Energy consumption per year in kWh 1)	190.0
Energy consumption of the standard 60 °C cotton programme at full load in kWh 2)	0.953
Energy consumption of the standard 60 °C cotton programme at partial load in kWh 2)	0.768
Energy consumption of the standard 40 °C cotton programme at partial load in kWh 2)	0.685
Power consumption of the off-mode in W	0.5
Power consumption of the left-on mode in W	8.0
Water consumption per year in litres 3)	12971
Spin-drying efficacy class on a scale from G (minimum efficacy) to A (maximum efficacy)	A
Maximum spin speed attained 4)	1600
Remaining moisture content 5)	44%
Programme time of the "standard 60 °C cotton" at full load in minutes	200
Programme time of the "standard 60 °C cotton" at partial load in minutes	150
Programme time of the "standard 40°C cotton" at partial load in minutes	145
Duration of the left-on mode in minutes	30
Noise in dB(A) re 1 pW washing 6)	53
Noise in dB(A) re 1 pW spinning 6)	82

1) The "standard 60°C cotton" at full and partial load and the "standard 40°C cotton" at partial load are the standard washing programmes to which the information in the label and the fiche relates. Standard 60°C cotton and standard 40°C cotton are suitable to clean normally soiled cotton laundry and are the most efficient programmes in terms of combined energy and water consumption. Partial load is half the rated load.

2) Based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.

3) Based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.

4) For the standard 60 °C at full and partial load or the 40°C at partial whichever is lower.

5) Attained for 60 °C cotton at full and partial load or the 40°C at partial whichever is higher.

6) Based on washing and spinning phases for the standard 60°C cotton programme at full load.

INHALTSVERZEICHNIS

DE

DE

Deutsch

Aufstellung, 14-15

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Line drawing of a car door corner with a circular vent and directional arrow (no text or symbols)

Line drawing of a mechanical device with a valve and handle (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows a bolt and ring, bottom shows a flanged base (no text or symbols)

Diagram of a pipe connection with a magnified view of a connector (no text or symbols)

Diagram showing a hand inserting a device into a device with labeled parts and directional arrows indicating action or movement.

Illustration of hands opening a door with a circular vent, showing a black arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with a circular feature and rotational arrow (no text or symbols)

Line drawing of a washing machine with a bucket and outlet tube (no text or symbols)

Hand holding a device with a black arrow pointing to the button (no text or symbols visible)

Hand holding a cable with a black downward arrow indicating a drop or direction (no text or symbols present)

Illustration of a hand opening a washing machine with a black arrow indicating clockwise motion (no text or symbols)

Diagram of a washing machine interior showing fan blades and vent (no text or symbols)

Illustration of a hand inserting a leaf into a container with an arrow indicating direction (no text or symbols)

Line drawing of a person opening a washing machine with hands adjusting the seat (no text or symbols)

"Touch-control" bedieningspaneel

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Line drawing of a car door corner with a circular vent and directional arrow (no text or symbols)

Line drawing of a mechanical valve mechanism with directional arrow (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows a bolt and ring, bottom shows a flanged base (no text or symbols)

Diagram of a pipe connection with a magnified inset showing a connector or fixture (no text or symbols present)

Diagram showing hand positioning a device with labeled parts and directional arrows indicating movement or positioning.

Diagram showing two steps of a hand holding a small object, labeled 1 and 2 with arrows indicating direction.

Illustration of hands operating a washing machine with a curved lid (no text or symbols)

Diagram of a mechanical component with a rotating wheel and base, no text or symbols present

Line drawing of a washing machine with a bucket and outlet tube (no text or symbols)

Hand holding a knob with a black arrow indicating direction (no text or symbols)

Hand holding a switch with a black downward arrow indicating a decrease or action (no text or symbols present)

Illustration of a hand opening a washing machine with a black arrow indicating clockwise motion (no text or symbols)

Diagram of a refrigerator interior showing the air vent and fan blade (no text or symbols)

WASMIDDELBAKJE

Diagram of a device with labeled parts including a numbered component and a leaf symbol inside the main casing.

Illustration of a hand inserting a device into a device with a black arrow indicating the process (no text or symbols present)

Illustration of hands installing or adjusting a door panel inside a washing machine (no text or symbols visible)

Panel de control "touch control"

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Line drawing of a car door corner with a circular vent and directional arrow (no text or symbols)

Line drawing of a mechanical component with a valve and handle, no text or symbols present

Technical line drawing of a mechanical component with two views: top shows a flanged knob and ring, bottom shows a cylindrical base (no text or symbols)

Diagram of a pipe connection with a magnified inset showing a connector or fixture (no text or symbols present)

Diagram showing a hand pressing down on a device with labeled parts and arrows indicating action or sequence.

Diagram showing two hand positioning steps with numbered arrows and magnified views of the hands.

Line drawing of hands opening a door with a circular vent, no text or symbols present

Technical diagram showing a mechanical component with a circular feature and rotational arrow (no text or symbols)

Line drawing of a washing machine with a cup beside it (no text or symbols)

Hand holding a knob with a black arrow indicating rotation (no text or symbols)

Hand holding a cable with a black downward arrow indicating a drop or direction (no text or symbols present)

Illustration of a hand opening a washing machine with a black arrow indicating clockwise motion (no text or symbols)

Diagram of a washing machine interior showing fan blades and vent (no text or symbols)

Panel de control "touch control"

0° 00 30

Panel de control "touch control"

Technical diagram of a device with labeled components and parts, including numbered parts 1, 2, and 3.

Medical illustration showing a hand inserting a device into a patient's ear (no text or symbols present)

Illustration of a person opening a washing machine with arrows indicating the process (no text or symbols present)

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Line drawing of a car door corner with a circular vent and directional arrow (no text or symbols)

Line drawing of a mechanical device with a valve and handle (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows a bolt and ring, bottom shows a flanged base (no text or symbols)

Diagram of a pipe connection with a magnified inset showing a connector (no text or symbols)

Diagram showing a hand inserting a device into a device with labeled parts and arrows indicating direction of movement.

Diagram showing two hand positioning steps with numbered arrows and magnified views of the hands.

Line drawing of hands opening a door with a circular vent, no text or symbols present

Diagram of a mechanical component with a rotating dial and base, no text or symbols present

Line drawing of a washing machine with a bucket and outlet tube (no text or symbols)

Hand holding a device with a black arrow pointing to the button (no text or symbols visible)

Hand holding a switch with a black downward arrow indicating a decrease or drop (no text or symbols present)

Line drawing of a front-loading washing machine (no text or symbols)

PAINEL DE COMANDOS
PÉS REGULÁVEIS

PORTA DE VIDRO

Illustration of a hand opening a washing machine with a black arrow indicating clockwise motion (no text or symbols)

Diagram of a washing machine interior showing fan blades and vent (no text or symbols)

Illustration of hands using a tool to adjust or install a piece of cheese into a container (no text or symbols visible)

Illustration of hands installing or adjusting a circular component inside a washing machine (no text or symbols visible)

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Line drawing of a car door corner with a circular vent and directional arrow (no text or symbols)

Line drawing of a mechanical component with a valve and scroll (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows a bolt and ring, bottom shows a flanged base (no text or symbols)

Diagram of a pipe connection with a bottle and connector (no text or symbols)

Diagram showing hand operating a device with labeled parts and directional arrows indicating action steps

Diagram showing two hand positioning steps with numbered annotations indicating step 1 and step 2.

Line drawing of hands operating a washing machine with a curved lid (no text or symbols)

Diagram of a mechanical component with a circular feature and rotational arrows, no text or symbols present

Line drawing of a washing machine with a bucket and outlet tube (no text or symbols)

Hand holding a device with a black arrow pointing to the button (no text or symbols visible)

Hand holding a cable with a black downward arrow indicating a drop or action (no text or symbols present)

Illustration of a hand opening a washing machine with a black arrow indicating clockwise motion (no text or symbols)

Diagram of a refrigerator interior showing the fan blade and vent, with an arrow indicating rotation (no text or symbols present)

Diagram of a device with labeled components including a 3-pin connector, 1, and 2 parts, connected to a cable.

Illustration of a hand inserting a device into a device with a black arrow indicating the process (no text or symbols present)

Illustration of hands installing or adjusting a circular component inside a washing machine (no text or symbols visible)

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Line drawing of a car door corner with a circular vent and directional arrow (no text or symbols)

Line drawing of a mechanical device with a valve and handle (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows a flanged knob and ring, bottom shows a cylindrical base (no text or symbols)

Diagram of a pipe connection with a magnified inset showing a connector or fixture (no text or symbols present)

Diagram showing a hand inserting a device into a device with labeled parts and arrows indicating direction of movement.

Line drawing of hands holding a fan or towel next to a washing machine (no text or symbols)

Diagram of a mechanical component with a rotating knob and directional arrows, no text or symbols present

Line drawing of a washing machine with a bucket and outlet tube (no text or symbols)

Hand holding a device with a black arrow pointing to the button (no text or symbols visible)

Hand holding a small electronic component with a downward arrow indicating a decrease or drop (no text or symbols present)

Illustration of a hand opening a washing machine with a black arrow indicating clockwise motion (no text or symbols)

Diagram of a refrigerator interior showing the lid and door mechanism with an arrow indicating direction (no text or symbols present)

Technical diagram of a device with labeled components and parts, including numbered parts 1, 2, and 3.

Illustration of a hand inserting a small object into a device, with an arrow indicating the process (no text or symbols present)

Illustration of a person opening a washing machine with a hand adjusting the inner wheel (no text or symbols present)

Causes / Solutions possibles:
