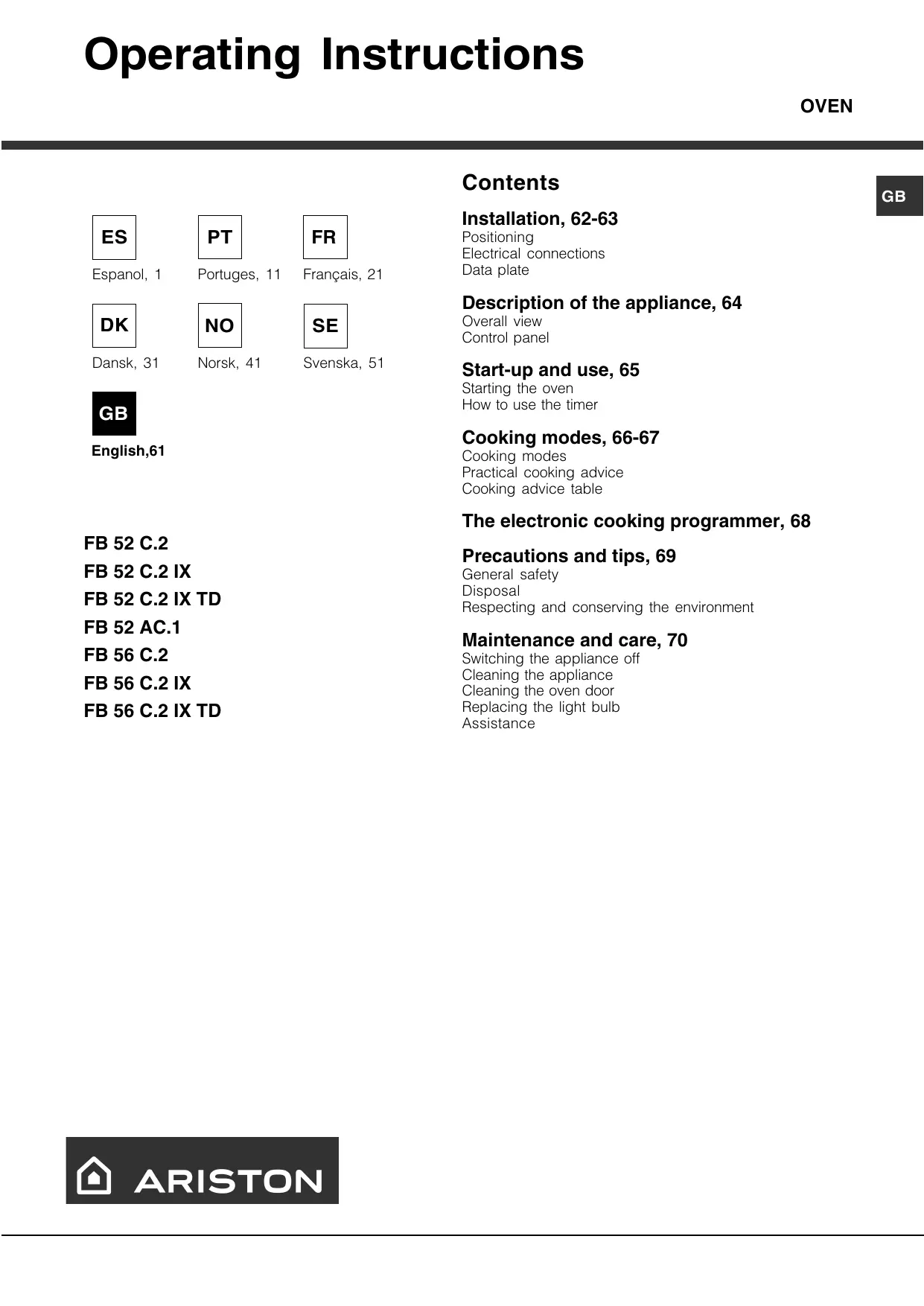

Operating Instructions

Installation, 62-63 Positioning Electrical connections Data plate

Description of the appliance, 64 Overall view Control panel

Start-up and use, 65 Starting the oven How to use the timer

Cooking modes, 66-67 Cooking modes Practical cooking advice Cooking advice table

The electronic cooking programmer, 68 Precautions and tips, 69

General safety Disposal Respecting and conserving the environment

Maintenance and care, 70 Switching the appliance off Cleaning the appliance Cleaning the oven door Replacing the light bulb Assistance

GB Installation Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance. Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Ventilation To ensure good ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm (see diagrams).

Keep packaging material out of the reach of children. It can become a choking or suffocation hazard. (see Precautions and tips). The appliance must be installed by a qualified person in compliance with the instructions provided. Incorrect installation may cause harm to persons, animals or may damage property. Fitting the appliance Use the appropriate cabinet to ensure that the appliance functions properly. • The panels adjacent to the oven must be made of heat-resistant material. • Cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 100°C.

Centring and fastening Position the 4 tabs on the side of the oven according to the 4 holes of the outer frame. Adjust the tabs according to the thickness of the cabinet side panel, as shown below: thickness of 20 mm: take off the removable part of the tab (see diagram)

thickness of 18 mm: use the first groove, which has already been set in the factory (see diagram)

thickness of 16 mm: use the second groove (see diagram)

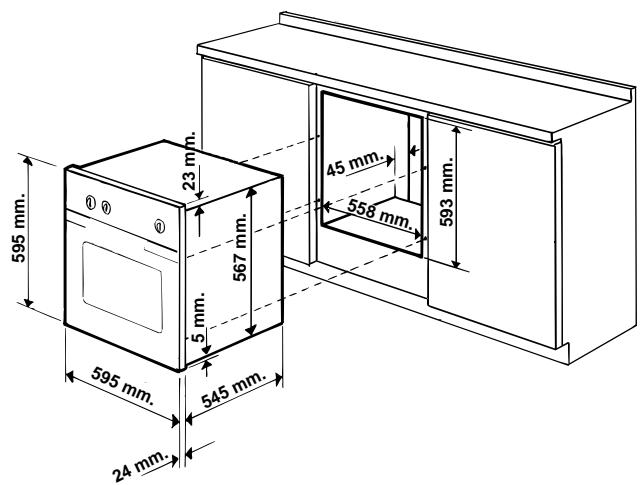

• to install the oven under the counter (see diagram) and in a kitchen unit, the cabinet must have the following dimensions:

The appliance must not come into contact with electrical parts once it has been installed. The consumption indications on the data plate have been calculated for this type of installation.

Secure the appliance to the cabinet by opening the oven door and putting 4 screws into the 4 holes of the outer frame. ! All parts which ensure the safe operation of the appliance must not be removable without the aid of a tool.

Electrical connections ! Ovens equipped with a three-pole power supply cable are designed to operate with alternating current at the voltage and frequency indicated on the data plate located on the appliance (see below). Fitting the power supply cable 1. Open the terminal board by inserting a screwdriver into the side tabs of the cover. Use the screwdriver as a lever by pushing it down to open the cover (see diagram).

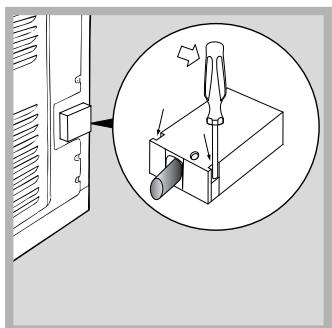

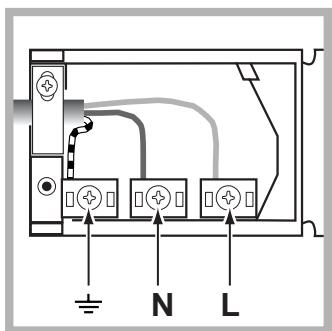

2. Install the power supply cable by loosening the cable clamp screw and the three wire contact screws L-N- . Connect the wires to the corresponding terminals: the Blue wire to the terminal marked (N), the Brown wire to the N L terminal marked (L) and the Yellow Green wire to the terminal marked (see diagram).

• The socket can withstand the maximum power of the appliance, which is indicated on the data plate (see below). • The voltage must be in the range between the values indicated on the data plate (see below). • The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets. ! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only (see Assistance). ! The manufacturer declines any liability should these safety measures not be observed.

DATA PLATE D im en sion s

3. Secure the cable by fastening the clamp screw. 4. Close the cover of the terminal board. Connecting the supply cable to the mains Install a standardised plug corresponding to the load indicated on the data plate (see side). The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3 mm installed between the appliance and the mains, suitable for the load indicated and complying with current electrical regulations (the earthing wire must not be interrupted by the circuit-breaker). The supply cable must not come into contact with surfaces with temperatures higher than 50°C. ! The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations. Before connecting to the power supply, make sure that: • The appliance is earthed and the plug is compliant with the law.

ENERGY LABEL M o d e ls w ith c oo lin g ven tilatio n : E ne rg y cons um ption for N atural co nve ctio n he ating m o de: = C onvection D ec la re d energy consu m ption for F orced con vec tion C lass he ating m o de: > F an assisted M o d e ls w ith o u t c o o lin g ve n tilatio n : E ne rg y cons um ption for F orce d co nve ctio n he ating m o de: > F an assisted D ec la re d energy consu m ption for N atural c onvection C lass he ating m o de: = C onvection Th is ap pliance c onform s to the follo w in g Europea n Econ om ic C om m un ity directives : - 73 /2 3/E E C of 19 /0 2/73 (L ow V oltage ) and subseque nt am endm en ts; -89/336 /E E C o f 03/05 /8 9 (E le ctro m agne tic C om patibility) and su bse quen t am en dm en ts ; - 93 /6 8/E E C of 22 /0 7/93 and su bse quen t am en dm en ts . - 20 02/96 /E C

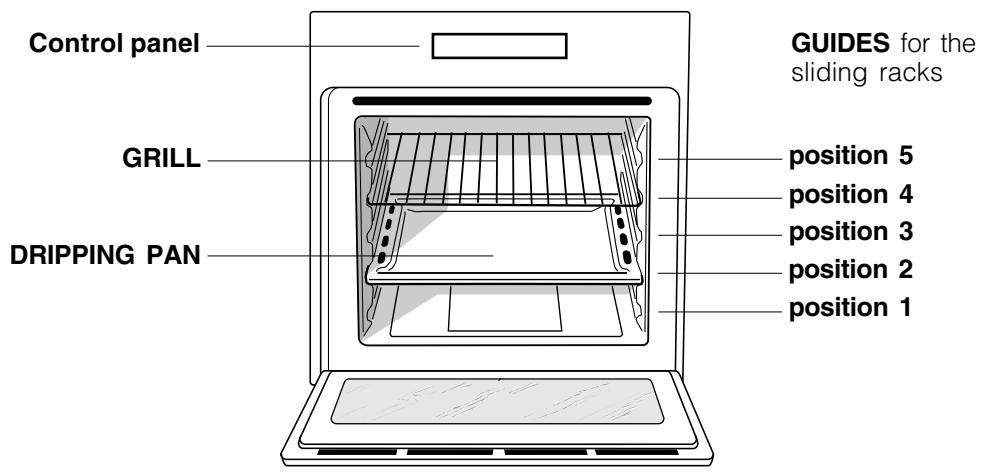

GB Description of the appliance

GUIDES for the sliding racks

* Only on certain models

Start-up and use ! The first time you use your appliance, heat the empty oven with its door closed at its maximum temperature for at least half an hour. Ensure that the room is well ventilated before switching the oven off and opening the oven door. The appliance may produce a slightly unpleasant odour caused by the burning away of protective substances used during the manufacturing process.

Starting the oven 1. Select the desired cooking mode by turning the SELECTOR knob. 2. Select the desired temperature with the THERMOSTAT knob. See the Cooking advice table for cooking modes and the suggested cooking temperatures (see Cooking Modes). 3. When preheating is finished, the THERMOSTAT indicator light will stay on: place the food in the oven. 4. You may do the following during cooking: - change the cooking mode by turning the SELECTOR knob. - change the temperature by turning the THERMOSTAT knob. - stop cooking by turning the SELECTOR knob to the “0” position.

with the SELECTOR It goes on when selecting knob. It stays on when a cooking mode is selected.

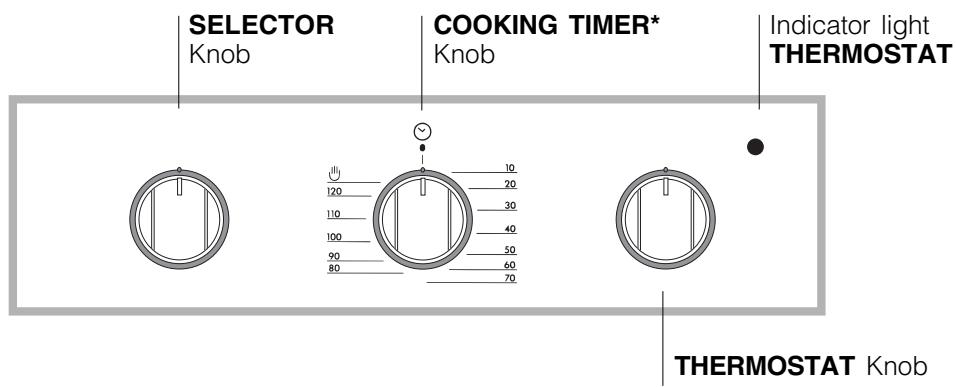

Using the cooking timer* 1. To set the buzzer, turn the COOKING TIMER knob clockwise almost one complete revolution. 2. Turn the knob anticlockwise to set the desired time: align the minutes shown on the COOKING TIMER knob with the indicator on the control panel. 3. When the selected time has elapsed, a buzzer sounds and the oven turns off. 4. When the oven is off the cooking timer can be used as a normal timer. To use the oven manually, in other words when you do not wish to use the end of cooking timer, turn the COOKING TIMER knob until it reaches the ' symbol.

! Never put objects directly on the oven bottom to avoid damaging the enamel coating. ! Always place cookware on the rack(s) provided. Cooling ventilation In order to cool down the external temperature of the oven, some models are fitted with a cooling fan that blows out air between the control panel and the oven door. ! Once the cooking has been completed, the cooling fan remains on until the oven has cooled down sufficiently.

* Only on certain models

Practical cooking advice

! A temperature value can be set for all cooking modes between 60°C and Max, except for

! Do not place racks in position 1 and 5 during fanassisted cooking. Excessive direct heat can burn temperature sensitive foods.

• GRILL (recommended: set only to MAX power level); • GRATIN (recommended: do not exceed 200°C).

TRADITIONAL OVEN mode

Both the top and bottom heating elements will come on. With this traditional cooking mode, it is best to use one cooking rack only; if more than one rack is used, the heat will be distributed unevenly.

> MULTI-COOKING mode All the heating elements (top and bottom), as well as the fan, will come on. Since the heat remains constant throughout the oven, the air cooks and browns food uniformly. A maximum of two racks may be used at the same time.

! In the GRILL and GRATIN cooking modes, place the dripping pan in position 1 to collect cooking residues (fat and/or grease). MULTI-COOKING • Use position 2 and 4, placing the food that requires more heat on 2. • Place the dripping pan on the bottom and the rack on top. GRILL • Insert the rack in position 3 or 4. Place the food in the centre of the rack. • We recommend that you set the maximum power level. The top heating element is regulated by a thermostat and may not always be on.

PIZZA The top heating element comes on. This mode can be used to brown food at the end of cooking.

• For best results when cooking pizza, use the MULTICOOKING mode.

• Use a light aluminium pizza pan. Place it on the rack provided. For a crispy crust, do not use the dripping pan (prevents crust from forming by extending cooking time).

The top heating element comes on. The extremely high and direct temperature of the grill makes it possible to brown the surface of meats and roasts while locking in the juices to keep them tender. The grill is also highly recommended for dishes that require a high temperature on the surface: such as beef steaks, veal, rib steak, filets, hamburgers etc... Some grilling examples are included in the “Practical Cooking Advice” paragraph. Always cook in this mode with the oven door closed.

A GRATIN mode The top heating element, as well as the fan, will come on. This combination of features increases the effectiveness of the unidirectional thermal radiation of the heating elements through forced circulation of the air throughout the oven. This helps prevent food from burning on the surface, allowing the heat to penetrate right into the food. Always cook in this mode with the oven door closed.

• If the pizza has a lot of toppings, we recommend adding the mozzarella cheese on top of the pizza halfway through the cooking process.

Preheating time (min)

Recommended temperature

Cooking time (minutes)

Duck Roast veal or beef Pork roast Biscuits (short pastry) Tarts Pizza (on 2 racks) Lasagne Lamb Roast chicken + potatoes Mackerel Plum cake Cream puffs (on 2 racks) Biscuits (on 2 racks) Sponge cake (on 1 rack) Sponge cake (on 2 racks) Savoury pies

1 1 1 1 1 1 1 1+1 1 1 0.5 0.5 0.5 1 1.5

3 3 3 3 3 2 and 4 3 2 2 and 4 2 2 2 and 4 2 and 4 2 2 and 4 3

200 200 200 180 180 230 180 180 200 180 170 190 180 170 170 200

Browning food to perfect cooking

Soles and cuttlefish Squid and prawn kebabs Cod filet Grilled vegetables Veal steak Cutlets Hamburgers Mackerels Toasts Grilled chicken Cuttlefish

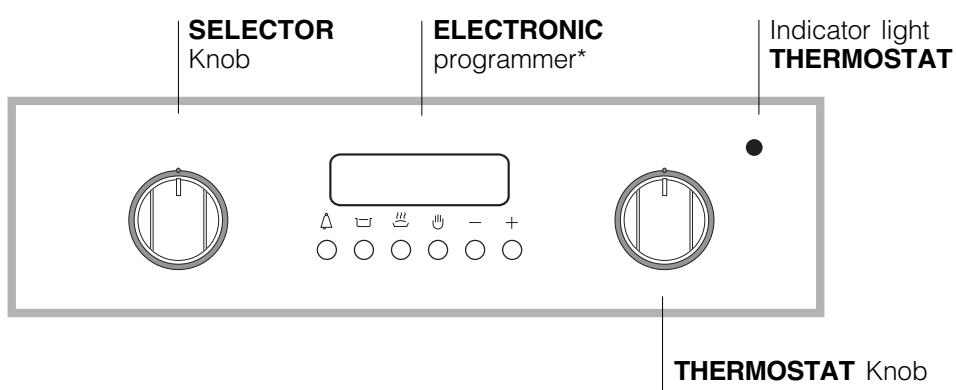

The electronic cooking programmer

GB This feature allows you to program the oven or the grill as follows: • delayed cooking time for a specified period; • immediate start for a specified period; • timer.

Button Functions: H : Timer with hours and minutes; $ : cooking time; % : end cooking time; ( : Manual change; ) : set cooking time (to count down); * : set cooking time (to start from zero) How to reset the digital clock

After the appliance has been connected to the power supply, or after a power cut, the clock display will automatically reset to 0:00 and begin to blink. • Press the $ and % buttons consecutively and then reset the time (within 4 seconds) using the ) and * buttons. The button * advances the hours. The button ) decreases the hours. The time can also be changed in the following two ways: 1. Repeat all of the steps above. 2. Press the ( button, and then use the ) and * buttons to reset the time. Manual operation of the oven Once the time has been set, the programmer automatically switches to manual mode. Note: Press the ( button to restore the manual mode after every “Automatic” cooking session. Delayed cooking time for a specified period The total cooking time as well as the time at which the cooking will finish must be set. If we assume that the time display reads10:00: 1. Turn the oven control knob to the setting and temperature desired (example: static oven mode at 200°C). 2. Press the button $ and then set the cooking time (within four seconds) using the ) and * buttons. Supposing the cooking time is set to 30 minutes, the display will read as follows:

Release the button, and within 4 seconds, the current time will reappear with the m symbol along with the word “auto” 3. Press the button % and then use the ) and * buttons to set the time for when the cooking program should end. Let us imagine this time to be 1:00 p.m.

4. After the button has been released, the current time will be displayed after approximately 4 seconds:

When “auto” is on, it indicates that the length of cooking time and the time it is due to finish have been programmed in automatic mode. At this point, the oven will turn on automatically at 12:30 and turn off after 30 minutes. When the oven is turned on, the symbol m will be displayed for the entire cooking time. The cooking duration can be displayed at any time by pressing the button $ , and the time it is due to finish may be displayed by pressing the button % . Once cooking is completed, the timer will ring; to turn it off, simply press any button except the ) and * buttons. Immediate start for a specified period By programming just the duration (points 1 and 2 of the “Delayed cooking time for specified period” section), cooking will begin immediately. To cancel a cooking schedule already programmed Press the $ button, and use the ) button to set the time to:

then press the manual cooking mode button (. Timer Feature The timer feature allows you to enter a specific amount of time and begins to count down. This feature does not turn the oven on or off; it merely sounds when the time has elapsed. When the button “ has been pressed, the display will read as follows:

Then use the * and ) buttons to set the desired time. As soon as the button has been released, the timer will start to count down and the current time will be displayed.

After the time has expired, an audible signal will be emitted, which can be turned off by pressing any button (except the * and ) buttons). At this point the symbol H will also turn off. Correction/Cancellation of data • The data entered can be changed at any time by pressing the corresponding button and the * or ) buttons. • When the data for the cooking duration is cancelled, the data for the time cooking is due to end is also cancelled automatically, and vice versa. • If the oven has already been programmed, it will not accept times for the end of cooking which are before the start of the programmed cooking process.

Precautions and tips ! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

General safety • The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use. • The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms. • When handling the appliance, always use the handles provided on the sides of the oven. • Do not touch the appliance with bare feet or with wet or moist hands and feet. • The appliance must be used to cook food by adults only and according to the instructions in this manual. • When the appliance is in use, the heating elements and some parts of the oven door become extremely hot. Make sure you don't touch them and keep children well away. • Ensure that the power supply cable of other electrical appliances does not come into contact with the hot parts of the oven. • The openings used for ventilation and dispersion of heat must never be covered. • Always grip the oven door handle in the centre: the ends may be hot. • Always use oven gloves to place cookware in the oven or when removing it. • Do not use aluminium foil to line the bottom of the oven. • Do not place flammable materials in the oven: if the appliance is switched on by mistake, it could catch fire.

• In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre (see Assistance).

• Do not rest heavy objects on the open oven door.

Disposal • Observe local environmental standards when disposing packaging material for recycling purposes. Observe existing legislation when disposing of the old appliance. • The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Respecting and conserving the environment • By using the appliance in the hours between late afternoon and early morning, you can help reduce the work load placed on electrical companies. • Always keep the oven door closed when using the GRILL and GRATIN mode to attain best results and to save energy (approximately 10%). • Regularly check the door seals and wipe clean to ensure they are free of debris so that they stick properly to the door and do not allow heat to disperse.

• Always make sure the knobs are in the “l”/“¡” position when the appliance is not in use. • When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable. • Never carry out any cleaning or maintenance work without having unplugged the plug from the mains.

Maintenance and care

GB Switching the appliance off

Inspecting the seals

Disconnect your appliance from the electricity supply before carrying out any work on it.

Check the door seals around the oven periodically. If the seals are damaged, please contact your nearest After-sales Service Centre (see Assistance). We recommend not using the oven until the seals have been replaced.

Cleaning the appliance • The stainless-steel or enamel-coated external parts as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and neutral soap. If these stains are difficult to remove, use only specialised products. After cleaning, rinse and dry thoroughly. Do not use abrasive powders or corrosive substances. • Ideally, the inside of the oven should be cleaned after each use, when it is still lukewarm. Use hot water and detergent, rinse and dry with a soft cloth. Do not use abrasive products. • All accessories - with the exception of the sliding racks - can be washed like everyday crockery, and are even dishwasher safe. • Never use steam cleaners or pressure cleaners on the appliance.

Cleaning the oven door Clean the glass part of the oven door using a sponge and a non-abrasive cleaning product, then dry thoroughly with a soft cloth. Do not use rough abrasive material or sharp metal scrapers as these could scratch the surface and cause the glass to crack. To clean more thoroughly, you can remove the oven door. 1. Open the oven door fully (see diagram)

2. Lift up and turn the small levers located on the two hinges (see diagram)

3. Grip the door on the two external sides and close it approximately half way. Then pull the door towards you lifting it out of its seat (see diagram). To replace the door, reverse this sequence.

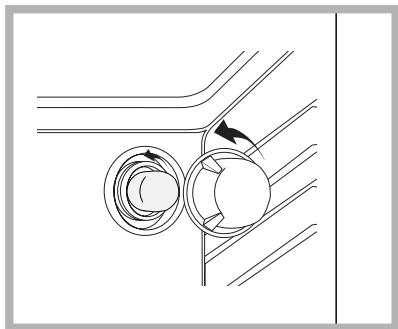

Replacing the light bulb To replace the oven light bulb:

1. Remove the glass cover of the lamp-holder. 2. Remove the light bulb and replace it with a similar one: Wattage 25 W, cap E 14. 3. Replace the glass cover (see diagram).

Assistance Communicating: • appliance model (Mod.) • serial number (S/N) This information is found on the data plate located on the appliance and/or on the packaging.
