Product type	Cooker hood
Brand	AEG
Model	X76263MD2
Width	90 cm
Depth	50 cm
Height	60-110 cm (adjustable)
Net weight	15 kg
Power supply	220-240 V ~ 50 Hz
Motor power	250 W
Lighting	LED, 2 x 3 W
Number of speeds	3 + intensive
Maximum noise level	65 dB
Maximum airflow	650 m³/h
Control type	Touch electronic
Grease filter	Aluminium, washable
Carbon filter	Optional (for recirculation)
Recirculation function	Possible (kit sold separately)
Maintenance	Regular cleaning of the grease filter every 4 weeks
Safety	Automatic shut-off in case of overheating
Repairability index	7.5/10 (spare parts available)
Installation	Wall mounting, external evacuation or recirculation
Included accessories	Mounting kit, user manual
Warranty	2 years (parts and labor)

Frequently Asked Questions - X76263MD2 AEG

How to install the AEG X76263MD2 cooker hood?

Installation must be carried out by a qualified professional. Securely fix the hood to the wall, connect it to a 220-240 V socket and connect the exhaust duct if you are using extraction mode. Maintain a minimum distance of 65 cm between the hood and the hob.

How to clean the grease filters?

The aluminium grease filters can be cleaned in the dishwasher at 65 °C or by hand with hot water and detergent. Let them dry before reinstalling. It is recommended to clean them every 4 weeks.

Is a carbon filter needed for recirculation mode?

Yes, if you use the hood in recirculation mode (without external evacuation), you must install a carbon filter. It is not supplied; you can purchase it separately. Replace it every 3 to 6 months depending on use.

How to replace the LED lighting?

The LEDs are integrated and must be replaced by a professional. If the lighting no longer works, contact AEG after-sales service.

The hood is making noise. Is this normal?

A noise level up to 65 dB at maximum speed is normal. If the noise is abnormal, check that the filters are properly fitted and clean. Incorrect installation can also cause vibrations.

How to use the intensive function?

The intensive function provides a power boost for a few minutes. To activate it, press the dedicated button (often identified by 'Boost' or a symbol). It returns automatically to normal speed after a certain time.

Where can I find spare parts for the hood?

Spare parts (filters, bulbs, remote control) are available from AEG customer service or on the official website. Use the reference X76263MD2 to identify compatible parts.

What is the recommended mounting height?

For an electric hob, the minimum distance is 65 cm; for a gas hob, 75 cm. These distances ensure efficient extraction and safety.

How to switch from extraction mode to recirculation mode?

You must block the external air outlet and install a carbon filter. Consult the manual for the installation diagram. The recirculation kit is sold separately.

What to do if the hood does not turn on?

First check the power supply (fuse, circuit breaker). Make sure the plug is properly connected. If the problem persists, contact AEG technical support.

USER MANUAL X76263MD2 AEG

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.aeg.com

Register your product for better service: www.aeg.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

ENVIRONMENT CONCERNS

Recycle the materials with the symbol 📁 Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol 📋 with the household waste. Return the product to your local recycling facility or contact your municipal office department for household waste or the shop where you purchased this product.

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information.

General information and tips

Environmental information.

Subject to change without notice.

SAFETY INSTRUCTIONS

Caution! Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The extractor hood has been designed exclusively for domestic use.

Caution! Do not connect the appliance to the mains until the installation is fully complete.

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations. The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety. This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance. This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance. Never use the hood without effectively mounted grating! The hood must NEVER be used as a support surface unless specifically indicated. The premises where the appliance is stalled must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels. The flaming of foods beneath the hood itself is severely prohibited. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

Caution! Accessible parts of the hood may become hot when used with cooking appliance.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities. The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks. We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.

Warning! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

2. USE

The hood serves to aspirate the fumes and vapors resulting from cooking.

The attached installation manual indicates the version to be used depending on the model you have, the suction version with

external evacuation of filtering with

internal recirculation

3. INSTALLATION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III in accordance with installation instructions.

⚠ Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service. The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

4. MAINTENANCE

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products.

Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions. The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

4.1 Grease filter - The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

4.2 Charcoal filter - Type 150 LONG LIFE - Washable activated charcoal filter

The charcoal filter can be washed once every two months using hot water and a suitable detergent, or in a dishwasher at 65° C (if the dishwasher is used, select the full cycle function and leave dishes out). Eliminate excess water without damaging the filter, then remove the mattress located inside the plastic frame and put it in the oven for 10 minutes at 100° C to dry completely. Replace the mattress every 3 years and when the cloth is damaged.

4.3 Type 60/80 - NON-washable activated charcoal filter

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four mounths. The charcoal filter may NOT be washed or regenerated.

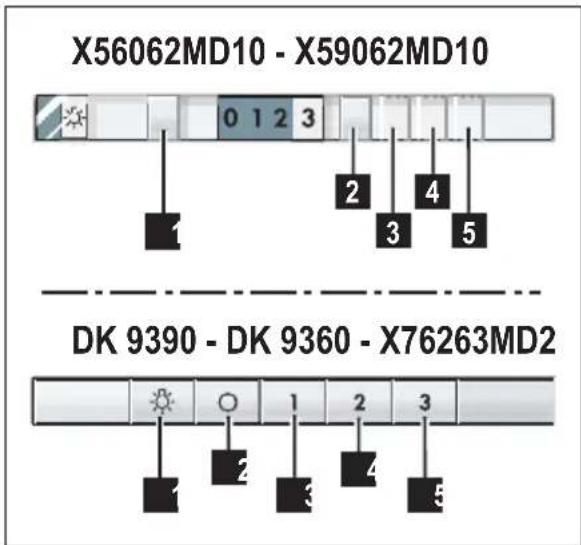

5. CONTROLS

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

1. ON/OFF lighting

2. OFF motors

3. • 1. • 1. Minimum suction power (3.), medium (4.), maximum (5.).

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

6. LIGHTING

Disconnect the hood from the electricity. Warning! Prior to touching the light bulbs ensure they are cooled down.

6.1 X56062MD10 - X59062MD10:

Replace the damaged lamp using 11W PL lamps only (G23).

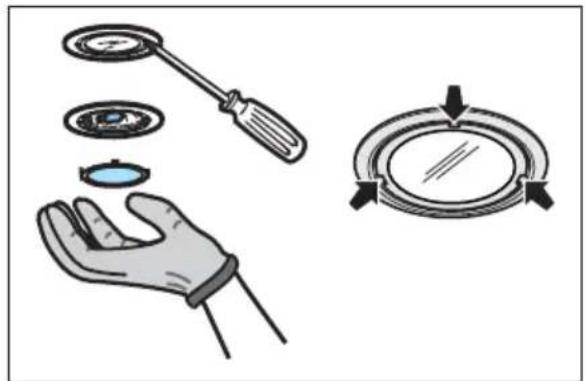

6.2 DK 9360 - DK 9390 - X76263MD2:

Replace with a new 12 Volt, 20 Watt (Maximum) halogen light made for a G-4 base SUITABLE FOR USE IN OPEN LUMINAIRES. Follow package directions and do not touch new light with bare hands.

6.2 DK 9360 - DK 9390 - X76263MD2:
